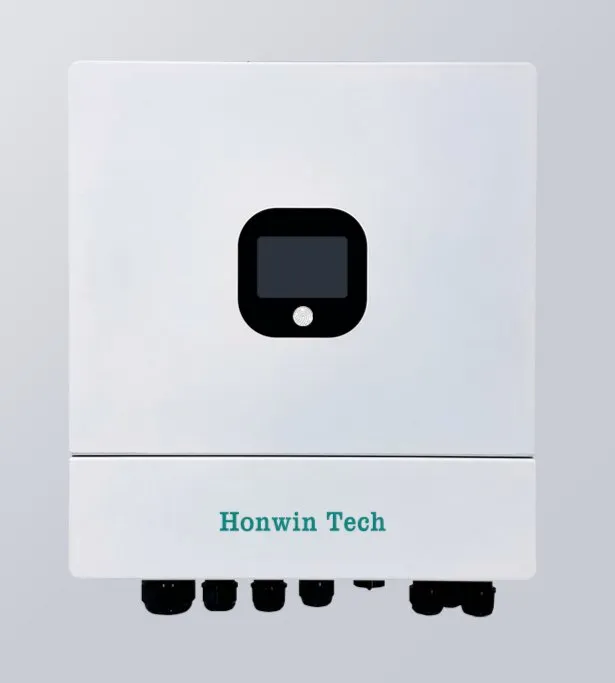

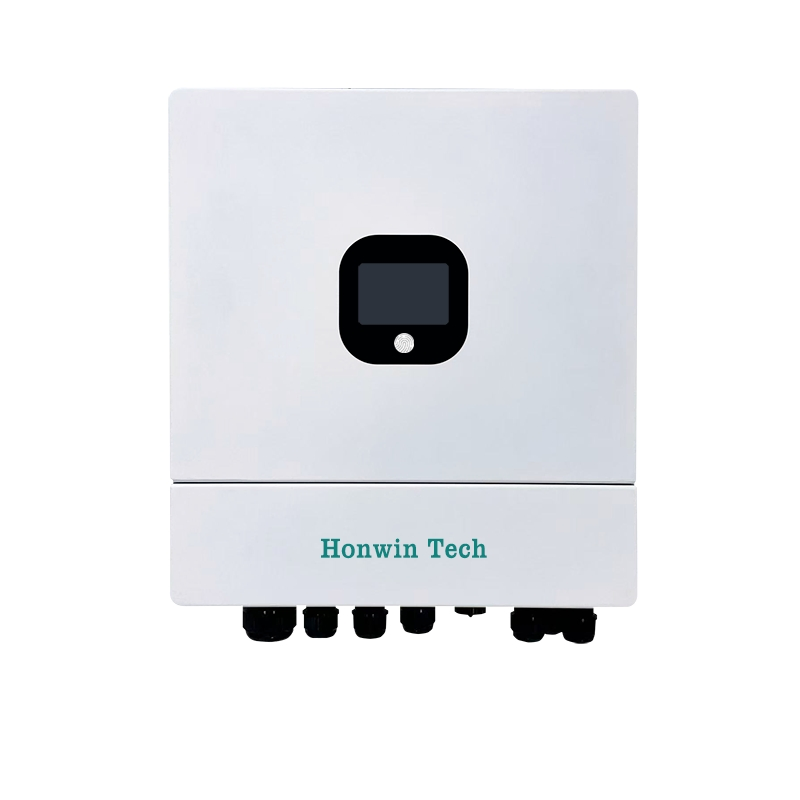

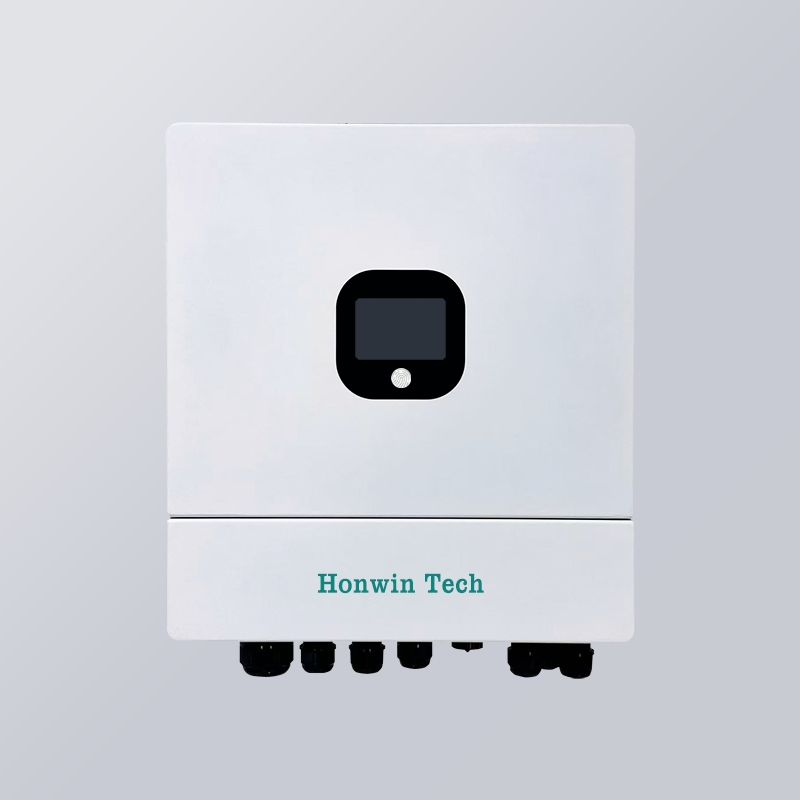

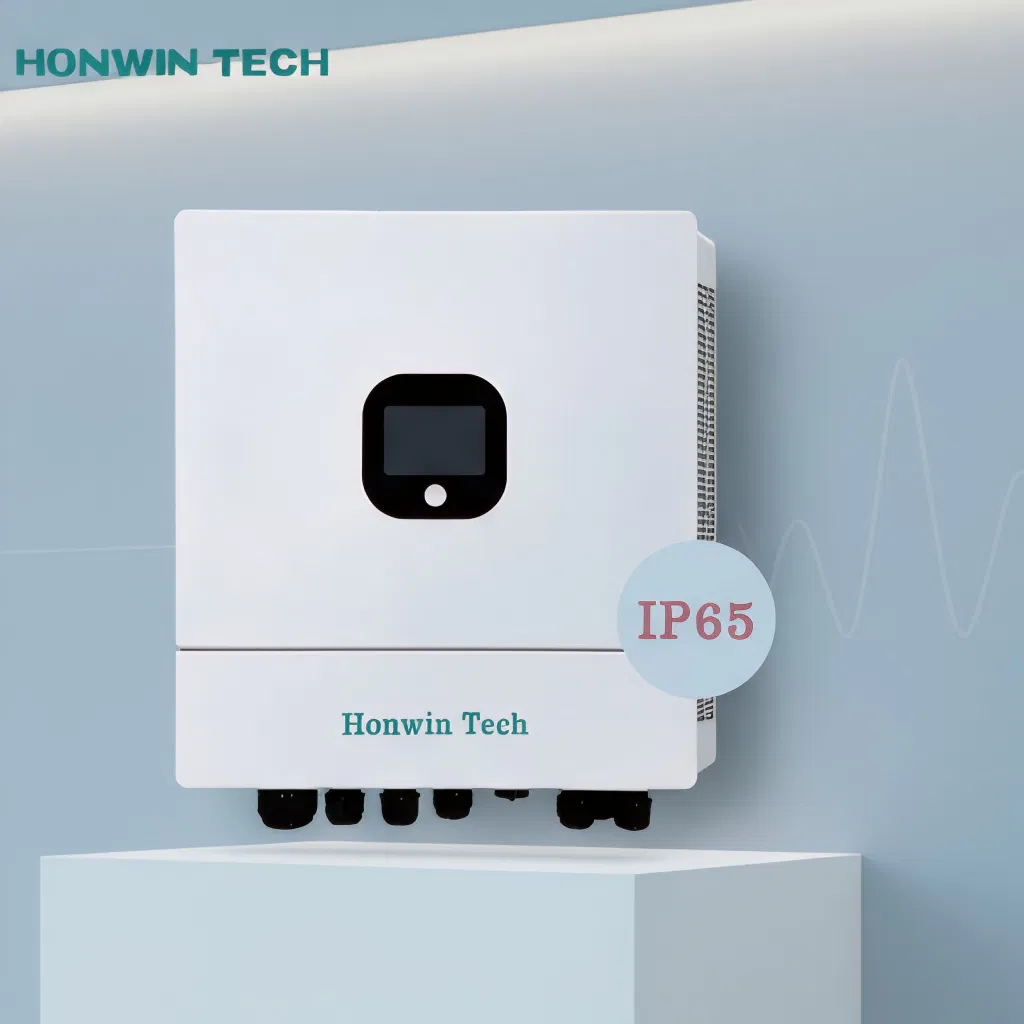

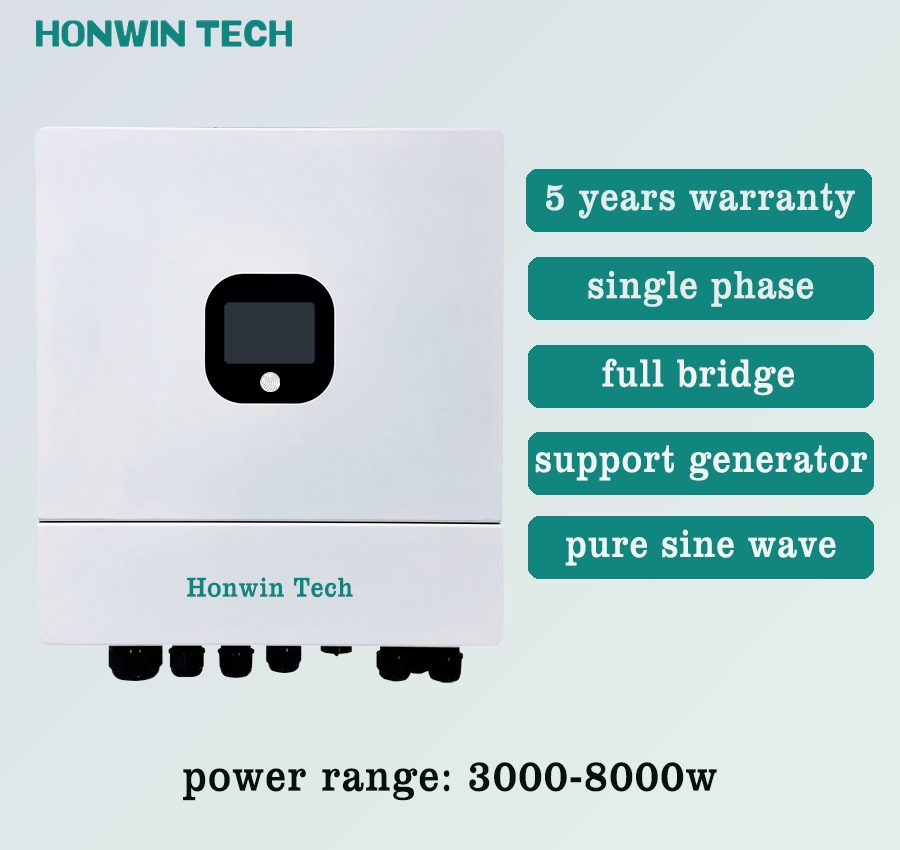

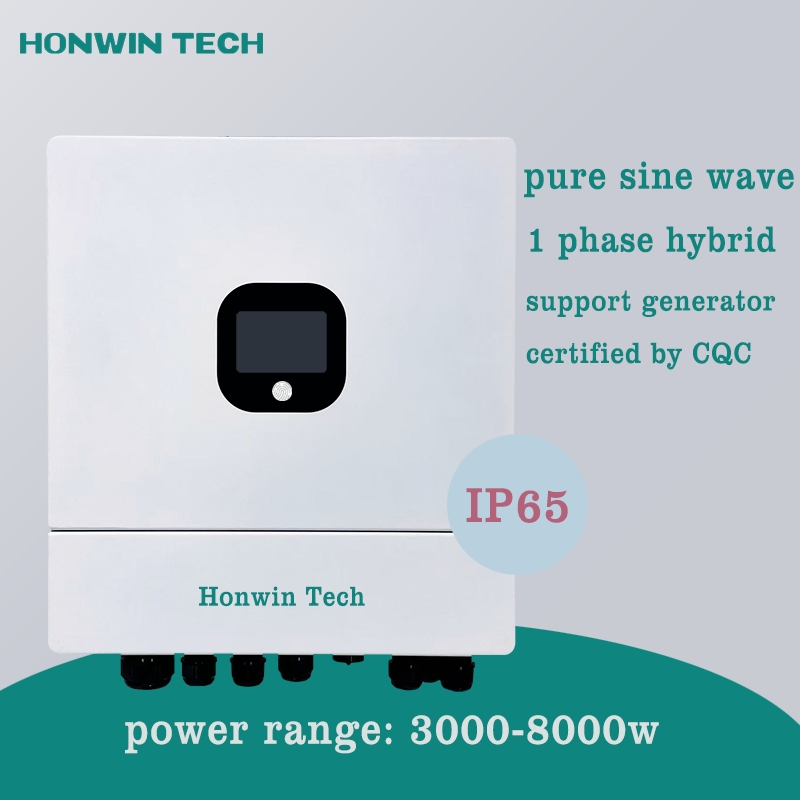

The S5 series household energy storage all-in-one machine is designed to provide you with an intelligent and convenient photovoltaic energy storage solution. Based on advanced power conversion and energy storage technology, important components such as off-grid energy storage inverters, switch boxes, and batteries feature an elegant and unique appearance.
| Parameters | S5-3K-S65 | S5-3.68K-S65 | S5-4K-S65 | S5-5K-S65 | S5-6K-S65 | S5-8K-S65 |
|---|---|---|---|---|---|---|
| Efficiency | ||||||
| Max Efficiency | 98.10% | 98.10% | 98.20% | 98.20% | 98.30% | 98.30% |
| MPPT Efficiency | 98.90% | 98.90% | 98.90% | 98.90% | 98.90% | 98.90% |
| DC (PV) Input | ||||||
| Max. Input Power | 4500W | 5500W | 6000W | 7500W | 9000W | 12000W |
| MPPT Voltage Range | 90V ~ 550V | |||||
| AC Output (Grid) | ||||||
| Rated Output Power | 3000W | 3680W | 4000W | 5000W | 6000W | 8000W |
| Switch Time | <10ms | |||||
| Battery Parameters | ||||||
| Battery Type | Lithium battery/Lead-acid battery | |||||
| Max. Charge/Discharge | 60A | 80A | 80A | 120A | 120A | 160A |
