Custom off Grid Hybrid Solar Inverter 11kw Home Energy Storage Solar Power Inverter

Basic Information

Model NO.

GD Series B

Nature of Source Flow

Active Inverter

Phase

Single

Output Power

>1000W

Certification

CE

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Full-Bridge Type

Nature of Wave String

Sine Wave Inverter

AC Input

220/230/240VAC

Input Formation

L+N+PE

Input Frequency

50-60Hz (Adaptive)

Output Wave

Pure Sine Wave

OEM&ODM

Accept

Origin

China

Product Description

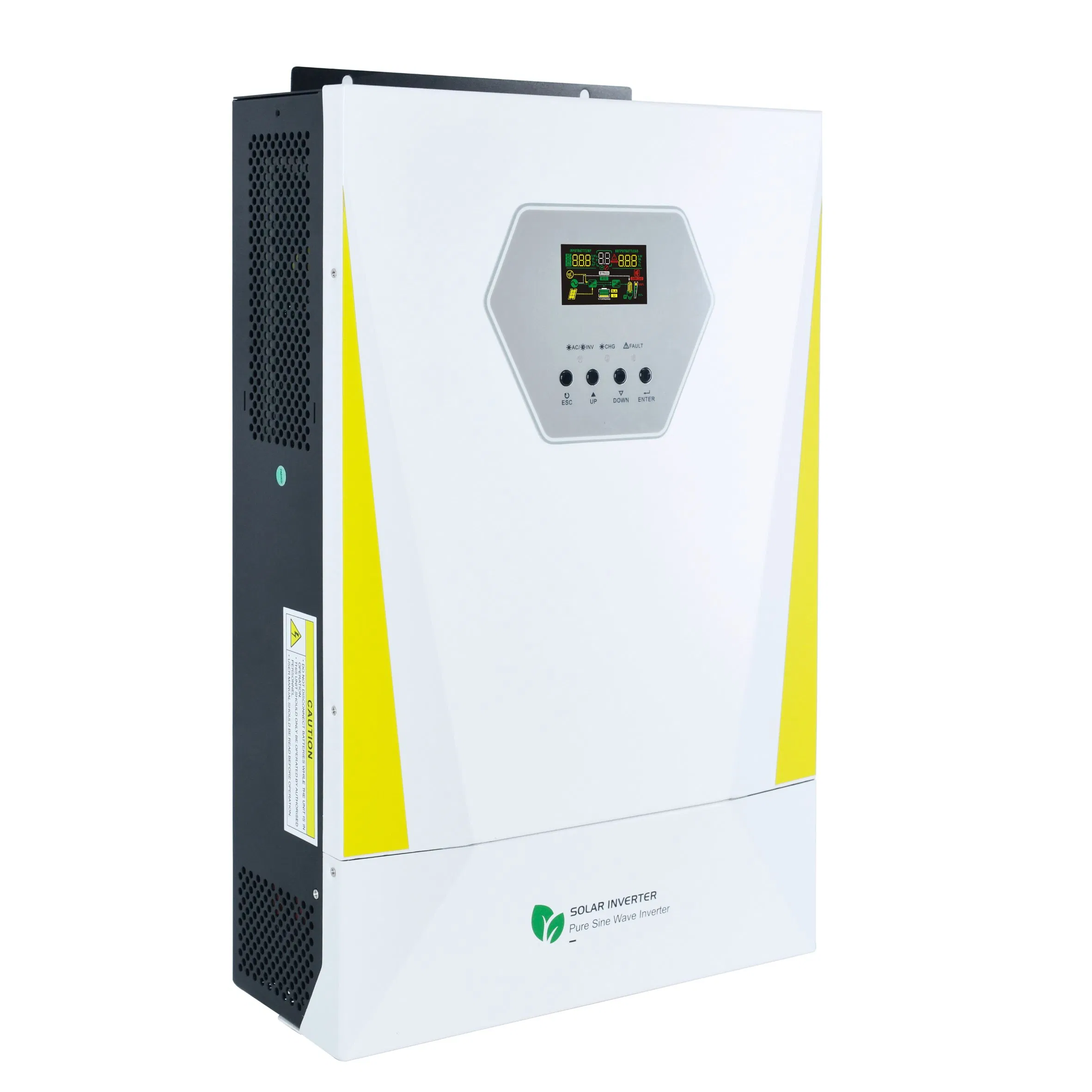

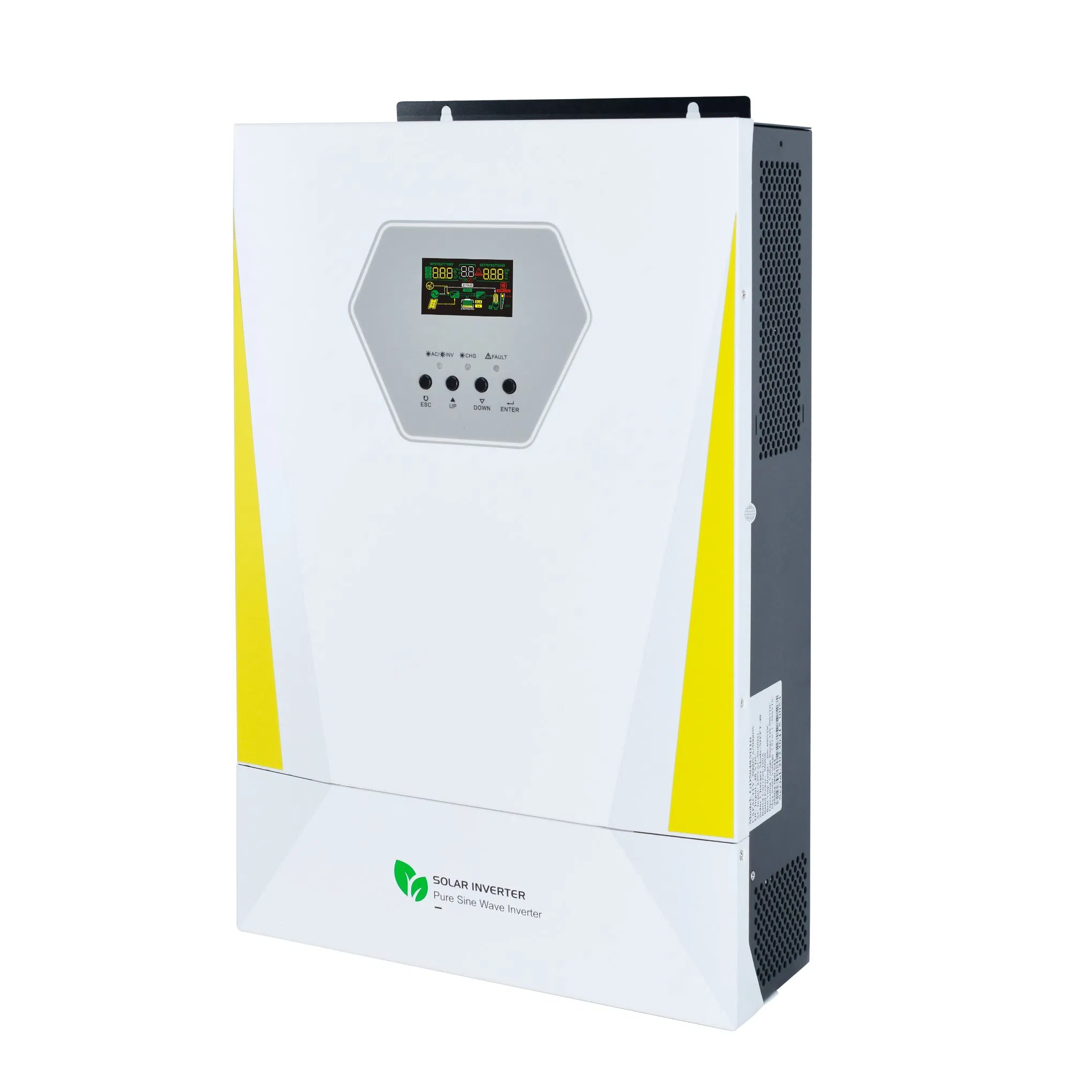

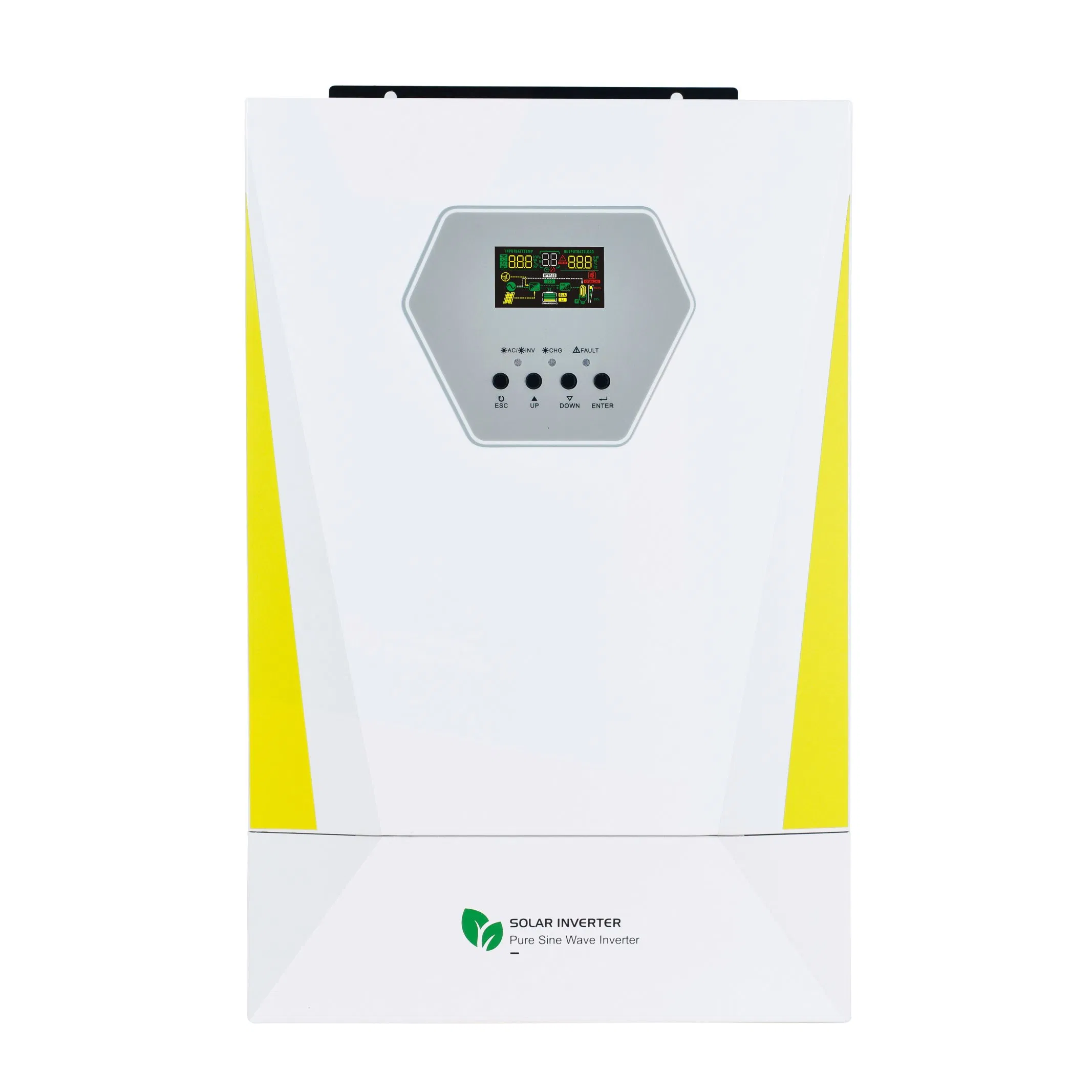

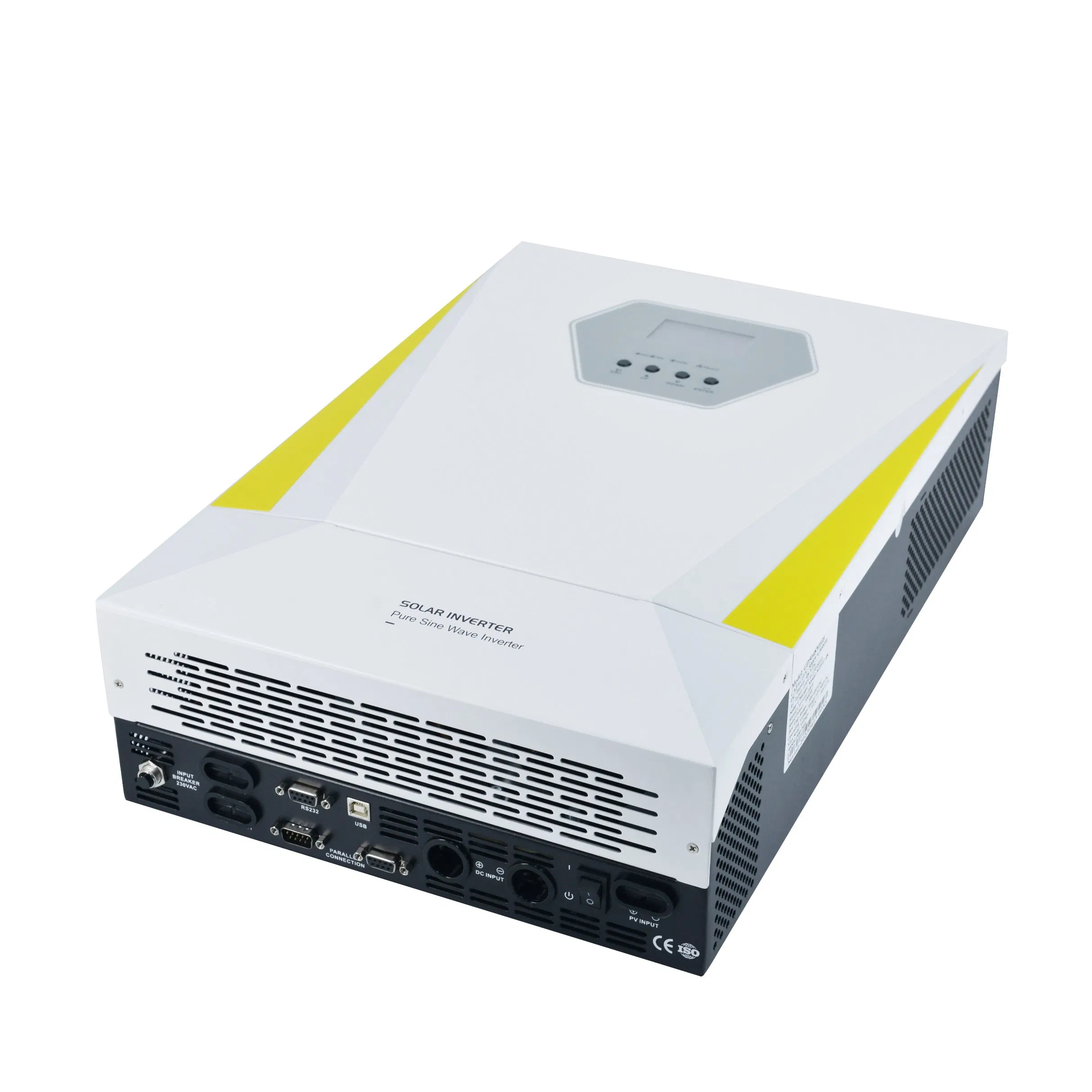

Custom Off Grid Hybrid Solar Inverter 11KW Home Energy Storage Solar Power Inverter

Product Features

Lithium battery self-starting, better match lithium battery charging.
Intelligent power supply mode, intelligent distribution of solar panels/mains/battery power ratio.
The mains charging voltage/PV charging voltage intelligently adjustable, to accurately match the charging requirements of various batteries.
Convenient for installation and transportation.

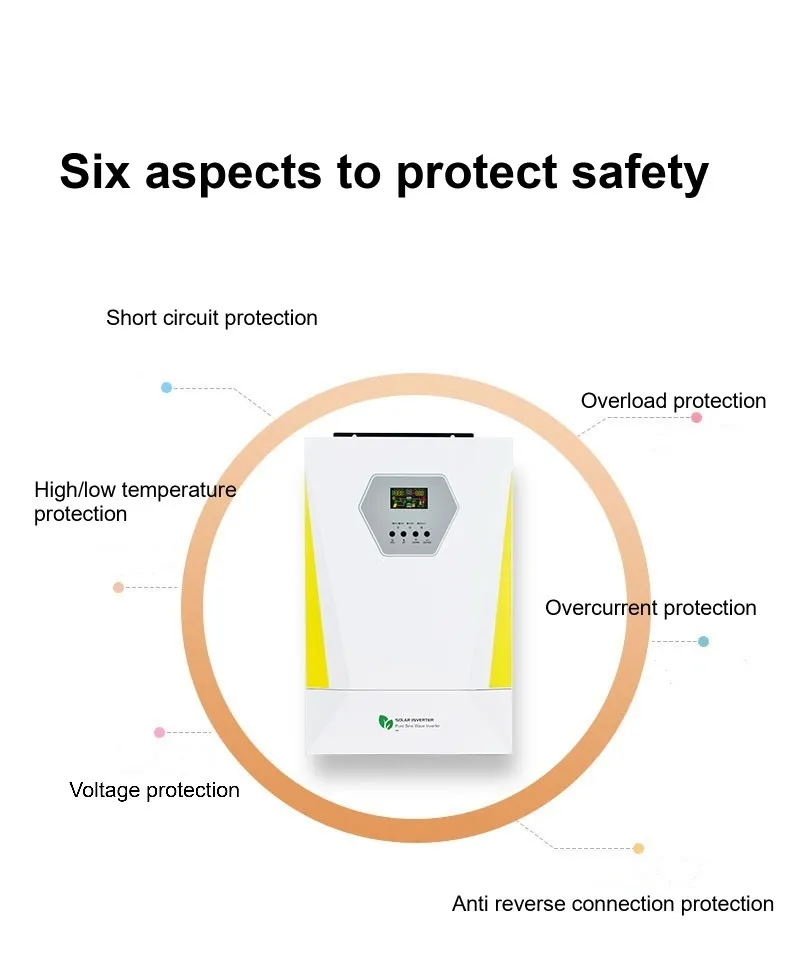

Battery reverse connection protection with fuse switch, safer installation.
PF1.0, high efficiency inverter, low loss energy saving/environmental protection.
Support work without battery: Reduce system costs.

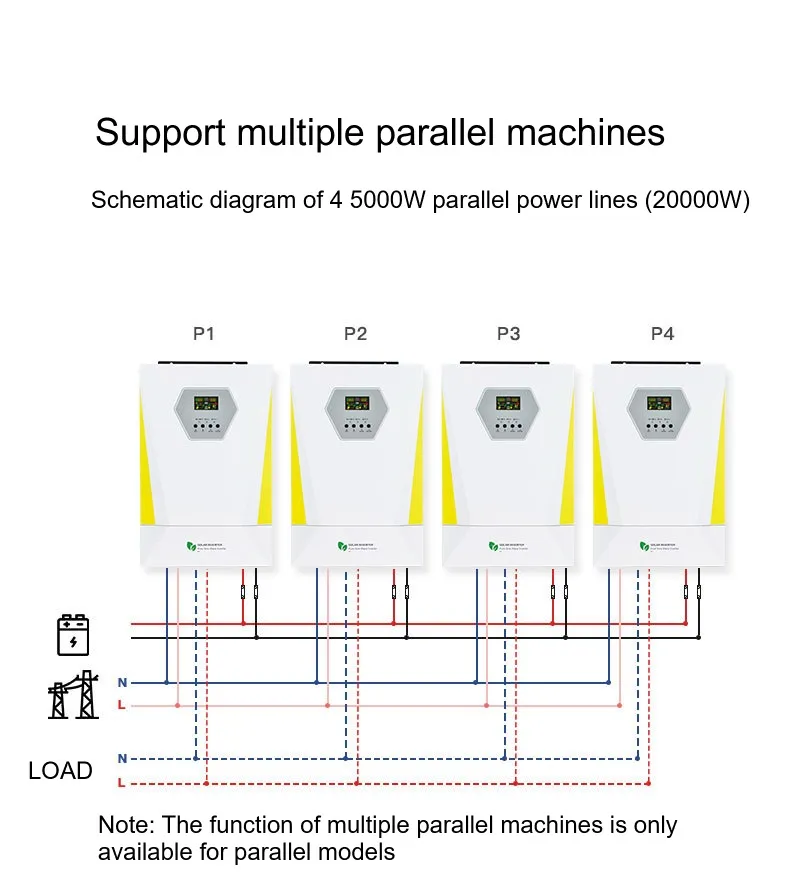

Up to nine parallel machines can support the load of larger capacity, and the expansion is simple.
Lithium battery BMS protocol support.
Can be connected to external wifi, real-time data monitoring.

Product Parameters

Solar Inverter GD Series B (5500-11000W)
Model		GD5548JMHB	GD6248JMHB	GD8648MHB	GD11048MHB
Input Voltage	Input Formation	L+N+PE
	AC Input	220/230/240VAC
	Range	90-280VAC (Normal) / 170-280VAC (UPS)
	Frequency	50-60Hz (Adaptive)
Output	Rated Power	5500W	6200W	8600W	11000W
	Peak Power	11000W	12400W	17200W	22000W
	Wave Form	Pure Sine Wave
	Efficiency	98%
Battery & Charger	Rated Voltage	48VDC
	Max PV Input	6200W	6200W	2*5500W	2*5500W
	MPPT Range	60-500VDC		90-500VDC

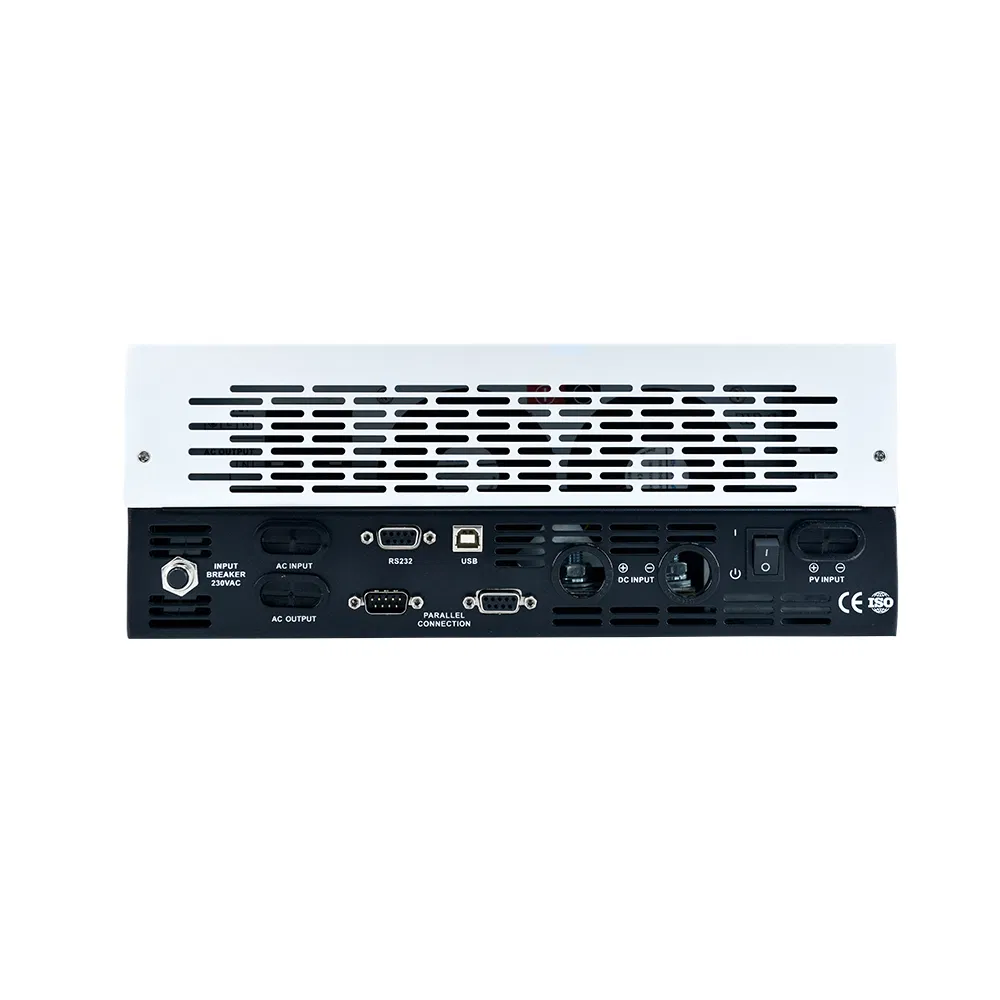

Detailed Photos

Professional Profile

We are a comprehensive integration of industry and trade, specialized in the design, development, and production of advanced energy systems and electrical connectors. With over 6 years of expertise, we provide high-quality solutions for industries such as electricity, communications, machinery, and renewable energy.

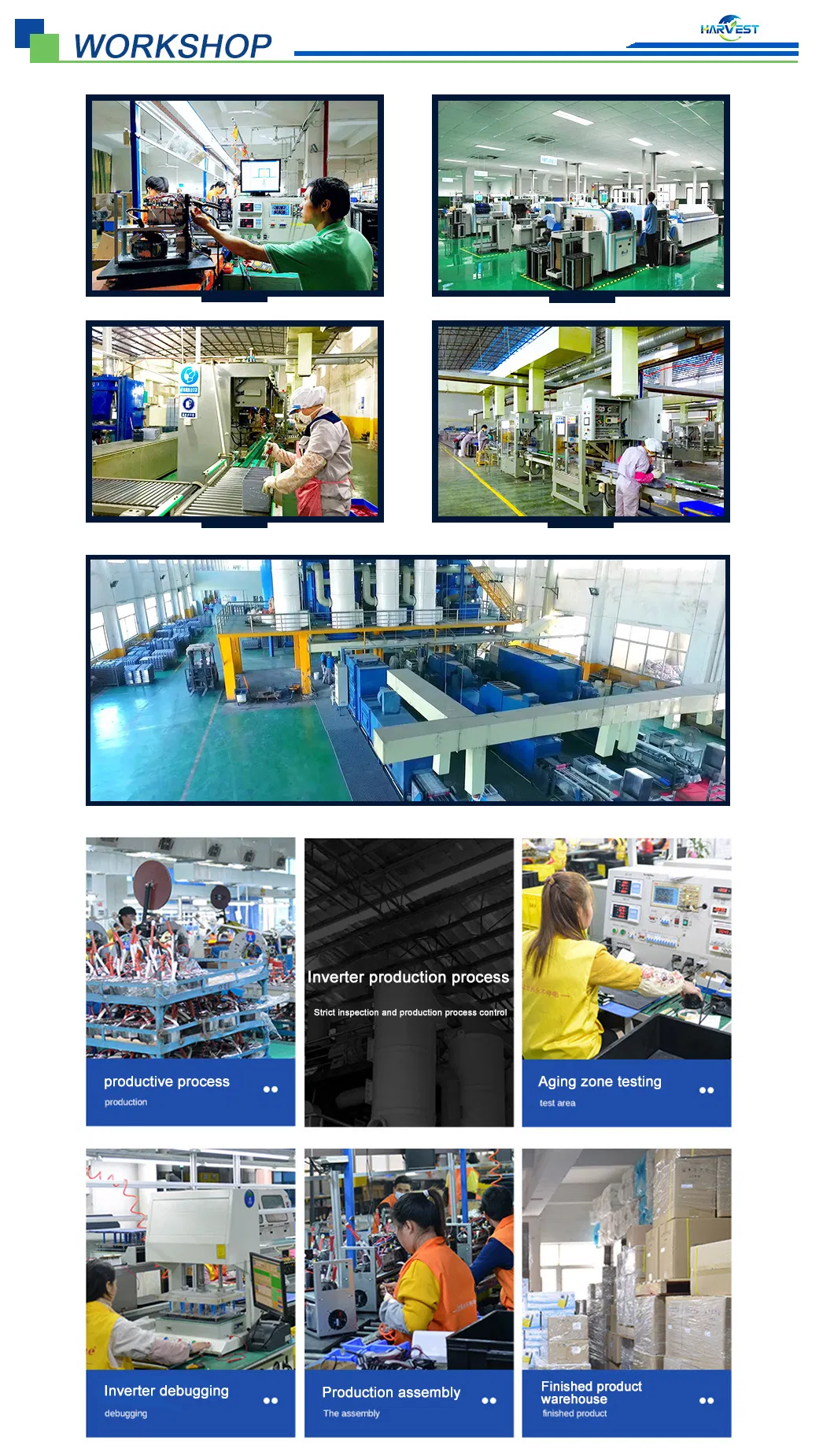

Our facility maintains a strong technical force and complete testing equipment. We operate under international quality standards (ISO9001) throughout the design and manufacturing process. All products pass EU CE certification and conform to ROHS standards, ensuring reliability and safety for global markets including Europe, the United States, and Australia.

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional manufacturer focusing on the development and production of electrical industry products for over 10 years.

Is customized service (OEM/ODM) available?

Absolutely. We offer both OEM and ODM services to meet specific project requirements and technical specifications.

Can this hybrid inverter work without a battery?

Yes, this series supports working without a battery, which can help significantly reduce initial system installation costs.

What is the maximum number of parallel units?

This system supports up to nine machines in parallel to handle larger capacity loads and facilitate easy system expansion.

Do you provide samples for testing?

Yes, sample orders are welcome for quality verification and compatibility testing with your existing systems.

How do you ensure product quality before shipment?

Our professional QC team conducts strict inspections during production and a final quality test before dispatch. Each shipment includes a detailed inspection report.
