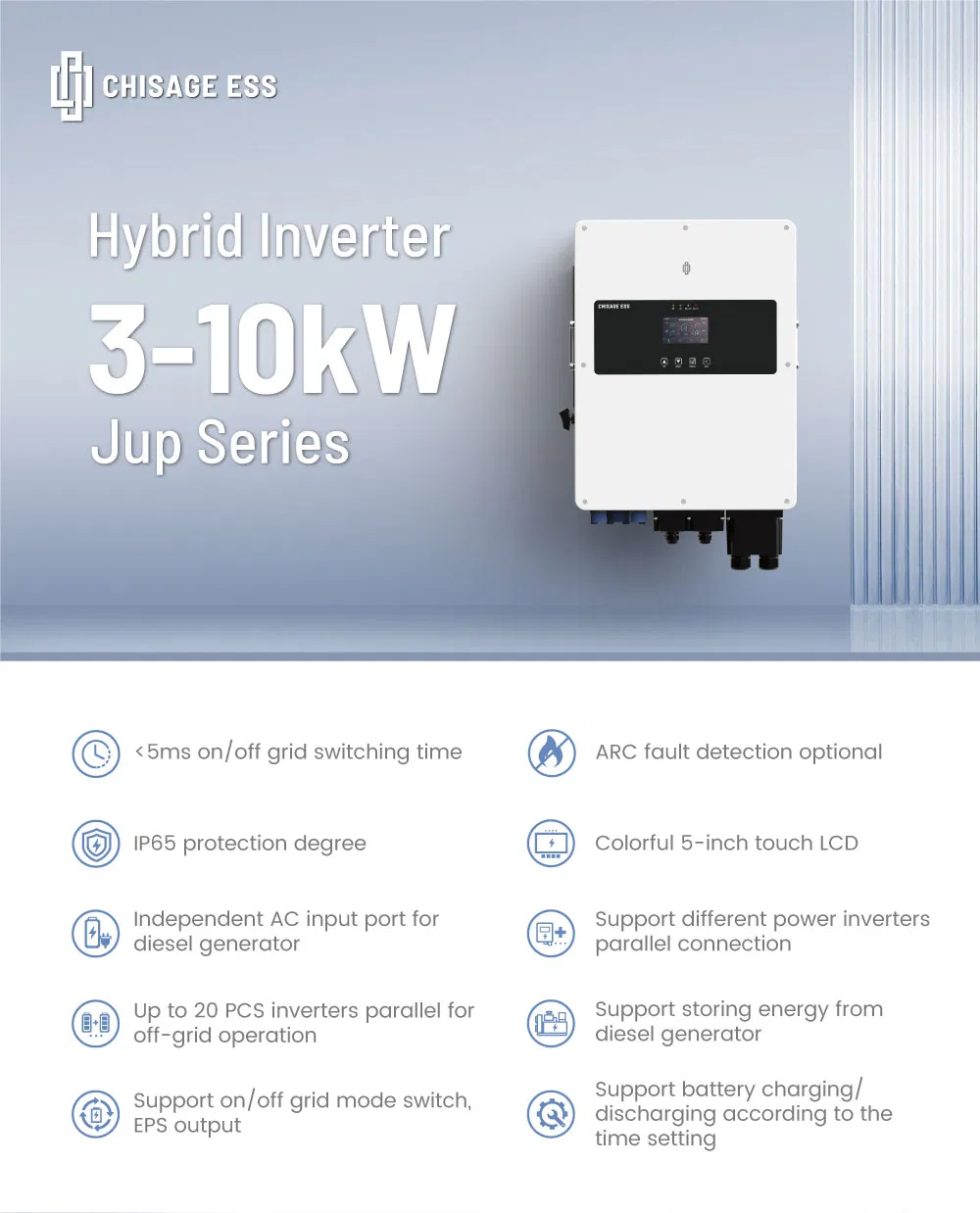

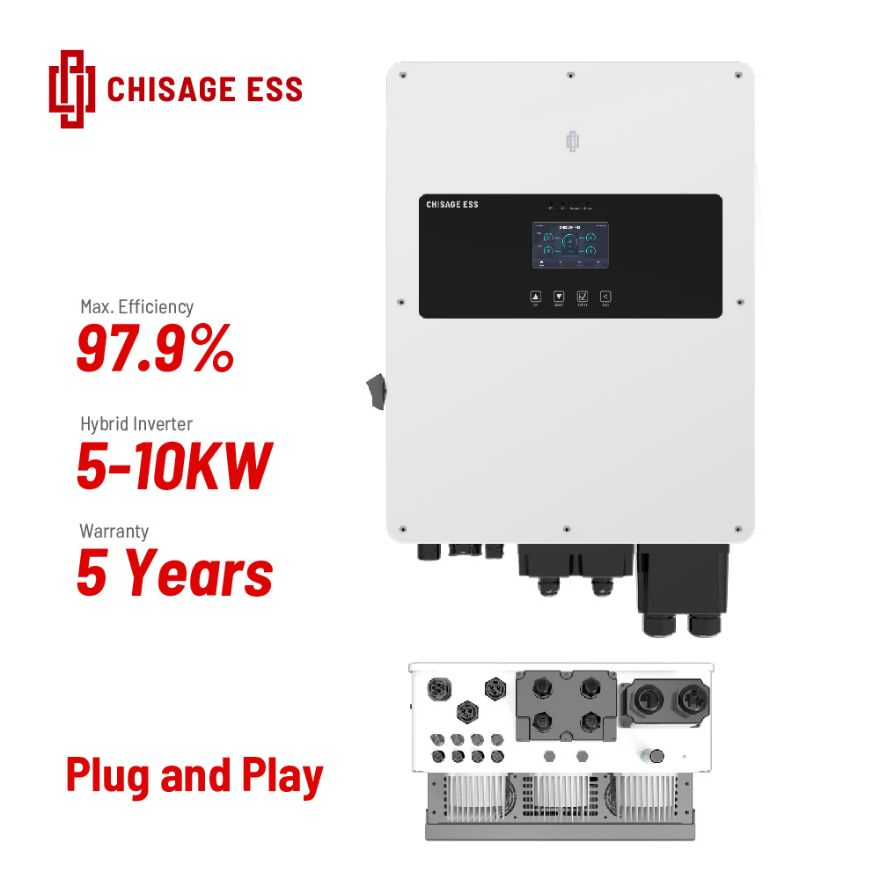

Support parallel connection of up to 20pcs inverters in off-grid mode. Compatible with multi-brand lithium batteries.

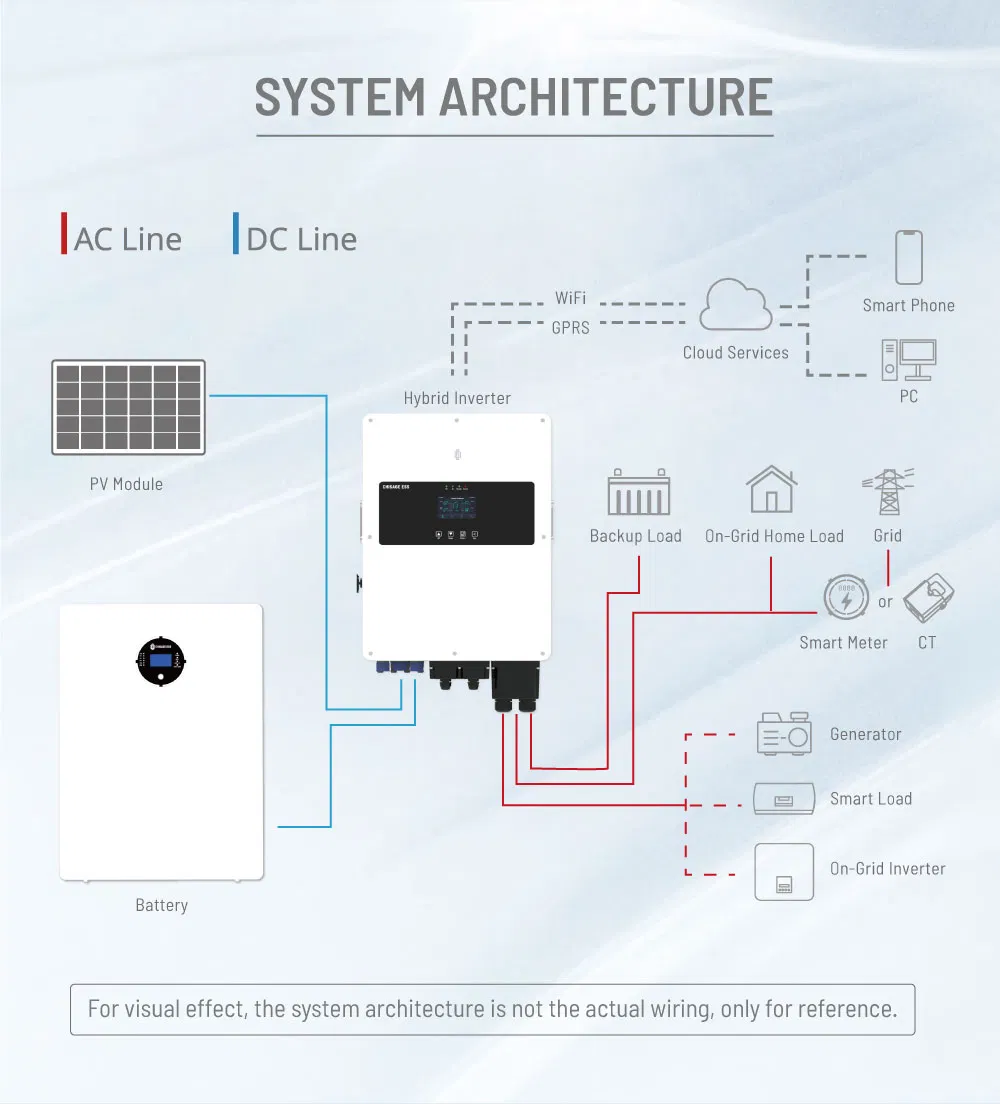

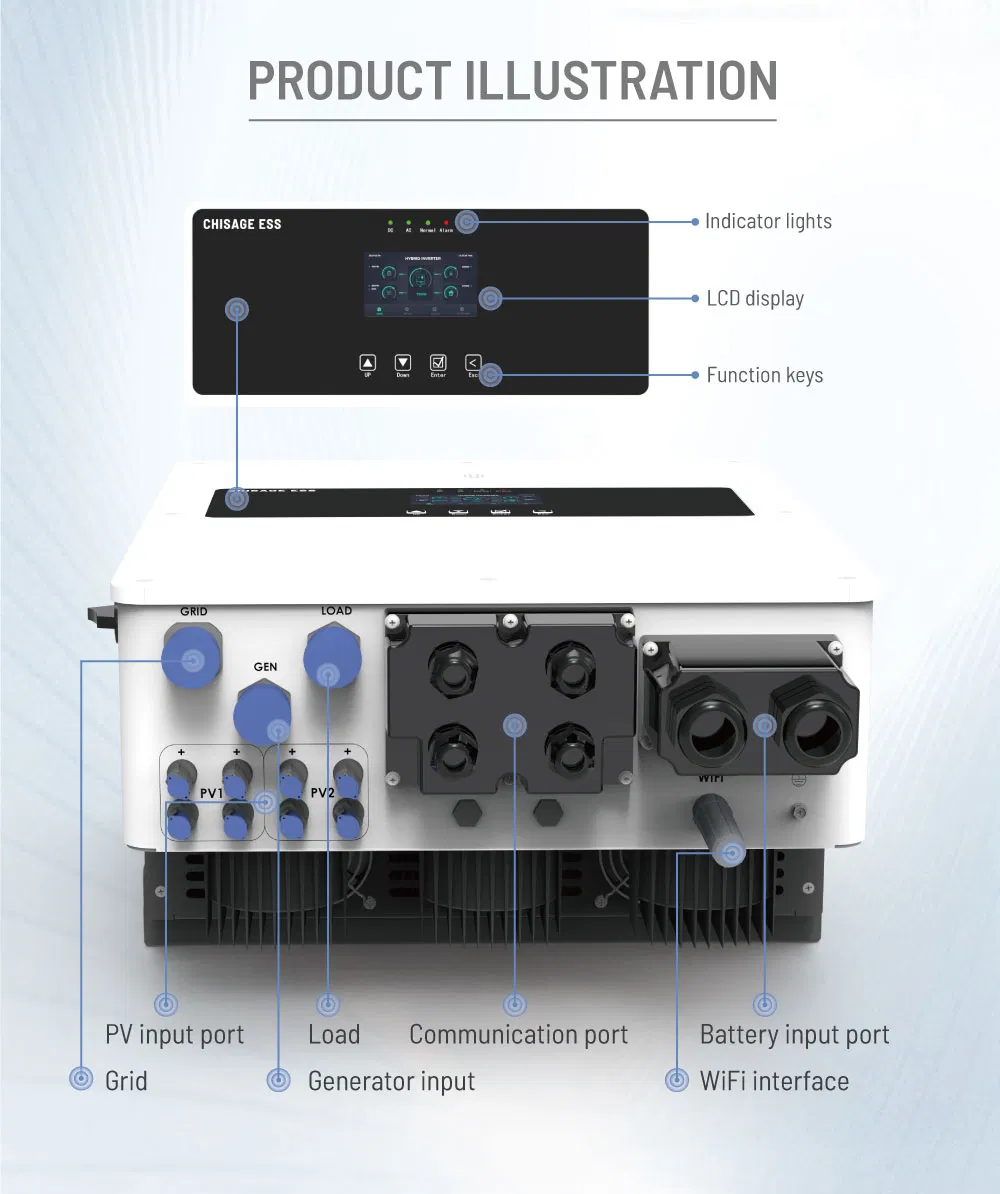

Pure sine wave output and EPS power. Low voltage battery input, support on-grid and off-grid mode switching. Features a colorful 5-inch touch LCD for easy monitoring and configuration.
| Model Parameters | Jup-3G2-LE | Jup-5G2-LE | Jup-6G2-LE | Jup-8G2-LE | Jup-10G2-LE |
|---|---|---|---|---|---|
| Battery Input | |||||
| Battery Voltage Range (V) | 40-60 | ||||
| Max. Charge Current (A) | 70 | 120 | 140 | 190 | 210 |
| Max. Discharge Current (A) | 70 | 120 | 140 | 190 | 210 |
| PV String Input | |||||
| Max. DC Input Power (W) | 4,500 | 7,500 | 9,000 | 12,000 | 15,000 |
| PV Input Voltage (V) | 370 (125~500) | ||||
| MPPT Range (V) | 150~425 | ||||
| No. of MPPT Trackers | 2 | ||||
| AC Output | |||||
| Rated Output Power (W) | 3,000 | 5,000 | 6,000 | 8,000 | 10,000 |
| Max. AC Output Power (W) | 3,600 | 6,000 | 7,200 | 9,600 | 12,000 |
| AC Output Frequency | 50/60Hz, 220/230Vac (Single Phase) | ||||
| Efficiency | |||||
| Max. Efficiency | 97.90% | ||||
| Euro Efficiency | 97.00% | ||||
| MPPT Efficiency | 99.90% | ||||

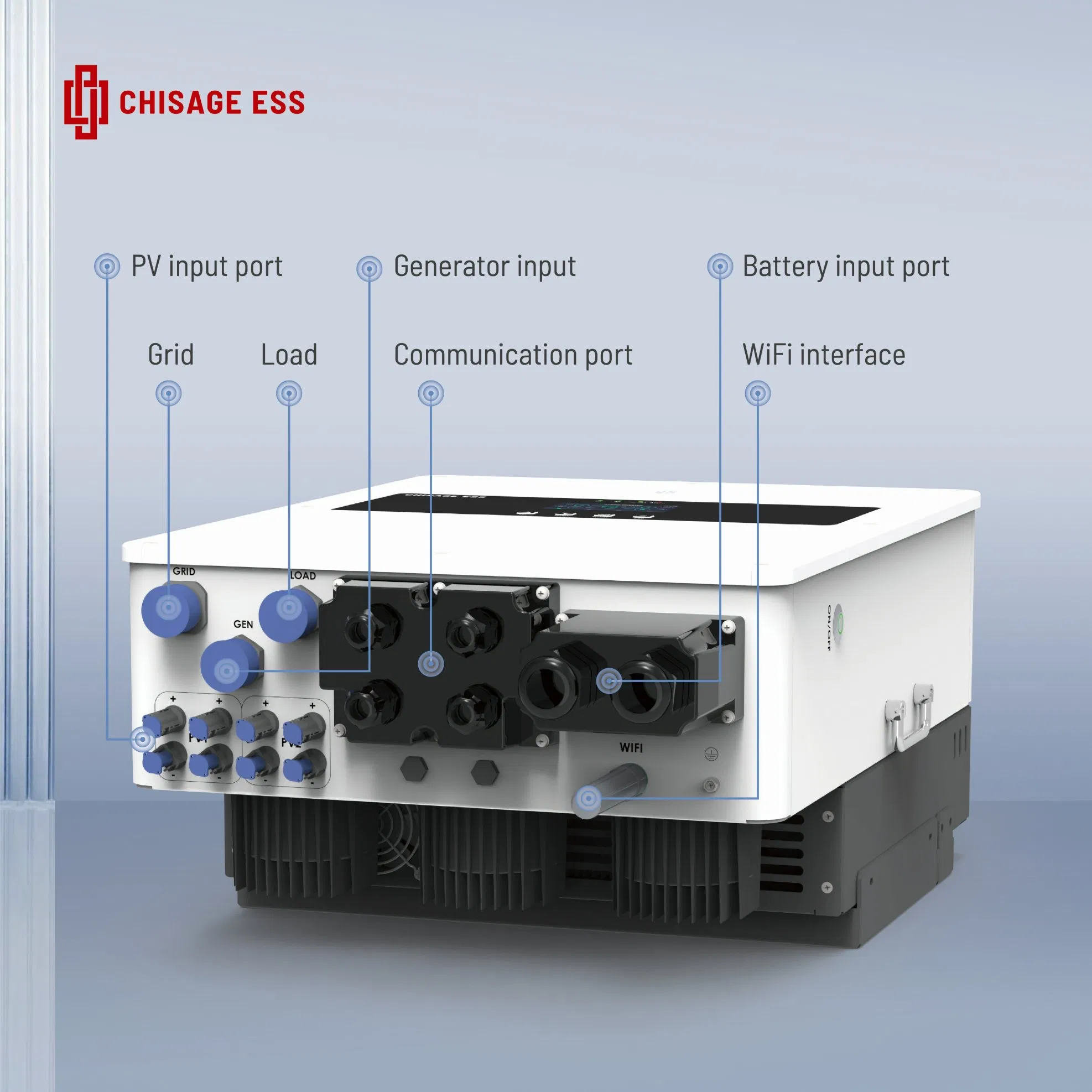

Advanced Protection: IP65 waterproof and dustproof protection degree. Support battery charging/discharging according to the time setting. Independent AC input port for diesel generator.
