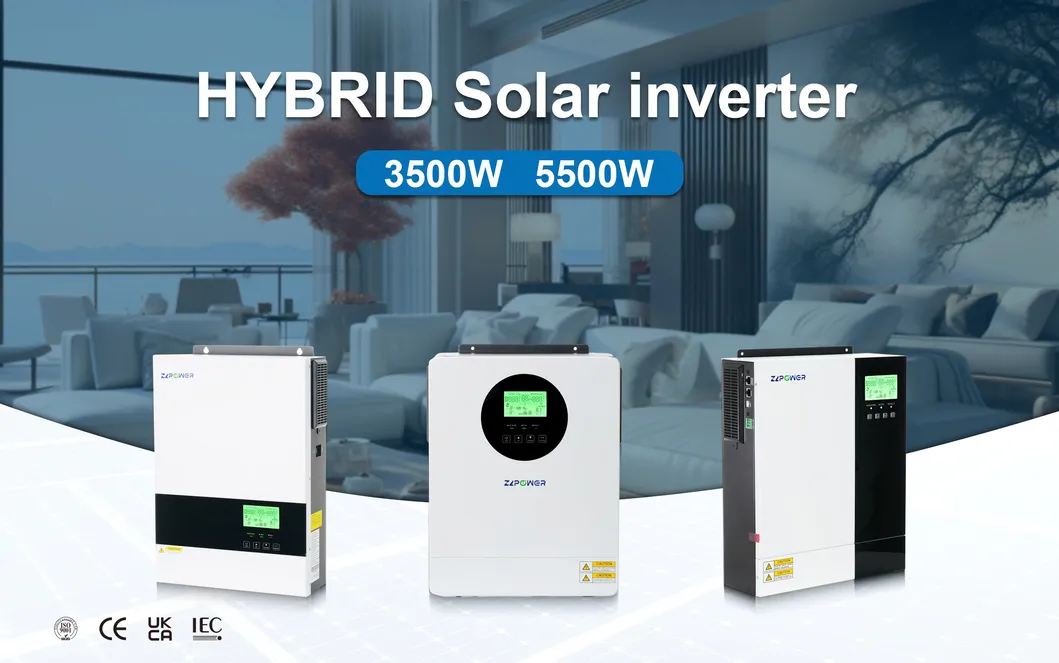

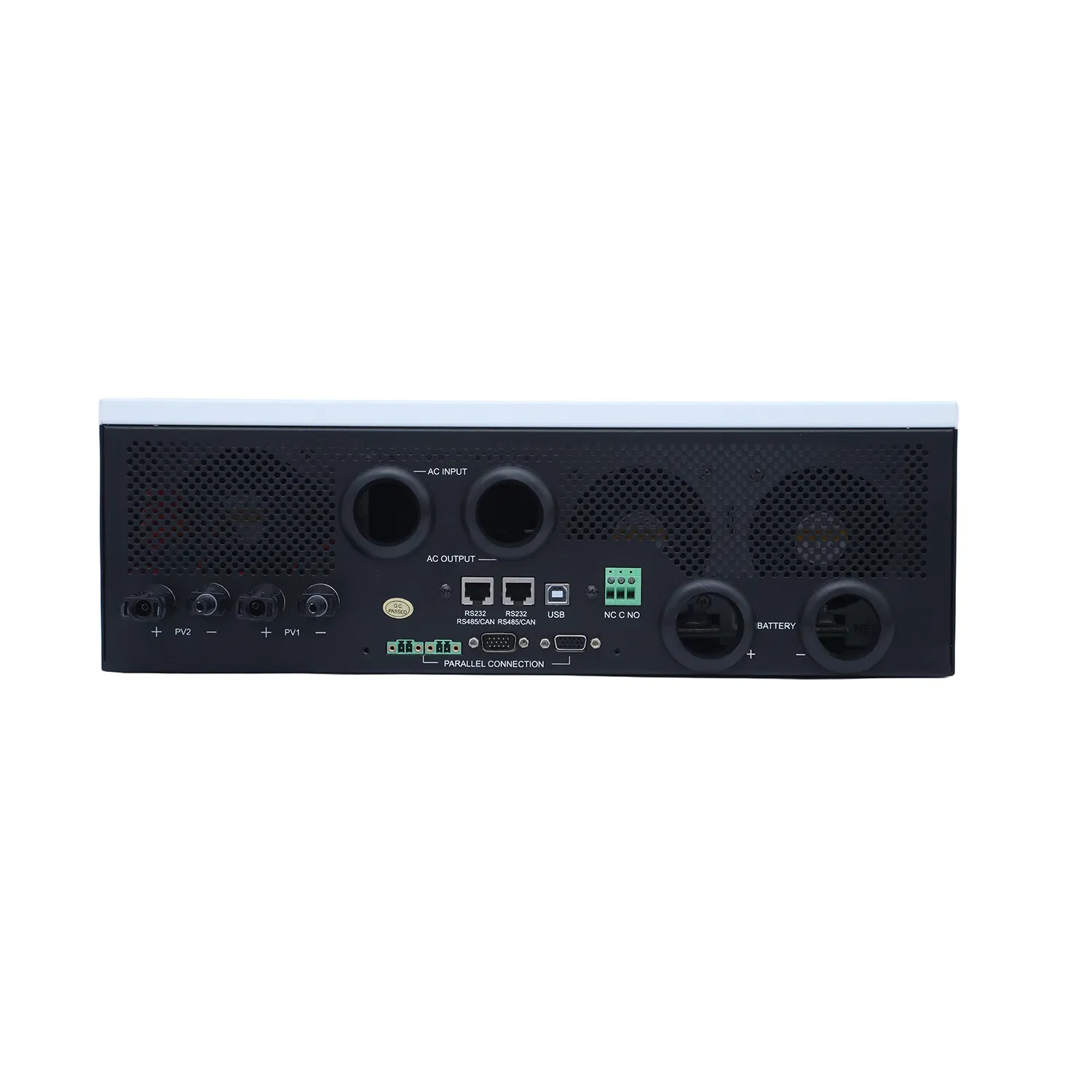

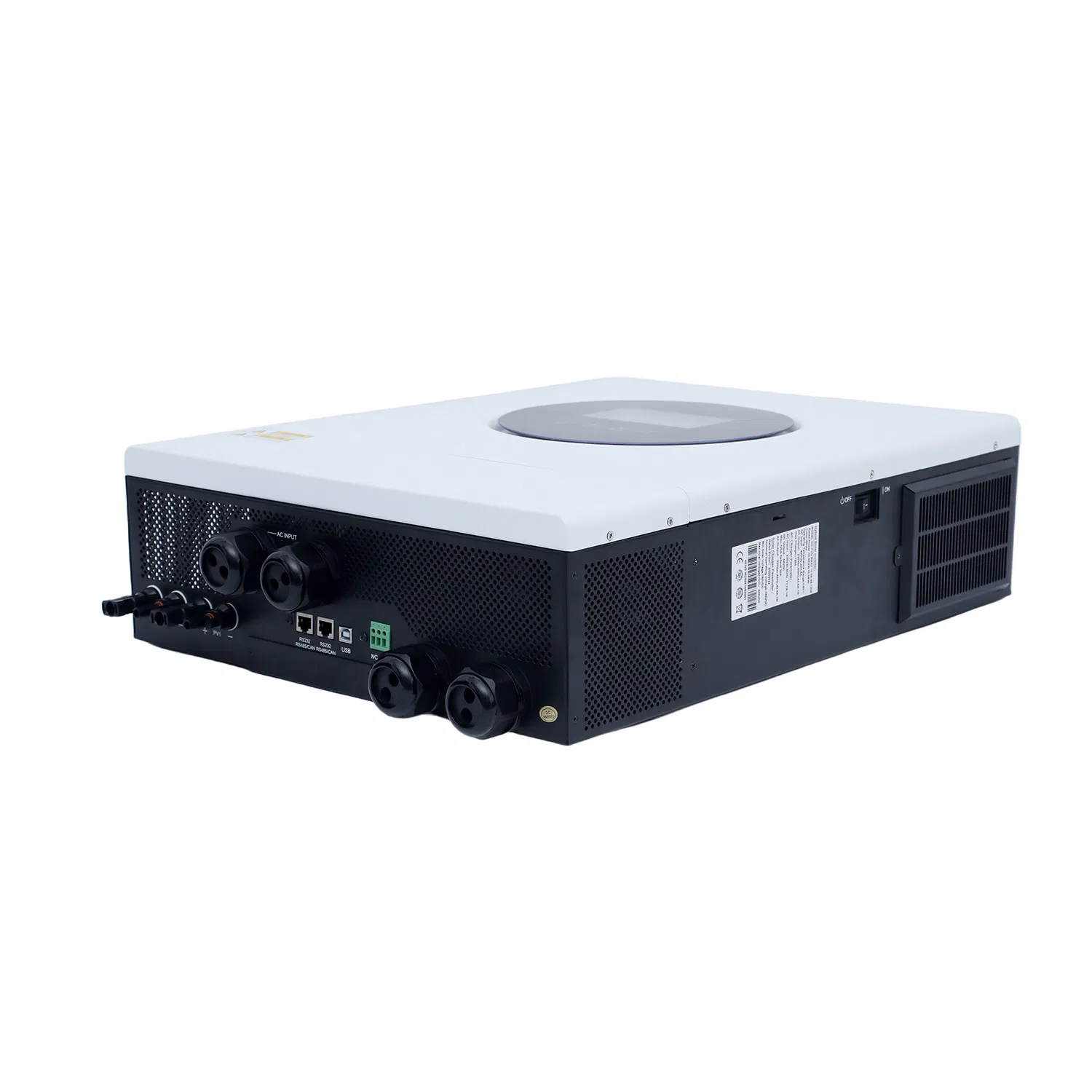

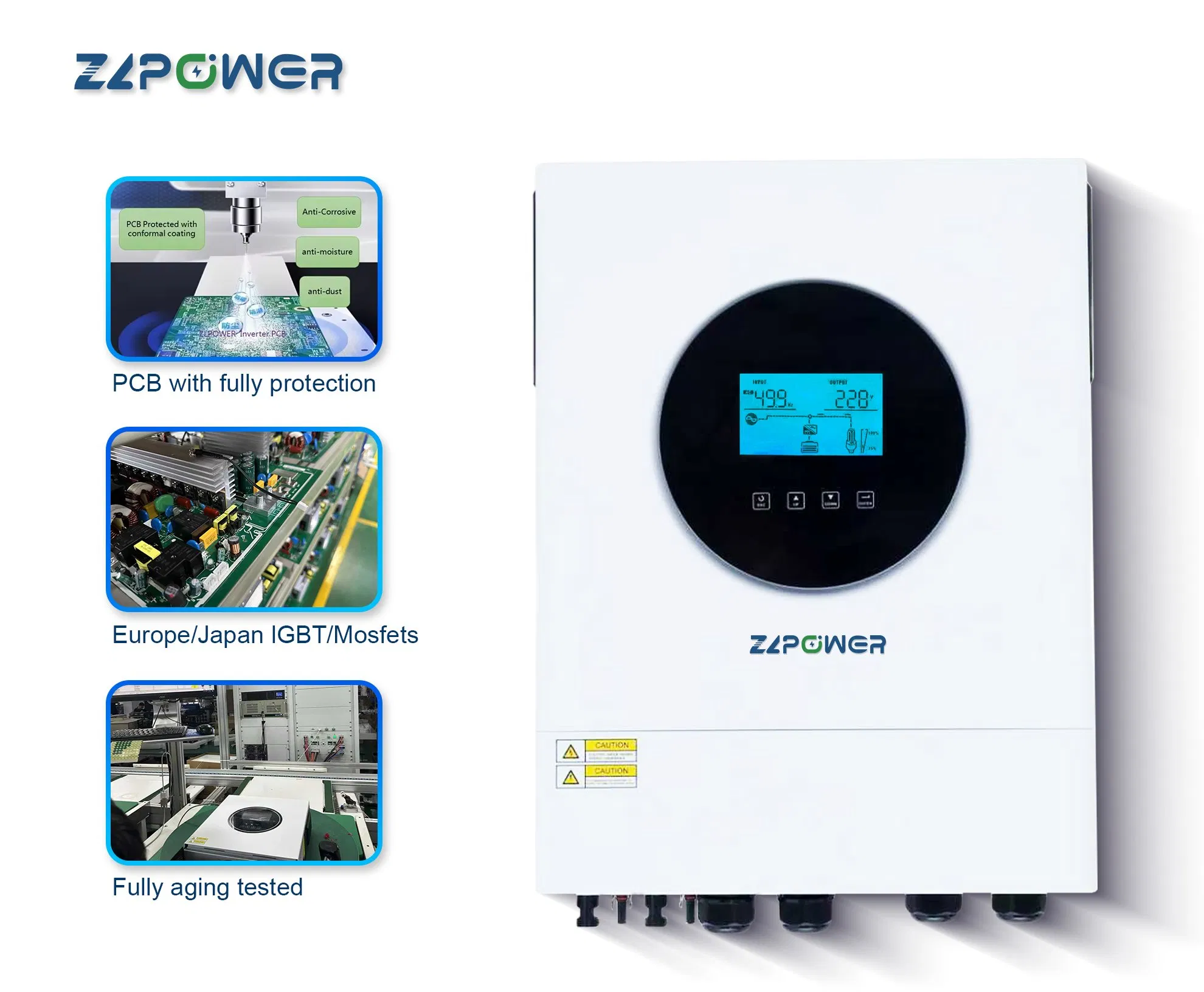

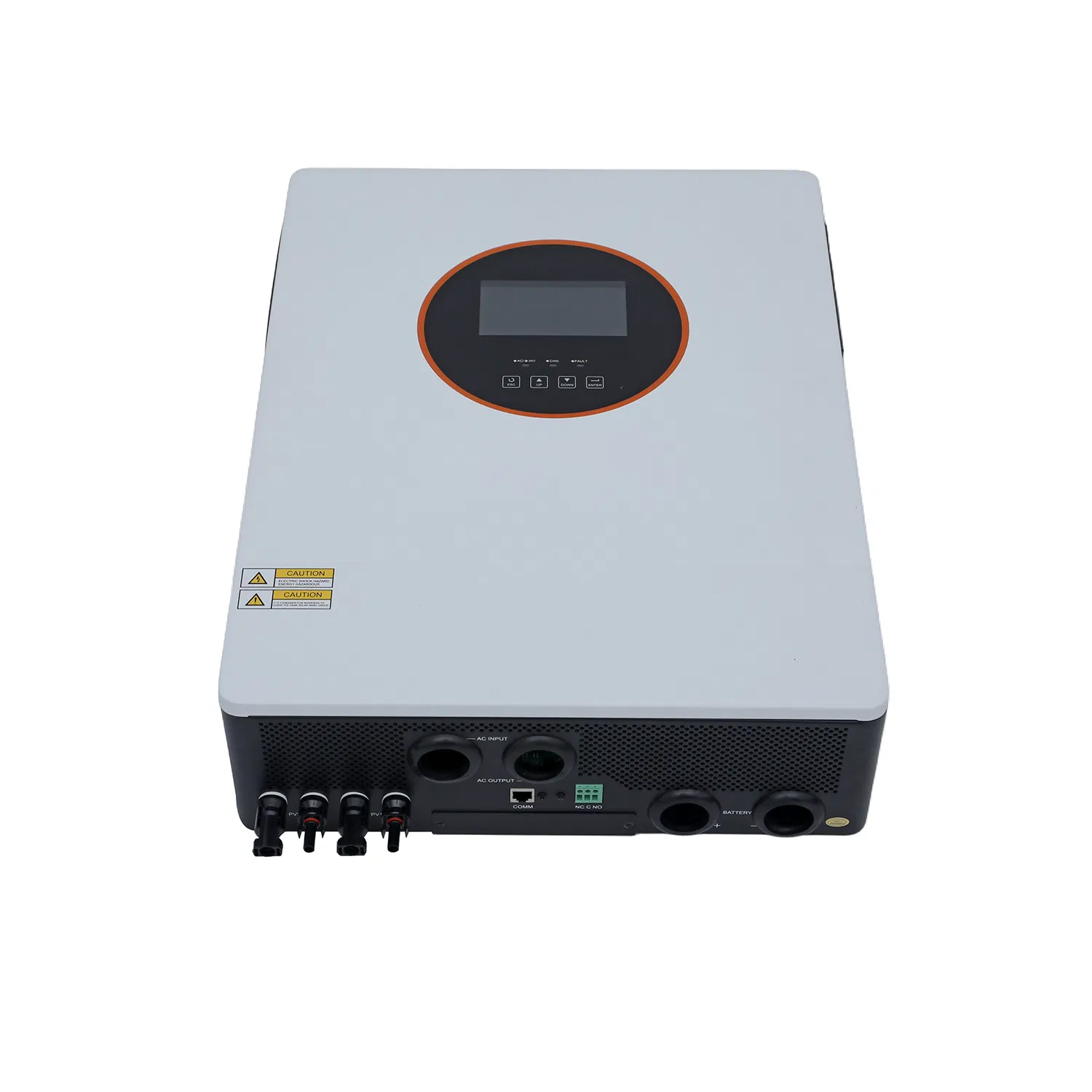

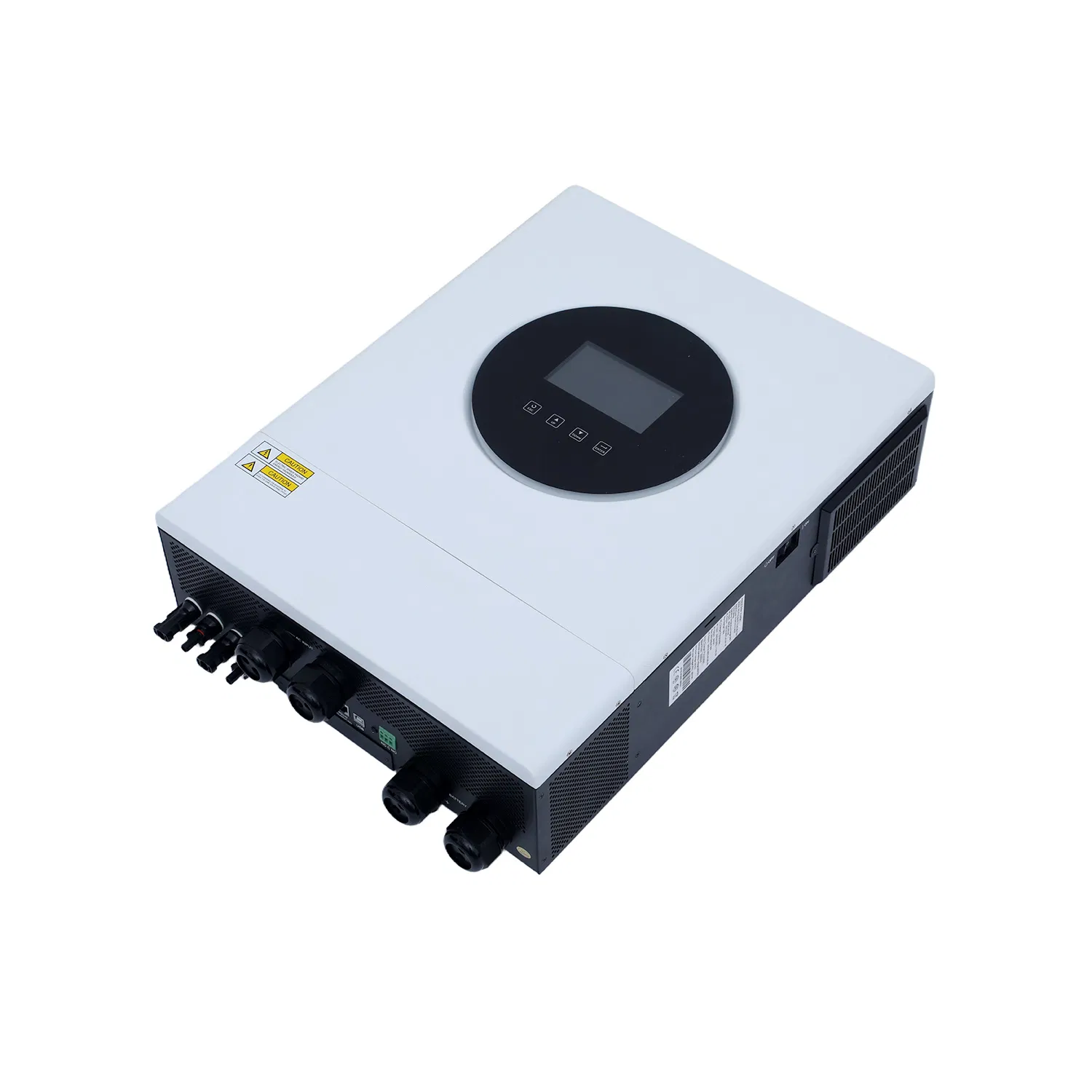

High Frequency 5500W Pure Sine Wave Power Inverter MPPT Charge Controller off Grid Hybrid Solar Inverter for Lead-Acid Lithium Battery

1 / 5

High Frequency 5500W Pure Sine Wave Power Inverter MPPT Charge Controller off Grid Hybrid Solar Inverter for Lead-Acid Lithium Battery

Customization:	Available
After-sales Service:	Yes
Warranty:	24-Month

Send Inquiry

Product Description

⚡

Basic Specifications

Model NO.

PVM 5.5kw

Nature of Source

Active Inverter

Phase

Single

Output Power

>1000W

Certification

SAA, CE, ROHS, ISO9001, CCC

Type

DC/AC Inverters

Power Source

Solar Power, Wind Power

Wave String

Sine Wave Inverter

Rated Voltage

230VAC

MPPT Voltage

120-500V

📋

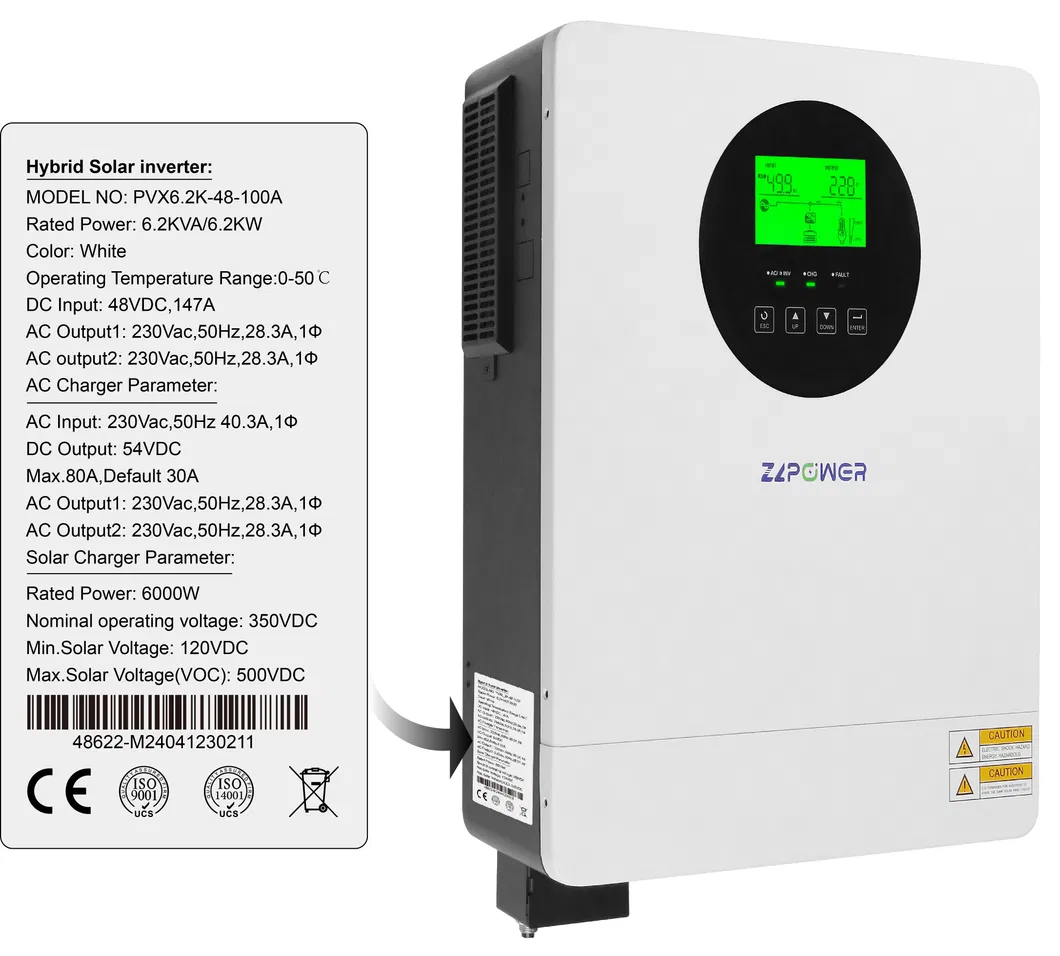

Key Features

✔

High Performance: 5.5KW Output, 80A Max Charging Current, and a wide MPPT Voltage Range (120VDC~450VDC).

✔

Battery Versatility: Supports Lead-Acid (AGM, Gel, Flooded) and Lithium batteries; capable of running without a battery.

✔

Smart Interface: LCD & LED display for easy configuration of input voltage ranges and charging priorities.

✔

Full Protection: Built-in safeguards against overload, over-temperature, and short circuits with intelligent cooling fans.

✔

Wide Application: Ideal for home and office appliances, including refrigerators, fans, and air conditioners. Compatible with grid and generator power.

⚙

Technical Data

MODEL	PVM4000-24	PVM6000-48
Rated Power	4000W / 4200W	6000W / 6200W
INPUT
Voltage	230VAC	230VAC
Frequency Range	50Hz/60Hz (Auto sensing)
OUTPUT
Surge Power	7000VA	11000VA
Waveform	Pure sine wave
SOLAR & AC CHARGER
Max PV Open Voltage	500VDC	500VDC
Max Solar Charge	80A	80A
PHYSICAL

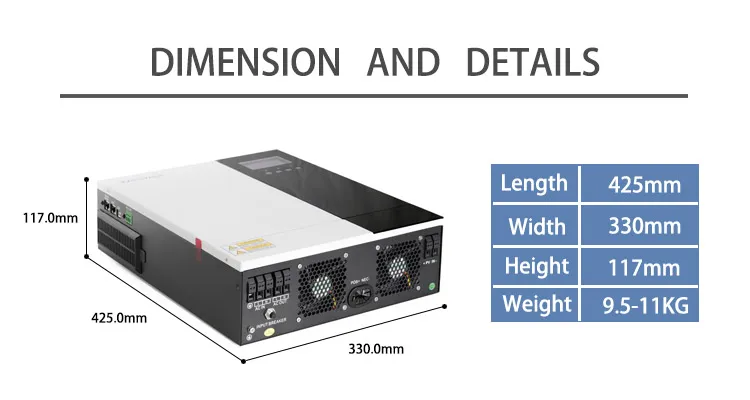

Dimension (mm)	425 × 330 × 117
Net Weight (kgs)	9.5	10.6

🏢

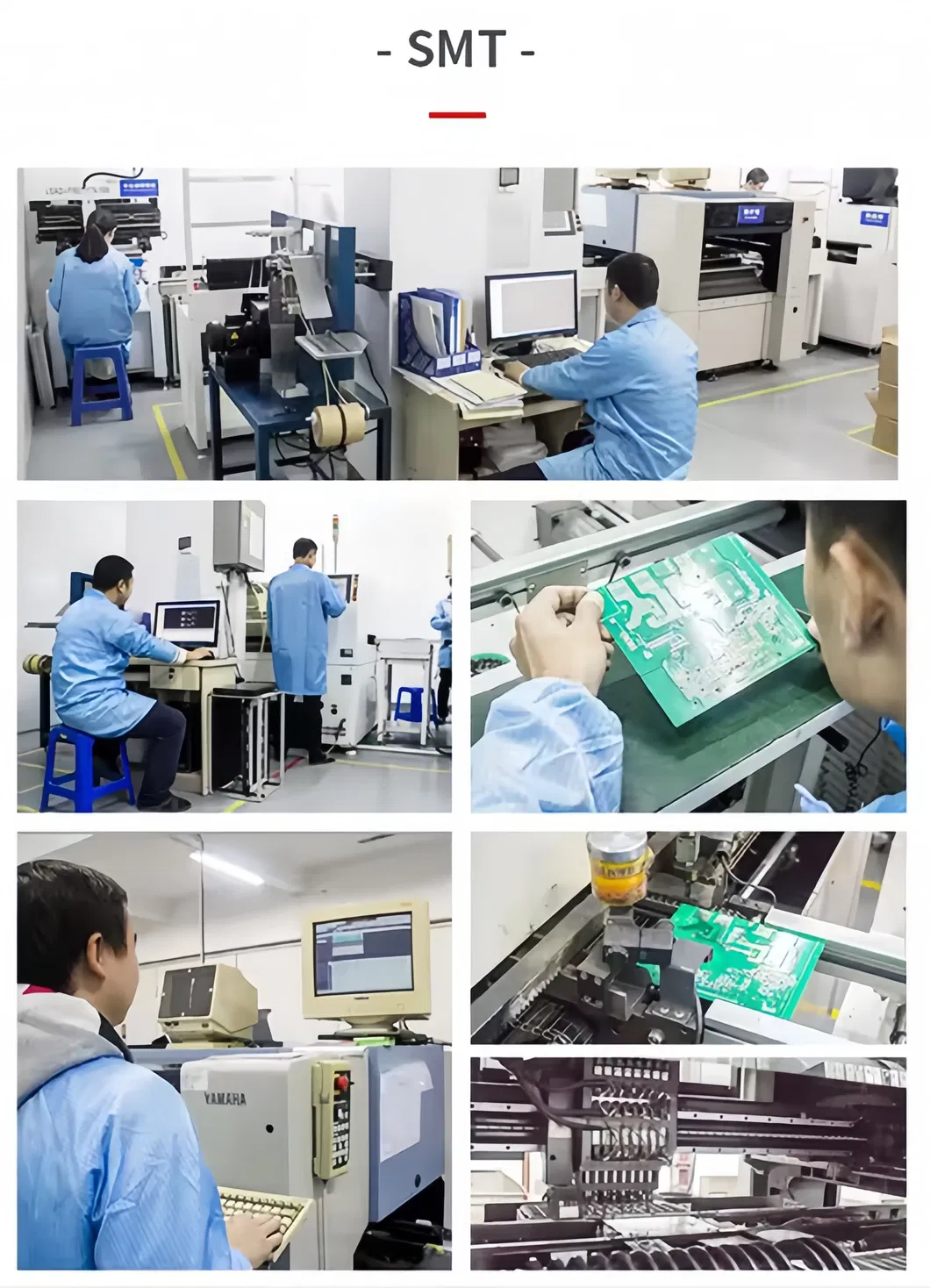

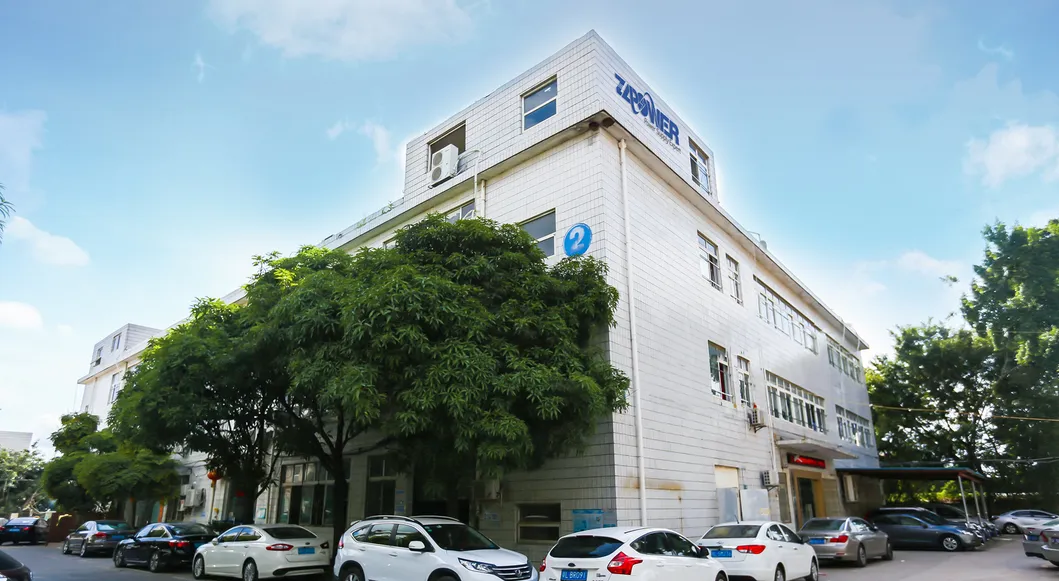

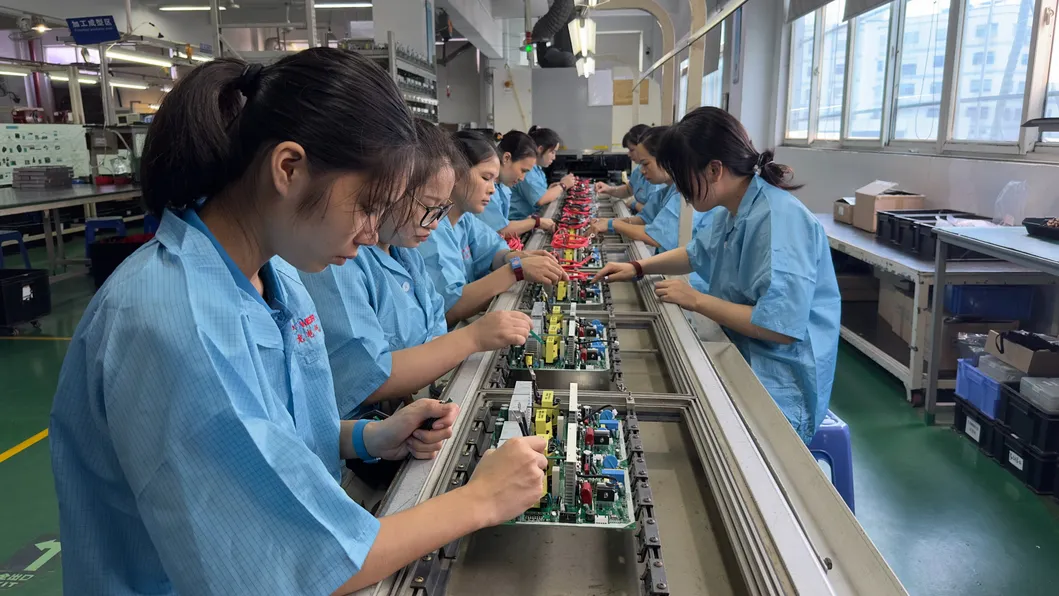

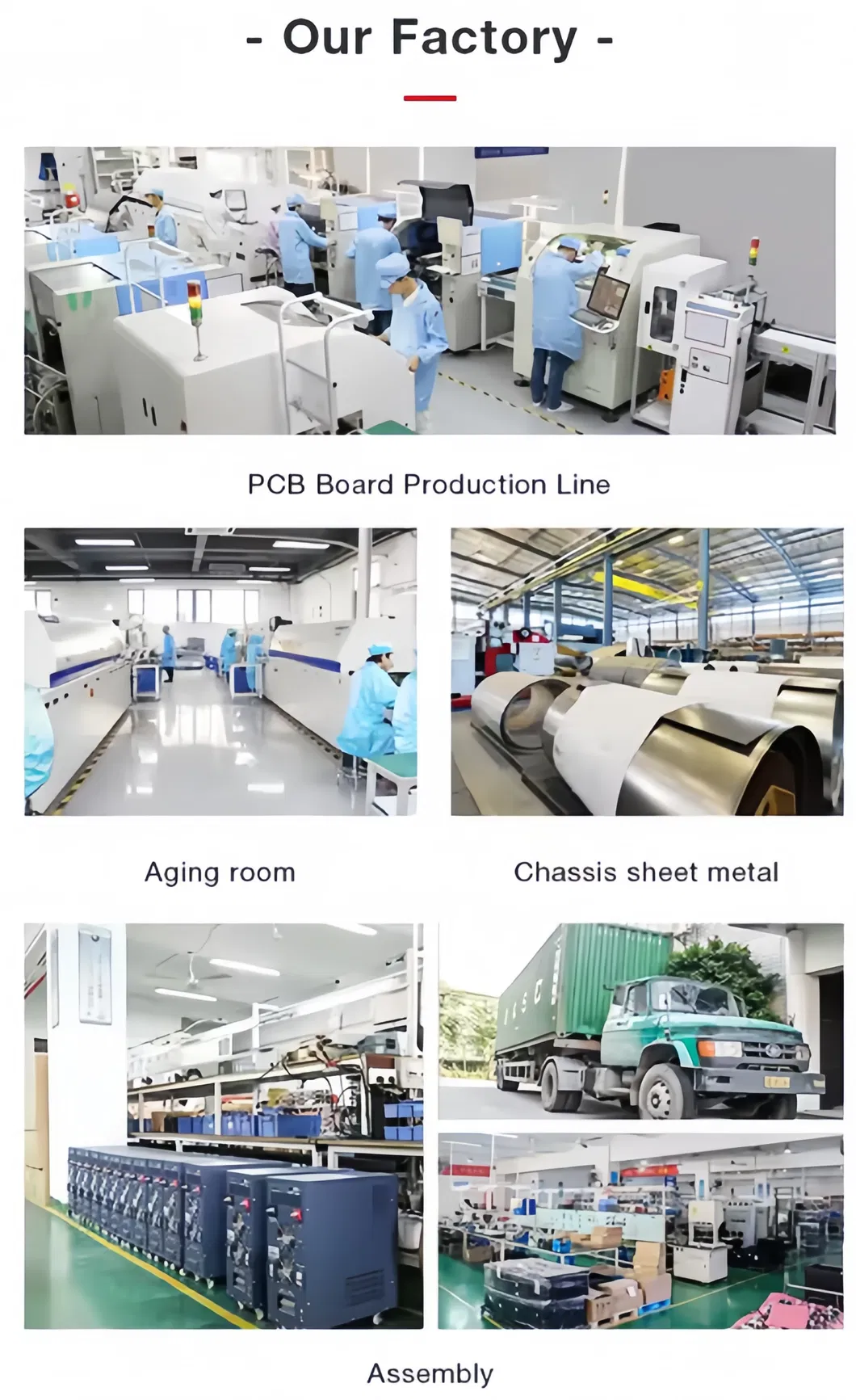

Professional Manufacturing

We are a national high-tech enterprise specializing in the research, manufacturing, and exporting of UPS, power inverters, and hybrid solar inverters. Our capacity ranges from 400VA to 400KVA, satisfying diverse global requirements. With certifications including ISO9001, ISO14001, CE, and ETL, we ensure product stability and innovation for finance, communication, medical, and industrial fields.

🌍

Global Exhibitions

Frequently Asked Questions

What is a hybrid solar inverter?

A hybrid solar inverter combines a solar inverter and a battery inverter. It manages power from solar panels, batteries, and the grid simultaneously, providing energy independence and seamless backup during outages.

How long is the delivery time?

Usually, sample orders take 3-5 days, while bulk production typically requires 10-15 days depending on the order size.

Can I use my own logo on the products?

Yes, we provide free OEM services for orders that meet our minimum quantity requirements.

What is your monthly production capacity?

Our total production capacity reaches up to 10,000 pieces per month, depending on the specific model.

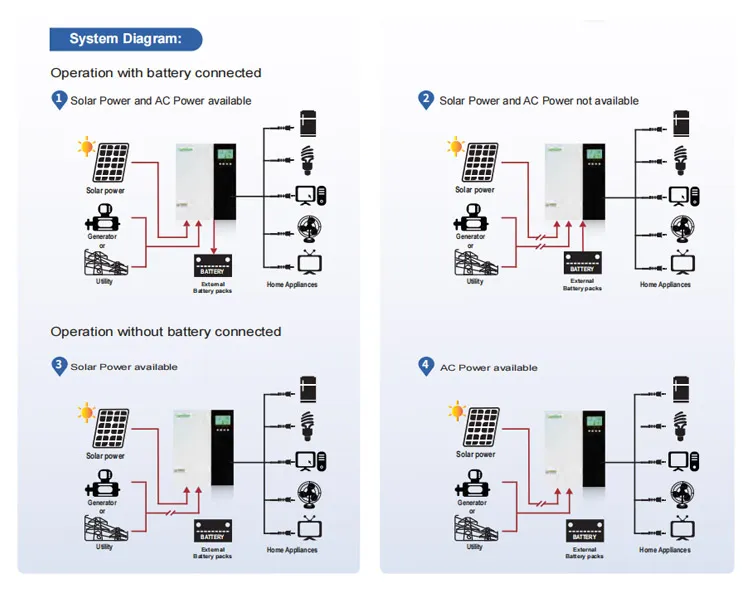

Does the inverter connect to the utility grid?

Yes. This is a complementary solar and utility inverter. It combines inverting, charging, and an AC auto-transfer switch. It can also charge batteries via the grid or a generator.
