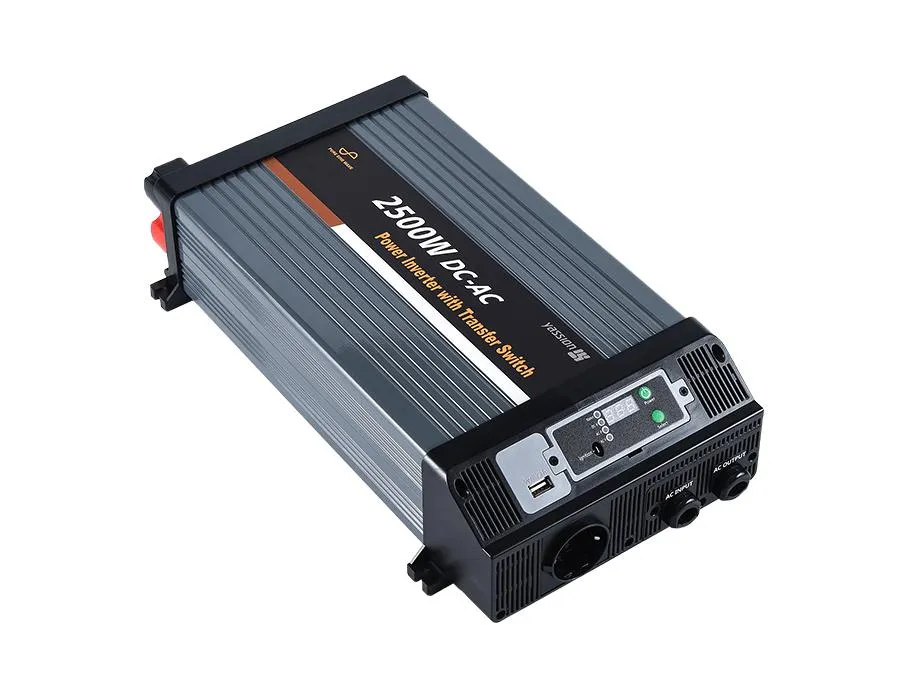

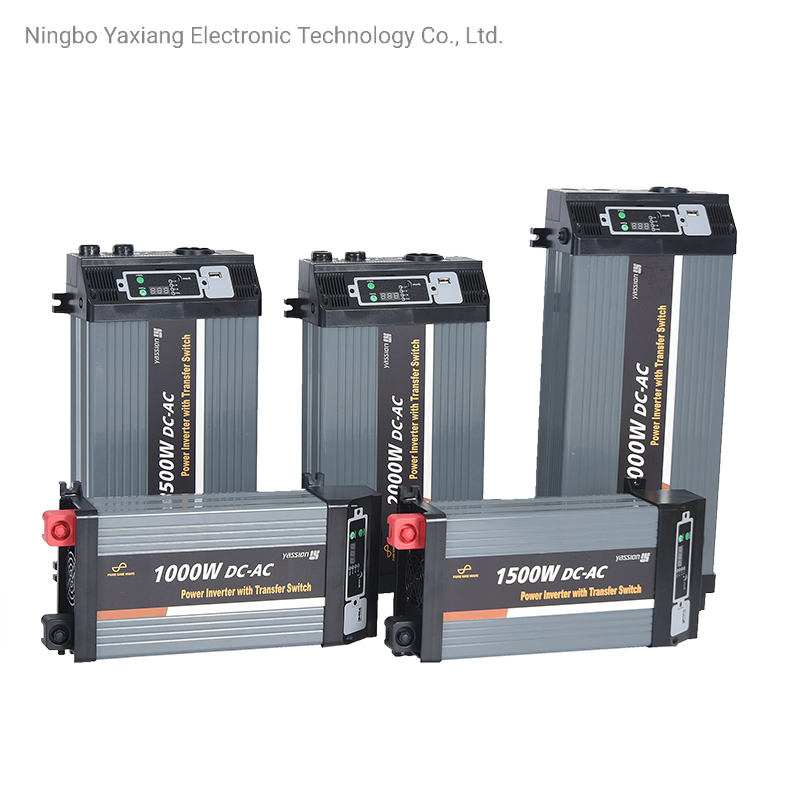

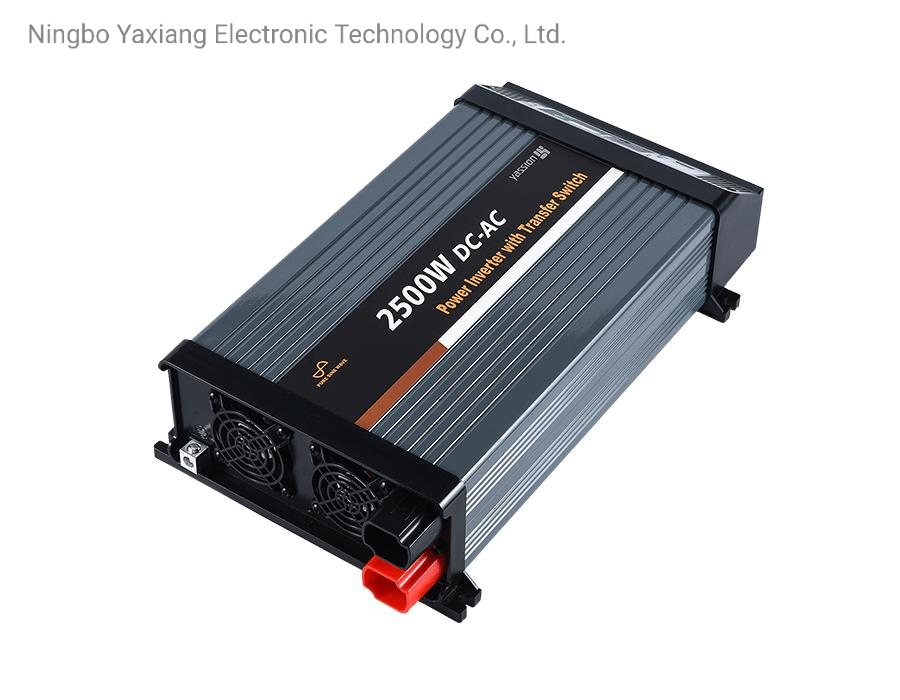

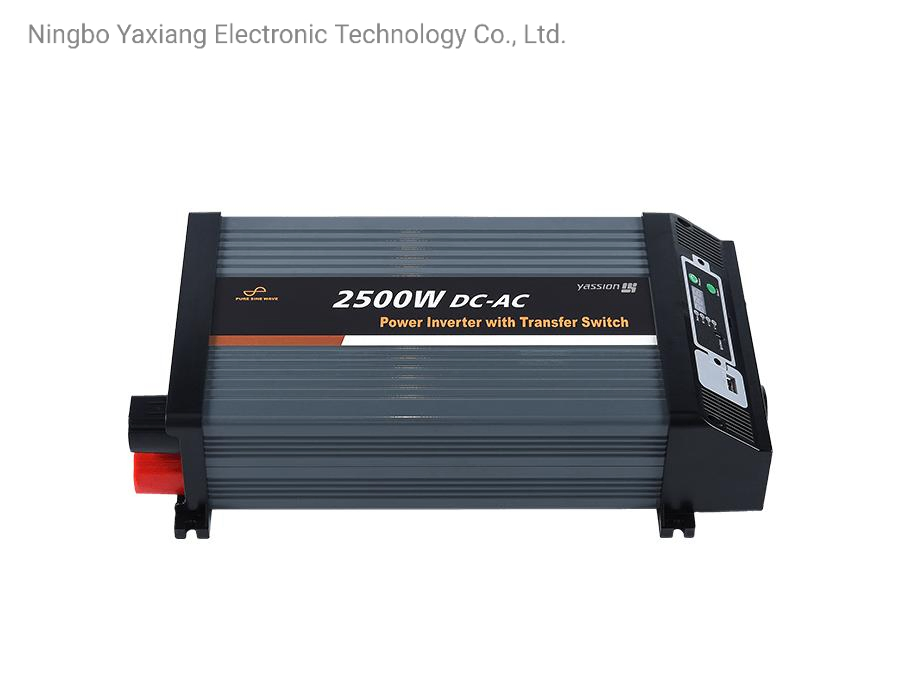

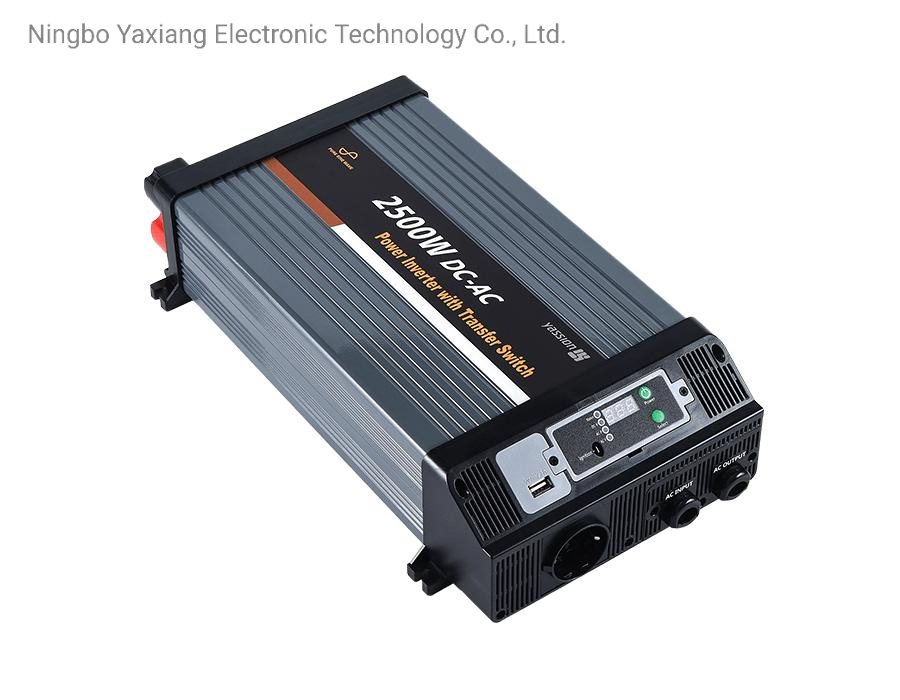

24V 100V/ 110V /120V 2500W DC-AC Pure Sine Wave Inverter with Transfer Switch with Removable Remote Control

1 / 5

24V 100V/ 110V /120V 2500W DC-AC Pure Sine Wave Inverter with Transfer Switch with Removable Remote Control

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

YX-2.5KUS-2-1 (removable display)

Grid Type

Off-Grid Inverter

Output Type

Single

Wave String

Pure Sine Wave

Peak Power

4900W

Continuous Power

2500W

Output Frequency

50/60Hz

Efficiency

91%

Warranty

18 Months

Output Current

20.8A

💎

Product Presentation

🚀 Utility Priority: When utility power is available, the inverter transfers power to household appliances. If disconnected, it switches back to battery power without disruption.

🔋 Battery Priority: Inverter output is prioritized. If unavailable, the unit transfers to utility AC supply for equipment.

📊

Technical Parameters

Parameter	YX-2.5KUS-1-1 / 2-1		YX-2.5KUS-1-2 / 2-2
Continuous Power	2500W
Peak Power	4900W
DC Voltage	DC12V	DC24V	DC12V	DC24V
AC Voltage	100V/110V/120VAC ± 3V		220V/230V/240VAC ± 3V
Transfer Time	Less than 30ms
USB Port	5V, 2.1A
Product Size	402x227x93mm

🛡️

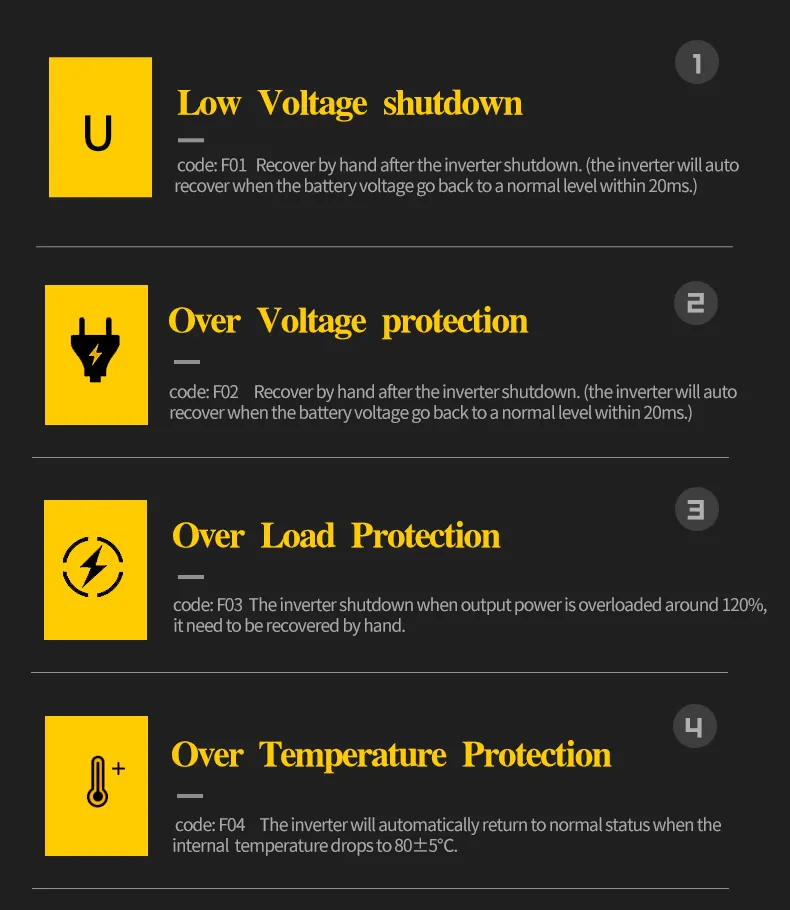

Safety Protections

F01

Low voltage shutdown

F02

Over input voltage protection

F03

Over load / Short circuit protection

F04

Over temperature protection

F05/06

Voltage & Load Alarms

F09

AC input overload protection

❓

Frequently Asked Questions

What is the peak power capacity of this inverter?

This model supports a continuous power of 2500W and a peak surge power of up to 4900W to handle high-start loads.

Does the inverter switch automatically between battery and utility?

Yes, it features a built-in transfer switch. In "Utility Priority" mode, it seamlessly switches to battery power if the utility is disconnected (transfer time < 30ms).

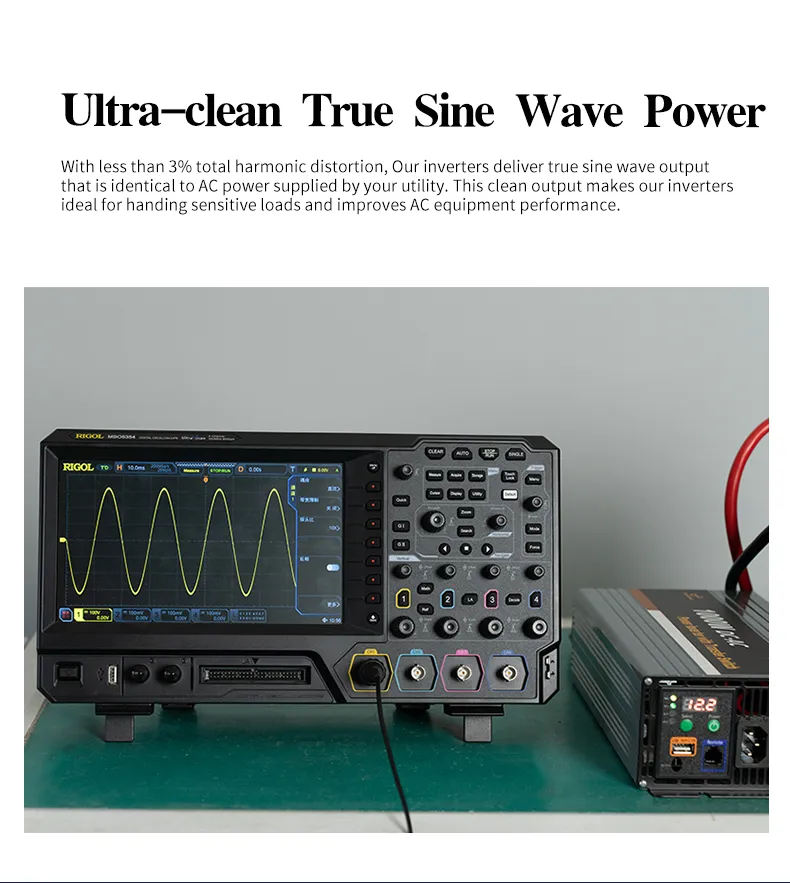

What type of appliances can I run with a Pure Sine Wave inverter?

Pure Sine Wave inverters are compatible with all electronics, including sensitive medical equipment, laptops, and appliances with motors (like fridges or pumps), as they mimic the clean power from a wall outlet.

How does the Power-Saving mode work?

The power-saving mode activates when the output power is less than 5W. It automatically returns to normal status once the load exceeds 10W.

What is the "Ignition Function" mention in the specs?

This allows the inverter to start or shut down simultaneously with a vehicle's engine when connected to the vehicle's battery or starter pole.

What protection codes should I look for on the display?

Common codes include F01 (Low Voltage Shutdown), F03 (Overload/Short Circuit), and F04 (Over Temperature). The digital LED display makes troubleshooting simple.
