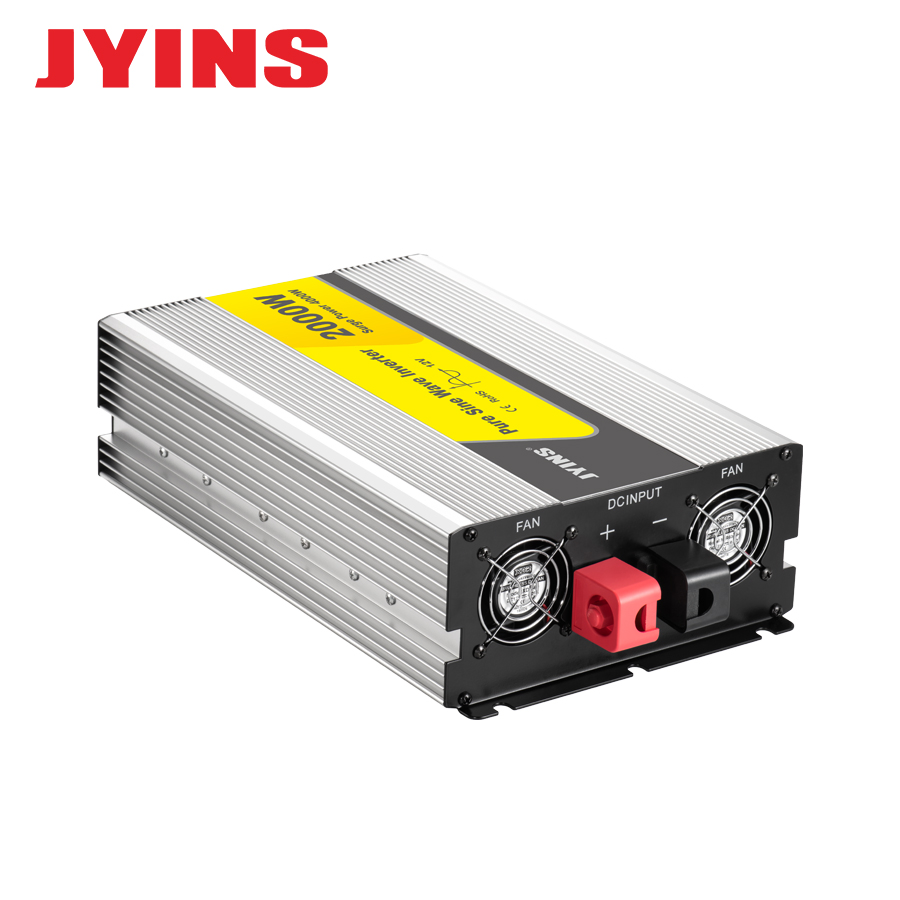

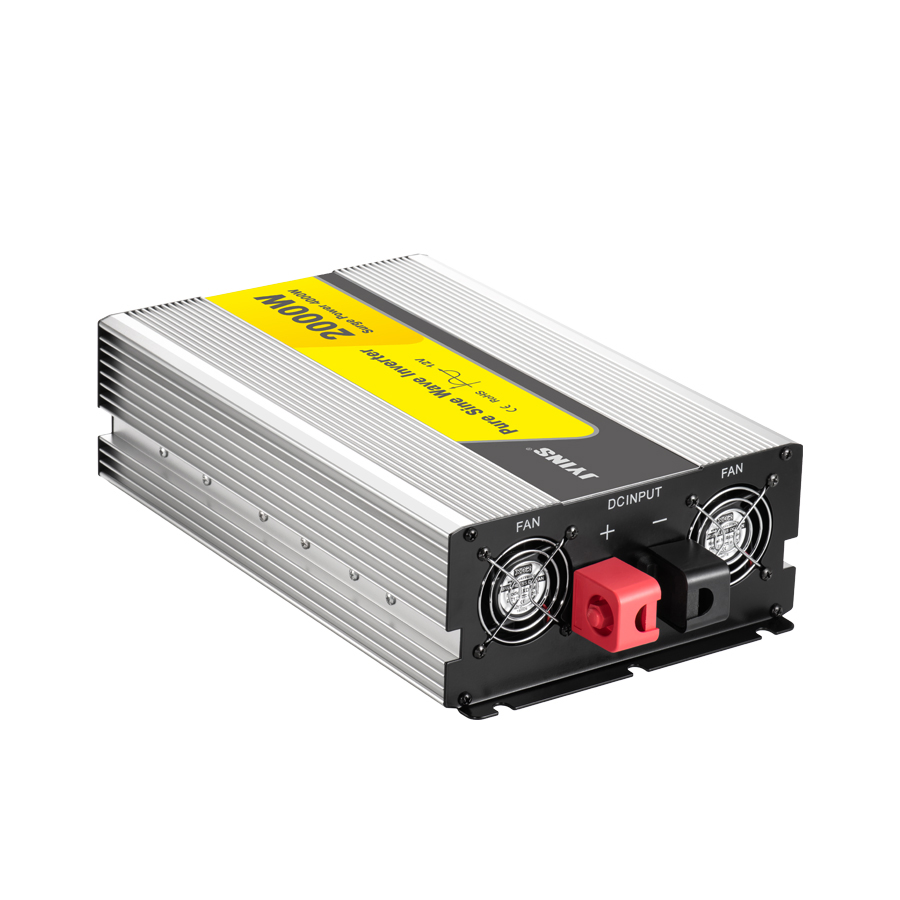

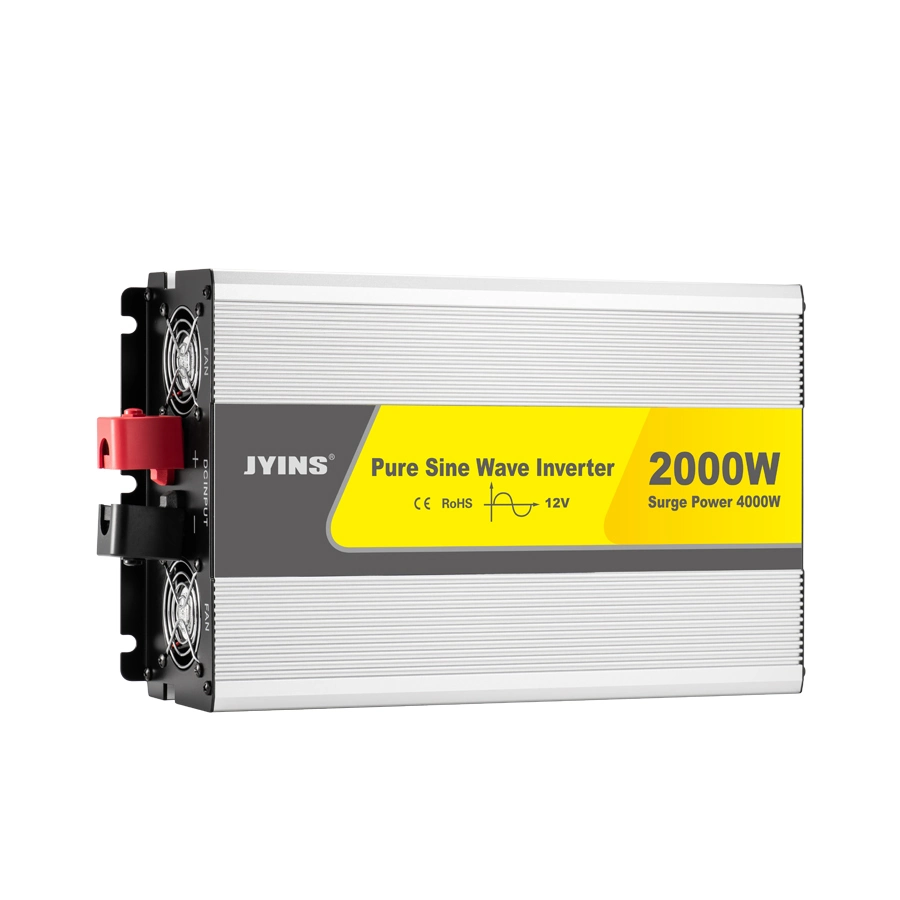

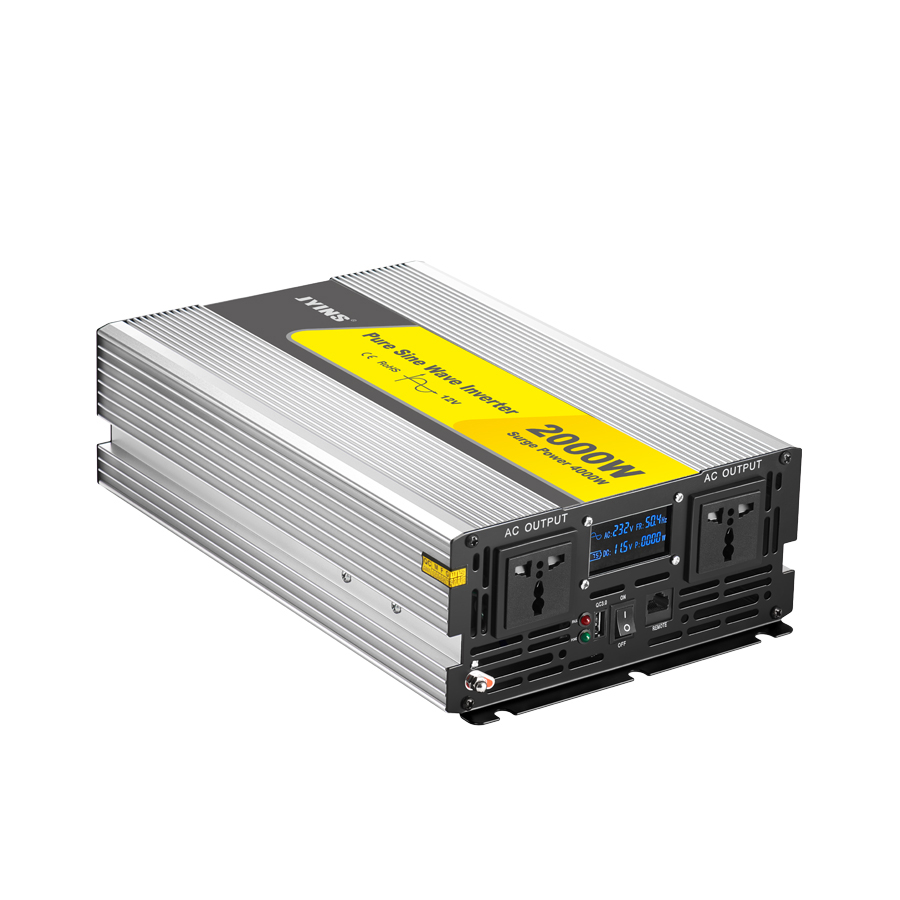

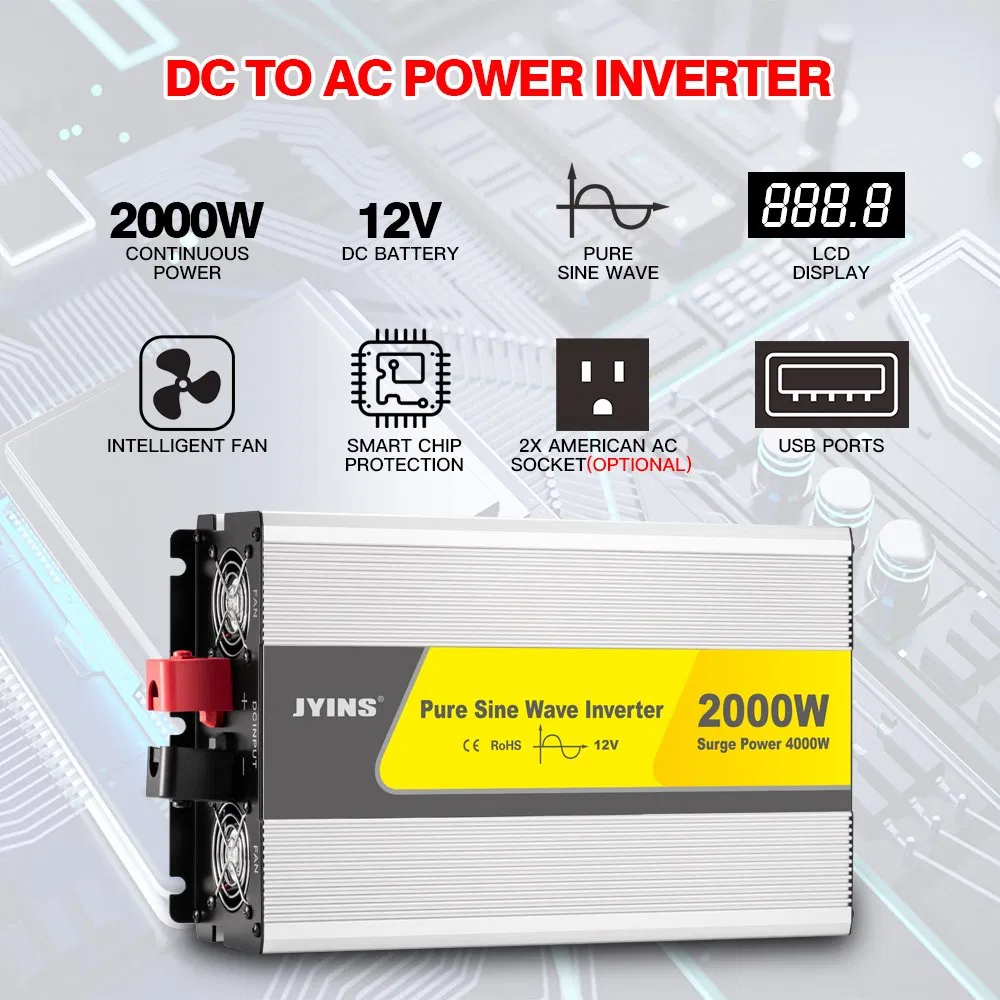

2000W 12V/24V/48V DC to AC 110V/220V/230V Pure Sine Wave Solar Power Inverter

Basic Information

Model NO.

JYP-2000W

Output Power

2000W

Grid Type

off-Grid Inverter

Output Type

Single

Circuit Topologies

Push-Pull & Full Bridge Type

Nature of Wave String

Sine Wave Inverter

Type

DC/AC Inverters

OEM

Accepted

Certificate

CE & RoHS

Output Voltage

110V 230V

Input Voltage

12V 24V 48V

Output Frequency

50Hz/60Hz

Warranty

24 Months

Shell Material

Aluminium Alloy

Color

Silver

Wave Form

Pure Sine Wave Inverter

Transport Package

Carton

Specification

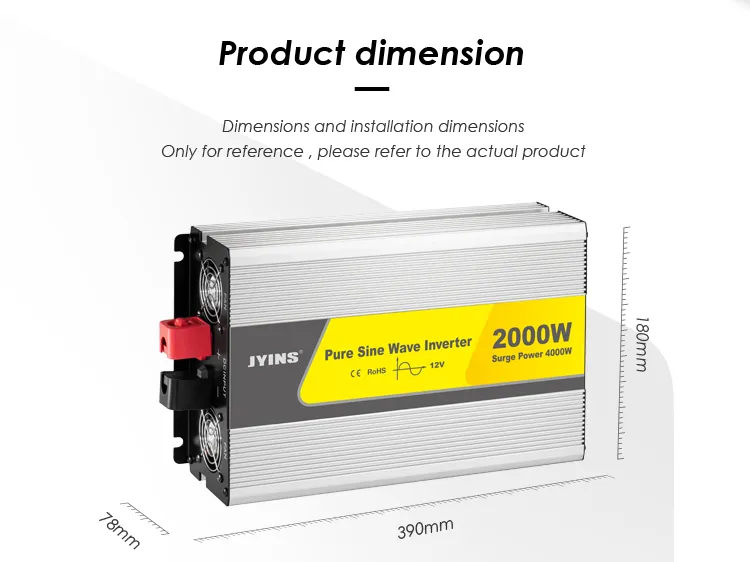

390*180*78mm

HS Code

8504403090

Production Capacity

10000 PCS/Months

Packaging & Delivery

Package Size

39.50cm * 26.00cm * 15.50cm

Package Gross Weight

5.200kg

Lead Time

15 days (1 - 100 Pieces)
To be negotiated (> 100 Pieces)

Product Description

2000W 12V/24V/48V DC to AC 110V/220V/230V Pure Sine Wave Solar Power Inverter

Technical Parameters

Model	JYP-2000W-12V	JYP-2000W-24V	JYP-2000W-48V
Input voltage	13V±0.5V	26V±0.5V	52V±0.5V
Output voltage	(110V or 230V) / ±5%
Output frequency	(50Hz±2Hz) or (60Hz±2Hz)
Output waveform	Pure Sine Wave
Waveform distortion	THD≤3% (Linear load)
Rated power	2000W
Peak power	4000W
Unload current	≤0.8A	≤0.4A	≤0.25A

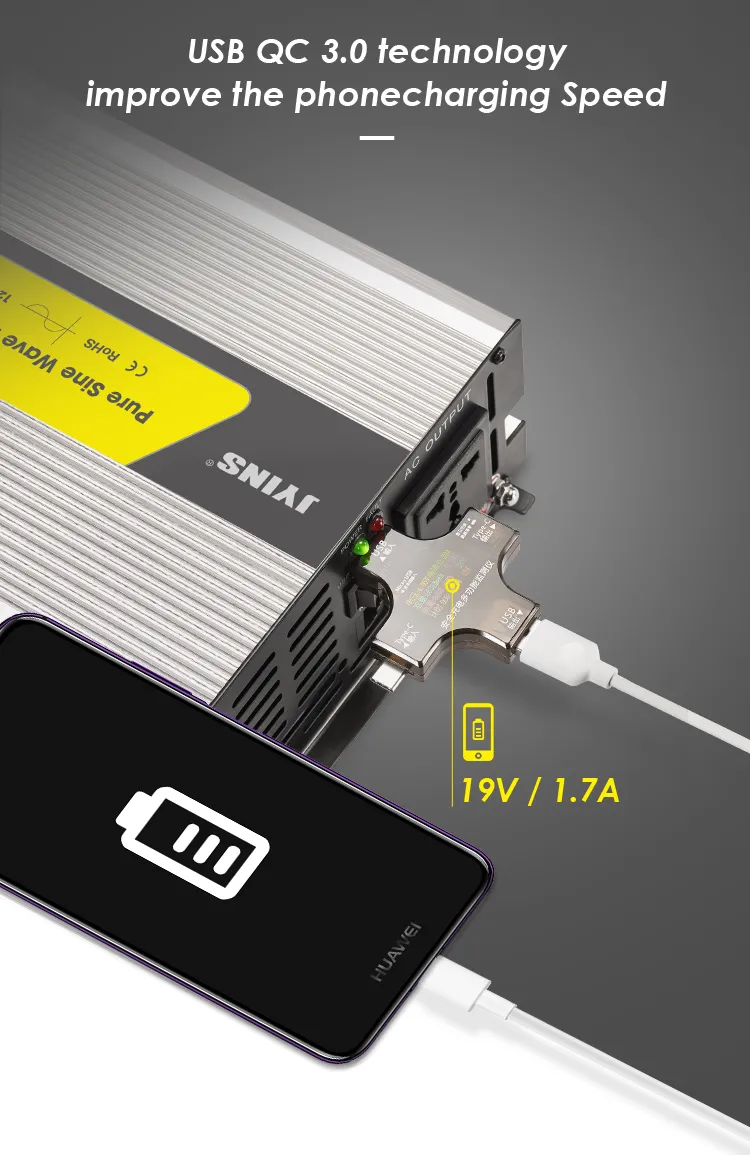

USB port	5V, 2.1A (Support QC3.0 technology)
Max. efficiency	89%	91%	93%
Over load protection	2300W±5%
Note: Our products update constantly. The technical parameter is for reference only. Please refer to our real product.

Why Choose Us

Frequently Asked Questions

Why is your quotation higher than other suppliers?

In domestic market, the high and low inverter brands are mixed together. Many low-cost solar power inverters are actually assembled in small unlicensed workshops using substandard components, posing significant security risks. To protect personal and property safety, please choose a reliable inverter rather than just seeking the lowest price.

How many categories does it have according to the output waveform?

Type one: Modified Sine Wave inverter - Uses PWM pulse width modulation. It is suitable for most general electrical equipment but may have 20% harmonic distortion issues with sophisticated equipment.
Type two: Pure Sine Wave inverter - Adopts isolated coupling circuit design. It is highly stable and suitable for all loads, including inductive loads like refrigerators and electric drills, without interference.

Is the output voltage of our inverter stable?

Absolutely. Our inverter is designed with a high-quality regulator circuit. While ordinary multimeters might show unstable readings because they cannot correctly calculate data for modified waveforms, the true output voltage is quite stable.

What are resistive load appliances?

Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescent lights, electric fans, small printers, and rice cookers belong to resistive loads. Our inverters can drive them successfully.

What are inductive load appliances?

These include products produced by electromagnetic induction like motors, compressors, refrigerators, air conditioners, pumps, and energy-saving lamps. These products require 3-7 times their rated power during start-up; therefore, only pure sine wave inverters are suitable for them.

What should be noticed when installing the inverter?

Place the product in a well-ventilated, cool, dry, and waterproof location. Do not place foreign objects into the inverter. Always remember to turn on the inverter before turning on the connected appliance.
