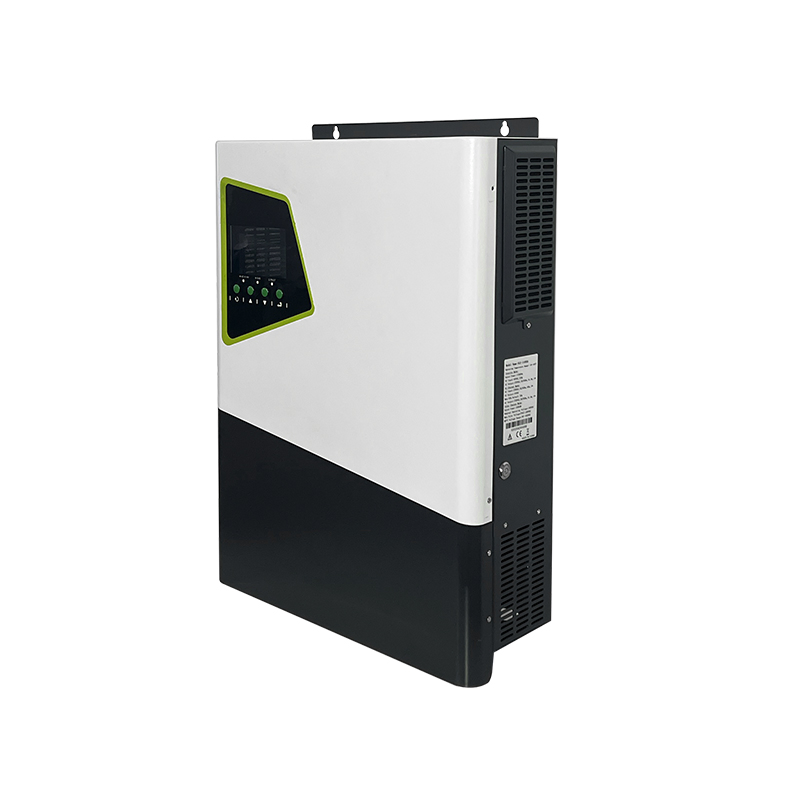

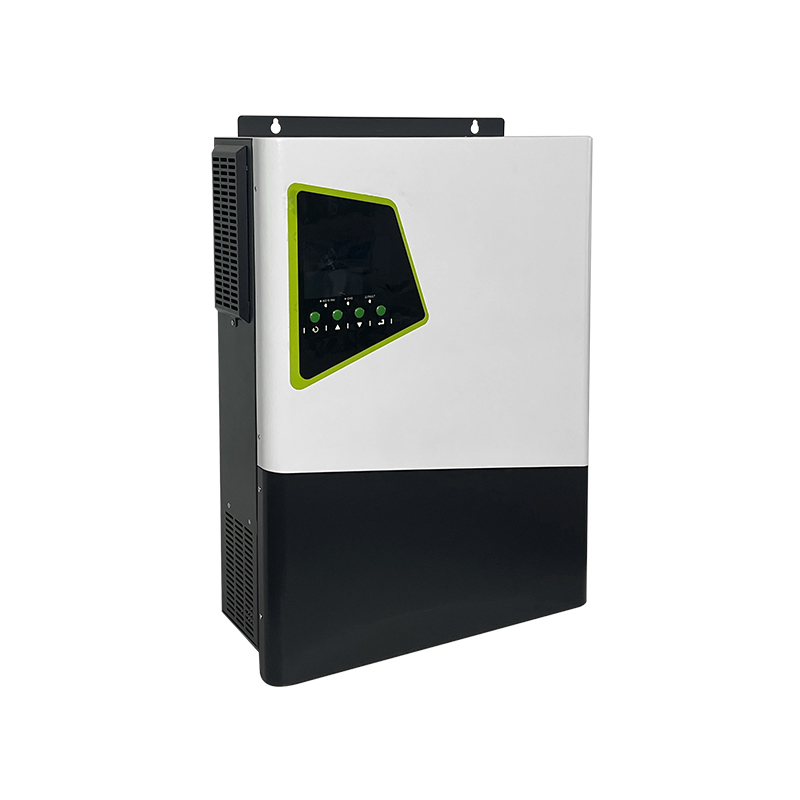

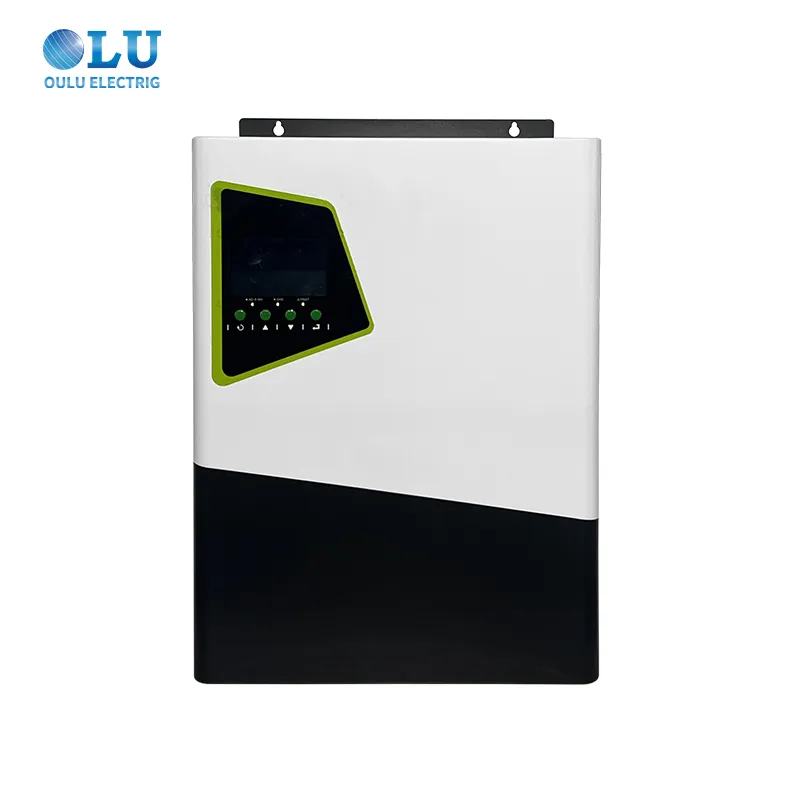

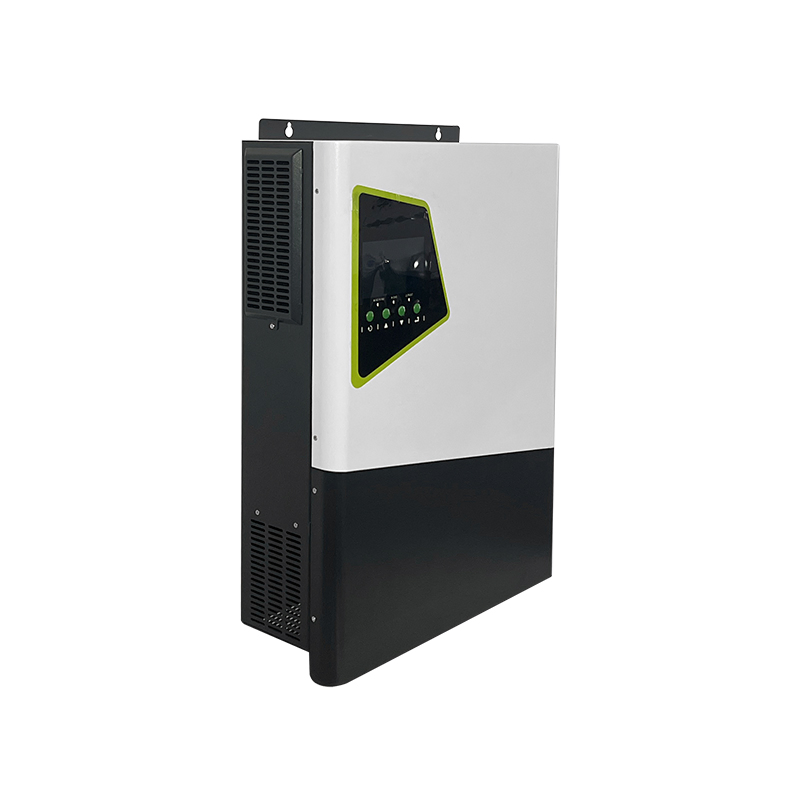

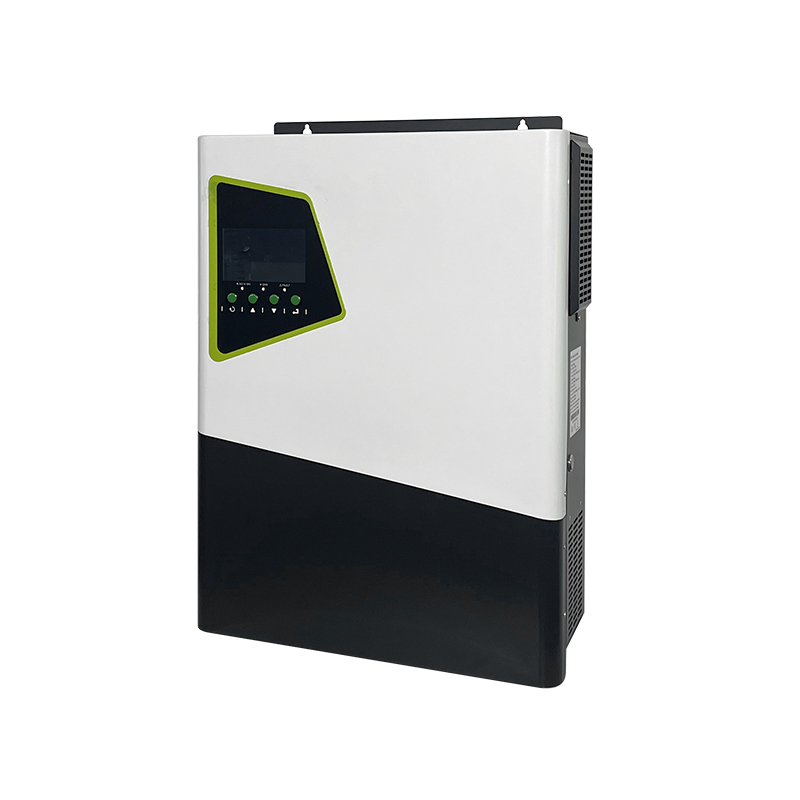

HYBRID INVERTER SYSTEM
A Hybrid Inverter integrates multiple power conversion functions in a single unit for comprehensive energy management solutions. This versatile system combines various power sources and automatically switches between different energy inputs to optimize performance.
The intelligent design provides reliable backup power and reduces energy costs through efficient power management. With automatic switching capabilities and comprehensive energy optimization, these systems deliver enhanced energy savings and reliable operation across diverse applications.
Combines different power sources in a single unit, reducing system complexity while providing a unified control solution.
Incorporates charge controller functionality to optimize energy harvesting and protecting batteries through intelligent management.
Supports both grid-connected and standalone operation for versatile installation options and energy independence.
| SPECIFICATIONS | ||
|---|---|---|
| Model | OLU8548VMII | OLU11048VMII |
| Capacity | 8.5KVA/8.5kW | 11KVA/11kW |
| Maximum PV Input Power | 10kW | 11kW |
| Nominal Voltage | 230VAC | |
| Acceptable Voltage Range | 170-280VAC (PC); 90-280VAC (Home) | |
| Frequency Range | 50/60Hz (Adaptive) | |
| Surge Power | 17000VA | 22000VA |
| Waveform | Pure Sine Wave | |
| Battery Voltage | 48VDC | |
| Max Solar Charge Current | 140A | 160A |
| Communication | RS232 / RS485 / Dry Contact | |
Reduces electricity expenses through intelligent load management and peak shaving capabilities.
Delivers superior power conversion performance with minimal energy loss for optimal utilization.
Comprehensive safeguards including voltage, current, and temperature protection.
