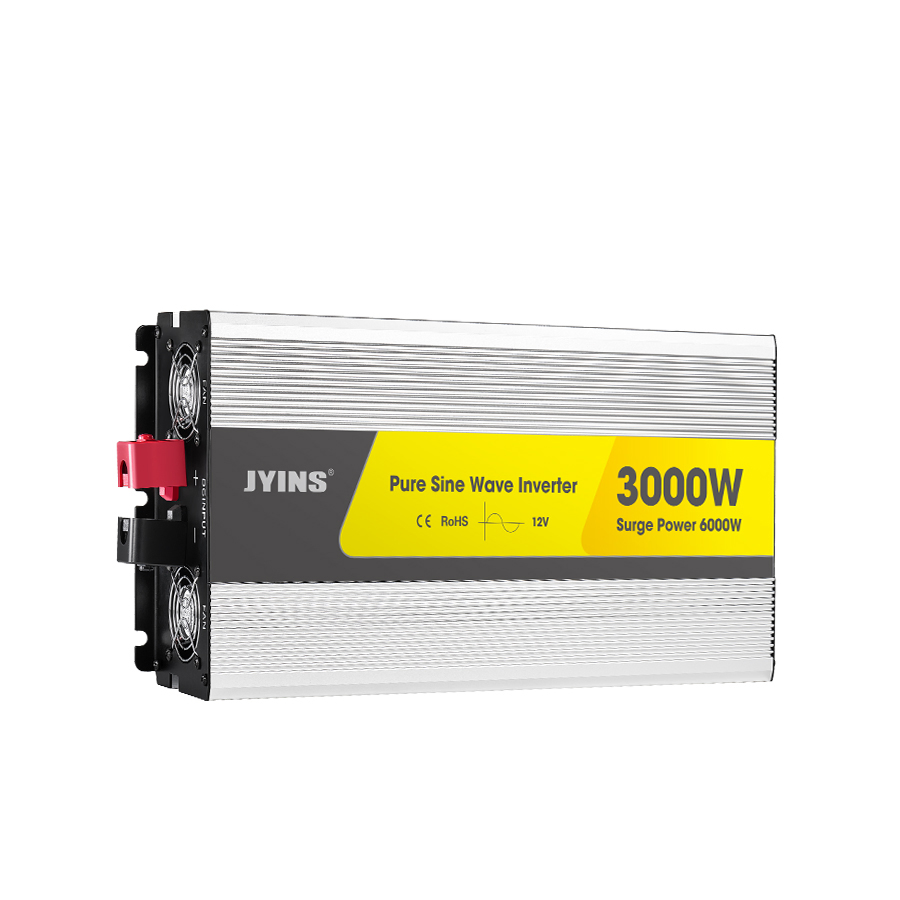

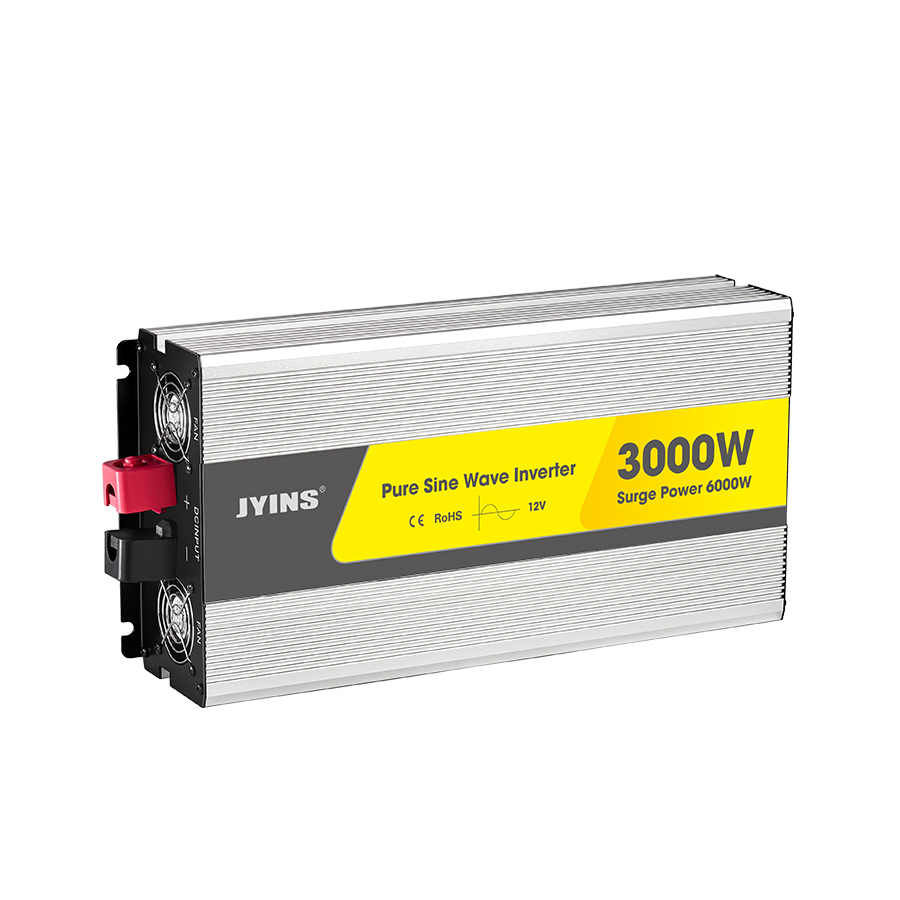

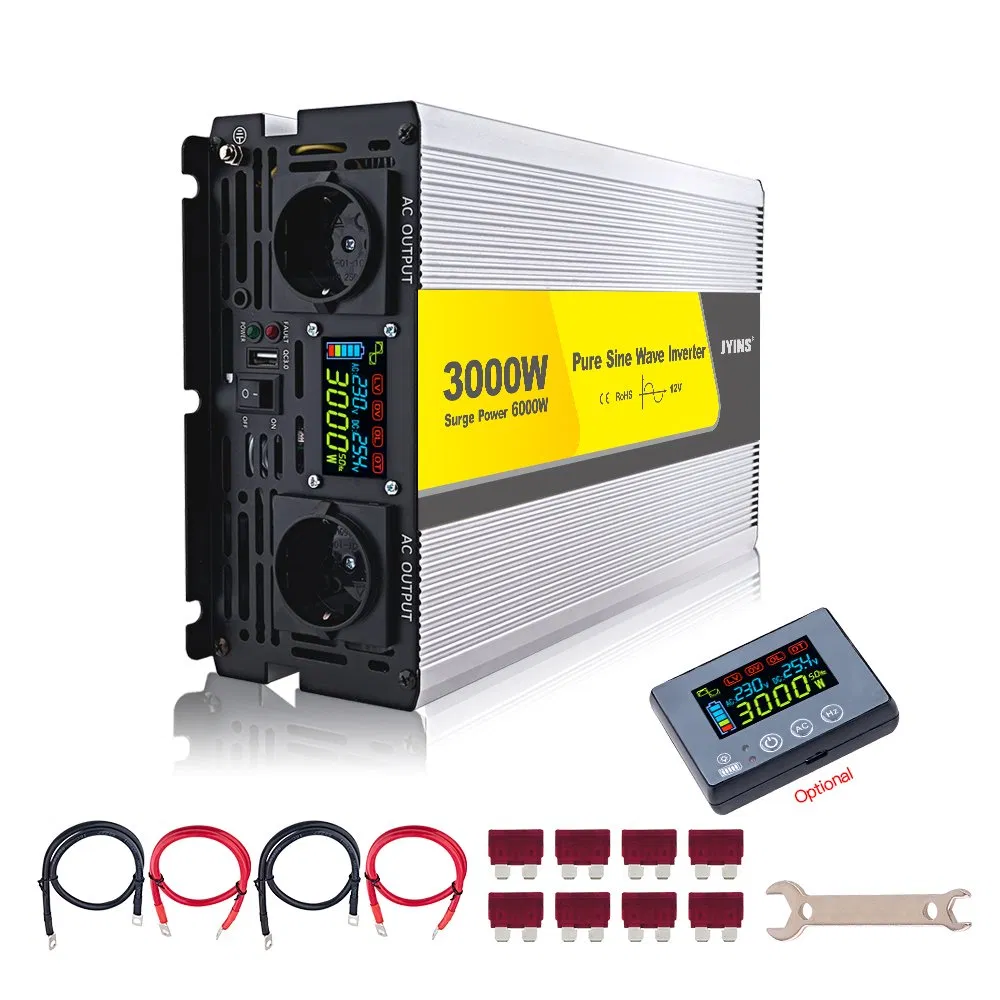

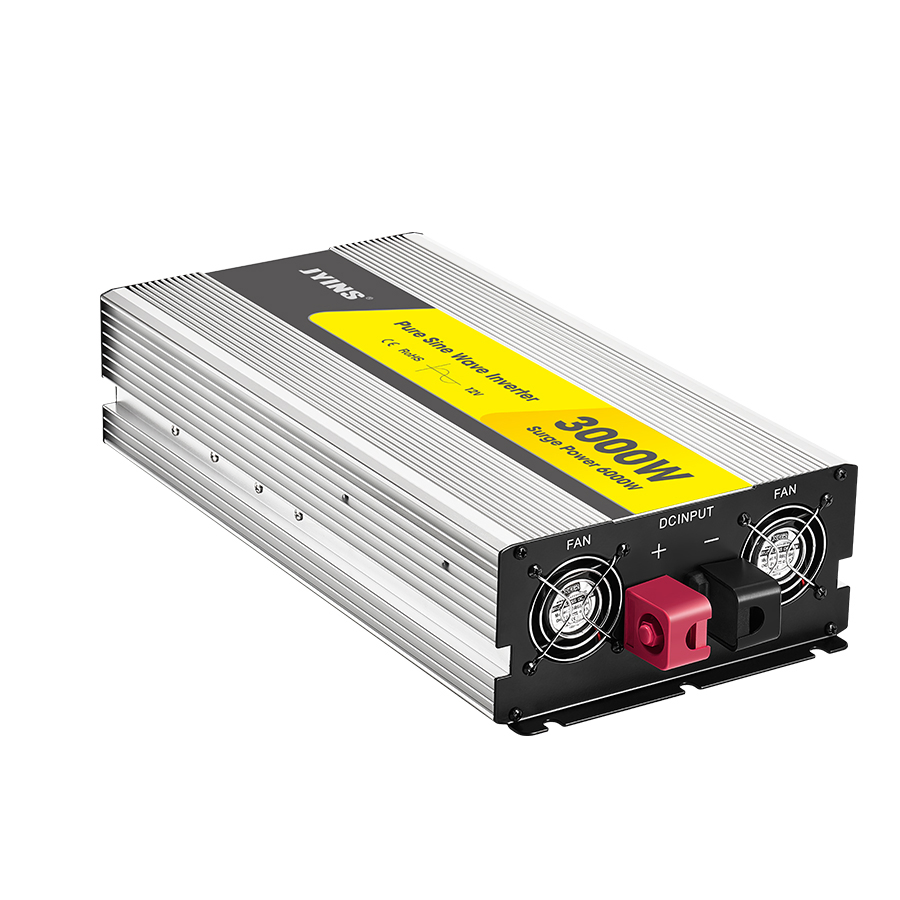

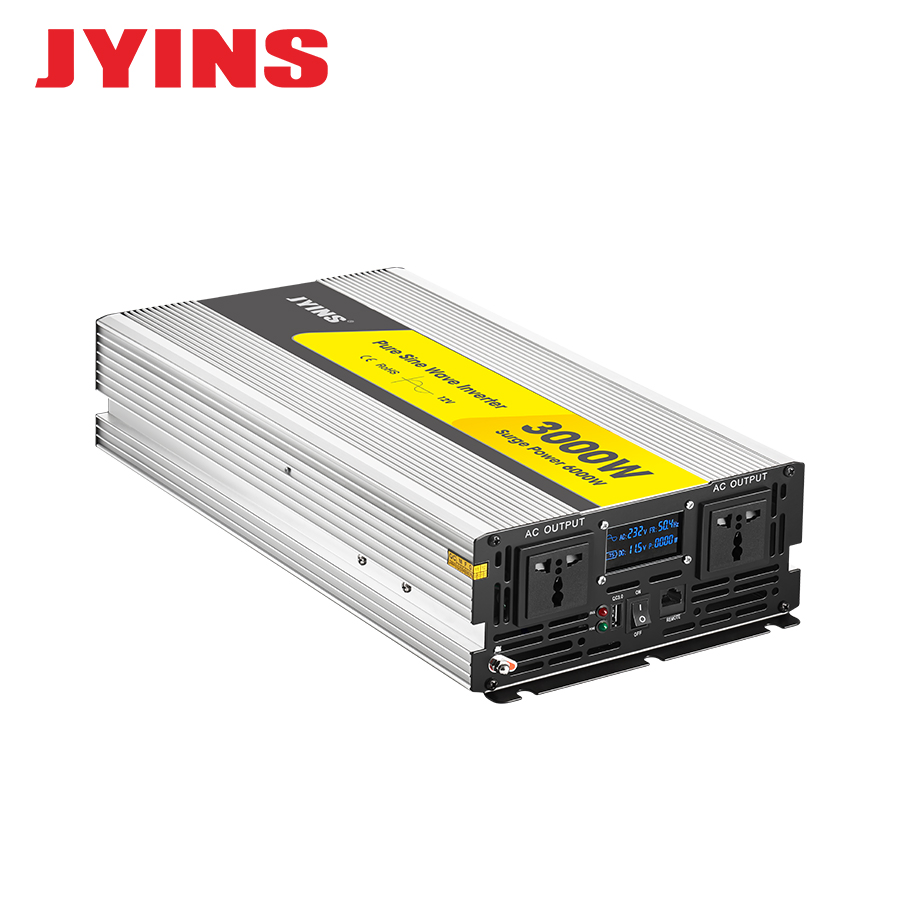

3000W off Grid Solar Pure Sine Wae Power Inverter

1 / 5

3000W off Grid Solar Pure Sine Wae Power Inverter

Customization:	Available
Nature of Source Flow:	Active Inverter
Certification:	RoHS, CE

Send Inquiry

Product Description

Basic Info

Model NO.

JYP-3000W

Output Power

3000W

Grid Type

off-Grid Inverter

Output Type

Single

Circuit Topologies

Push-Pull Type

Nature of Wave String

Sine Wave Inverter

Type

DC/AC Inverters

OEM

Accepted

Certificate

Ce&RoHS

Output Voltage

110V 220V

Input Voltage

12V 24V 48V

Output Frequency

50Hz/60Hz

Warranty

12 Months

Shell Material

Aluminium Alloy

Color

Silver

Wave Form

Pure Sine Wave Inverter

Transport Package

Carton

Specification

CE Rohs

HS Code

8504403090

Production Capacity

10, 000 PCS/Months

Product Description

3000W Off Grid Solar Pure Sine Wave Power Inverter

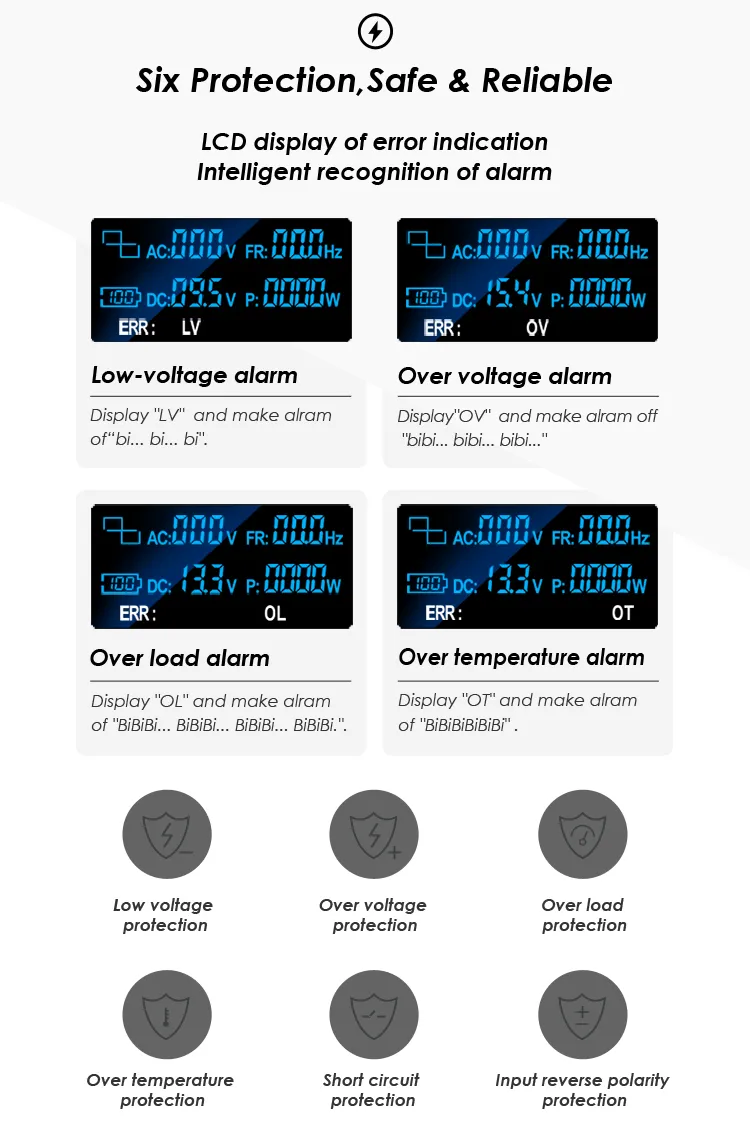

Protection Functions:

Low voltage alarm & Shutdown
Over voltage protection
Overload protection
Over temperature protection
Short circuit protection
Reverse Polarity protection
Soft start
Auto.reset after being in protected
Grounding protection

Product Parameters

Model	JYP-3K-1 (12/24/48V)	JYP-3K-2 (12/24/48V)
Rated power	3000W
Peak power	6000W
Output voltage	100VAC / 110VAC / 120VAC±5%	220VAC / 230VAC / 240VAC±5%
Output frequency	50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform	Pure Sine Wave (THD < 3%)
Max. efficiency	90%

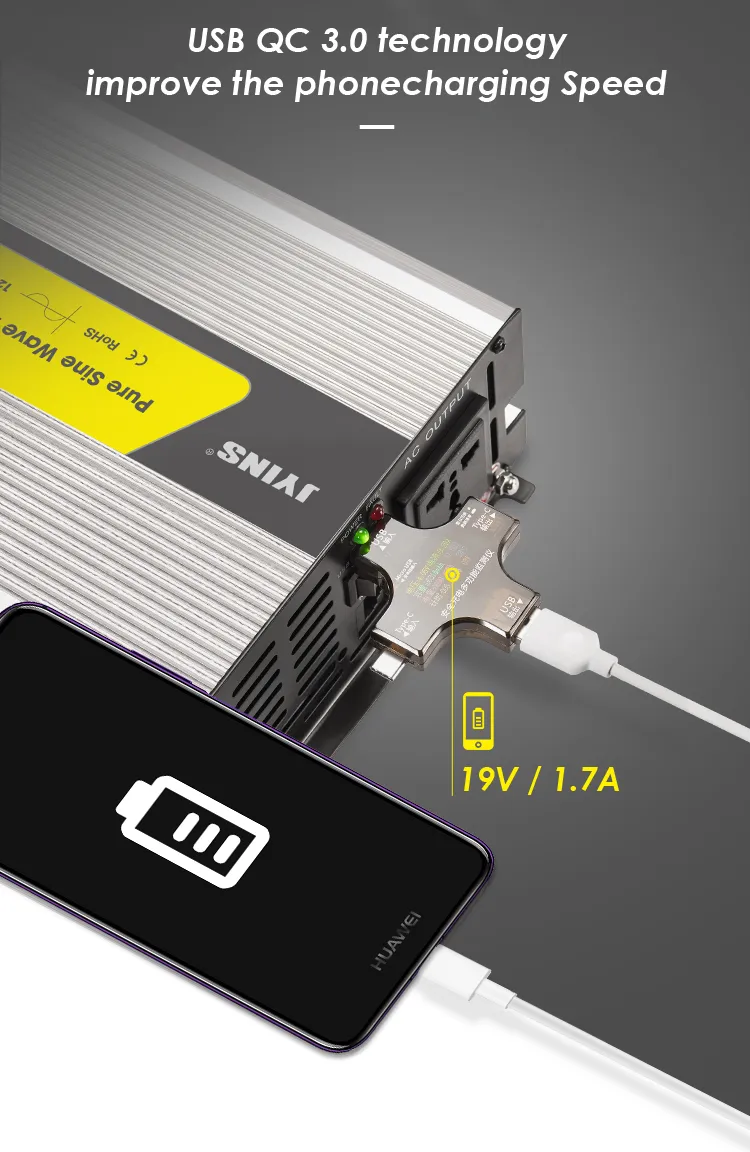

USB port	5V 1A
Working Temp.	-10° to +50°

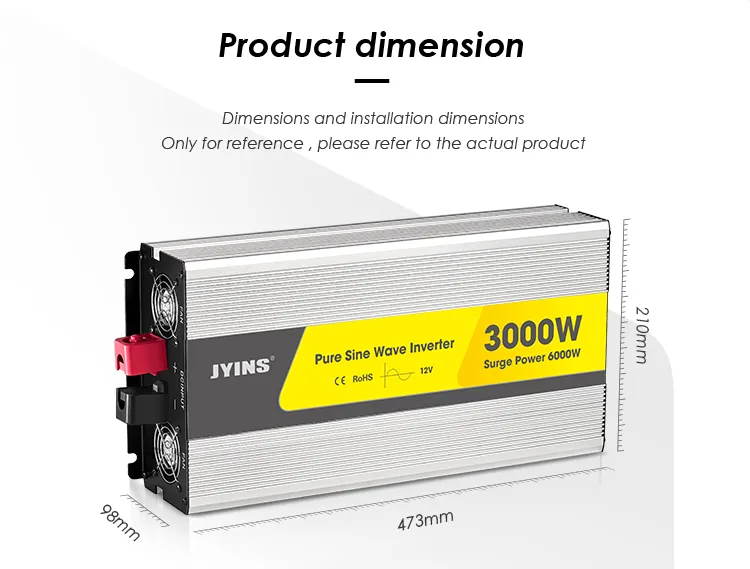

Dimension	398x180x130mm

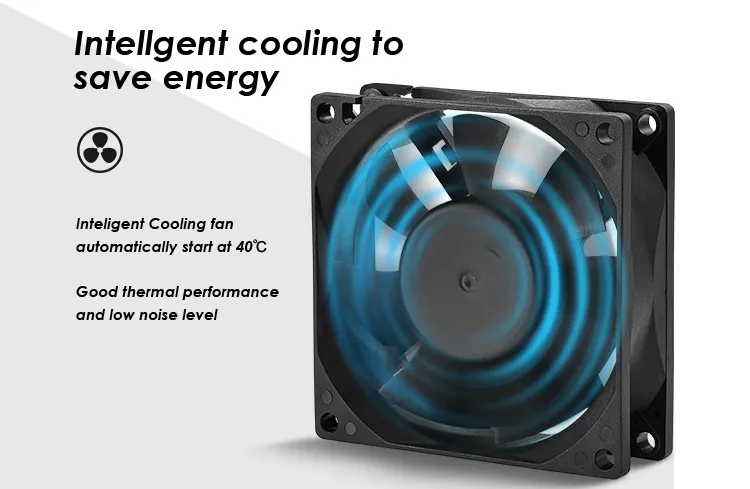

Cooling method	Intelligent air cooling

Note: Technical parameters are for reference only. Please refer to the real product.

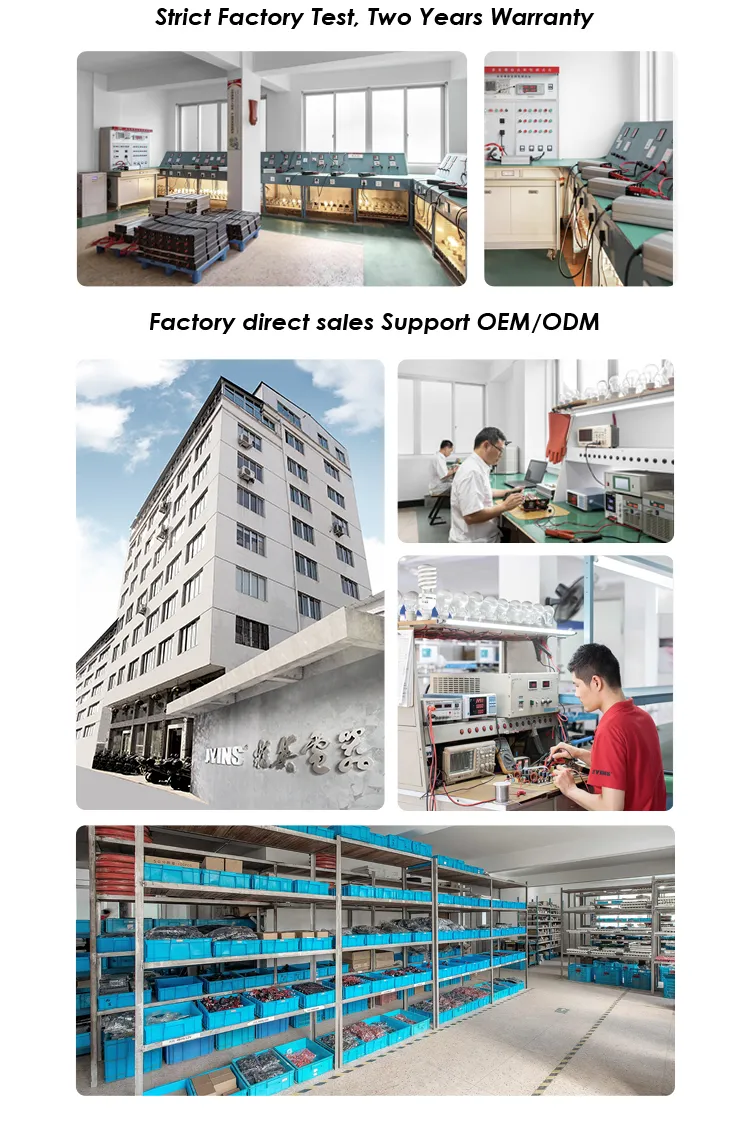

Our Advantages

Frequently Asked Questions

Q1: Why is the quotation higher than some other suppliers?

In the market, inverter qualities vary. Low-cost inverters often come from unlicensed workshops using substandard components, posing high security risks. To protect personal and property safety, it is essential to choose a reliable, high-quality inverter.

Q2: What are the differences between Pure Sine Wave and Modified Sine Wave inverters?

Modified Sine Wave inverters are cost-effective and suit most basic needs but may cause interference with sophisticated equipment. Pure Sine Wave inverters (like the JYP series) provide stable, grid-quality power, making them suitable for all loads, including inductive devices like refrigerators and drills, without interference.

Q3: Is the output voltage stable?

Yes, our inverters are designed with high-quality regulator circuits. Note that ordinary multimeters may show incorrect readings for non-pure sine waves; a true RMS multimeter is required for accurate measurement.

Q4: What are resistive load appliances?

These include mobile phones, computers, LCD TVs, incandescent lights, electric fans, small printers, and rice cookers. Modified sine wave inverters can usually drive these successfully.

Q5: What are inductive load appliances?

These products use electromagnetic induction, such as motors, compressors, refrigerators, air conditioners, and pumps. They require 3-7 times their rated power during startup. Only pure sine wave inverters are suitable for these loads.

Q6: What should be noticed when installing an inverter?

Place the product in a well-ventilated, cool, dry, and waterproof location. Do not place foreign objects on or inside the inverter. Always turn on the inverter before turning on the connected appliance.
