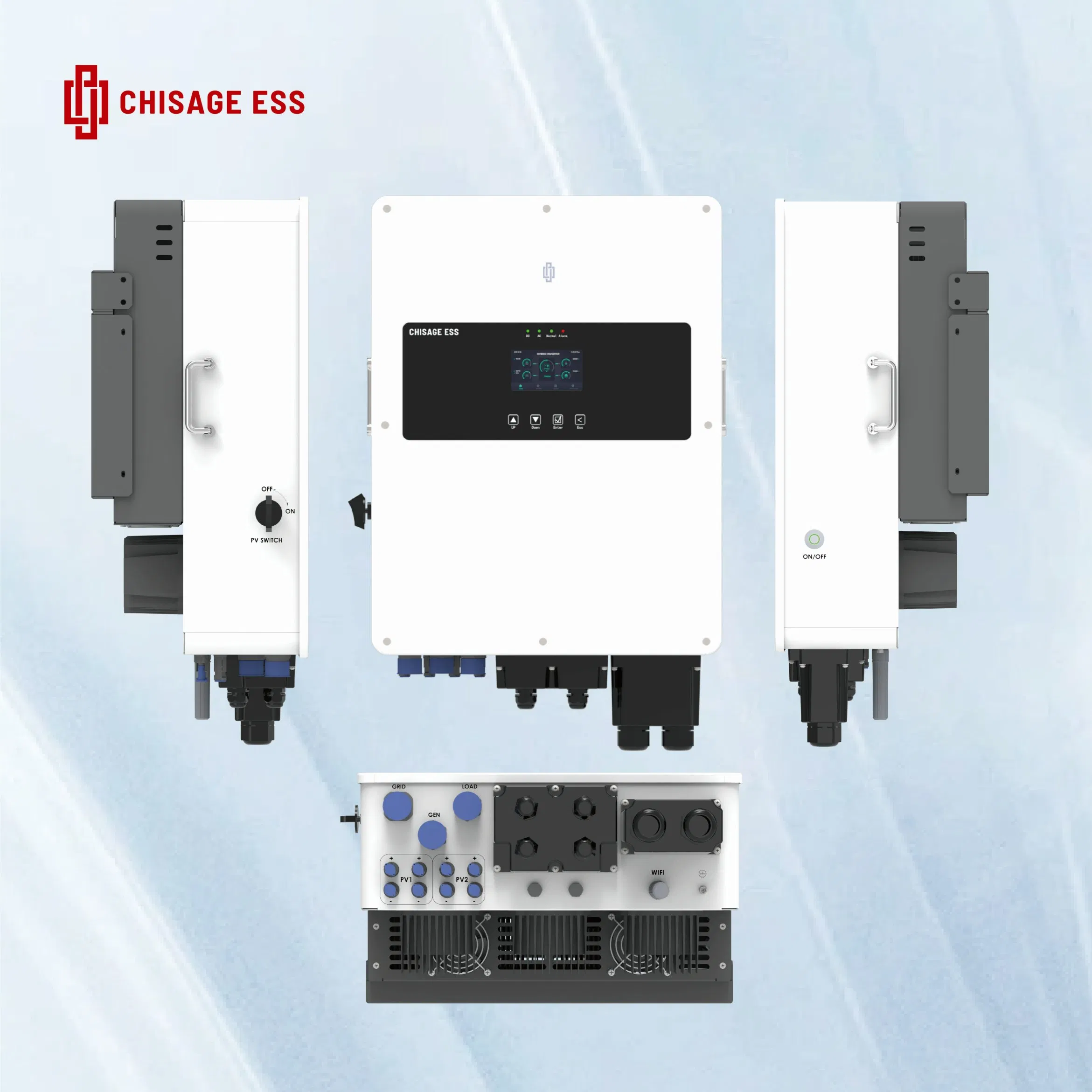

High Quality 5kw 6kw 8kw 10kw Single Phase DC AC Hybrid Inverter Grid Tied off Grid 48V Solar Home System Inverter for Solar Panel Energy System

1

Overview

Model NO.

Jup-6G2-LE

Nature of Source Flow

Active Inverter

Phase

Single

Output Power

>1000W

Certification

SAA, CE, ROHS, ISO9001, CCC

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Full-Bridge Type

Nature of Wave String

Sine Wave Inverter

Battery Type

Lead-Acid or Lithium-Ion

PV Input Voltage(V)

370(125~500)

No. of MPPT Trackers

2

Peak Power(off Grid)

2 Times of Rated Power, 10s

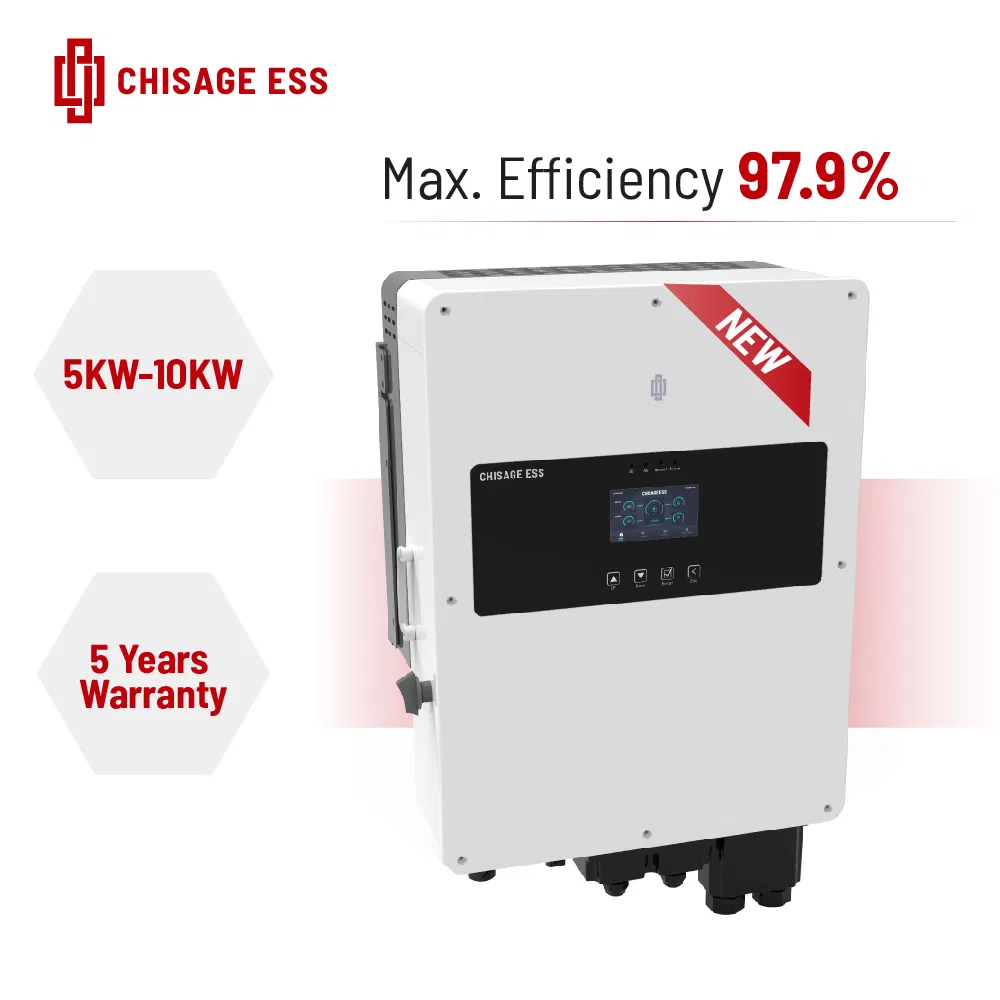

Max.Efficiency

97.90%

Cooling

Smart Cooling

HS Code

8504403090

2

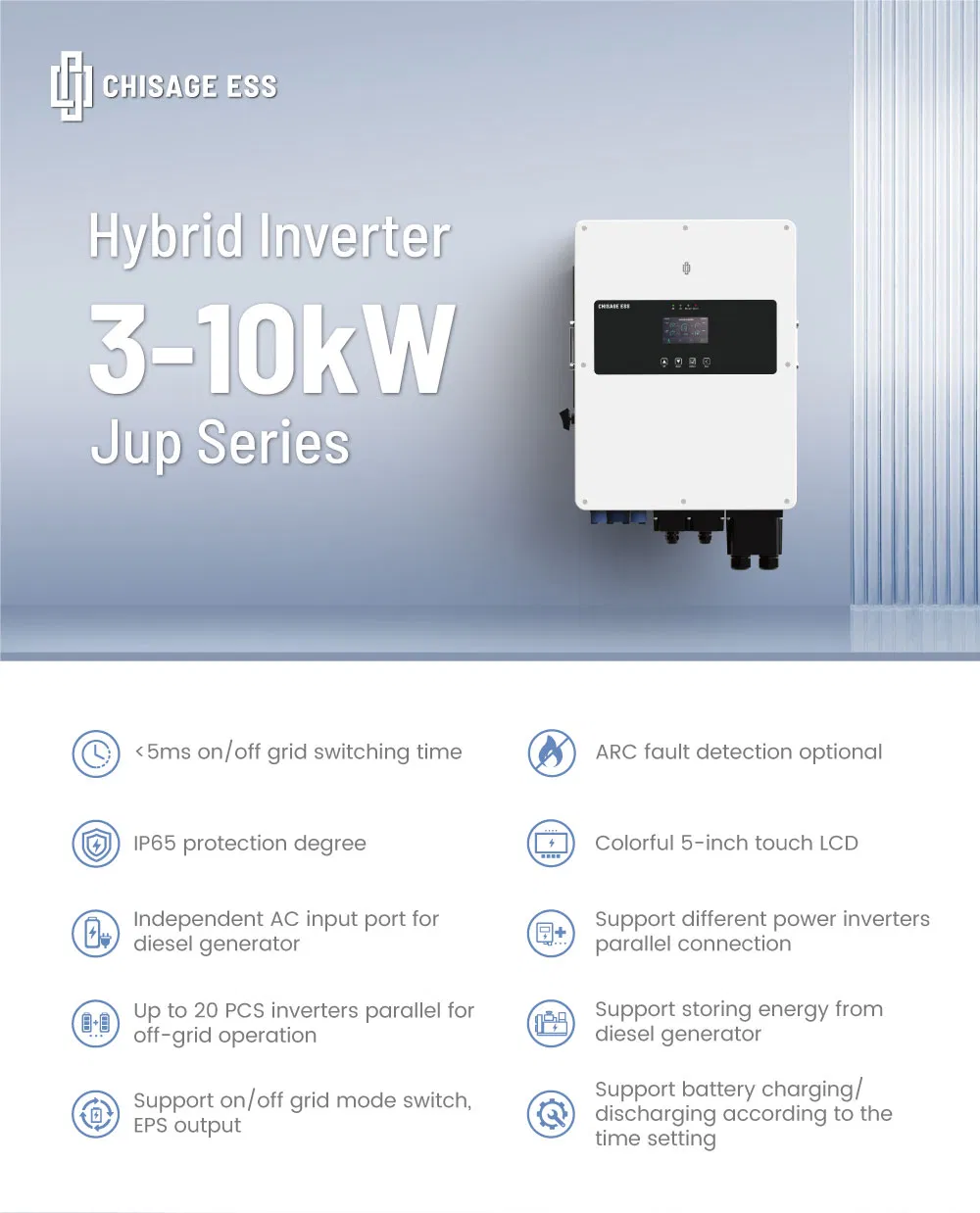

Product Highlights

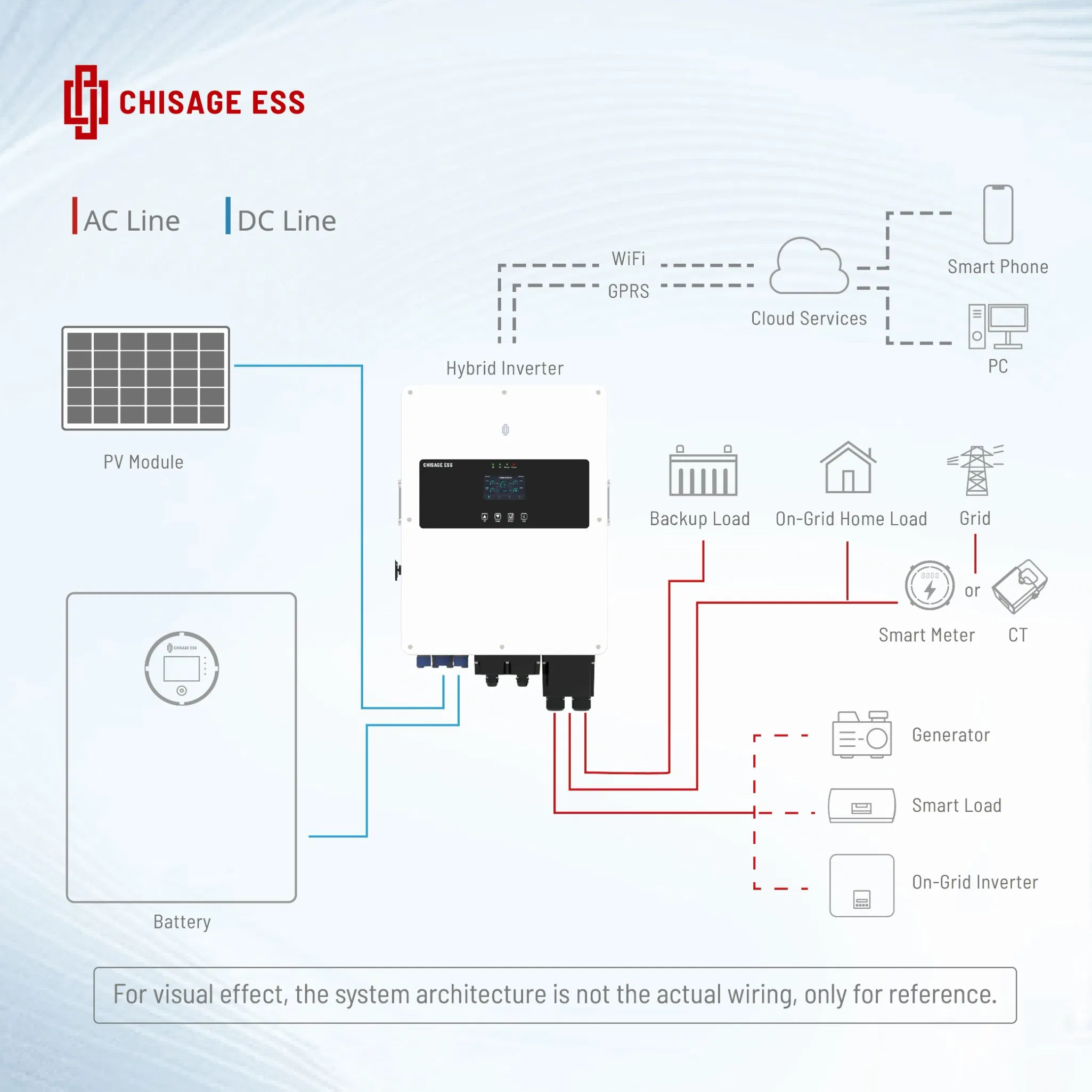

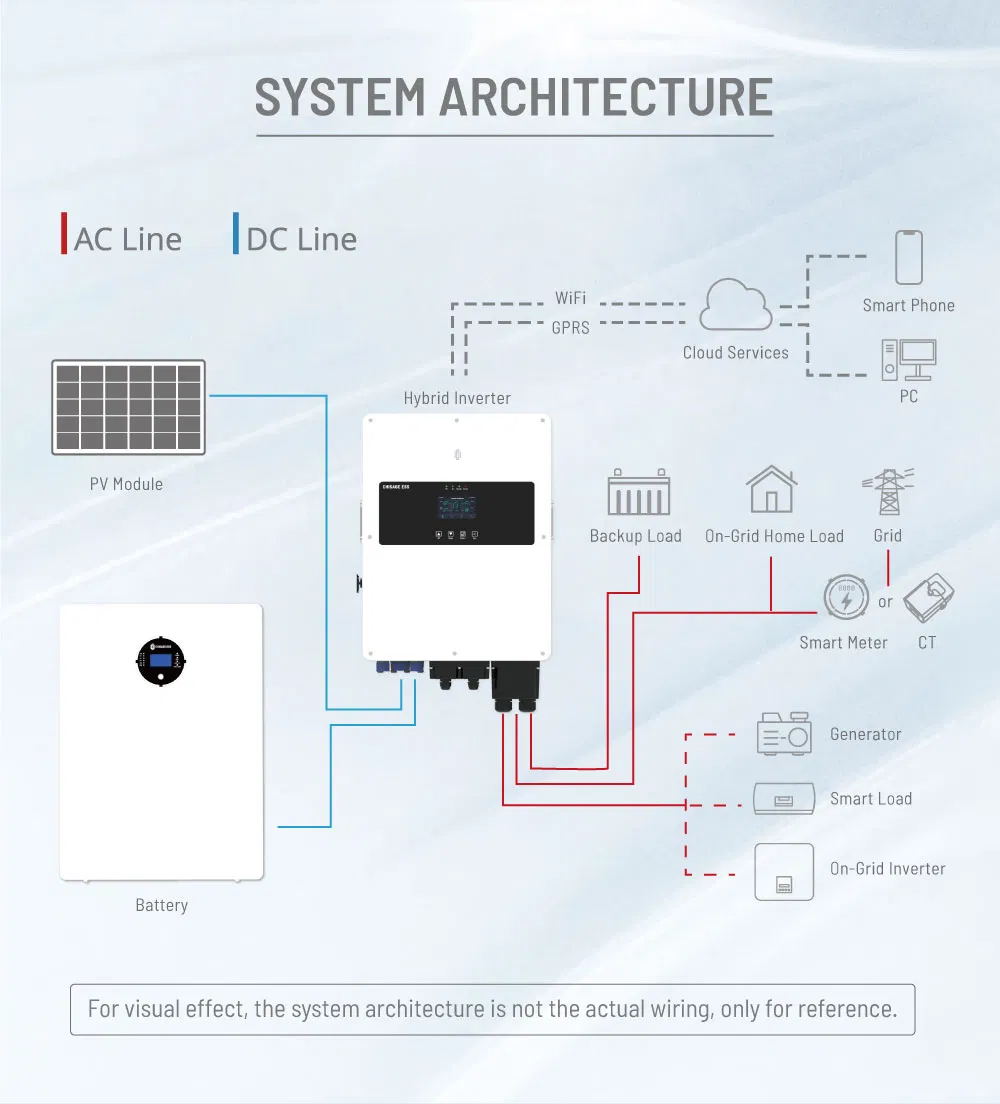

Pure sine wave output and EPS power, low voltage battery input, support on and off grid mode switch, colorful 5 inch touch LCD.

3

Specification

Technical Data
Model	Jup-3G2-LE	Jup-5G2-LE	Jup-6G2-LE	Jup-8G2-LE	Jup-10G2-LE
Battery Input
Battery Type	Lead-acid or Li-ion
Max. Charge/Discharge Current (A)	70	120	140	190	210
PV String Input
Max. DC Input Power (W)	4,500	7,500	9,000	12,000	15,000
PV Input Voltage (V)	370(125~500)
No. of MPPT Trackers	1	2	2	2	2
AC Output
Rated AC Output Power (W)	3,000	5,000	6,000	8,000	10,000
Max. AC Output Power (W)	3,600	6,000	7,200	9,600	12,000
Efficiency
Max. Efficiency	97.90%
Euro Efficiency	97.00%
General Data
Operating Temperature	-45~60ºC (>45 Derating)
Protection Degree	IP65

4

Why Choose Us

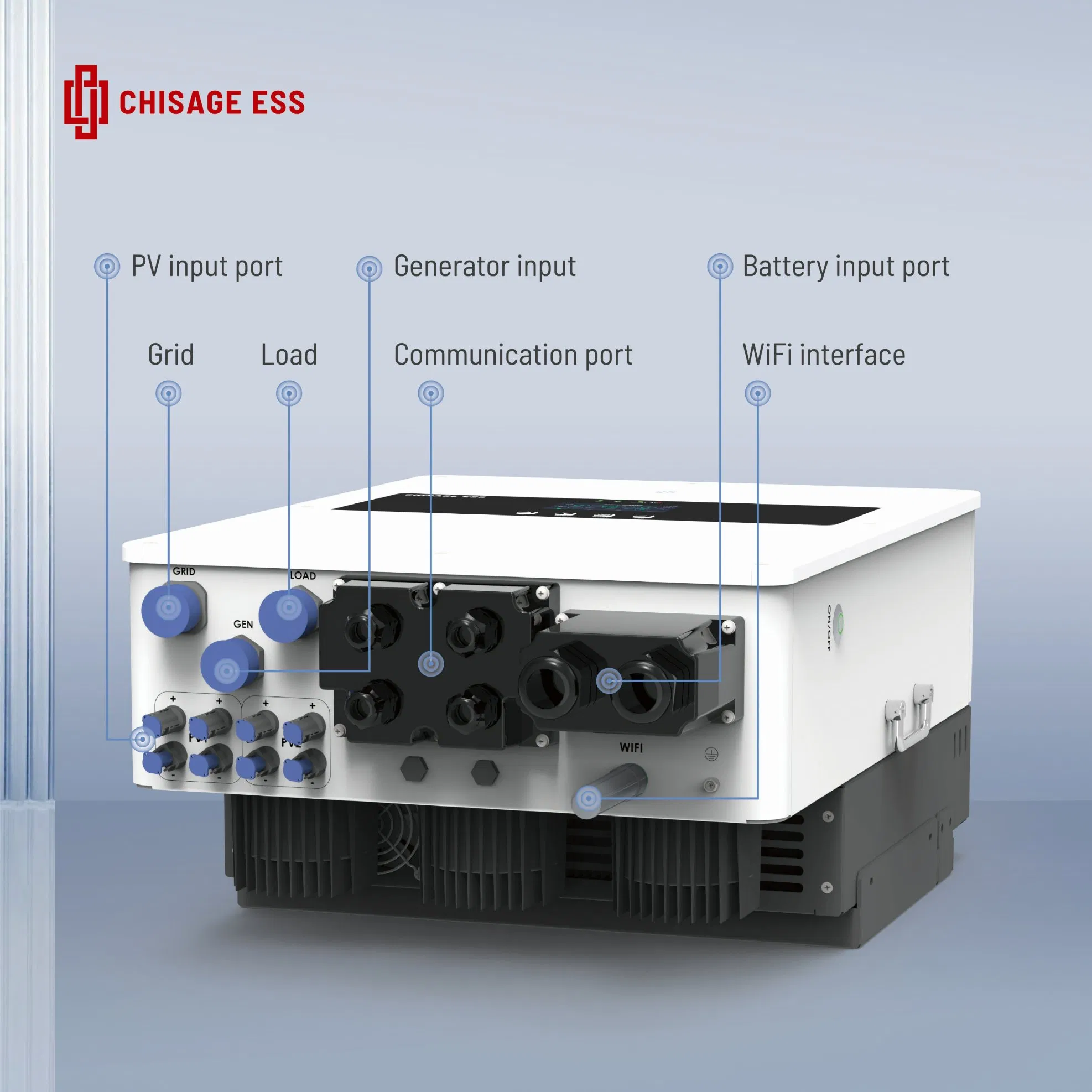

IP65 waterproof and dustproof protection degree, support battery charging/discharging according to time setting, independent AC input port for diesel generator.

5

Frequently Asked Questions

Are you a factory or trading company?

We are a factory specialising in the field of solar inverter and solar energy storage system. With advanced intelligent production lines and an experienced production team, we prioritize innovation and reliability.

What is the MOQ?

The MOQ is 1 unit, and for items in stock, we will ship within 7 business days.

Do you accept custom products?

Yes, OEM and ODM is supported. We have a professional R&D team with over 20 years of experience to provide you with professional customisation support including packaging and functionality.

What is your after-sales service?

We provide online service 7x24 hours, product replacement for quality issues during the warranty period, and flexible training services. For large purchases, technical support centres can be established locally.

What's the payment term?

We support a variety of payment methods, such as T/T, L/C, Trade Guarantee Payment, PayPal, and others. Strategic partners may negotiate special terms like DP.

Is the inverter compatible with different battery types?

Yes, the system supports both Lead-acid and Lithium-ion batteries with self-adaption to BMS charging strategies.
