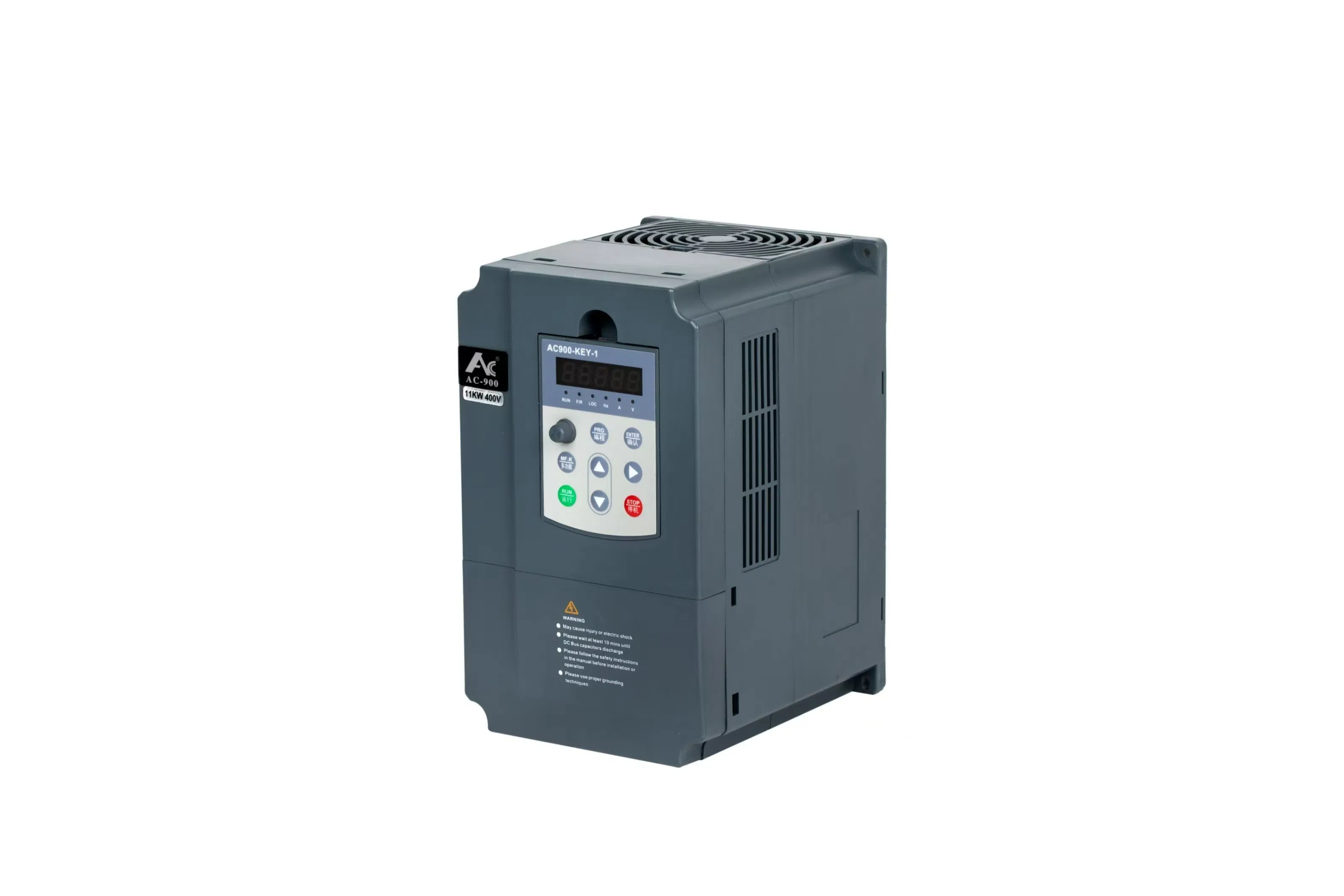

High performance variable frequency drive VFD AC drive 3 phase 380V 0.75KW to 2.2 KW from professional manufacture.

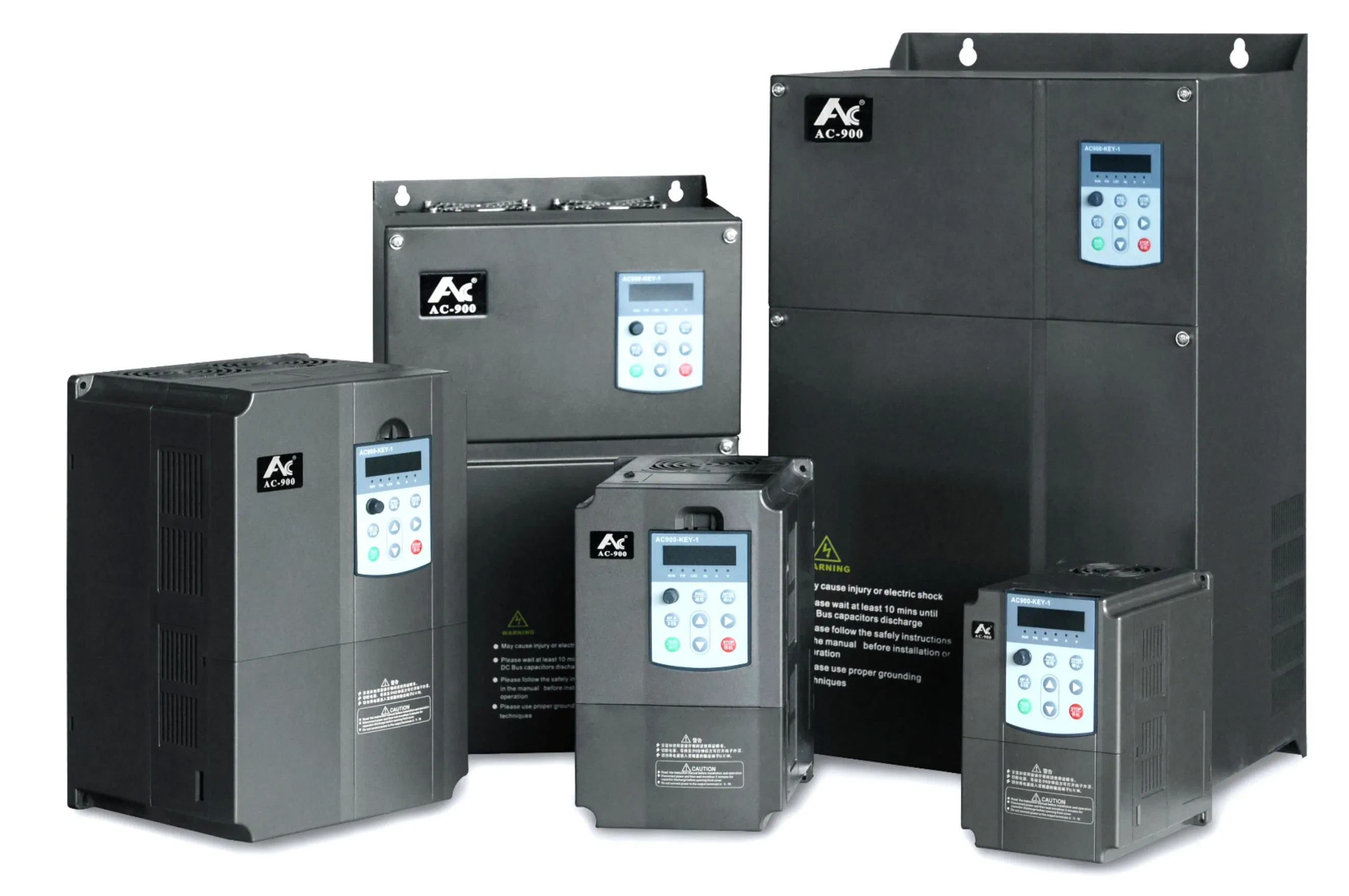

The AC900 series inverter is a general high-performance current vector inverter designed to control and regulate the speed of a three-phase asynchronous/induction motor. AC900 adopts high-performance vector control technology, low speed and high torque output, with good dynamic characteristics and superior overload capability.

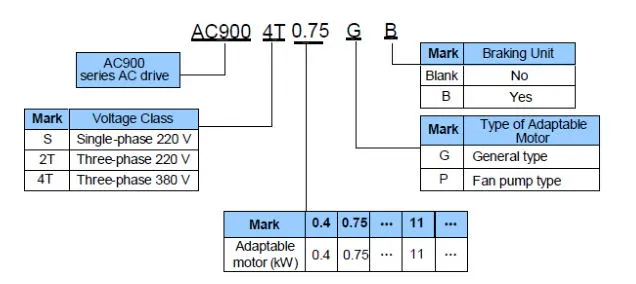

| Model (3-Phase 380V) | Capacity (kVA) | Input (A) | Output (A) | Motor (KW) | Motor (HP) |
|---|---|---|---|---|---|
| AC900-4T0.75G | 1.5 | 3.4 | 2.1 | 0.75 | 1 |
| AC900-4T1.5G | 3.0 | 5.0 | 3.8 | 1.5 | 2 |
| AC900-4T2.2G | 4.0 | 5.8 | 5.1 | 2.2 | 3 |
| AC900-4T4.0G | 5.9 | 10.5 | 9.0 | 4.0 | 5 |
| AC900-4T7.5G | 11.0 | 20.5 | 17.0 | 7.5 | 10 |
| AC900-4T11G | 17.0 | 26.0 | 25.0 | 11.0 | 15 |
| AC900-4T15G | 21.0 | 35.0 | 32.0 | 15.0 | 20 |
| AC900-4T30G | 40.0 | 62.0 | 60.0 | 30.0 | 40 |
| AC900-4T75G | 114.0 | 157.0 | 150.0 | 75.0 | 100 |
| AC900-4T110G | 160.0 | 214.0 | 210.0 | 110.0 | 150 |

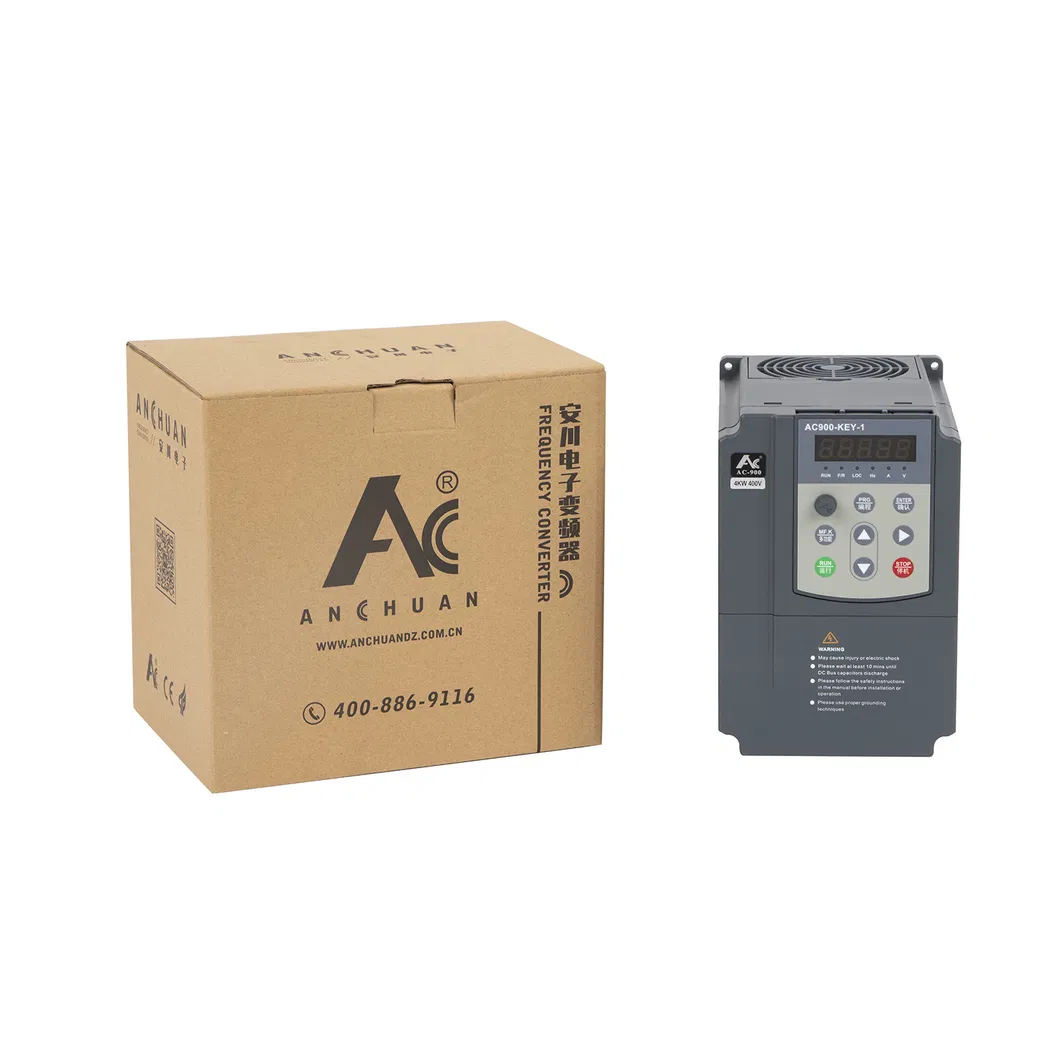

Package: Standard carton package or wooden case.
Shipment: By sea, by air, or by express such as DHL, FedEx.
