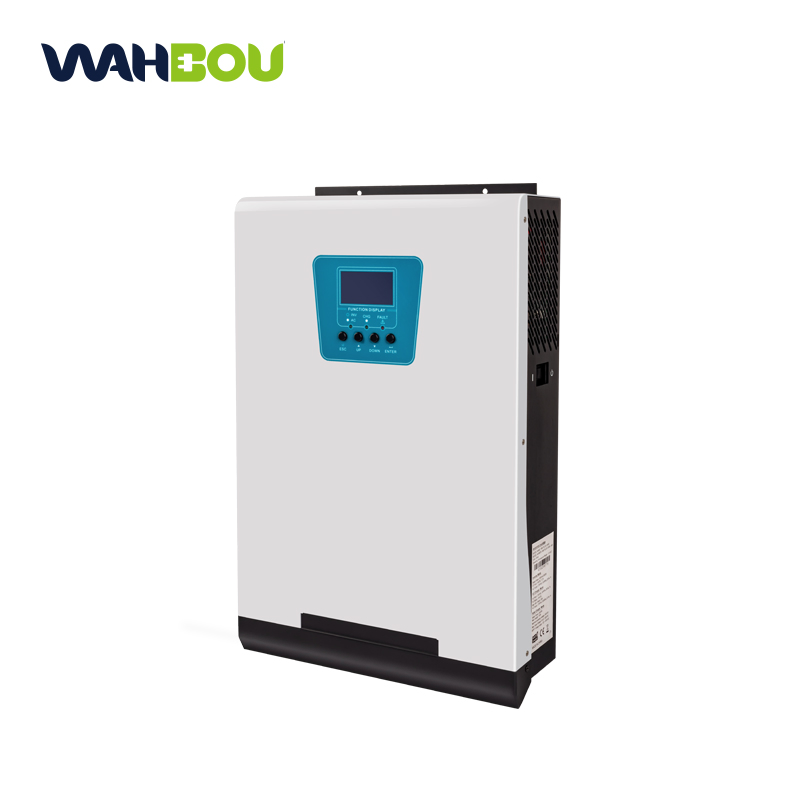

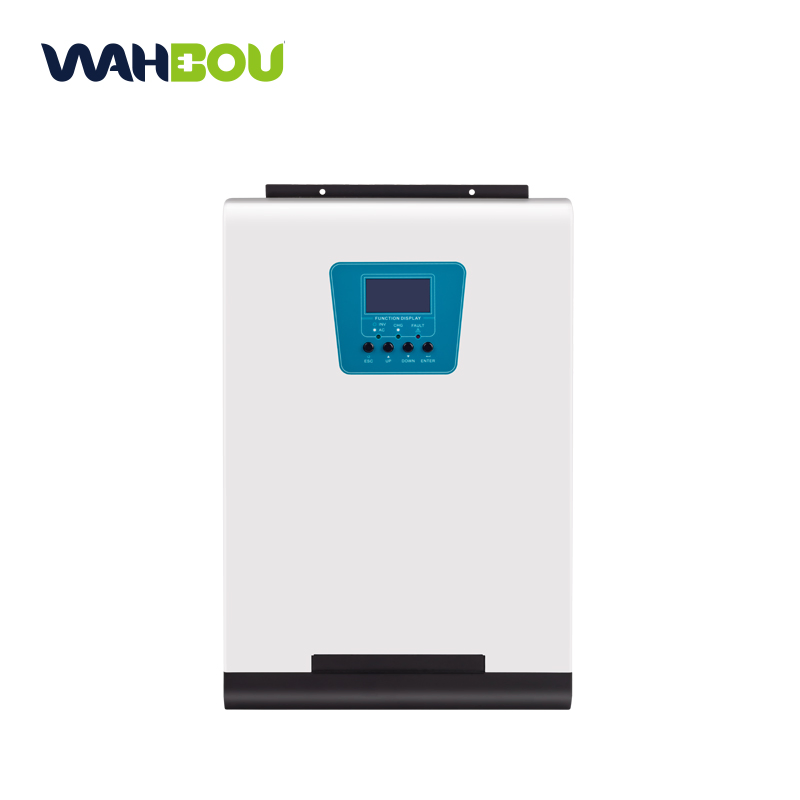

Wahbou High Frequency Solar Inverter Whi01 5.5kVA Solar Energy System off Grid Solar Inverter

1 / 5

Wahbou High Frequency Solar Inverter Whi01 5.5kVA Solar Energy System off Grid Solar Inverter

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📌 Basic Information

Model NO.

WHI-5.5KVA

Nature of Source

Active Inverter

Phase

Single

Output Power

>1000W

Certification

CE, ROHS, ISO9001, CCC

Type

DC/AC Inverters

Power Source

Solar Power

Wave String

Sine Wave Inverter

Application

Home, Industrial, Commercial

Peak Efficiency

93%

Charging Mode

MPPT

Max PV Array Power

6000W

🔍 Product Description

High Frequency Solar Inverter WHI01 5.5KVA Solar Energy System Off-Grid Inverter

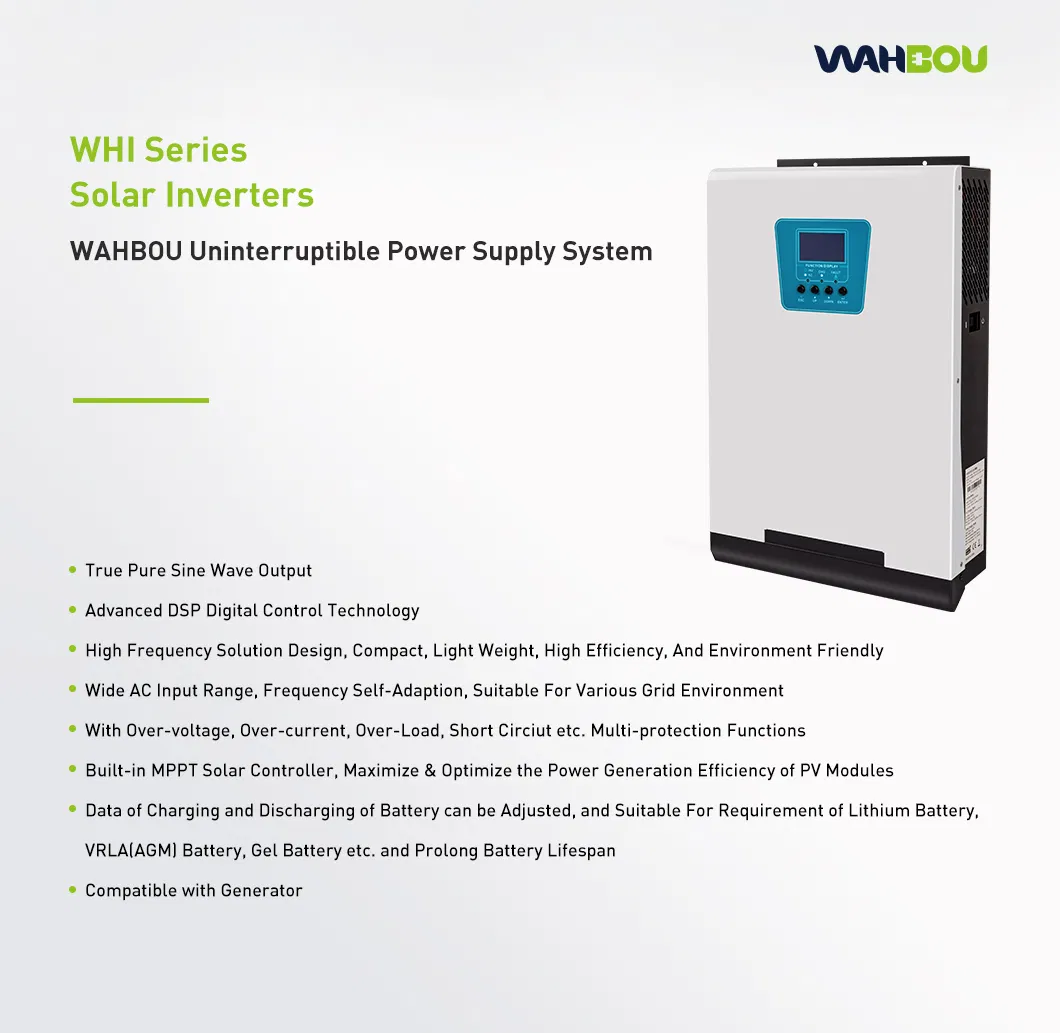

High Frequency Solar Inverter Advantages

📊 Technical Parameters

Model		WHI-3.5KVA	WHI-5.5KVA
Input	Selectable Voltage Range	170VAC~280VAC (PC) / 90VAC~280VAC (Appliances)
	Frequency	50Hz / 60Hz (Auto Detection)

Output	Rated Power	3.5KW	5.5KW
	Surge Power	Rated Power * 2 for 5 Seconds
	Waveform	True Pure Sine Wave
	Efficiency (Peak)	93%
	Transfer Time	10ms (PC) / 20ms (Appliances)
	Power Factor	1.0
Battery	Voltage	24VDC	48VDC
Battery	Floating Charge	27VDC	54VDC
Solar Charger	Type	MPPT
	Max PV Array Power	5000W	6000W
	MPPT Voltage Range	120~450VDC
	Max Charge Current	100Amp

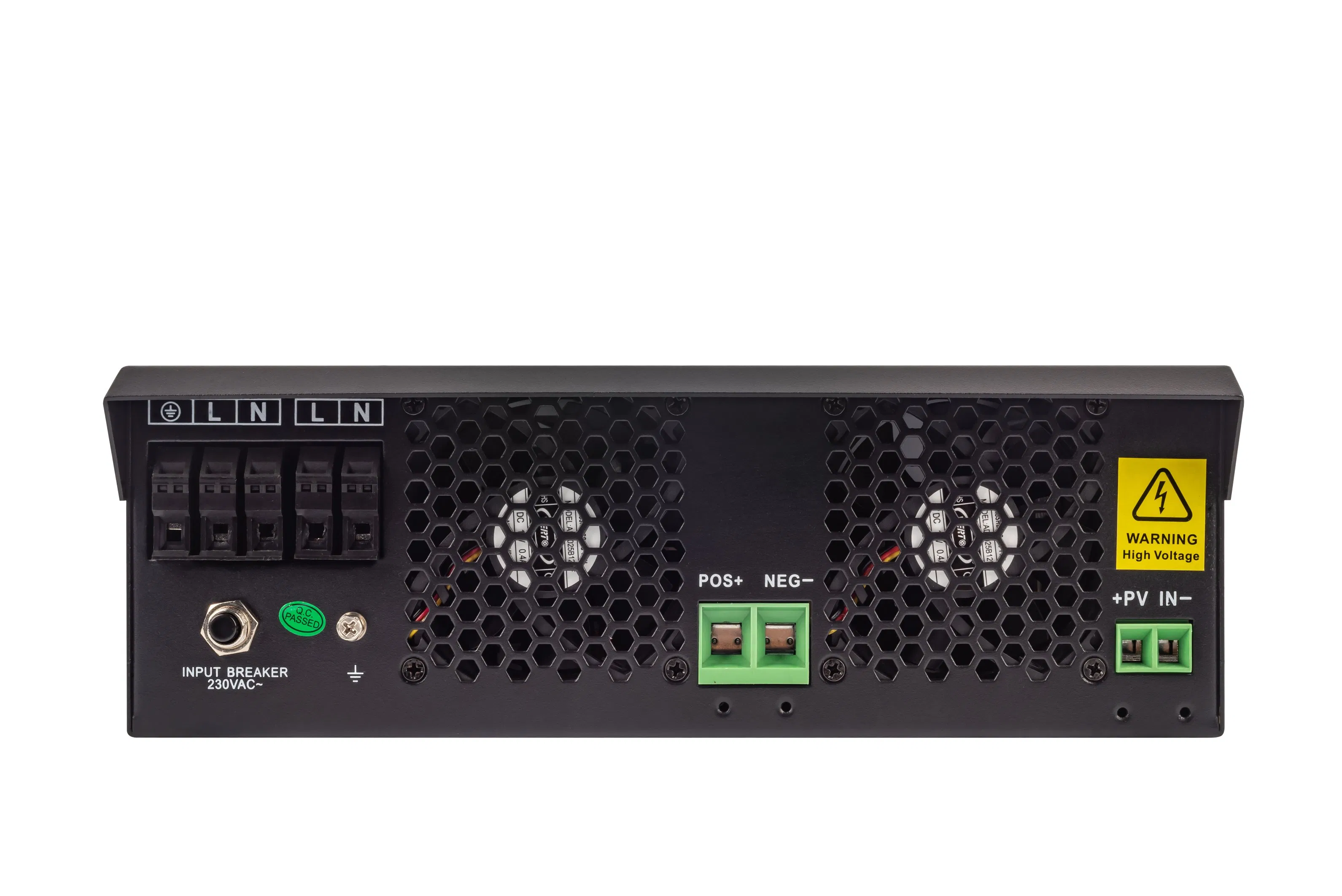

📷 Detailed Photos

📜 Certifications & Applications

🌍 Exhibition & Customer Visit

❓ Frequently Asked Questions

What is the peak efficiency of this inverter?

The inverter achieves a peak efficiency of up to 93%, ensuring minimal energy loss during DC to AC conversion.

Can this inverter handle high-power appliances like air conditioners?

Yes, with a surge capacity of 2 times its rated power for 5 seconds, it can handle the initial startup load of most household and commercial appliances.

What type of solar charger is built into the system?

This system features a built-in MPPT (Maximum Power Point Tracking) solar charger, which optimizes the energy harvest from your PV array.

What is the maximum PV input voltage supported?

The PV array MPPT voltage range is between 120VDC and 450VDC, with a maximum open-circuit voltage of 500VDC.

Is the output frequency adjustable?

The inverter automatically detects and operates at 50Hz or 60Hz depending on the local grid requirements.

Does the unit include communication interfaces?

Yes, it comes equipped with an RJ45 communication interface for monitoring and system integration.
