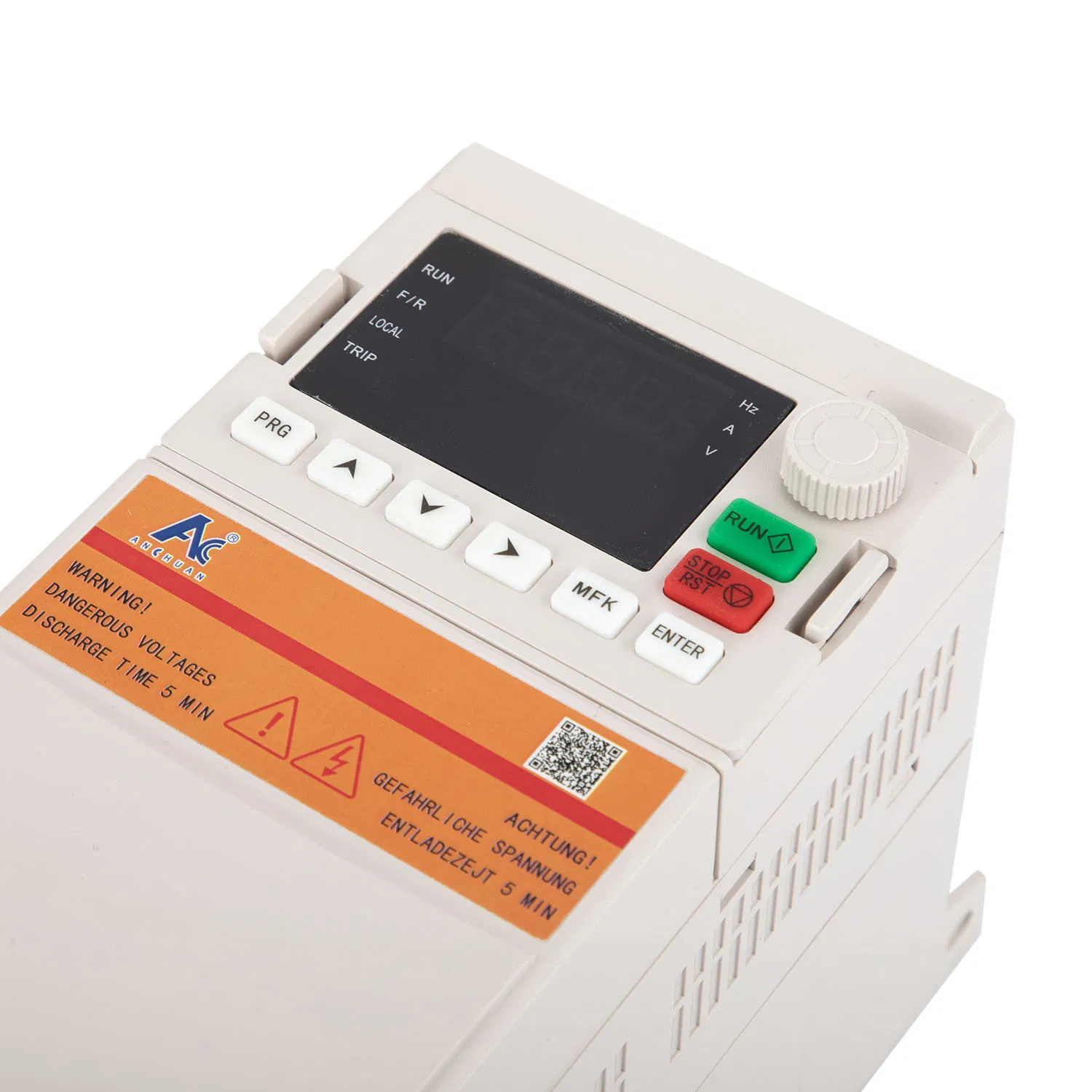

The vector control performance of AC200 series is as outstanding as that of the leading sophisticated VFDs in worldwide market. Its integrated speed and torque control can satisfy various application demands, in the meantime, its excellent anti-trip performance and strong adaptability to worse grid, temperature, humidity and dust guarantees its outstanding reliability and stability.
Modular Design: Fulfillment of various customized needs with powerful speed and torque control.
Advanced PLC: Flexible input/output terminals and traverse control for complicated drives.
EMC Design: Ensures strong anti-electromagnetic interference capacity and low noise operation.
| VFD Model | Constant Torque | Variable Torque | ||||
|---|---|---|---|---|---|---|
| Power (kW) | Input Current (A) | Output Current (A) | Power (kW) | Input Current (A) | Output Current (A) | |
| AC200-4T0R7G | 0.75 | 3.4 | 2.5 | / | / | / |
| AC200-4T1R5G | 1.5 | 5.0 | 3.7 | / | / | / |
| AC200-4T2R2G | 2.2 | 5.8 | 5.0 | / | / | / |
| AC200-4T004G/5R5P | 4.0 | 13.5 | 9.5 | 5.5 | 19.5 | 14.0 |
| AC200-4T5R5G/7R5P | 5.5 | 19.5 | 14.0 | 7.5 | 25.0 | 18.5 |
| AC200-4T7R5G/011P | 7.5 | 25.0 | 18.5 | 11.0 | 32.0 | 25.0 |
| AC200-4T011G/015P | 11.0 | 32.0 | 25.0 | 15.0 | 40.0 | 32.0 |
| AC200-4T015G/018P | 15.0 | 40.0 | 32.0 | 18.5 | 47.0 | 38.0 |

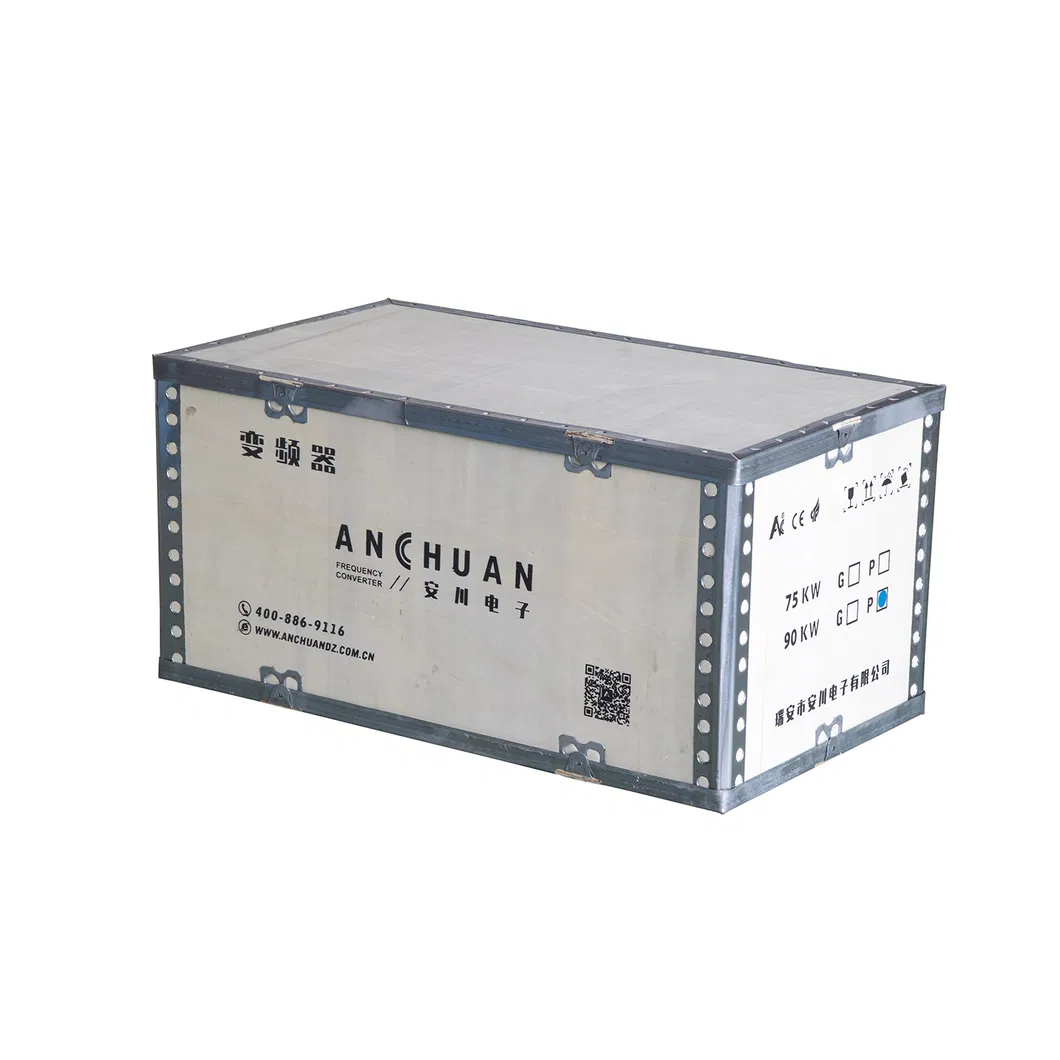

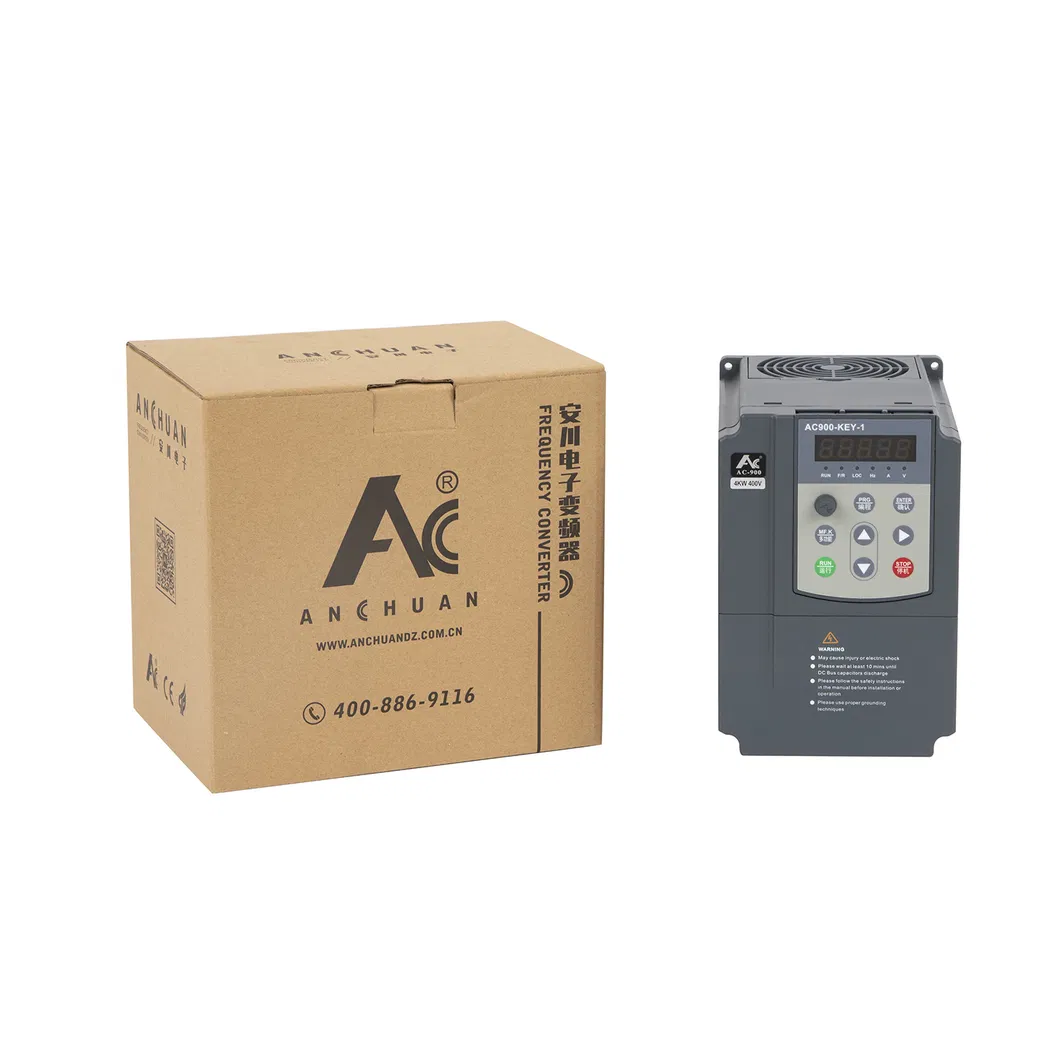

Package Type: Standard export carton package or protective wooden case.
Shipment Methods: Worldwide shipping available via Sea, Air, or Express (DHL, FedEx, UPS).

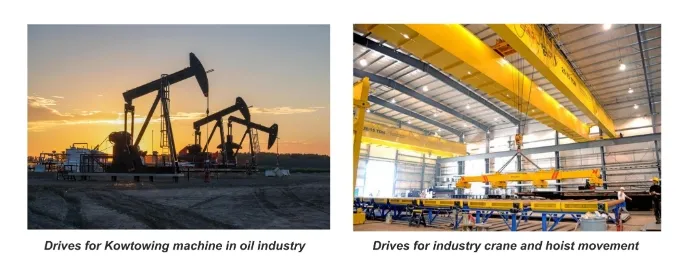

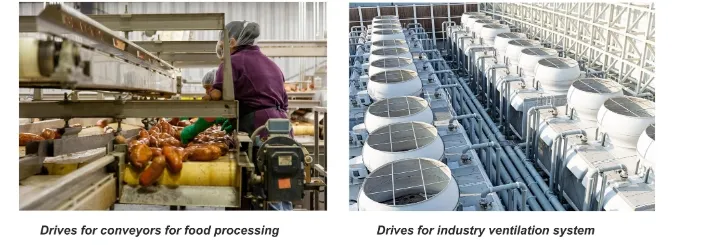

Ideally suited for industrial automation involving: wire drawing machines, film winding, coating machines, CNC machine tools, weaving machines, jacquard machines, fans, pumps, chemical fiber, textile synchronization, injection molding, lifting equipment, rolling mills, and tube wire processing.
