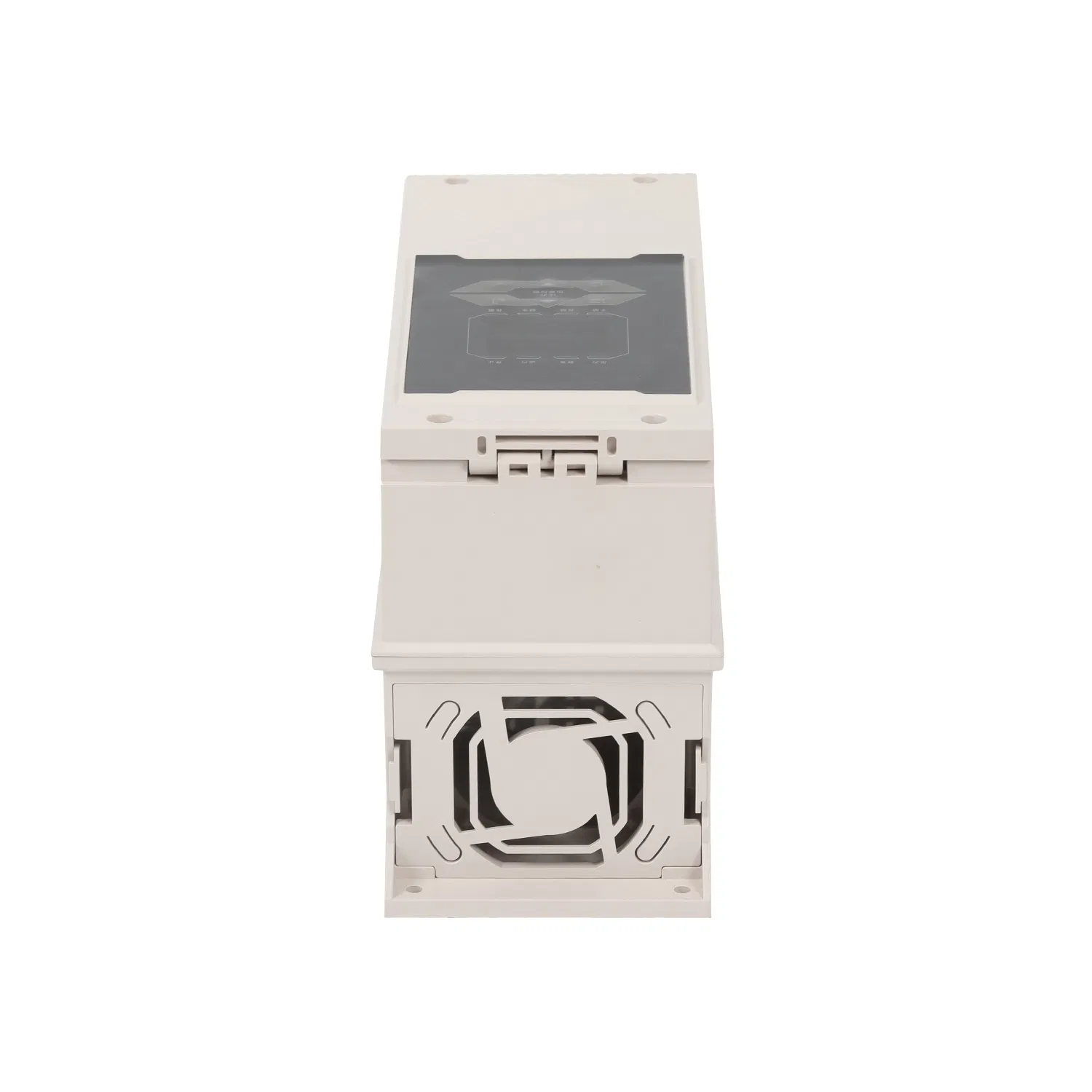

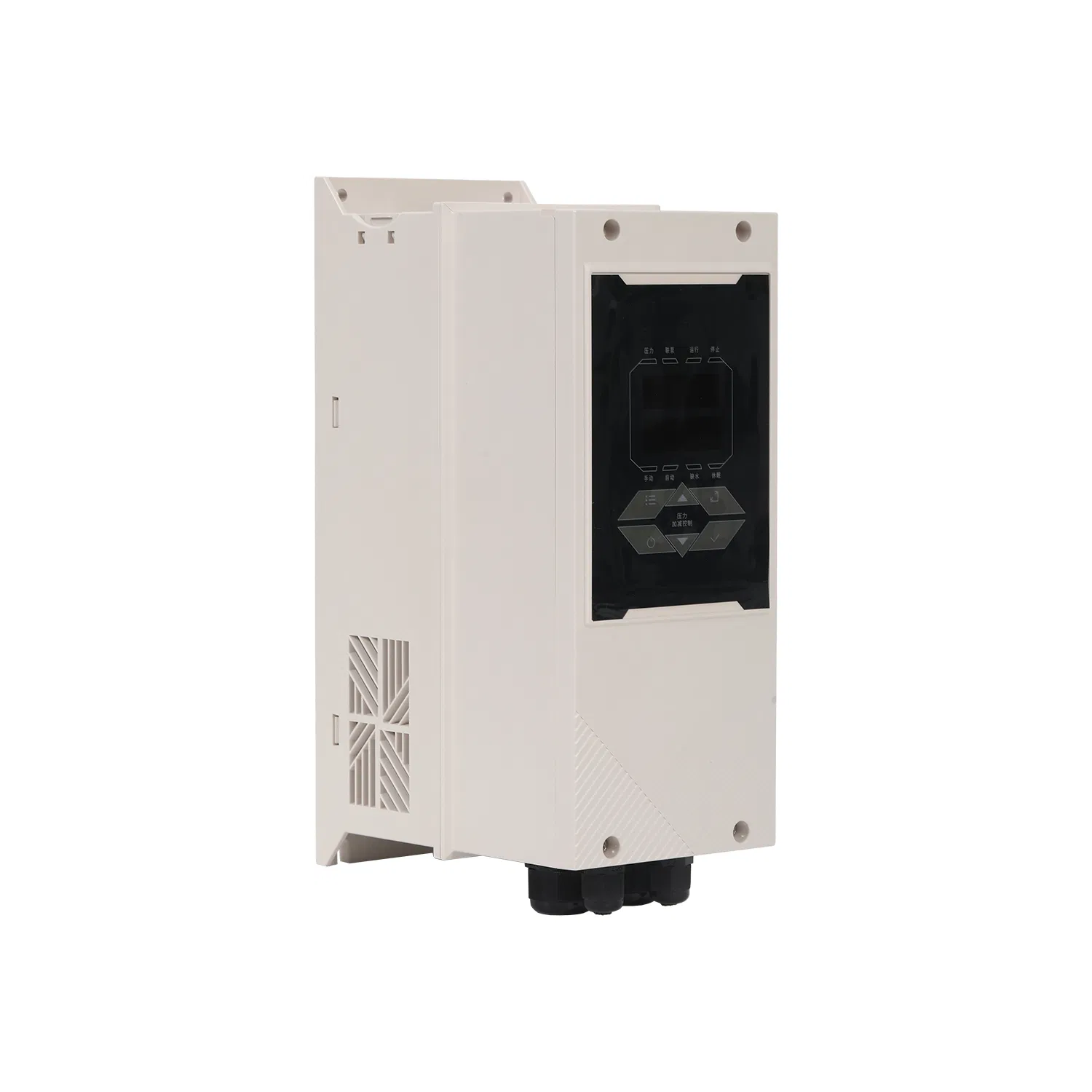

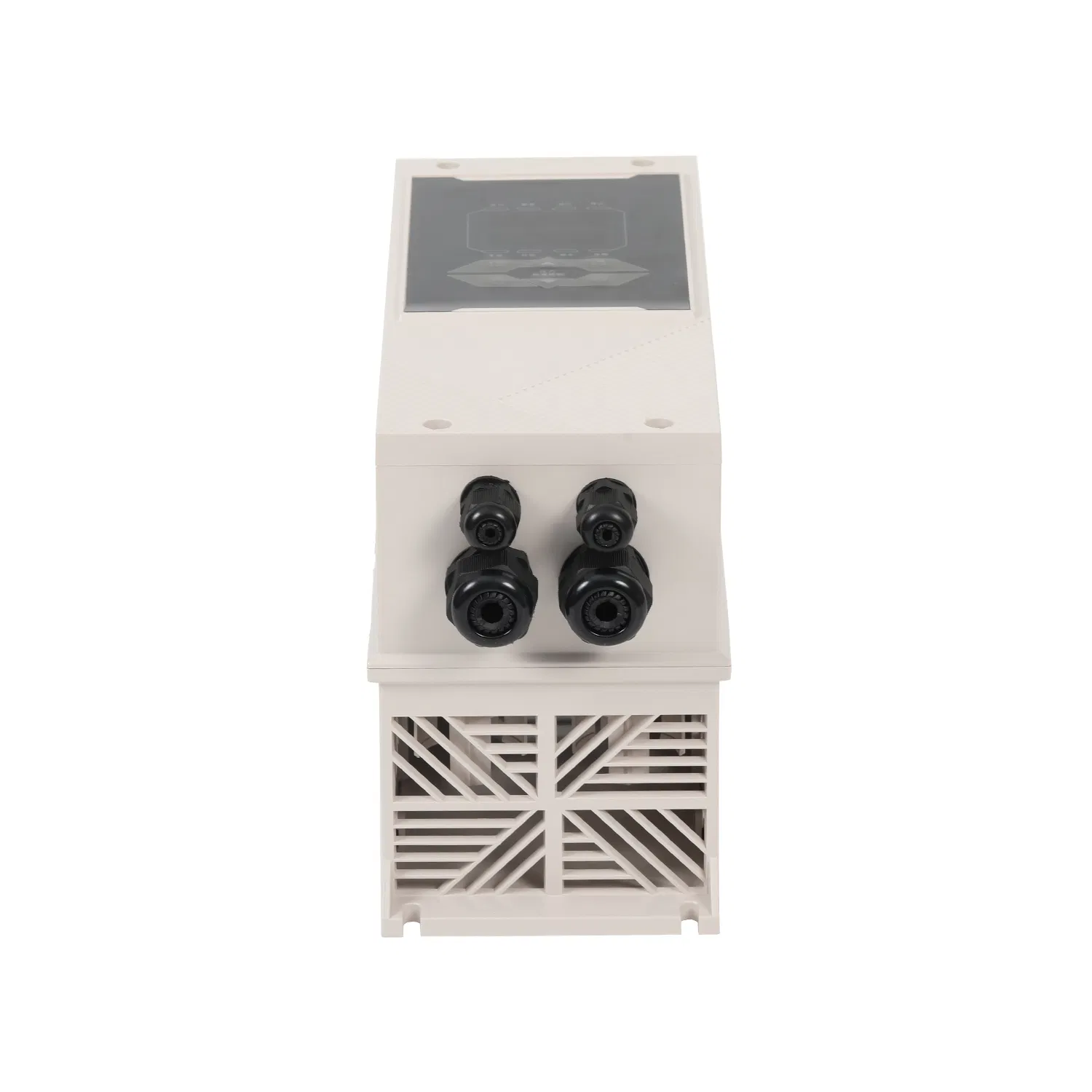

Marasen High Protection Level IP54 Three Phase Awter Pump Frequency Inverter
Marasen High Protection Level IP54 Three Phase Awter Pump Frequency Inverter
Marasen High Protection Level IP54 Three Phase Awter Pump Frequency Inverter
Marasen High Protection Level IP54 Three Phase Awter Pump Frequency Inverter
Marasen High Protection Level IP54 Three Phase Awter Pump Frequency Inverter
1 / 5
Marasen High Protection Level IP54 Three Phase Awter Pump Frequency Inverter
Marasen High Protection Level IP54 Three Phase Awter Pump Frequency Inverter
Marasen High Protection Level IP54 Three Phase Awter Pump Frequency Inverter
Marasen High Protection Level IP54 Three Phase Awter Pump Frequency Inverter
Marasen High Protection Level IP54 Three Phase Awter Pump Frequency Inverter

Marasen High Protection Level IP54 Three Phase Awter Pump Frequency Inverter

Customization: Available
Application: Three Phase Transducer, Single-phase Transducer, High Frequency Converter Transducer
Output Type: Single or Triple
Send Inquiry

Product Description

Basic Information
Model NO.
M760
Principle of Work
V/F Control Transducer
Switch Mode
PWM Control
Main Circuit Type
Voltage
Voltage of Power Supply
Low Voltage Variable-Frequency Drive
Link of Transformation
AC-DC-AC Variable-Frequency Drive
Nature of DC Power
Voltage Variable-Frequency Drive
Function
Simple Type, Multi-Pump Control, Sleep, Freeze-Proofing
Materials
PC+Aluminum
IP Degree
IP54
Product Description

The M760 pump inverter is a single-phase and three-phase variable frequency drive specifically designed to manage water pump performance across a wide range of supply system requirements. It is engineered for cabinet mounting with a high protection level of IP54 and is compatible with permanent magnet motors.

This inverter allows your pump to operate more efficiently, safely, and smartly, significantly reducing energy consumption and prolonging equipment lifetime. It is built with high-quality components using the latest microprocessor technology.

Pump Frequency Inverter

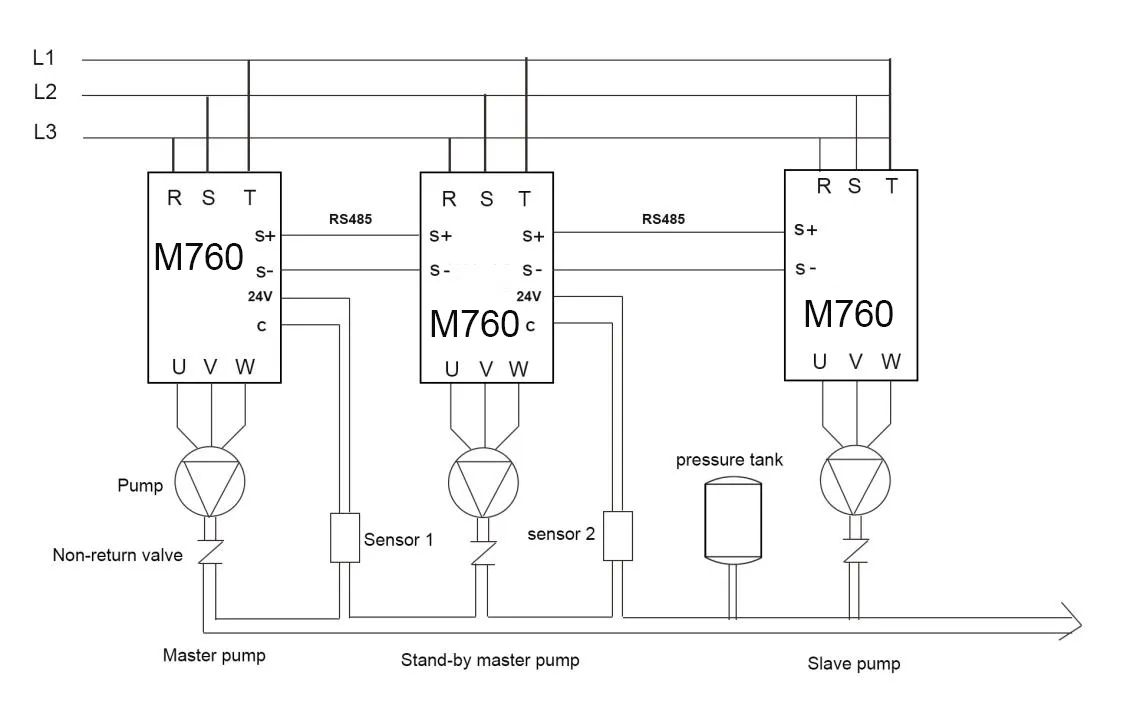

Inverter Features
Function Characteristics
◈
Multi-Pump Control: Supports up to 2 masters and 4 auxiliaries to coordinate work. Each pump utilizes its own drive.
◈
Redundancy: Standby master automatically replaces the primary master if it fails, ensuring system uptime.
◈
Smart Communication: All drives connect via RS485; the master detects pipe pressure and controls auxiliaries via PID.
◈
Automatic Balancing: Pumps run alternately (8-hour default) to balance wear and tear across the unit.
System Protections
  • ✔ Dry run protection
  • ✔ High/Low voltage protection
  • ✔ Short circuit protection
  • ✔ Phase failure protection
  • ✔ Overload & Over temperature
  • ✔ Sensor fault protection
Key Features
  • 🚀 Soft start & Low start current
  • 💤 Sleep function for energy saving
  • ❄ Freeze-proofing & Anti-clogging
  • 🔌 Power On Restart
  • 🔇 Built-in EMC for noise reduction
Technical Reference

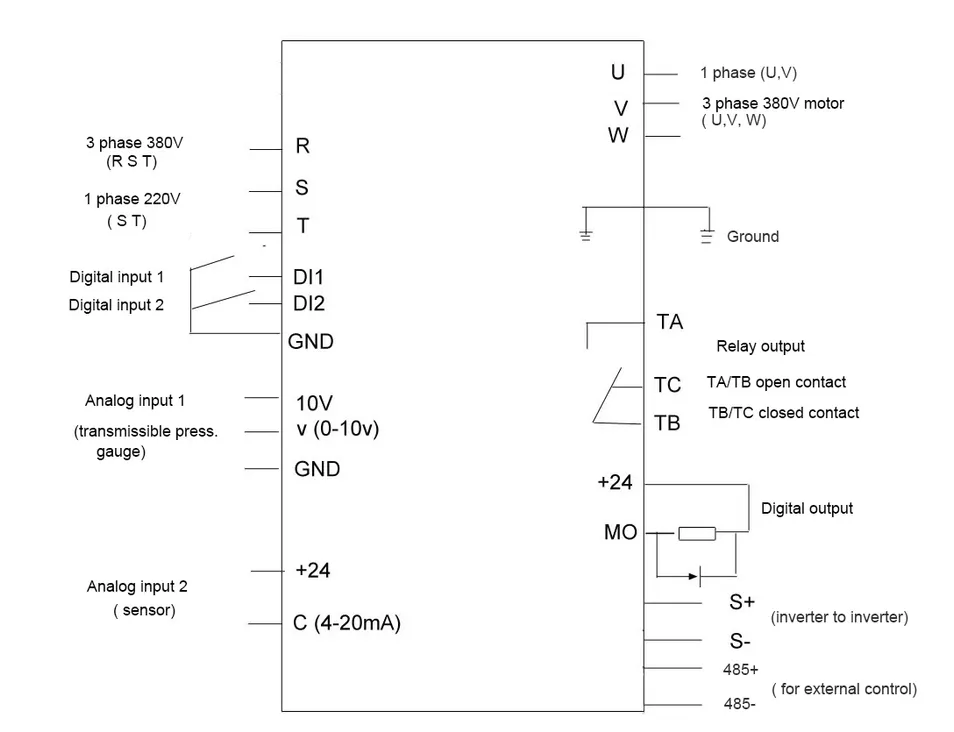

Wiring Diagram
Input/Output Model Power Current Size (LxWxH mm)
1PH 220V In / 3PH 220V OutM760-2TR75A00.75KW4A150x102x118
1PH 220V In / 3PH 220V OutM760-2T2R2A02.2KW10A150x102x118
3PH 380V In / 3PH 380V OutM760-4T1R5A01.5KW3.8A150x102x118
3PH 380V In / 3PH 380V OutM760-4T7R5A07.5KW16A294x131x173
3PH 380V In / 3PH 380V OutM760-4T015A015KW32A337x197x193
3PH 380V In / 3PH 380V OutM760-4T045A045KW90A400x256x230
Product Gallery

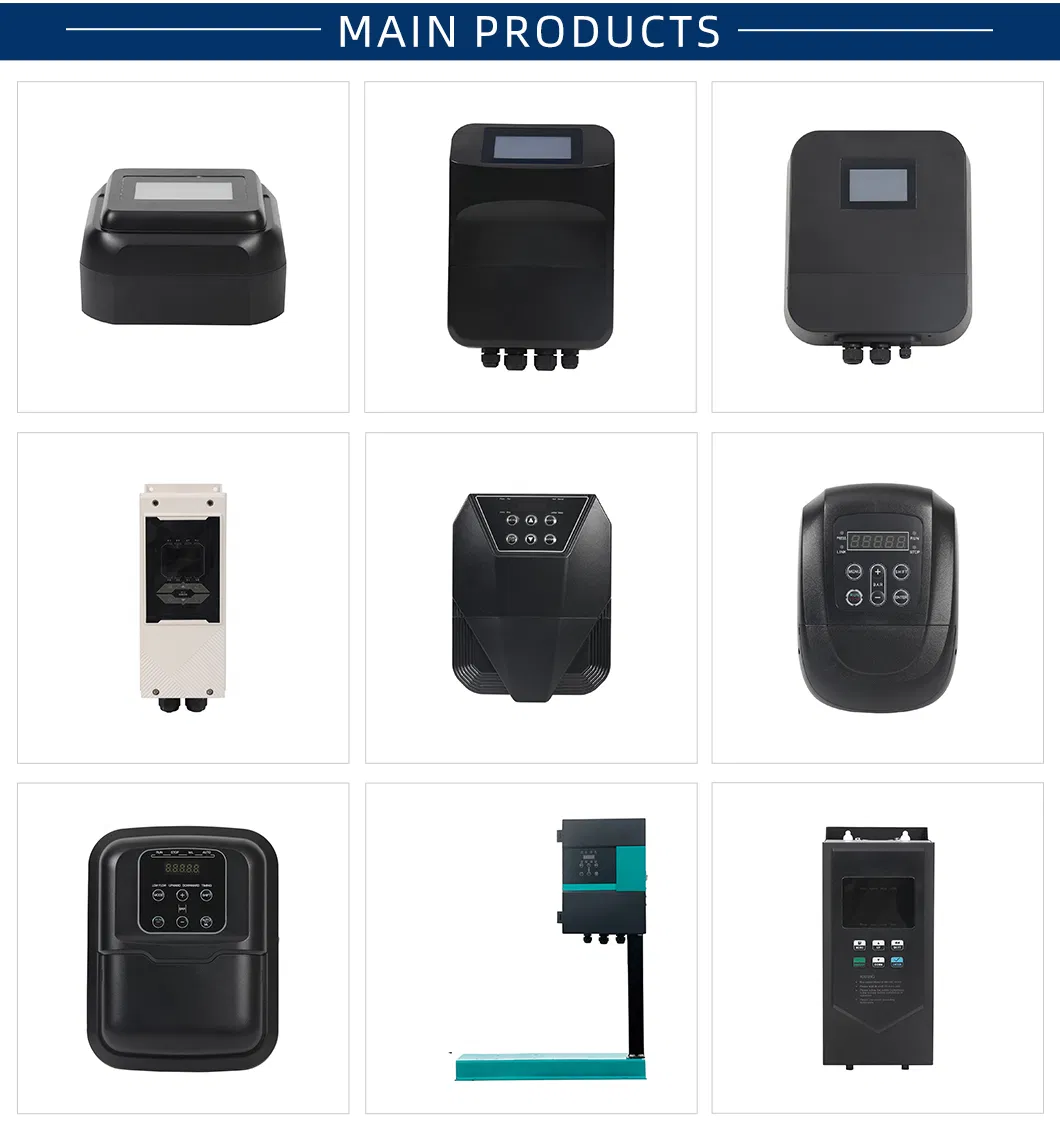

Inverter Display 1

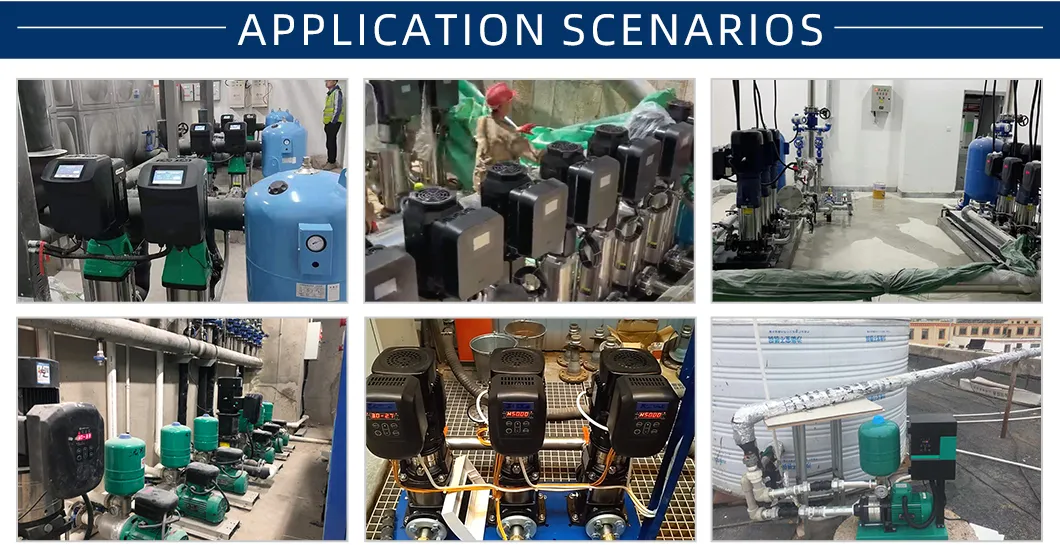

Inverter Display 2
Certifications & Delivery
Certificates
Packing and Shipping
Frequently Asked Questions
❓ What voltage ranges are supported?
We support 1PH 220V input/output, 1PH 220V to 3PH 220V, 3PH 220V input/output, and 1PH 220V to 3PH 380V output configurations.
❓ How do I choose the right power rating?
The inverter power should match or exceed your motor's rated power. Please consult our technical staff with your motor specifications for a precise match.
❓ How do you ensure product quality?
Our production follows strict ISO9001 quality control. Each unit undergoes four inspections and high-temperature testing before passing QA.
❓ Do you accept OEM or ODM business?
Yes, we accept OEM and ODM orders with proper authorization to meet your branding and functional requirements.
❓ What is the typical lead time?
Samples usually require 3-5 days, while mass production typically takes 1-2 weeks depending on order volume.
❓ What is the warranty period?
We offer an 18-month comprehensive warranty for our pump inverter products.
