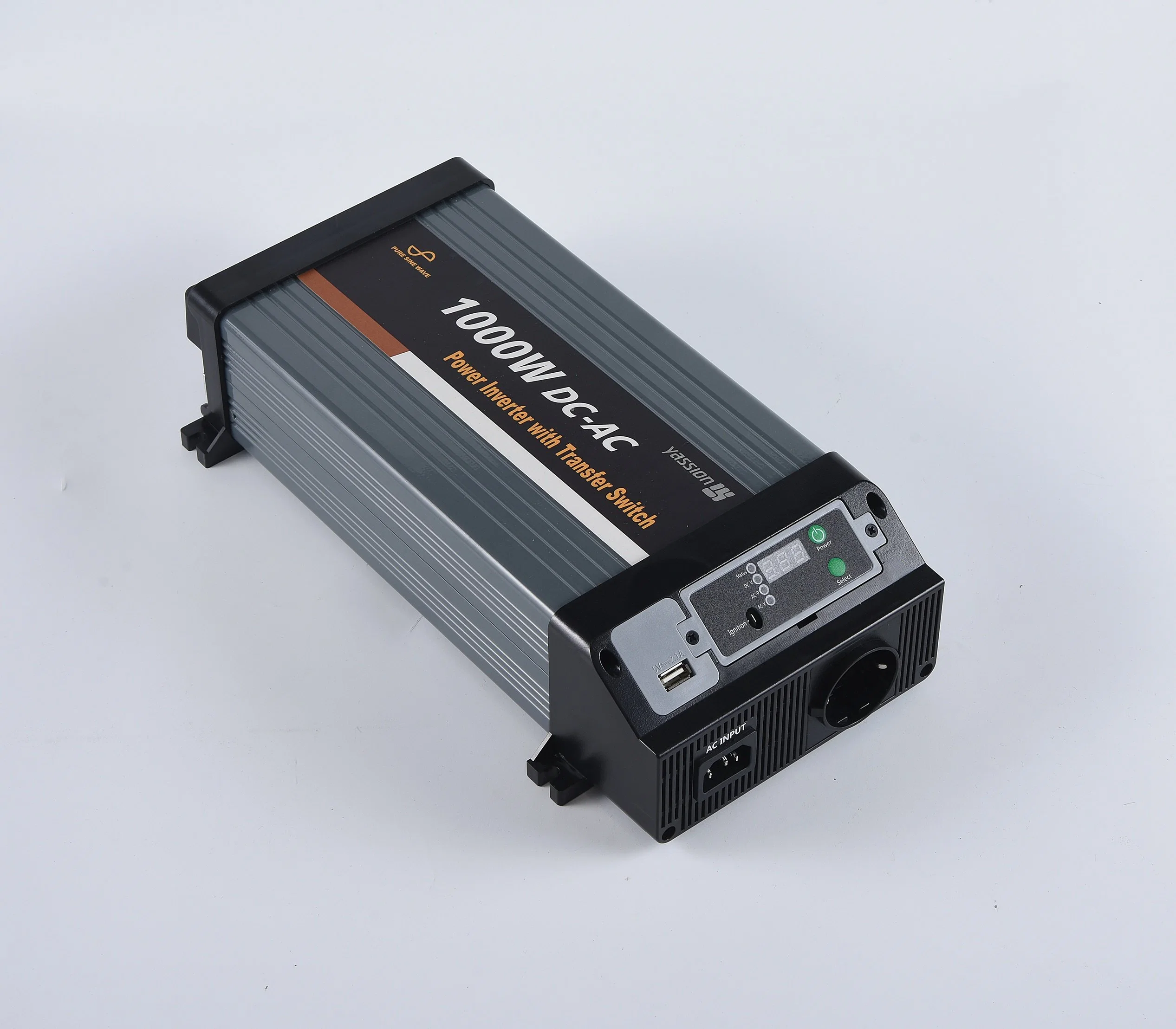

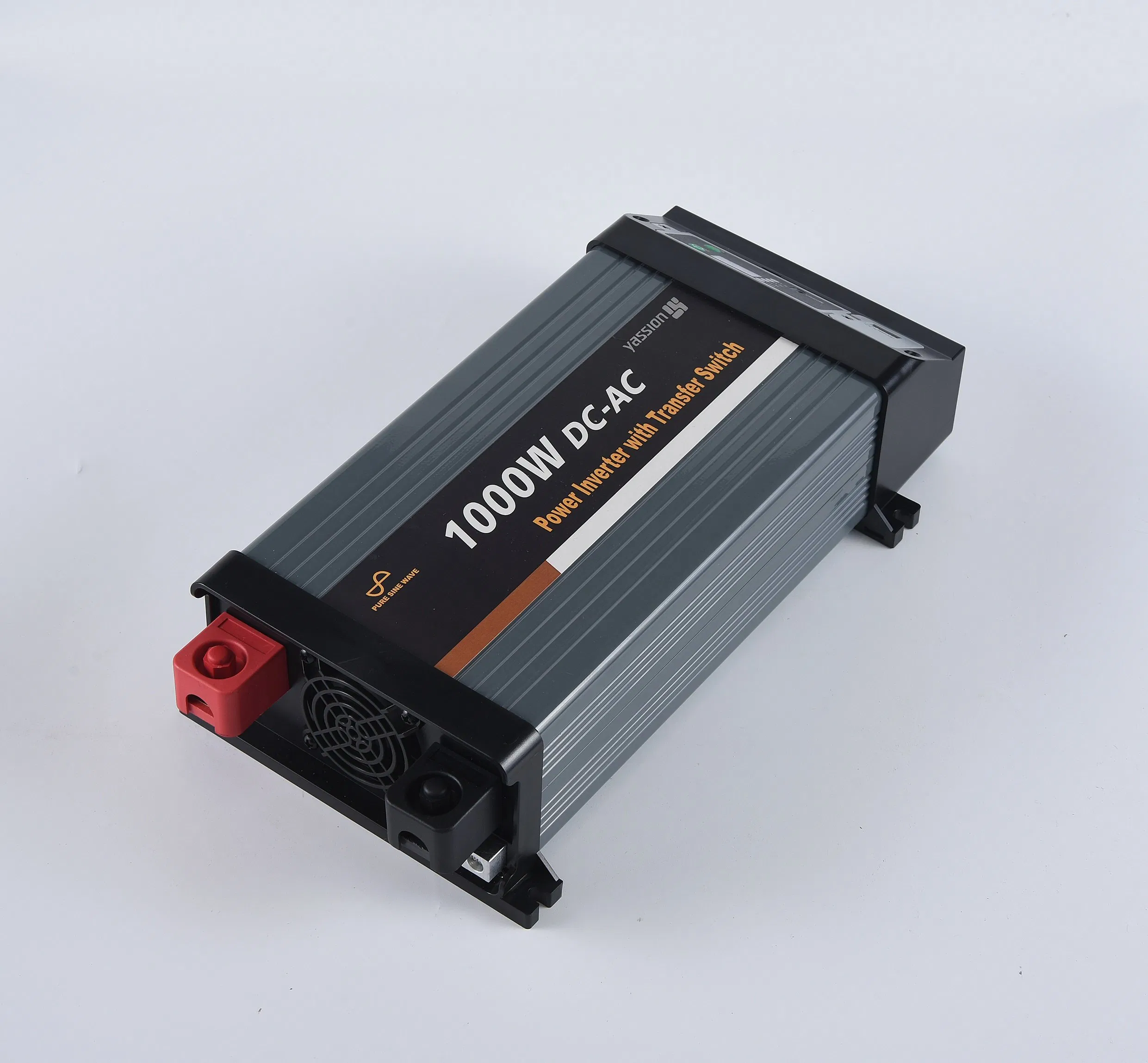

This high-frequency pure sine wave inverter provides 1000W continuous power and 2000W surge power, featuring an integrated 16A transfer switch for seamless transitions between city power and battery backup.
1000w pure sine inverter, 2x battery cables (black and red), AC cable with plug, 5m remote cable, user manual, car ignition port, and spare fuses.
| Parameter | YX-1KUS-1 (110V Range) | YX-1KUS-2 (220V Range) |
|---|---|---|
| Continuous Power | 1000W | |
| Peak Power | 2000W | |
| DC Voltage | 12V / 24V | 12V / 24V |
| AC Voltage | 100V/110V/120V ± 3V | 220V/230V/240V ± 3V |
| Efficiency | Up to 91% | |
| Transfer Relay | 16A | |
| Transfer Time | Less than 30ms | |
| No Load Current | 1A (12V) / 0.5A (24V) | 1A (12V) / 0.5A (24V) |
| Output Waveform | Pure Sine Wave (THD < 3%) | |
| Dimensions | 355 x 180 x 88 mm | |
| Net Weight | 2.7 KG | |
A: Pure Sine Wave inverters provide high-quality electricity, similar to utility power. It is essential for sensitive electronics like laptops, medical equipment, and appliances with motors to prevent damage and noise.
A: The inverter monitors city power. If the city power fails, it automatically switches to battery power in less than 30ms. When city power returns, it switches back to bypass mode.

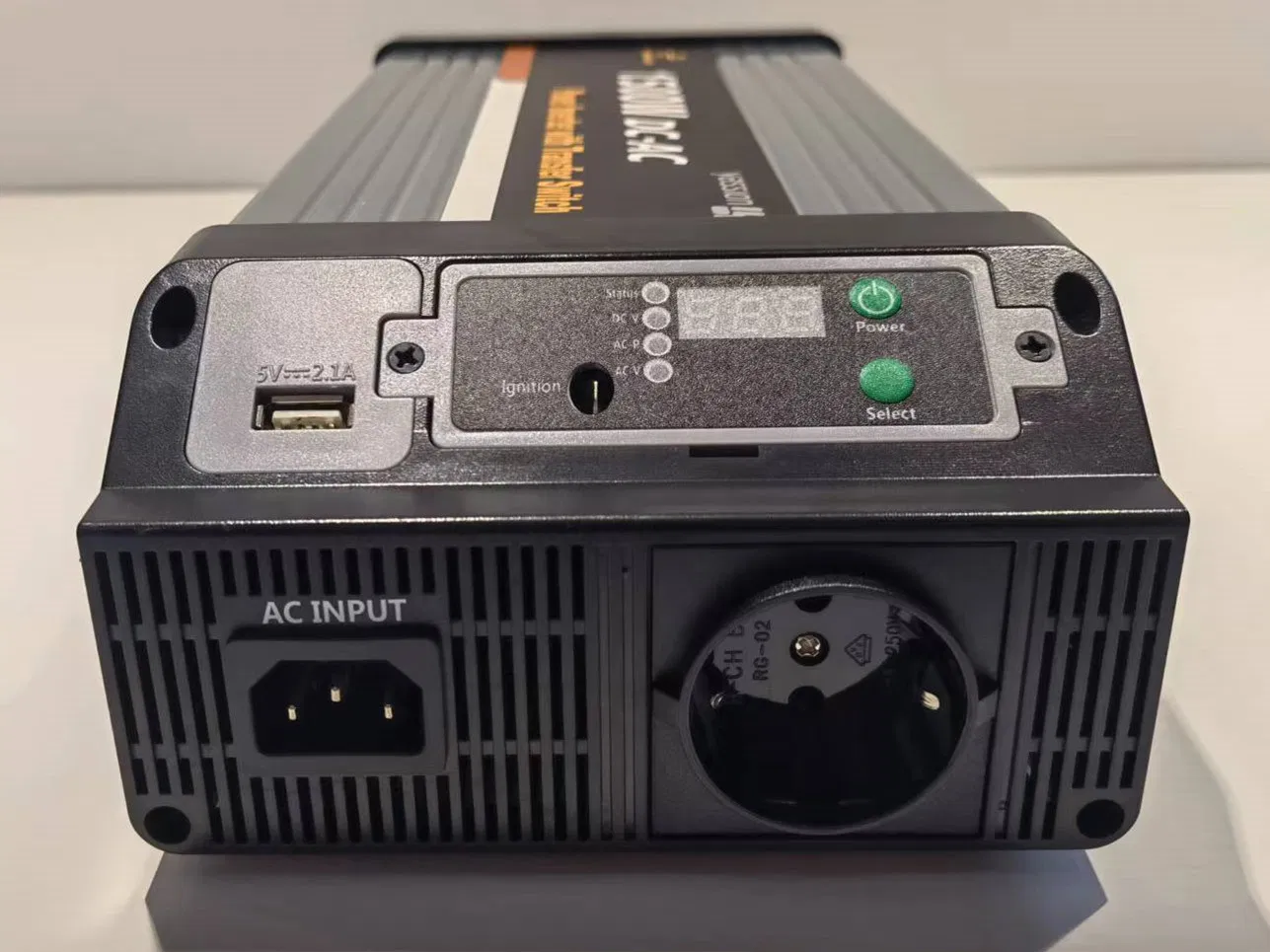

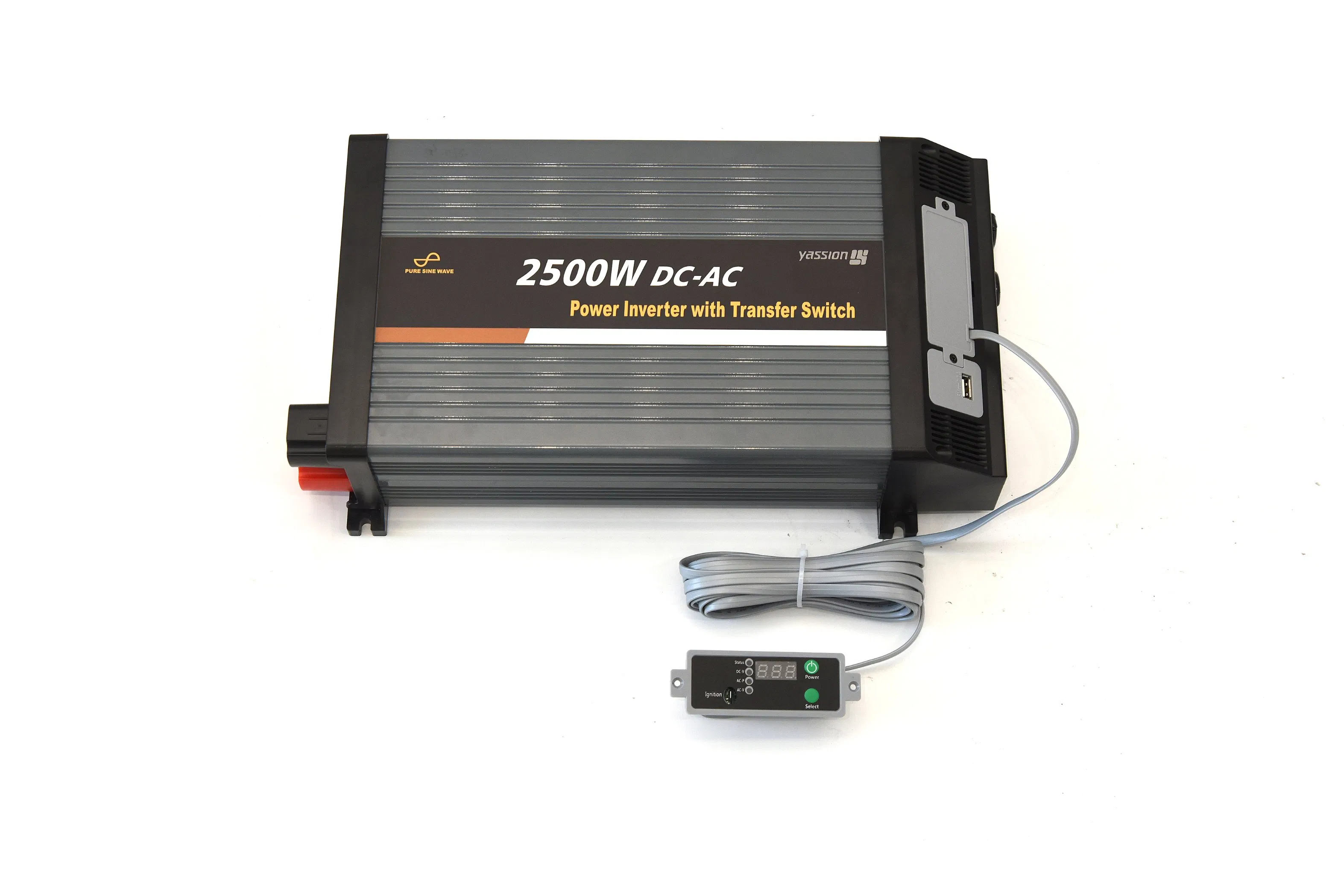

A: Yes, the display is removable and comes with a 5-meter remote cable, allowing you to monitor and control the inverter from a convenient location.
A: The digital display will show a fault code (e.g., F01 for low voltage). Refer to the manual to identify the issue, resolve the cause (like charging the battery), and manually restart if required.
A: We offer specific models for either 12V or 24V DC input. Please ensure you select the model that matches your battery bank voltage.
A: We provide an 18-month warranty covering manufacturing defects and technical performance under normal use conditions.
