| Model NO. | BWT24/220-3KVAR | Output Power | >1000W |
|---|---|---|---|
| Grid Type | off-Grid Inverter | Output Type | Single |
| Circuit Topologies | Full-Bridge Type | Wave Form | Sine Wave |
| Product Name | Telecom Inverter | Application | Data Center |
| Warranty | 12 Months | Certificate | CE RoHS ISO9001 |
| Efficiency | >85% | Output Waveform | Pure Sine Wave |
| Rated Power | 2400W | Production Capacity | 50000 piece/Year |
| Series Model List | 24 Series | 48 Series | 110 Series | 220 Series |
|---|---|---|---|---|
| 1000VA | 24/220-1KVA | 48/220-1KVA | 110/220-1KVA | 220/220-1KVA |
| 2000VA | 24/220-2KVA | 48/220-2KVA | 110/220-2KVA | 220/220-2KVA |
| 3000VA | 24/220-3KVA | 48/220-3KVA | 110/220-3KVA | 220/220-3KVA |
| 5000VA | Not available | 48/220-5KVA | 110/220-5KVA | 220/220-5KVA |
| 10000VA | Not available | 48/220-10KVA | 110/220-10KVA | 220/220-10KVA |
| Technical Index (VA) | 1K | 2K | 3K | |
|---|---|---|---|---|
| DC Input | Rated Voltage | 24V | ||
| Voltage Range | 20V-30V | |||
| AC Output | Rated Power (W) | 800W | 1600W | 2400W |
| Voltage/Freq | 220Vac, 50Hz/60Hz | |||
| Inversion Efficiency | ≥85% | |||
| Operating Temperature | -20ºC ~ +50ºC | |||

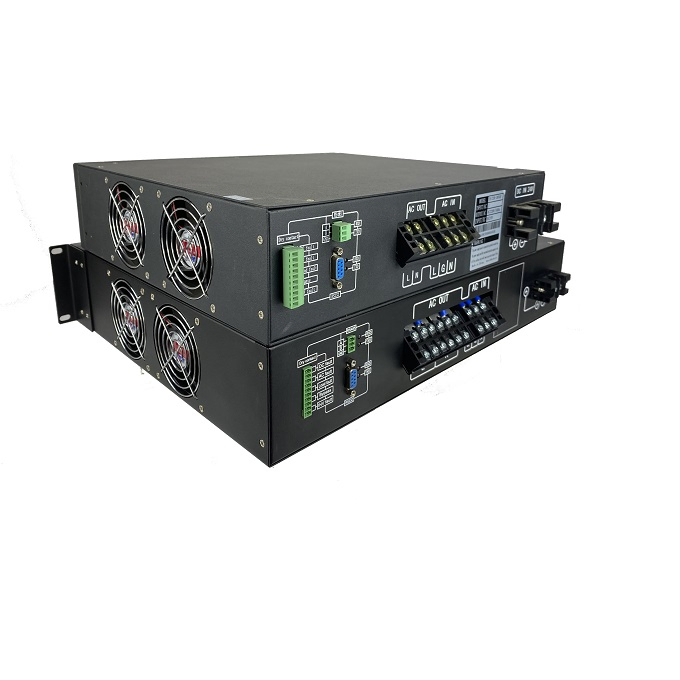

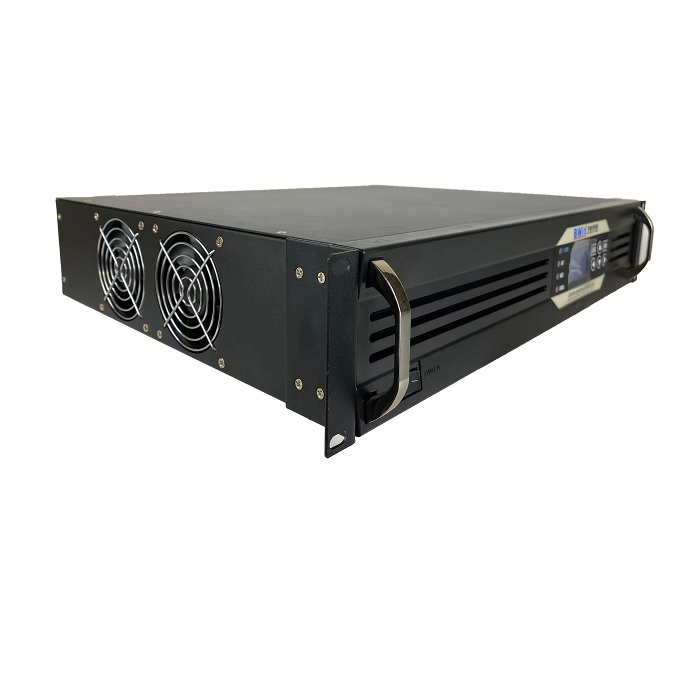

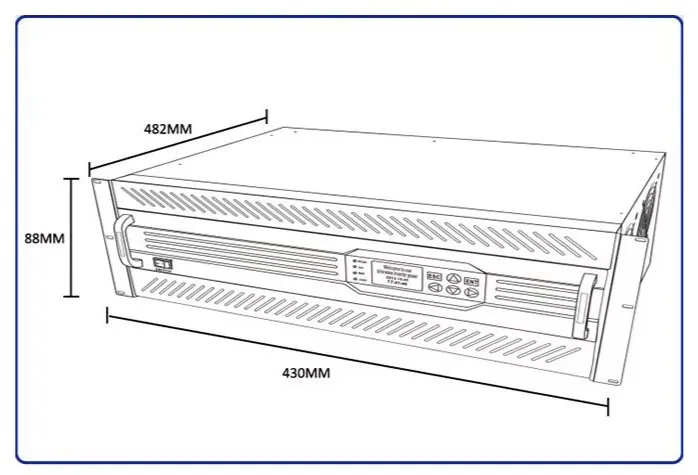

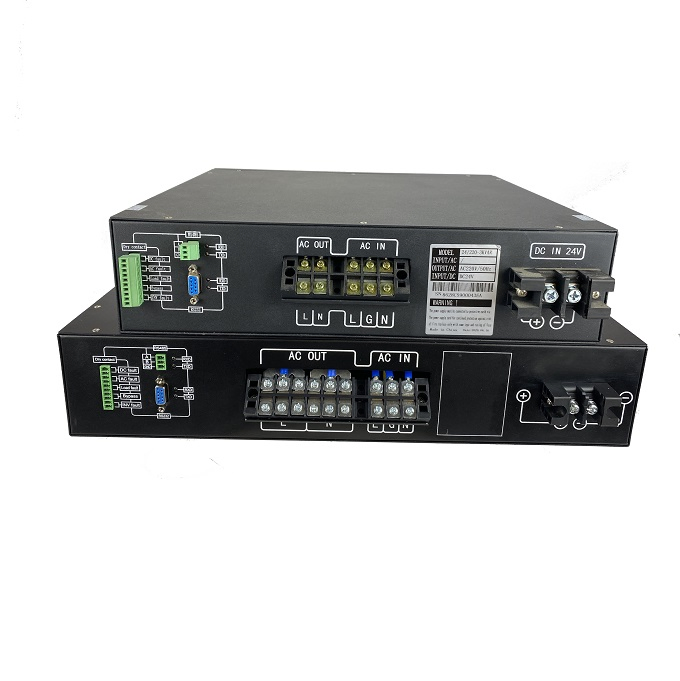

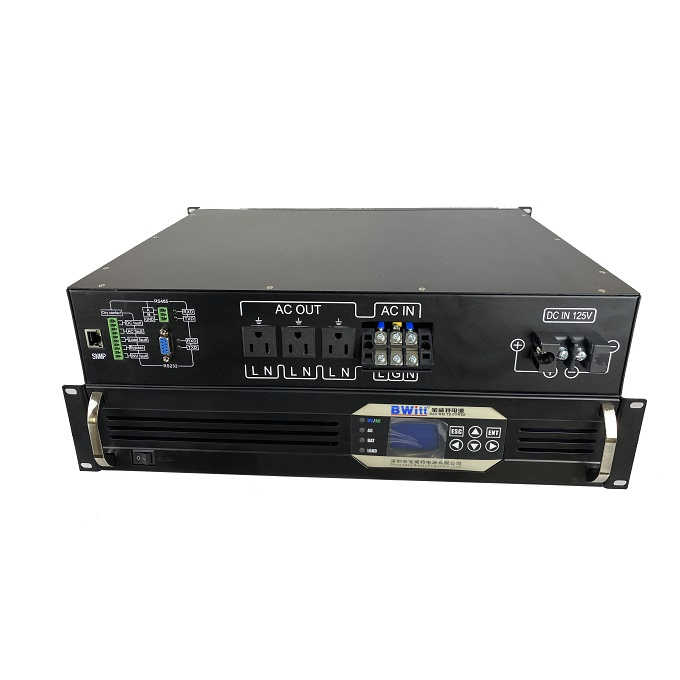

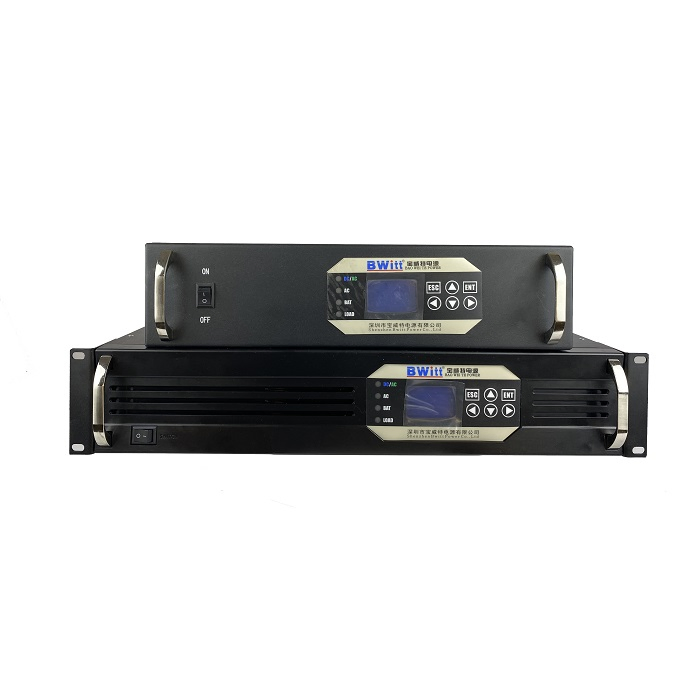

We provide comprehensive 19-inch 2U/4U rack mount designs with LCD+LED display and RS232/RS485 communication ports.
As a leading manufacturer specializing in the production of rack inverters, STS, and switching power supplies, the products are recognized for exceptional performance and reliable quality. Used globally in telecommunications, energy storage, and data centers, we provide OEM and ODM services to meet diverse professional needs.

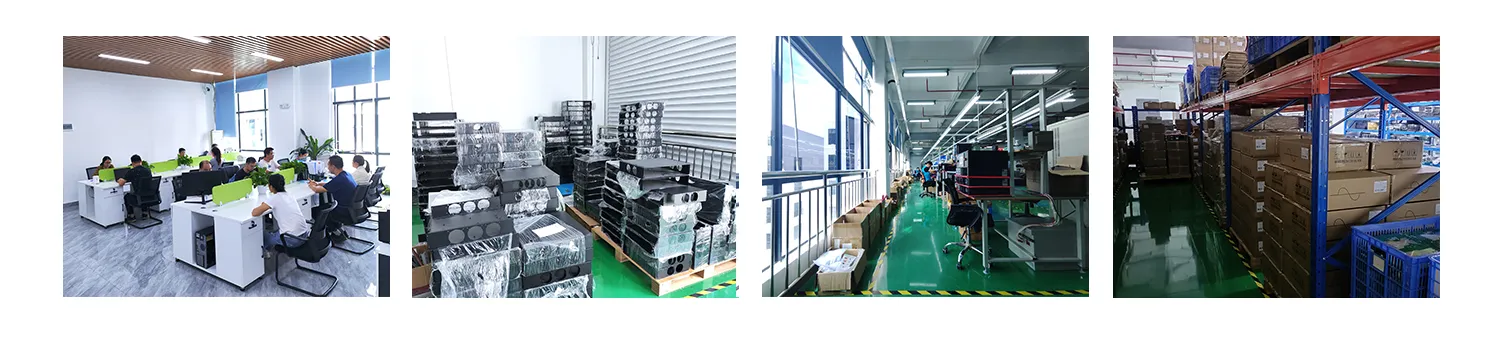

Our facility operates multiple advanced production lines with a monthly capacity of 1000 units. A complete quality control system covers material control, SMT, assembly, aging tests, and final inspection.

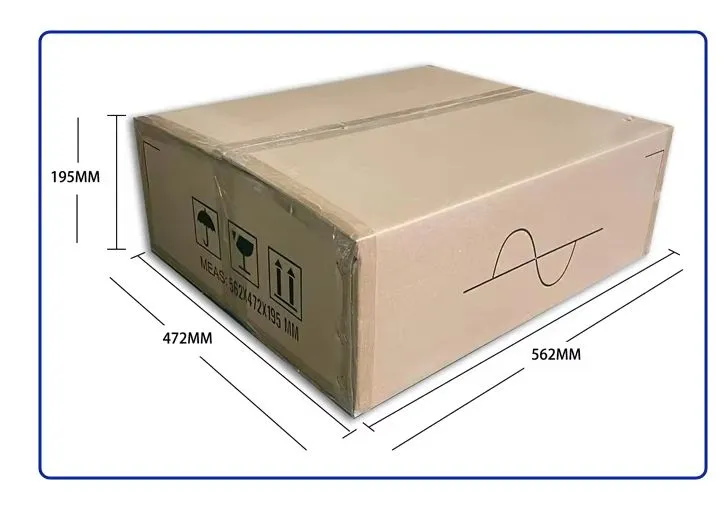

We ensure professional packaging using recyclable materials. Standard package includes the inverter unit, manual, and warranty card. We offer global shipping with real-time tracking and damage protection for all shipments.
