| Model NO. | AD800P |
| Principle of Work | V/F Control, Vector Control |
| Switch Mode | Svpwm, 1~12kHz |
| Main Circuit Type | IGBT Power Module |
| Voltage of Power Supply | 380~480VAC -15%~+10% |
| Link of Transformation | AC-DC-AC Variable-Frequency Drive |
| Nature of DC Power | DC Cap + DC Choke |
| Function | Cascade Control Master-Slave Control Rtc Pump Dete |
| Specification | 0.75~630Kw |
| HS Code | 8504 |

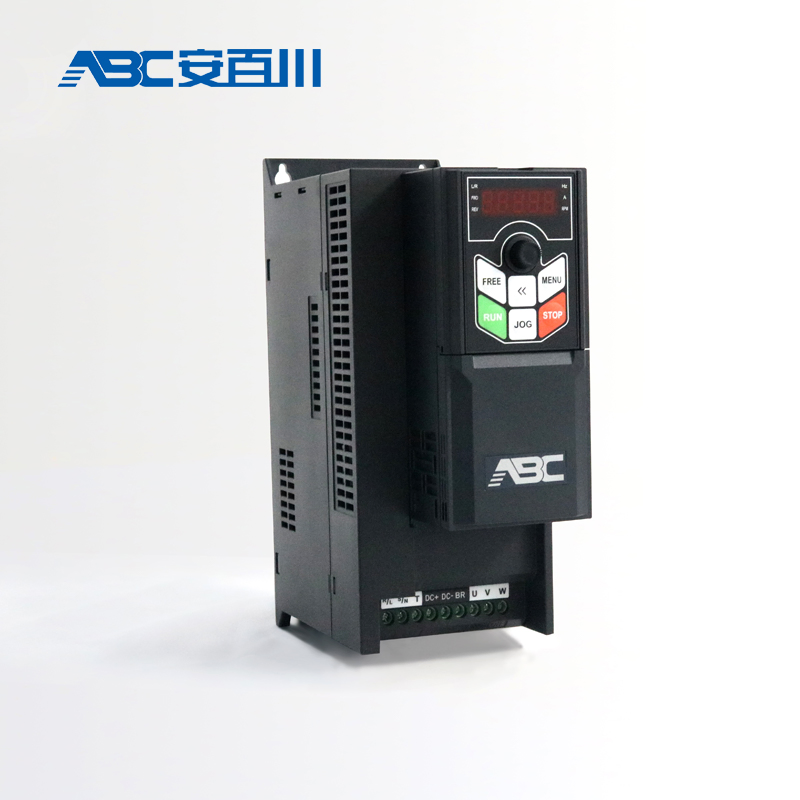

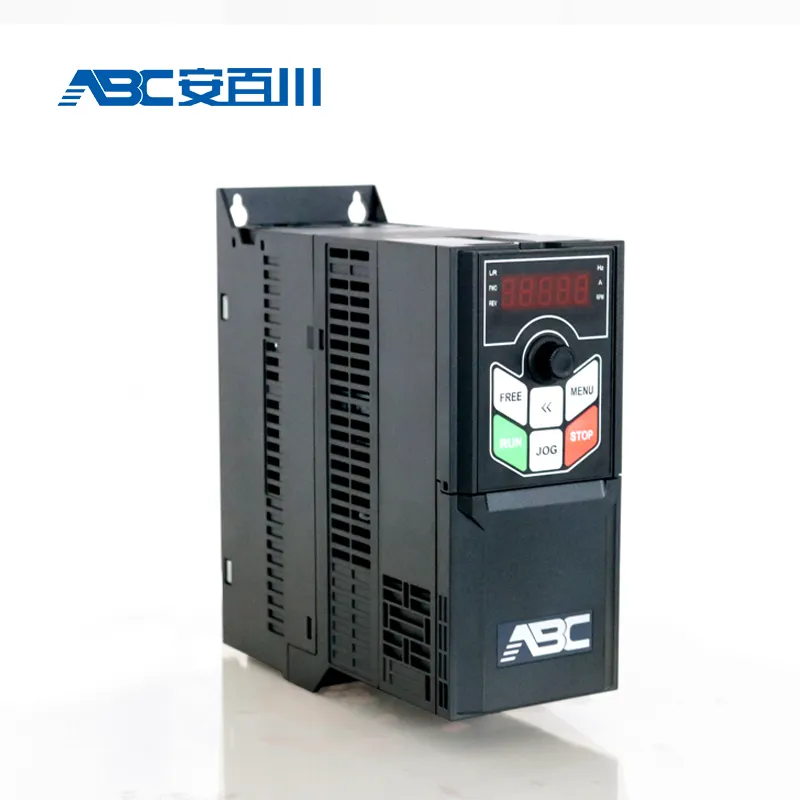

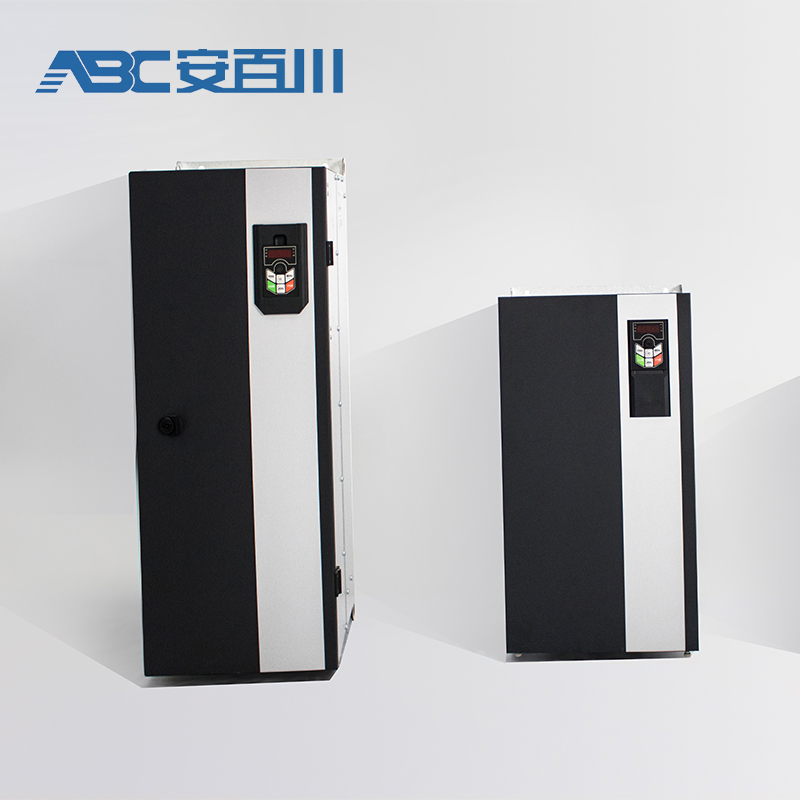

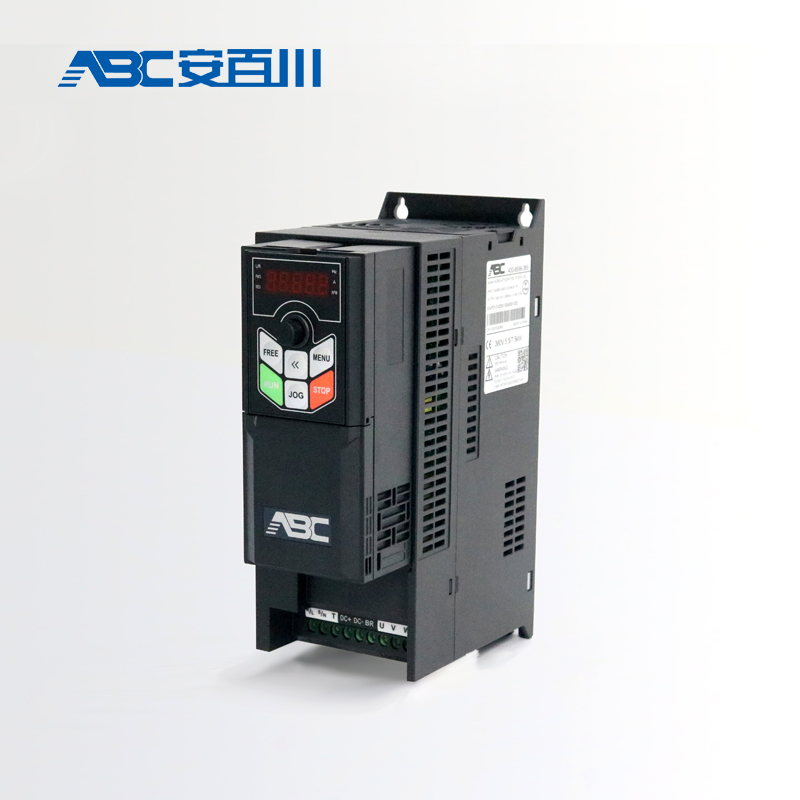

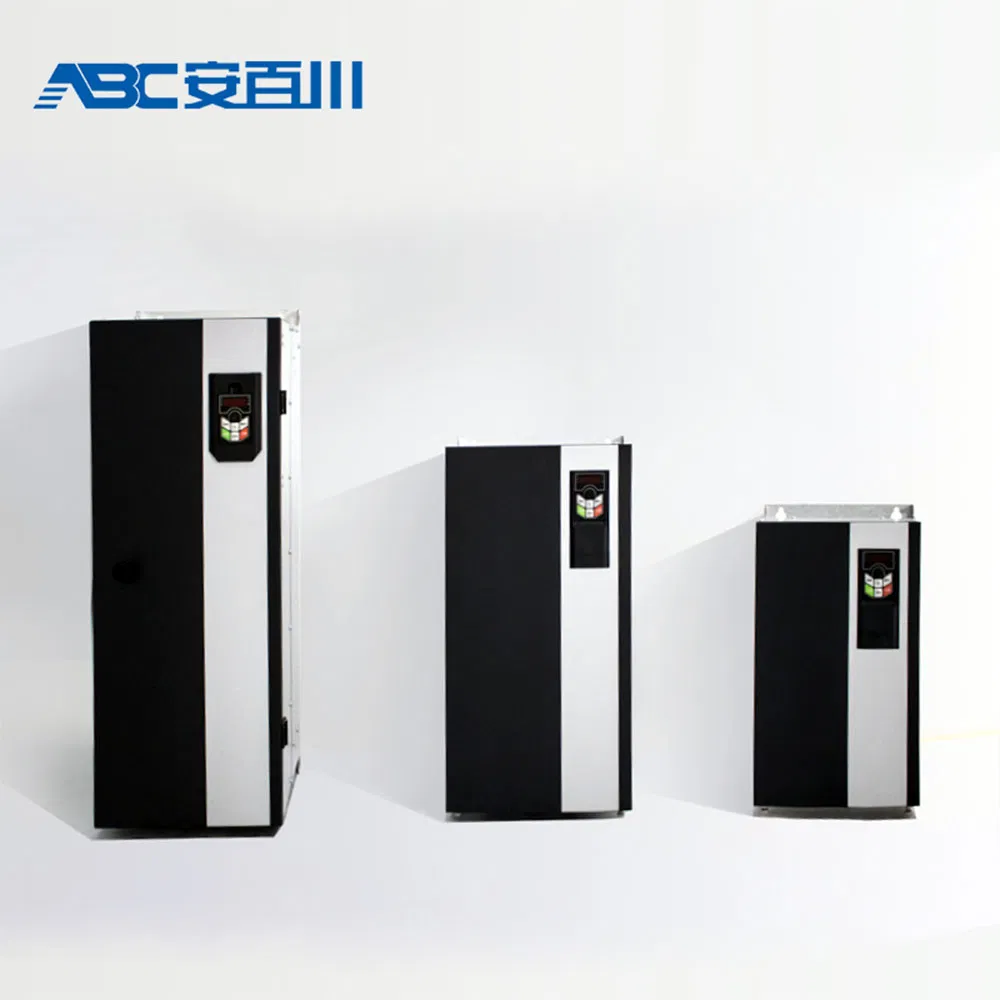

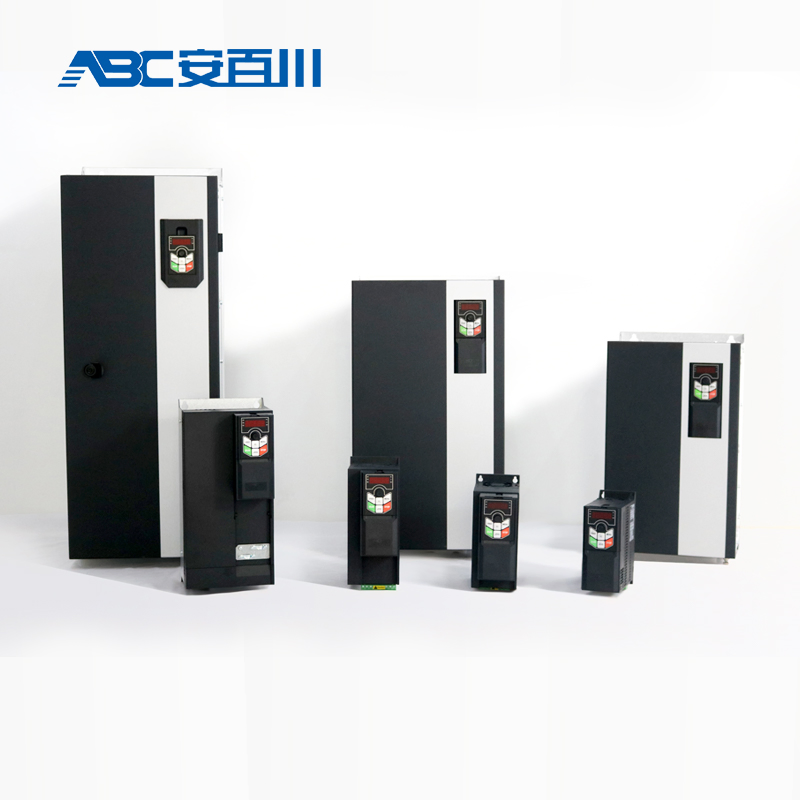

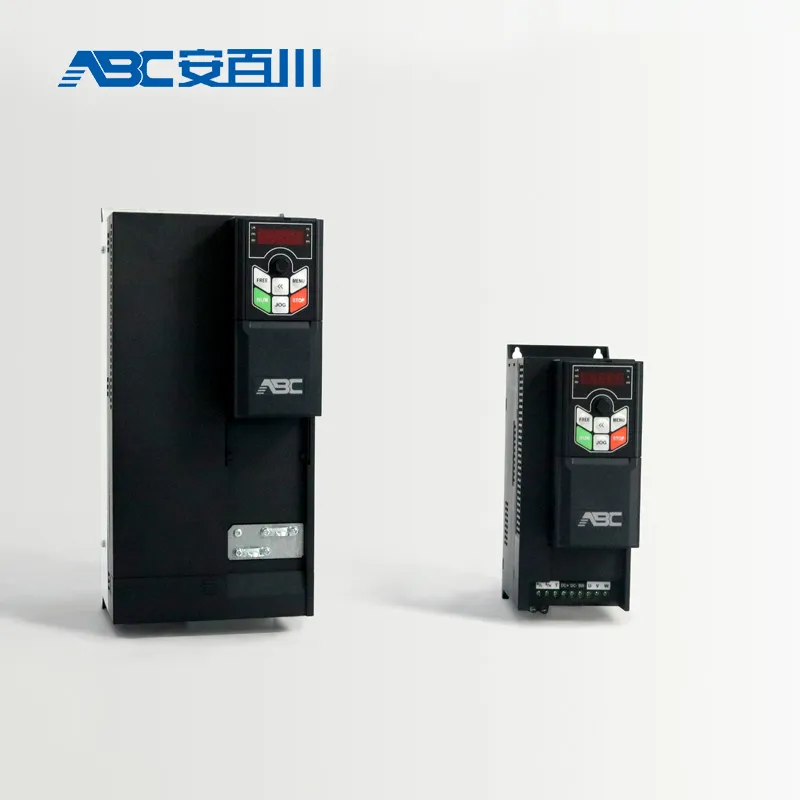

The AD800P is a specialized inverter custom-developed with control logic and application functions tailored for the water supply industry. Built on the high-performance AD800 platform, it is simple to operate, stable, and reliable. It features strong expandability and is ideal for pump loads in industries such as sewage treatment, HVAC, chemical engineering, metallurgy, and power.
Compact structure, easy installation, and maintenance-friendly operation.
AEO and motor parameters auto-adaptation algorithm for PM motors to achieve maximum energy efficiency.
3C3 protective coating; robust performance in harsh Grid and EMC environments with wide input voltage range.
Supports two option cards simultaneously, including fieldbus, encoder, and IO cards.
| Item | Specification | |
|---|---|---|
| Input | Voltage | Three-phase 380~480V -15%~+10% |
| Frequency | 50/60Hz±5% | |
| Maximum Unbalance | 3% | |
| Output | Output Voltage | 3 Phase 0~100% Line in voltage |
| Output Frequency | 0~590Hz | |
| Control | Algorithm | V/F control, Vector Control |
| Motor | Types | Induction Motor, PM Motor |
| Overload | Capacity | 120% Output Current (60s); 150% (3s) |
We are a high-tech enterprise based on power electronics, automatic control, and Internet of Things technology. We focus on the research, development, production, and sales of industrial automation control products. Our efforts are dedicated to automation, digitization, and intelligence in the industrial field, providing customers with high-performance products and personalized solutions that are more intelligent, reliable, and open.
