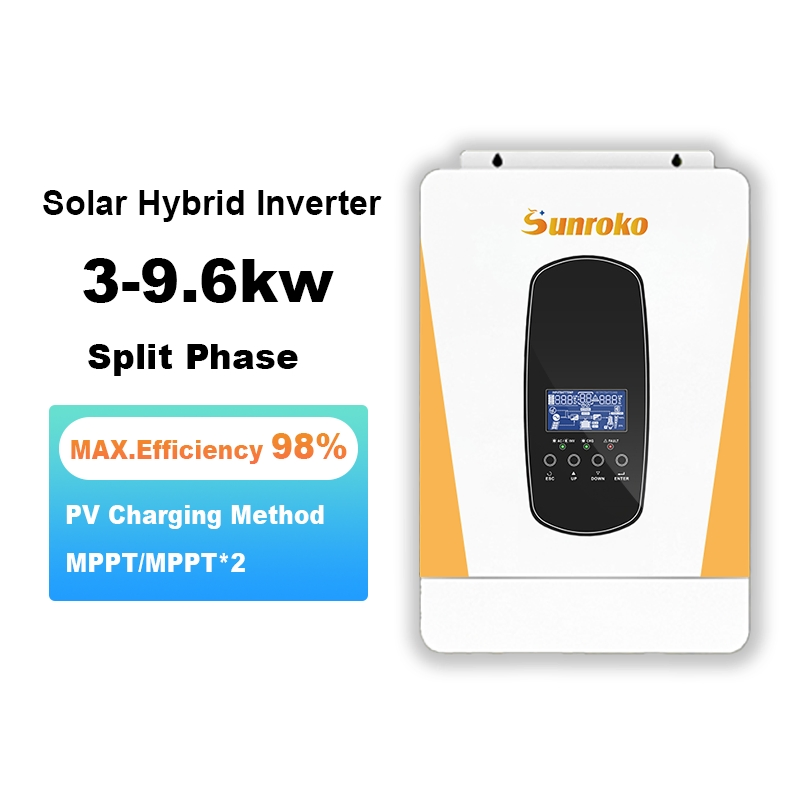

Sunroko Split Phase Hybrid Grid-Tie Inverter 6kw 7kw 7.6kw MPPT 48V Solar Inverter Hybrid

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
SR-HY-3-9.6KW
Source Flow
Active Inverter
Phase
Single
Output Power
>1000W
Certification
CE
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Wave String
Sine Wave Inverter
Protection
IP 65
Communication
RS485, Can, Wi-Fi
Display
LCD+LED
Battery Type
Lithium-Ion
Efficiency
98%
Specification
56.0cm * 40.0cm * 22.9cm

Product Description

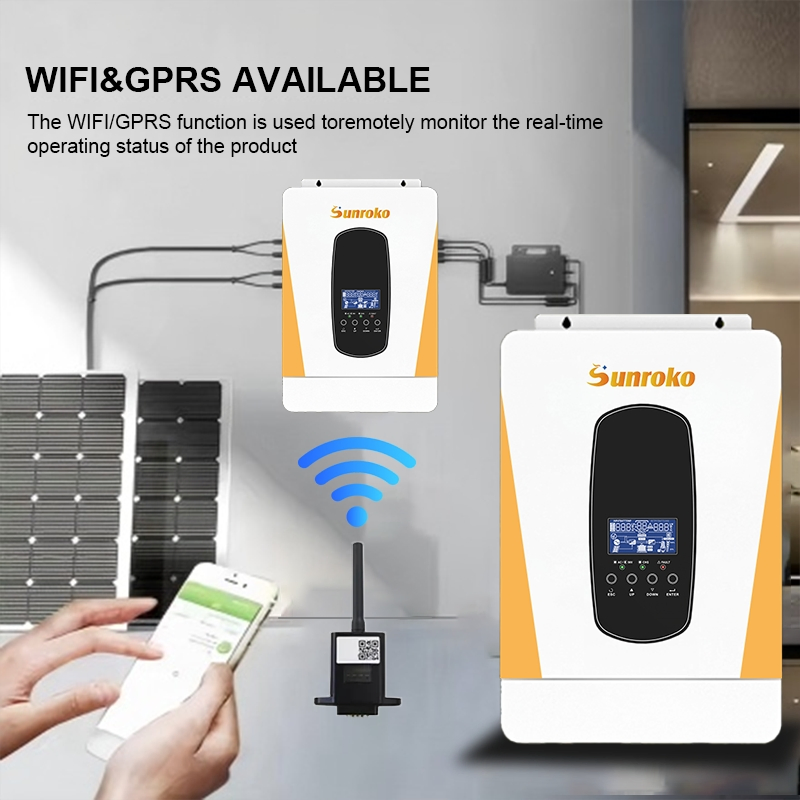

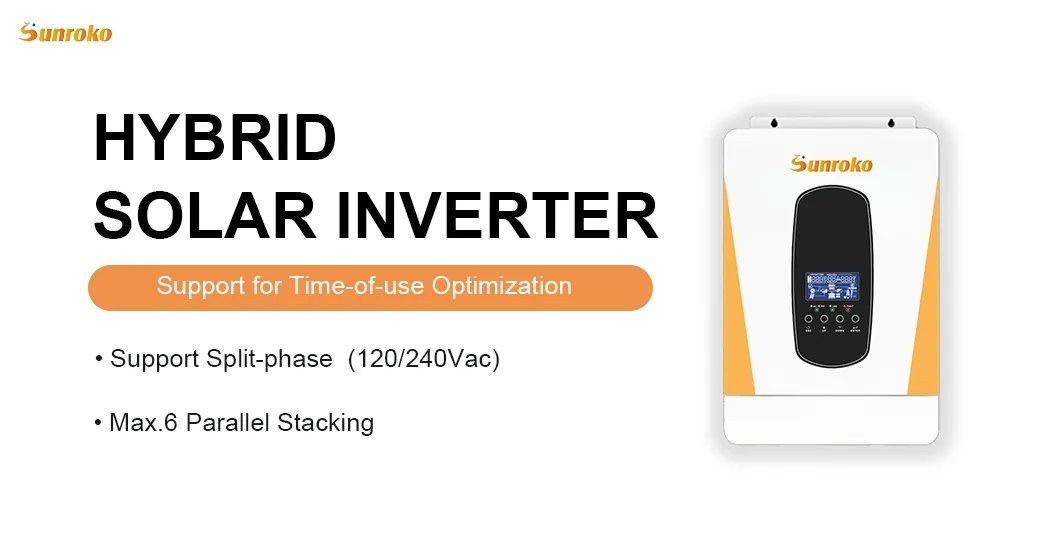

Hybrid Inverter Display

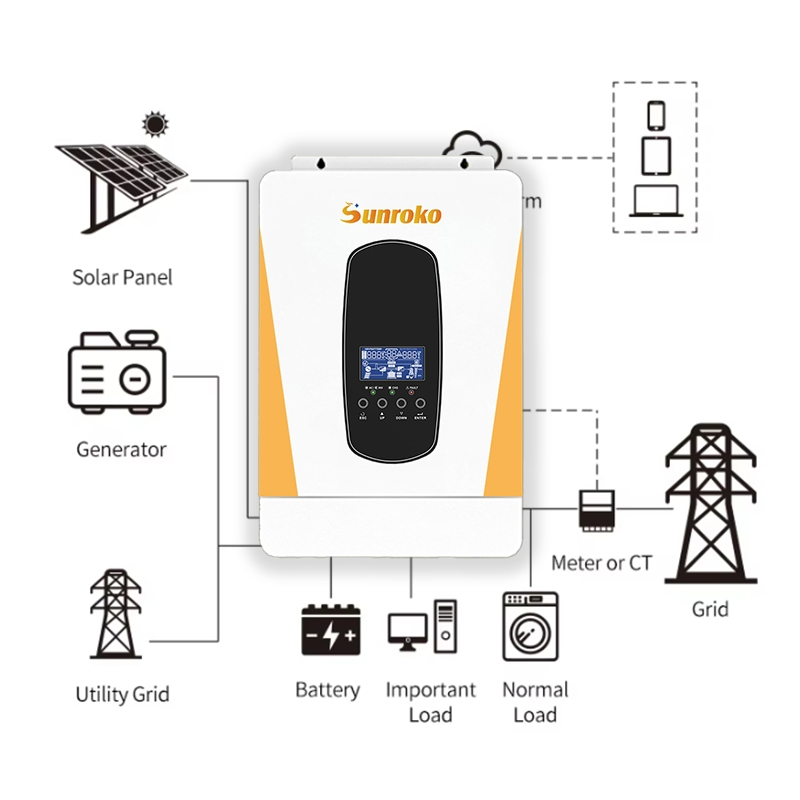

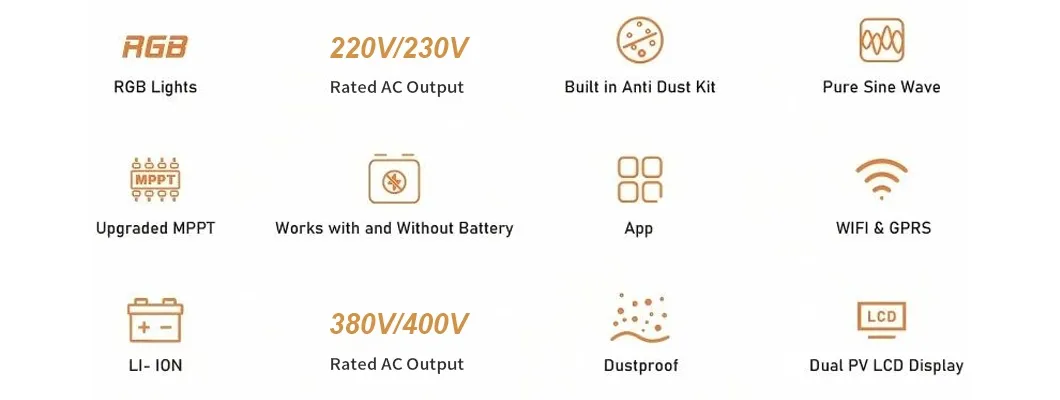

Technical Layout

Product Parameters

Module AF3K-DH AF3.6K-DH AF4K-DH AF4.6K-DH AF5K-DH AF5.5K-DH
PV Input
Max. Input Power (kW)4.55.46.06.97.58.3
Max. PV Voltage (V)600
MPPT Range (V)80 - 550
Battery
Max. Charge/Discharge (kW)4.5 / 4.55.4 / 5.46.0 / 6.06.9 / 6.97.5 / 7.58.3 / 8.3
Voltage Range (V)80 - 495
AC Grid
Max. Power (kVA)3.03.64.04.65.05.5
CEC Efficiency (%)97.0
Module AF6K-DH AF7K-DH AF7.6K-DH AF8K-DH AF8.6K-DH AF9.6K-DH
PV Input
Max. Input Power (kW)9.010.511.412.012.915.0
Max. PV Voltage (V)600
Battery
Max. Charge/Discharge (kW)9.0 / 9.010.5 / 10.311.4 / 10.311.5 / 10.311.5 / 10.311.5 / 10.3
General Data
Dimensions (mm)400 x 600 x 229 mm
Weight25 kg
Protection DegreeIP65 / NEMA4X

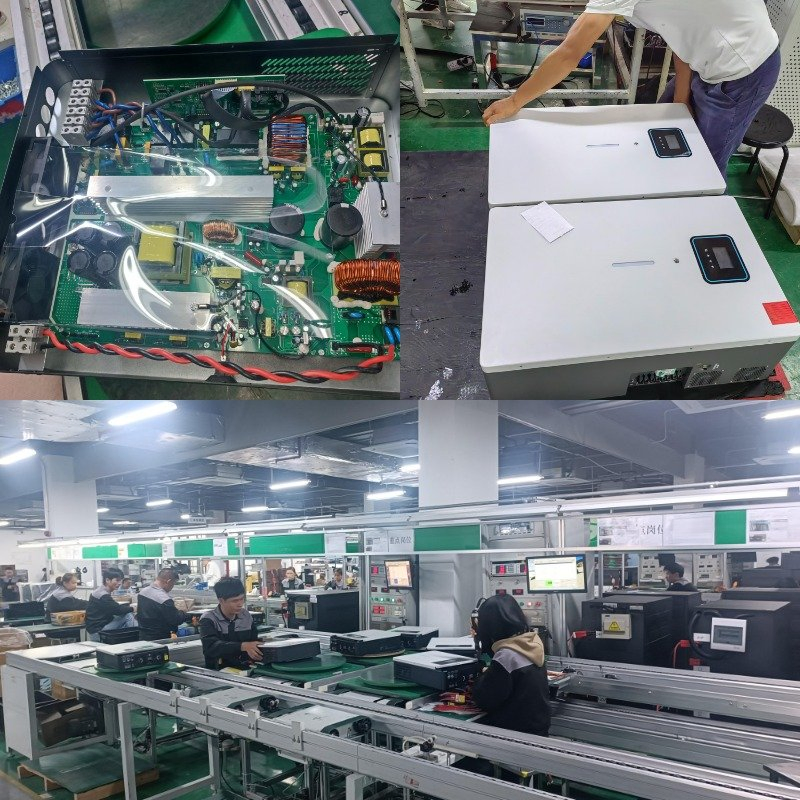

Application & Manufacturing

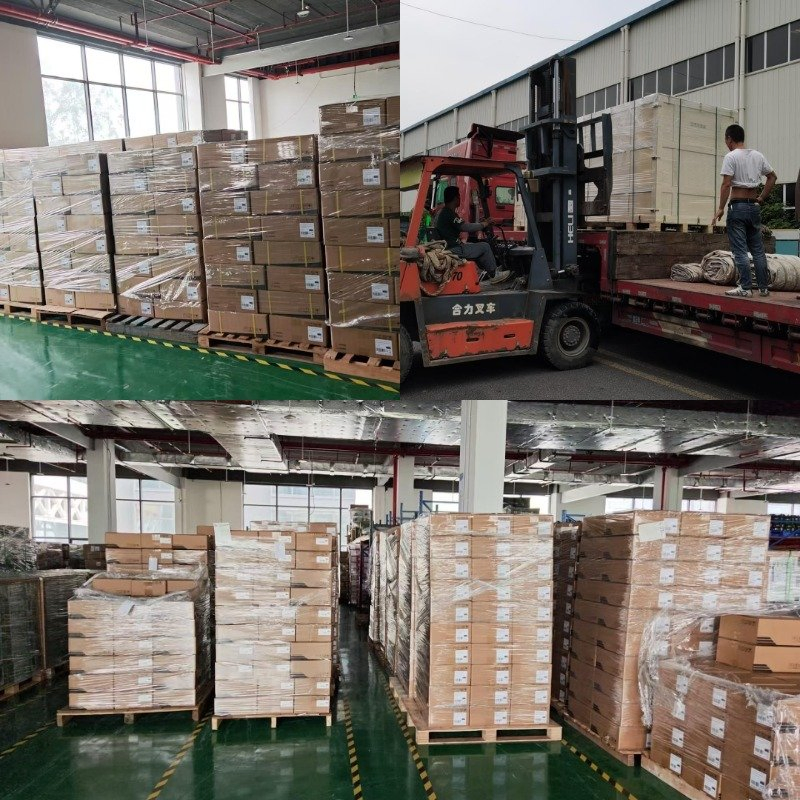

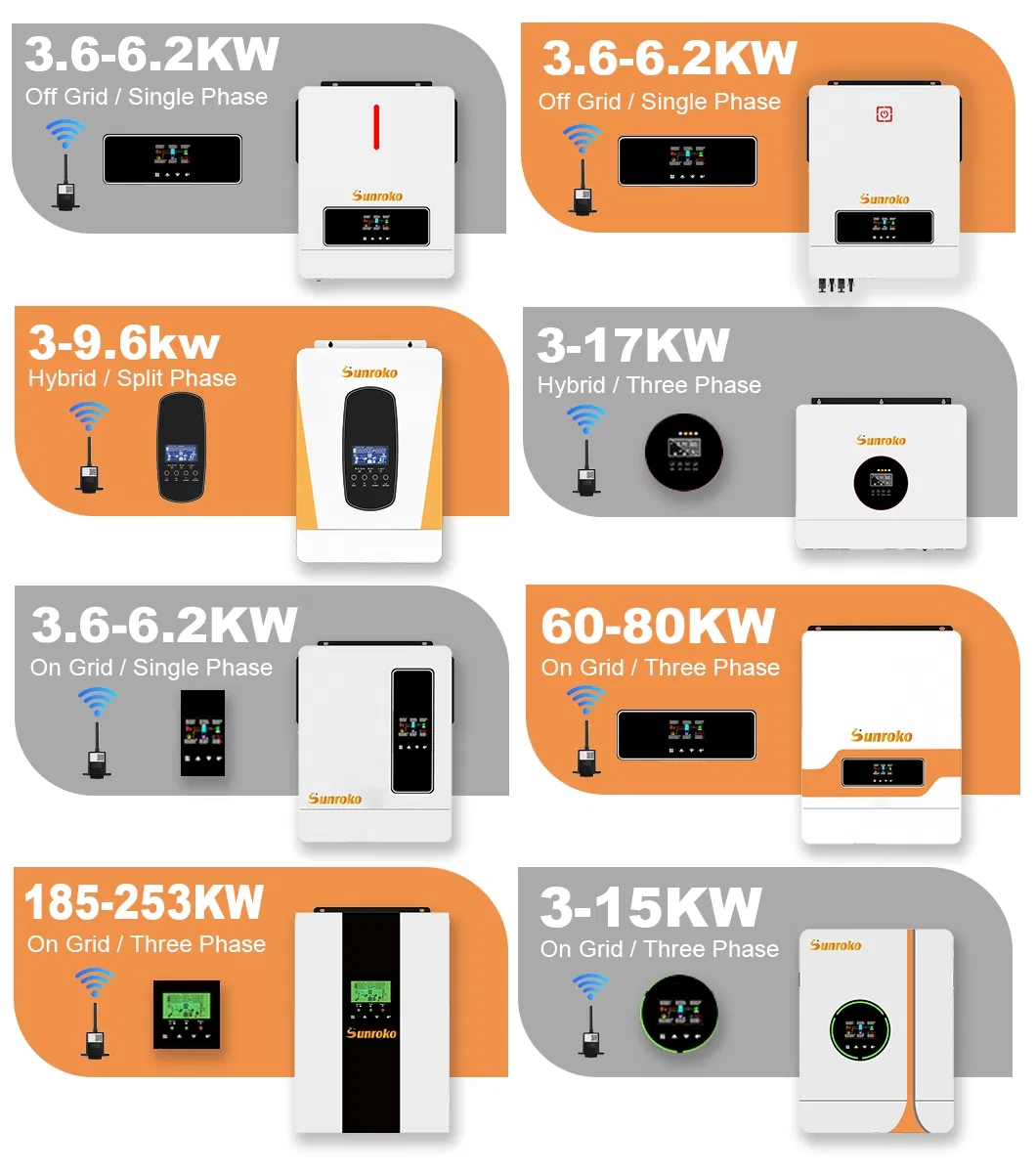

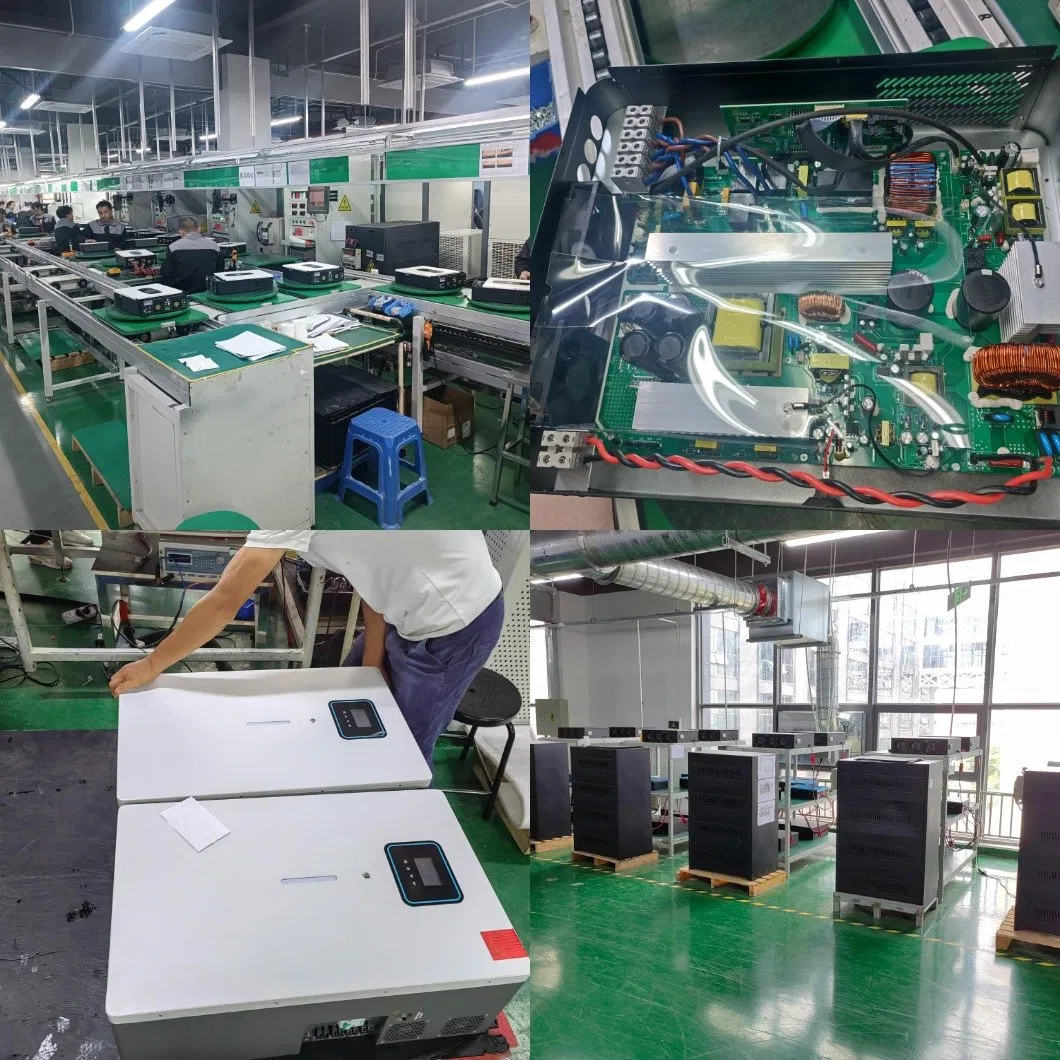

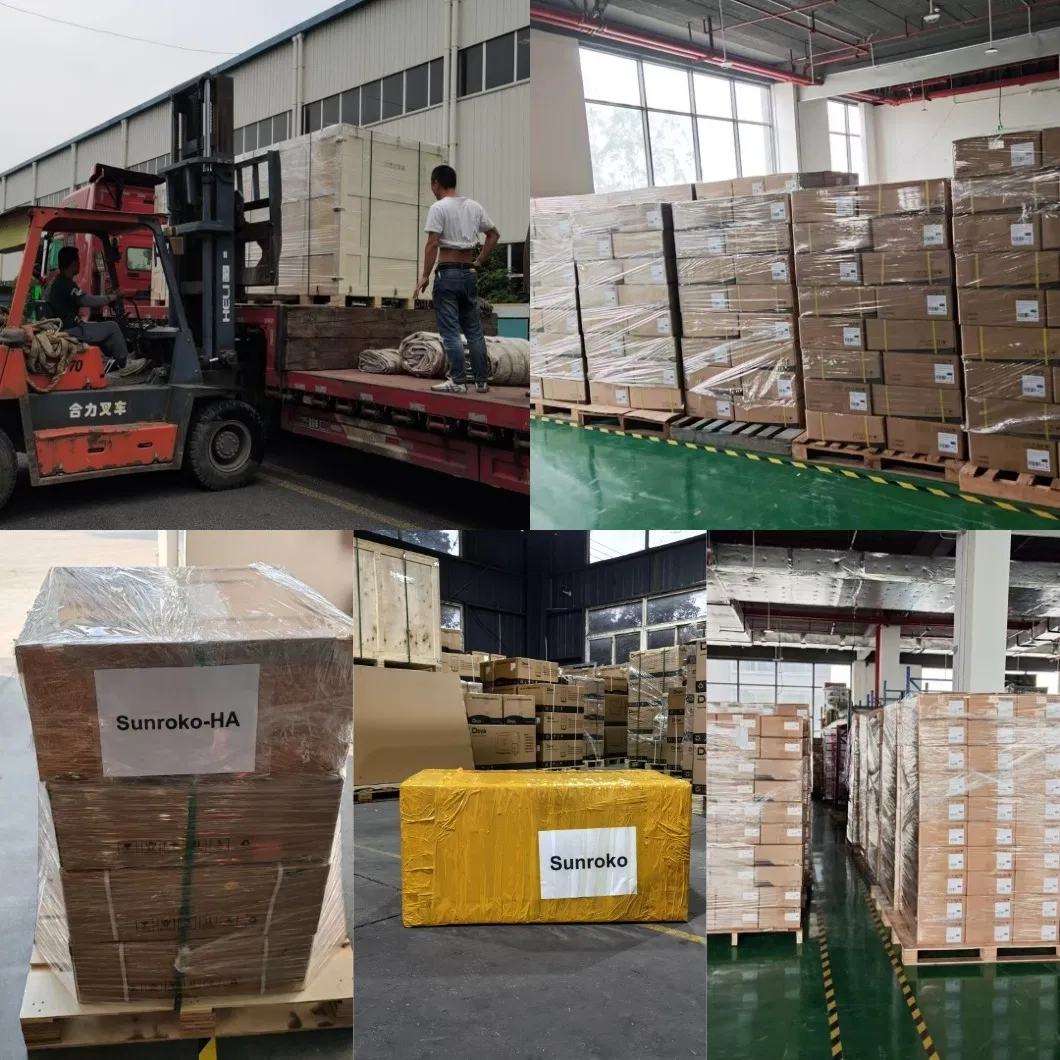

Other Models Why Choose Us Factory Overview Packaging and Shipping
Profile One
Profile Two

Frequently Asked Questions

Q1: What is the typical delivery time for orders?
Sample orders are generally shipped within 7 days. For customized bulk orders, the lead time is approximately 25 days.
Q2: What is your Minimum Order Quantity (MOQ)?
Most products are available starting from 1 piece, unless specific instructions are noted on the product page.
Q3: What certifications do your solar products hold?
Our solar inverters have successfully passed CE, EN 50549-1/-2, VDE, G98/G99, UL, CSA, and INMETRO certifications.
Q4: How long is the warranty period for the inverters?
The standard warranty period for our solar inverters is 5 years, ensuring long-term reliability.
Q5: What payment methods and logistics options are available?
We accept T/T, Western Union, and Letter of Credit. Samples are typically shipped via express carriers like DHL or Fedex.
Q6: What other solar products do you provide?
We offer comprehensive solar solutions including solar panels, controllers, batteries, mounting systems, and related accessories.
