| Parameter | 1KW | 2KW | 3KW |
|---|---|---|---|
| Rated Power | 1000W | 2000W | 3000W |
| Battery Voltage | 12V/24VDC | 24V/48VDC | 24V/48VDC |
| Charge Current | 30A (default) - Adjustable C0-C6 | ||
| Input Voltage | 170-275VAC | ||
| Output (HOT1-HOT2) | 220VAC / 1KW | 220VAC / 2KW | 220VAC / 3KW |
| Output (N-HOT1) | 110VAC / 0.5KW | 110VAC / 1KW | 110VAC / 1.5KW |
| Efficiency | >85% (80% Resistance load) | ||
| Machine Size (mm) | 486 * 247 * 179 | ||

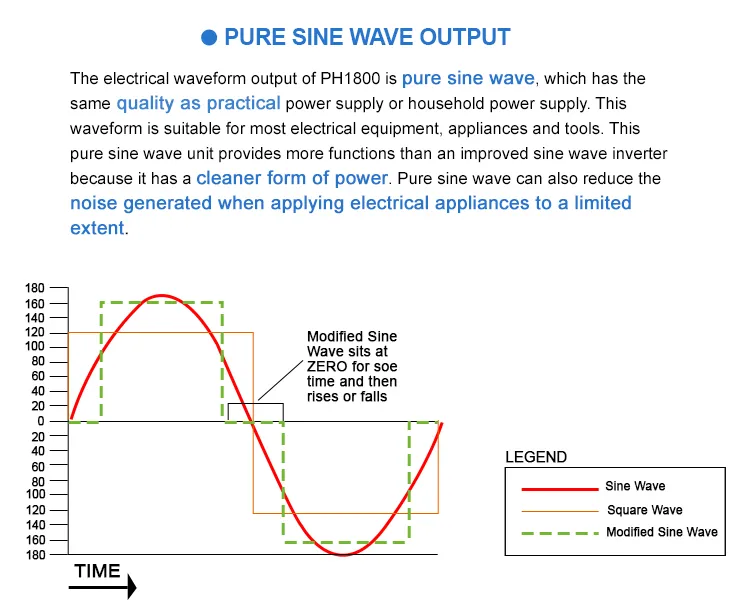

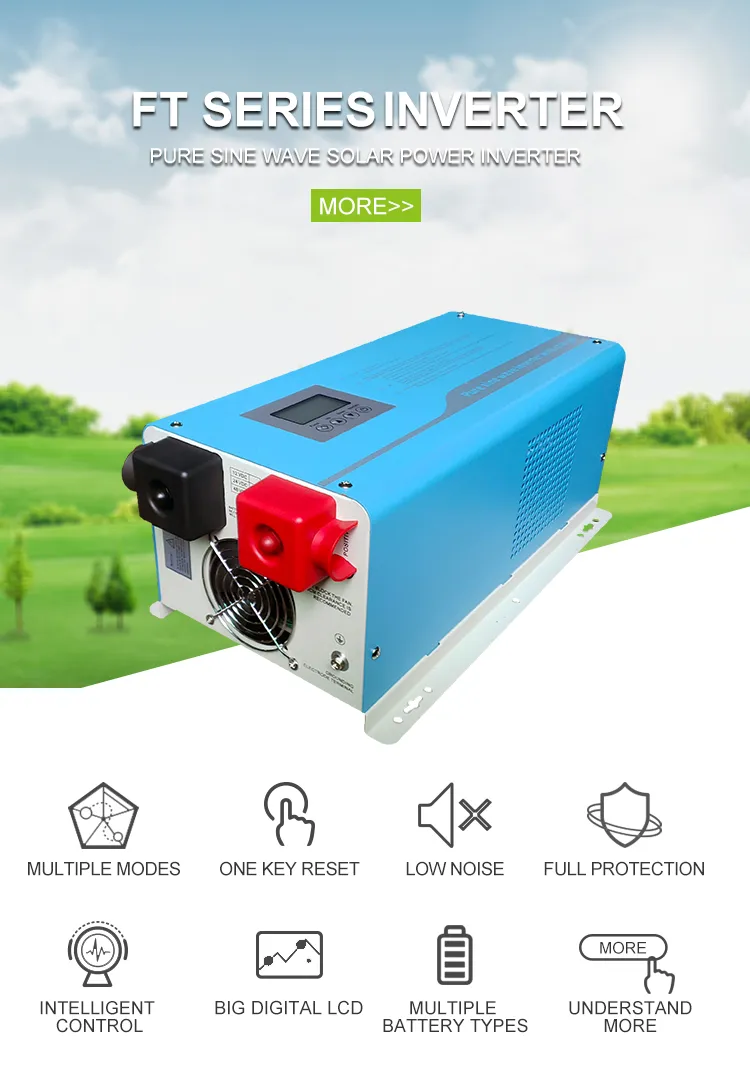

Pure Sine Wave Output
Ensures compatibility with all types of sensitive household loads.
Dual MCU Design
Excellent performance through intelligent digital technology concept.

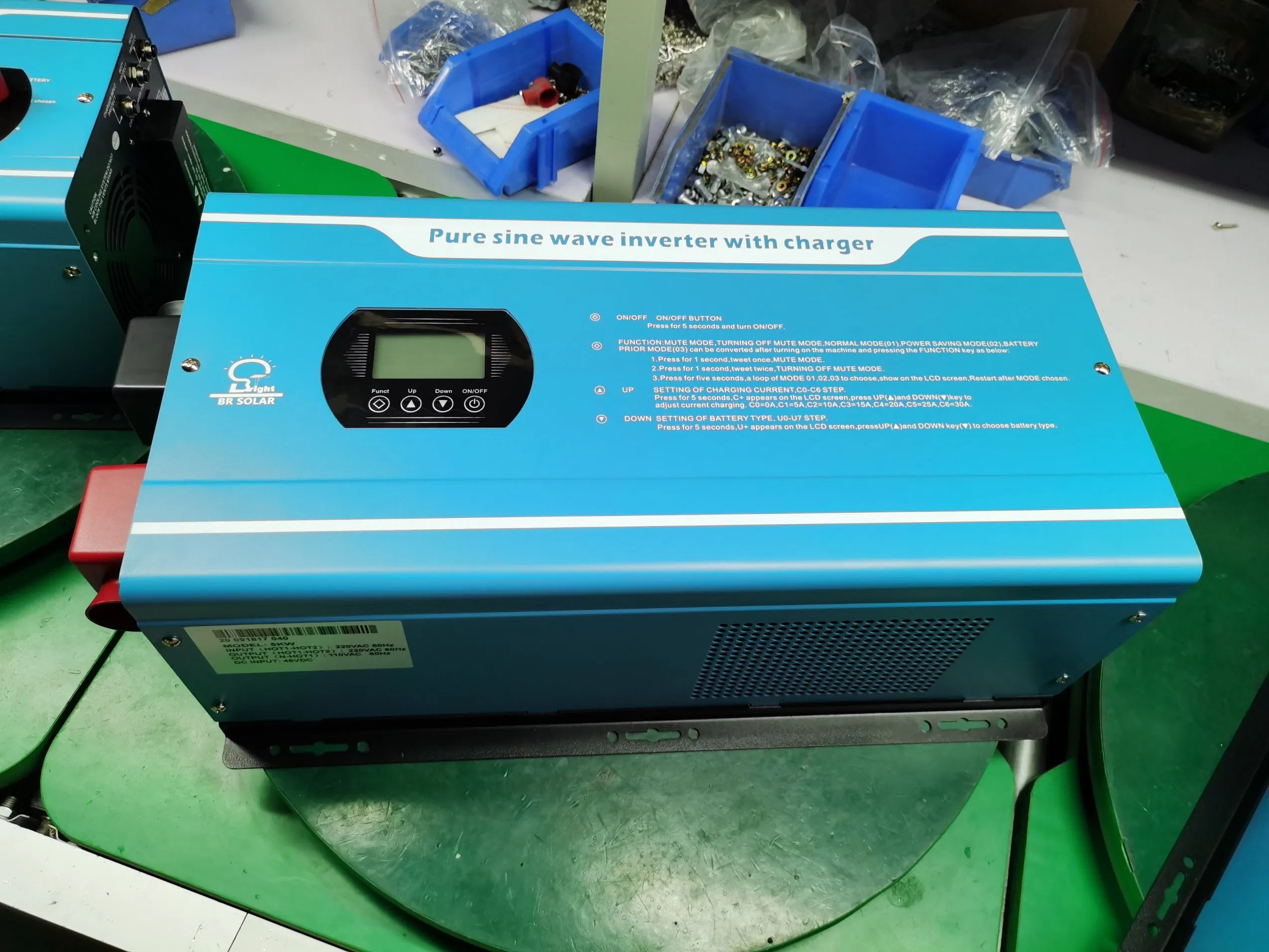

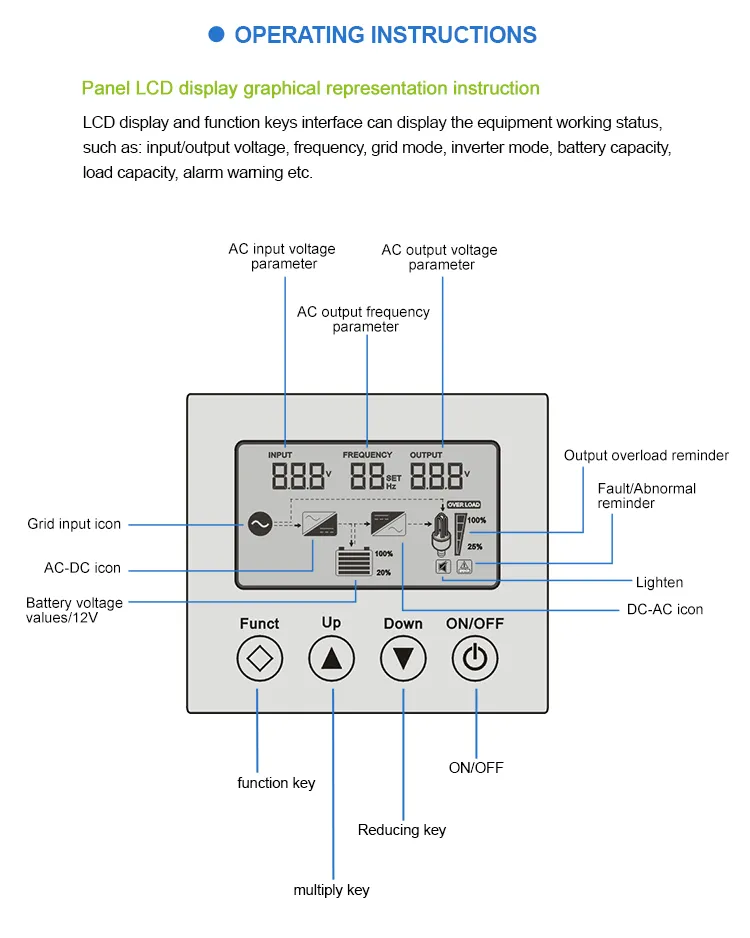

LCD Digital Display
Real-time visualization of equipment operating status and parameters.
Full Protection
Overvoltage, low voltage, overload, short circuit, and over-temperature protection.

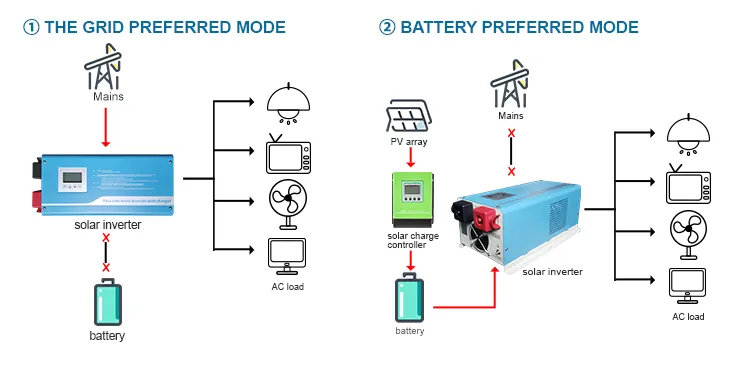

This Pure Sine Wave Solar Inverter is designed with advanced digital technology. Its pure sine wave output adapts to all load types, making it ideal for areas where electricity is unstable. The system allows for flexible management of different battery types (U0-U7) and charging currents, meeting various user application needs including power-saving and battery-preferred modes.
Applications: Widely applied in families, schools, industrial equipment, communication systems, and vehicle-mounted equipment like ambulances and police cars.
