Customization: Available
Application: General Transducer
Output Type: Triple
Send Inquiry

Product Description

Basic Product Information

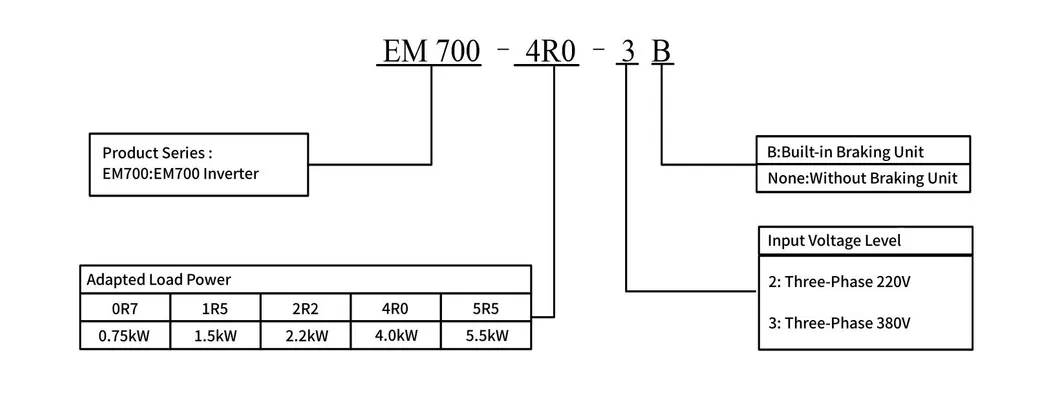

Low Voltage AC Drives
Model NO.EM700Principle of WorkVector Control Transducer
Switch ModePWM ControlMain Circuit TypeVoltage
Voltage of Power SupplyMedium Voltage Variable-Frequency DriveLink of TransformationAC-AC Variable-Frequency Drive
Drive ModeV/F Control (Vvf); Speed Sensorless Vector ControlInputFrequency (Speed) Input, Torque Input
Frequency Control Range0.00-600.00Hz / 0.0-3000.0HzSpeed Range1:50 (Vvf), 1:200 (SVC)
Protection LevelIP20Cooling MethodForced Air Cooling

Product Description

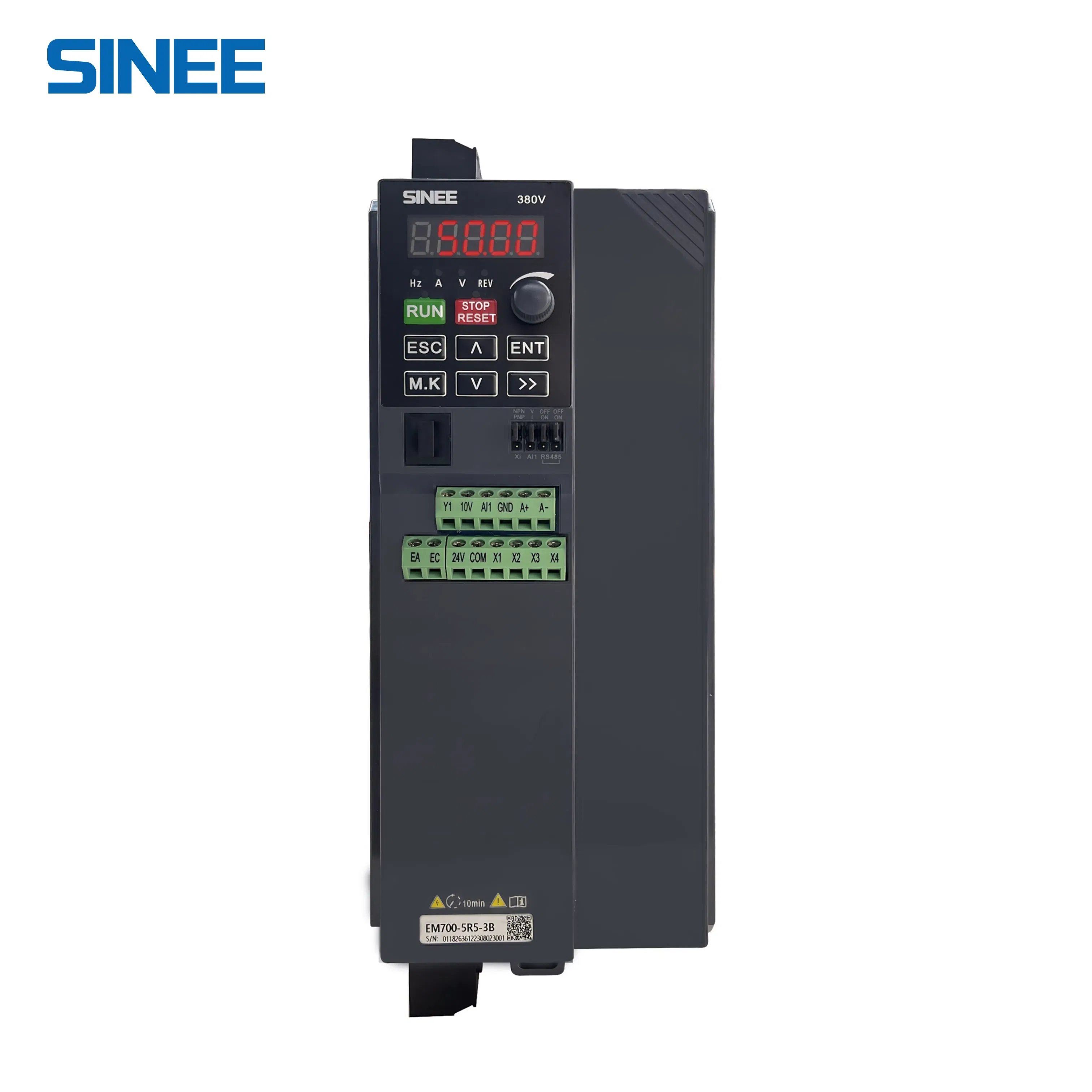

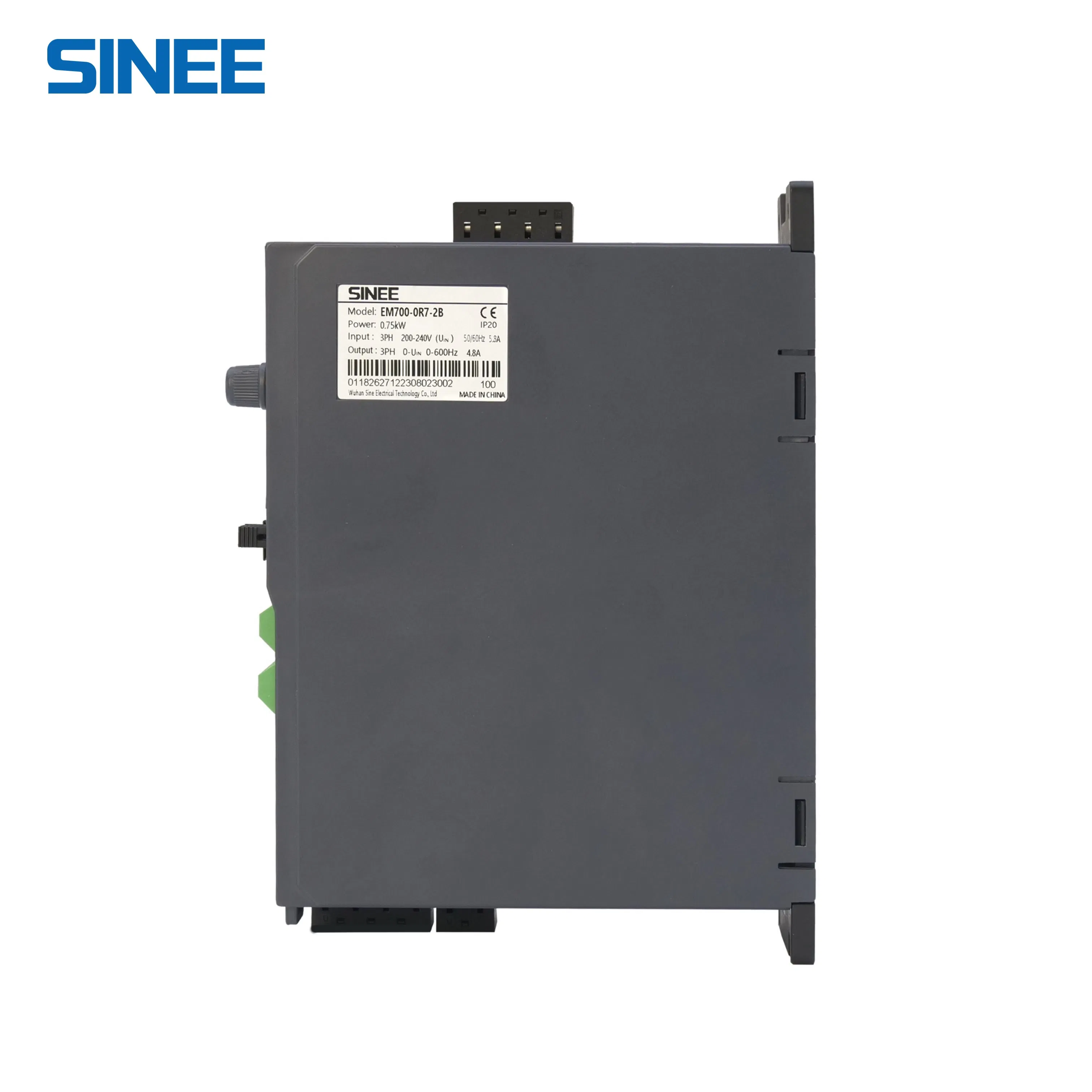

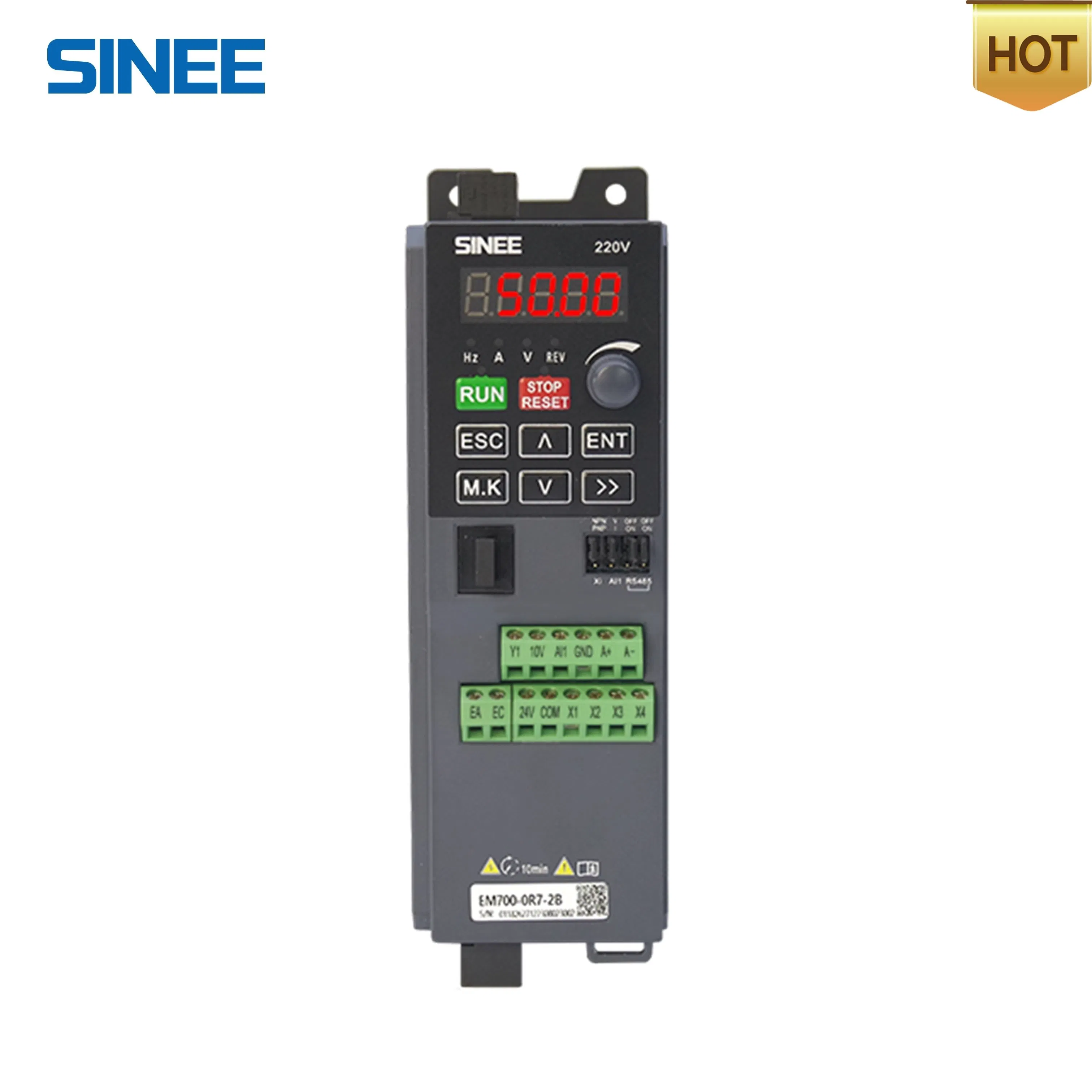

The EM700 series frequency converter is a high-reliability, small-sized general-purpose frequency converter. It is designed to support three-phase AC asynchronous machines with robust performance.
✔ Compact size, supports side-by-side installation for space efficiency.
✔ Pluggable main power terminals for quick installation and maintenance.
✔ High thermal resilience: operates in 50ºC ambient temperature without derating.
✔ Digital potentiometer for fast and accurate speed adjustment.
✔ Complete protection: short circuit, overcurrent, overvoltage, overload, and overheating.

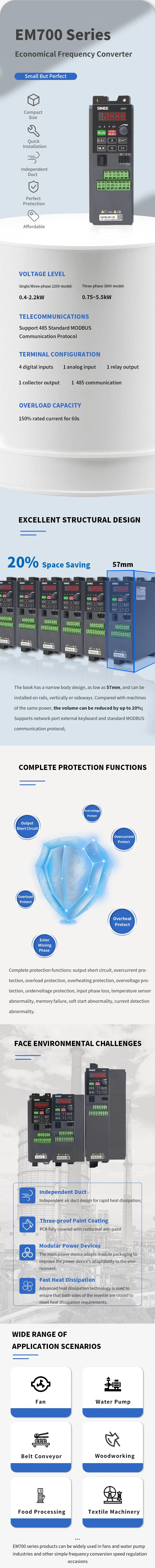

EM700 Details

Technical Specifications

Category Feature Specification
Power Supply Rated Voltage Three-phase 340V-460V / Single-phase 200V-240V
Frequency 50/60Hz ±5%
Output Overload Capacity 150% heavy load for 60s; 120% light load for 60s
Starting Torque 150%/1Hz (VVF), 150%/0.25Hz (SVC)
Control Drive Mode V/F control (VVF); Speed sensorless vector control (SVC)
Speed Accuracy ±0.2% rated synchronous speed
I/O Terminals Digital Input 4 multi-function inputs (X1-X4)
Analog Input 1 channel (AI1) 0-10V / 4-20mA optional

Installation Instructions

Below are the dimensions and space requirements for different EM700 models. Ensure adequate ventilation during cabinet installation.

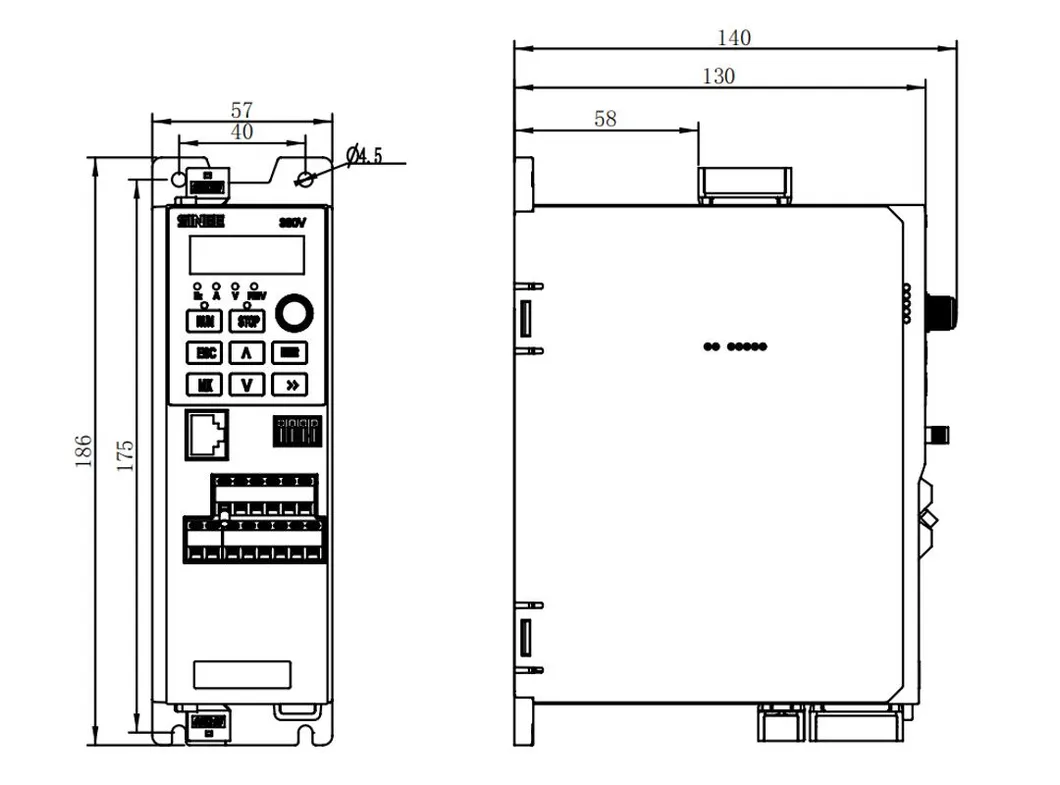

EM700 Size A

Size (a) 0.4kW - 1.5kW Models

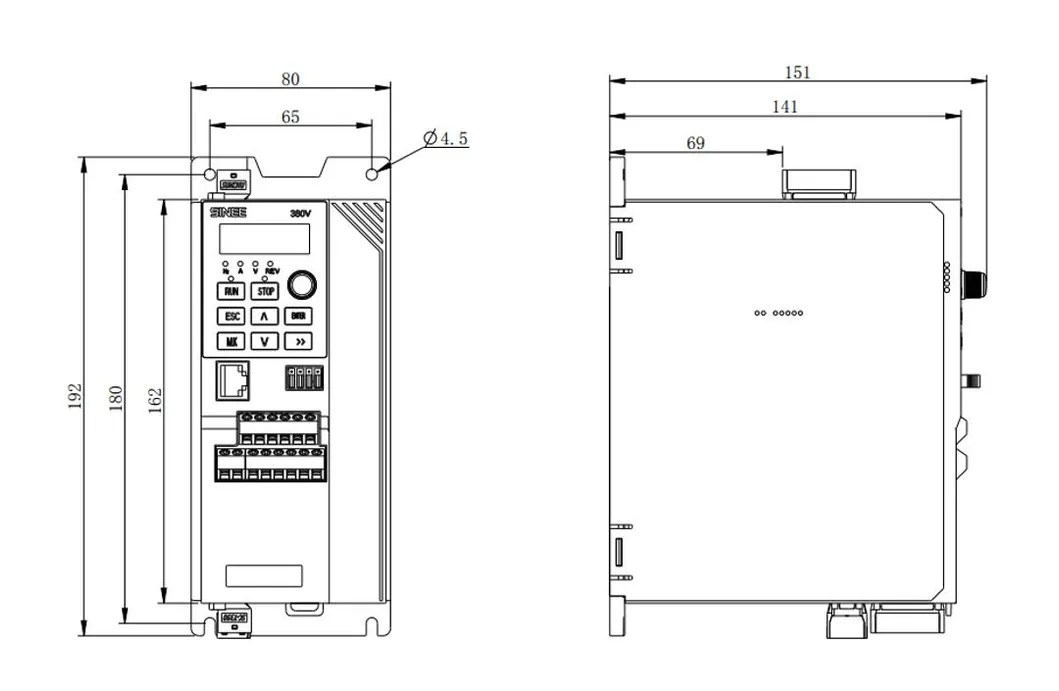

EM700 Size B

Size (b) 1.5kW - 4.0kW Models

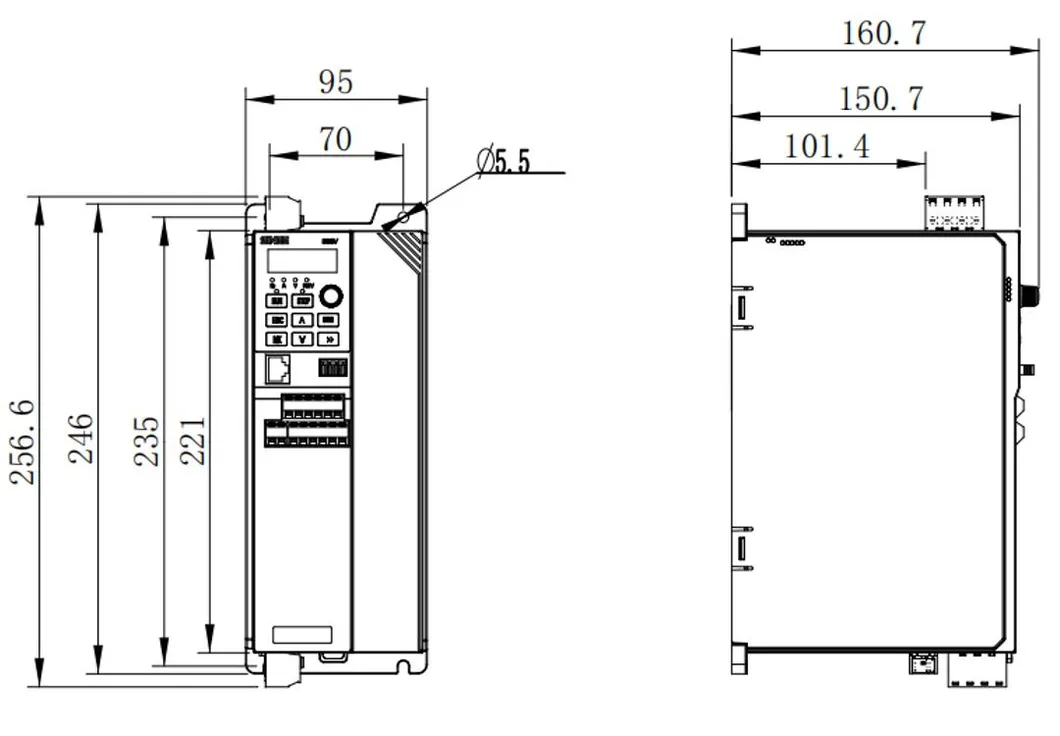

EM700 Size C

Size (c) 5.5kW Models

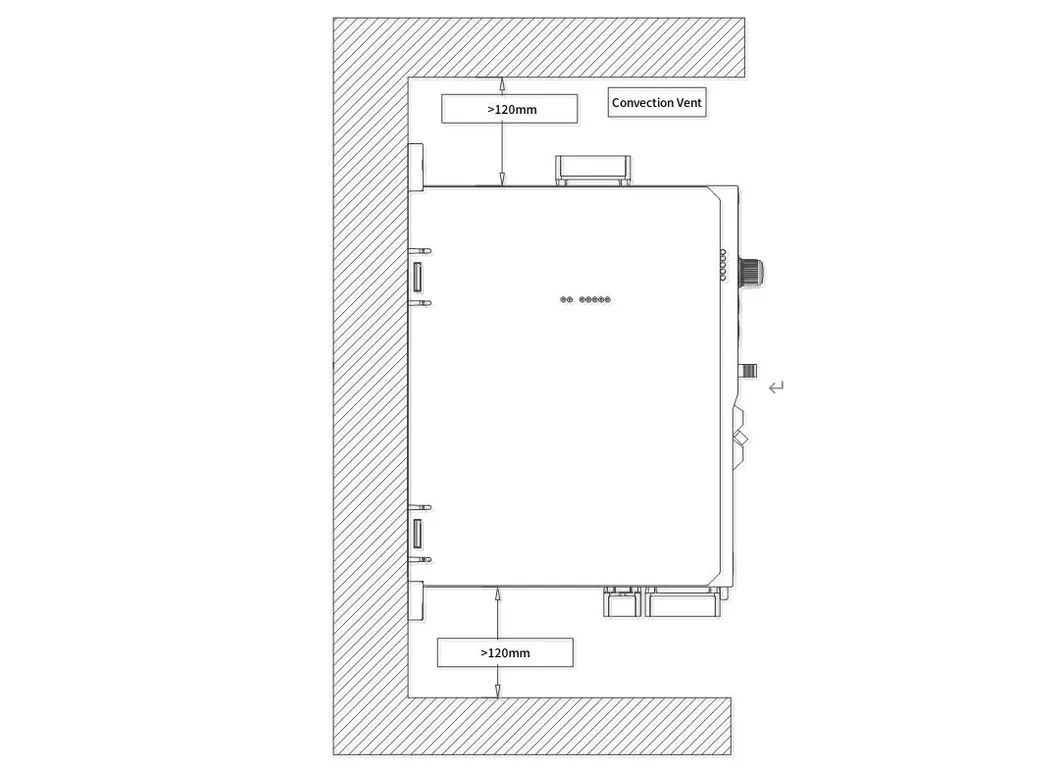

Installation Space

Frequently Asked Questions

What are the main control modes of the EM700?
The EM700 series supports both V/F Control (VVF) and Speed Sensorless Vector Control (SVC) for versatile motor management.
Does this inverter require derating at high temperatures?
It can operate at an ambient temperature of up to 50ºC without derating. For temperatures between 50ºC and 60ºC, a derating of 3% per 1ºC is required.
Is the EM700 suitable for compact control cabinets?
Yes, its compact size and support for side-by-side installation make it ideal for space-constrained environments.
What protection features are included?
It includes comprehensive protection against short circuits, overcurrent, overvoltage, undervoltage, phase loss, overload, and overheating.
What is the frequency output range?
The standard frequency control range is 0.00Hz to 600.00Hz, with high-frequency versions capable of reaching up to 3000.0Hz.
