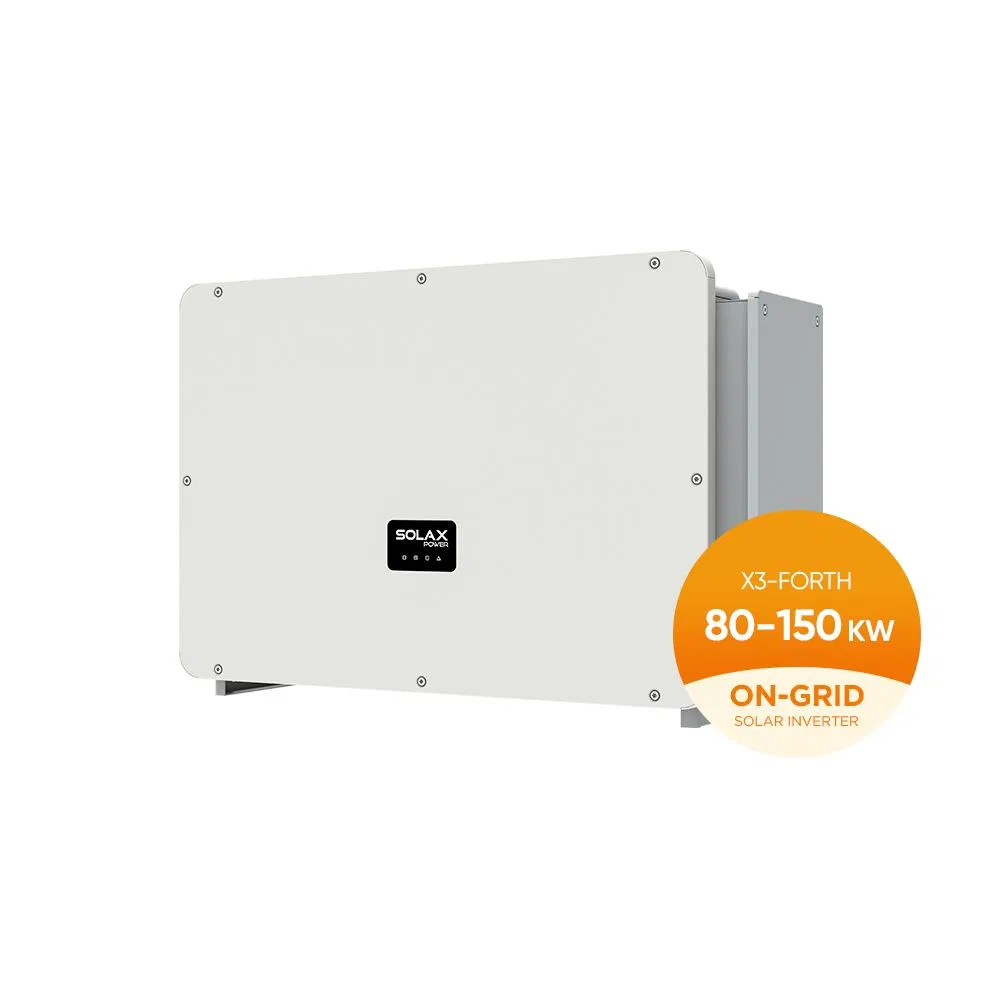

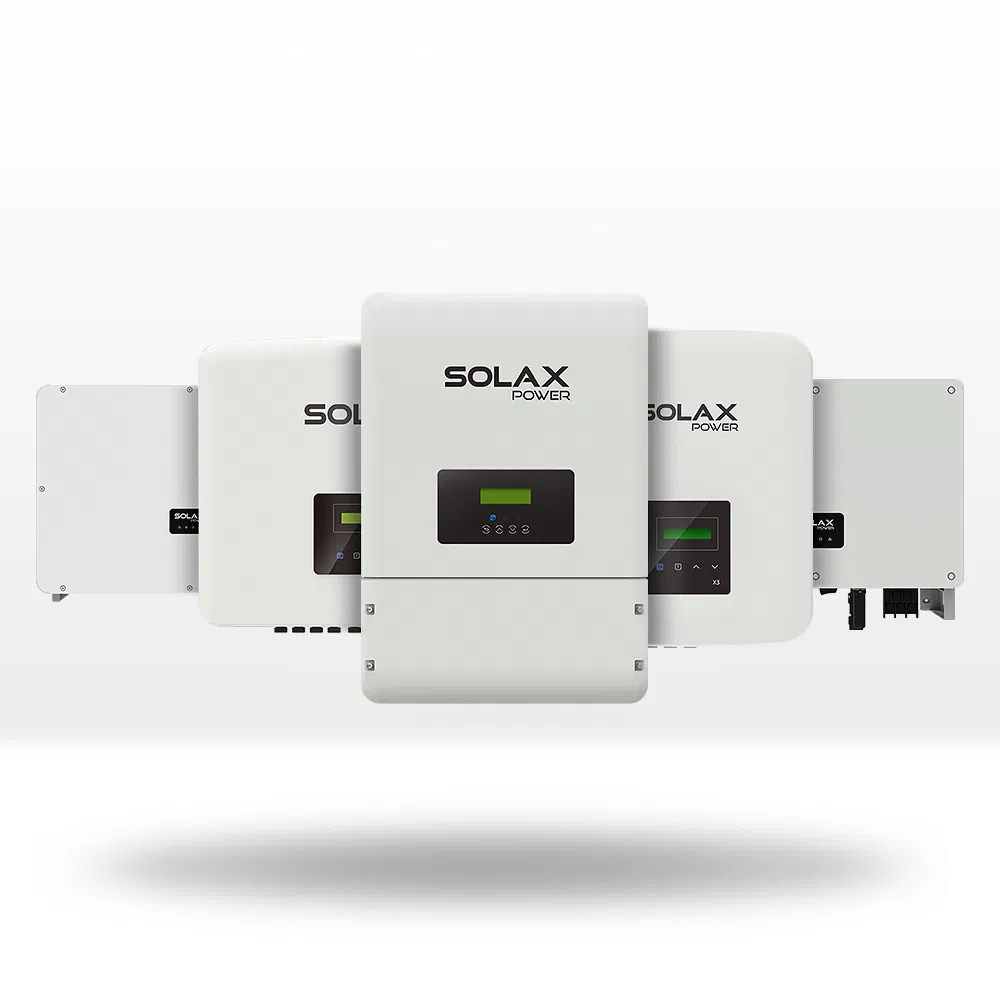

Solax X3 Grid Tie Solar Inverters 100 kW 100kW 150kW 200kW Three Phase High Power Pure Sine Wave Inverter
Solax X3 Grid Tie Solar Inverters 100 kW 100kW 150kW 200kW Three Phase High Power Pure Sine Wave Inverter
Solax X3 Grid Tie Solar Inverters 100 kW 100kW 150kW 200kW Three Phase High Power Pure Sine Wave Inverter
Solax X3 Grid Tie Solar Inverters 100 kW 100kW 150kW 200kW Three Phase High Power Pure Sine Wave Inverter
Solax X3 Grid Tie Solar Inverters 100 kW 100kW 150kW 200kW Three Phase High Power Pure Sine Wave Inverter
1 / 5
Solax X3 Grid Tie Solar Inverters 100 kW 100kW 150kW 200kW Three Phase High Power Pure Sine Wave Inverter
Solax X3 Grid Tie Solar Inverters 100 kW 100kW 150kW 200kW Three Phase High Power Pure Sine Wave Inverter
Solax X3 Grid Tie Solar Inverters 100 kW 100kW 150kW 200kW Three Phase High Power Pure Sine Wave Inverter
Solax X3 Grid Tie Solar Inverters 100 kW 100kW 150kW 200kW Three Phase High Power Pure Sine Wave Inverter
Solax X3 Grid Tie Solar Inverters 100 kW 100kW 150kW 200kW Three Phase High Power Pure Sine Wave Inverter

Solax X3 Grid Tie Solar Inverters 100 kW 100kW 150kW 200kW Three Phase High Power Pure Sine Wave Inverter

Customization: Available
After-sales Service: Yes
Warranty: 5 years
Send Inquiry

Product Description

Basic Specifications

Nature of Source Flow
Passive inverter
Phase
Three
Output Power
80KW-150KW
Certification
CE, ISO9001, TUV, VDE, CSA, UL
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Output Voltage
220/380V, 230/400V, 3/N/PE
MPPT Voltage Range
180-1000V
Number of MPP Trackers
9 / 12
Ingress Protection
IP66
Cooling concept
Smart fan cooling

Product Description

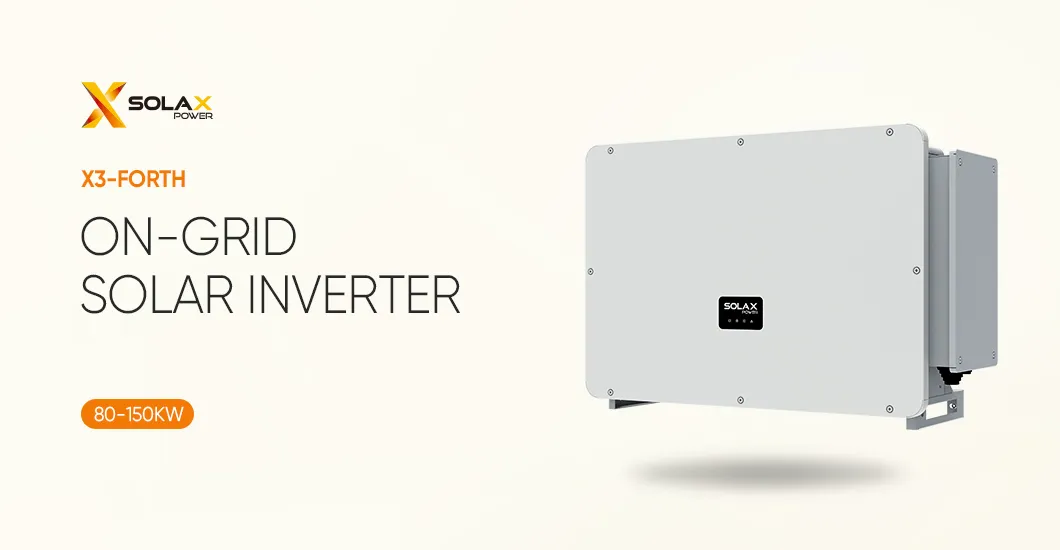

High Power Inverter
Inverter Features

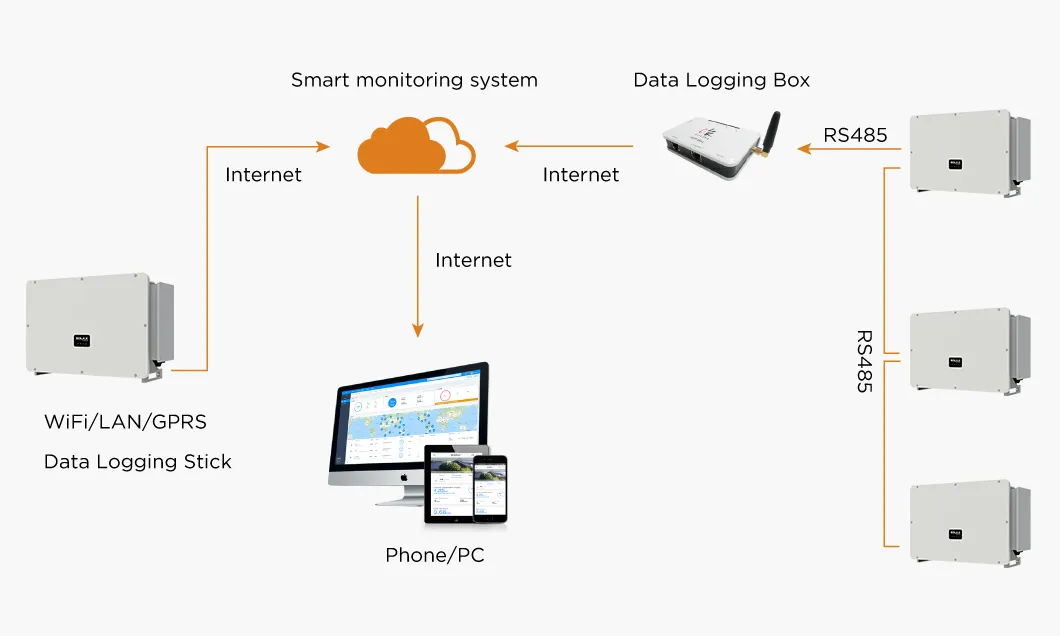

Smart Monitoring System

Smart Monitoring System: Real-time data tracking and high-performance management for commercial solar applications.

Technical Parameters

DC INPUT
Model X3-FTH-80/100/110/120/125/136/150K
Max. PV array input power [kWp] 120150165180188204225
Max. PV input voltage [V] 1100
Startup voltage [V] 200
MPP tracker voltage range [V] 180~1000
AC OUTPUT
Nominal AC output power [kW] 80100110120125136150
Max. AC output current [A] 133.4166.7183.4200200172.8190.6
SYSTEM DATA
Max. efficiency [%] 98.6 99.0
Dimensions [W×H×D] [mm] 985×660×327.5

Packaging & Manufacturing

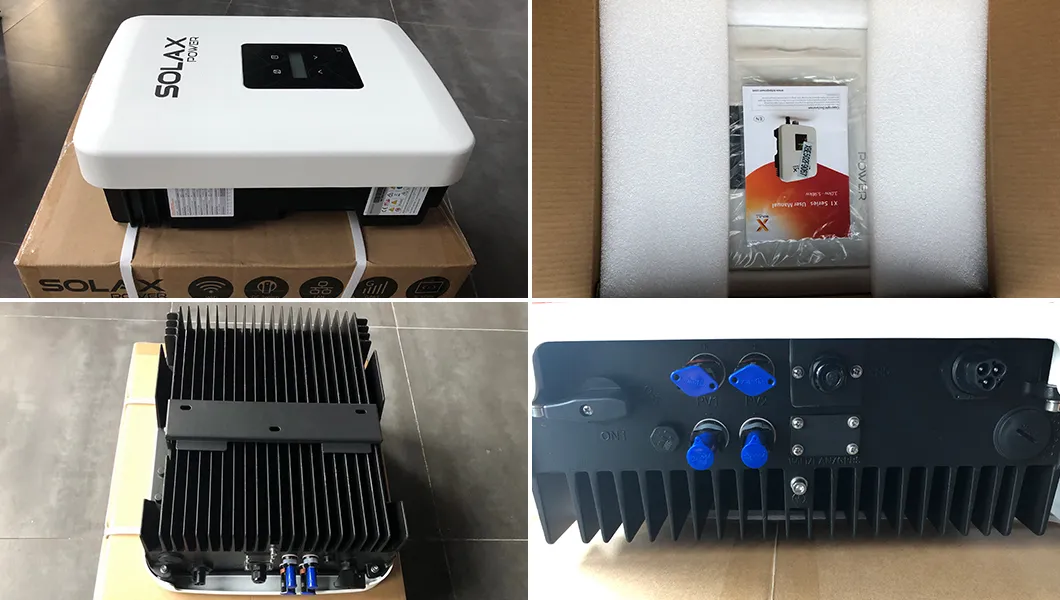

Packaging
Factory Overview

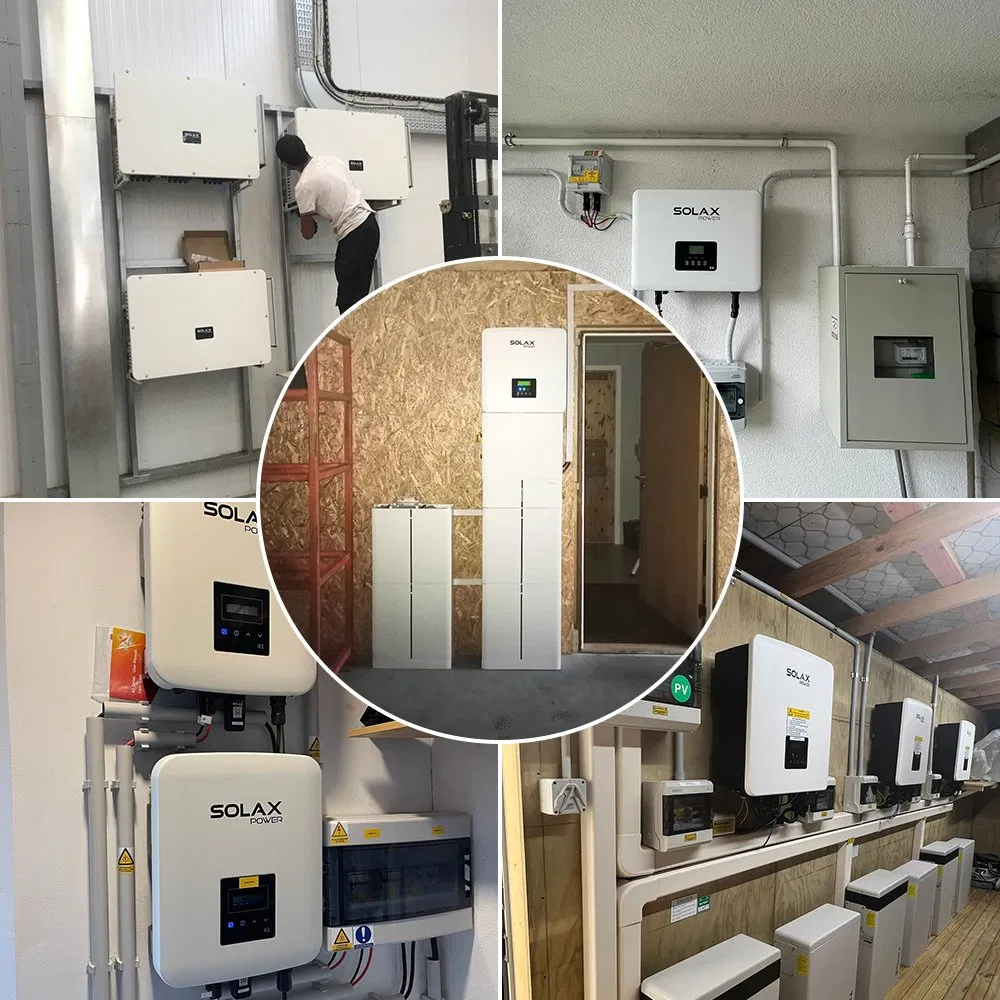

Global Project Cases

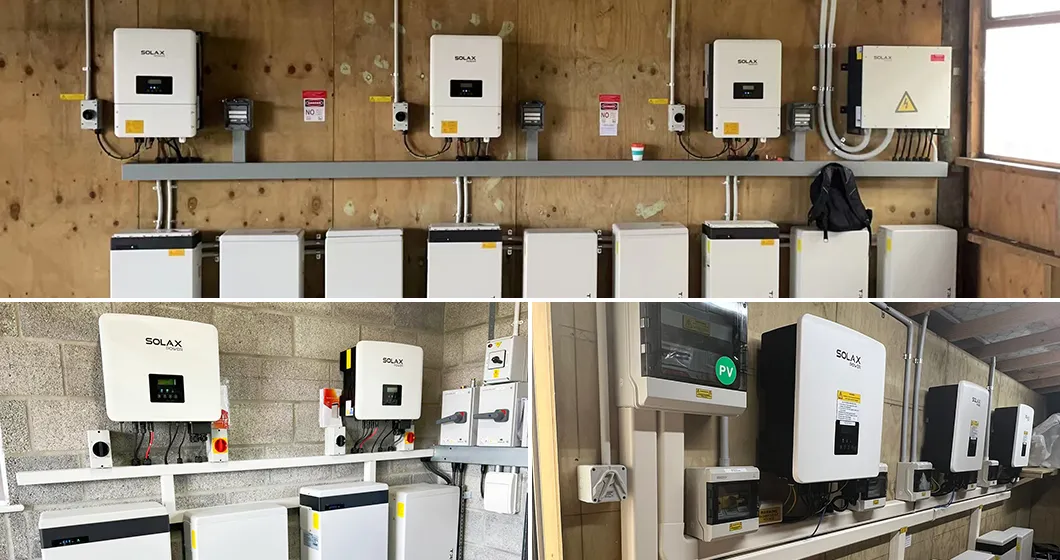

Project 1

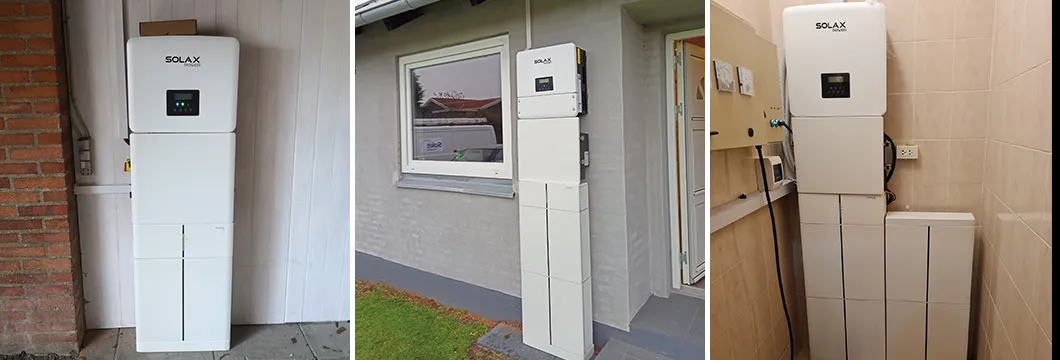

Project 2

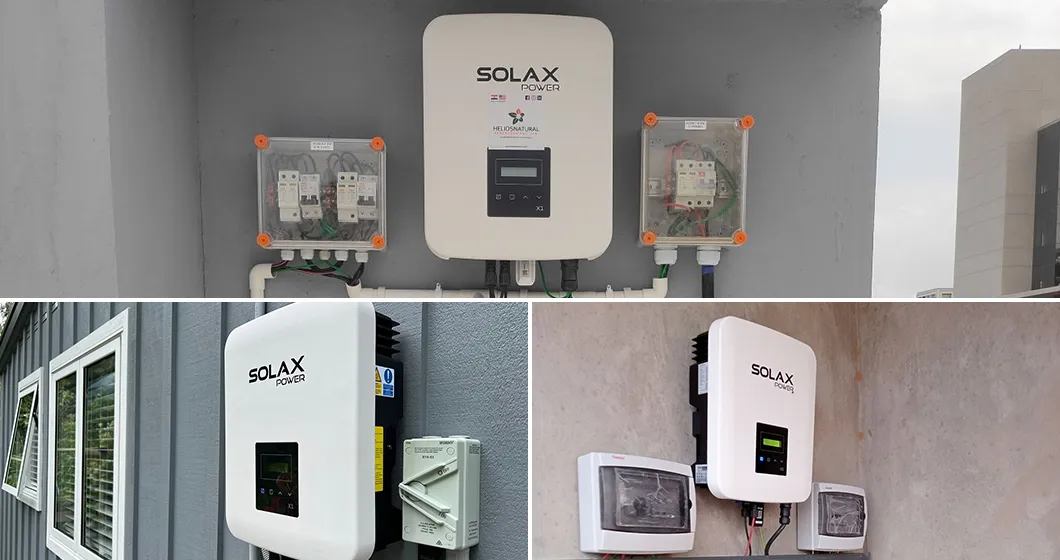

Project 3

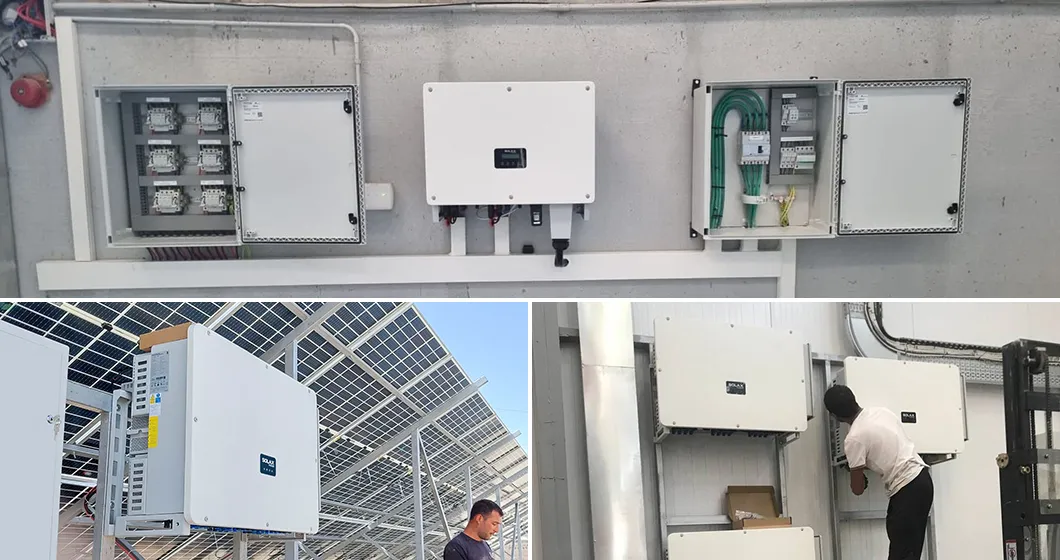

Project 4

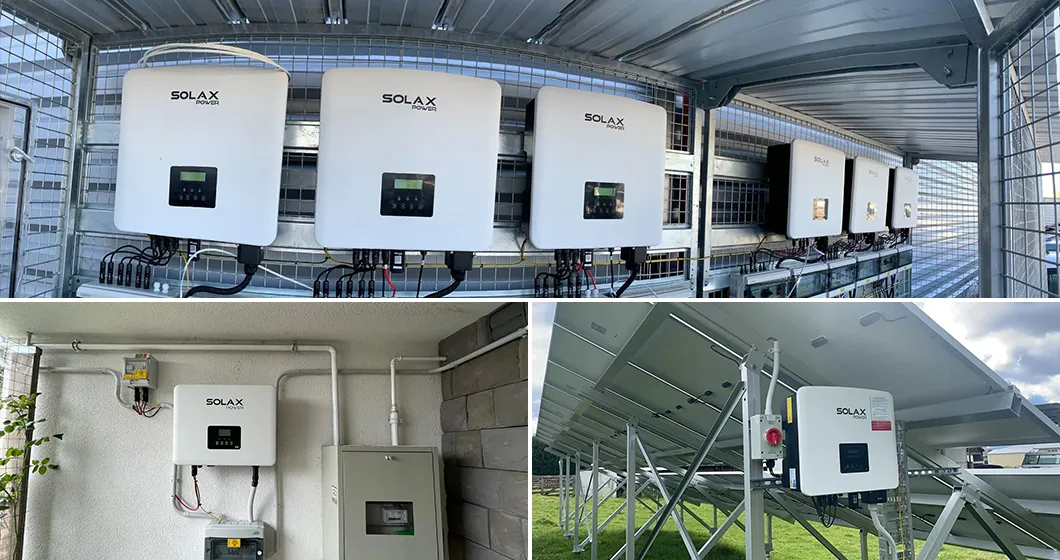

Project 5

Request Complete System

System Configuration
Support

Frequently Asked Questions

What is the maximum output power of this series?
This three-phase high power inverter series ranges from 80kW up to 150kW nominal output power.
What is the ingress protection rating for outdoor use?
The system features an IP66 protection rating, making it highly resistant to dust and high-pressure water jets, suitable for harsh outdoor environments.
How many MPPT trackers are included?
Depending on the specific model, the inverter is equipped with either 9 or 12 independent MPP trackers to maximize energy harvest.
What is the peak efficiency of these inverters?
The maximum efficiency reaches up to 99.0%, ensuring minimal energy loss during the DC to AC conversion process.
What type of cooling system is utilized?
It uses a smart fan cooling concept that adjusts based on the internal temperature and load to maintain optimal performance.
Which communication interfaces are supported?
The unit supports RS485 and USB as standard, with optional Pocket WiFi, LAN, 4G, and PLC (Power Line Communication) interfaces.
