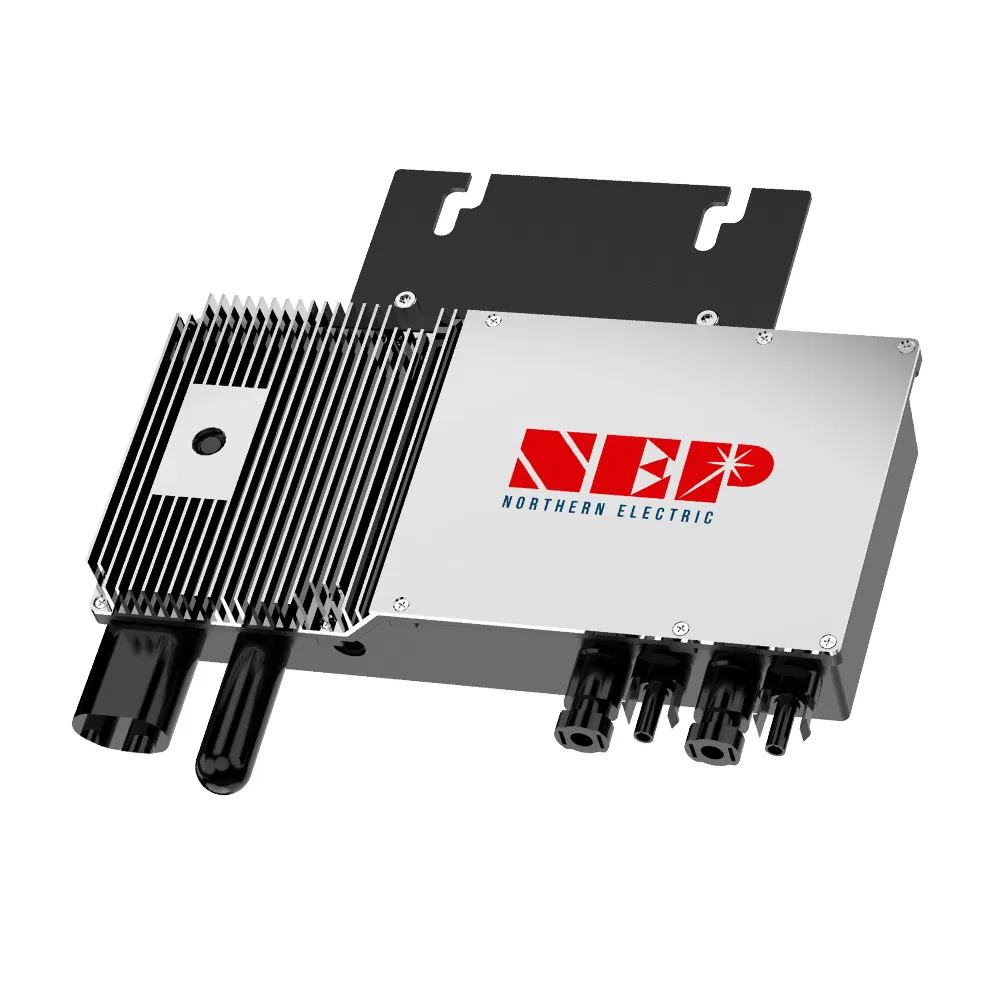

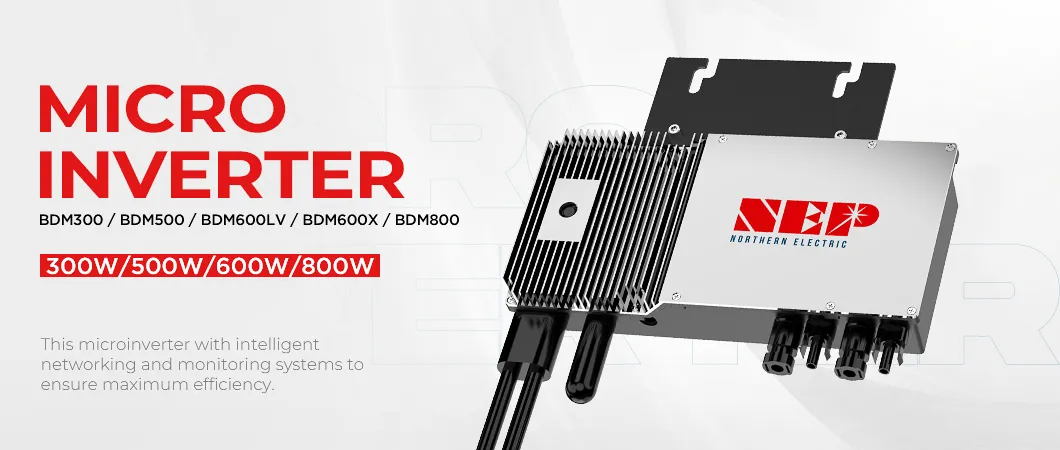

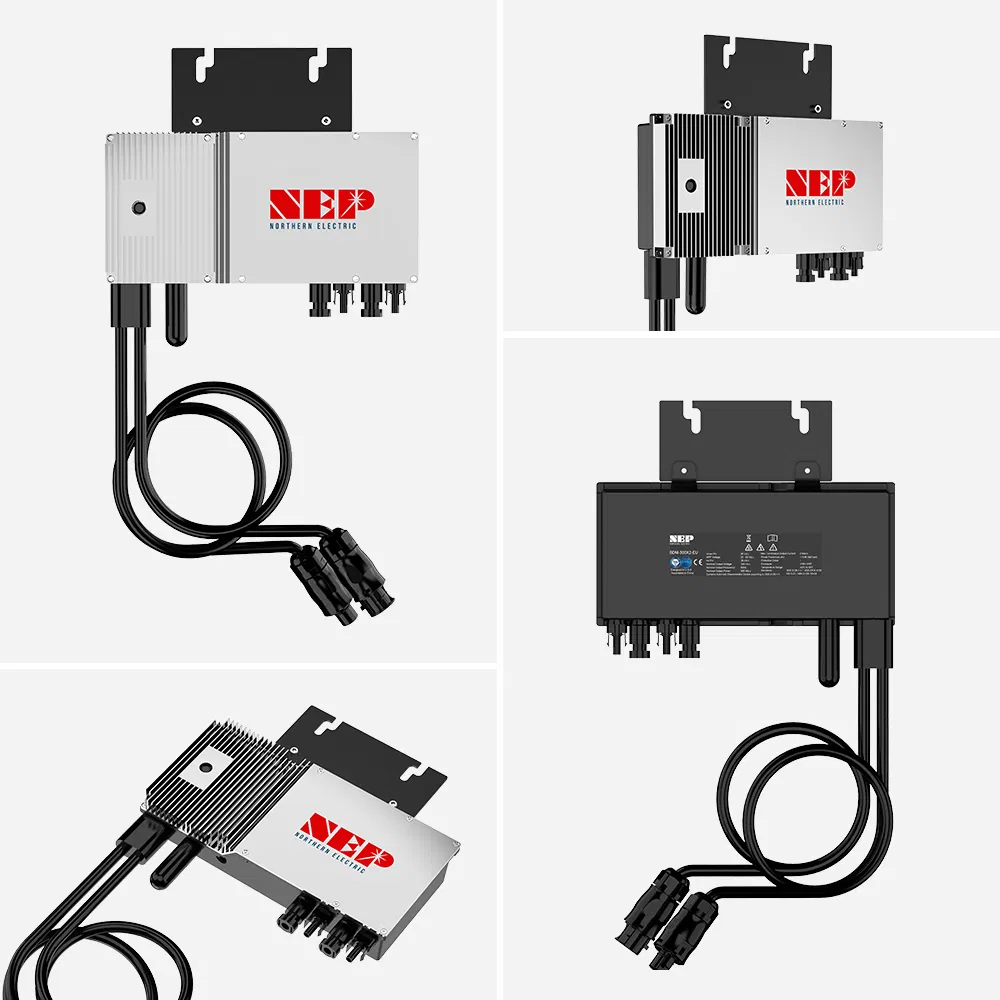

Nep Bdm 800 Micro Solar Inverter 800W Microinverter 1200 Watt Grid Tie PV Inverters
Nep Bdm 800 Micro Solar Inverter 800W Microinverter 1200 Watt Grid Tie PV Inverters
Nep Bdm 800 Micro Solar Inverter 800W Microinverter 1200 Watt Grid Tie PV Inverters
Nep Bdm 800 Micro Solar Inverter 800W Microinverter 1200 Watt Grid Tie PV Inverters
Nep Bdm 800 Micro Solar Inverter 800W Microinverter 1200 Watt Grid Tie PV Inverters
1 / 5
Nep Bdm 800 Micro Solar Inverter 800W Microinverter 1200 Watt Grid Tie PV Inverters
Nep Bdm 800 Micro Solar Inverter 800W Microinverter 1200 Watt Grid Tie PV Inverters
Nep Bdm 800 Micro Solar Inverter 800W Microinverter 1200 Watt Grid Tie PV Inverters
Nep Bdm 800 Micro Solar Inverter 800W Microinverter 1200 Watt Grid Tie PV Inverters
Nep Bdm 800 Micro Solar Inverter 800W Microinverter 1200 Watt Grid Tie PV Inverters

Nep Bdm 800 Micro Solar Inverter 800W Microinverter 1200 Watt Grid Tie PV Inverters

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

ℹ Basic Information
Model NO.
BDM 300/500/600/800W-230v
Phase
Single
Output Power
300-800W
Certification
CE, ISO9001, UL 1741
Inverter Efficiency
97%
Power Source
Solar Power
Nature of Wave
Pure Sine Wave
Origin
China
⚙ Product Description

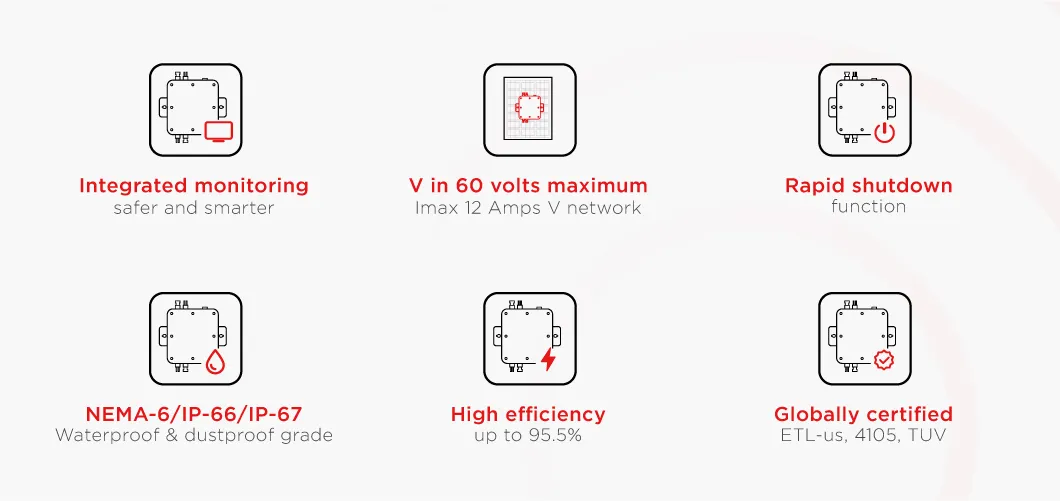

Micro Solar Inverter Microinverter Features
📊 Technical Specifications
Model BDM 300 BDM 500 BDM 600 BDM 800
Recommended Max PV450W750W450W*2600W*2
Max DC Input Voltage60V
MPPT Tracking Accuracy>99.5%
MPPT Range22-55V35-55V22-55V22-55V
Rated AC Output300W500W500W800W
Nominal Frequency50HZ/60HZ
Efficiency (CEC)95.5%
Protection DegreeNEMA-6 / IP-66 / IP-67
🔌 System Connection & Working Principle

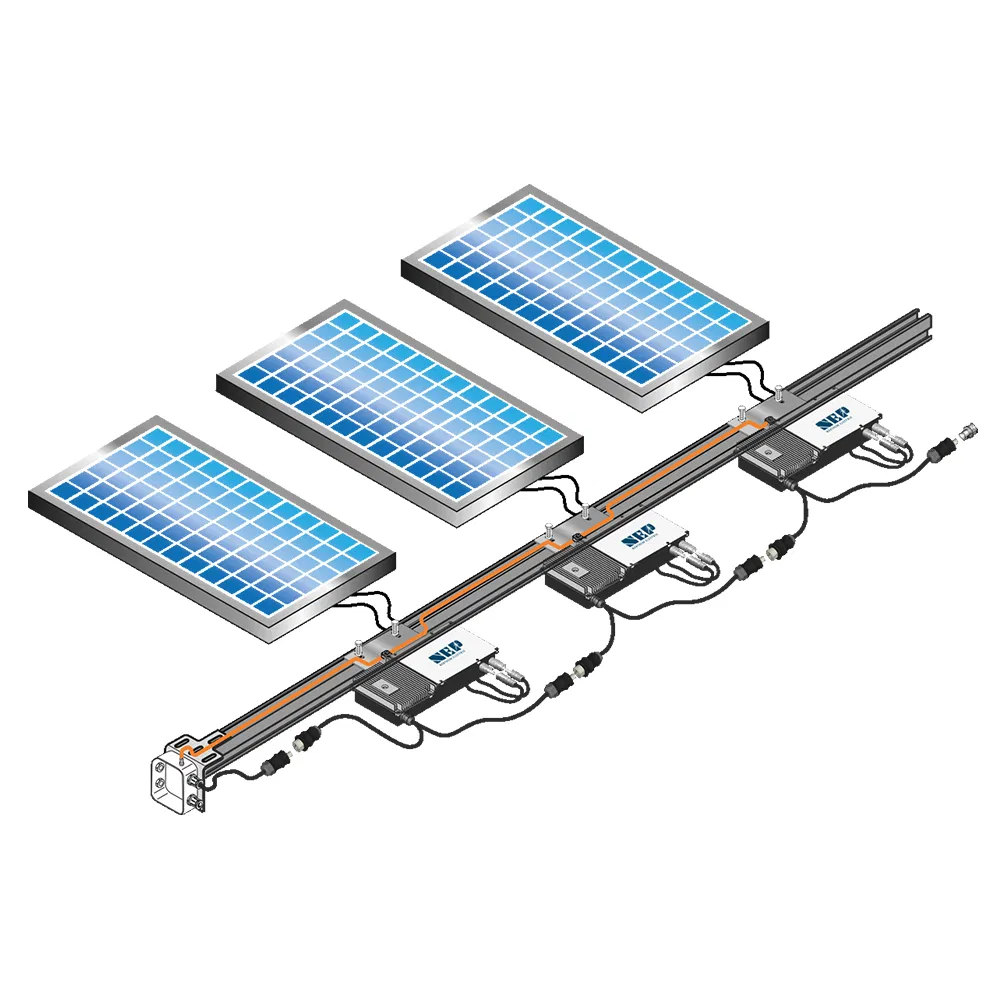

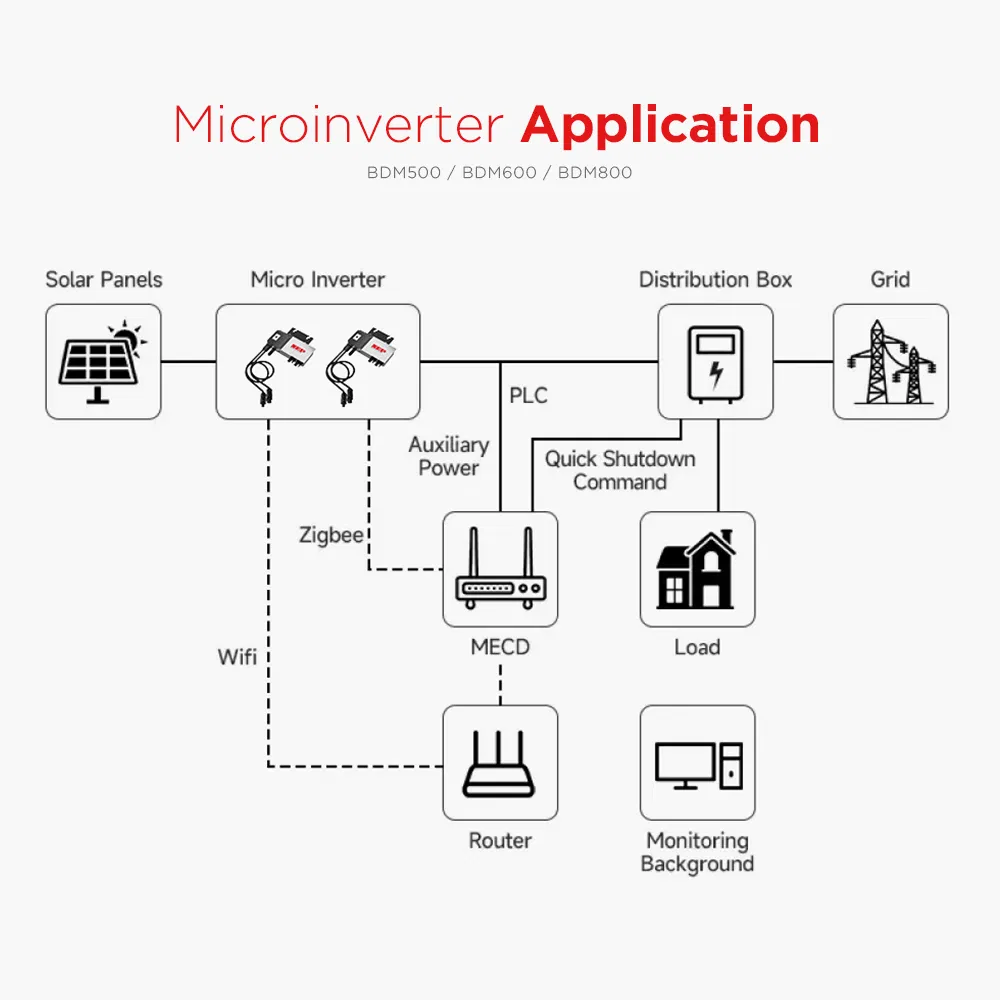

System Connection

How does it work?

The microinverter converts DC power from solar panels into clean AC power for home or office use. It integrates seamlessly with PV modules and utility grids to power all types of appliances, including motor-driven devices like refrigerators and air conditioners.

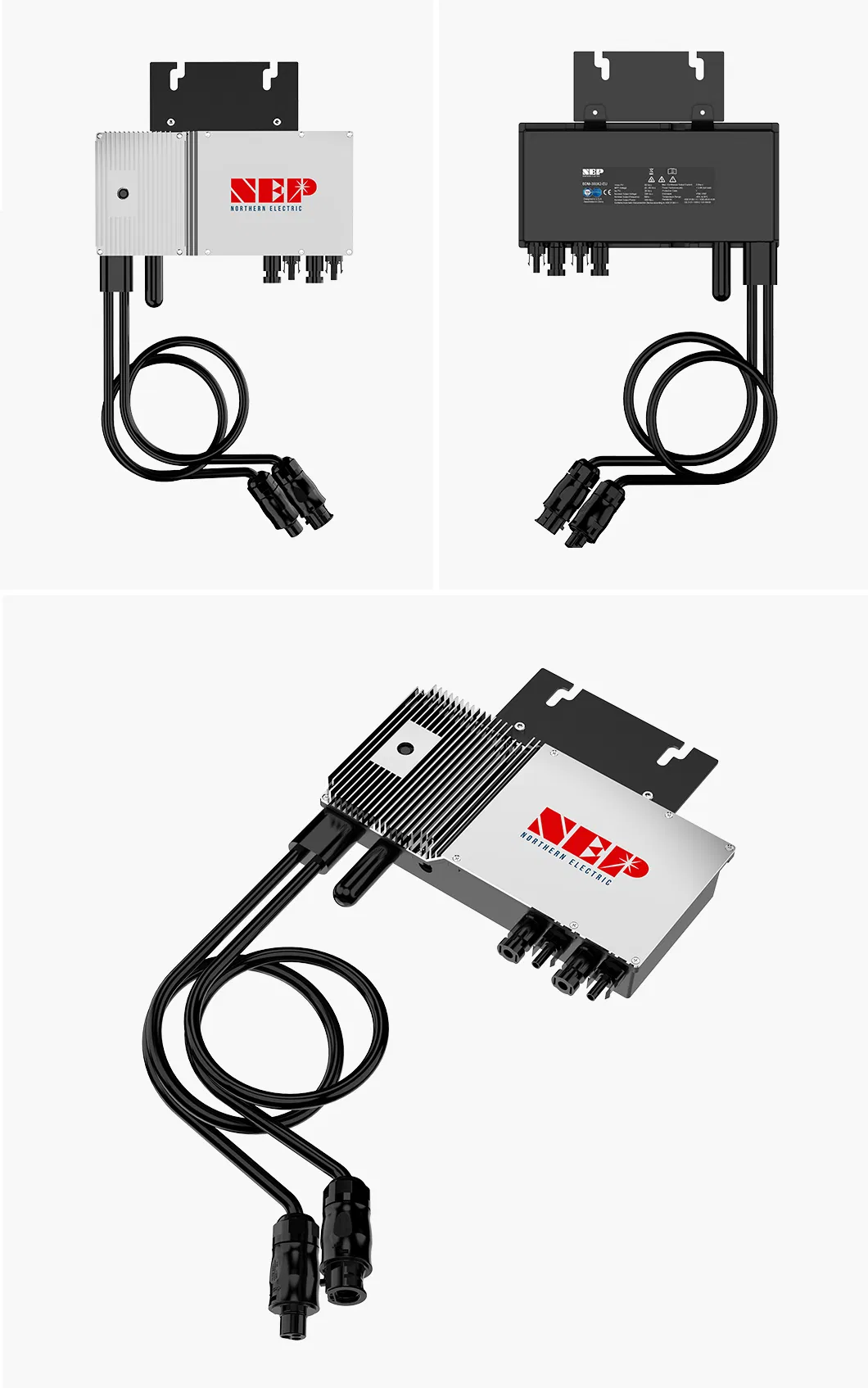

✔ Key Innovation Features
Innovation
1
Simple to install: Placed in the same structure as solar panels with integrated connectors.
2
High efficiency: Conversion efficiency up to 95.5% using advanced MPPT technology.
3
Innovation: Over 10 years of experience in revolutionizing environmental energy care.

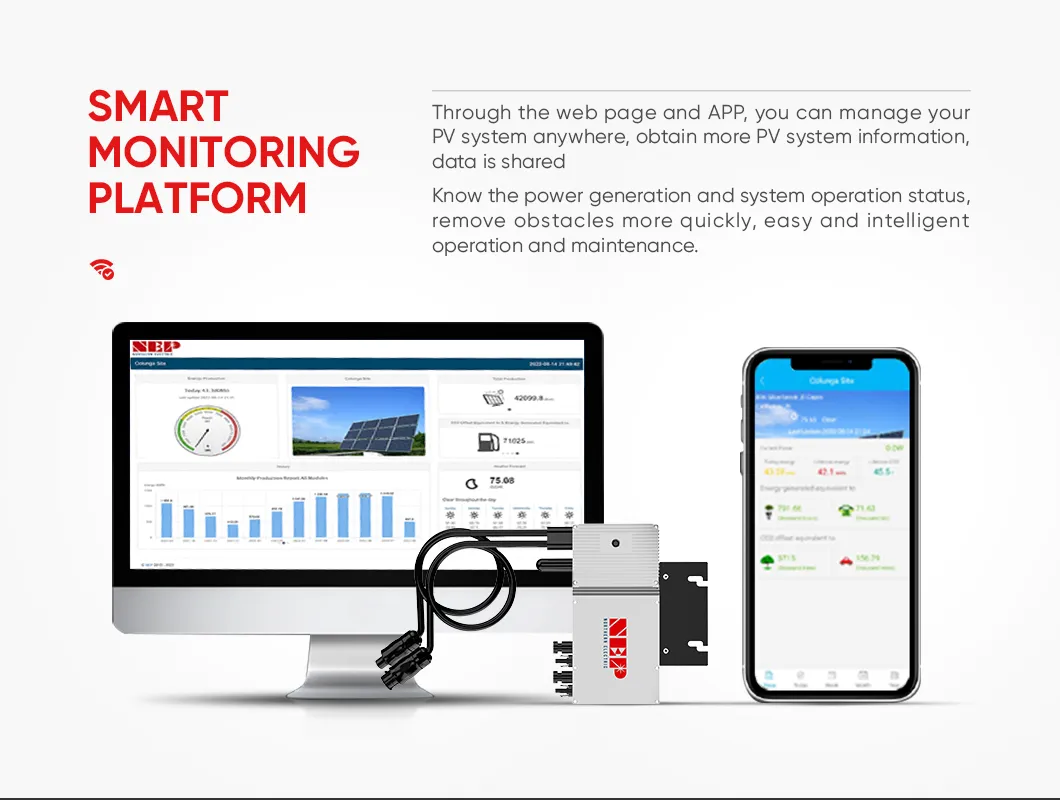

📱 Intelligent Monitoring & Manufacturing
Monitoring System
  • 📍 One-click installation and registration
  • 📍 Problem dispatch and navigation
  • 📍 Safe operation with traceable logs
  • 📍 Full lifecycle data storage for reliability
Factory Packaging

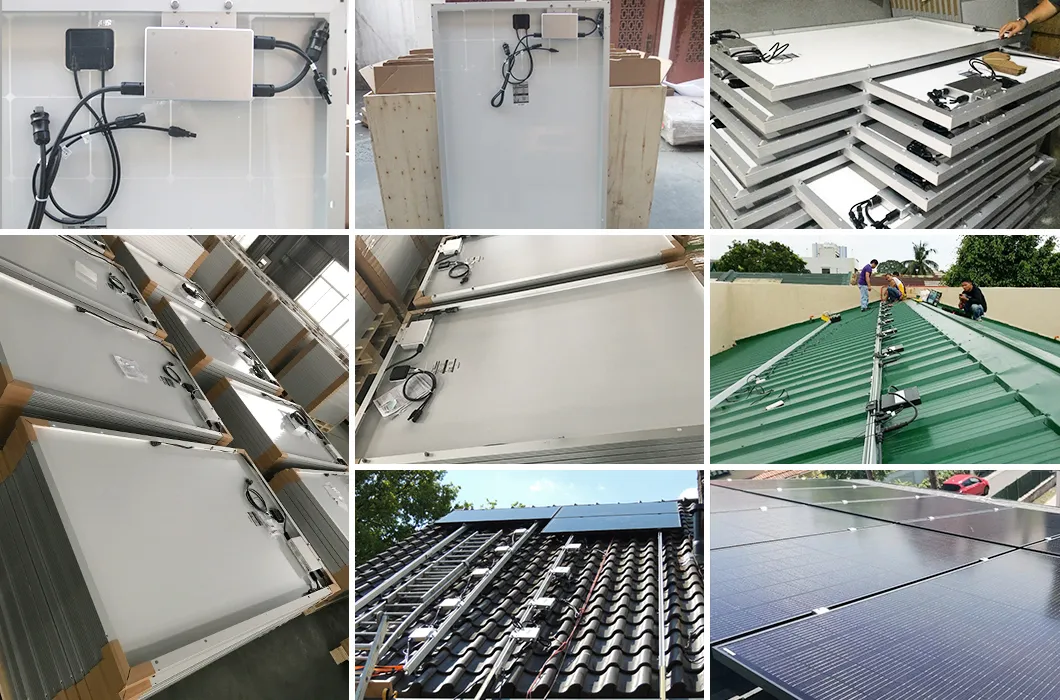

🏗 Success Projects
Project Display
Frequently Asked Questions
Q1: What is the maximum efficiency of these microinverters?
The microinverters achieve a peak efficiency of 97% and a weighted CEC efficiency of 95.5%.
Q2: Are these units suitable for outdoor installation?
Yes, they are designed for both indoor and outdoor use, featuring IP66/IP67 and NEMA-6 protection ratings against environmental factors.
Q3: What safety protections are integrated?
Integrated protections include Over/Under Voltage, Over/Under Frequency, Anti-Islanding, Over Current, Reverse DC Polarity, and Overload protection.
Q4: Can the system be monitored remotely?
Yes, the system supports intelligent monitoring via power line communication, allowing for one-click registration and full lifecycle data tracking.
Q5: Which international standards do these inverters comply with?
They comply with major global standards including UL 1741, CSA C22.2, IEC/EN 62109, and various grid codes like IEEE 1547 and VDE-AR-N 4105.
Q6: What types of appliances can be powered by this inverter?
This pure sine wave inverter can power all kinds of home and office appliances, including sensitive electronics and motor-driven equipment like air conditioners.
