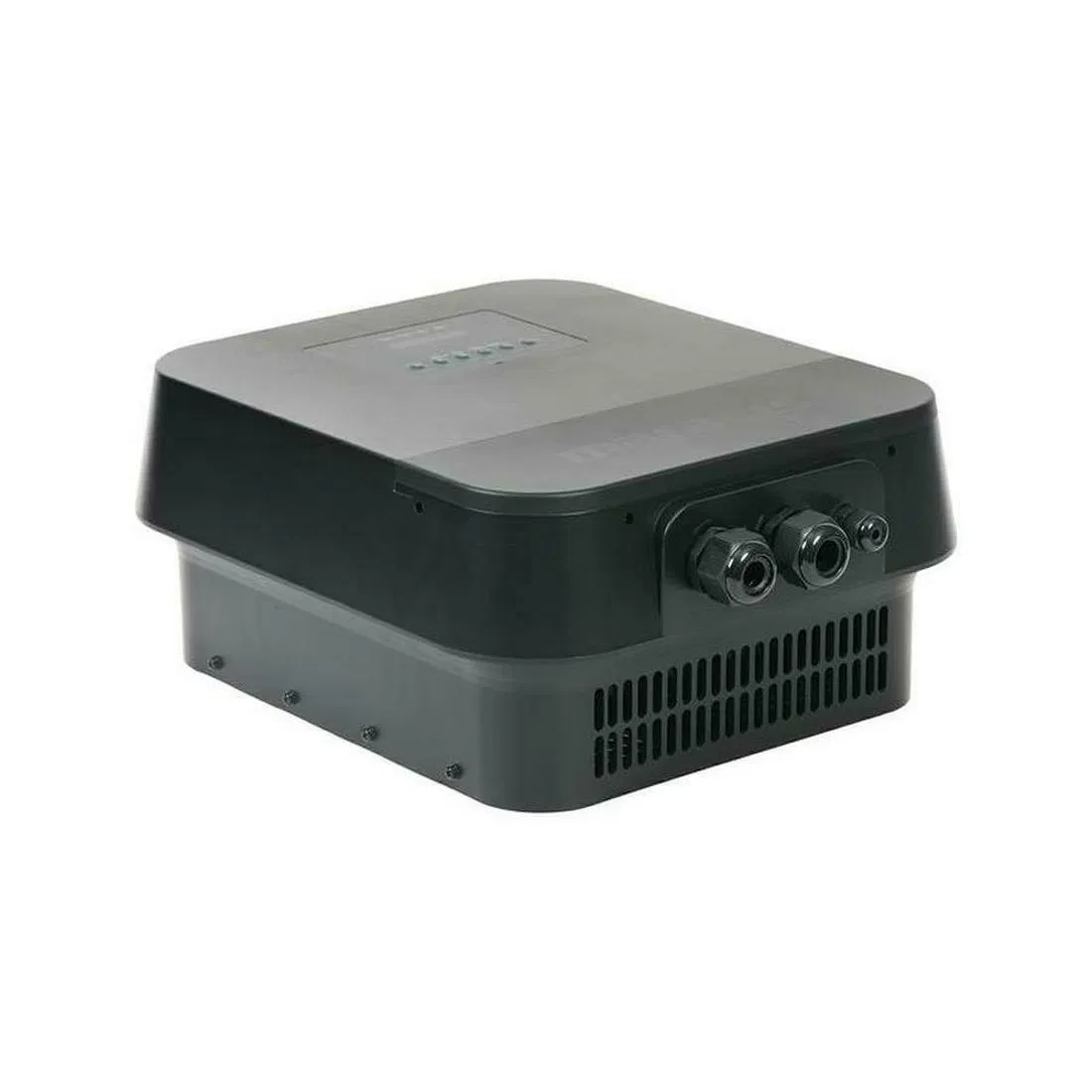

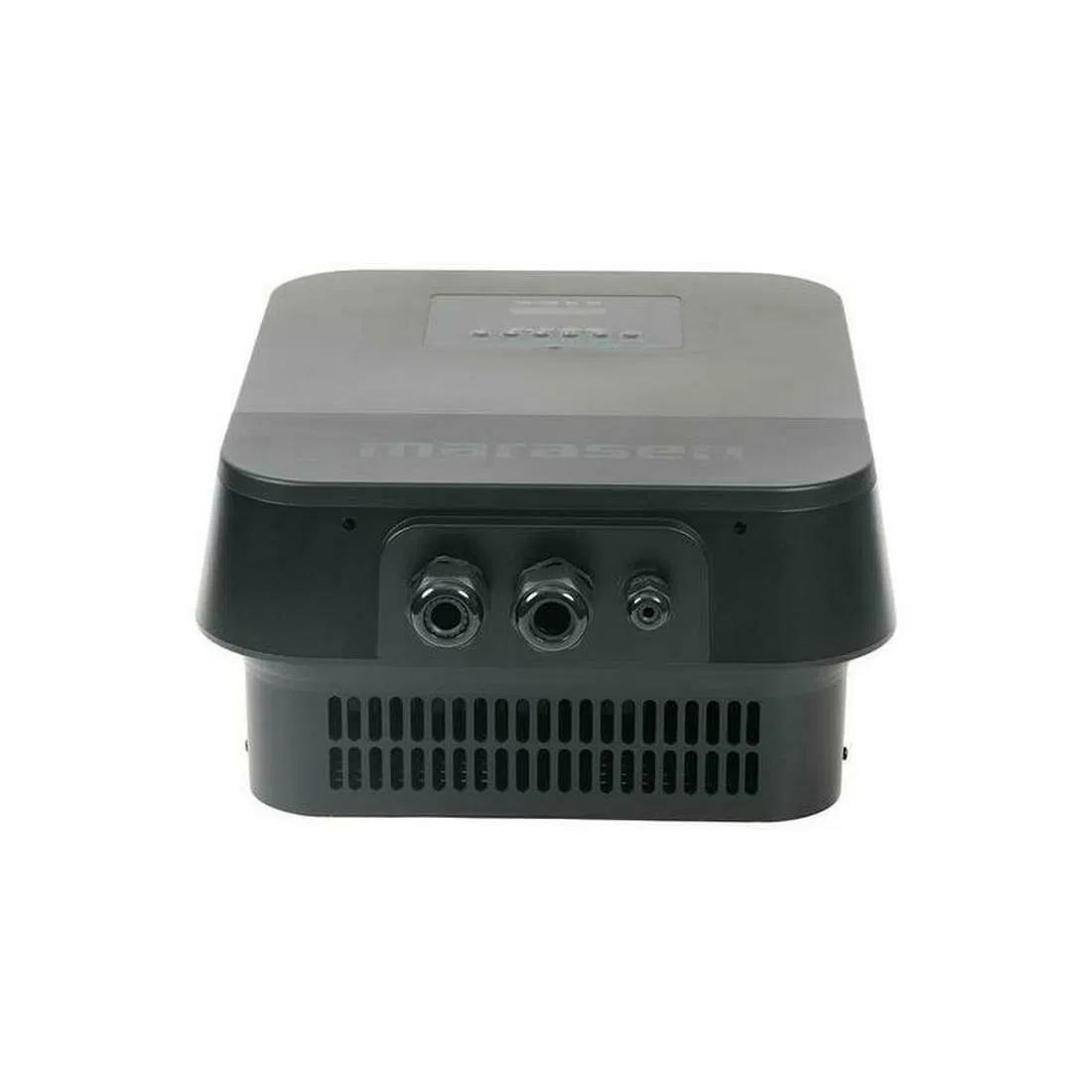

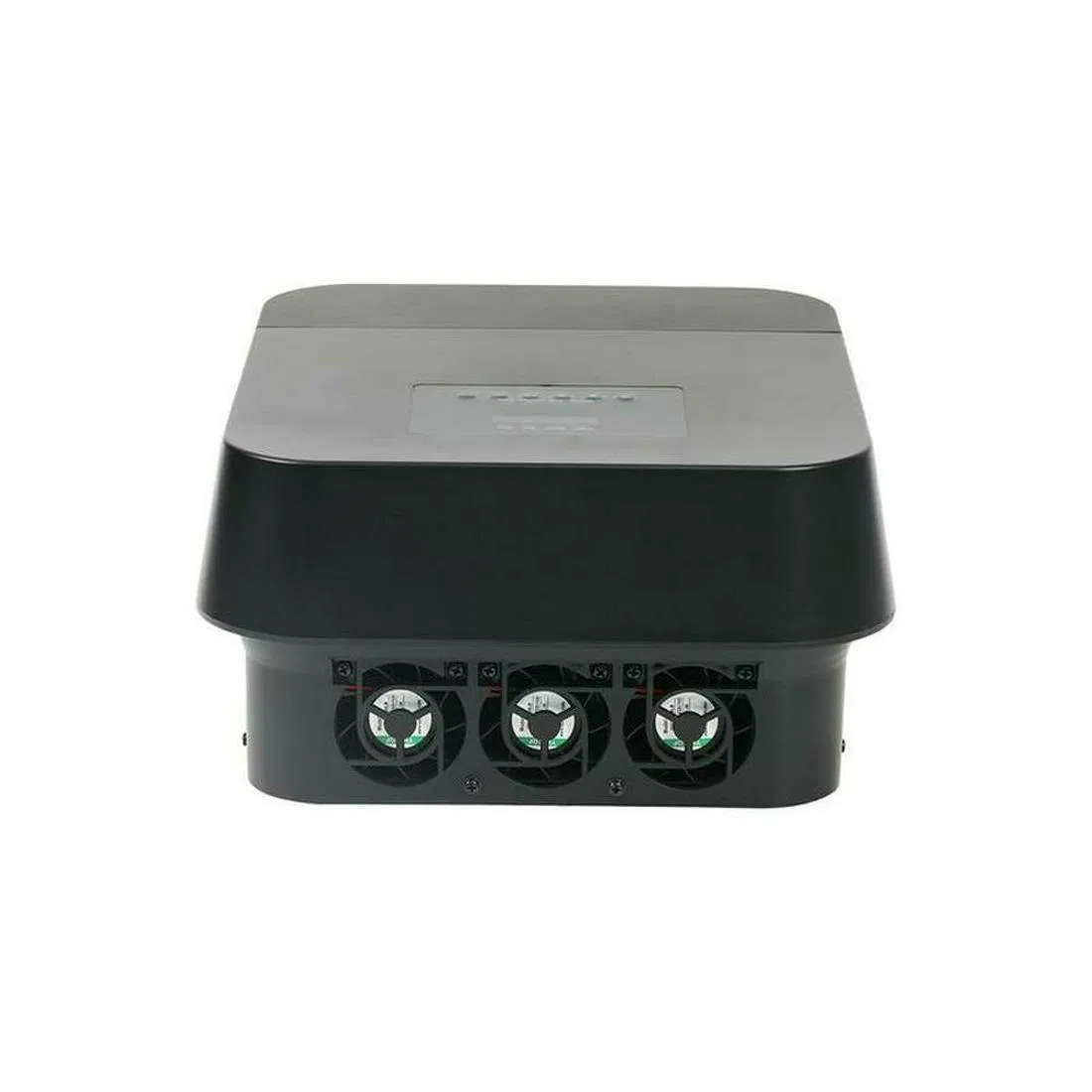

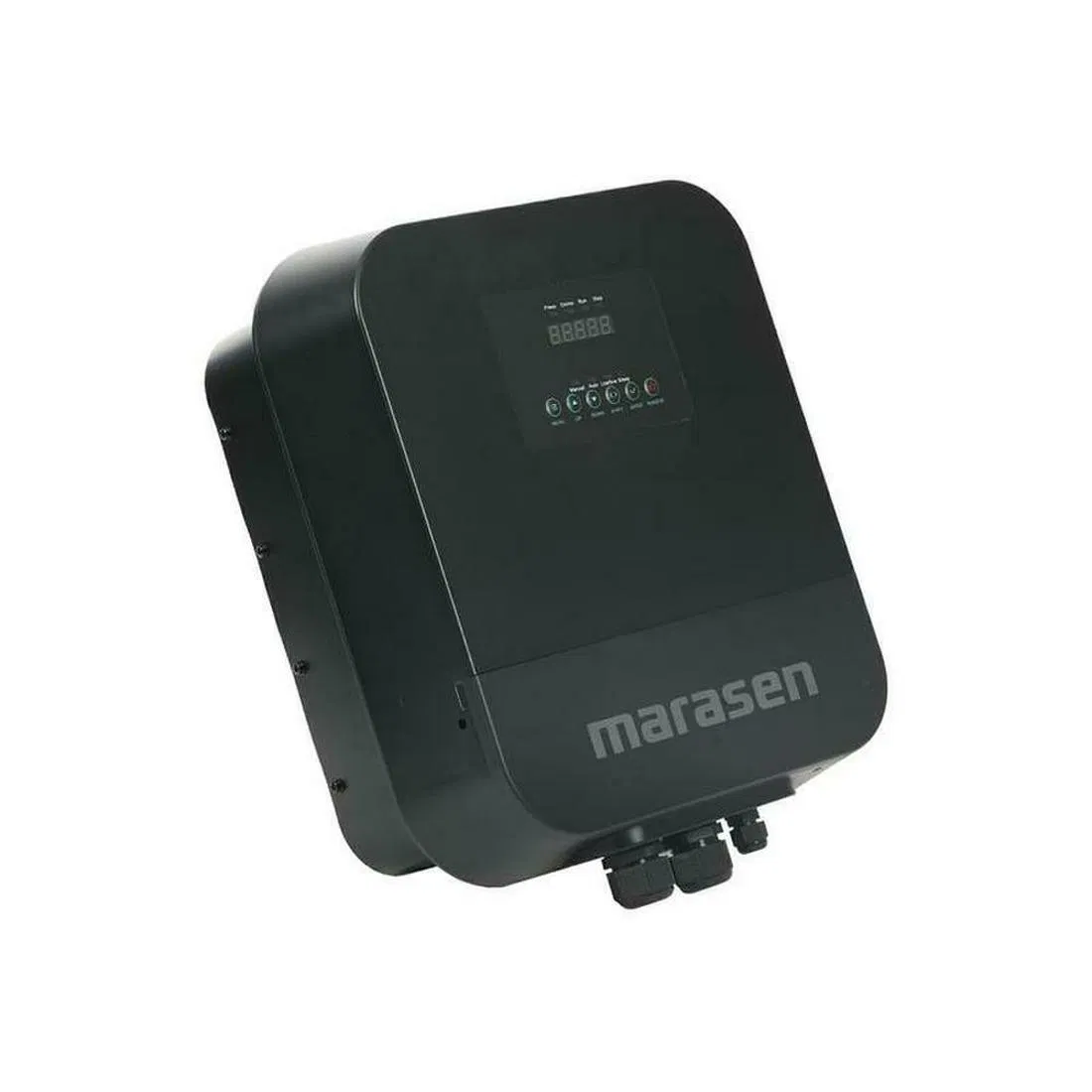

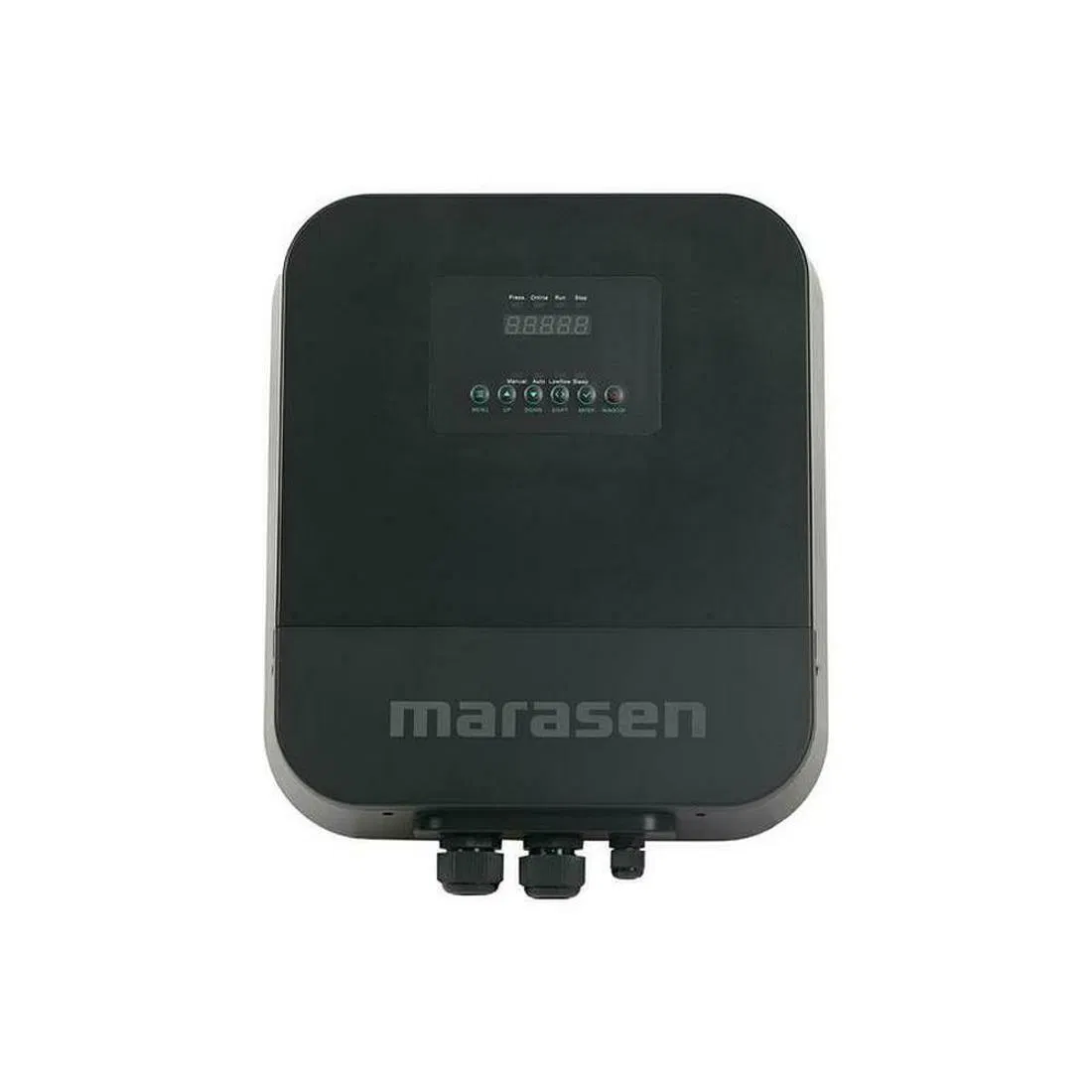

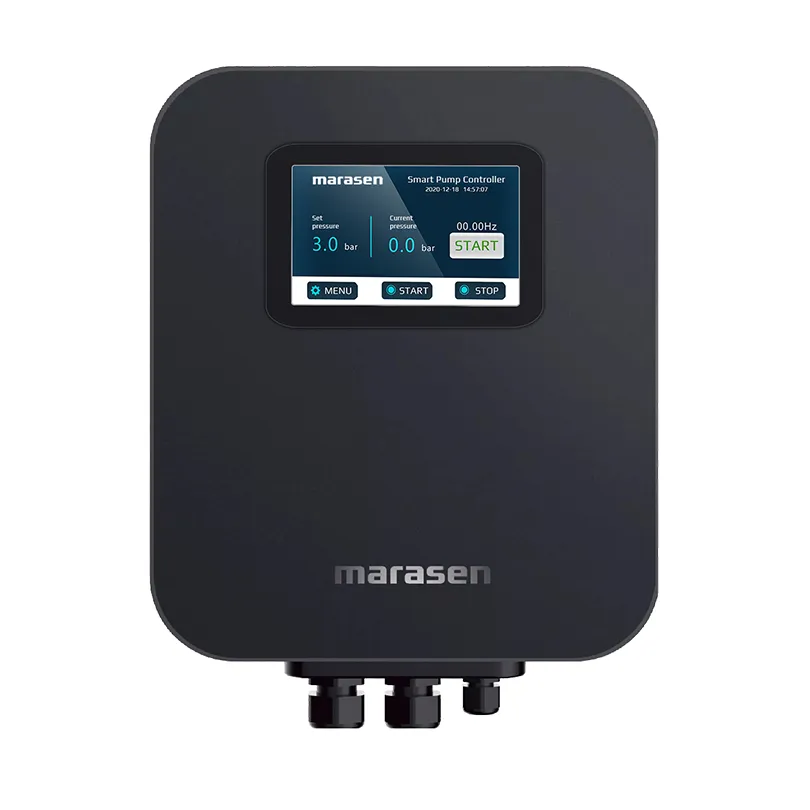

Marasen ODM/OEM Full LCD Display High Energy Efficiency Pump Frequency Inverter

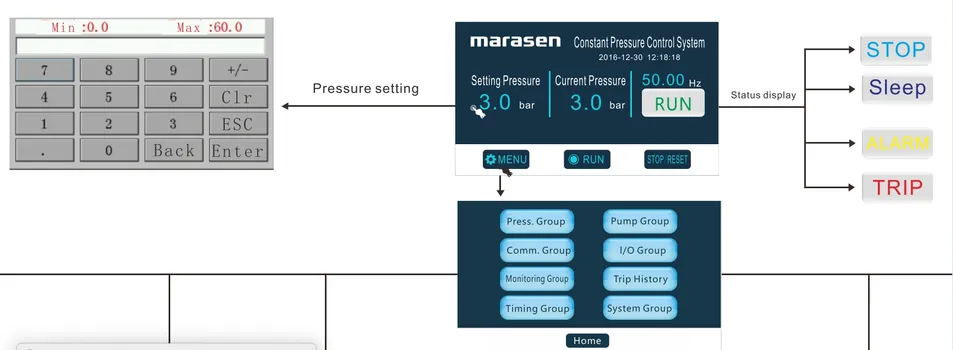

The pump inverter is a high-end touchscreen frequency inverter that enhances the performance of single phase AC220V and three phase AC380V water pumps. It is suitable not only for stand-alone single pumps but also for multi-pump control systems.

This intelligent inverter constantly monitors and automatically regulates the amount of water entering the system to provide constant pressure, eliminating the requirement for large pressure tanks and pressure switches.

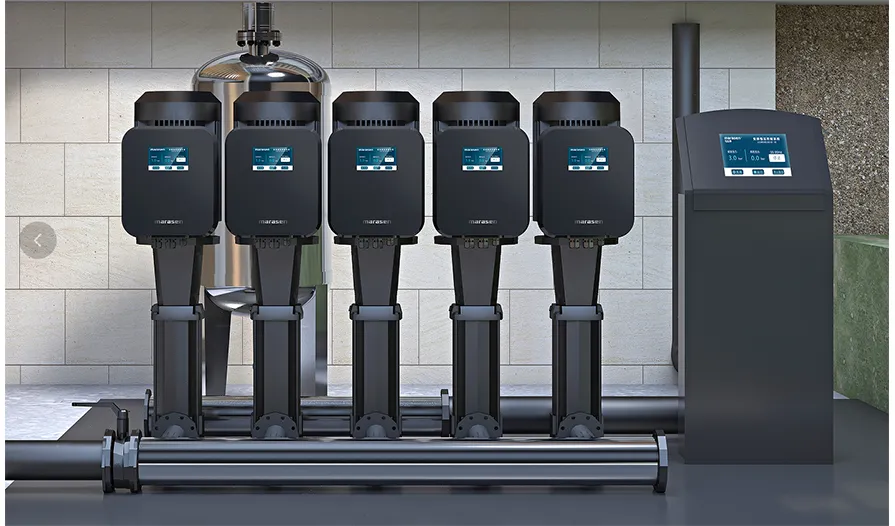

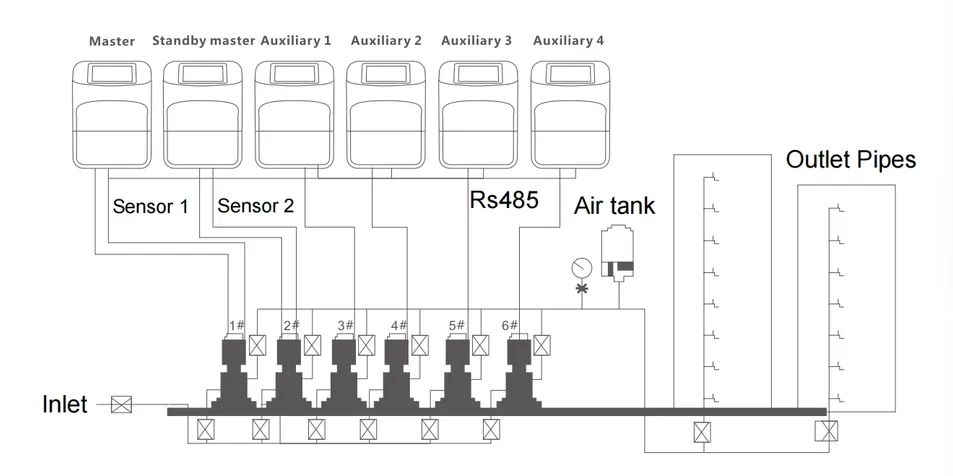

• Multi-Pump Control: Can realize two masters and Max.4 auxiliaries for combined work.
• Redundancy System: Standby master replaces the master automatically if a failure occurs.
• Communication: All drives are connected via RS485 Communication lines.
• Automatic Logic: Master detects pipe pressure and controls auxiliaries to start/stop via PID.
• Life Extension: Pumps run alternately (default 8 hours) to balance wear and tear.

The manufacturing process is driven by technological innovation, utilizing variable frequency vector control and Photovoltaic MPPT technology. With over a decade of experience in designing and manufacturing variable frequency drives, we maintain excellent quality control standards.
