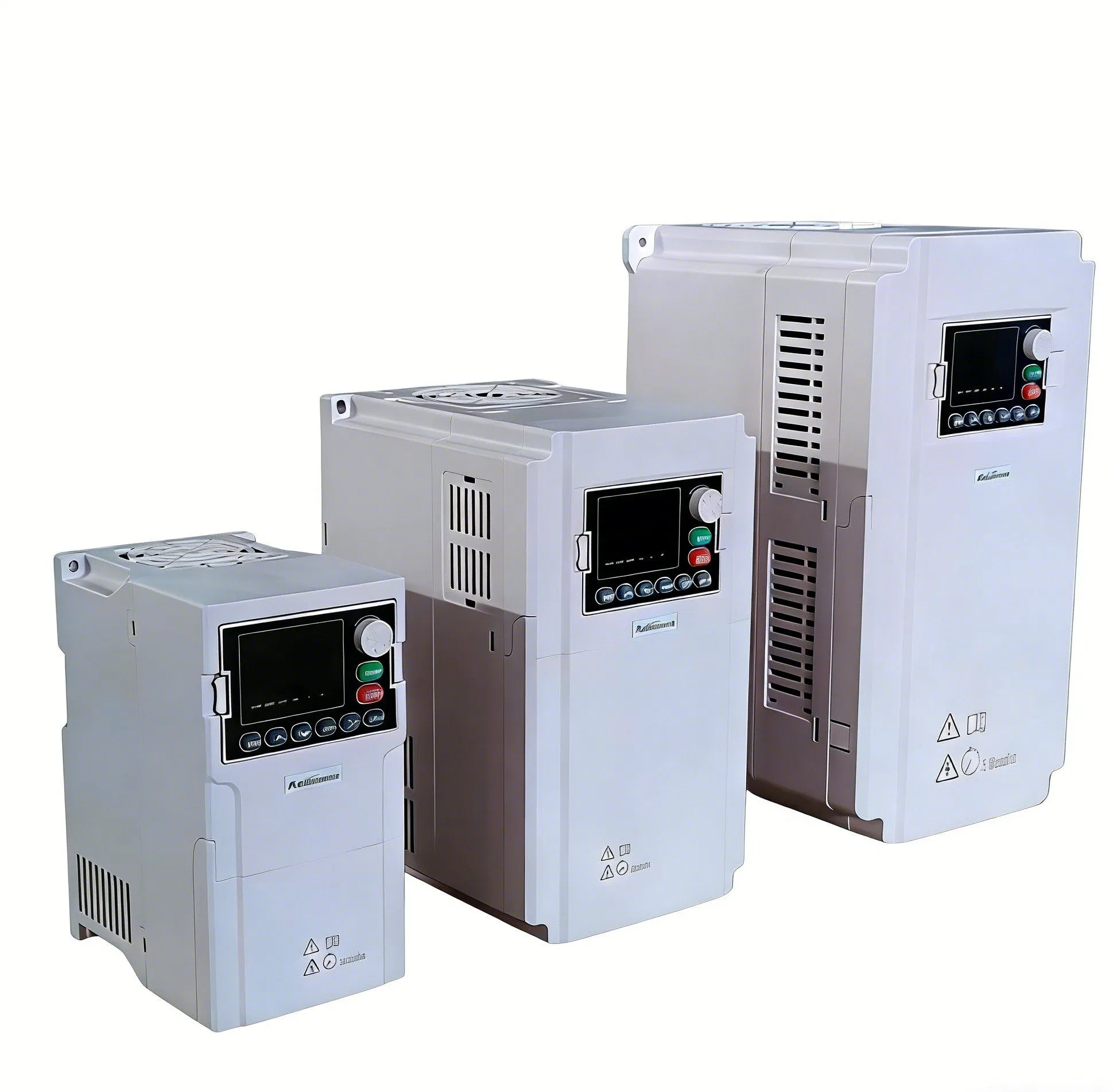

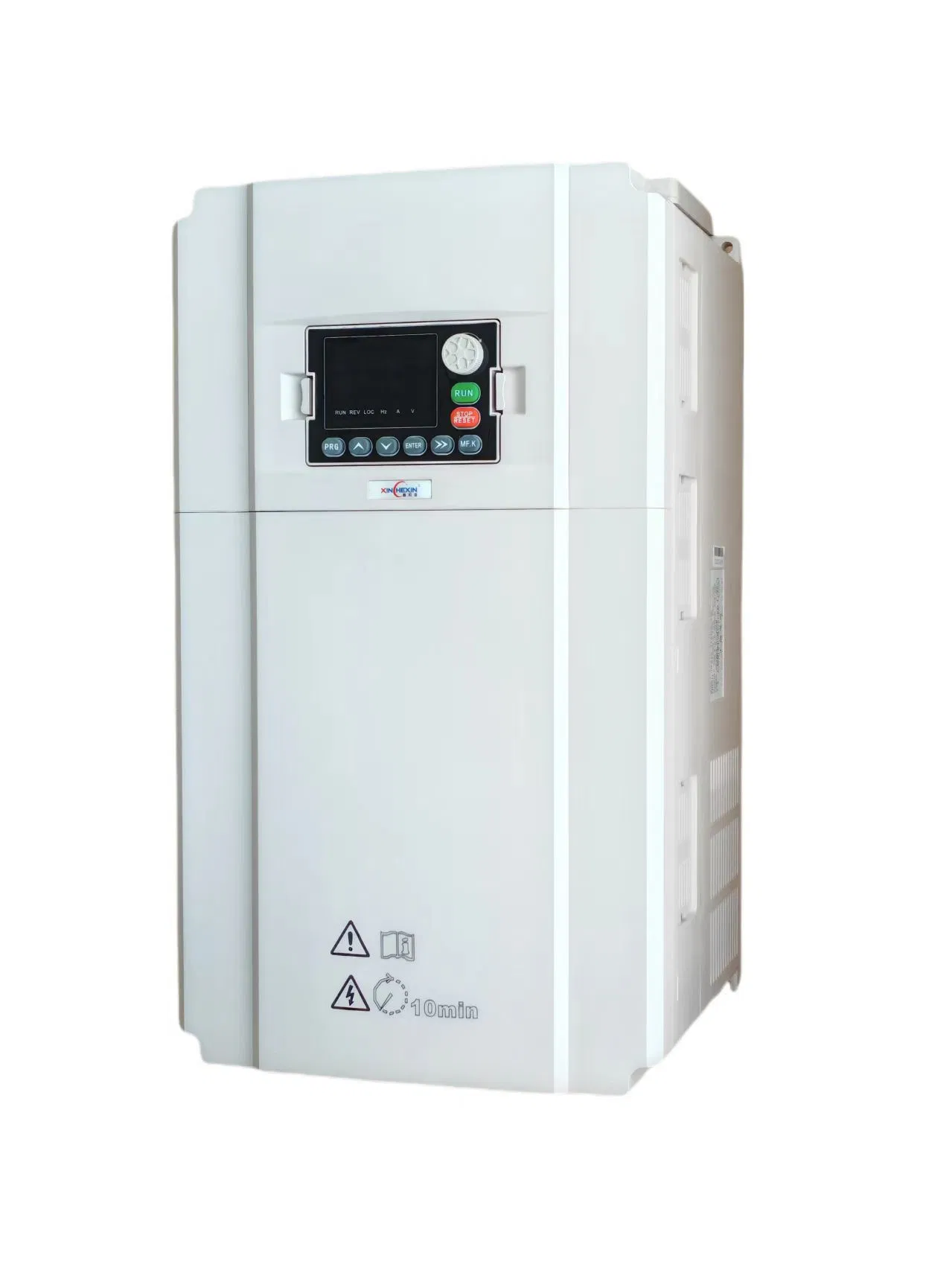

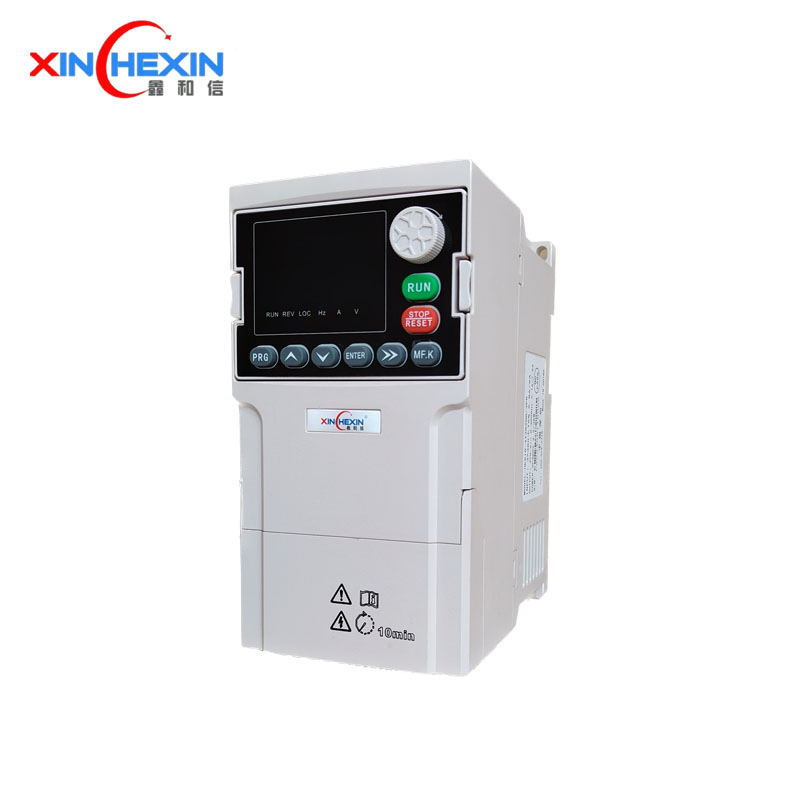

Low-Harmonic Inverter Frequency Inverter for Clean Pump Power

1 / 5

Low-Harmonic Inverter Frequency Inverter for Clean Pump Power

Customization:	Available
Application:	High-performance Transducer, Three Phase Transducer, General Transducer, High Frequency Converter Transducer
Output Type:	Triple

Send Inquiry

Product Description

If you are interested in our product, please contact us for more information.

📊 Basic Info.

Model NO.

HE500

Principle of Work

V/F Control Transducer

Switch Mode

High Carrier Frequency PWM Control

Main Circuit Type

Voltage

Voltage of Supply

Low Voltage Variable-Frequency Drive

Link of Transformation

AC-DC-AC Variable-Frequency Drive

Function

Simple Type, Elevator Special, Textile Special, Constant Torque Universal

Certification

ISO9001/14001/45001, CE

Output Voltage

Three Phase

Power

0.75kw-500kw

Output Frequency

0~500Hz

Production Capacity

50000 Pieces/Year

🚀 Product Introduction

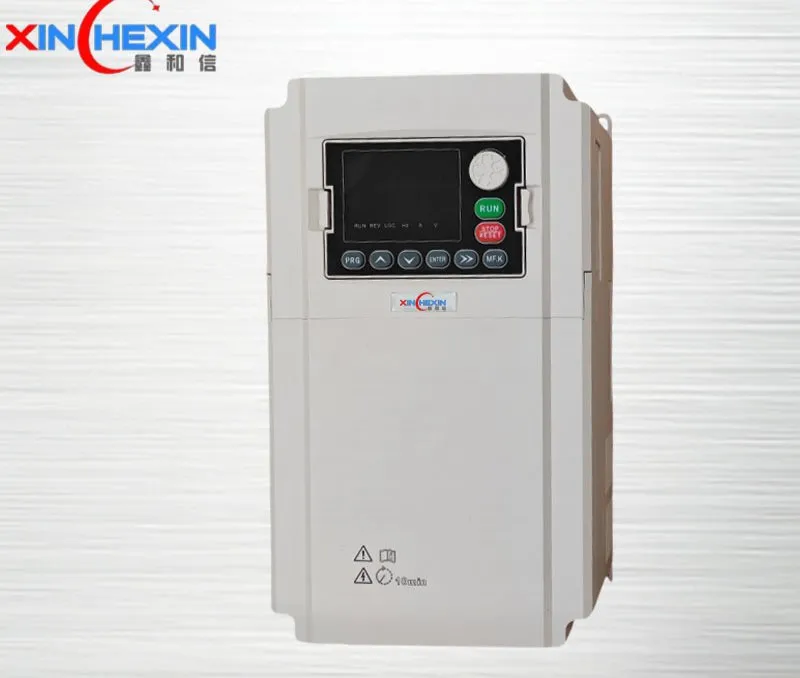

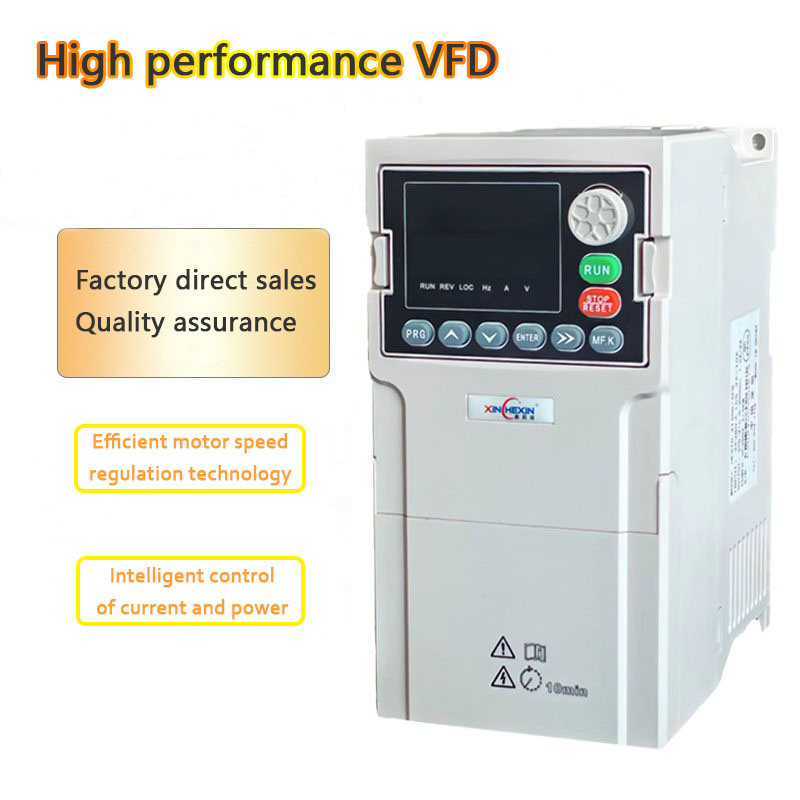

High-performance vector frequency converter, large low-speed starting torque, more optimized current limiting and frequency reduction processing, more complete over-current, overload, over-voltage and short-circuit protection. Supports multiple PG cards, supports non-inductive permanent magnet synchronous vector control, non-inductive asynchronous vector control, and supports English LCD keyboard.

💎 Product Advantages

High-Reliability Design: Utilizes industrial-grade components and a compact structure, suitable for high-temperature and high-humidity environments.

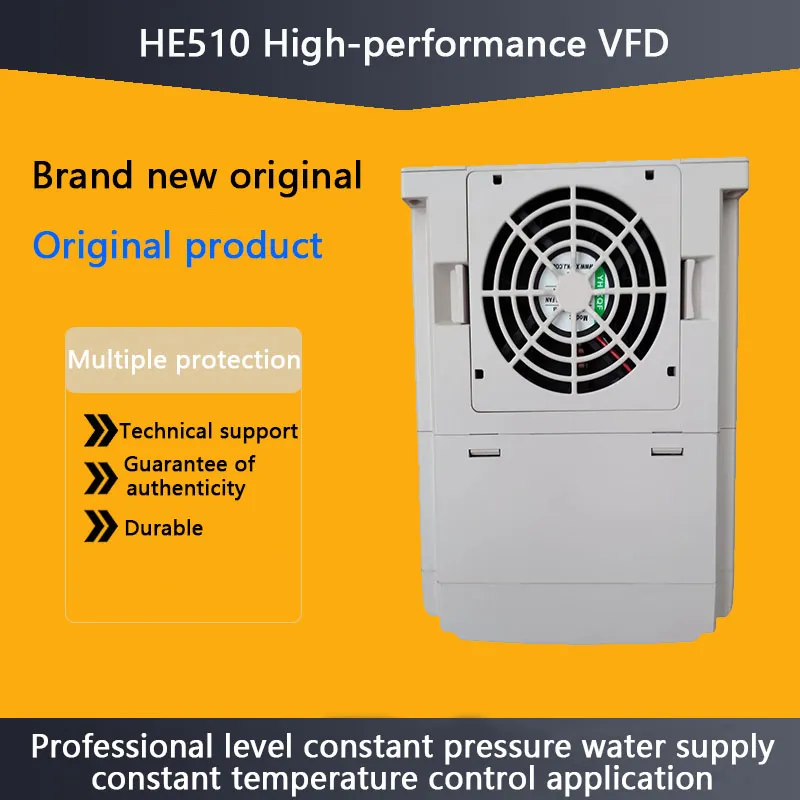

Constant Pressure Water Supply: Professional-grade constant pressure and temperature control functions.
Multi-Speed Support: Supports up to sixteen segment speeds and high-speed pulse input/output.
Communication: Built-in Modbus communication function for easy automation integration.
Energy Efficient: Optimizes motor operating efficiency and reduces energy consumption for fans and pumps.

📋 Technical Specifications

Model	Length(cm)	Width(cm)	Height(cm)	Volume(cm3)	Weight(g)

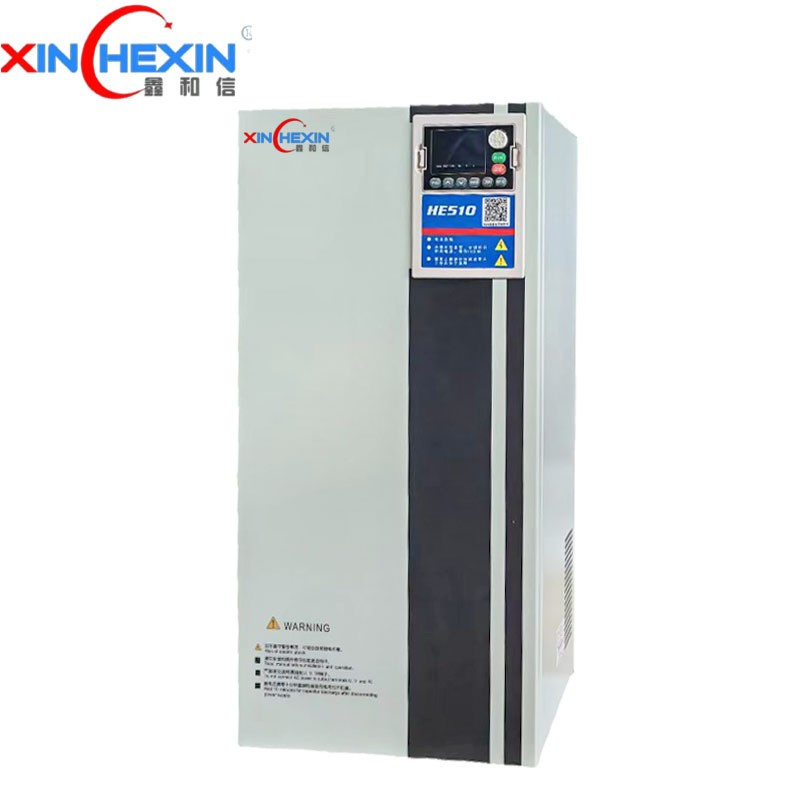

HE510-0.75kw	16.5	9	13	1930.5	1190
HE510-2.2kw	16.5	9	13	1930.5	1210
HE510-5.5kw	18.6	9.9	14.5	2670.03	1700
HE510-11kw	24.3	14.2	19	6556.14	3150
HE510-30kw	39.5	22	22	19118	10275
HE510-110kw	63.2	29	28	51318.40	40500
HE510-500kw	126	100	37	466200	122000

❓ FAQ

1. Do you have a production factory?

Yes, we have a production factory specializing in the production of variable frequency drives. You are welcome to visit our facilities to understand our production capabilities.

2. How to choose the right VFD for my machine?

Please send us the detailed technical information and requirements of your machine, and our team will provide you with the most suitable model type.

3. What kind of certificates do you have?

Our products are certified with CE, CCC, ISO9001, ISO14001, and ISO45001 standards to ensure quality and compliance.

4. How can we guarantee the quality of the products?

We always provide a pre-production sample before mass production and conduct a final inspection for every unit before shipment.

5. What is your shipment procedure after getting the payment?

We typically dispatch goods within 20 days after receiving payment. A tracking number will be provided immediately upon dispatch.

6. What protection mechanisms are built into the VFD?

The drives are equipped with complete fault protection mechanisms, including protection against overcurrent, overvoltage, overload, and short circuits.
