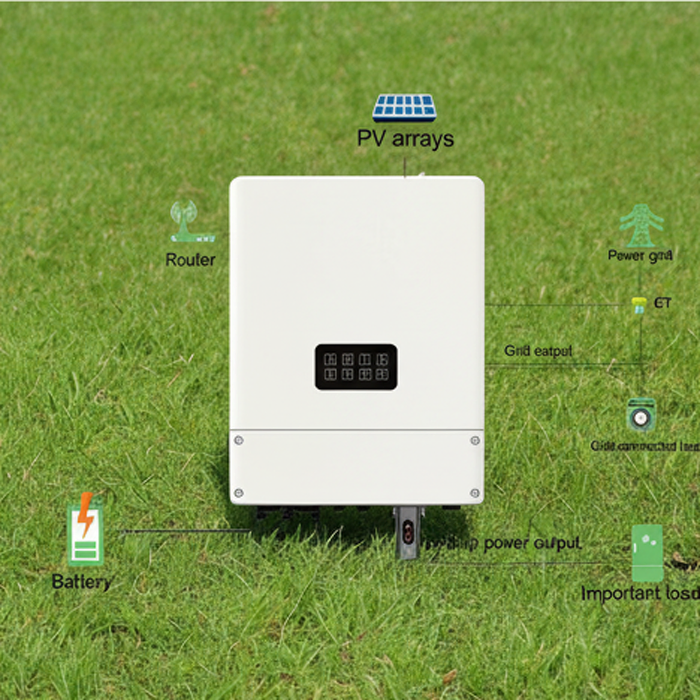

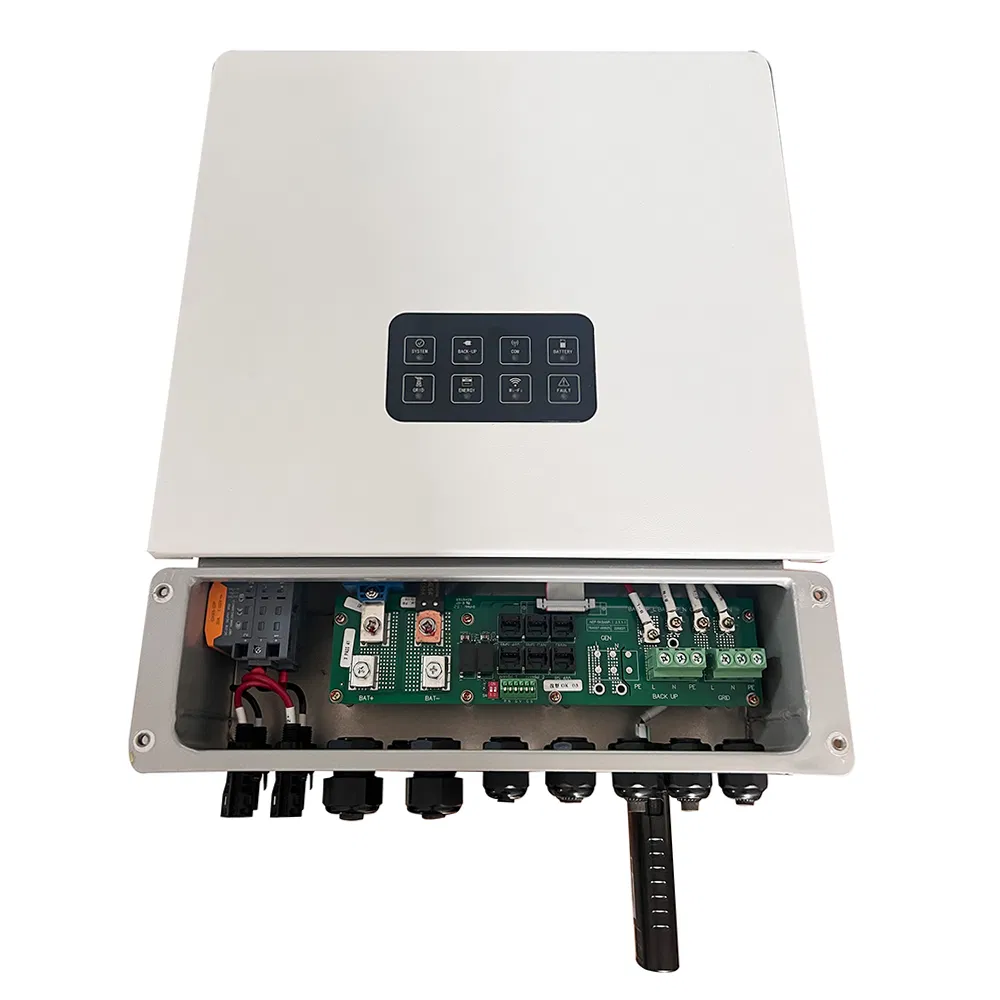

Jinan 12kw Hybrid Solar Grid Tie Inverter for on/off Solar Power
Jinan 12kw Hybrid Solar Grid Tie Inverter for on/off Solar Power
Jinan 12kw Hybrid Solar Grid Tie Inverter for on/off Solar Power
Jinan 12kw Hybrid Solar Grid Tie Inverter for on/off Solar Power
Jinan 12kw Hybrid Solar Grid Tie Inverter for on/off Solar Power
1 / 5
Jinan 12kw Hybrid Solar Grid Tie Inverter for on/off Solar Power
Jinan 12kw Hybrid Solar Grid Tie Inverter for on/off Solar Power
Jinan 12kw Hybrid Solar Grid Tie Inverter for on/off Solar Power
Jinan 12kw Hybrid Solar Grid Tie Inverter for on/off Solar Power
Jinan 12kw Hybrid Solar Grid Tie Inverter for on/off Solar Power

Jinan 12kw Hybrid Solar Grid Tie Inverter for on/off Solar Power

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.:DMEP-8KS48P3
Nature of Flow:Active Inverter
Phase:Three
Output Power:>1000W
Certification:CE, ISO9001
Type:DC/AC Inverters
Power Source:Solar Power, Wind Power
Circuit Type:Full-Bridge Type
Wave String:Sine Wave Inverter
Package:Wooden Case
Specification:480*700*260mm
HS Code:8504403090
P

Product Description

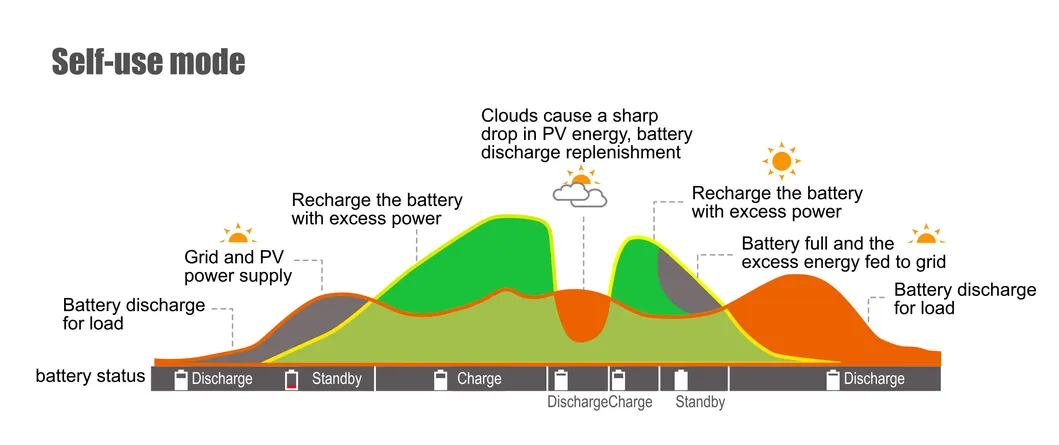

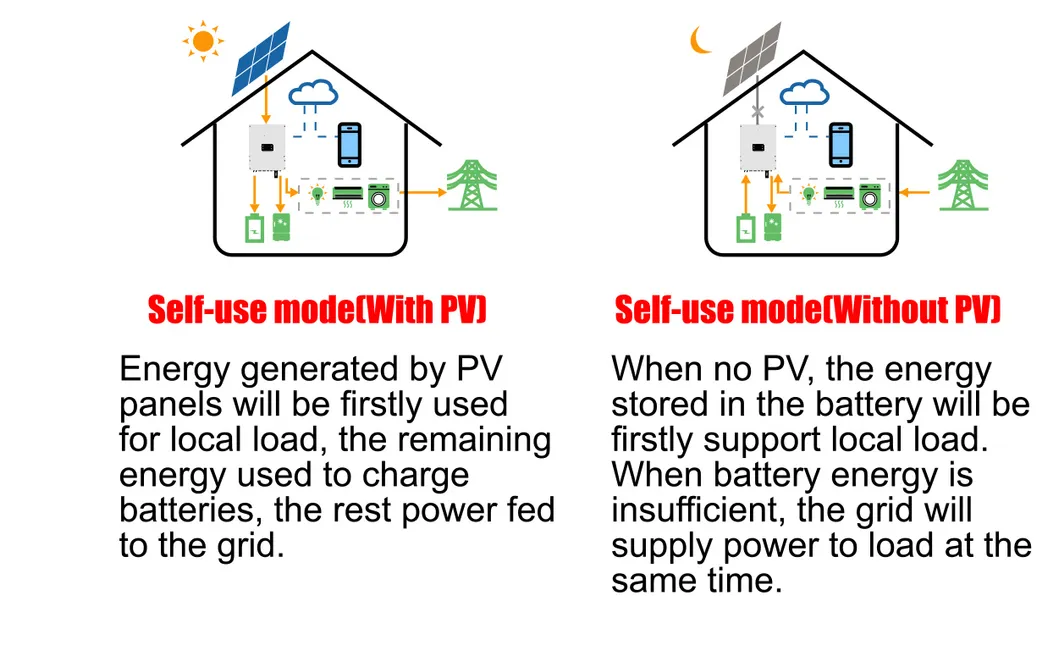

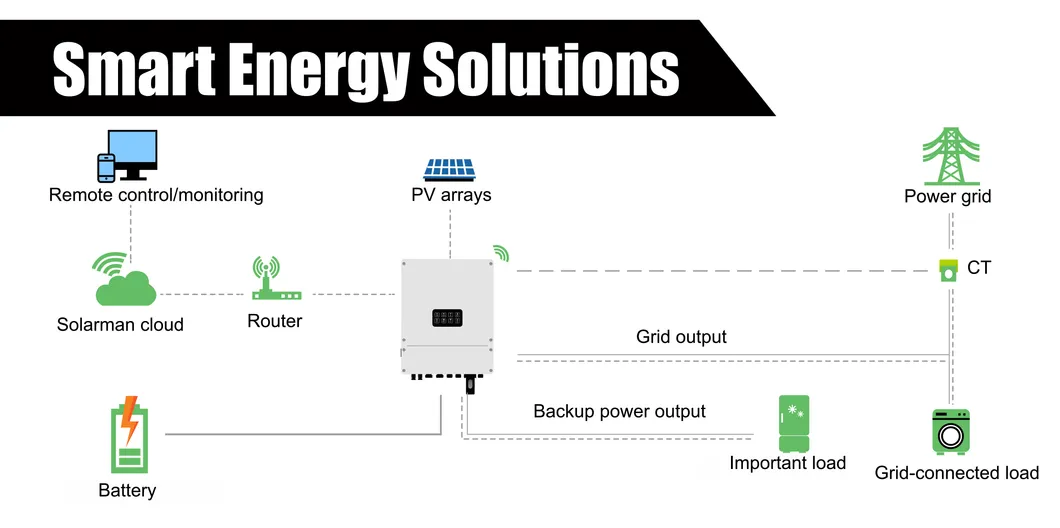

Hybrid Solar Grid Tie Inverter Hybrid Solar Grid Tie Inverter Hybrid Solar Grid Tie Inverter

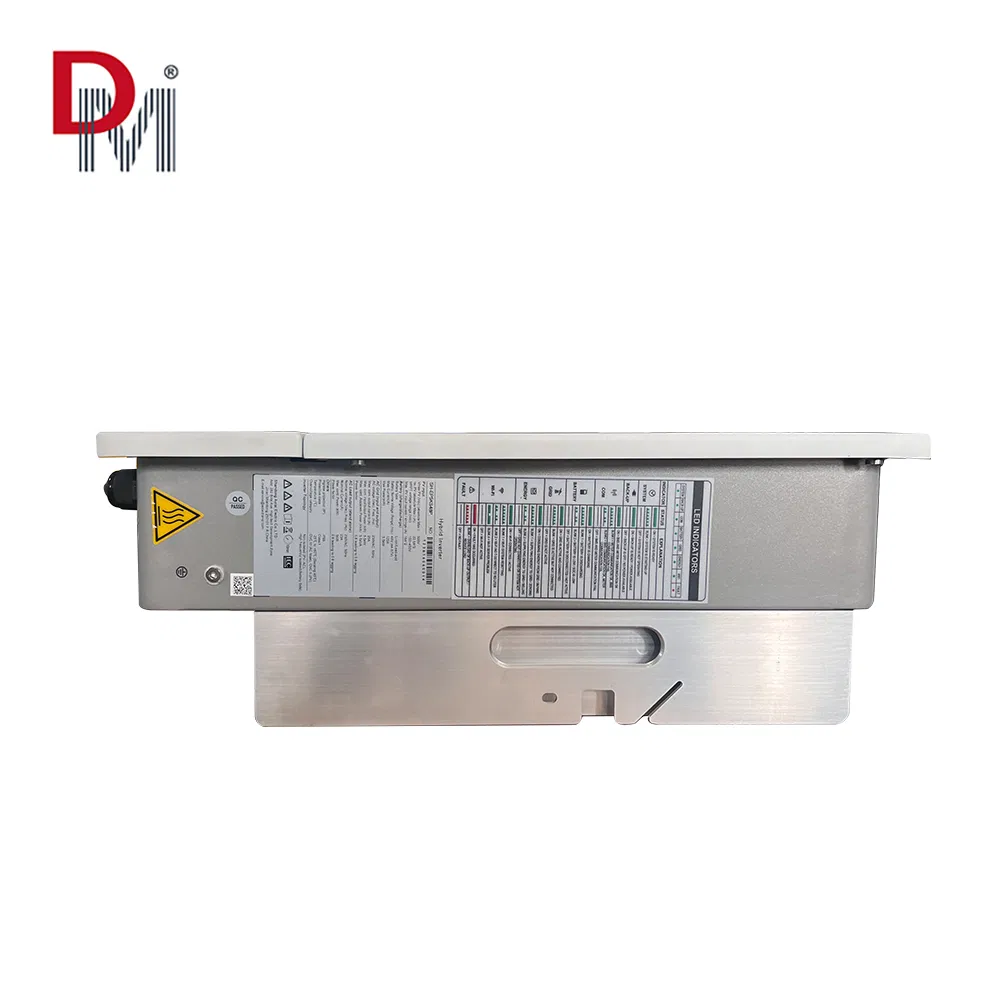

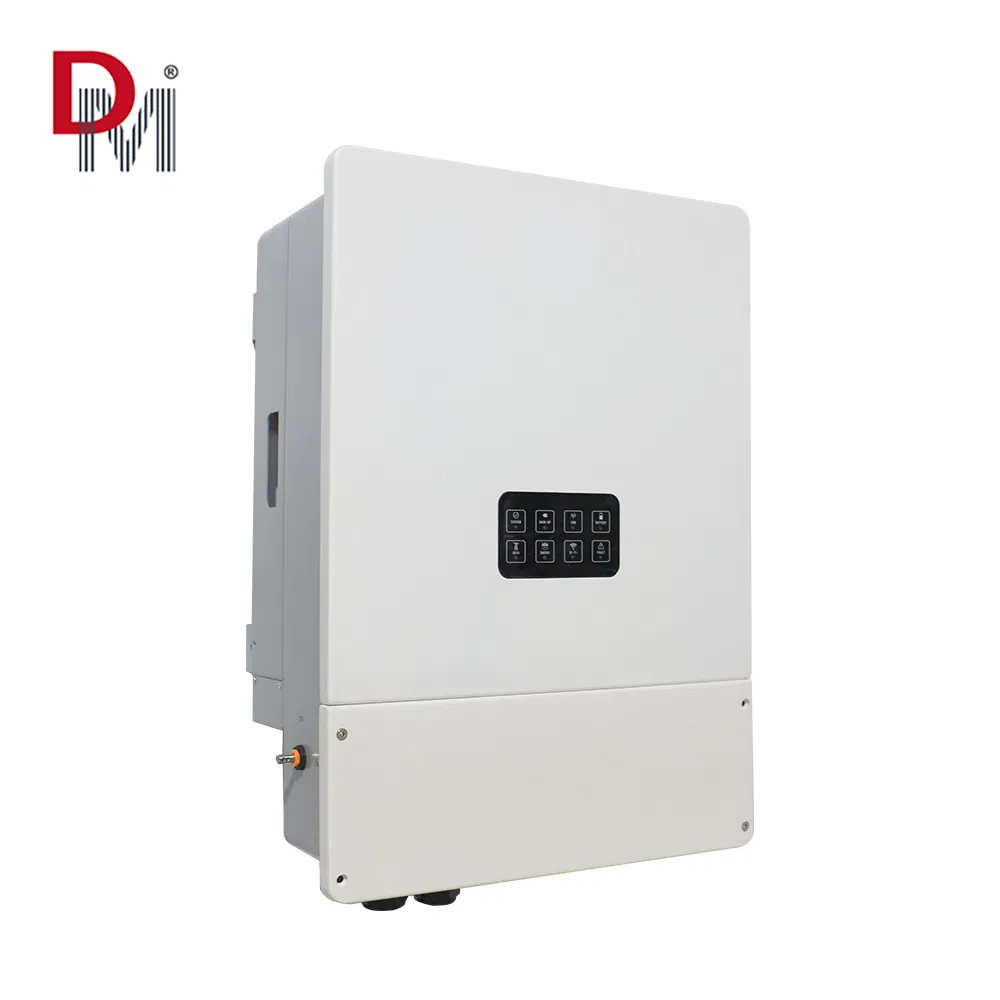

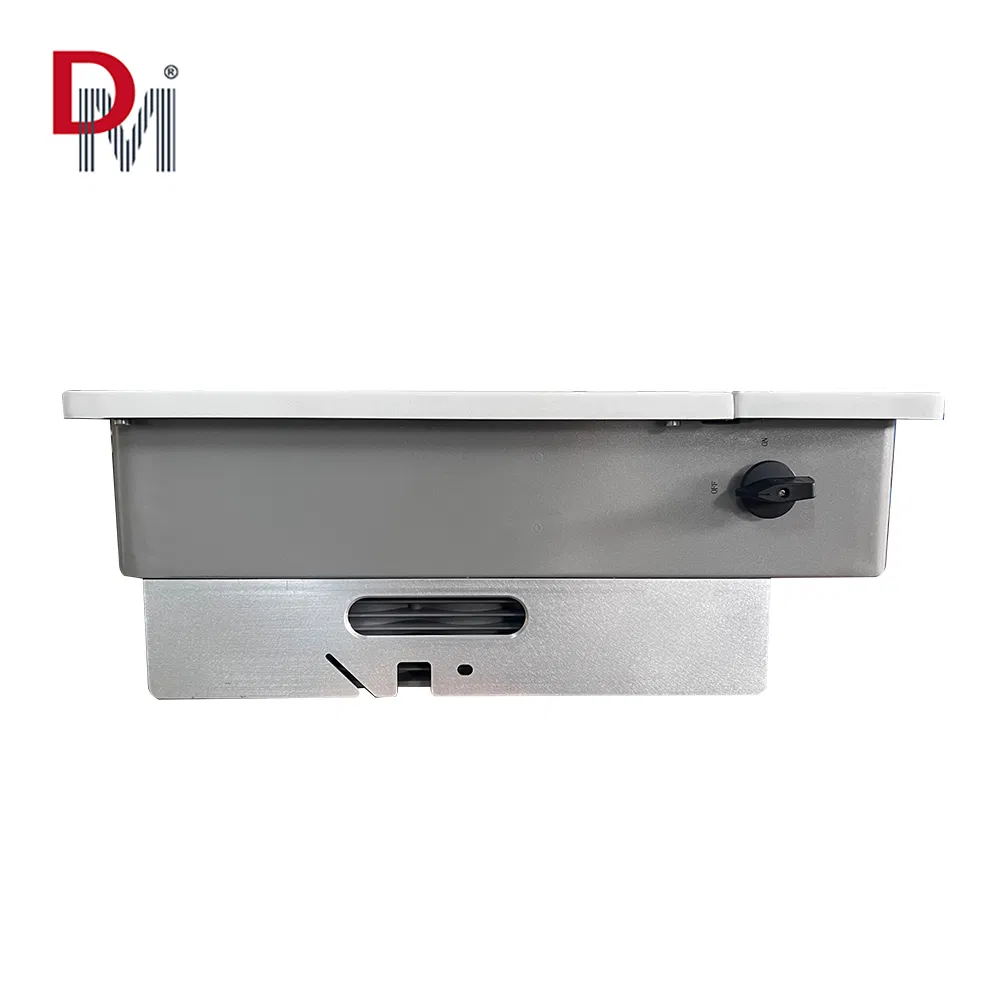

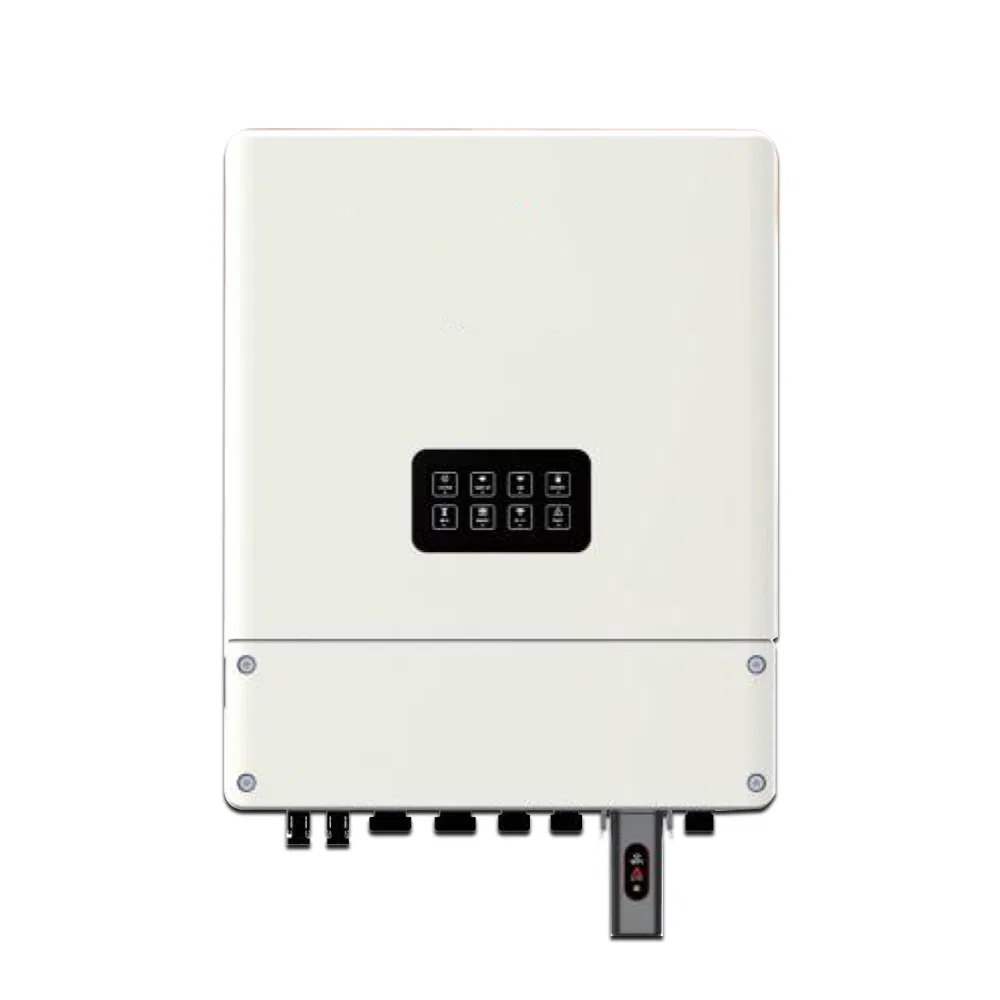

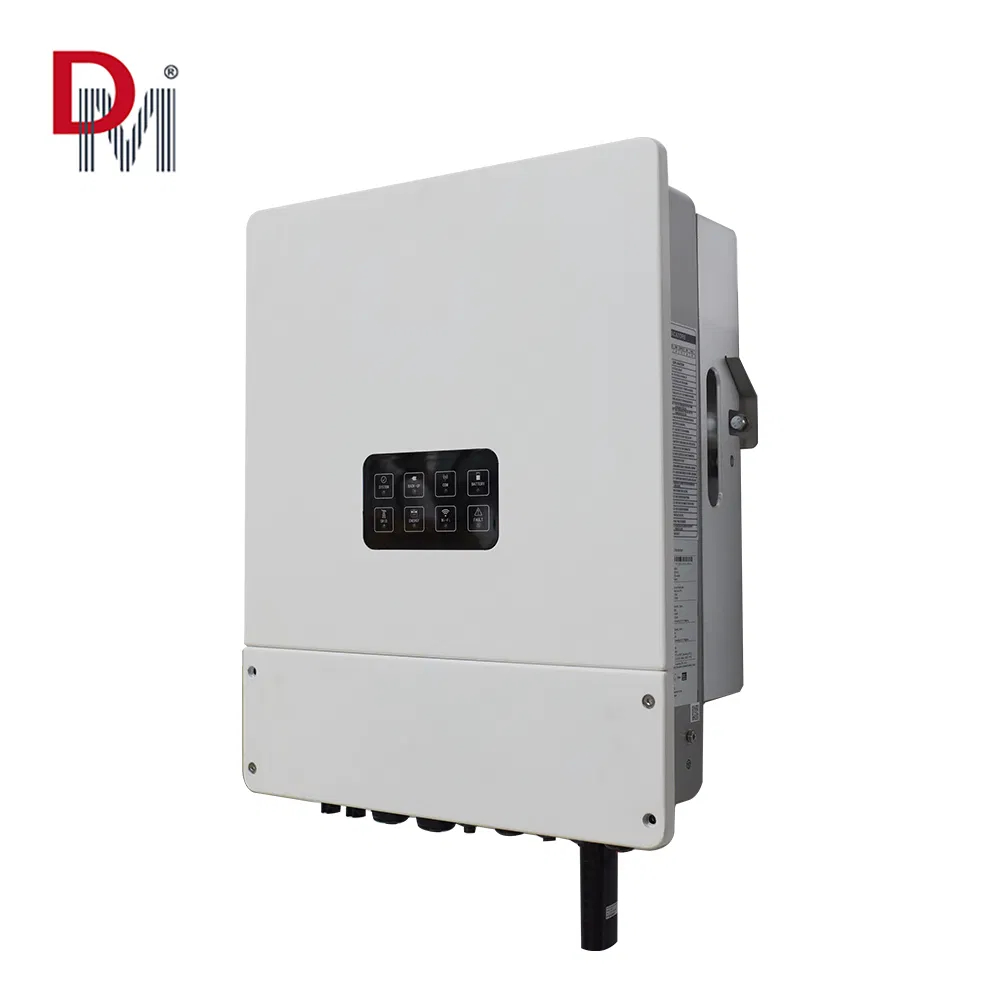

Inverter Feature
Inverter Feature
Inverter Feature
Inverter Feature
Inverter Feature
Inverter Feature
D

Detailed Photos

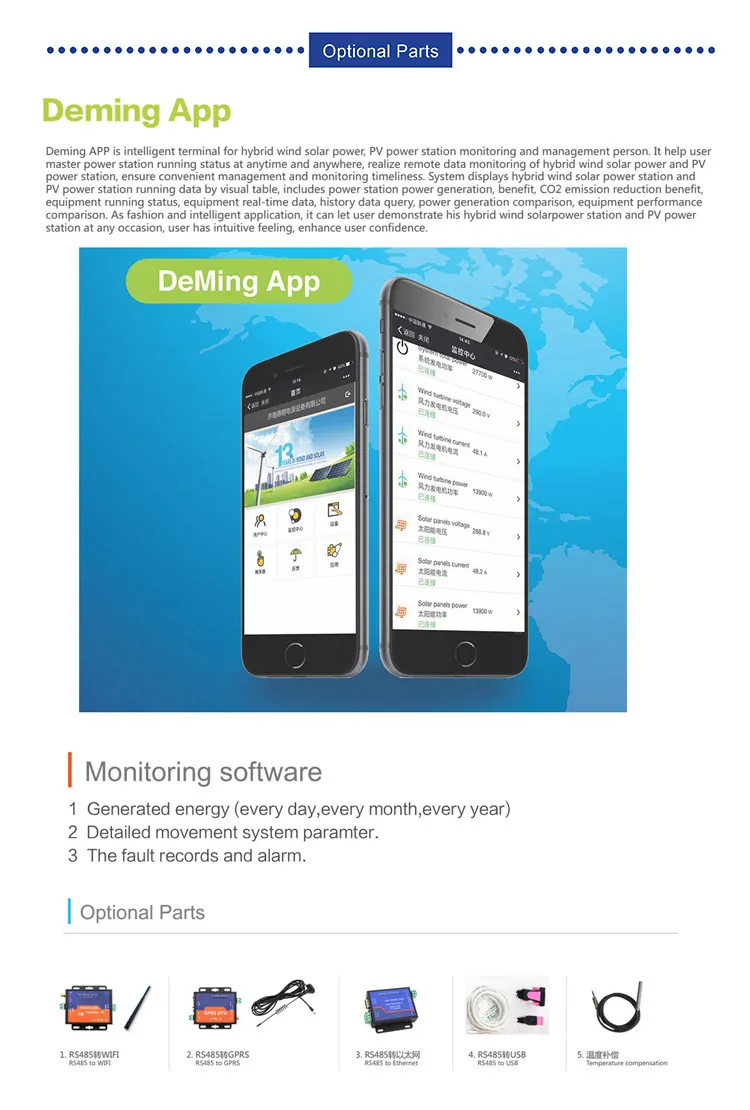

Inverter Detailed View
T

Product Parameters

Model DMEP-8KS48P3 DMEP-10KS48P3 DMEP-12KS48P3
Battery Input Parameter
Battery typeLithium or lead acid battery
Rated battery voltage (V)48
Max charging voltage (V)≤60
Max charge/discharge current (A)190210240
PV Input Parameter
Max DC input power (kw)10.41315.6
Max DC input voltage (V)1000
MPPT voltage range (V)150~800
Efficiency
Max efficiency (PV)98%
Max efficiency (Battery)94.5%
Protection
DC reverse-polarityYes
Short circuit protectionYes
Surge protectionYes
C

Certifications

Inverter Certifications
S

Production & Applications

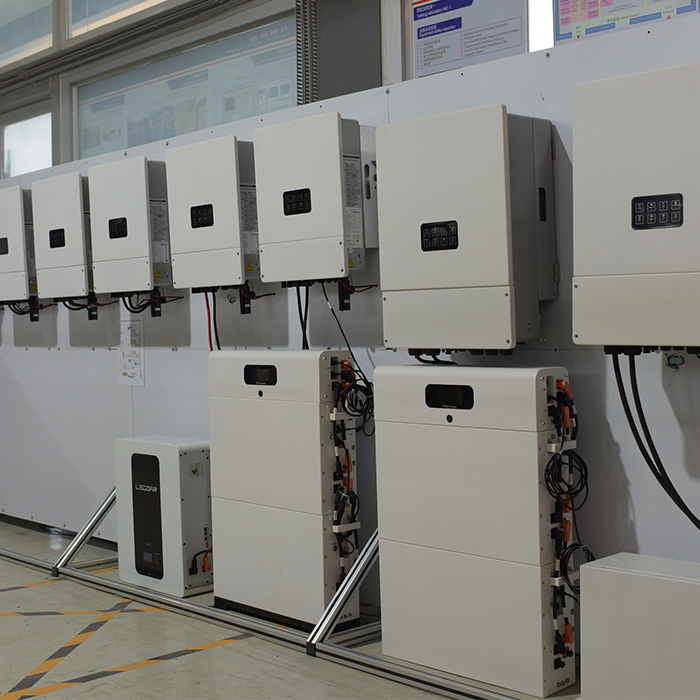

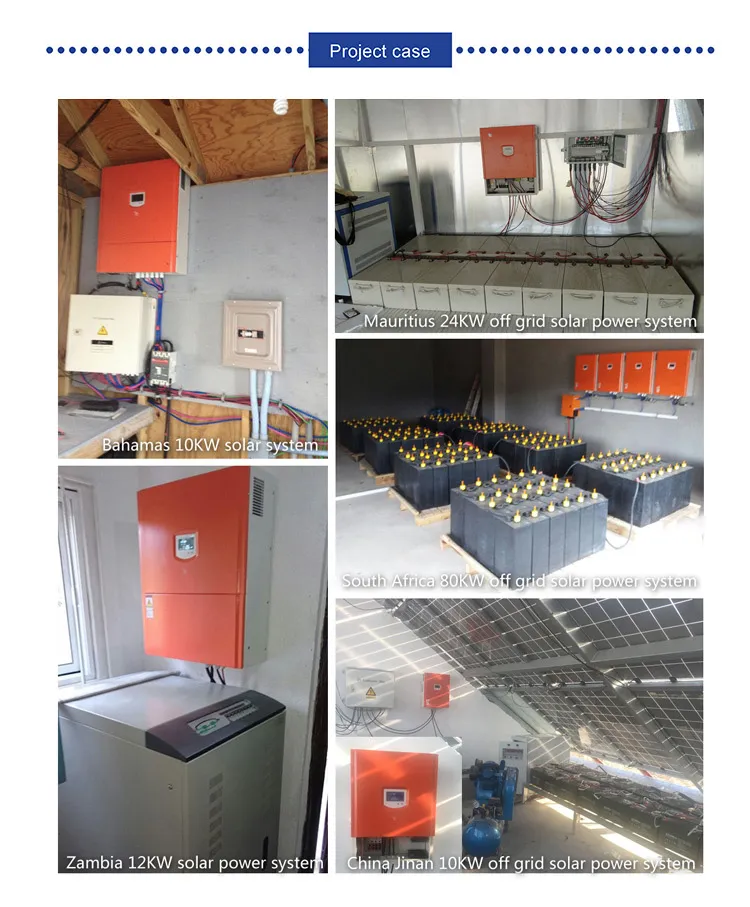

Production Process Application Case Our Advantages
?

Frequently Asked Questions

What battery types are compatible with this hybrid inverter?
The system supports both Lithium-ion and Lead-Acid batteries with a rated voltage of 48V.
Does this inverter support off-grid operation?
Yes, it features high-speed switching to off-grid mode (UPS level) to ensure power continuity during grid failures.
What is the maximum PV input voltage supported?
For the three-phase models, the maximum DC input voltage is up to 1000V, allowing for efficient high-voltage string configurations.
Is the inverter suitable for outdoor installation?
Yes, the unit is rated IP66, providing excellent protection against dust and high-pressure water jets, making it suitable for various environments.
Does it have integrated safety protections?
It includes DC reverse-polarity protection, short circuit protection, output over-current/voltage protection, insulation monitoring, and surge protection.
Can the specifications be customized?
Yes, while standard parameters are provided, we can custom-make units to specific user technical requirements.
