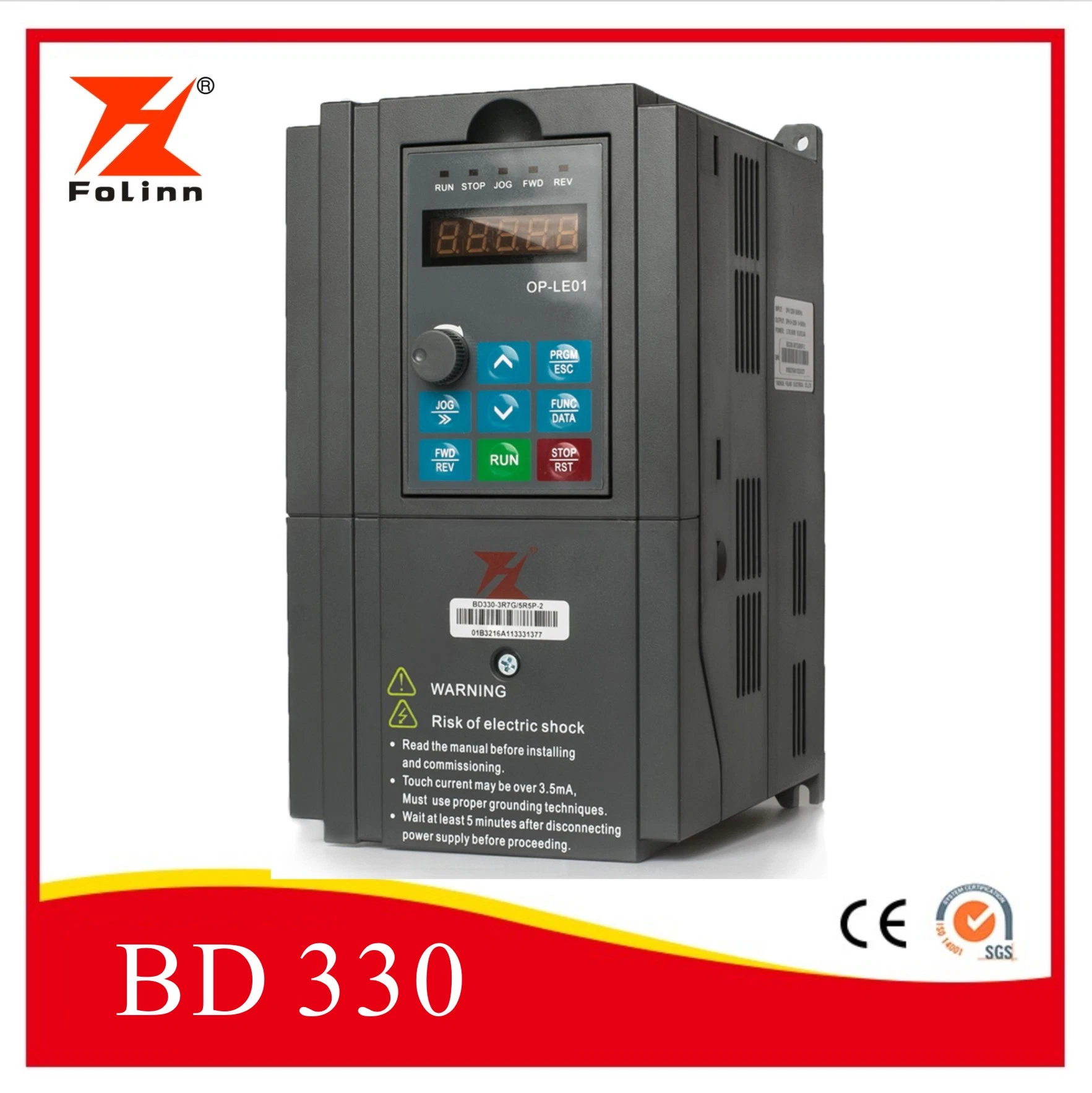

High Performance Vector Control VSD VFD Frequency Inverter (BD330)
High Performance Vector Control VSD VFD Frequency Inverter (BD330)
High Performance Vector Control VSD VFD Frequency Inverter (BD330)
High Performance Vector Control VSD VFD Frequency Inverter (BD330)
High Performance Vector Control VSD VFD Frequency Inverter (BD330)
1 / 5
High Performance Vector Control VSD VFD Frequency Inverter (BD330)
High Performance Vector Control VSD VFD Frequency Inverter (BD330)
High Performance Vector Control VSD VFD Frequency Inverter (BD330)
High Performance Vector Control VSD VFD Frequency Inverter (BD330)
High Performance Vector Control VSD VFD Frequency Inverter (BD330)

High Performance Vector Control VSD VFD Frequency Inverter (BD330)

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

■Basic Info.

Model NO.
BD330
Principle of Work
Vector Control Transducer
Switch Mode
PWM Control
Main Circuit Type
Voltage
Power Supply
Low Voltage Variable-Frequency Drive
Transformation
AC-DC-AC Variable-Frequency Drive
DC Power Nature
Voltage Variable-Frequency Drive
Function
Simple Type
Communications
RS485
Motor Control
Sensorless Vector Control
Production Capacity
1000 Set/Day
Origin
China

■Product Description

BD330 Series High Performance Vector Control General Purpose Inverters

Power Specification
  • 1AC 220V±15% (0.5kW~3.7kW)
  • 3AC 220V±15% (0.75kW~55kW)
  • 3AC 380V±15% (0.75kW~800kW)
High Performance Vector Control VSD VFD Frequency Inverter
Technical Features
Input Voltage Range1AC 220V±15%; 3AC 220V±15%; 3AC 380V±15%
Input Frequency Range47-63Hz
Output Frequency Range0~200Hz
Control ModeV/F Control, Sensorless Vector Control (SVC)
Overload CapacityG type: 150%-60s, 180%-10s; P type: 120%-60s, 150%-10s
Start Torque0.5Hz/150% (SVC)
DisplayLED Display (Frequency, Voltage, Current, etc.)
Protection LevelIP20

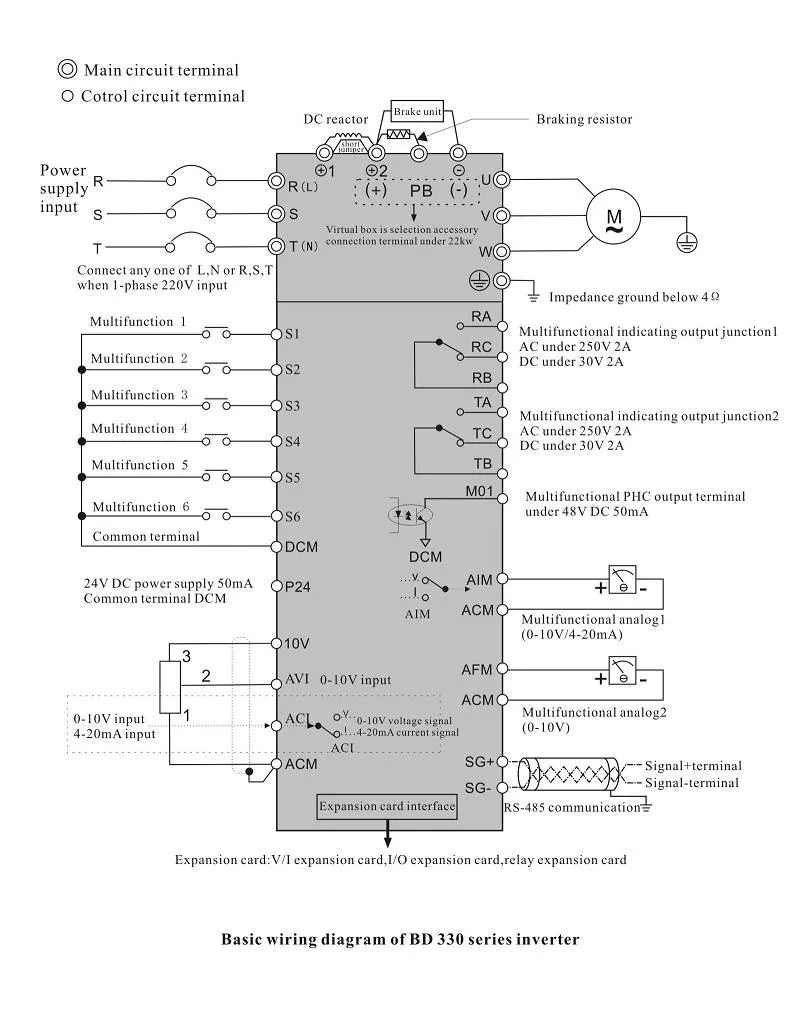

■Selection Guide & Applications

Selection Guide Folinn Quality

Key Applications:

Metal processing, numerically-controlled machine tool, drawbench, boiler fans, induced draft fans, exhaust blowers, municipal engineering, central air-conditioning, circulating water pumps, oil field injection pumps, textile machinery (P-jump Winders, Extruders), packaging equipment, plastics & rubber extruders, pulp & paper mills, oil & gas pumpjacks, material handling conveyors, and more.

■Why Choose This Series?

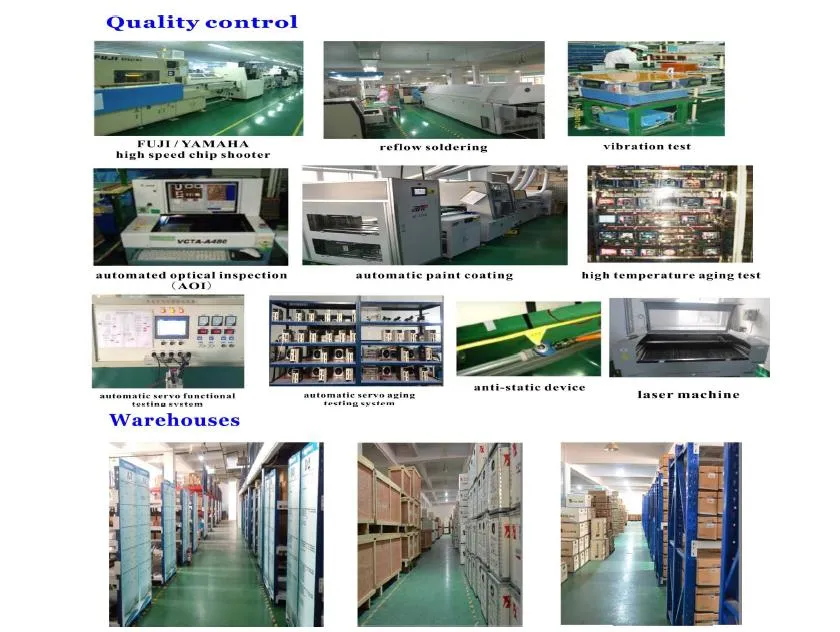

Enterprise Honor Internal Components
  • Premium Components: IGBT from Infineon-Germany & FUJI-Japan; CPU from Texas Instruments-Germany; Capacitors from Nichicon-Japan & EPCOS-Germany.
  • Global Recognition: Exported to USA, Canada, Russia, Australia, Korea, Poland, UAE, India, and more.
  • Flexible Payment: 100% T/T in advance for small orders; 30% deposit + 70% balance for large sea orders.
  • Reliable Support: 24 months warranty from shipping date and lifetime technical services.

?Frequently Asked Questions

1. What is the core control technology used in the BD330 series? The BD330 series utilizes high-performance Sensorless Vector Control (SVC) based on DSP for precise motor management.
2. Can this inverter handle different voltage inputs? Yes, it supports 1-Phase 220V, 3-Phase 220V, and 3-Phase 380V (±15% range) inputs to suit various industrial requirements.
3. What are the main internal components of the drive? It uses world-class components including Infineon or FUJI IGBTs, Texas Instruments CPUs, and Nichicon or EPCOS capacitors for maximum durability.
4. What is the standard warranty and technical support? We provide a 24-month warranty from the B/L shipping date and offer lifetime technical support services.
5. What is the delivery lead time for orders? Sample orders are typically delivered within 3-7 working days, while large-scale orders require 14-20 working days.
6. Does the inverter include protection functions? Yes, it features comprehensive protection against overvoltage, undervoltage, overcurrent, overheat, phase-failure, and external faults.
