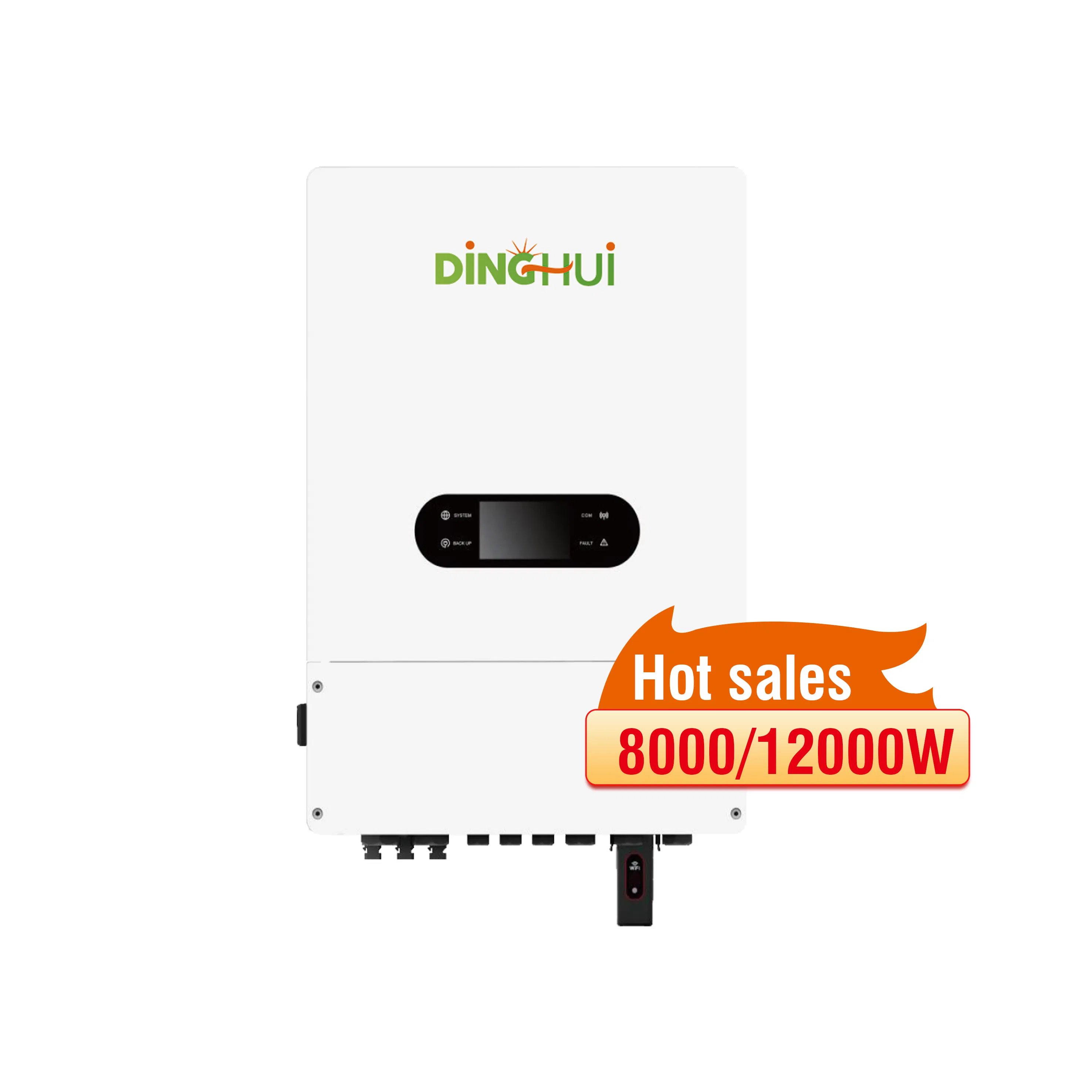

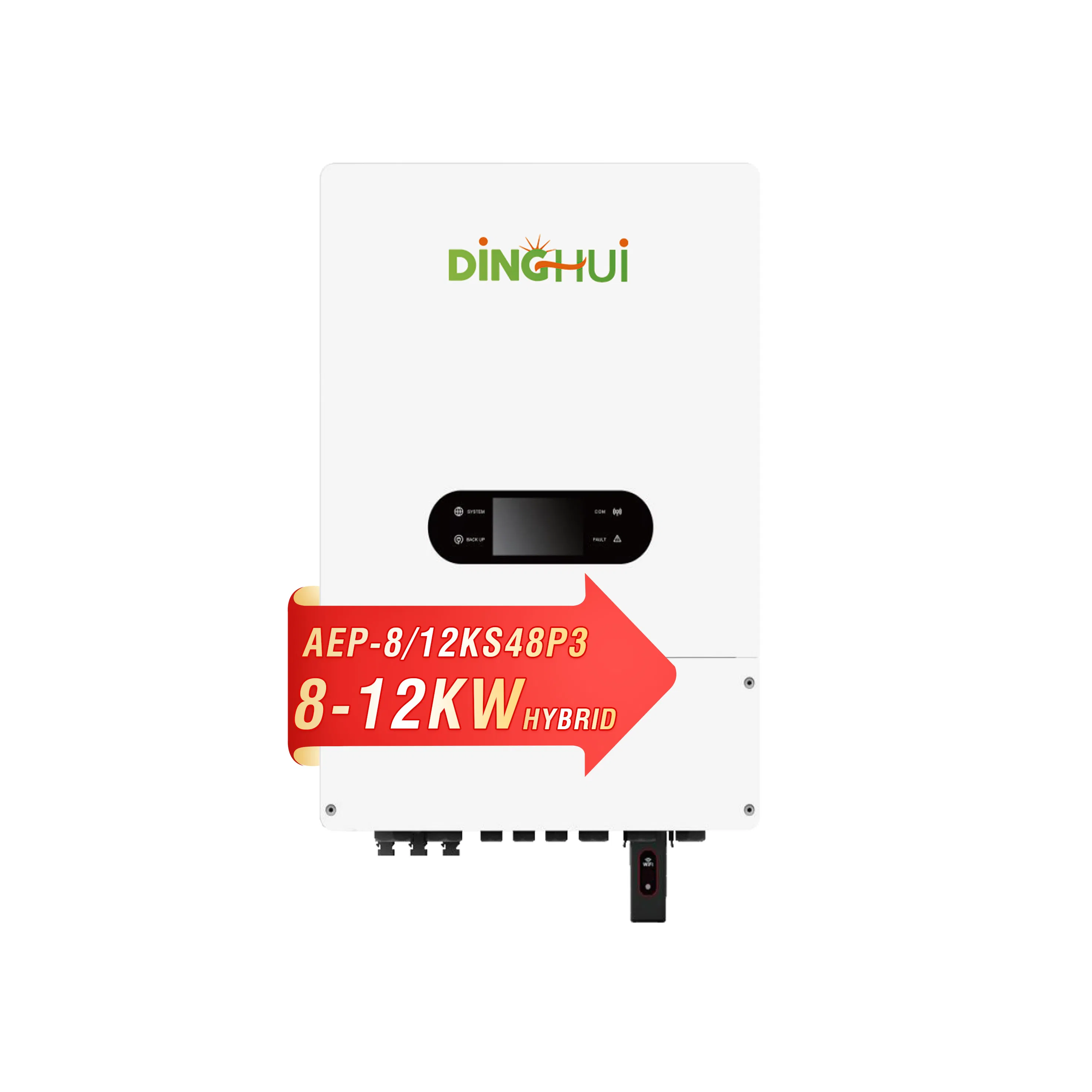

High Frequency MPPT Integrated 8kw 10kw 12kw IP65 Hybrid Inverter for Solar System
High Frequency MPPT Integrated 8kw 10kw 12kw IP65 Hybrid Inverter for Solar System
High Frequency MPPT Integrated 8kw 10kw 12kw IP65 Hybrid Inverter for Solar System
High Frequency MPPT Integrated 8kw 10kw 12kw IP65 Hybrid Inverter for Solar System
High Frequency MPPT Integrated 8kw 10kw 12kw IP65 Hybrid Inverter for Solar System
1 / 5
High Frequency MPPT Integrated 8kw 10kw 12kw IP65 Hybrid Inverter for Solar System
High Frequency MPPT Integrated 8kw 10kw 12kw IP65 Hybrid Inverter for Solar System
High Frequency MPPT Integrated 8kw 10kw 12kw IP65 Hybrid Inverter for Solar System
High Frequency MPPT Integrated 8kw 10kw 12kw IP65 Hybrid Inverter for Solar System
High Frequency MPPT Integrated 8kw 10kw 12kw IP65 Hybrid Inverter for Solar System

High Frequency MPPT Integrated 8kw 10kw 12kw IP65 Hybrid Inverter for Solar System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview - Basic Info

Model NO.
AEP-10KS48P3
Nature of Source
Active Inverter
Phase
Single
Output Power
8000W/10000W/12000
Certification
CE, ROHS, ISO9001
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Half-Bridge Type
Nature of Wave
Sine Wave Inverter
Max PV Input
10000W
Battery Type
Lead Acid / Lithium / Gel
Protection Degree
IP65
Efficiency
97.5%
Net Weight
38kg
PV Input Range
90-500VDC

Product Description

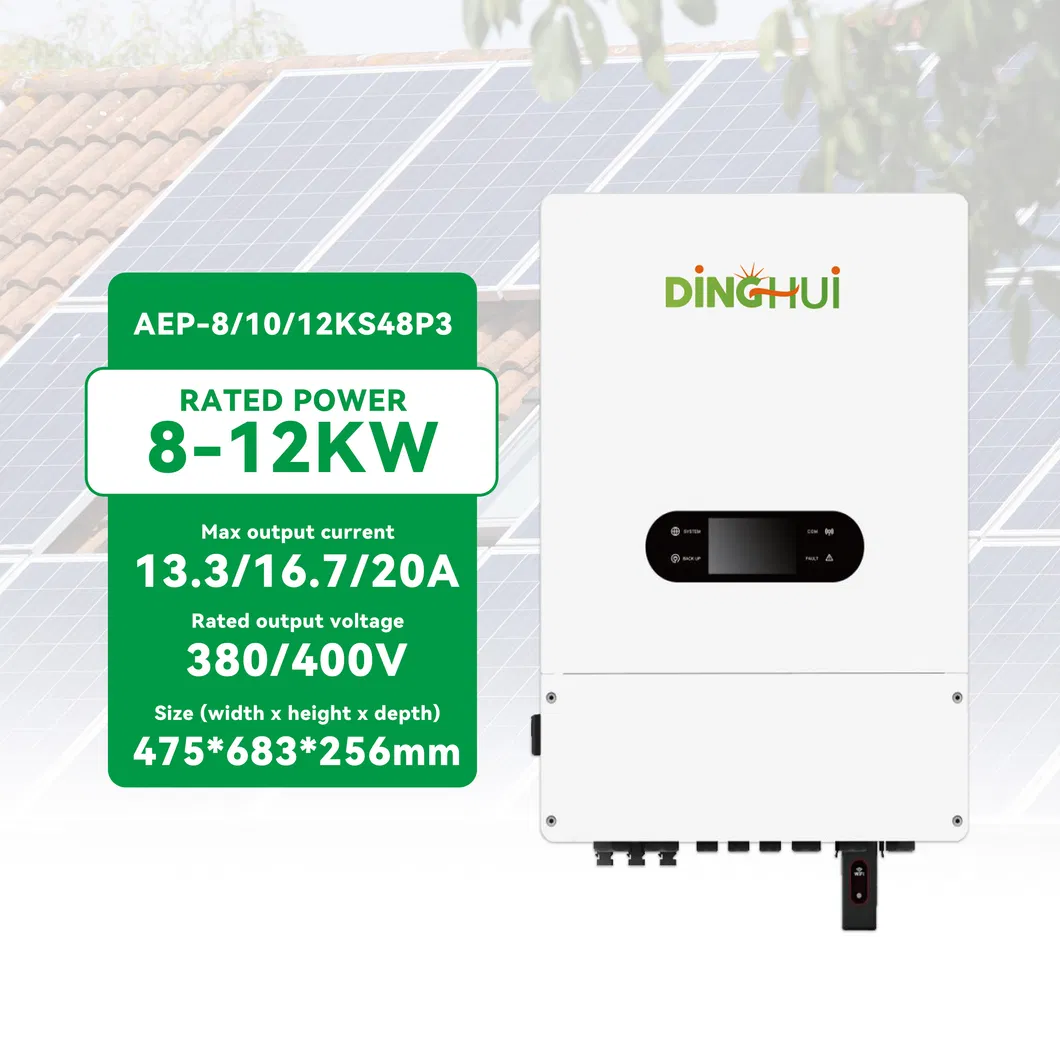

Hybrid Inverter 1

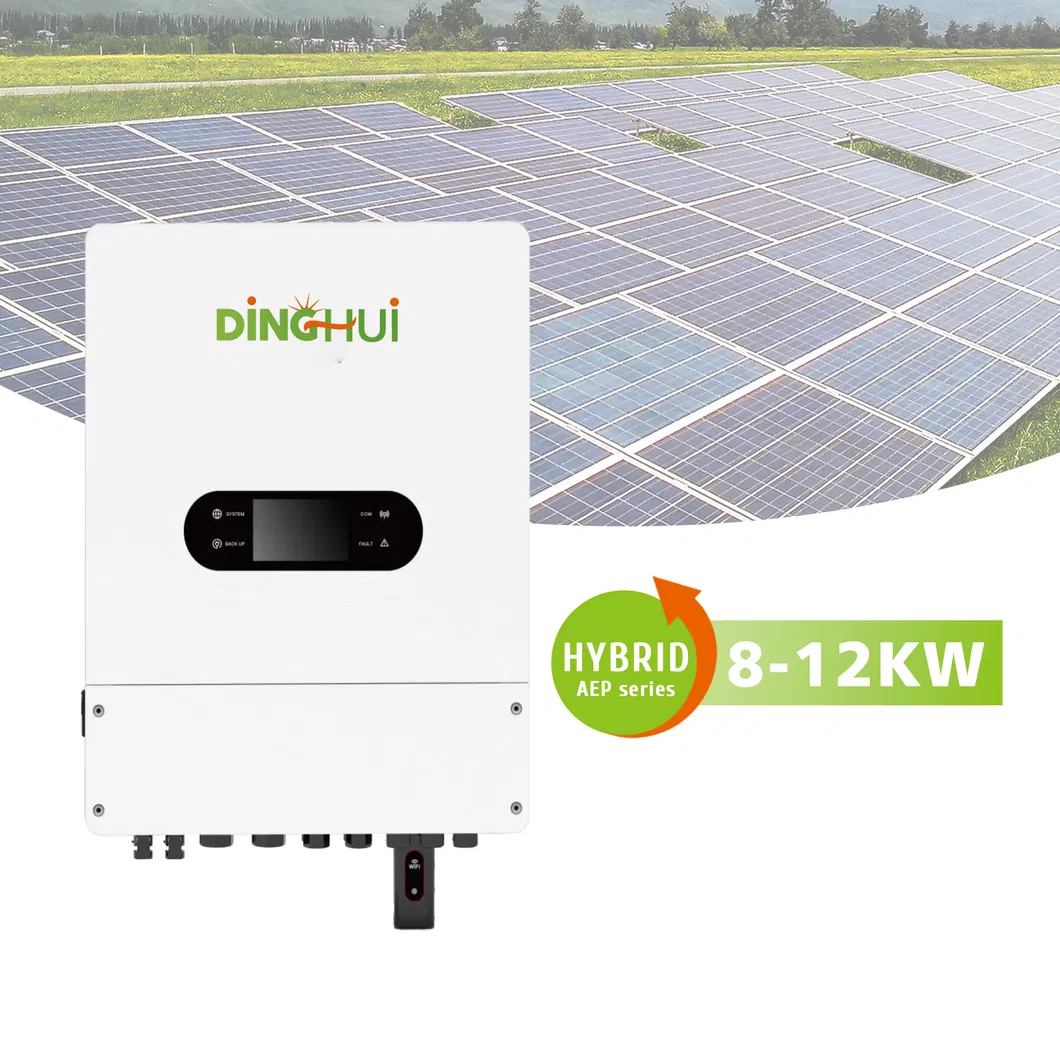

Hybrid Inverter 2
✓Up-to-36A maximum input current
✓Off-grid peak power of 200% overload within 15 seconds
✓Adaptable to 18A modules and able to match mainstream high-current modules in the market
✓200% of photovoltaic over-proportion ratio for connecting more modules to ensure off-grid applications and fully charge battery
Product Features

Technical Parameters

Model AEP-3KS48P AEP-3K6S48P AEP-4KS48P AEP-4K6S48P AEP-5KS48P AEP-6KS48P
AC Output Parameters (Off-Grid)
Rated Apparent Power(VA) 3000 3600 4000 4600 5000 6000
Max Apparent Power(VA) 6000 (15s) 7200 (15s) 8000 (15s) 9200 (15s) 10000 (15s) 10000 (15s)
Rated Output Voltage 230V
Europe Efficiency 97%
Protection Class IP66
Model AEP-8KS48P3 AEP-10KS48P3 AEP-12KS48P3
High Power AC Output Parameters (Off-Grid)
Rated Apparent Power(VA) 8000 10000 12000
Max Apparent Power(VA) 16000 (15s) 20000 (15s) 24000 (15s)
Rated Voltage 380/400V
Max Efficiency (PV) 98%

Production Line & Project Cases

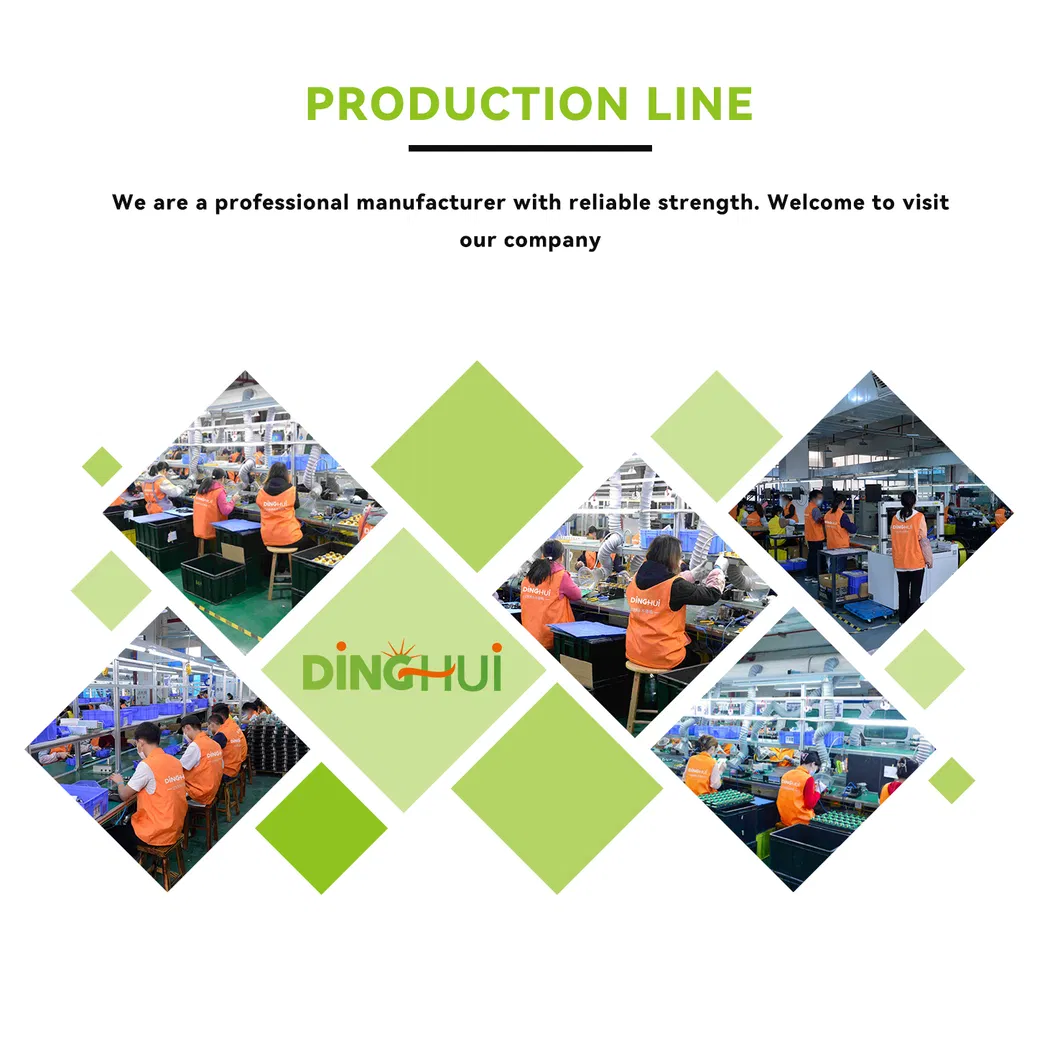

Production Line

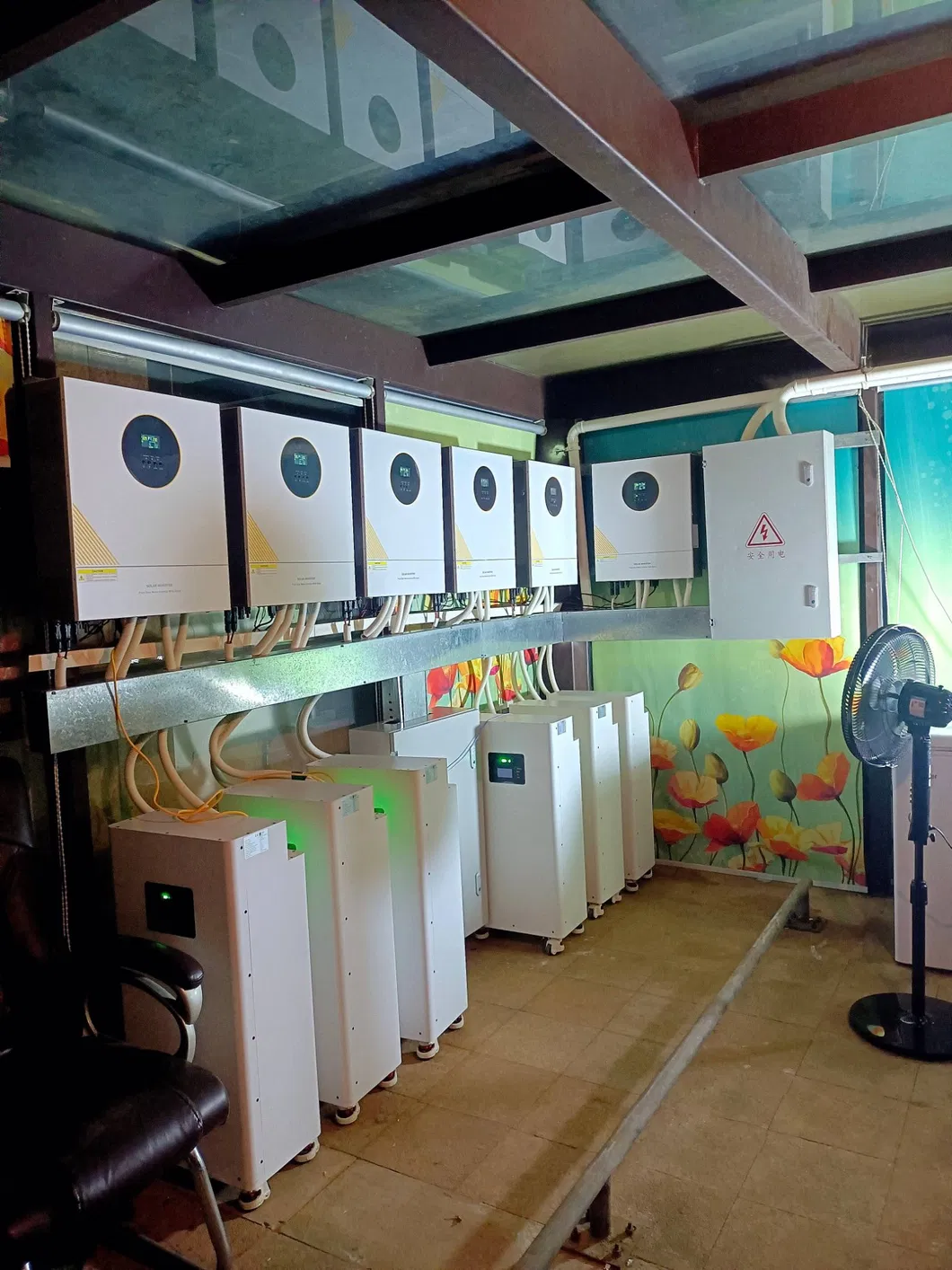

Project Case 1
Project Case 2

Packaging & Shipping

Shipping Details

Our Advantages

Advantage 1
Advantage 2
Advantage 3
Advantage 4
Advantage 5
Advantage 6

Frequently Asked Questions

1. Why choose our solar solutions?
We focus on providing reliable products and valuable services to help our customers grow a profitable business. Gratitude is the core culture of our operations.
2. Can solar panels be customized?
Yes, we provide customization options including brand naming, solar panel colors, and unique designed patterns to meet your specific needs.
3. What kind of service is provided after placing an order?
We manage the full cycle from production to shipment. Our QC team monitors quality from raw materials to finished products, and we offer one-stop solutions for solar energy systems.
4. Are discounts available for bulk solar products?
Absolutely. We offer competitive discounts for large quantity orders to ensure you receive the best value for your investment.
5. Is technical support available for installation?
Yes, we provide comprehensive technical support, including remote installation guidance and off-grid system optimization.
6. What is the protection rating of these inverters?
Our hybrid inverters feature an IP65 or IP66 rating, ensuring they are dust-tight and protected against powerful water jets, making them suitable for harsh environments.
