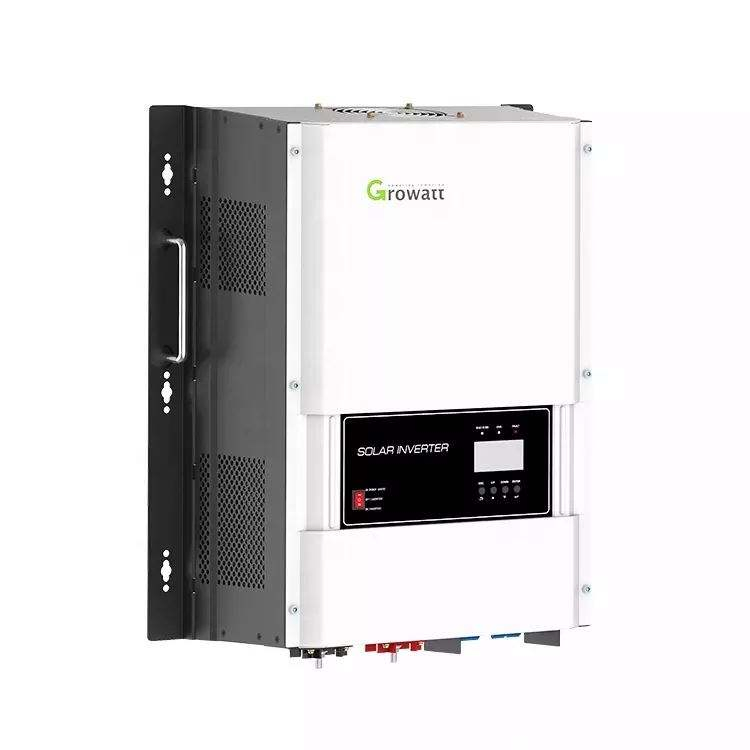

Growatt SPF 18000T DVM-MPV Low Frequency Single Phase 18kw off Grid Solar Inverter
Growatt SPF 18000T DVM-MPV Low Frequency Single Phase 18kw off Grid Solar Inverter
Growatt SPF 18000T DVM-MPV Low Frequency Single Phase 18kw off Grid Solar Inverter
Growatt SPF 18000T DVM-MPV Low Frequency Single Phase 18kw off Grid Solar Inverter
Growatt SPF 18000T DVM-MPV Low Frequency Single Phase 18kw off Grid Solar Inverter
1 / 5
Growatt SPF 18000T DVM-MPV Low Frequency Single Phase 18kw off Grid Solar Inverter
Growatt SPF 18000T DVM-MPV Low Frequency Single Phase 18kw off Grid Solar Inverter
Growatt SPF 18000T DVM-MPV Low Frequency Single Phase 18kw off Grid Solar Inverter
Growatt SPF 18000T DVM-MPV Low Frequency Single Phase 18kw off Grid Solar Inverter
Growatt SPF 18000T DVM-MPV Low Frequency Single Phase 18kw off Grid Solar Inverter

Growatt SPF 18000T DVM-MPV Low Frequency Single Phase 18kw off Grid Solar Inverter

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
SPF 18000T DVM MPV
Nature of Source
Active Inverter
Phase
Single
Output Power
18kw
Certification
SAA, CE, ROHS, ISO9001, CCC
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Waveform
Pure Sine Wave
Input Voltage
104-120/208-240VAC
Output Voltage
60-245VAC
Battery Voltage
48V
Protection
IP20
Packaging & Delivery
Package Size
50.00cm * 85.00cm * 30.00cm
Gross Weight
115.000kg
Product Description

SPF 18000T DVM-MPV Low Frequency Single Phase 18KW Off Grid Solar Inverter

Off Grid Solar Inverter
Technical Parameters
Datasheet SPF 4000T SPF 5000T SPF 6000T SPF 8000T SPF 10000T SPF 12000T SPF 18000T
Battery Voltage 48VDC
Battery Type Lithium / Lead-acid
Rated Power 4kw5kw6kw8kw10kw12kw18kw
Surge Rating 12kw15kw18kw24kw30kw36kw54kw
Waveform Pure sine wave / same as input (bypass mode)
Max PV Array Power 5000W 7000W 14000W
MPPT Range 60-245VDC
Weight 42KG47KG52KG64KG66KG75KG105KG
Basic System Architecture
System Architecture 1

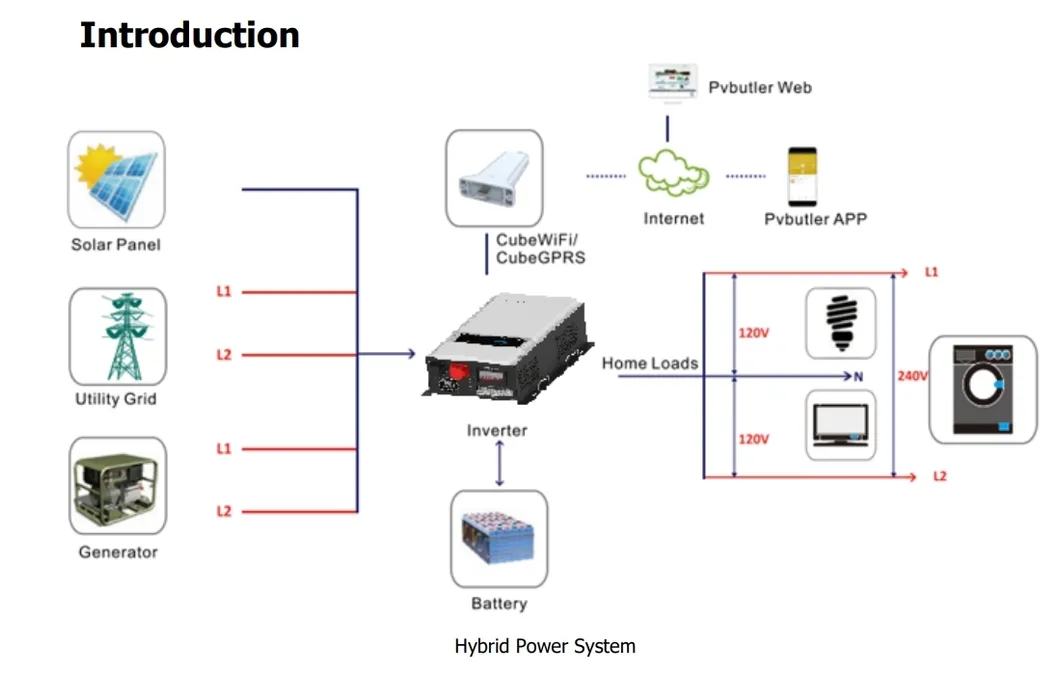

System Architecture 2
Detailed Photos

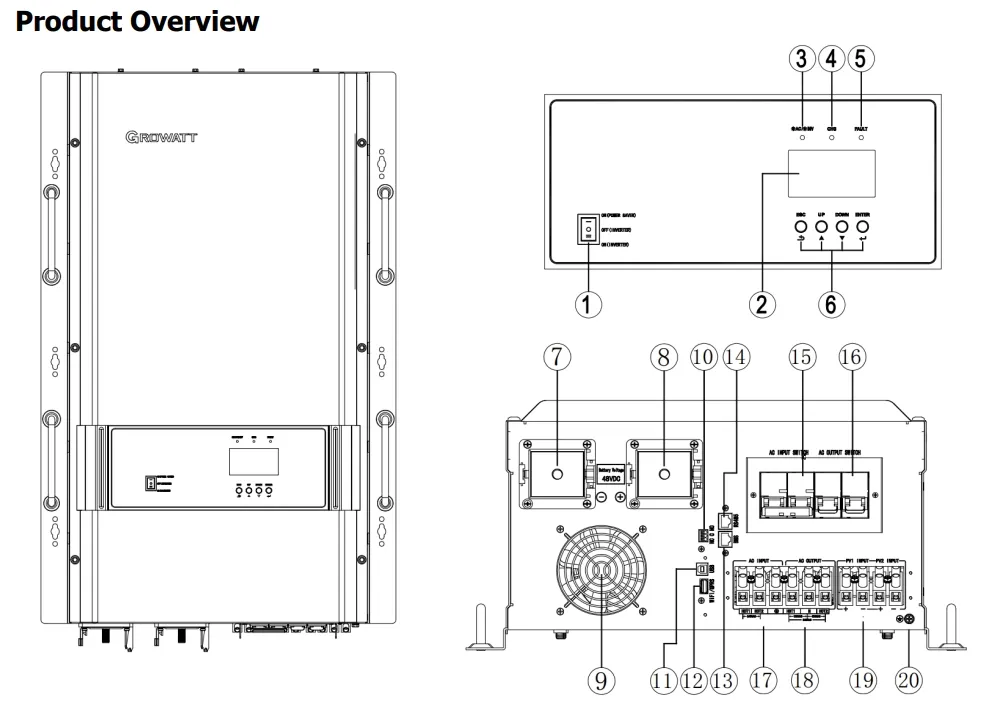

Detailed View 1

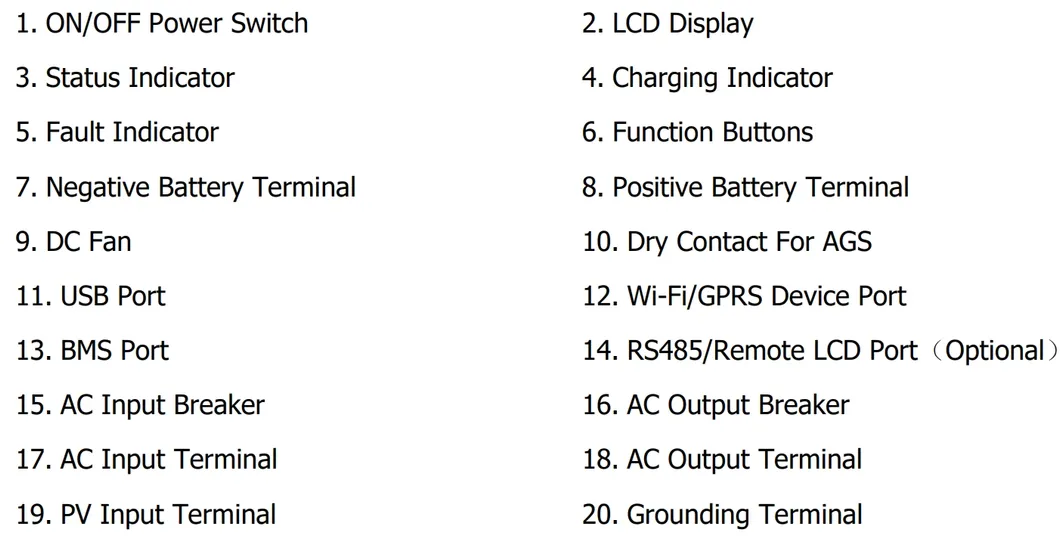

Detailed View 2
Packaging & Shipping

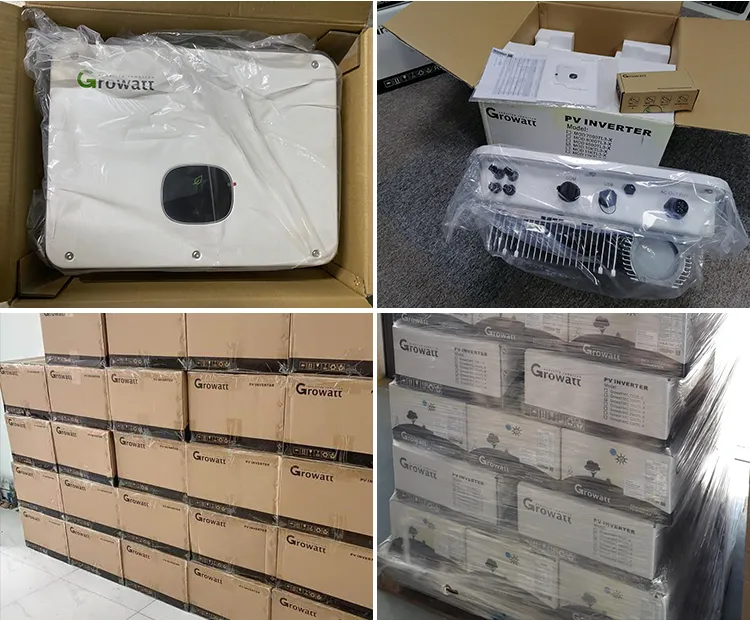

Shipping Package
Project Case Studies

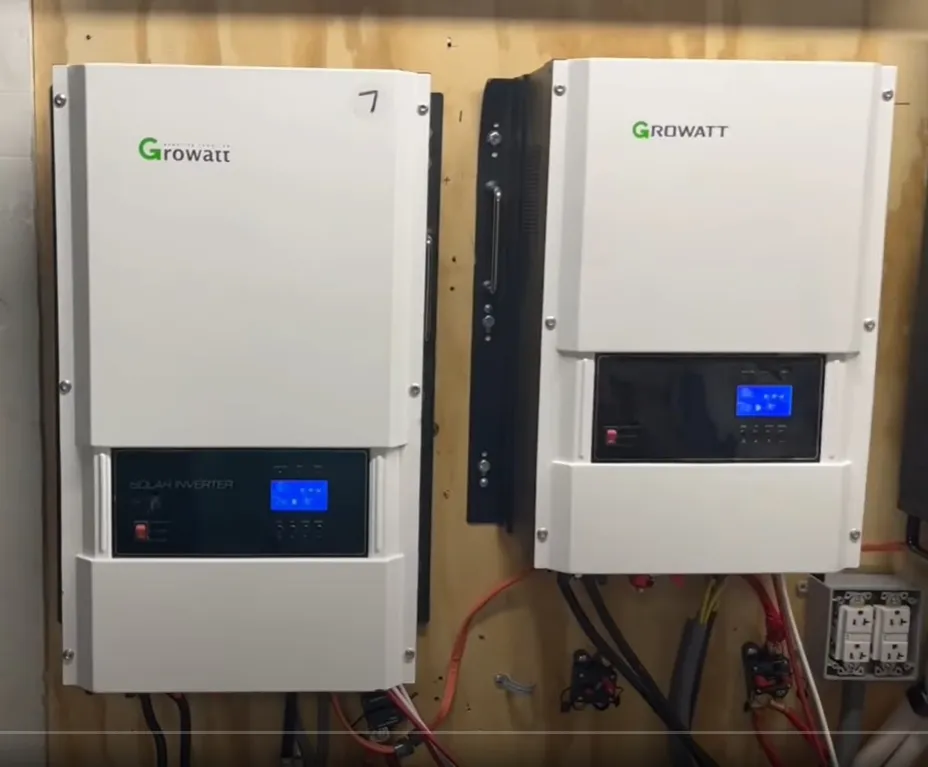

Project 1

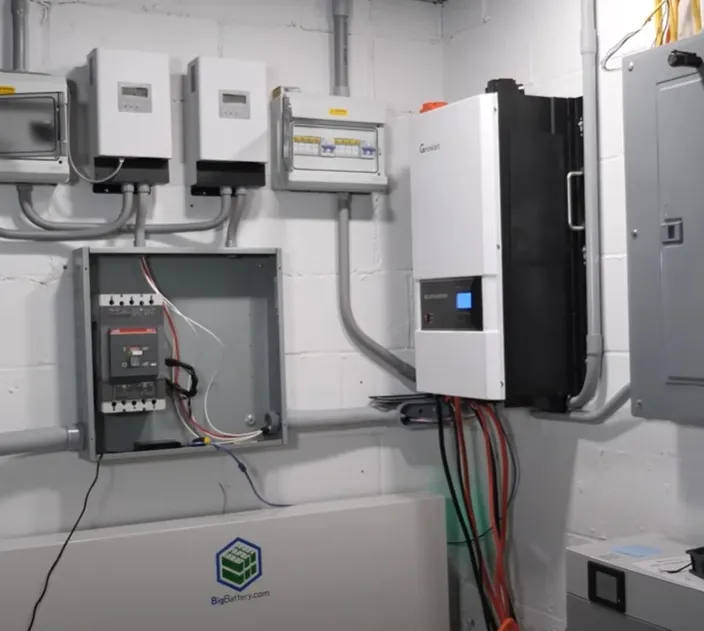

Project 2

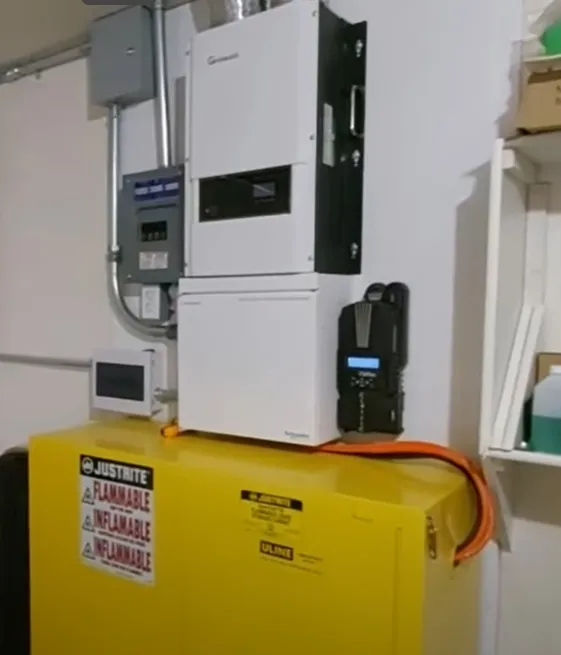

Project 3

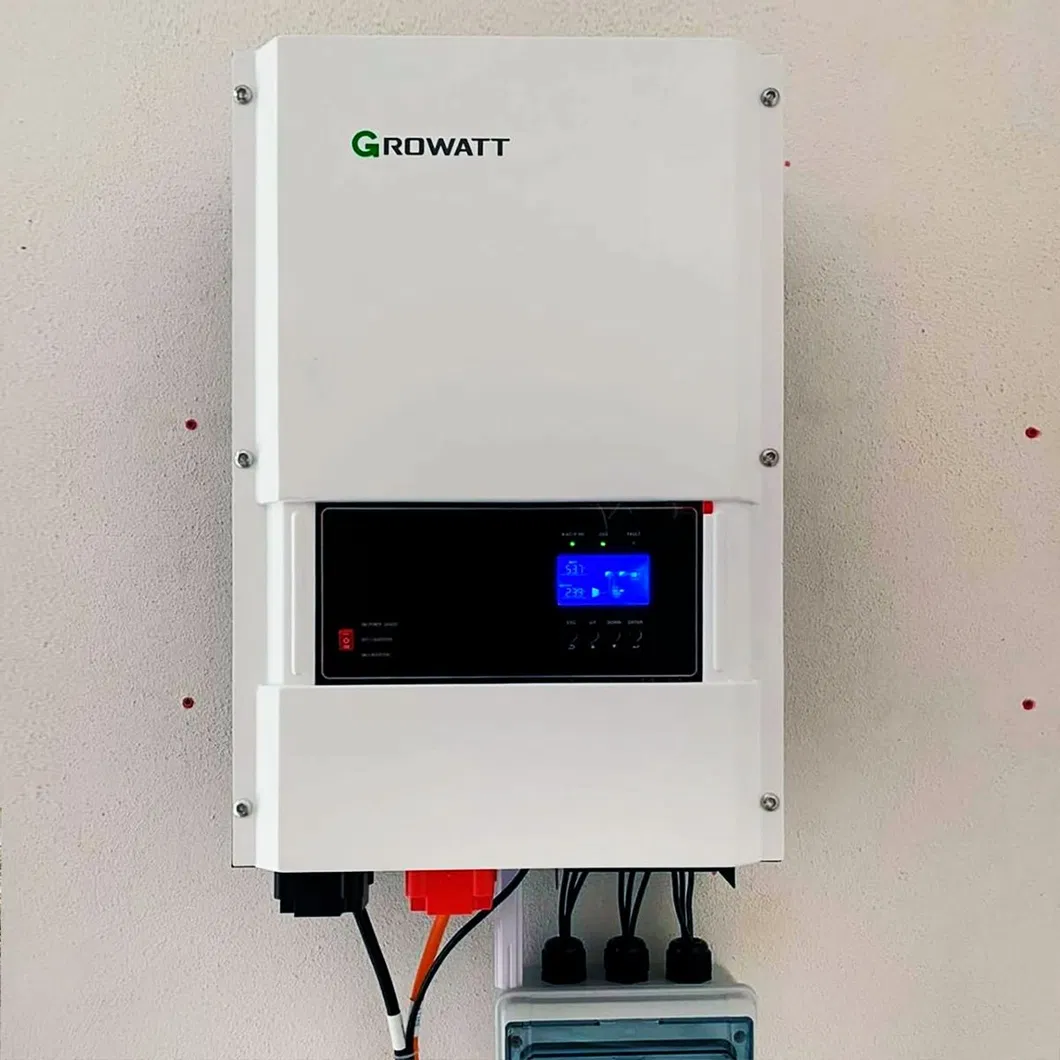

Project 4
Frequently Asked Questions
What is the battery voltage requirement for the SPF 18000T DVM-MPV?
The system operates on a 48VDC battery voltage.
Does this inverter support lithium batteries?
Yes, it is compatible with both Lithium and Lead-acid battery types.
What is the peak efficiency of the solar charger?
The solar charger has a maximum efficiency of over 97.5%.
Can the output voltage be adjusted?
Yes, it supports optional output voltages including 104, 110, 115, 120VAC and 208, 220, 230, 240VAC.
What is the surge rating for the 18kw model?
The SPF 18000T model has a surge rating of 54kw to handle high-power startup loads.
Is the inverter suitable for home use?
Absolutely, it is specifically designed for solar power systems in a home environment.
