Principle of Work
Vector Control Transducer
Switch Mode
High Carrier Frequency PWM Control
Voltage of Power Supply
Low Voltage Variable-Frequency Drive
Link of Transformation
AC-DC-AC Variable-Frequency Drive
Function
Simple Type, Elevator Special, Textile Special, Constant Torque Universal Type
Production Capacity
200000PCS/Per Month

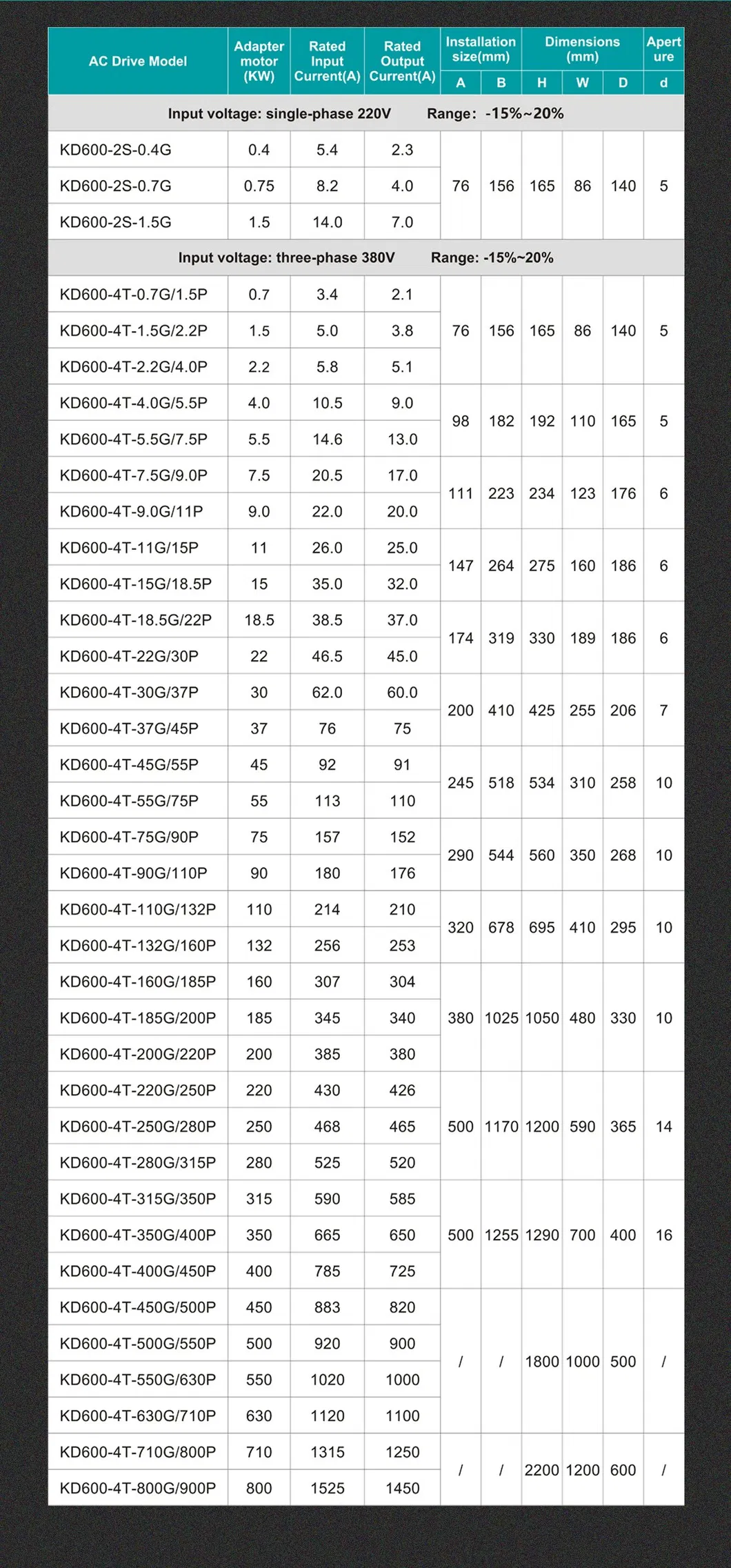

As a professional manufacturer specializing in R&D of AC drives, we provide a comprehensive product family. Our frequency inverters cover a power range from 0.4 to 630kW, with voltage ranges between 220V and 480V. Currently, over 300,000 units are operating smoothly across various industrial sites.

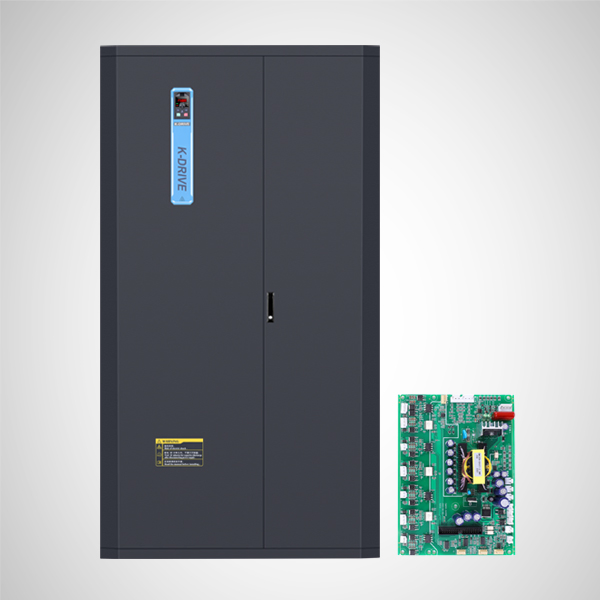

The KD600 series is our high-performance line, designed for versatility and durability. It supports various expansion cards including PG encoder cards, Multiple IO cards, 4-pump control cards, Profibus, and CANopen cards. Its heavy-duty design makes it ideal for demanding applications such as cranes, elevators, textiles, and complex industrial solutions.
| Input Voltage |
208~240V single phase & three phase / 380~480V three phase |
| Output Frequency |
0~1200Hz (V/F), 0~600Hz (FVC) |
| Control Technology |
V/F, FVC, SVC, Torque Control |
| Overload Capability |
150% for 60s, 180% for 10s, 200% for 1s |
| I/O Support |
Simple PLC (16-steps), 5 Digital inputs (NPN/PNP), 2 Analog inputs, 2 Analog outputs |
| Communication |
MODBUS RS485, Profinet, Profibus, CANopen, Ethercat, PG |
- Optional STO (Safe Torque Off) function
- IGBT module integrated for all models
- Redundant design for long-term stable operation
- Standard metal backboard for superior protection
- Extra large silicone buttons for easy operation

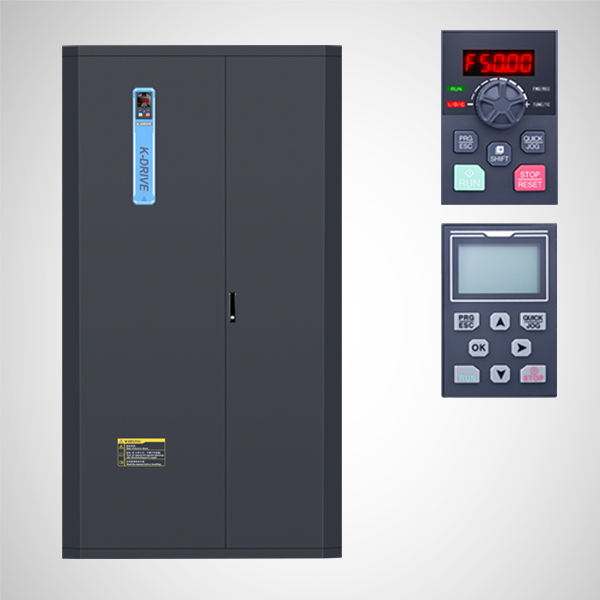

- Optional LCD keypad with multi-language menu
- Detachable keyboard for convenient debugging
- PC software support for one-key parameter setting
- Built-in EMC C3 filter for anti-interference
- Independent air duct design for dust protection
- Integrated PID for water supply applications
- Support for fire override mode
Frequently Asked Questions
Q1: What is the maximum power range supported by the KD600 series?
A: The KD600 series covers a wide power range from 0.4kW up to 630kW, suitable for various industrial requirements.
Q2: Can this inverter be used for specialized applications like elevators or cranes?
A: Yes, the KD600 series is designed for heavy-duty applications and supports specific configurations for elevators, cranes, and textile industries.
Q3: Which communication protocols are compatible with the KD600?
A: It supports multiple protocols including MODBUS RS485, Profinet, Profibus, CANopen, and Ethercat through optional expansion cards.
Q4: Does the inverter include protection against electromagnetic interference?
A: Yes, the entire series is equipped with a built-in EMC C3 filter to ensure strong anti-electromagnetic interference capability.
Q5: What is the standard warranty period for this product?
A: The KD600 series comes with a standard 3-year warranty, reflecting our confidence in its durability and stable operation.
Q6: Is the keypad detachable for remote operation?
A: Yes, the series features a detachable keyboard which is highly convenient for customer debugging and external cabinet mounting.
