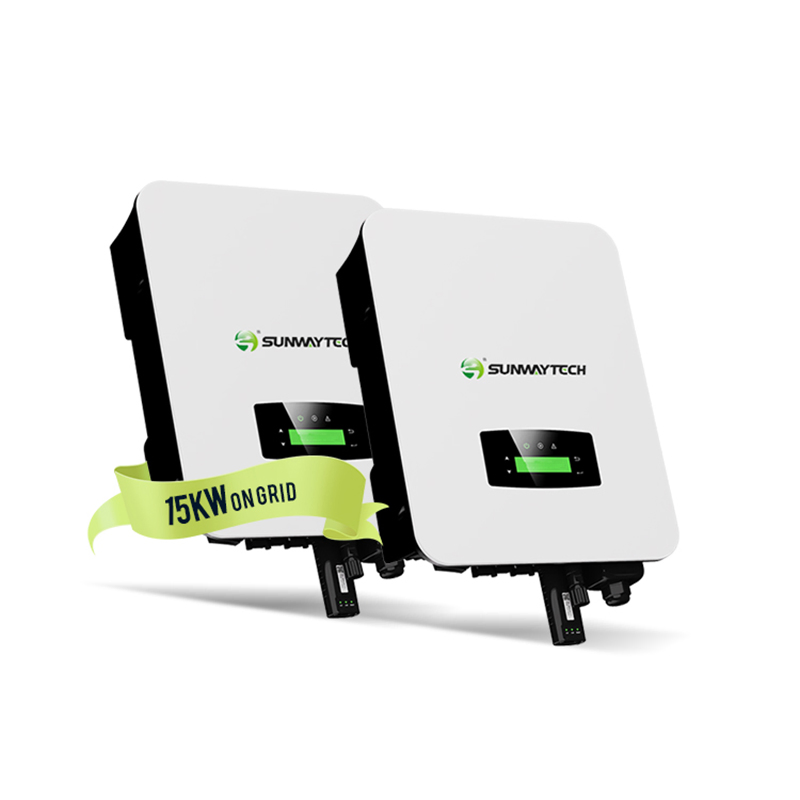

DC/AC Inverters Solar 15kw All in One Grid Tie Inverter with CE
DC/AC Inverters Solar 15kw All in One Grid Tie Inverter with CE
DC/AC Inverters Solar 15kw All in One Grid Tie Inverter with CE
DC/AC Inverters Solar 15kw All in One Grid Tie Inverter with CE
DC/AC Inverters Solar 15kw All in One Grid Tie Inverter with CE
1 / 5
DC/AC Inverters Solar 15kw All in One Grid Tie Inverter with CE
DC/AC Inverters Solar 15kw All in One Grid Tie Inverter with CE
DC/AC Inverters Solar 15kw All in One Grid Tie Inverter with CE
DC/AC Inverters Solar 15kw All in One Grid Tie Inverter with CE
DC/AC Inverters Solar 15kw All in One Grid Tie Inverter with CE

DC/AC Inverters Solar 15kw All in One Grid Tie Inverter with CE

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Overview
Grid Tie Inverter Overview
✔ The Three-phase string inverters are designed for residential and small commercial PV system applications, rating from 3kW to 25kW.
✔ All models feature unibody housings with an anodized aluminum structure, increasing durability and effectively preventing corrosion.
✔ Equipped with external inductors, the unibody housing ensures efficient heat dissipation, significantly improving reliability and extending the inverter's lifespan.
✔ Communication is implemented via Wi-Fi module (optional Ethernet / GPRS), allowing system status checks anytime and anywhere via online portal or APP.
Basic Information
Model NO.
SW15KTL3-EU
Phase
Three
Output Power
15kw
Certification
SAA, CE, ROHS, ISO9001, CCC
Type
DC/AC Inverters
Power Source
Solar Power
Protection Degree
IP 65
Material
Aluminum
MPPT Voltage
150-1000V
Weight
18kg
System Architecture

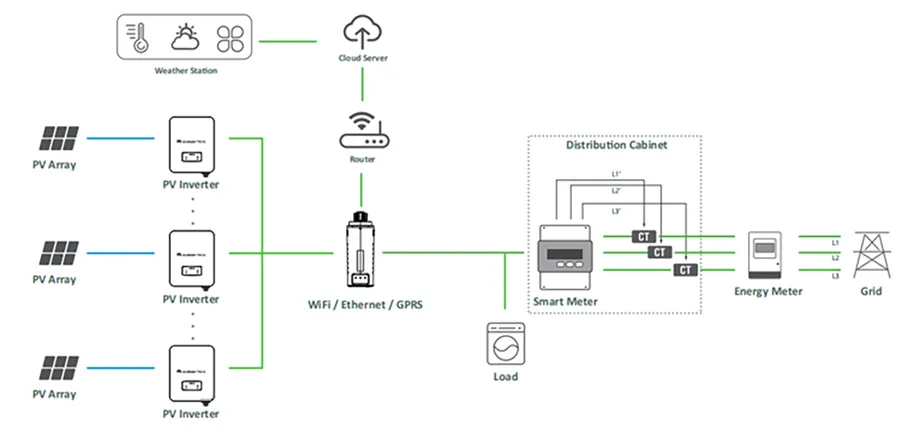

System Architecture Diagram
Detailed Photos

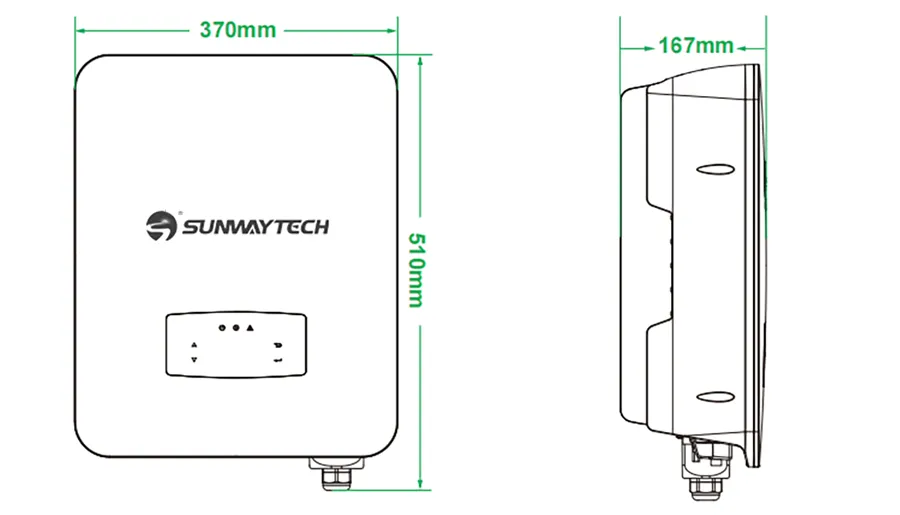

Inverter Detail 1

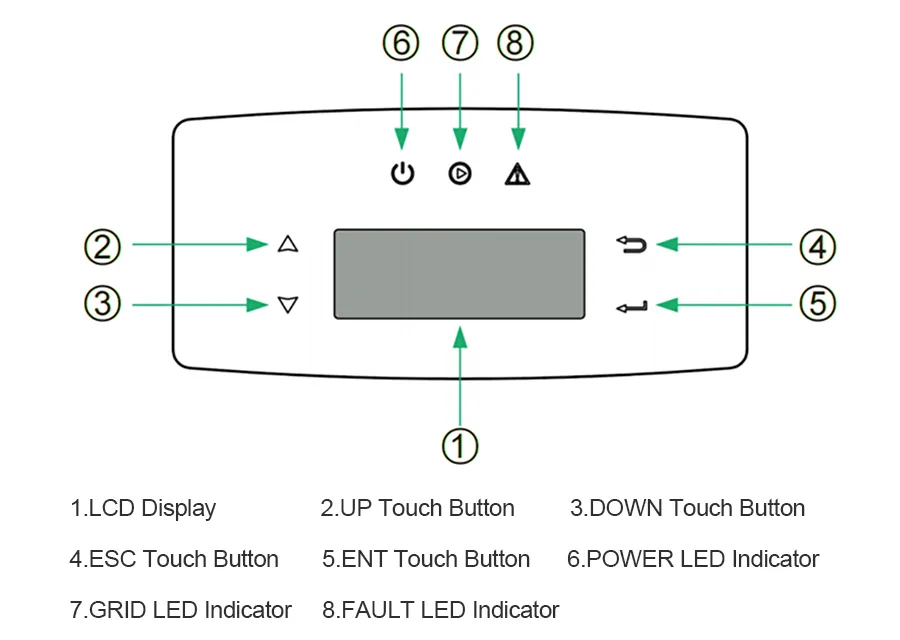

Inverter Detail 2

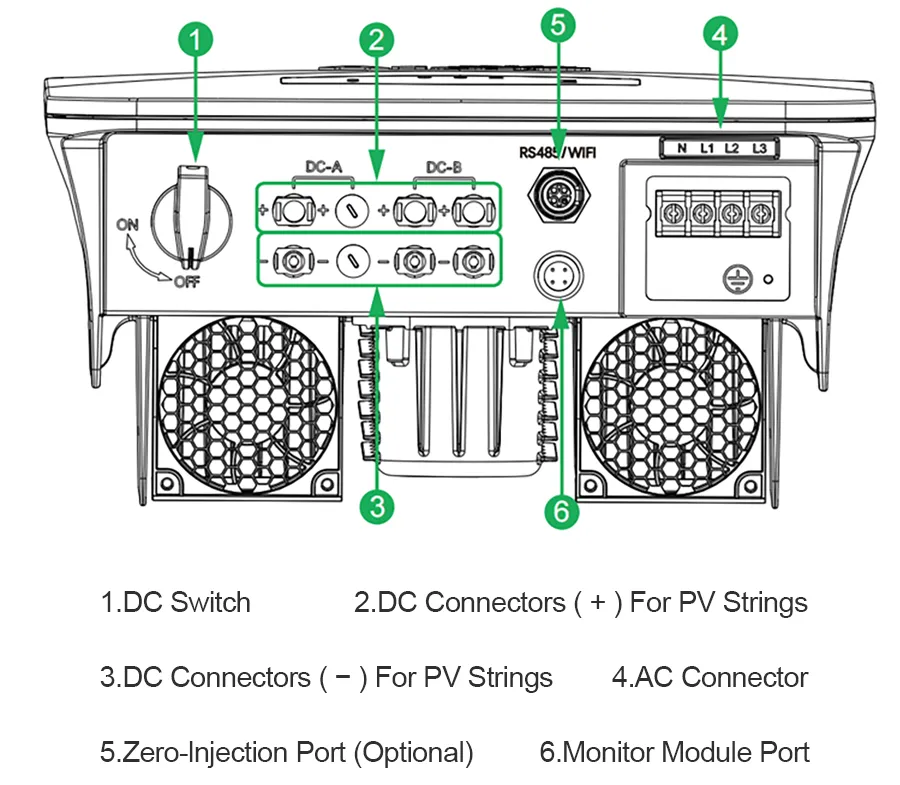

Inverter Detail 3
Product Parameters
PV Input Data SW10KTL3-EU SW15KTL3-EU SW20KTL3-EU SW25KTL3-EU
Max. DC Power (W)15000225003000037500
Max. DC Voltage(V)1100
MPPT Voltage Range(V)150 -1000
Rated Input Voltage (V)620
Max. Input Current (A)15x220+3232x2
No. of MPP Tracker2/22/32/4
AC Output Data
Nominal Output Power (W)10000150002000025000
Max. Output Current (A)17273240
Max. Efficiency98.70%98.75%
General Data
Protection DegreeIP65
Ambient Temp Range-25 to 60°C
Cooling ConceptIntelligent fan cooling
Production & Projects

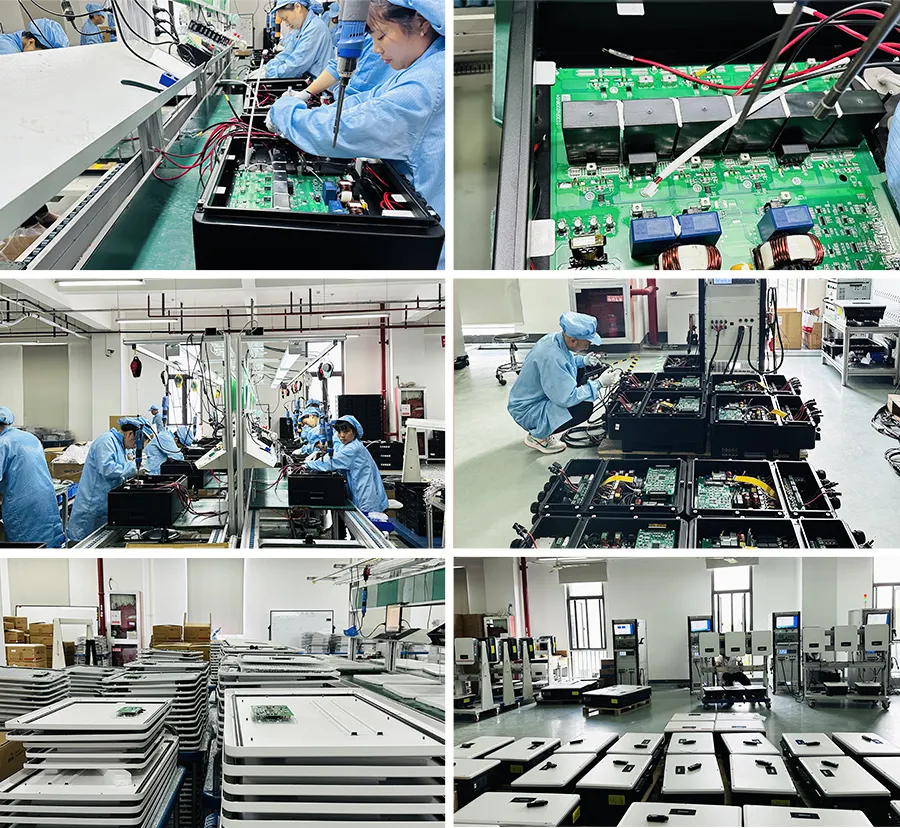

Factory Facility

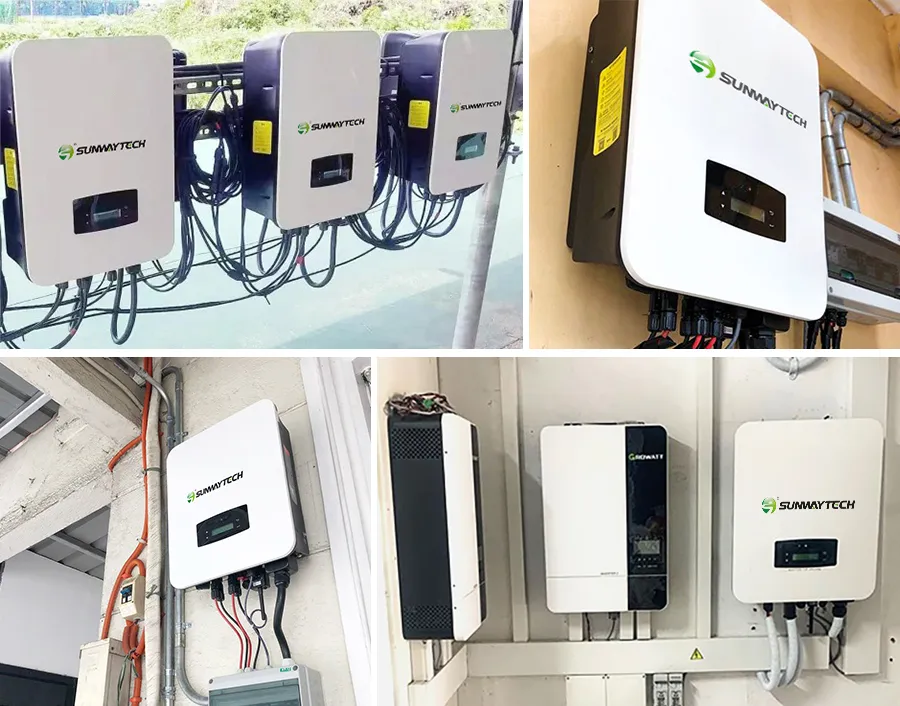

Project Case
Certifications
Product Certifications
Related Products
Solar Panel
Lithium Battery
EV Charger
Portable Power Station
Balcony Solar System
Battery Cell
Frequently Asked Questions
Q1: What is the power range for these three-phase inverters?
These inverters cover a wide power range from 3kW up to 25kW, making them suitable for both residential and small commercial PV applications.
Q2: How durable is the inverter housing?
The units are built with unibody housings made of anodized aluminum. This design provides high durability and excellent protection against corrosion in various environments.
Q3: What are the monitoring and communication options?
The system supports remote monitoring via a Wi-Fi module as standard, which can be substituted with Ethernet or GPRS. Users can check real-time status through an APP or online portal.
Q4: Does the inverter support outdoor installation?
Yes, the inverter has an IP65 protection degree, meaning it is dust-tight and protected against water jets, making it suitable for outdoor installation.
Q5: What is the maximum efficiency of these units?
The series offers high performance with a maximum efficiency of up to 98.75% and European efficiency ratings up to 98.35%.
Q6: How is heat dissipation managed in the unibody design?
The inverters use a combination of unibody aluminum housing and external inductors to ensure highly efficient heat dissipation, which prolongs the life of the internal components.
