Sriram Electricals
1 / 5
| Feature | Specification |
|---|---|
| Phase | Single |
| Output Power | 3kw-2000kw |
| Certification | CE, ISO9001 |
| Type | DC/AC Inverters |
| Power Source | Solar Power, Wind Power |
| Circuit Topologies | Half-Bridge Type |
| Nature of Wave String | Sine Wave Inverter |
| Input Grid AC Voltage | 380/400/415VAC 50/60Hz |
| Conversion Time | 20ms~1s |
| Operating Temperature | -10~60℃ |
| Relative Humidity | 30%~90% (Non Condensing) |
| Cooling Method | Forced Air Cooling |
| HS Code | 8504409999 |
| Production Capacity | 10,000 sets Per Year |

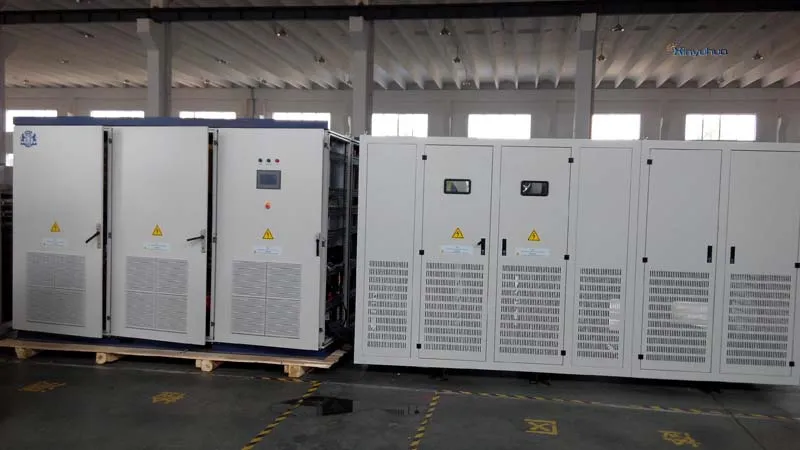

The bi-directional inverter converts DC to AC and AC to DC. It primarily controls battery charging and discharging, acting as the core equipment for grid-tied power systems with storage requirements. It can combine with string inverters to construct separated PV power systems.
Off Grid Inverter 3kw-20kw Three Phase
| Model | XYH-3000T | XYH-5000T | XYH-10000T | XYH-20000T |
| Rated Power | 3kw | 5kw | 10kw | 20kw |
| Battery Voltage | 48V | 48V | 96V | 192V |
| Output Voltage | Three-phase 380/400/415Vac | |||
| Efficiency | >90% | |||
| THD | Linear load < 3%; Non-linear < 5% | |||

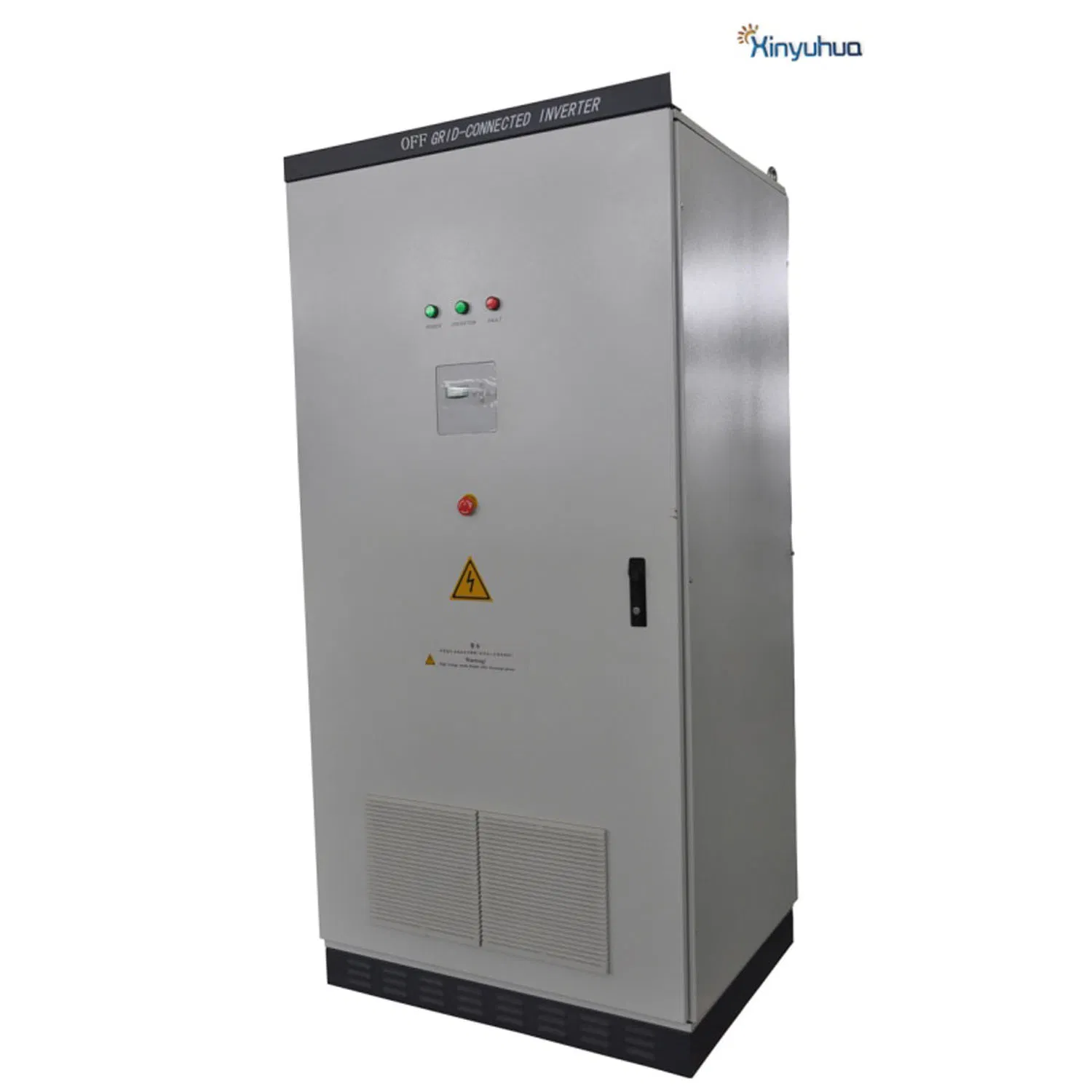

Off Grid Inverter 30kw-200kw Three Phase
| Model | XYH-30000T | XYH-60000T | XYH-100000T | XYH-200000T |
| Rated Power | 30kw | 60kw | 100kw | 200kw |
| Battery Voltage | 240V | 384V | 384V | 384V |
| Output Current | 45A*3 | 91A*3 | 151A*3 | 303A*3 |

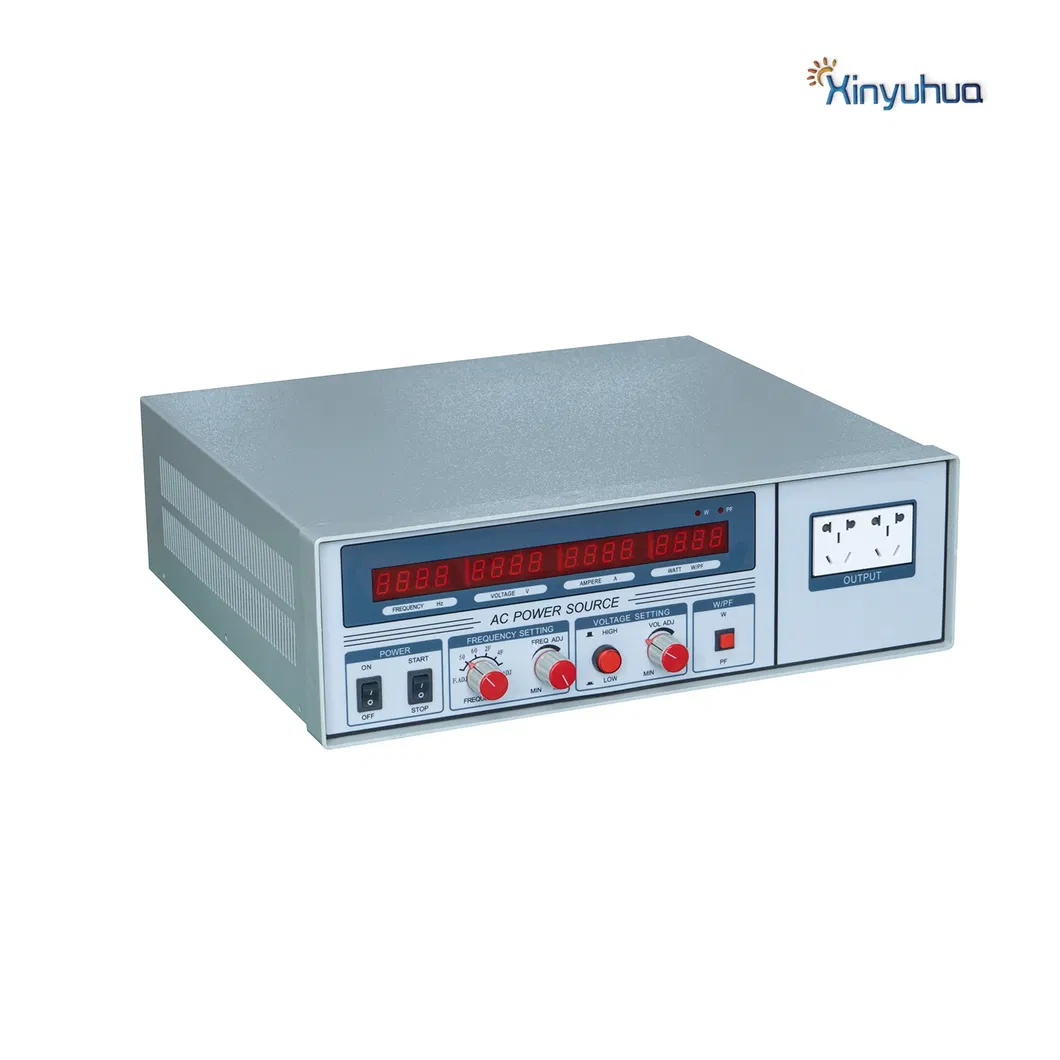

Static Frequency Converter: Provides pure stable sine wave power, 50Hz to 60Hz conversion, suitable for military and industrial testing.

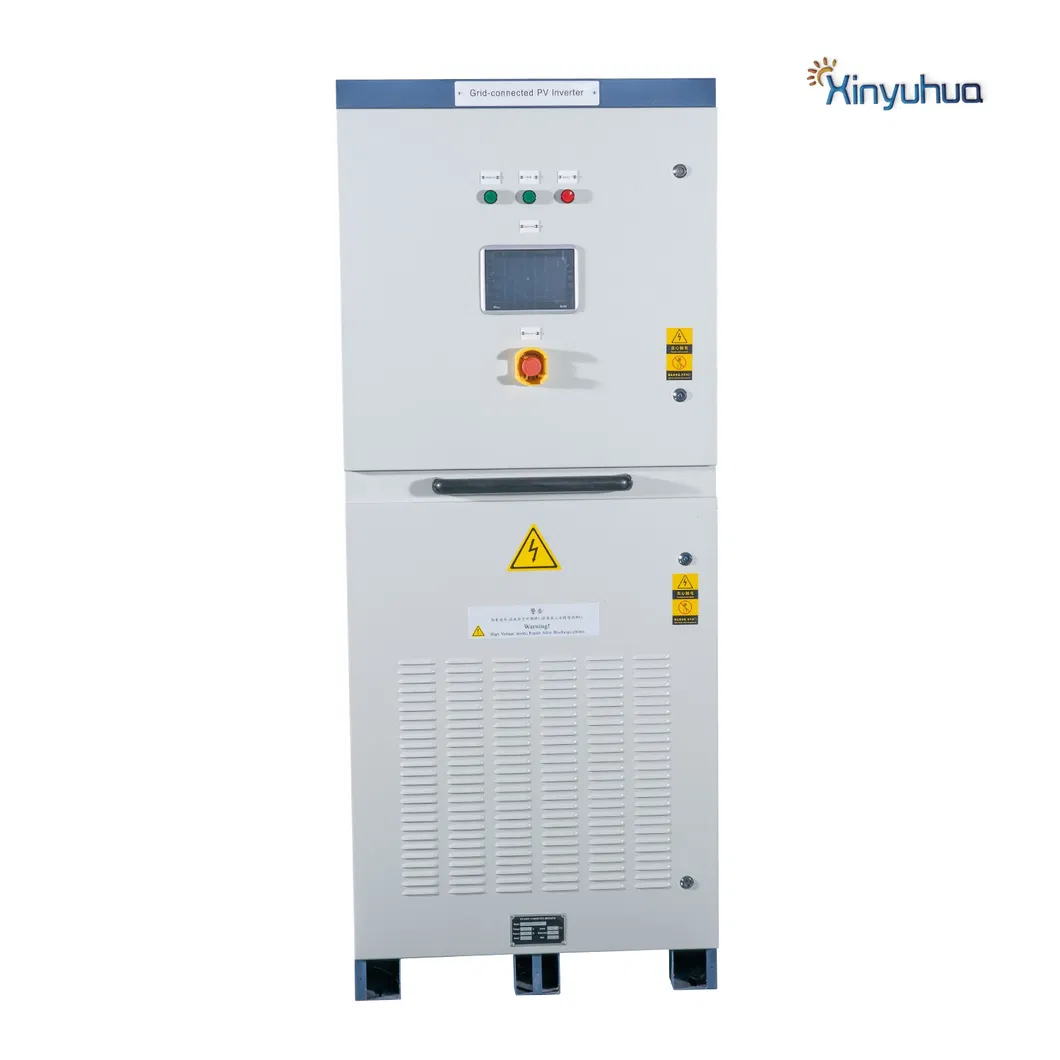

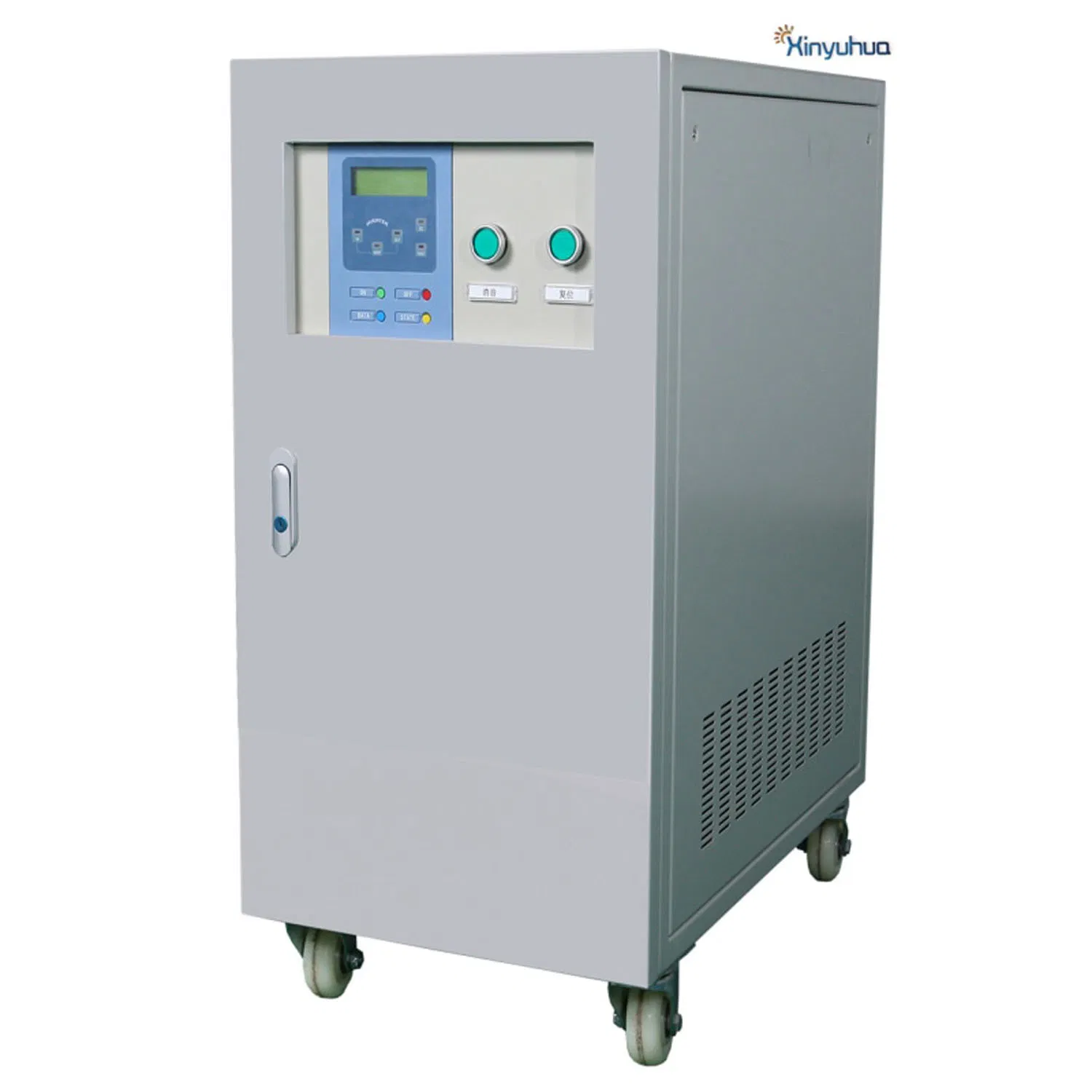

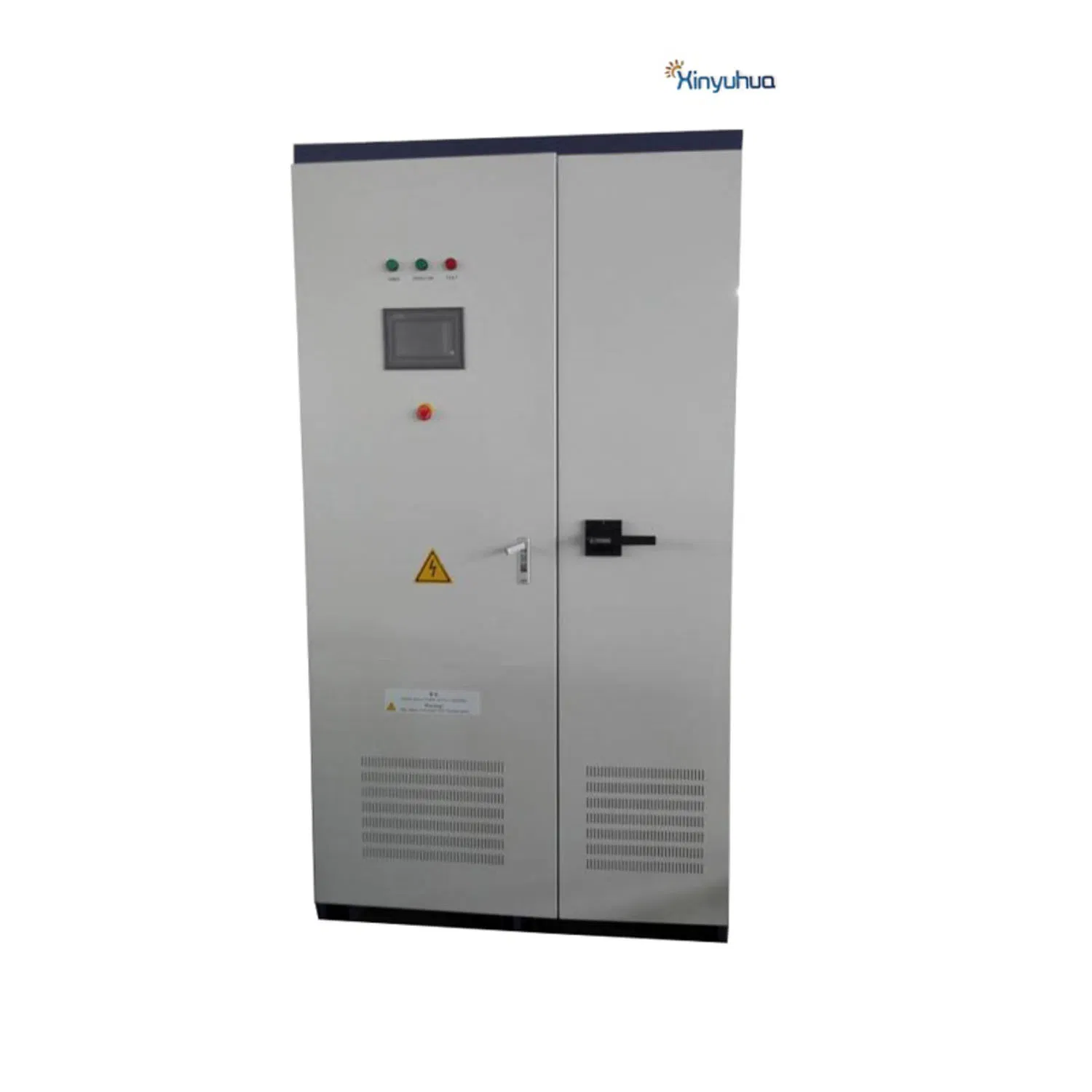

Solar Hybrid Inverter: Combines on-grid and off-grid functions with MPPT solar charging for uninterruptible power.

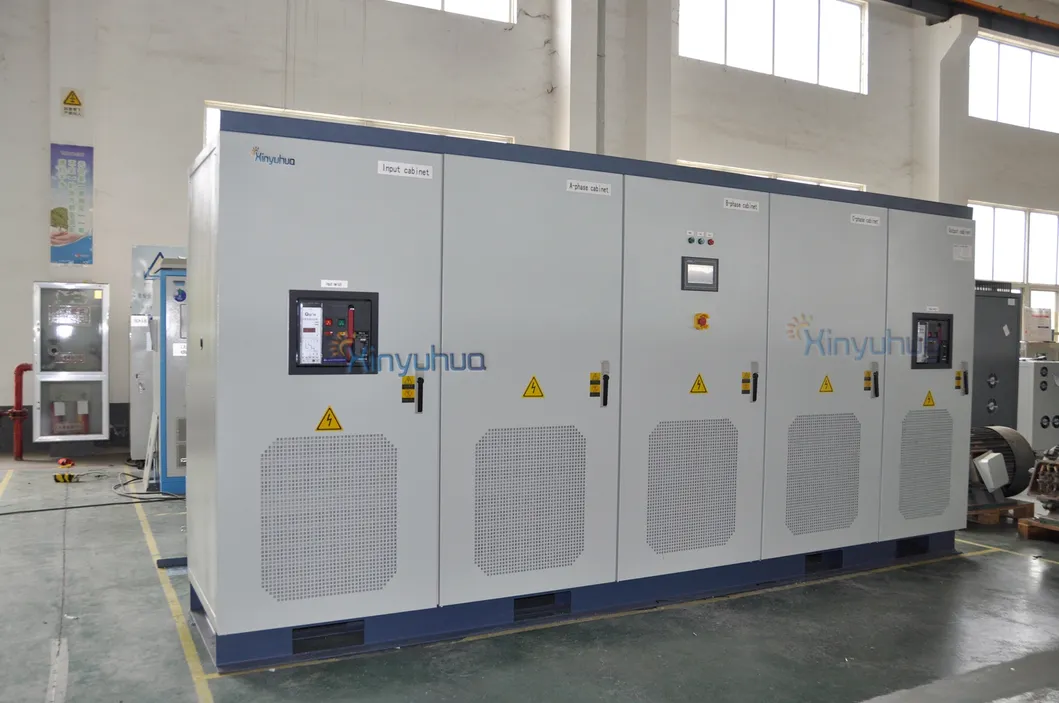

Hydro/Wind Power Grid Inverter: DSP chip controlled, Infineon IGBT modules, isolation transformer for high safety.

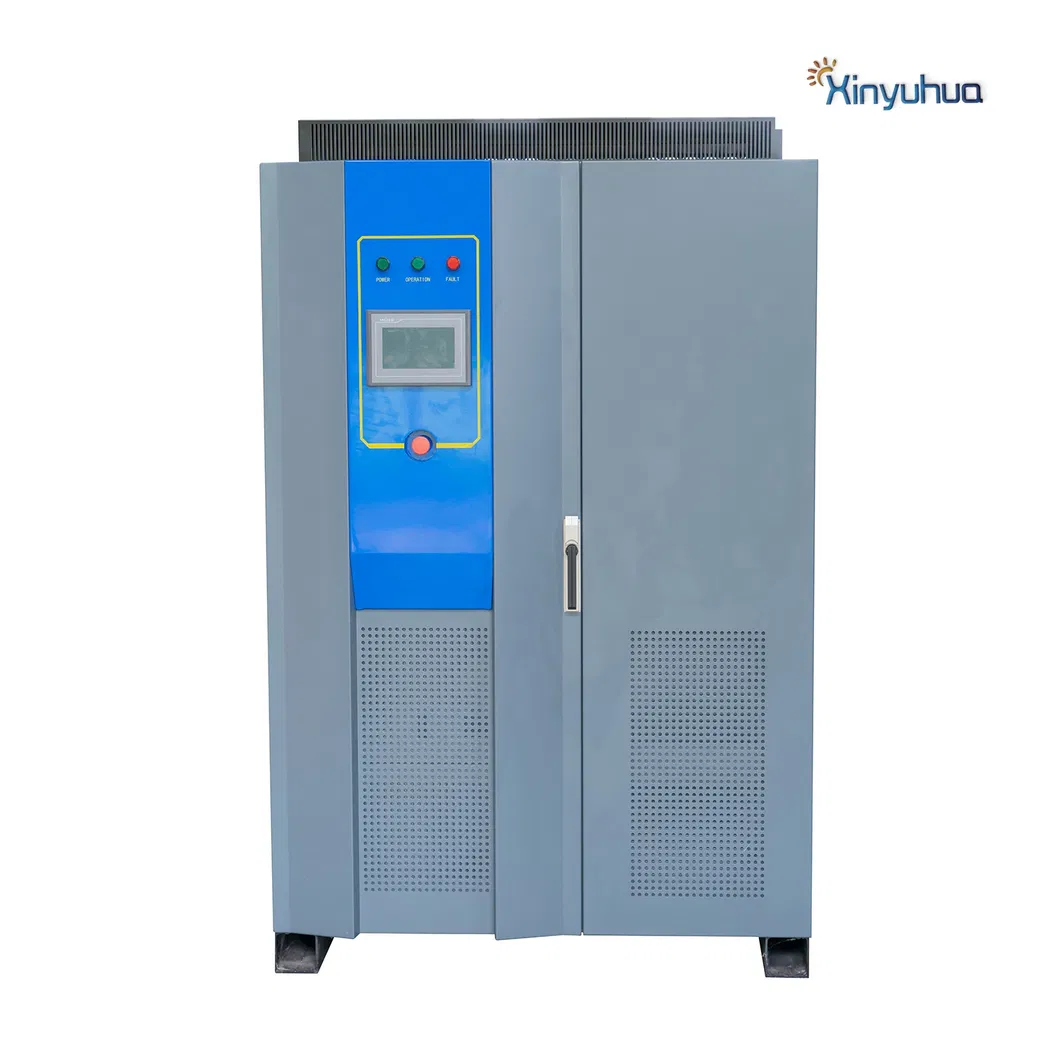

AFE Test Power Supply: High precision digital control for motor testing with energy feedback unit to save energy.
Our company focuses on low-carbon economy and green development, striving to be a first-class new energy enterprise. We provide clean energy solutions across industrial, civil, and military fields. Our marketing network covers more than 50 countries including Singapore, Germany, USA, and Australia.
