Sunpal Split Phase Off Grid 24V 48V Low Voltage 3KW 5KW Solar Inverter For Home Use
Sunpal Split Phase Off Grid 24V 48V Low Voltage 3KW 5KW Solar Inverter For Home Use
Sunpal Split Phase Off Grid 24V 48V Low Voltage 3KW 5KW Solar Inverter For Home Use
Sunpal Split Phase Off Grid 24V 48V Low Voltage 3KW 5KW Solar Inverter For Home Use
Sunpal Split Phase Off Grid 24V 48V Low Voltage 3KW 5KW Solar Inverter For Home Use
1 / 5
Sunpal Split Phase Off Grid 24V 48V Low Voltage 3KW 5KW Solar Inverter For Home Use
Sunpal Split Phase Off Grid 24V 48V Low Voltage 3KW 5KW Solar Inverter For Home Use
Sunpal Split Phase Off Grid 24V 48V Low Voltage 3KW 5KW Solar Inverter For Home Use
Sunpal Split Phase Off Grid 24V 48V Low Voltage 3KW 5KW Solar Inverter For Home Use
Sunpal Split Phase Off Grid 24V 48V Low Voltage 3KW 5KW Solar Inverter For Home Use

Sunpal Split Phase Off Grid 24V 48V Low Voltage 3KW 5KW Solar Inverter For Home Use

Customization: Available
After-sales Service: 3 Years
Warranty: 3 Years
Send Inquiry

Product Description

Basic Information

Model NO.
Sunpal-MHP 3000LV
Output Power
3KW
Phase
Split Phase
Power Source
Solar Power
Input Voltage
24-48VDC
Output Voltage
120V/240Vac
Output Waveform
Pure Sine Wave
MPPT Efficiency
98-99%
Battery Type
Lead Acid / Lithium / Gel
Protection
Overload

Product Description

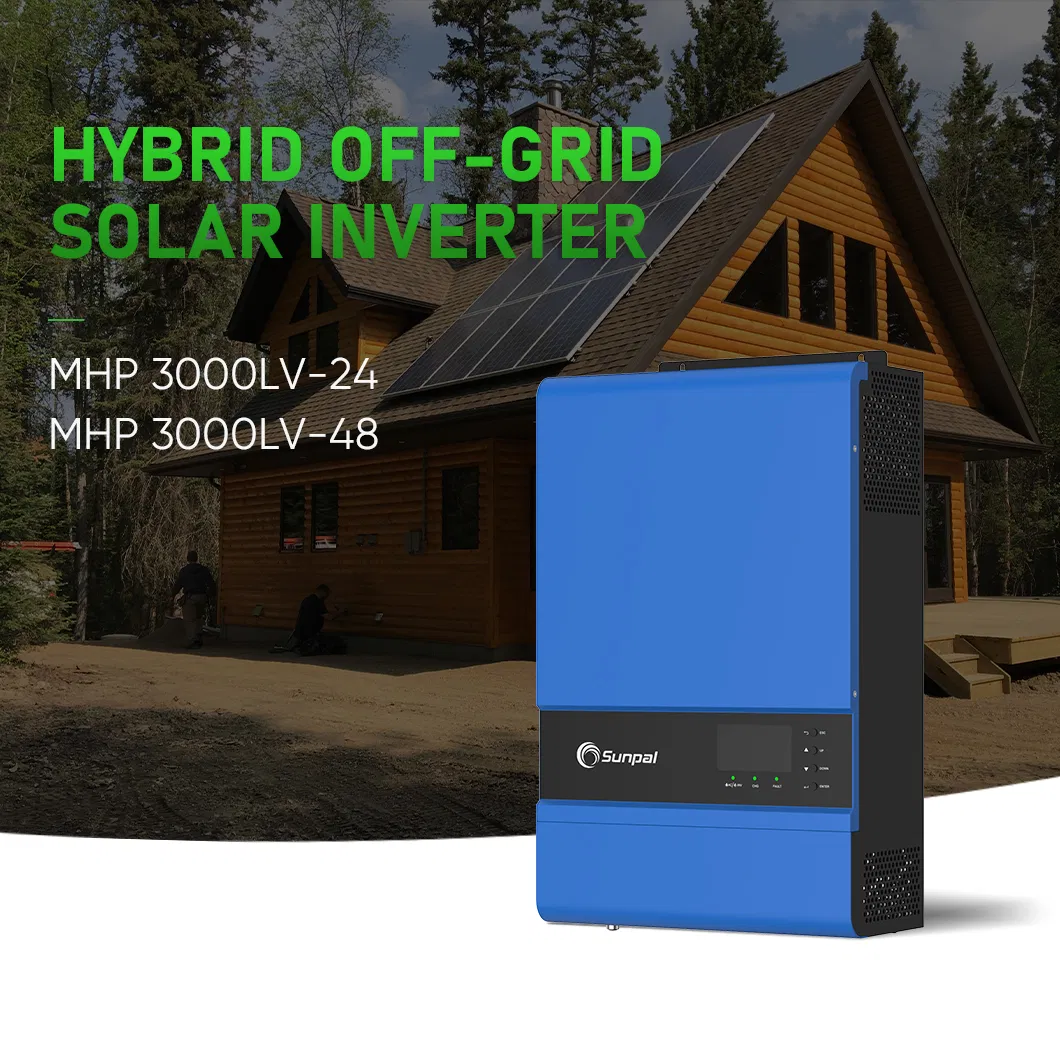

Solar Inverter Description
✔
Split Phase 120V/240V; Rated power 3KW
✔
Built-in MPPT solar charge controller
✔
Pure sine wave AC output
✔
Battery Voltage 24V/48V options
✔
Parallel operation up to 6 units
✔
WiFi/GPRS remote monitoring (optional)

Product Parameters

Model Sunpal-MHP 3000LV-24 Sunpal-MHP 3000LV-48
Rated Power3000VA / 3000W3000VA / 3000W
System DC Voltage24VDC48VDC
AC Voltage110/120VAC110/120VAC
Max. PV Array Power2000W4500W
Max. Solar Charge Current80A80A
Transfer Time10ms (Computers); 20ms (Appliances)
Peak Efficiency93%93%

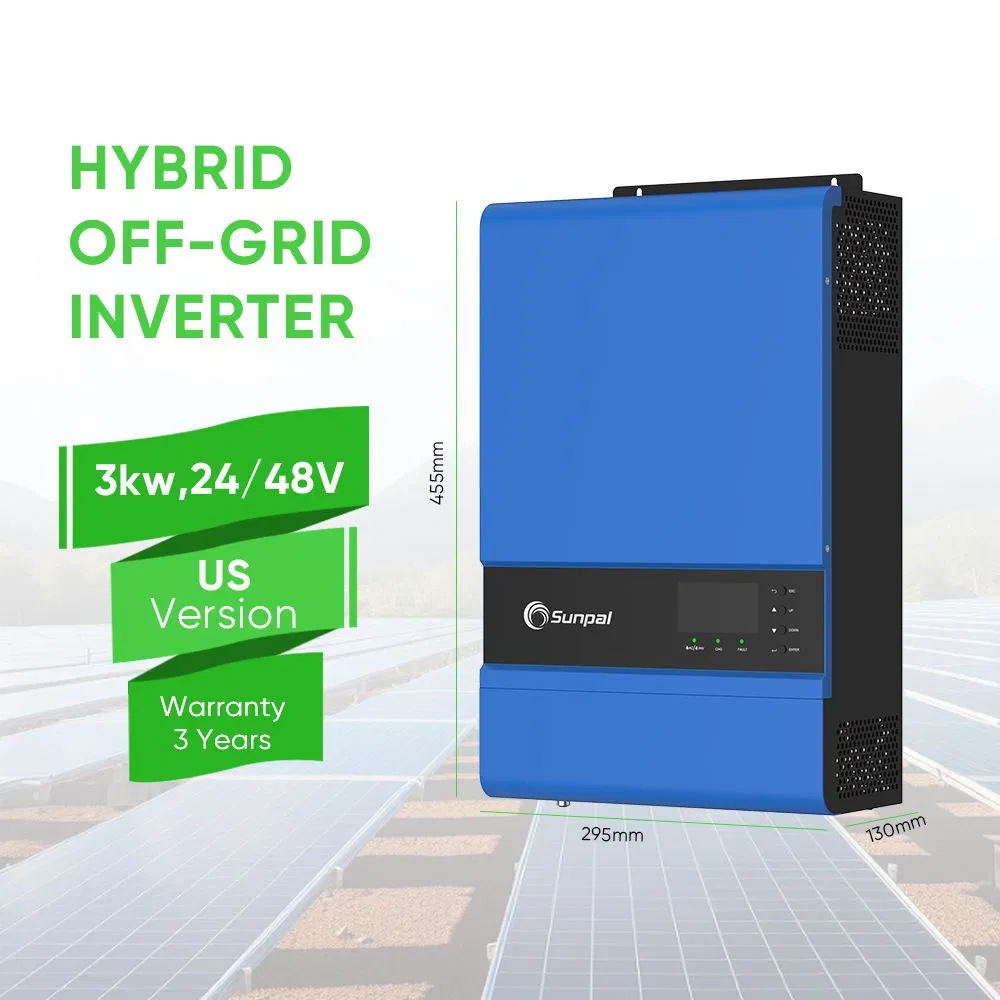

Dimensions455×295×130mm

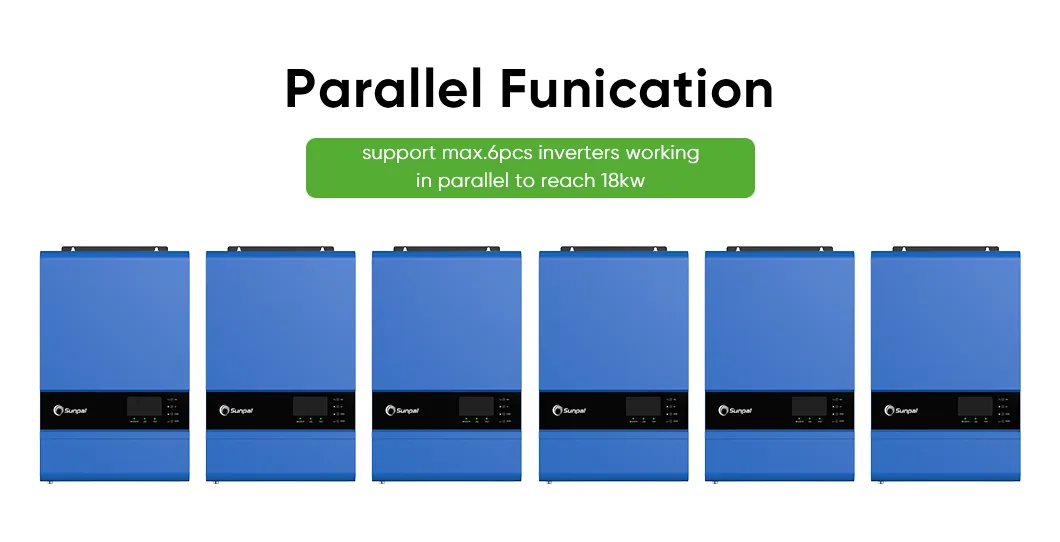

Parameter Details

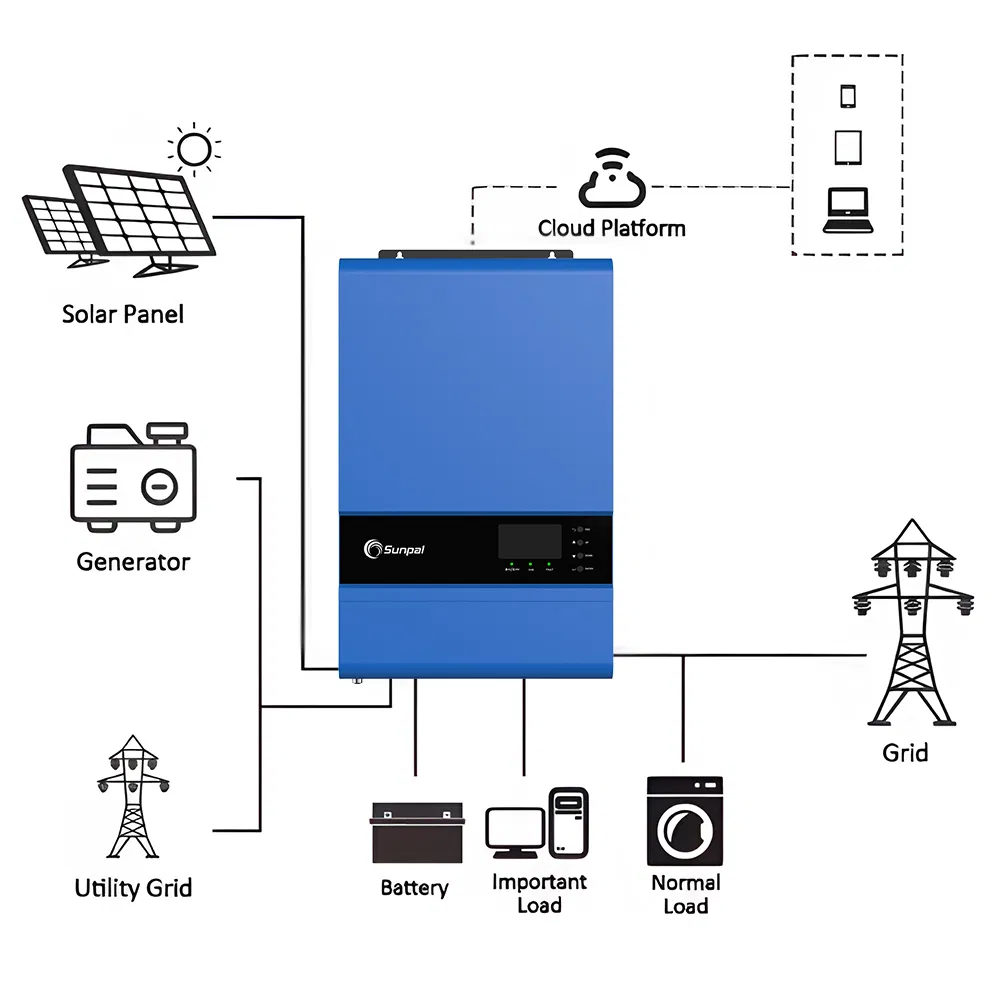

System Diagram

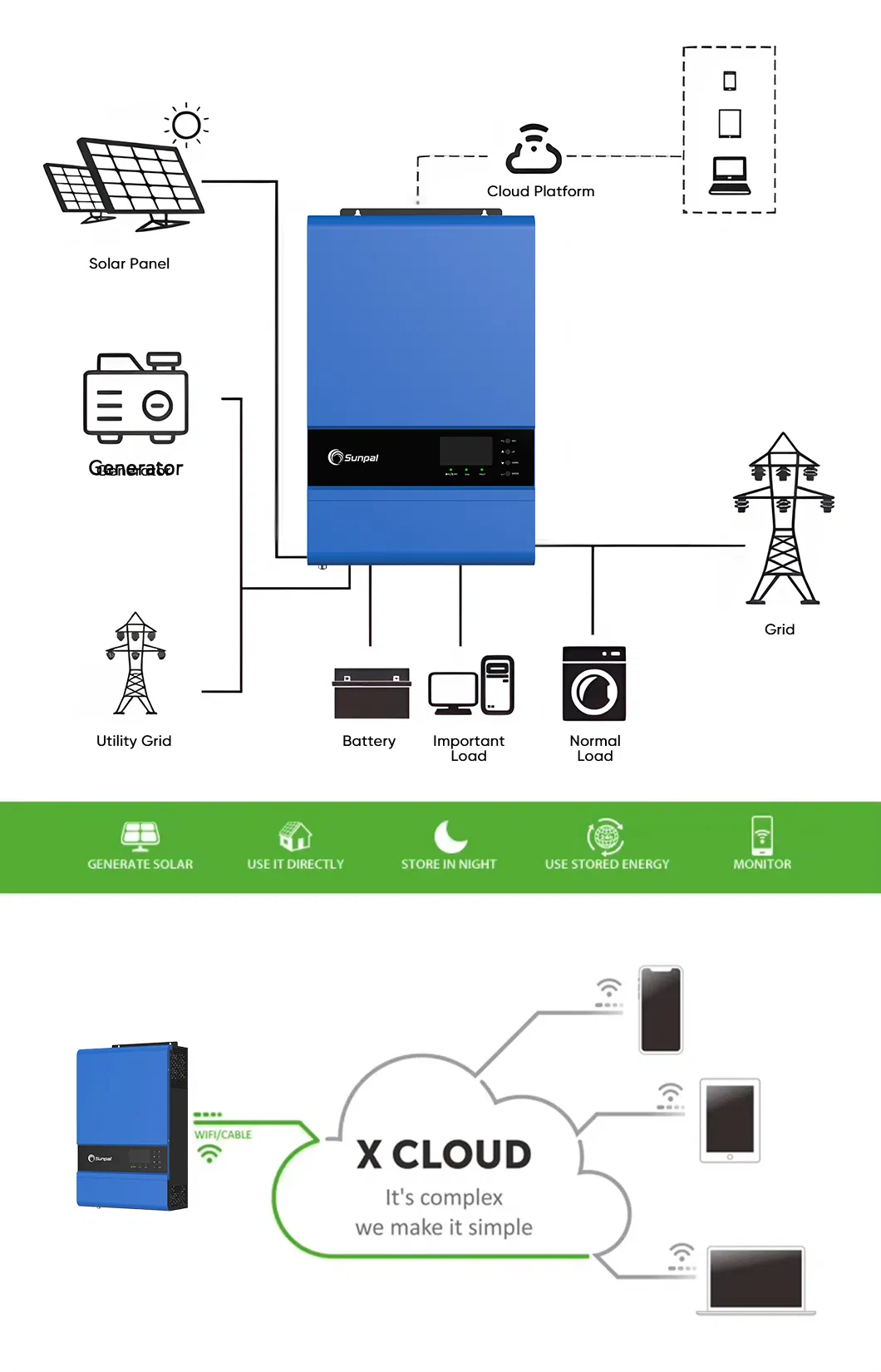

Diagram 1

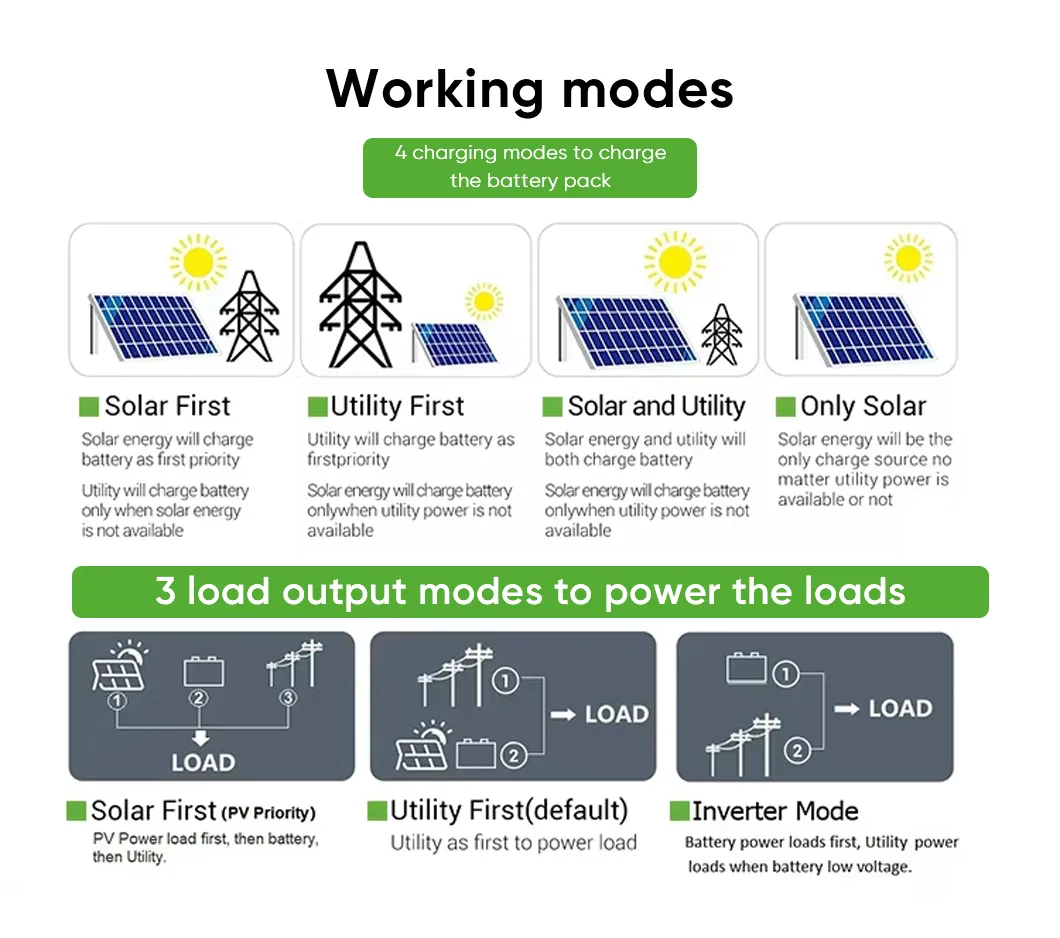

Diagram 2

This is a multi-function split phase US version inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation.

Packaging & Shipping

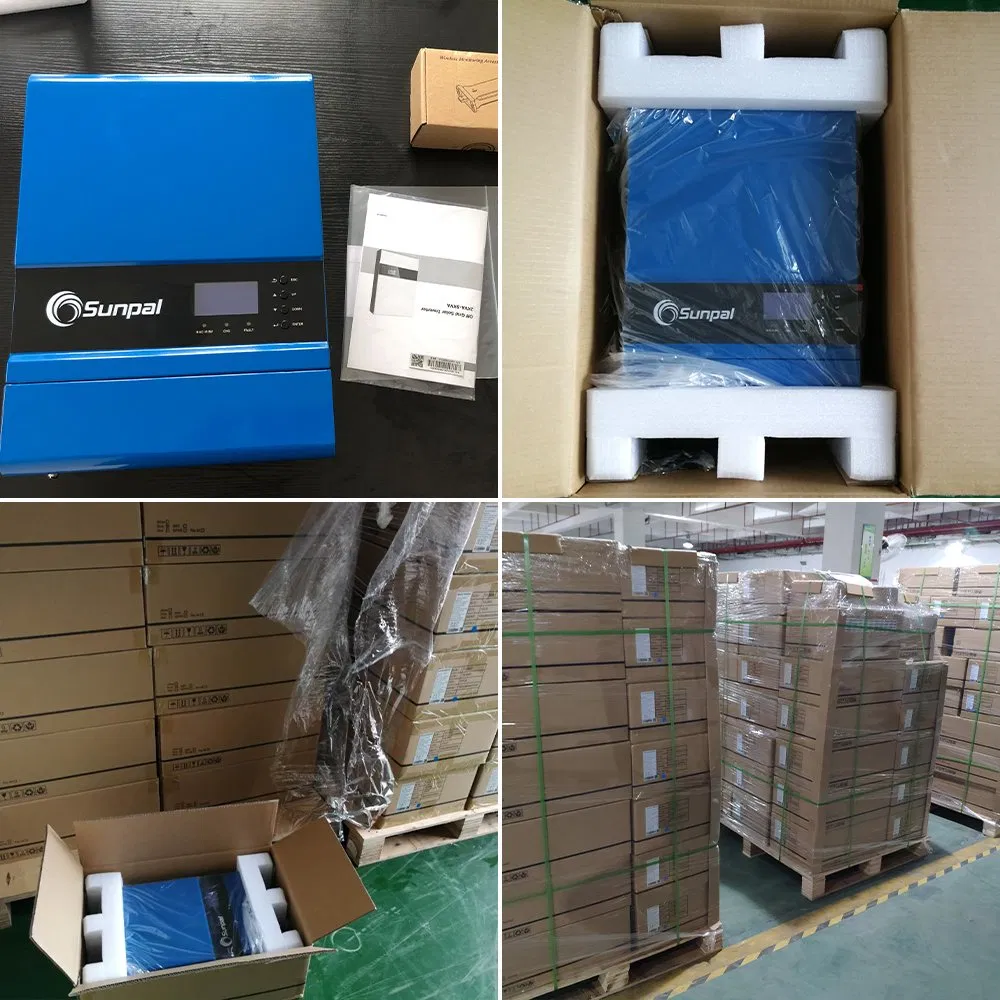

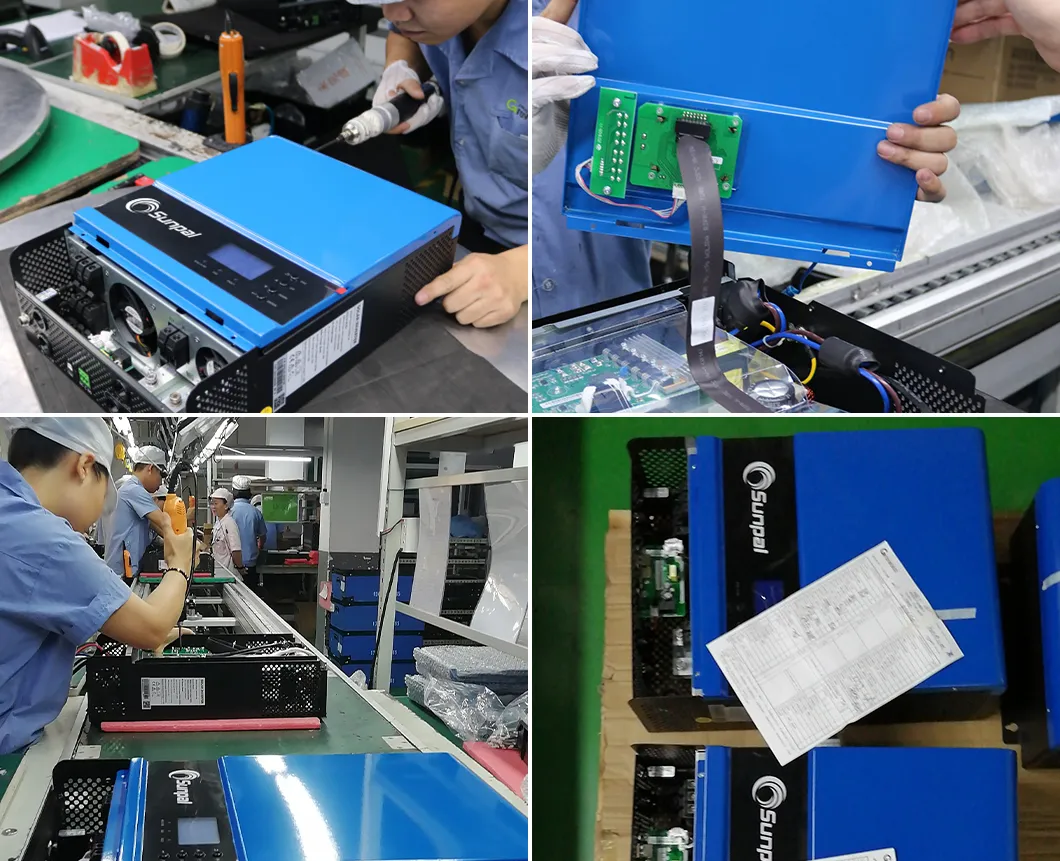

Packaging 1

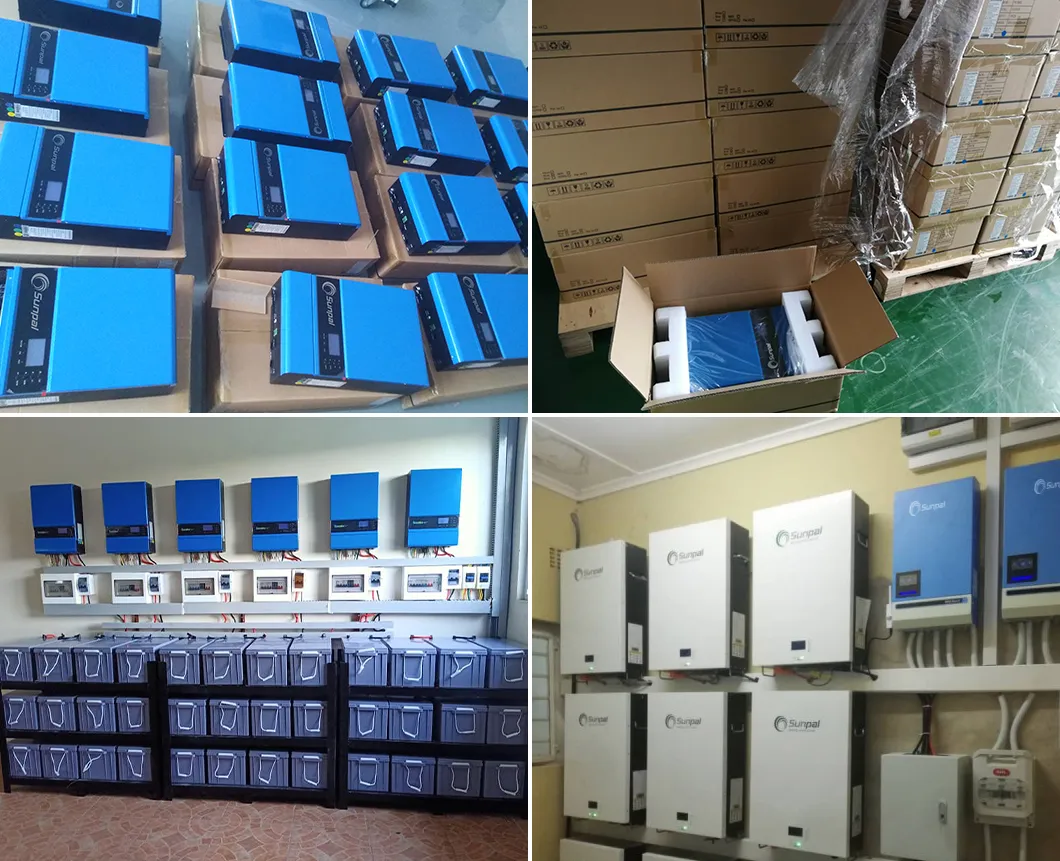

Packaging 2

Global Exhibitions

Exhibition 1
Exhibition 2

Frequently Asked Questions

What is the output voltage of this solar inverter?
The inverter provides a split phase output of 110V/120VAC, suitable for standard US low voltage applications.
How many units can be connected in parallel?
This model supports parallel operation for up to 6 units to increase power capacity.
What types of batteries are compatible?
The system is compatible with Lead Acid, Lithium, and Gel batteries.
Does it have a built-in solar controller?
Yes, it features a built-in MPPT solar charge controller with up to 99% efficiency.
Can I monitor the system remotely?
Yes, remote monitoring is available via optional WiFi or GPRS modules.
What is the transfer time between power sources?
It offers a fast transfer time of 10ms for personal computers and 20ms for standard home appliances.
