Factory Price 500W 1000W 1500W Home Portable Power Station Inverter for Solar Power System
Factory Price 500W 1000W 1500W Home Portable Power Station Inverter for Solar Power System
Factory Price 500W 1000W 1500W Home Portable Power Station Inverter for Solar Power System
Factory Price 500W 1000W 1500W Home Portable Power Station Inverter for Solar Power System
Factory Price 500W 1000W 1500W Home Portable Power Station Inverter for Solar Power System
1 / 5
Factory Price 500W 1000W 1500W Home Portable Power Station Inverter for Solar Power System
Factory Price 500W 1000W 1500W Home Portable Power Station Inverter for Solar Power System
Factory Price 500W 1000W 1500W Home Portable Power Station Inverter for Solar Power System
Factory Price 500W 1000W 1500W Home Portable Power Station Inverter for Solar Power System
Factory Price 500W 1000W 1500W Home Portable Power Station Inverter for Solar Power System

Factory Price 500W 1000W 1500W Home Portable Power Station Inverter for Solar Power System

Customization: Available
Nature of Source Flow: Active Inverter
Phase: Single
Send Inquiry

Product Description

Basic Specifications
Model NO.
N-ST
Output Power
300W-1000W
Certification
CE
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave
Sine Wave Inverter
Wave Form
Pure Sine Wave
Frequency
50Hz, 60Hz
Voltage
110V/120V, 220V/230V
Application
Electric Razor & Home Appliances
Capacity
60,000 PCS/Year
Off Grid Hybrid Solar Power Trolley
N-ST 300-1000W
Key Features
🚀 Off Grid Hybrid Solar Power Trolley (300W/500W/1000W)
🛠️ 4 in 1 design: Inverter + Power Charger + Solar Controller + Battery
🔋 Internal 55Ah/110Ah/220Ah/400Ah with Extension Battery terminal options
🔌 Output Pure sine wave AC, 5VDC USB Charger, and 12VDC for lamps
⚡ Plug and play solution with AC/DC output switches and battery input switch
🛞 Easy mobility with integrated wheel design
📊 LCD and LED Display with comprehensive Alarm Function
📉 Power saver function (Stand-by) with toroidal transformer for low no-load consumption
🔄 Selectable Grid power priority or Solar Power priority
🛡️ UPS design with 10ms auto transfer and comprehensive circuit protection
Technical Specifications
Model NST55-300 NST55-500 NST110-500 NST110-1000 NST220-500 NST220-1000 NST400-500 NST400-1000
AC Output Rated Power(W) 300 500 500 1000 500 1000 500 1000
Voltage(VAC) 220V or 110V (Configurable)
Wave Form Pure Sine Wave
Battery Bank Voltage 12VDC 24VDC 24VDC 24VDC
Internal Battery 1*GEL55AH 2*GEL55AH 4*GEL55AH 2*GEL200AH
Solar Controller Max Current PWM 30A
DC Output USB Output 2 Ports / Max 2A
12VDC Ports 2 Ports / Max 2A
Operating Temp -20℃ to +50℃
G.W (with Battery) 26.7kg 28.4kg 42.9kg 47.6kg 76.9kg 82.2kg 161kg 171kg
Product Display

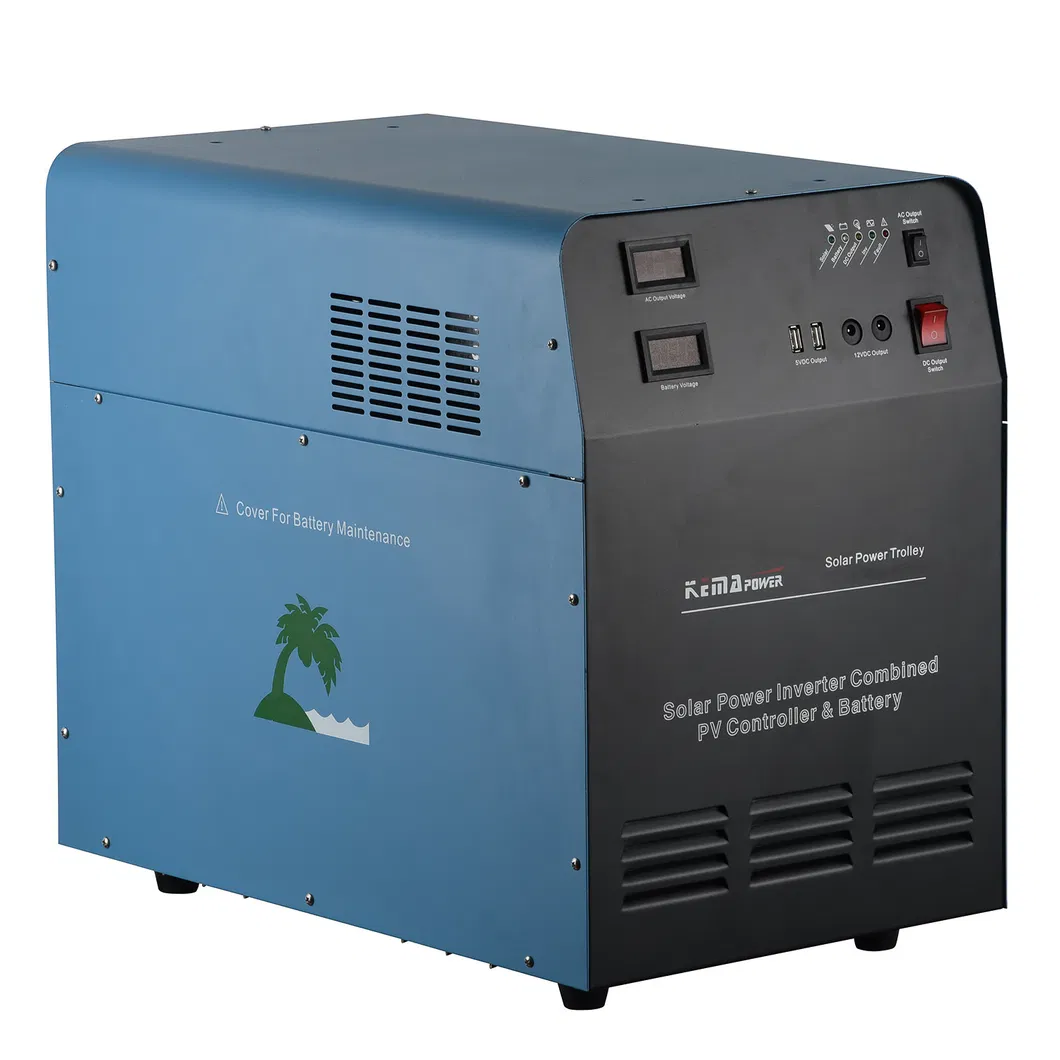

Solar Power Trolley View 1

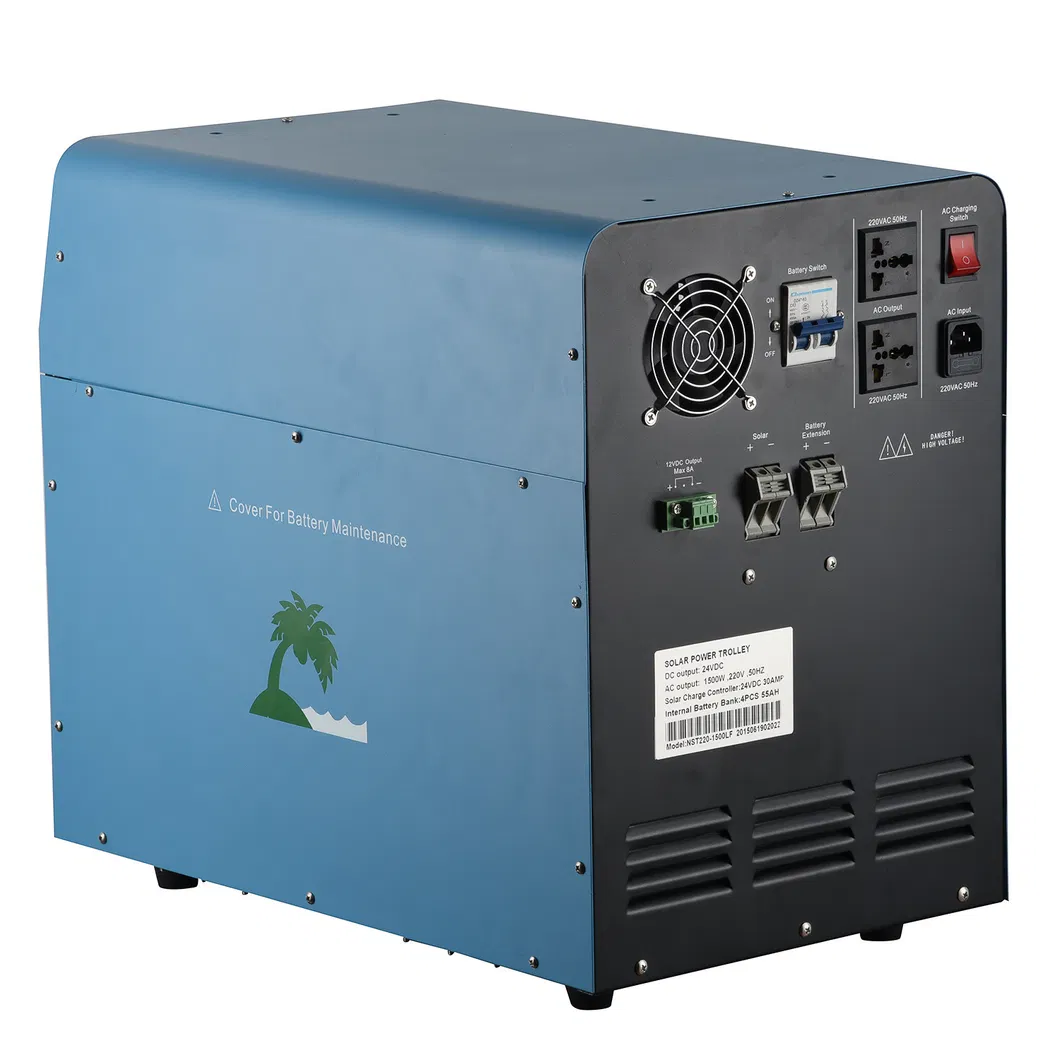

Solar Power Trolley View 2

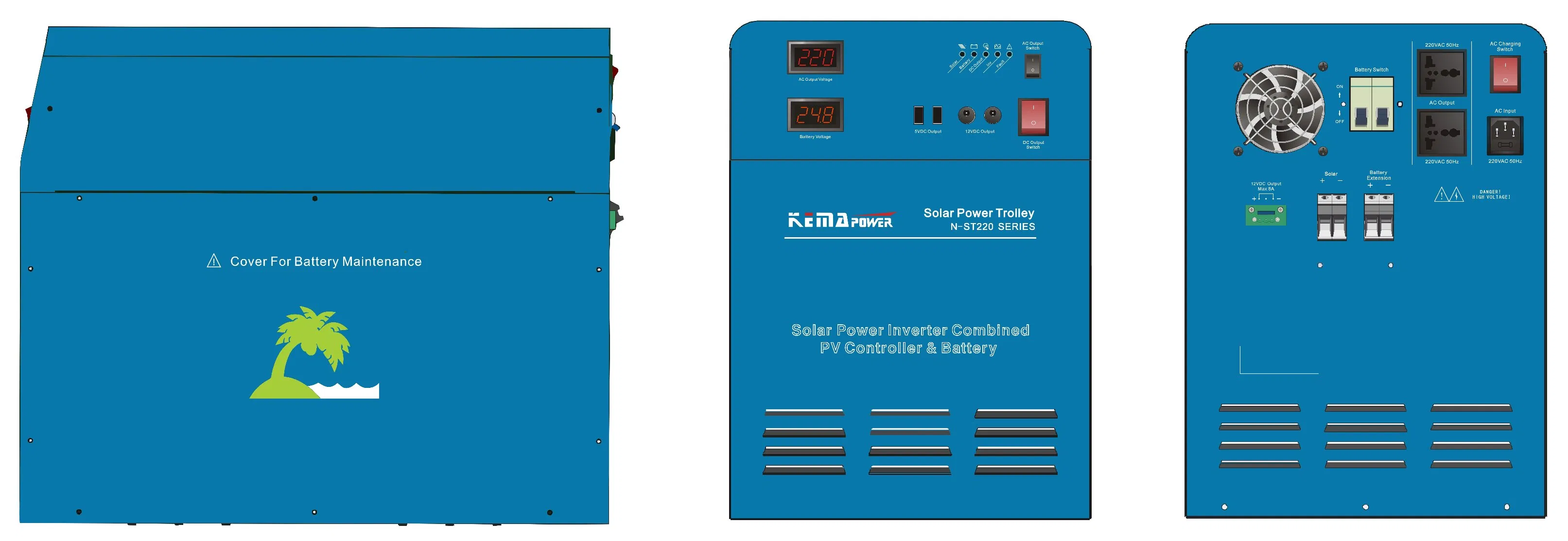

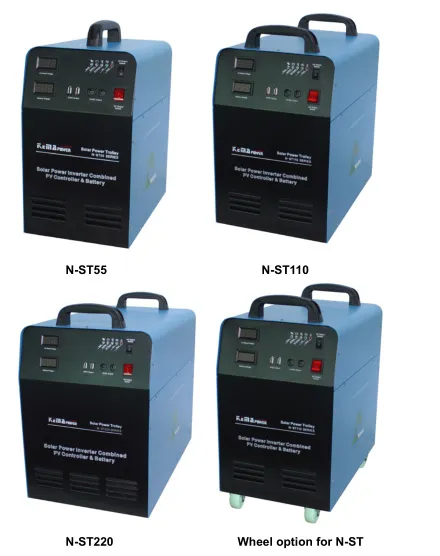

Solar Power Trolley Detail

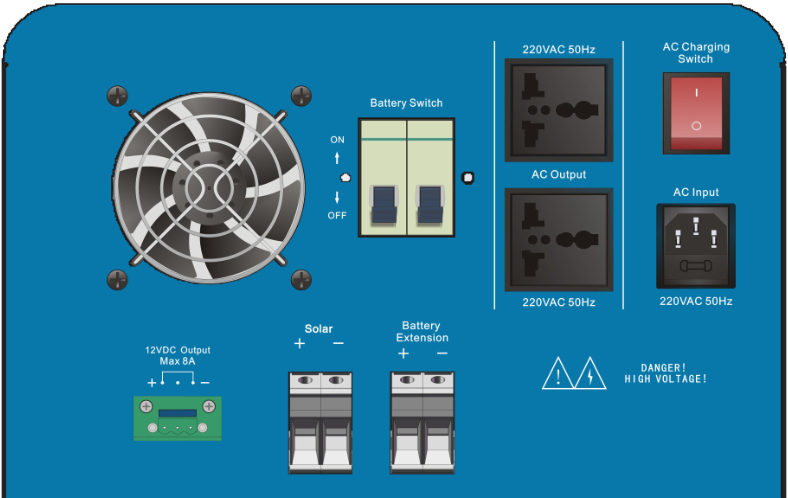

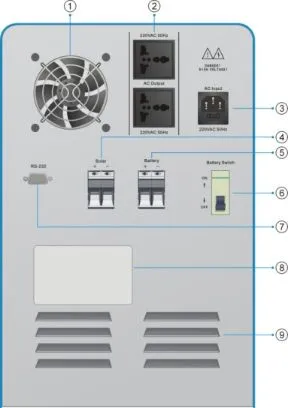

Rear Interface
Rear Panel Components:
1-Fan | 2-AC Output (Max 10A) | 3-AC Input
4-Solar module input terminals | 5-External battery terminals
6-Built-in battery switch | 7-RS232 port
8-Model stickers | 9-Heat dissipation window

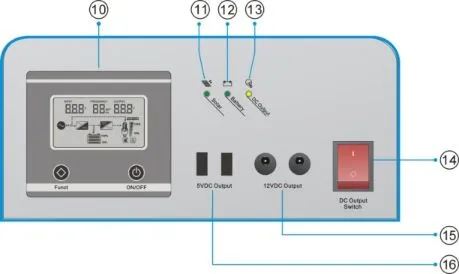

Front Interface

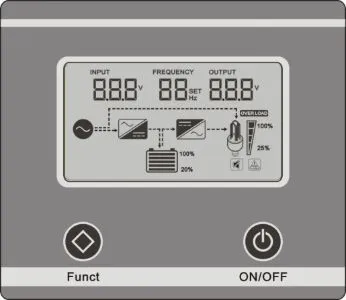

Front Control Panel:
10-Inverter LCD Display | 11-Solar input indicator
12-Battery mode indicator | 13-DC Output indicator
14-USB/12VDC ON/OFF switch | 15-12VDC terminal
16-5VDC-USB output terminal

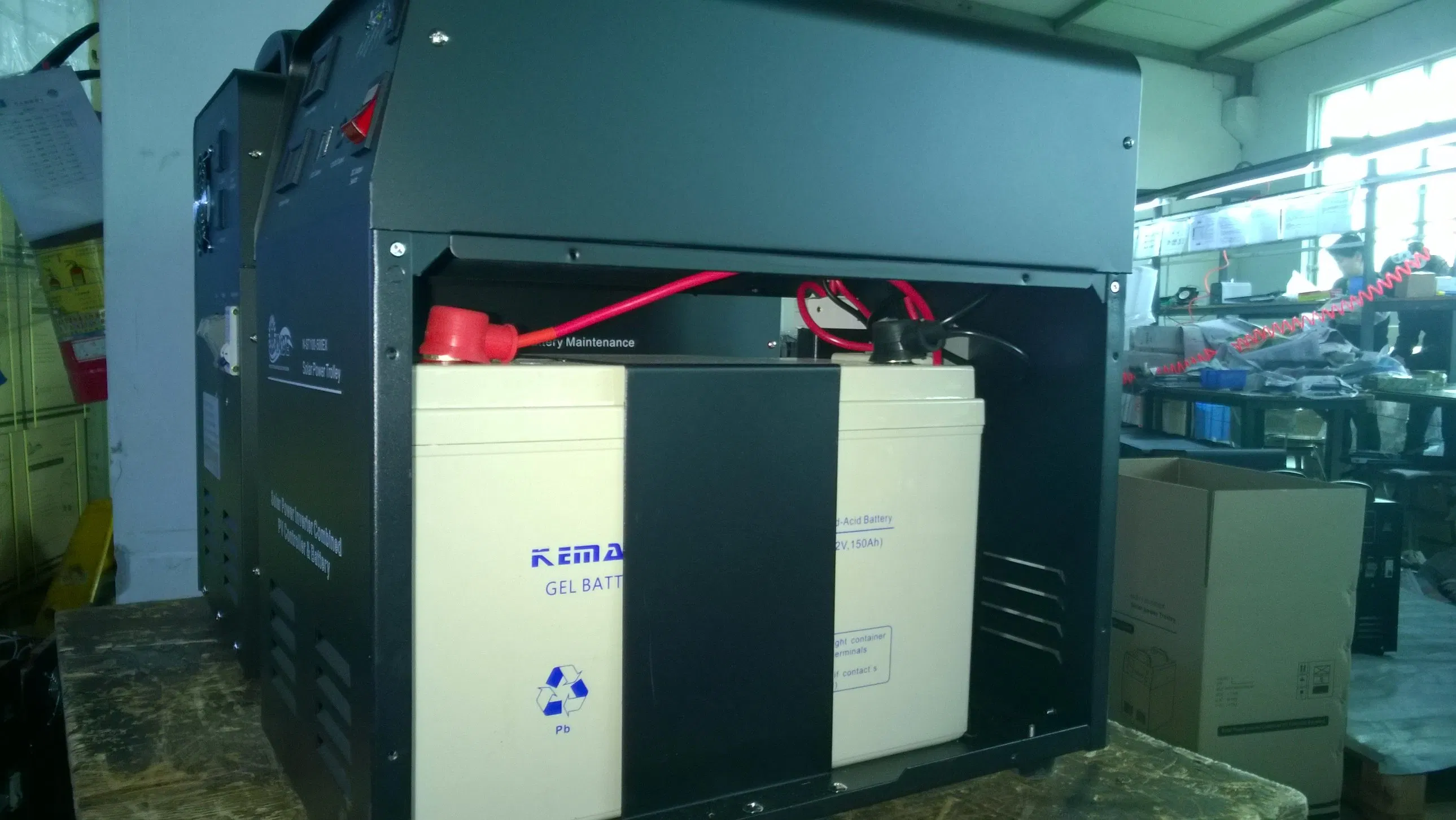

Internal Structure
Wheels Detail
Technical Info Graphic 1 Technical Info Graphic 2 Technical Info Graphic 3 Technical Info Graphic 4
Frequently Asked Questions
What is the transfer time for the UPS function?
The system features an automatic transfer time of 10ms, ensuring uninterrupted power for your connected devices during a grid failure.
Can I connect external batteries to this trolley?
Yes, the system is designed with external battery input terminals as an option, allowing you to extend the backup time according to your needs.
Which power source does the system prioritize?
The system offers selectable priority settings. You can choose either Grid power priority or Solar power priority through the operation interface.
What kind of maintenance does the battery require?
The system uses high-quality internal GEL batteries, which are generally maintenance-free and designed for long-cycle life in solar applications.
Does it support USB device charging?
Yes, the front panel includes 2 USB ports with a maximum output of 2A, perfect for charging smartphones, tablets, and other 5VDC devices.
Is the output safe for sensitive electronics?
Absolutely. The inverter provides a Pure Sine Wave AC output, which is the cleanest form of power and safe for all sensitive electronic equipment.
