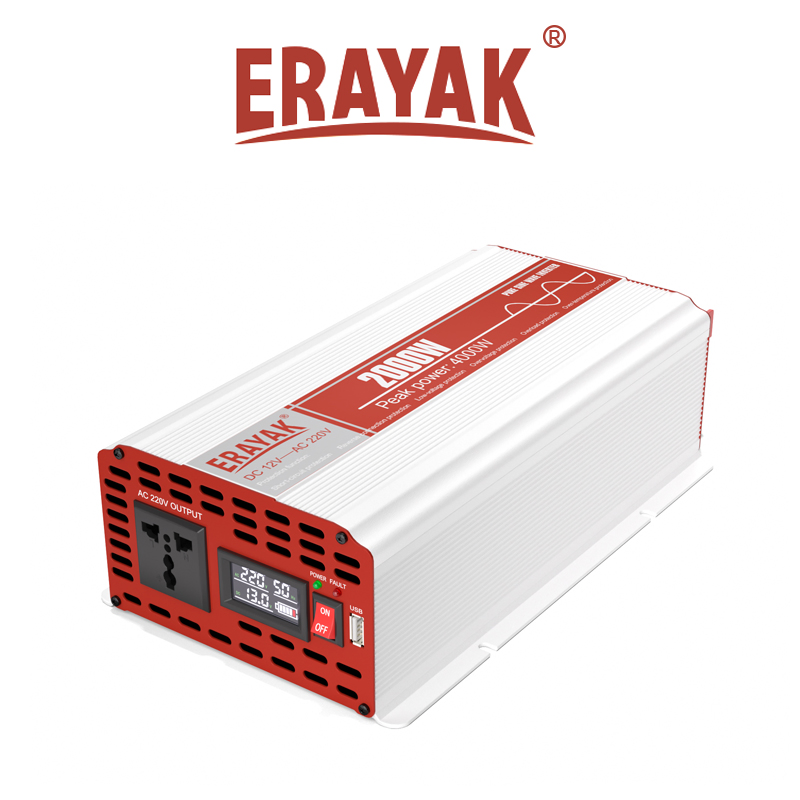

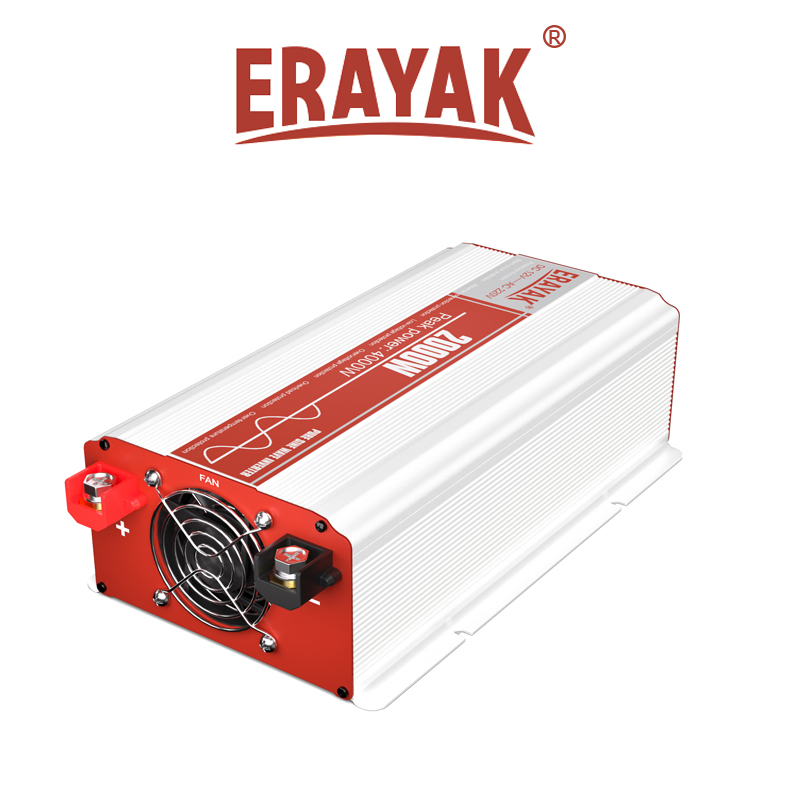

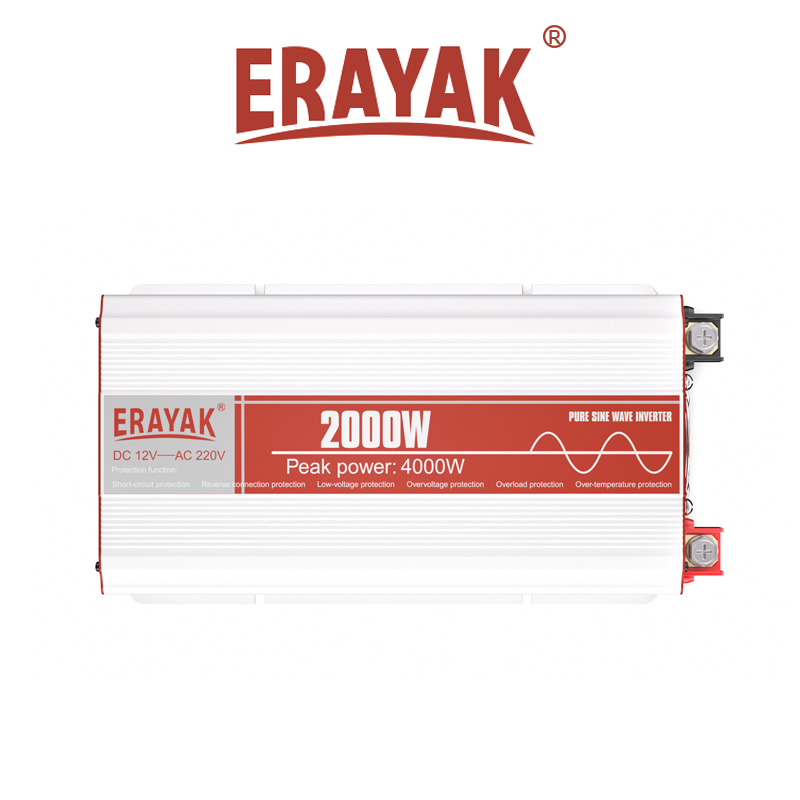

The SW-2000U is a professional grade 2000 watts pure sine wave inverter providing up to 4000 watts of peak power. It allows you to power office equipment and most household appliances such as TVs, Fans, and mini fridges right from your car, truck, RV, or boat.
Model NO.
SW-2000U
Output Power
>1000W
Grid Type
off-Grid Inverter
Output Type
Single
Circuit Topologies
Full-Bridge Type
Nature of Wave
Sine Wave Inverter
Type
DC/AC Inverters
Continuous Power
2000W
Peak Power
4000W
Efficiency
100% Output
Protection
Over Load, Over Temperature, Short Circuit...
Specification
294.1*172*89.5mm

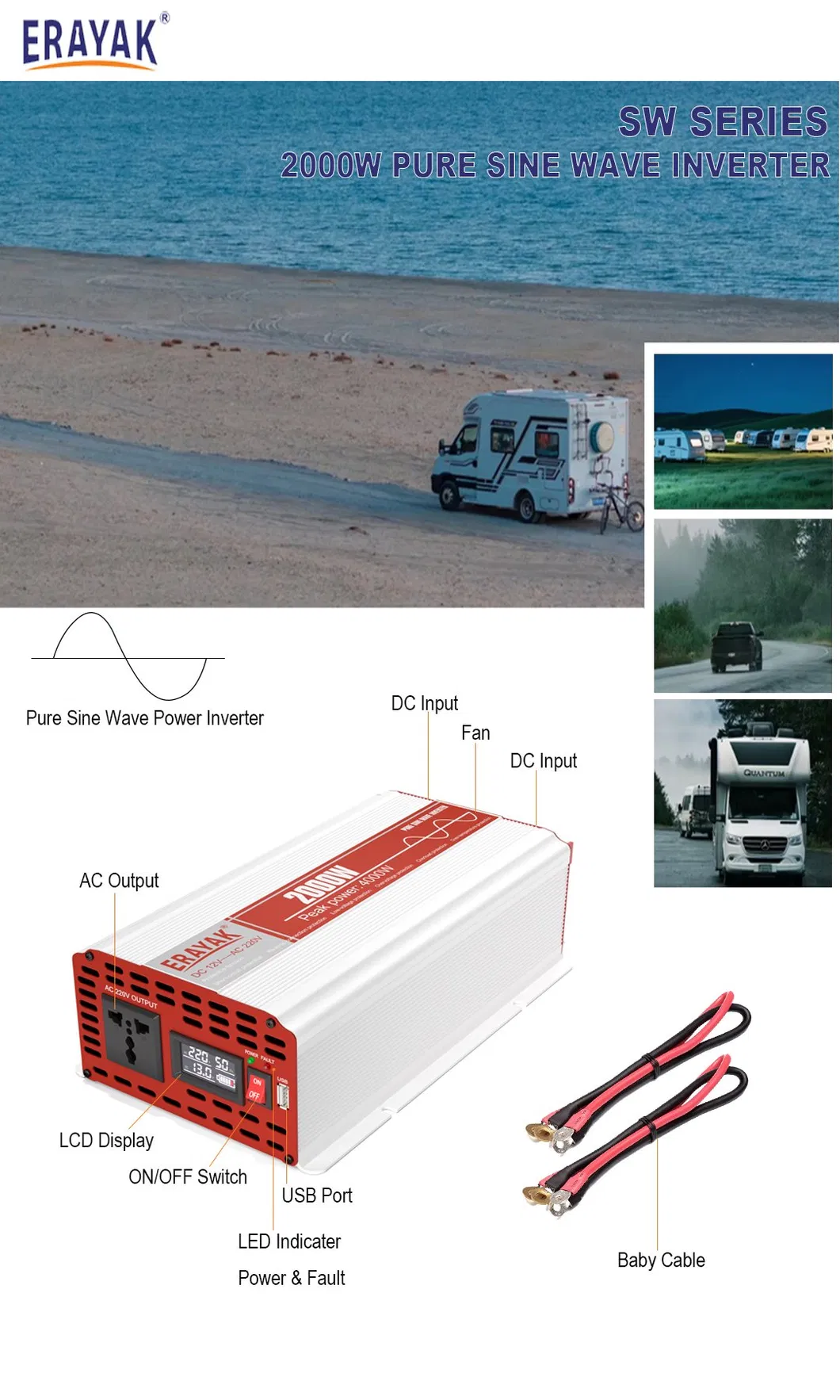

Product Features
Pure sine wave output
High frequency and efficient with small size
100% real power with Microprocessor control

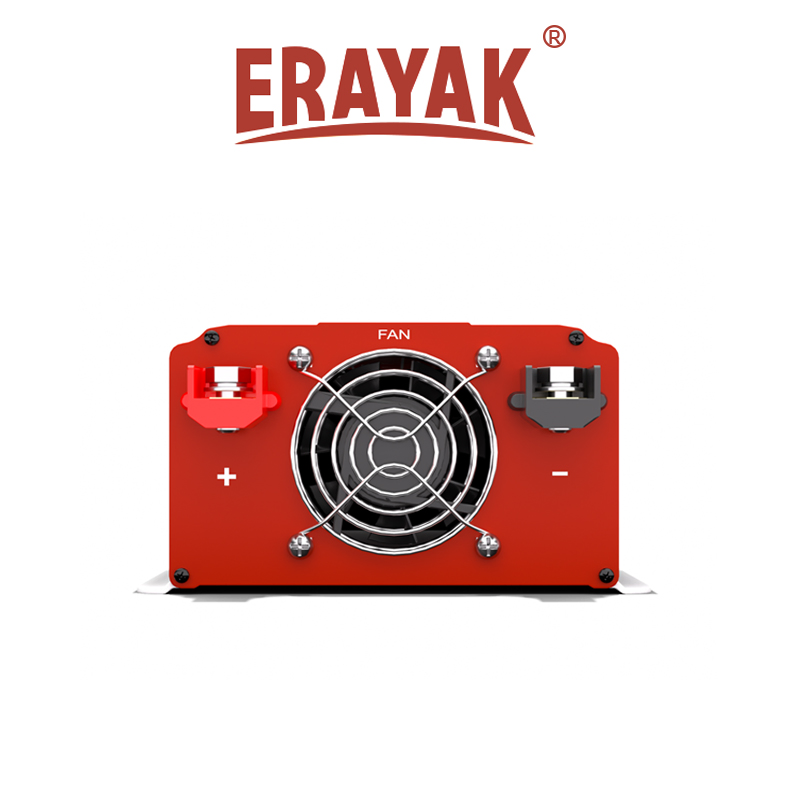

Smart temperature & load controlled cooling fan
Sturdy and durable aluminum alloy case

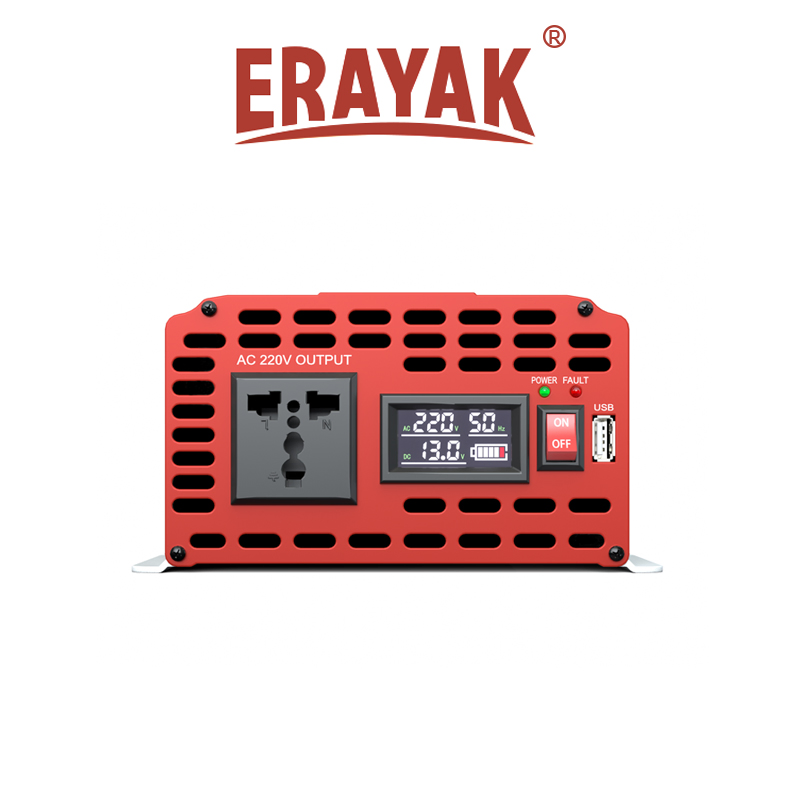

LCD display & USB port for mobile devices
Input protection: Reverse polarity / Under voltage / Over voltage
Output protection: Short circuit / Overload / Over temperature
Product Parameters
Model
SW-2000U
Continuous power
2000W
Peak power
4000W
Rated output voltage
AC 230V+/-10V
Frequency
50Hz+/-1Hz
USB output
DC 5V, 1000mA
Output wave
Pure Sine Wave (THD <5%)
Rated input voltage
DC 13V+/-0.2V
Operating voltage range
DC 11V-15V
Max. efficiency
≥85%
Input low-voltage alarm
DC 10.5V+/-0.3V
Input low-voltage shut down
DC 9.5V+/-0.3V
Input over-voltage shut down
DC 16.5V+/-0.5V
Multiple Protections
Low voltage, Over Voltage, Overload, Over Temperature, Short-Circuit, Reverse Connection
Frequently Asked Questions
What is a Pure Sine Wave Inverter?
A pure sine wave inverter produces a smooth, clean electrical output that is identical to the power provided by the utility grid. This is essential for sensitive electronics and motorized appliances to run efficiently and without interference.
Can this 2000W inverter run a refrigerator?
Yes, with a continuous power of 2000W and a peak of 4000W, it can easily handle the startup surge and continuous operation of most mini-fridges and medium-sized household refrigerators.
What safety protections are included?
The SW-2000U includes comprehensive protection against reverse polarity, low voltage, over voltage, overload, short-circuits, and over-temperature to ensure both the inverter and your devices remain safe.
Why is a smart cooling fan important?
The smart fan is load and temperature controlled, meaning it only runs when necessary. This results in quieter operation during low power usage and prevents overheating during heavy loads.
Does it support charging mobile phones directly?
Yes, it features a built-in DC 5V 1000mA USB port, allowing you to charge smartphones, tablets, and other USB-powered mobile devices without an extra adapter.
What type of battery do I need?
This model is designed for a DC 12V system (operating range 11V-15V). It is commonly used with deep-cycle lead-acid, AGM, or lithium batteries found in vehicles, RVs, and boats.
