OEM 12/24/48 Volt to 220 Volt Car Power Inverter, Portable Voltage Converter with LCD Display

Customization:	Available
Nature of Source Flow:	DC/AC Inverter
Certification:	ISO9001, RoHS, CE

Product Overview

Top Rated

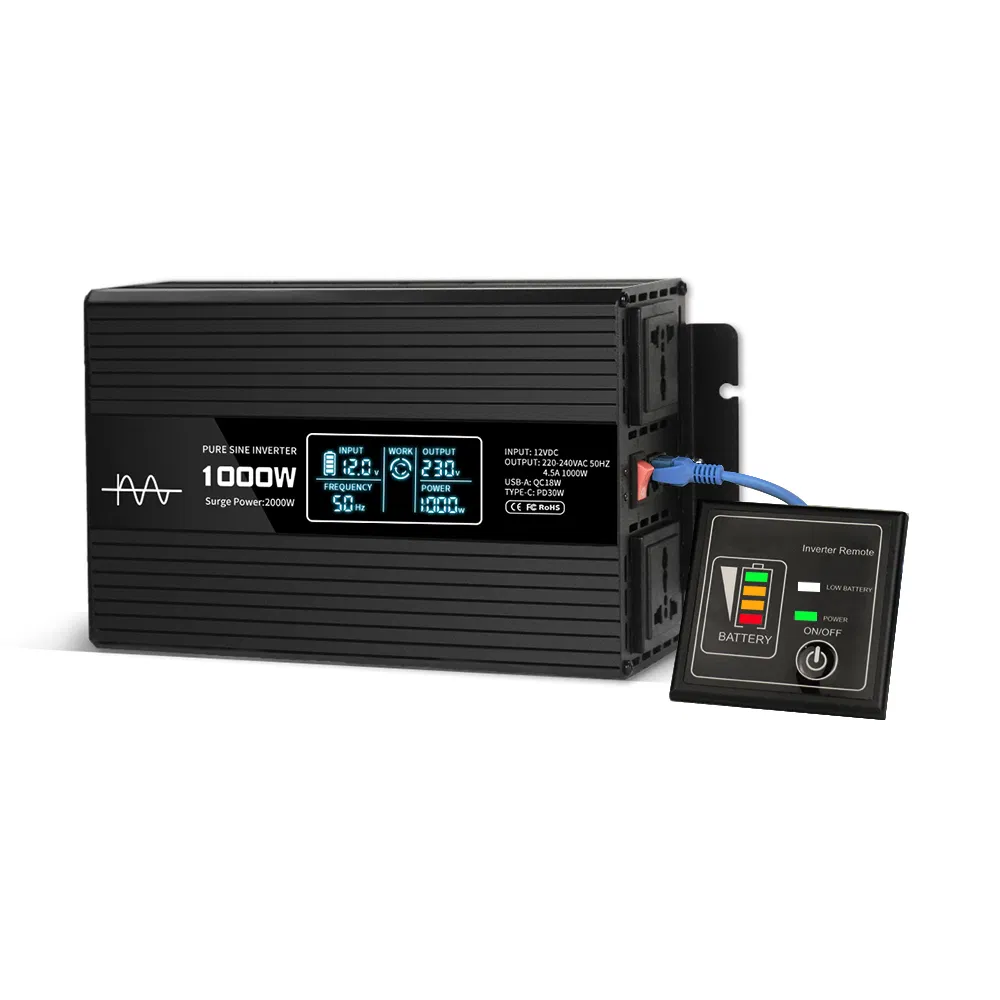

OEM 12V/24V to 220V Car Power Inverter, Portable Voltage Converter with LCD Display

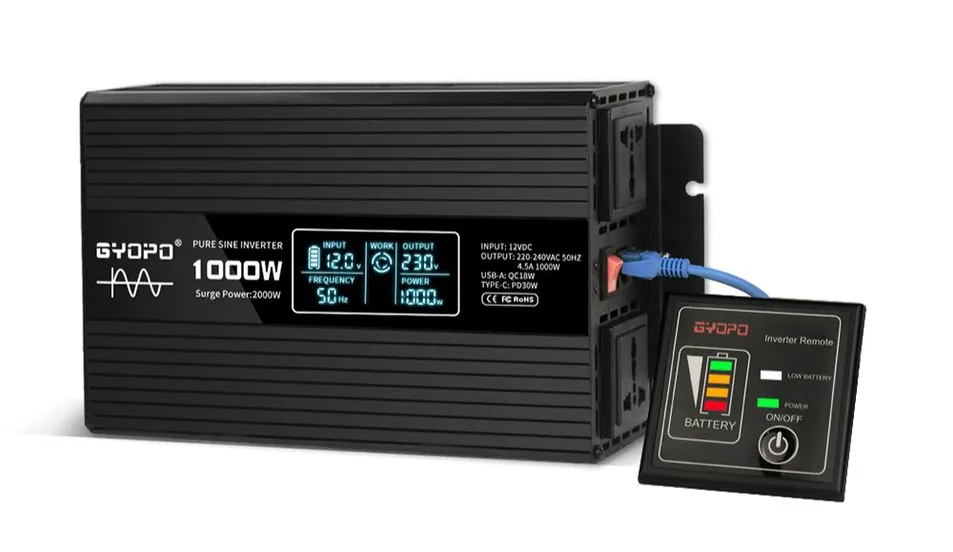

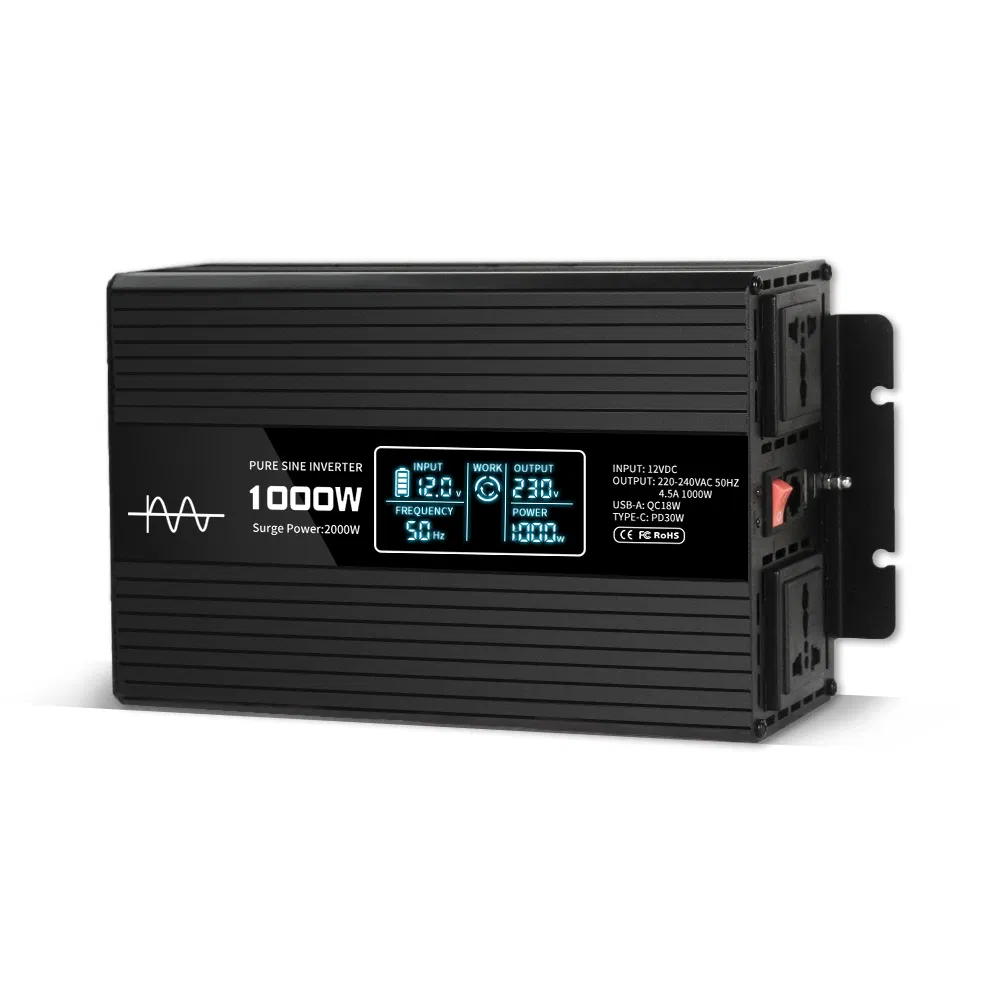

GY-E1000 1000W Power Inverter

✓ Pure sine wave output
✓ High surge power (2000W Peak)
✓ Intelligent LCD status display
✓ Dual Smart cooling fans
✓ Soft start technology
✓ High operating efficiency (92%)

Technical Specifications

Model	GY-E1000	Output Power	1000W (Continuous)
Peak Power	2000W	Input Voltage	DC 12V / 24V
Output Voltage	AC 220V / 230V / 240V	Frequency	50Hz / 60Hz
Waveform	Pure Sine Wave (THD < 3%)	Efficiency	88% - 92%
USB Output	USB-A (QC18W) / USB-C (PD30W)	No Load Current	880mA (13V) / 660mA (26V)
Battery Types	Lead-acid / Lithium / Gel / Water batteries
Protection	Under Voltage, Over Voltage, Overload, Short Circuit, Overheating, Reverse Connection
Dimensions	252 × 150 × 90 mm	Net Weight	1.55 KG

Key Features & Benefits

True Power Output: No false ratings. Delivers a stable 1000W continuous output to power sensitive electronics safely.

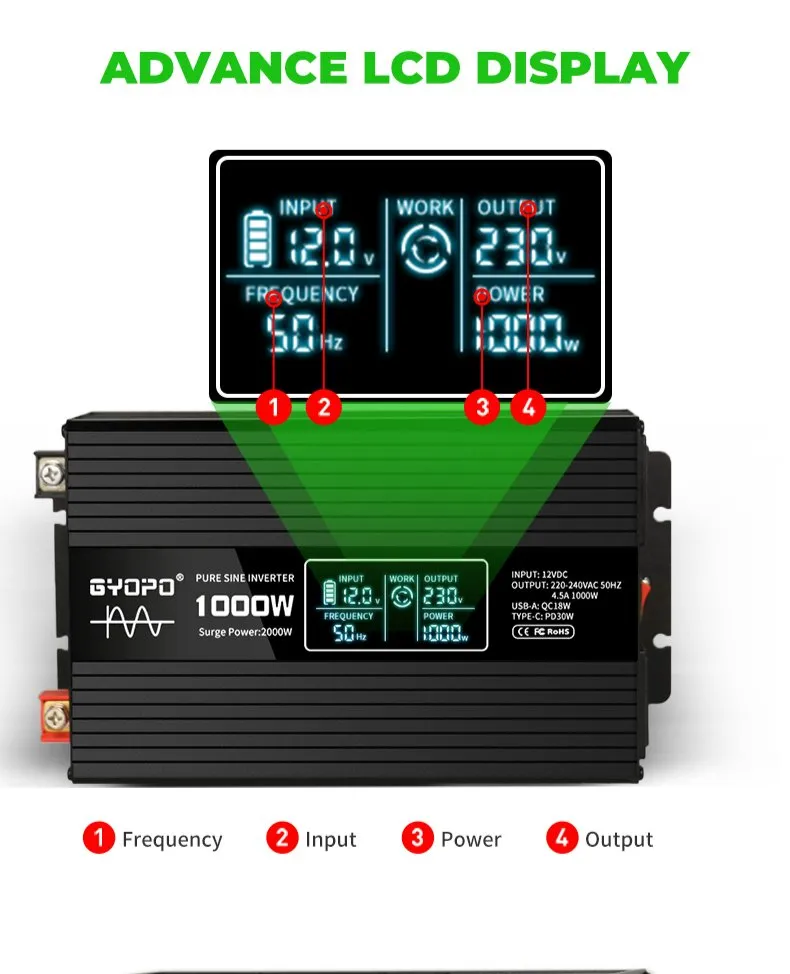

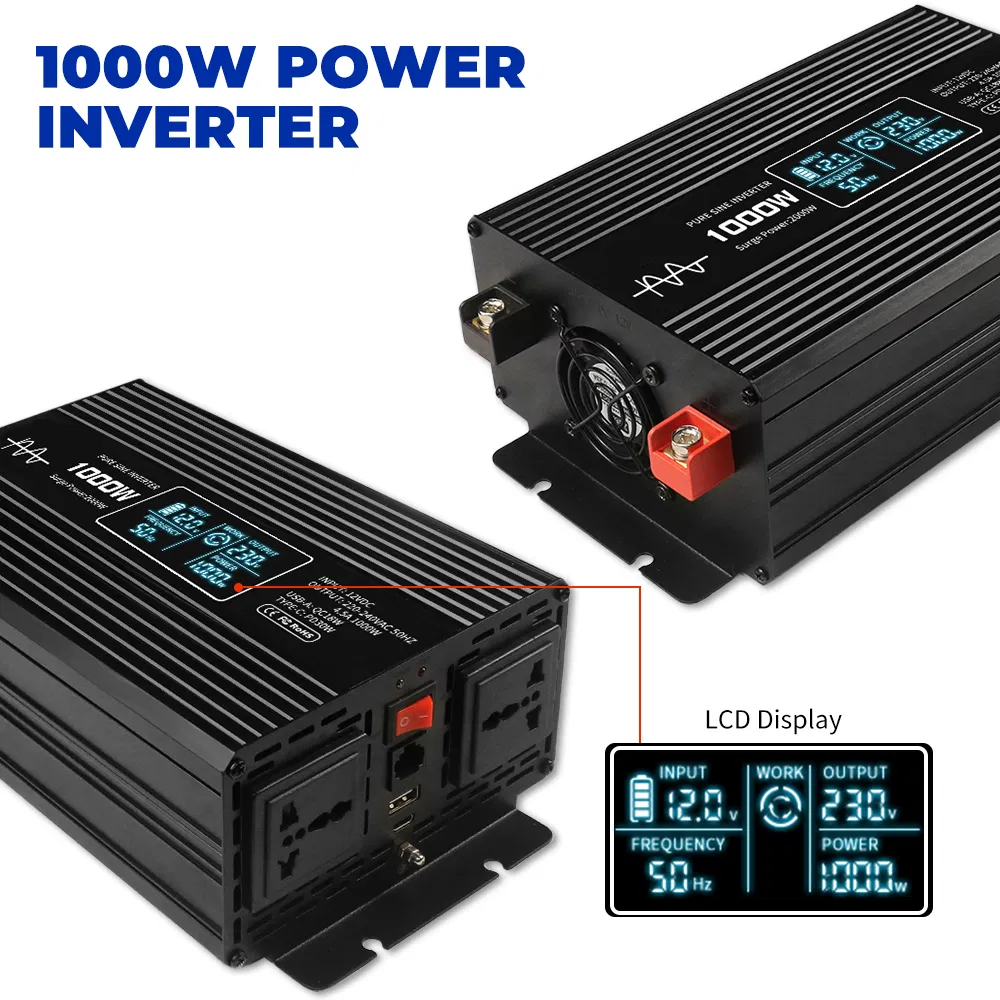

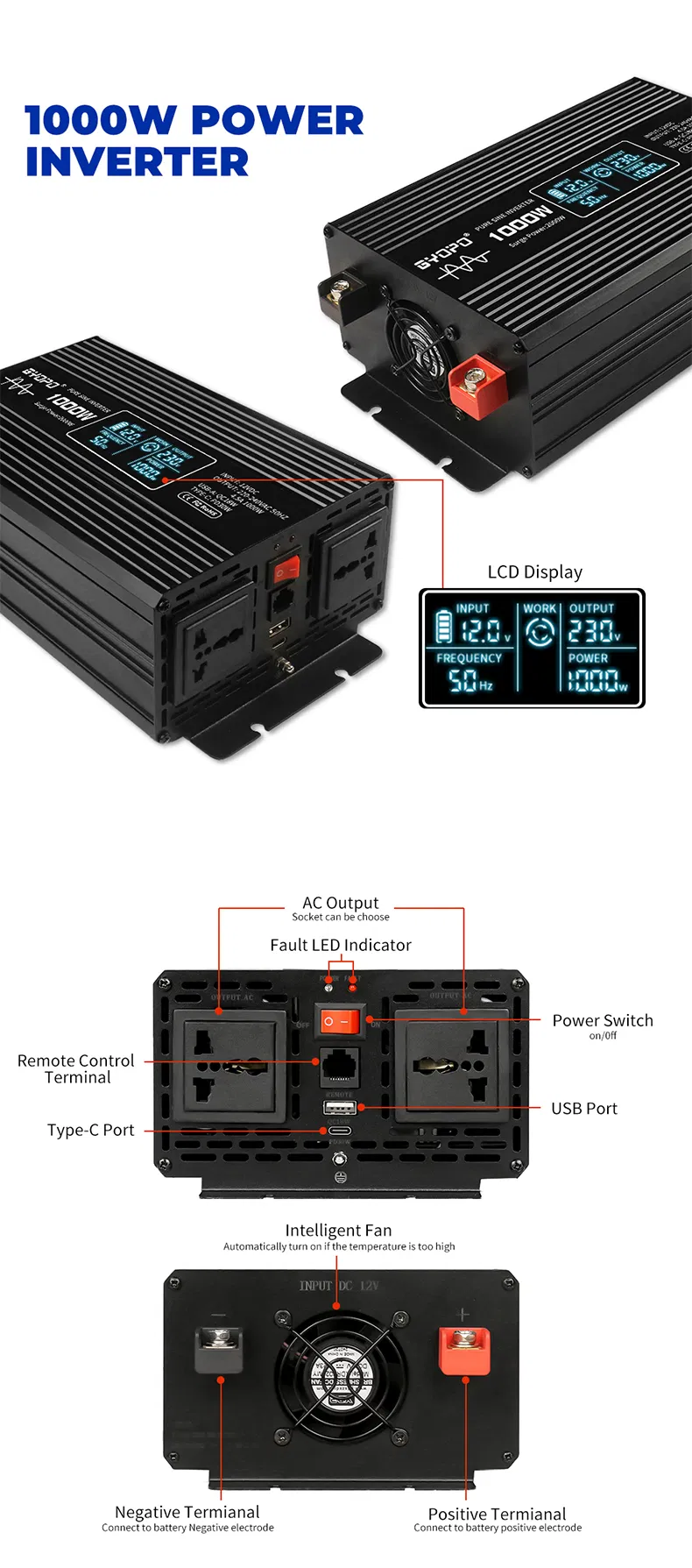

Intelligent Monitoring: The built-in LCD displays real-time input/output voltage, power, frequency, and fault codes (E1–E4) for quick diagnostics.

Advanced Cooling: Intelligent fans activate based on temperature (45°C and 60°C) to maintain optimal performance and longevity.

Packaging & Accessories

Package Size	35.00cm * 24.00cm * 18.00cm
Gross Weight	4.000kg
Standard Accessories	Ground Wire, Fuse, Wrench, Protective Cover, Network Cable, Wired Remote Controller

Frequently Asked Questions

What types of batteries are compatible with this inverter?

The inverter supports a wide range of batteries, including Lead-acid, Lithium, Gel, and Water (Flooded) batteries with 12V or 24V DC input.

What safety protections are built-in?

It includes comprehensive protection against Under Voltage, Over Voltage, Overload, Short Circuit, Overheating (shutdown at 80°C), and Reverse Polarity.

Does the inverter support fast charging for mobile devices?

Yes, it features dual USB outputs: a USB-A port with QC18W fast charging and a USB-C port supporting PD30W.

What information is shown on the LCD display?

The intelligent LCD displays real-time Input Voltage, Input Electrical Energy, Output Voltage, Output Power, Output Frequency, and Fault Codes.

Can I operate the inverter from a distance?

Yes, a wired remote controller is included in the package, allowing you to turn the device on or off conveniently from a distance.

What is the warranty period for this product?

We provide a 12-month warranty against manufacturing defects. Technical support is also available for installation and troubleshooting.
