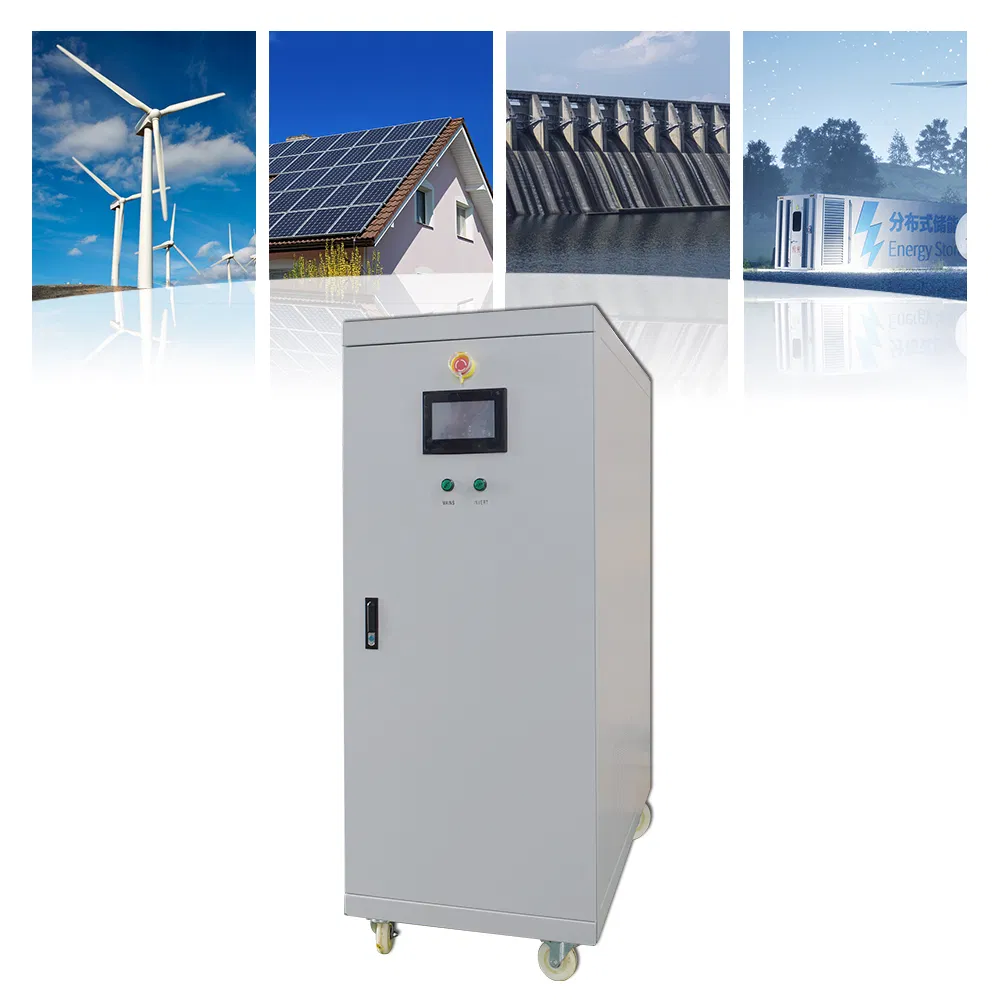

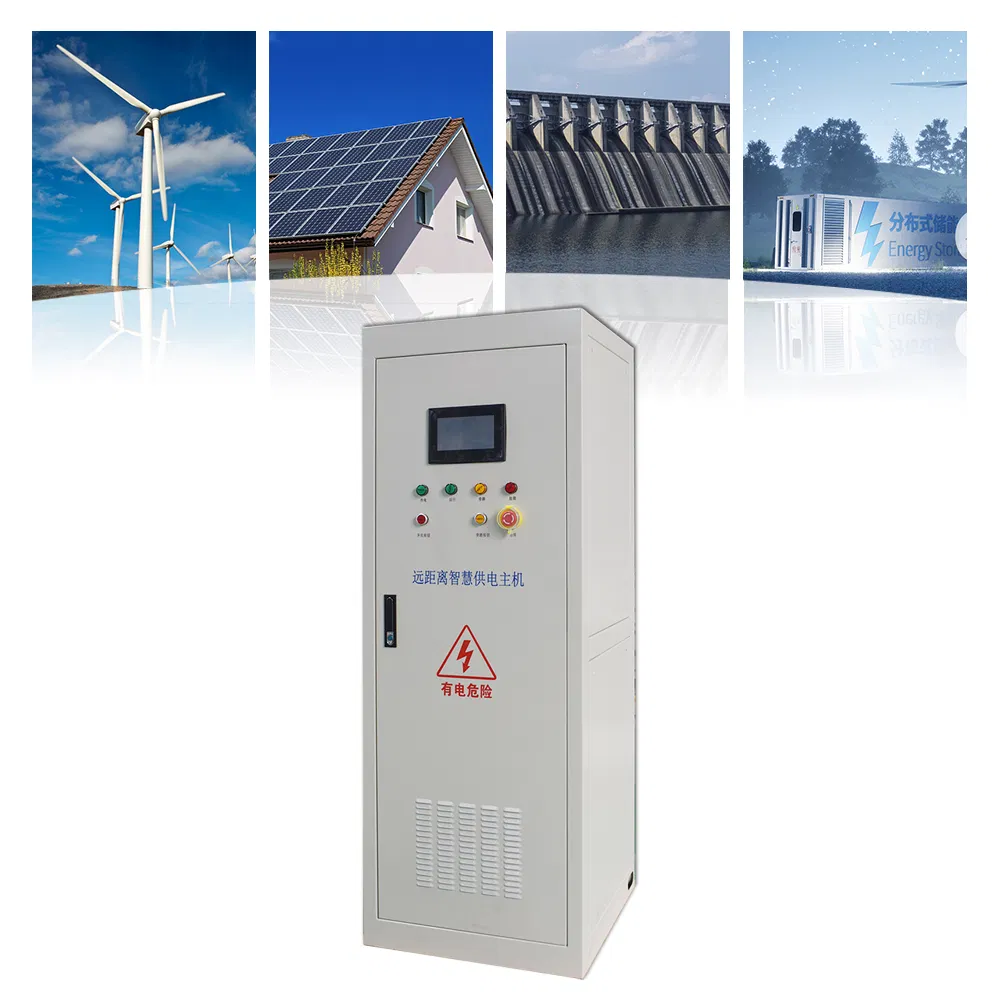

Portable Power Solution Energy Storage Inverter with Lithium Battery

Send Inquiry

Product Description

Basic Specifications

Certification CE, ISO9001

Type DC/AC Inverters

Circuit Topologies Full-Bridge Type

Wave String Sine Wave Inverter

Transport Package Wooden Box

HS Code 8504403090

Production Capacity 100/Week

Technical Parameters

AC Side Parameters
Operation mode	Continuous
AC wiring mode	Three phase four wire
Rated output power	50KW	100KW	200KW
Output overload capacity	55KW	110KW	220KW
DC Side Parameters
Maximum DC power	55KW	110KW	220KW
DC voltage range Vdc	350-800Vdc	350-800Vdc	350-700Vdc
Recommended battery bank	384V/420V/480V	420V/480V	480V
Max. Input current	143A/130A/115A	262A/229A	458A
Independent Inverter Mode
Rated output voltage(AC)	220V / 380V / 440V±1%
On/off-grid switching time	0ms
System Parameters
Max. conversion efficiency	95% (Include isolation transformer)
Communication mode	RS485, WIFI, GPRS, Ethernet (Modbus protocol)
Dimensions	7506001320mm	14608601820mm	14608601820mm

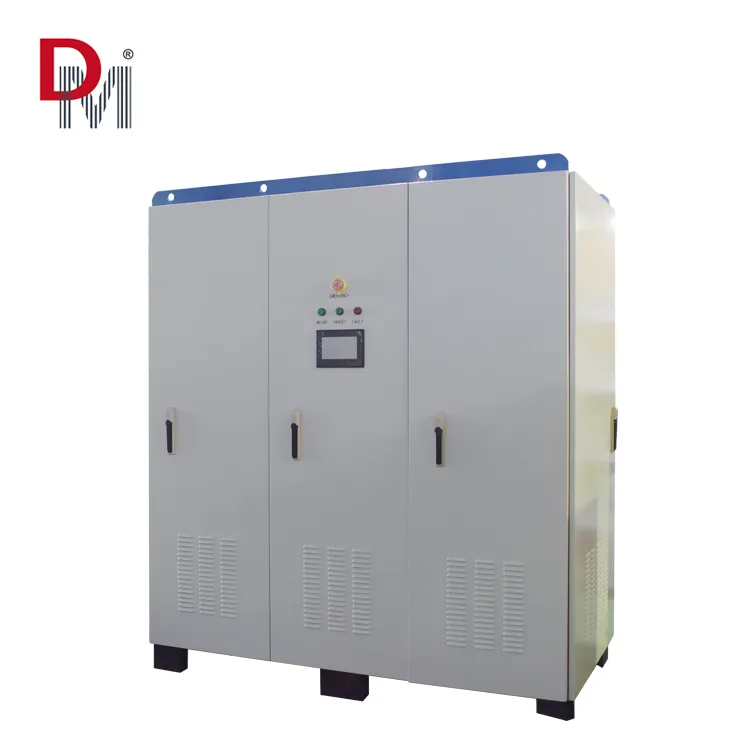

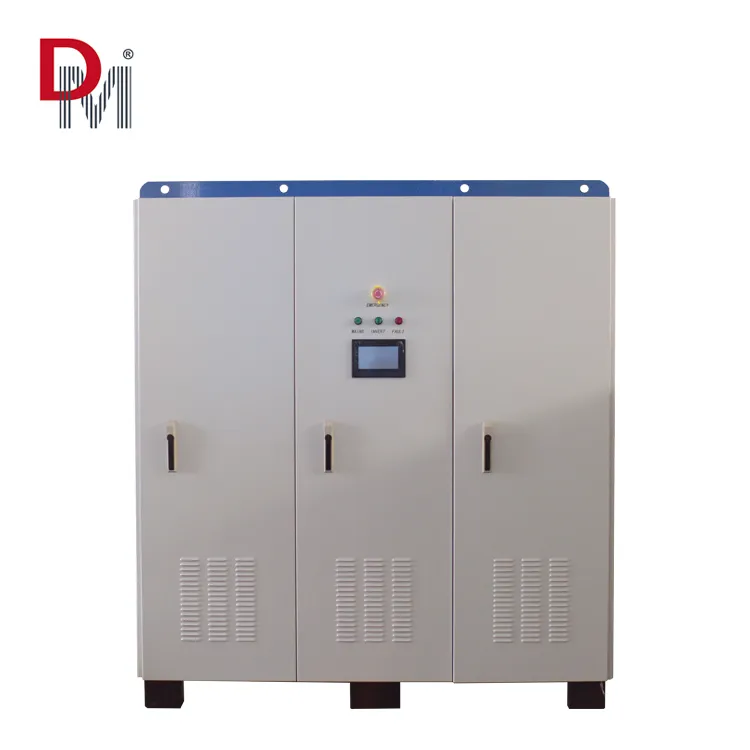

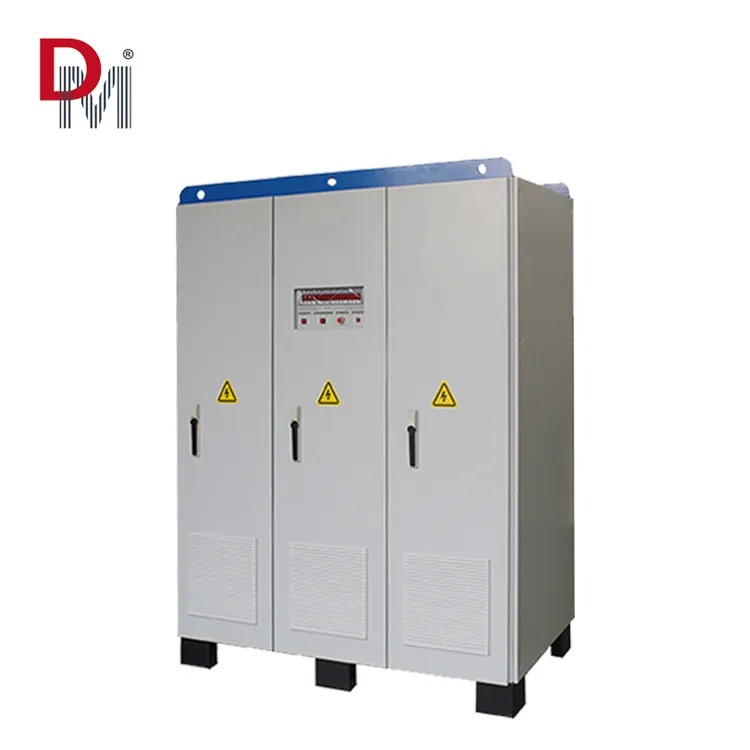

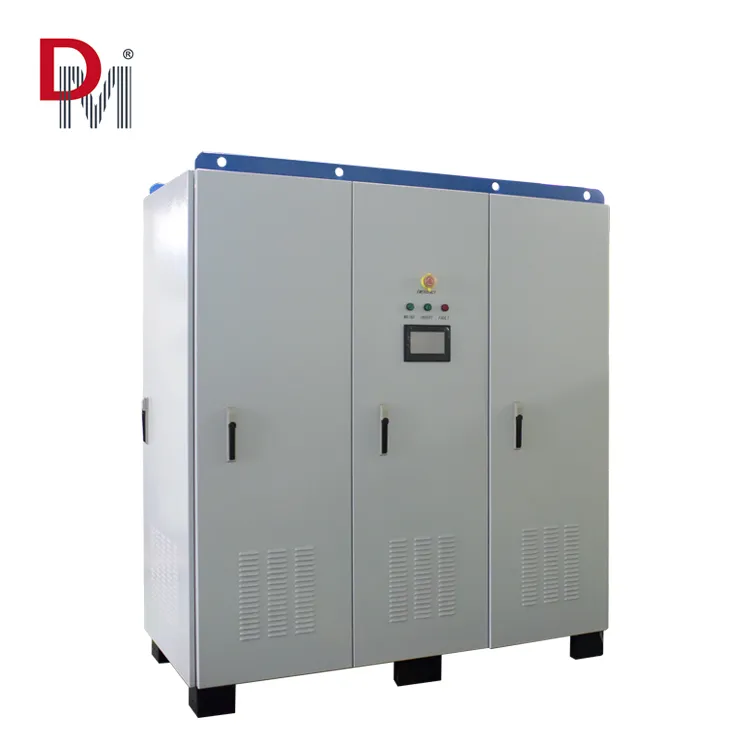

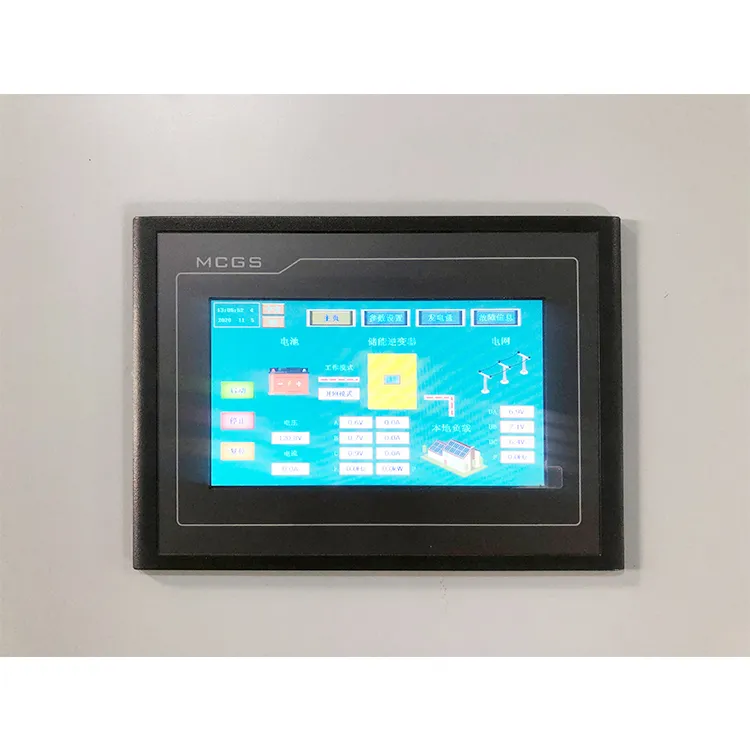

Product Showcase

Frequently Asked Questions

What is the switching time between on-grid and off-grid modes?

This energy storage inverter features a 0ms switching time, ensuring an uninterrupted power supply for sensitive equipment during grid transitions.

What is the maximum conversion efficiency of the system?

The system achieves a maximum conversion efficiency of up to 95%, which includes the performance of the isolation transformer.

Which battery voltages are recommended for this inverter?

Depending on the power model (50KW-200KW), we recommend battery bank voltages of 384V, 420V, or 480V for optimal performance.

What communication protocols are supported for remote monitoring?

The unit supports RS485, WIFI, GPRS, and Ethernet connections using the standard Modbus protocol for seamless integration with monitoring systems.

Can the inverter operate in extreme temperature conditions?

Yes, it is designed to work in temperatures ranging from -25ºC to +45ºC with an efficient air-cooling system and IP20 protection degree.

Does the inverter support both 50Hz and 60Hz grids?

Yes, the inverter is compatible with both 50Hz and 60Hz rated grid frequencies with a wide frequency tolerance range of ±10%.
