Frequently Asked Questions
What is the maximum MPPT efficiency of this inverter?
The inverter features a peak efficiency of 96.5% and a European efficiency of 95.5%, ensuring optimal energy conversion for your solar system.
Does it support different types of batteries?
Yes, this hybrid solar inverter is compatible with both Lithium and Lead-acid batteries, with a nominal DC voltage of 48V.
What is the switch time for backup power?

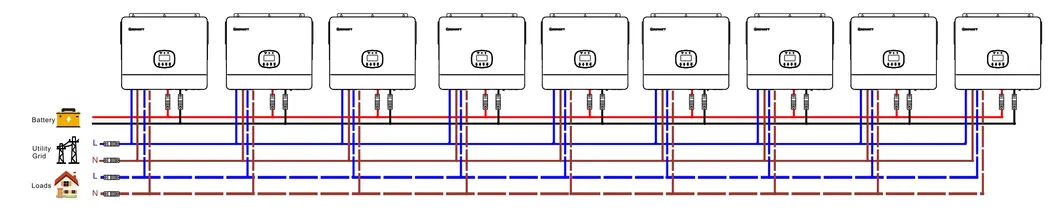

The switch time is less than 20ms for single unit operation and less than 30ms when used in parallel, providing seamless transition during power outages.
Can I monitor the system remotely?

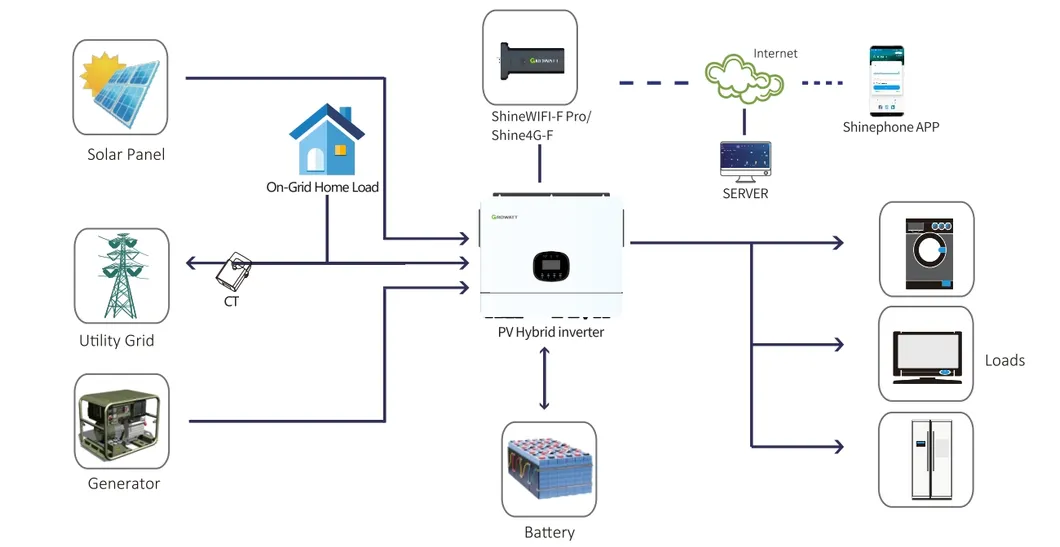

Yes, the system supports WiFi and 4G communication modules for remote monitoring and management.
What is the protection rating for this unit?
This inverter has an IP20 protection degree and is designed for operating temperatures between -10°C and +50°C.
How many PV strings can be connected?
The unit is equipped with 2 MPPT trackers, allowing for 1 PV string per tracker, with a maximum input current of 27A per tracker.
