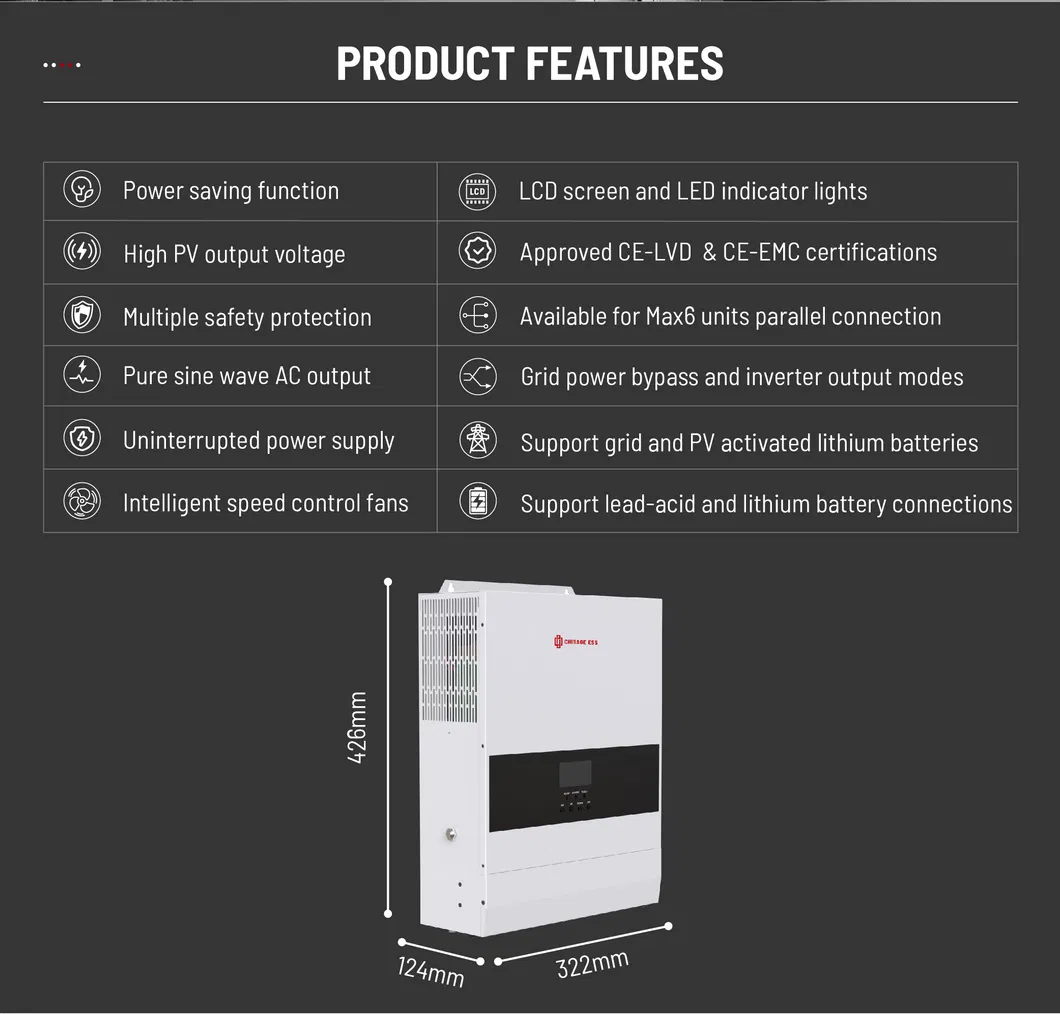

High Efficiency: Pure sine wave AC output with over 92% efficiency.
🛡️
Safety First: Multiple protection layers including short circuit and reverse wiring protection.
📊
Smart Monitoring: LCD screen and LED indicators for real-time data tracking.
🔋
Battery Support: Compatible with Lithium-ion, Lead-acid, and User Defined batteries.
Technical Specifications
Solar & AC Charging
Max. PV Input Power
5500W
MPPT Voltage Range
120~450 Vdc
Max. PV Open Circuit Voltage
500 Vdc
Max. AC Charge Current
60A
AC Output Data
Rated Output Power
5000W
Rated Output Voltage
230 Vac (200/208/220/240 settable)
Output Frequency
50/60 Hz (Auto sensing)
Peak Power
10000 VA
General Data

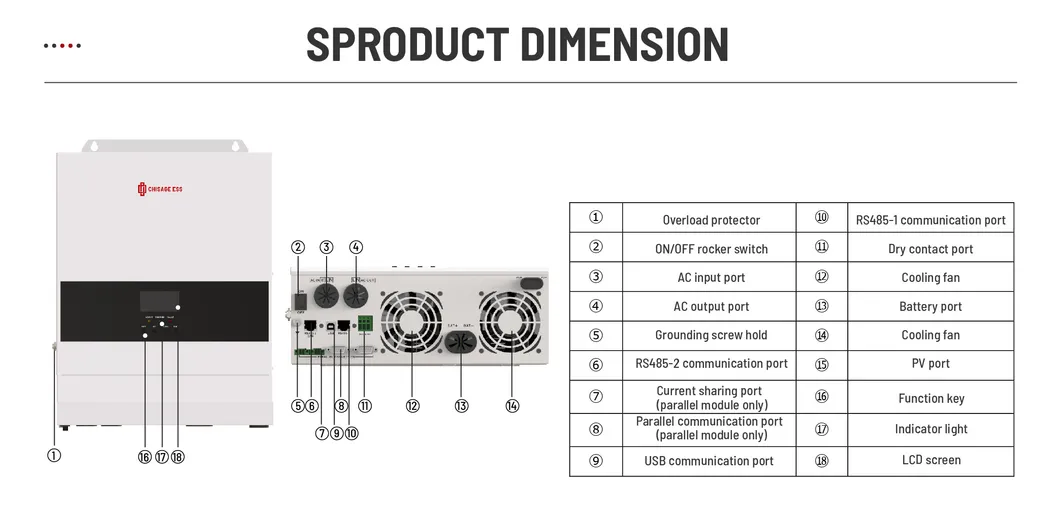

Dimensions
426 x 322 x 124 mm
Net Weight
10.5 kg
Operating Temp
-15°C to 55°C
Noise Level
≤ 60 dB
Reliability & Performance
Frequently Asked Questions
Are you a manufacturer or a trading company?

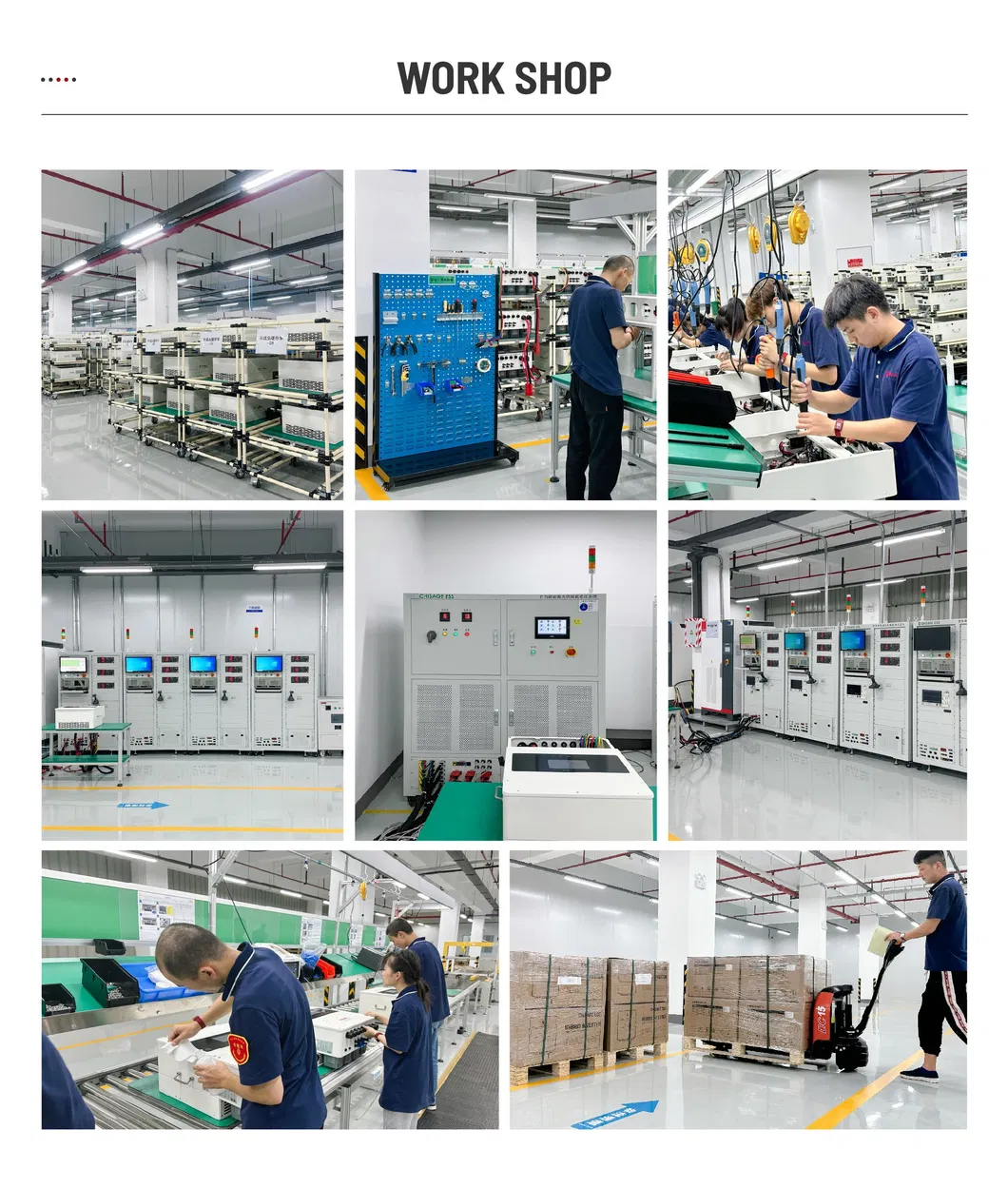

We are a factory specializing in the field of solar inverters and solar energy storage systems. Our facility features advanced intelligent production lines and an experienced production team focused on delivering top-tier solutions.
What is the Minimum Order Quantity (MOQ)?
The MOQ is just 1 unit. For items currently in stock, we typically ship within 7 business days.
Do you support custom products or OEM/ODM?
Yes, both OEM and ODM are fully supported. We have a professional R&D team with over 20 years of experience providing customization for packaging, functionality, and technical specifications.
What kind of after-sales service do you provide?
We provide 24/7 online technical support throughout the year. We offer product replacement for quality issues during the warranty period and flexible technical training for our partners.
What are your accepted payment terms?
We support multiple payment methods including T/T, L/C, PayPal, and others. For strategic long-term cooperation, we can negotiate flexible payment terms such as DP.
Is this inverter compatible with parallel operation?
Yes, this model supports parallel connection for up to 6 units, allowing you to scale up the system's power capacity as needed.
