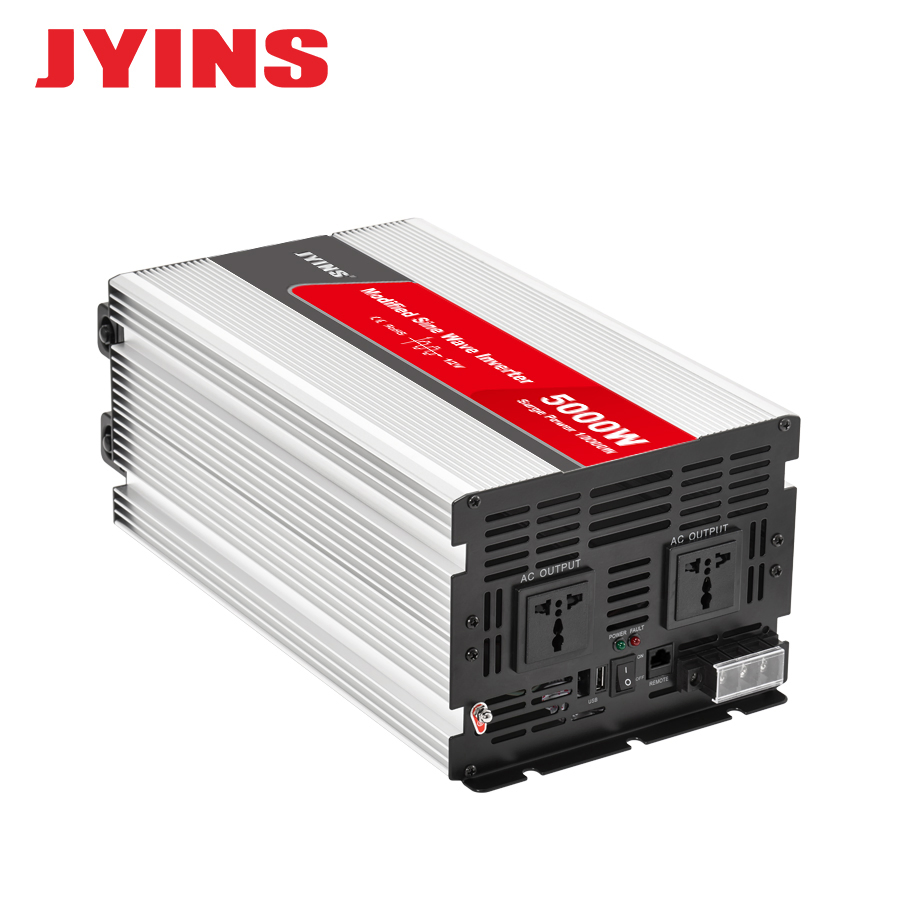

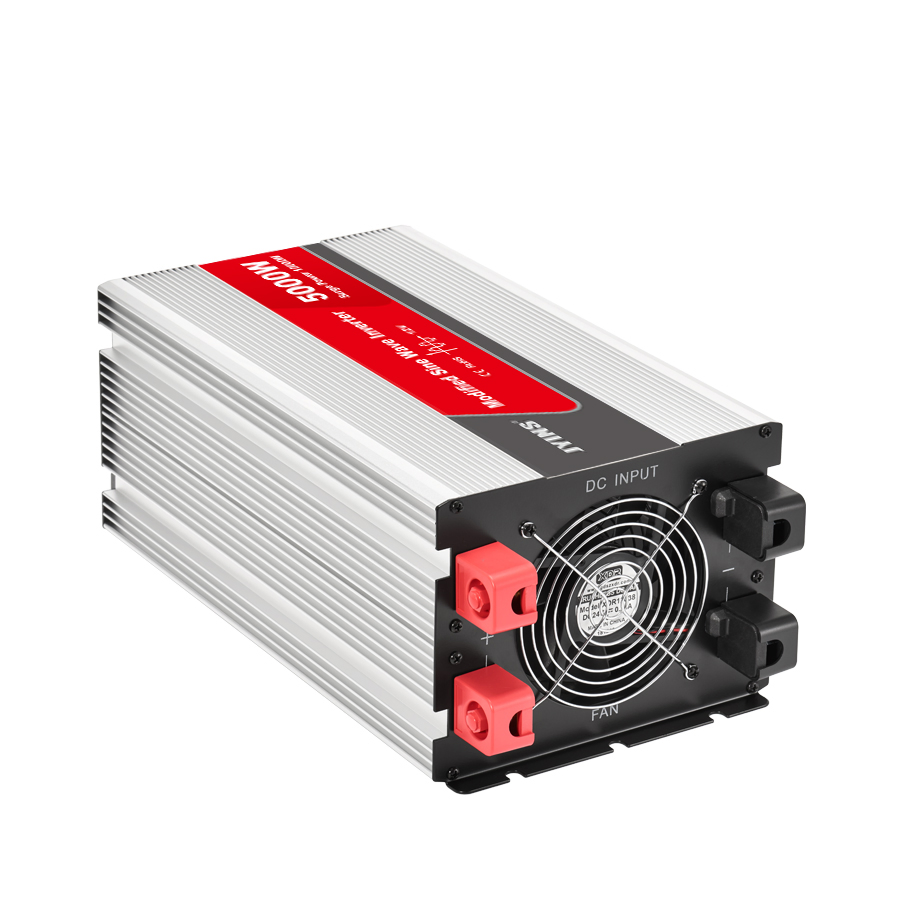

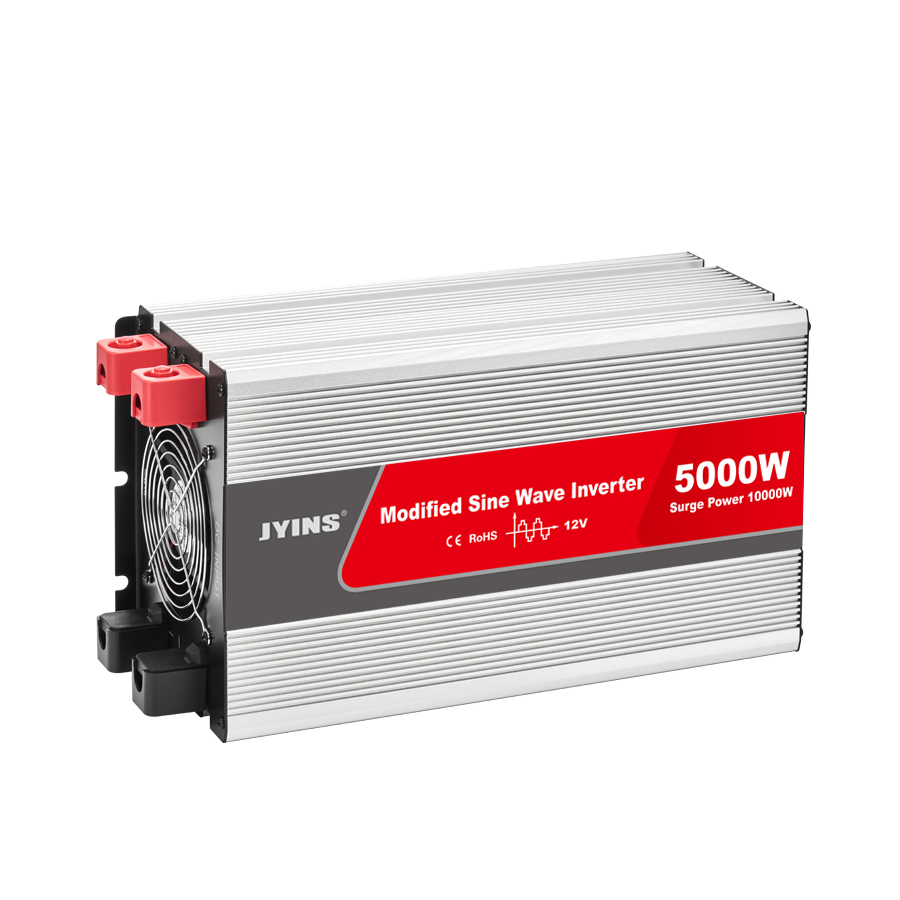

5000W Modified Sine Wave Solar Power Inverter

1 / 5

5000W Modified Sine Wave Solar Power Inverter

Customization:	Available
Warranty:	18 Months
Nature of Source Flow:	Active Inverter

Send Inquiry

Product Description

📋

Basic Information

Model NO.

JYM-5000

Phase

Single

Output Power

5000W

Certification

CE, ROHS

Type

DC/AC Inverters

Power Source

Solar Power, Battery

Circuit Topologies

Full-Bridge Type

Nature of Wave

Square Wave Inverter

Input Voltage

12V/24V/48V

Shell Material

Aluminium Alloy

Output Voltage

110V / 220V

Warranty

2 Years

⚡

Product Description

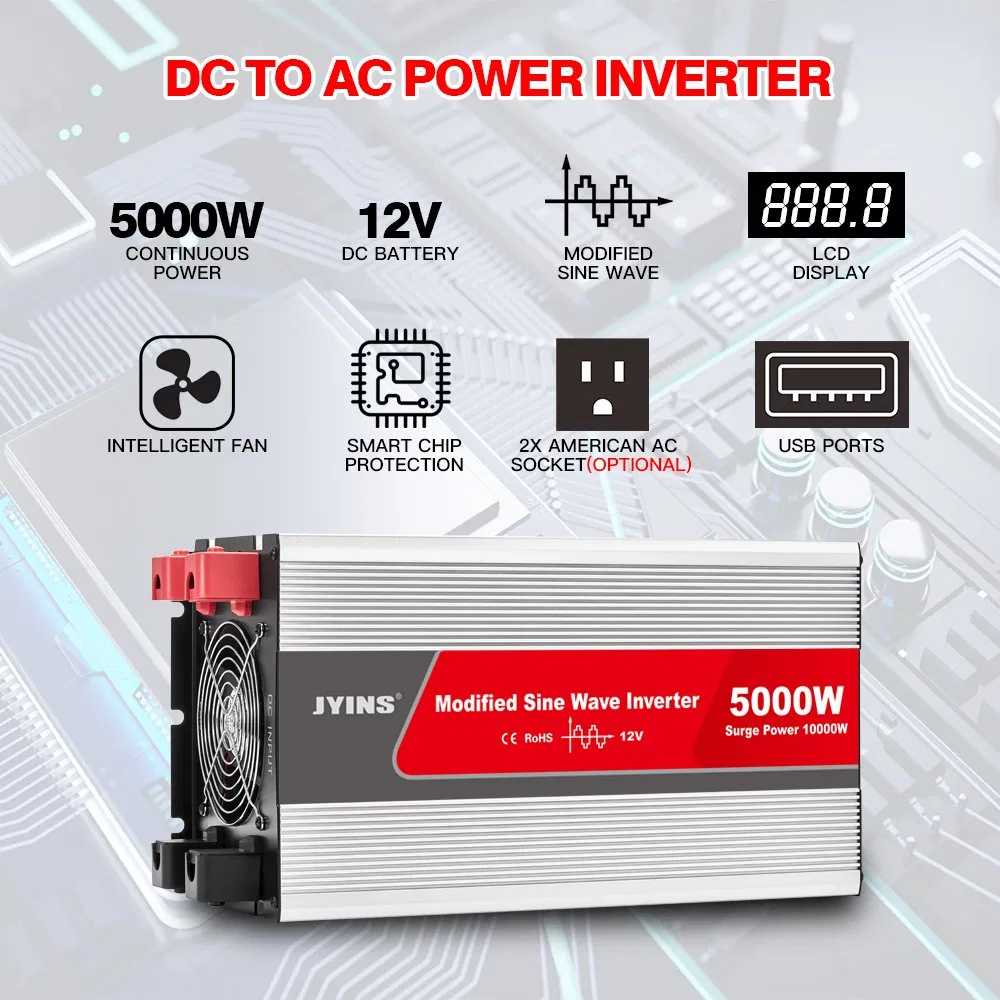

5000W Modified Sine Wave solar power Inverter (JYM-5000). High-performance power solution for home and industrial applications.

📊

Technical Parameters

Model	JYM-5K-1	JYM-5K-1	JYM-5K-1	JYM-5K-2	JYM-5K-2	JYM-5K-2
Rated power	5000W
Peak power	10000W
Input voltage	DC12V	DC24V	DC48V	DC12V	DC24V	DC48V
Output voltage	100V/110V/120VAC±5%			220V/230V/240VAC±5%
Output waveform	Modified Sine Wave

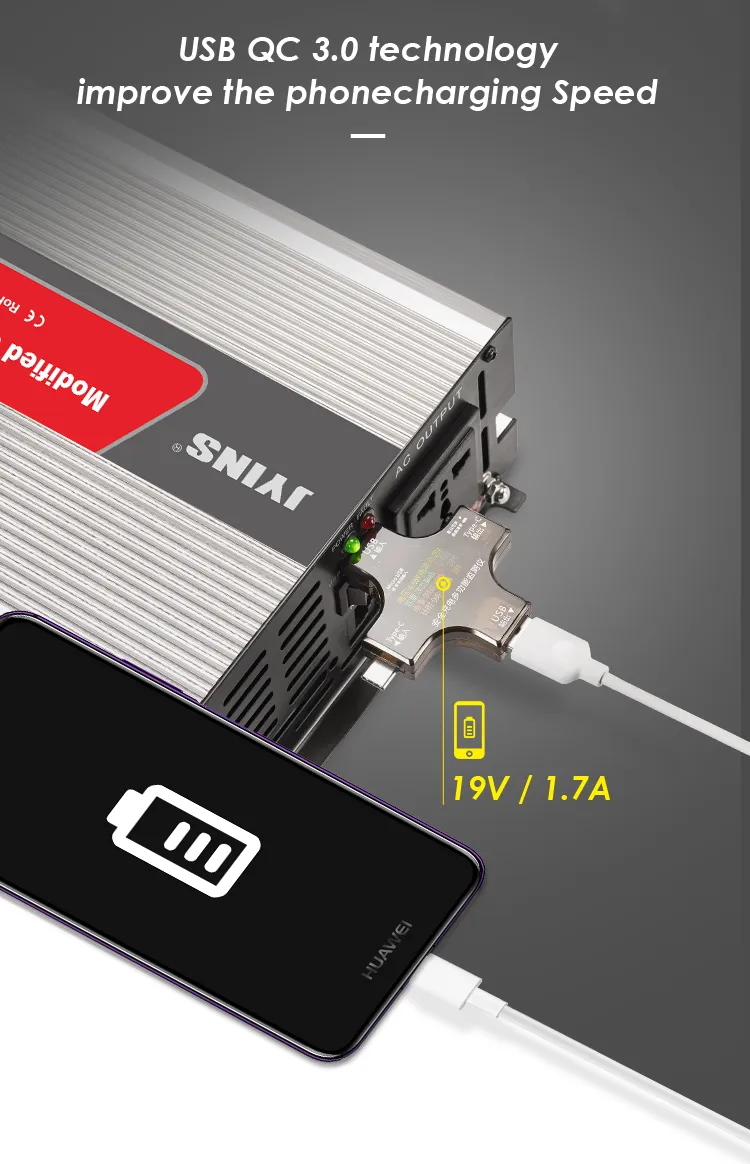

USB port	5V 1A
Max.efficiency	90%

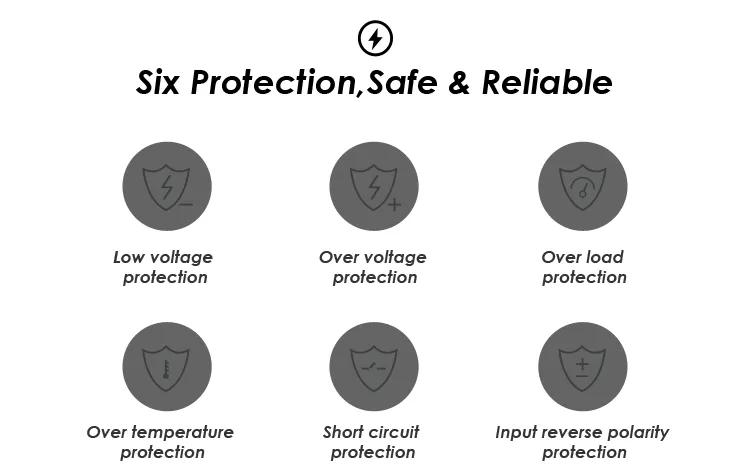

Protection	Low voltage, Over voltage, Over load, Over temperature, Short circuit, Reverse polarity
Working Temp.	-10° to +50°

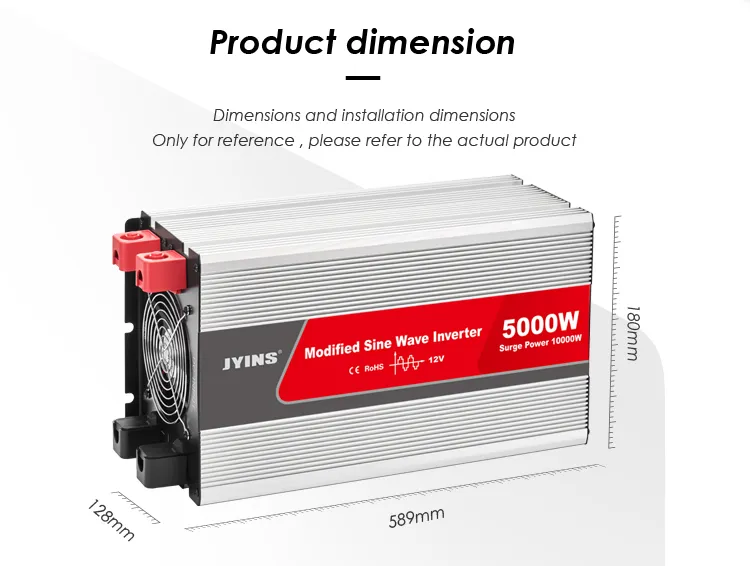

Dimension	550x180x130mm

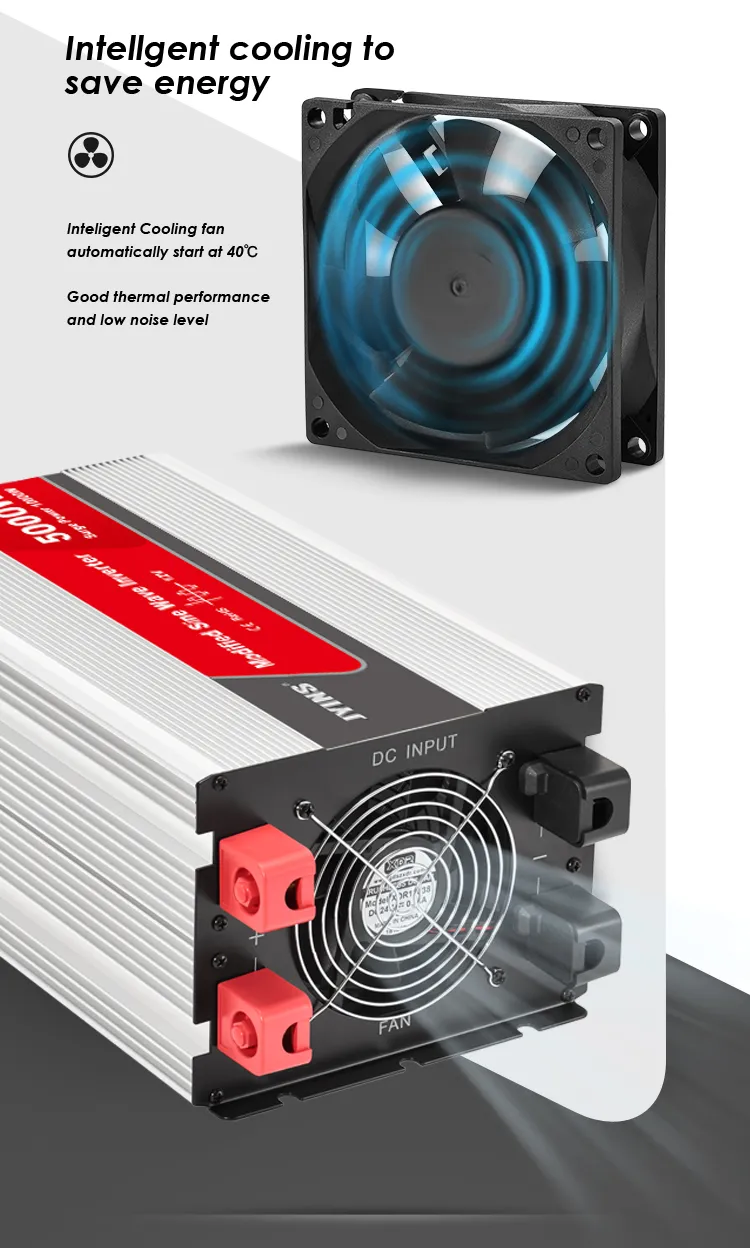

Cooling	Intelligent air cooling

🏆

Our Advantages

❓

Frequently Asked Questions

1. Why is your quotation higher than other suppliers?

In the market, many low-cost inverters are assembled in unlicensed workshops using substandard components, posing significant security risks. To protect personal and property safety, it is essential to choose a reliable inverter rather than just the lowest price.

2. What are the output waveform categories for inverters?

There are two main types: Modified Sine Wave (economical, suitable for most equipment with minor harmonic distortion) and Pure Sine Wave (high stability, suitable for all loads including inductive devices like refrigerators and drills without interference).

3. Is the output voltage of the inverter stable?

Yes, our inverters include a precise regulator circuit. Note that conventional multimeters may show unstable readings on modified sine waves; a true RMS multimeter is required for accurate measurement.

4. What appliances are considered resistive loads?

Common resistive loads include mobile phones, computers, LCD TVs, incandescent lights, electric fans, and rice cookers. Our modified sine wave inverters can power these efficiently.

5. What should I know about inductive load appliances?

Inductive loads like motors, compressors, and refrigerators require 3-7 times their rated power during startup. Only pure sine wave inverters are recommended for these types of high-induction products.

6. What are the installation precautions?

Install the inverter in a well-ventilated, cool, dry, and waterproof location. Ensure no foreign objects are placed on it, and always turn on the inverter before turning on the connected appliance.
