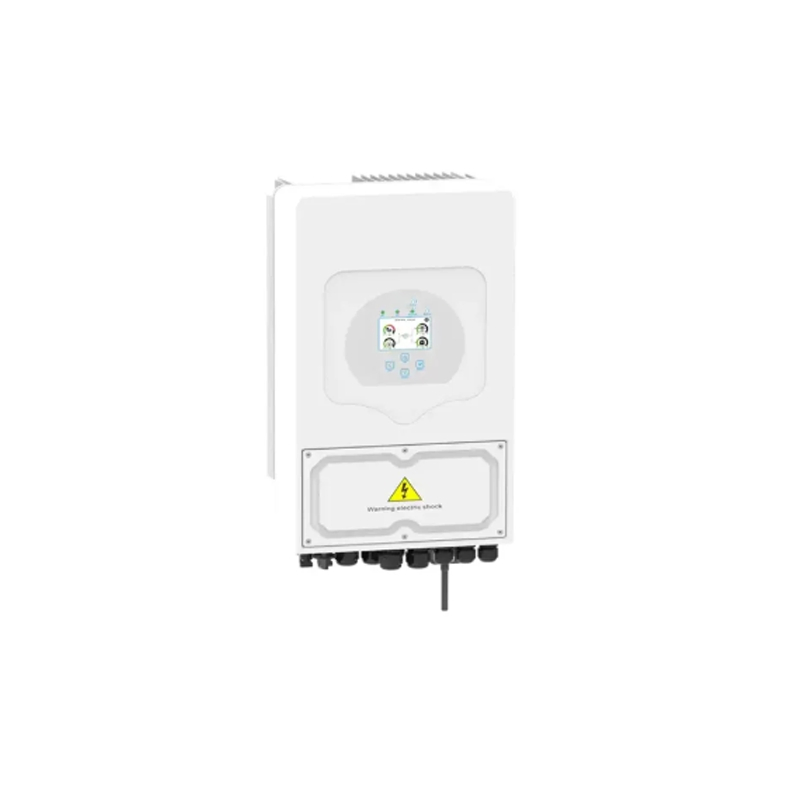

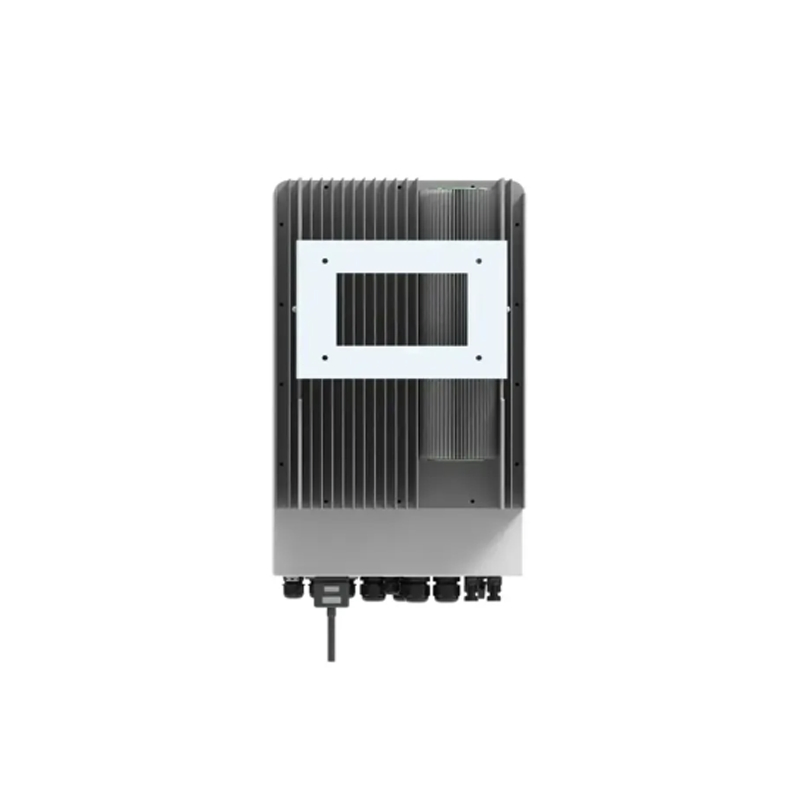

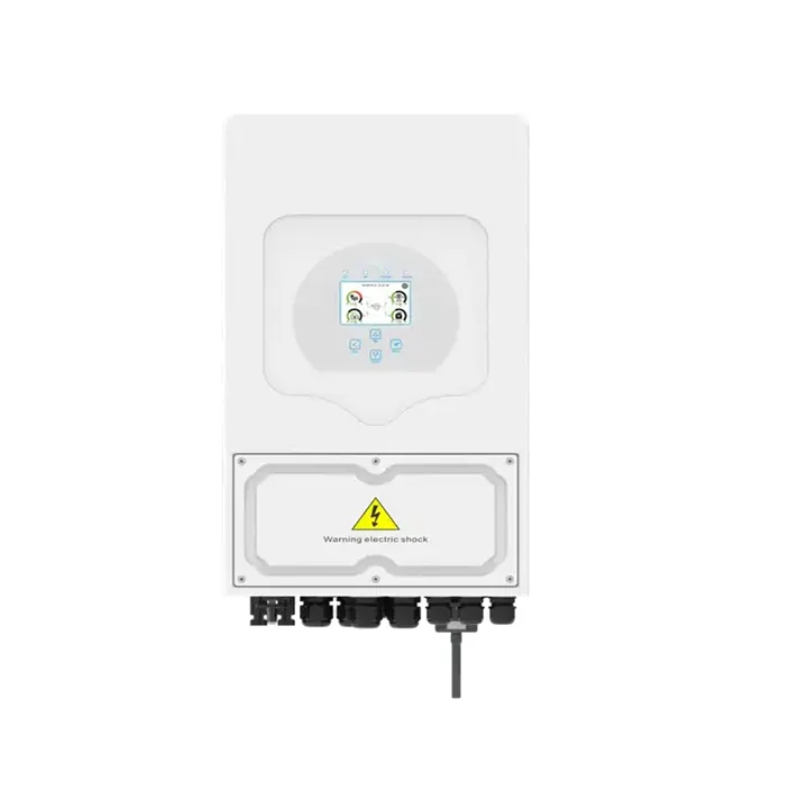

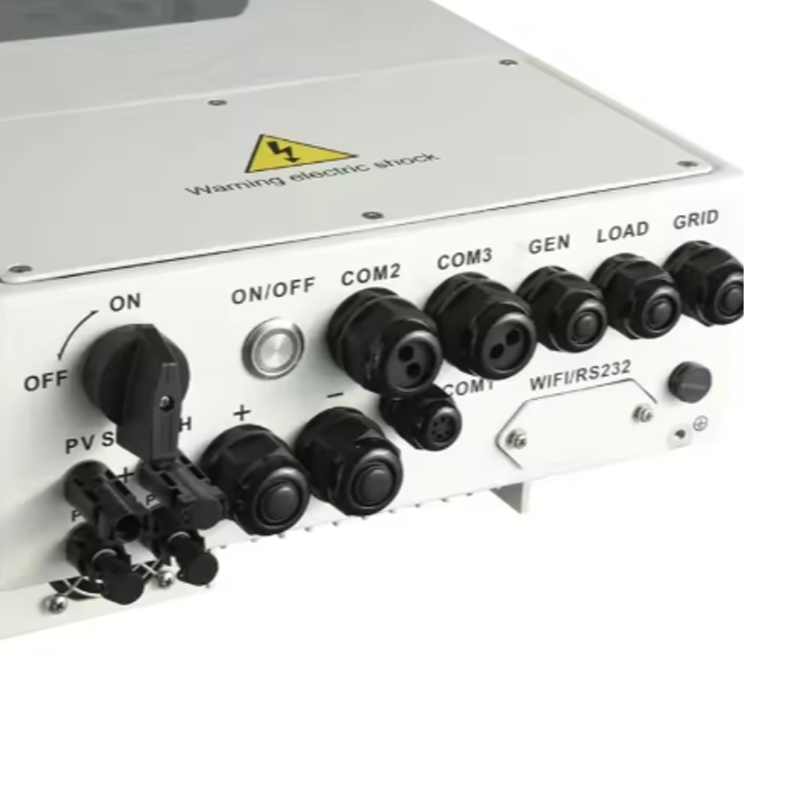

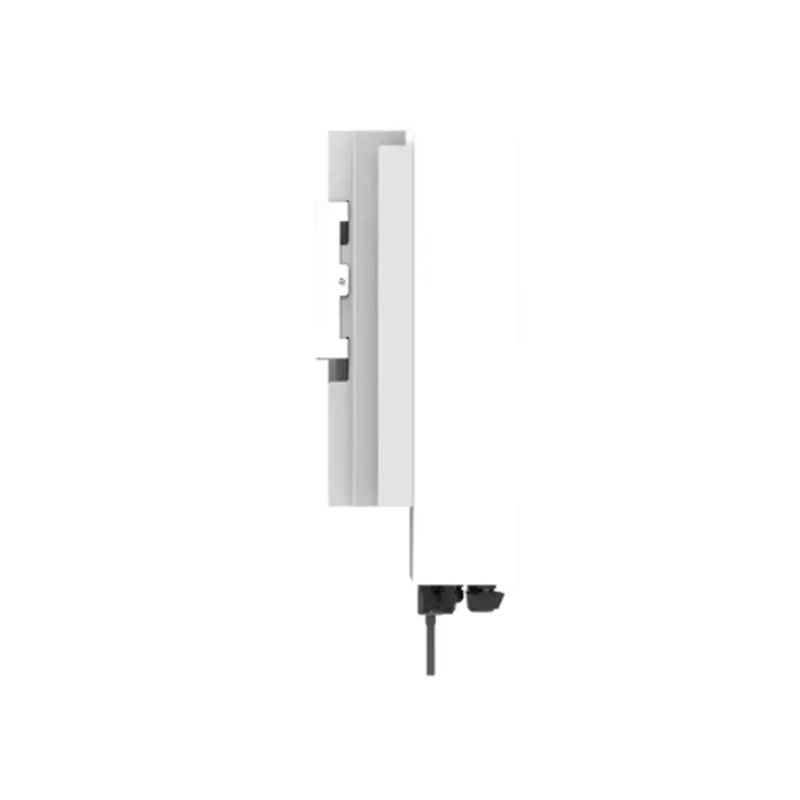

Sun-5K-Sg03lp1-EU Low Voltage Solar Inverter for on/off Grid Ess with IP65

Customization:	Available
Warranty:	5 Years
Nature of Source Flow:	Active Inverter

■

Basic Info

Model NO.

SUN-5K-SG03LP1-EU

Phase

Three

Output Power

>1000W

Certification

SAA, CE, ROHS, ISO9001, CCC

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Full-Bridge Type

Nature of Wave String

Sine Wave Inverter

Battery Type

Lead-Acid or Lithium-Ion

Battery Voltage Range

40 - 60 V

Max.Charging Current

120 A

Origin

China

■

Product Description

■

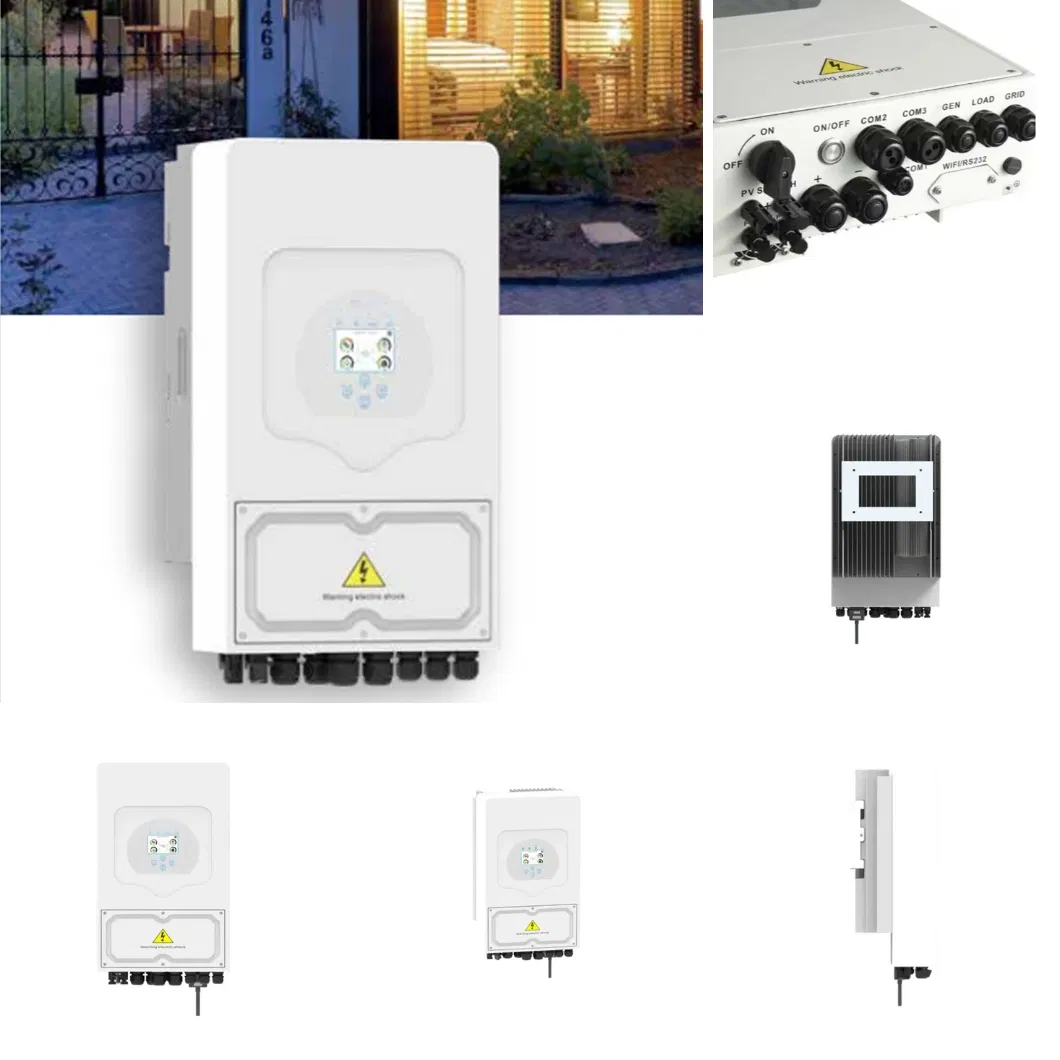

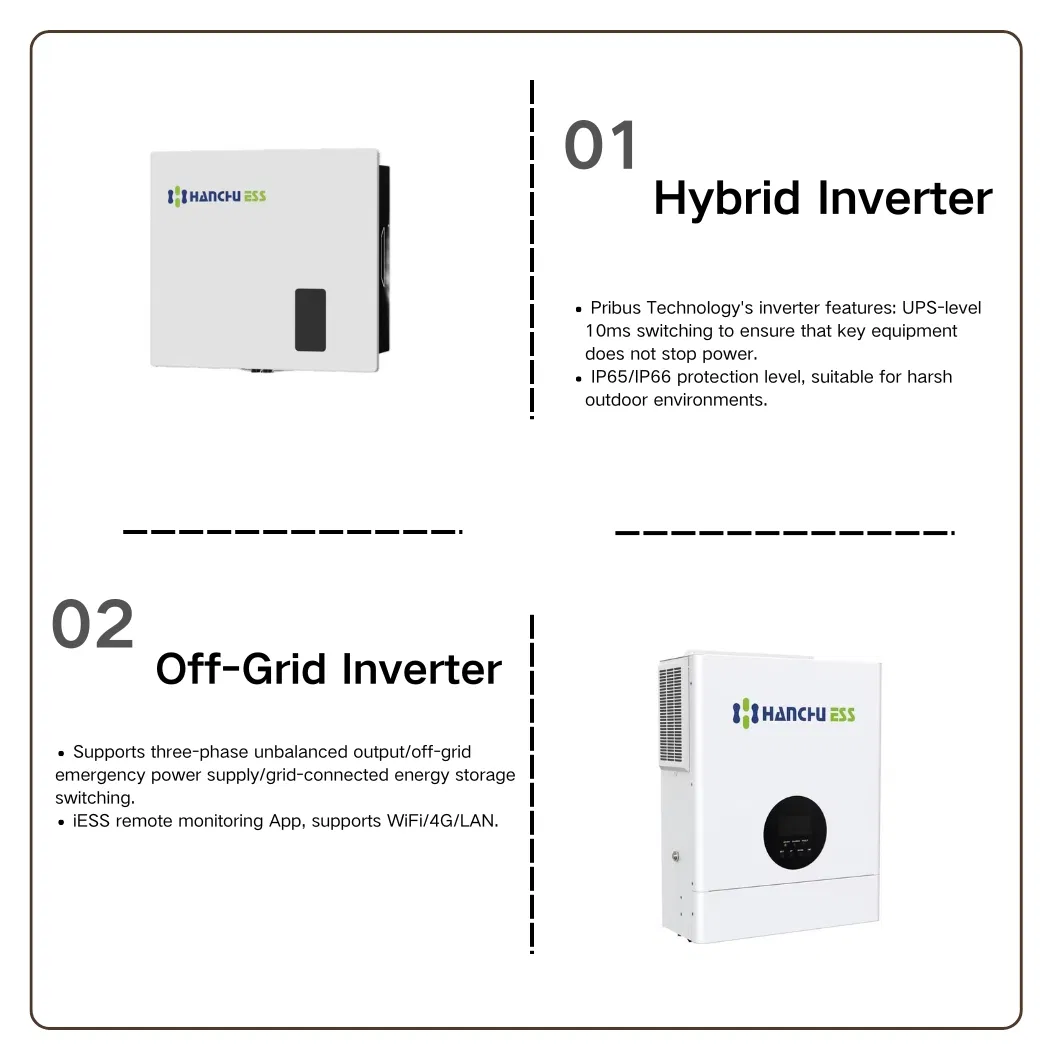

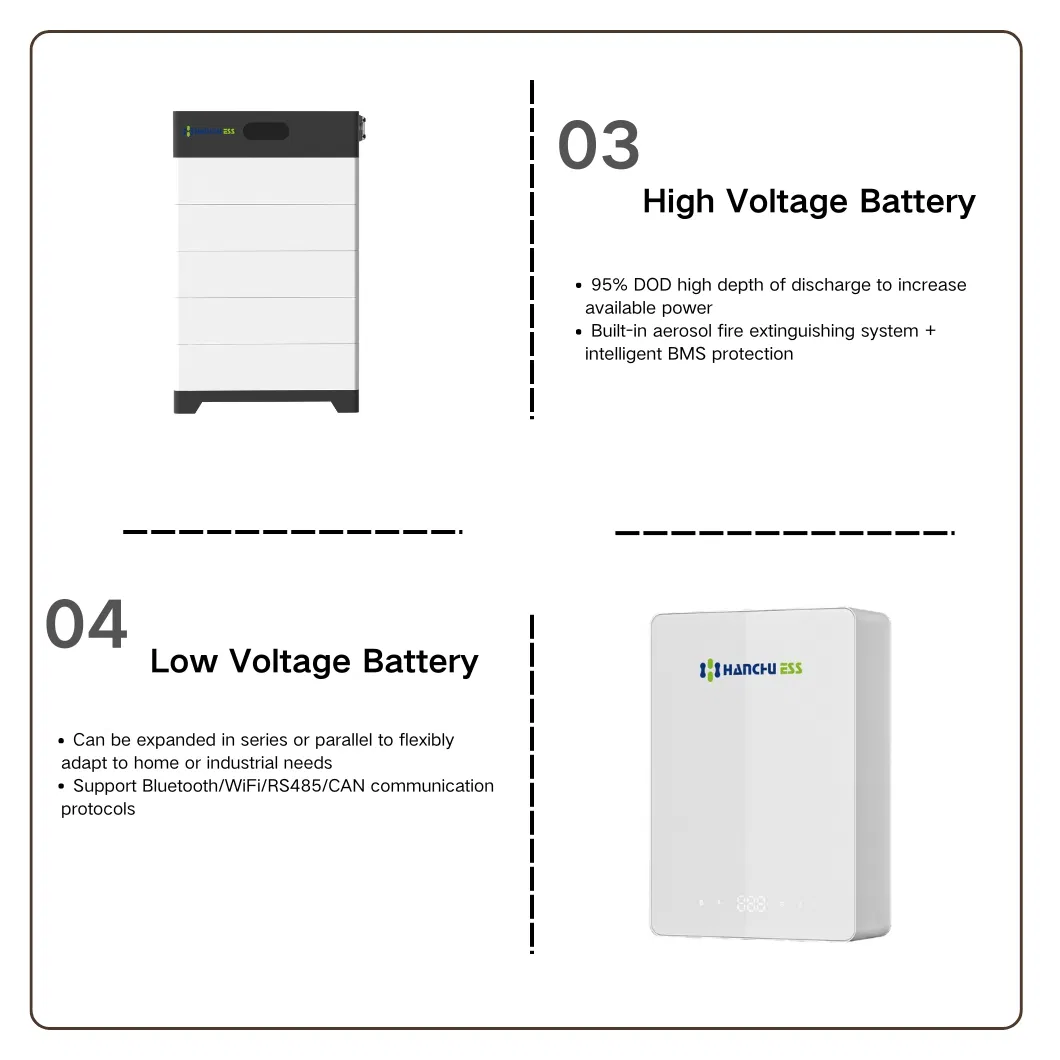

Products Display

■

Specification

Model	SUN-5K - SG03LP1-EU
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40 - 60
Max. Charging Current (A)	120
Max. Discharging Current (A)	120
Charging Strategy for Li-ion	Self-adaptation to BMS
Max. PV Input Power (W)	6500
Max. PV Input Voltage (V)	500
Start-up Voltage (V)	125
MPPT Voltage Range (V)	150 - 425
Rated AC Input/Output Power (W)	5000
Max. Efficiency	97.60%
Grid Connection Form	L + N + PE

■

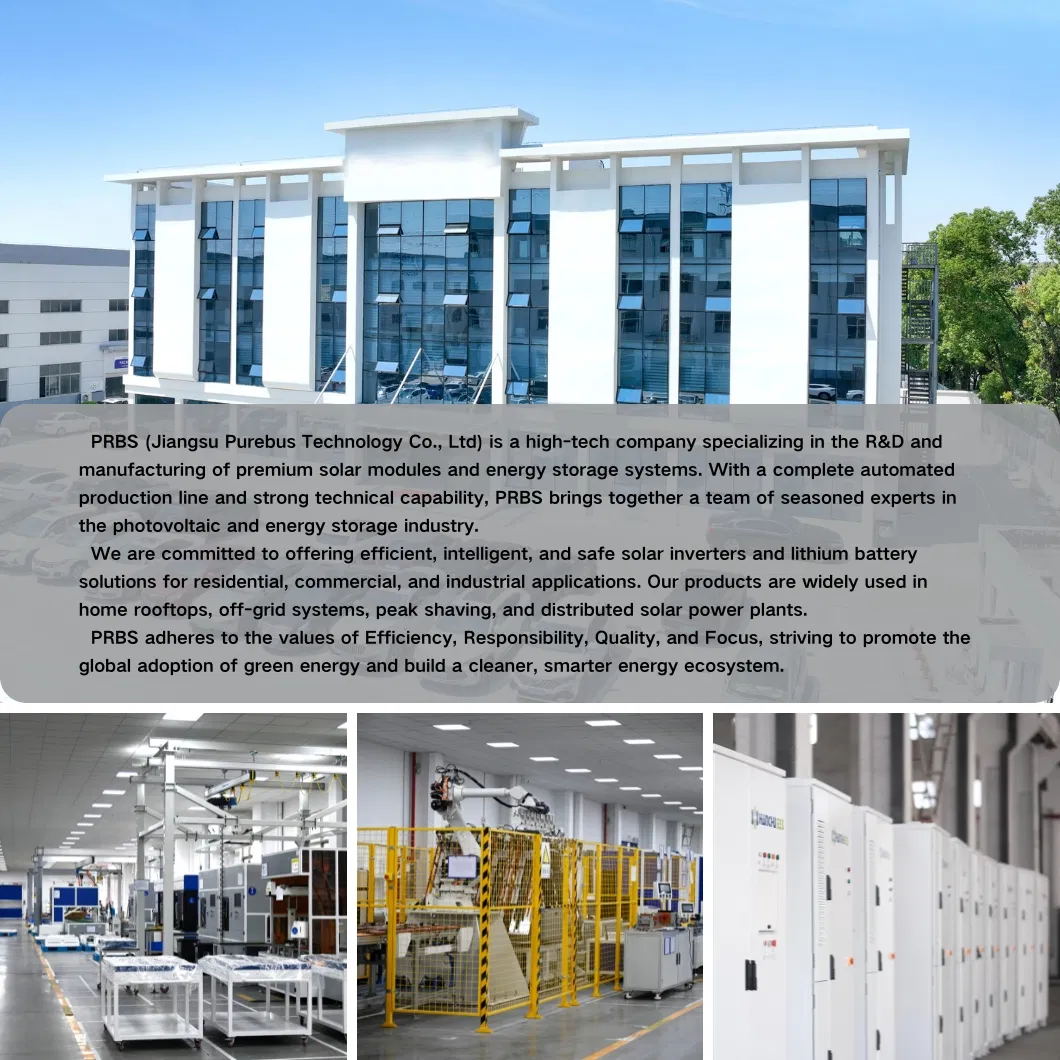

Professional Environment

■

Certifications

■

Packaging & Shipping

■

Frequently Asked Questions

Q1: Do the energy systems comply with international safety standards?

A1: Yes. All systems meet relevant IEC/CE/UN38.3 safety and EMC standards. Components undergo extensive testing for electrical protection and environmental durability.

Q2: Can you provide customized configurations for voltage and capacity?

A2: Yes. Custom options include battery capacity, nominal voltage (LV 51.2V or HV 135-750V), and various communication protocols like CAN, RS485, and Wi-Fi.

Q3: What is the typical lead time for delivery?

A3: Standard products are typically shipped within 7-10 working days. For customized models or large orders, the lead time is generally 20-30 days.

Q4: Are the systems compatible with different inverter brands?

A4: Yes. Our energy storage systems support open protocols and can be integrated with a wide range of inverter brands. Integration guides are provided.

Q5: Is third-party inspection supported before shipment?

A5: Yes. We welcome inspections from international agencies such as SGS or TUV. Full test reports are made available prior to dispatch.

Q6: What types of batteries can be used with these inverters?

A6: These inverters are designed to work efficiently with both Lead-Acid and Lithium-Ion battery types, with a voltage range of 40-60V.
