Customization: Available
Certification: ISO9001, RoHS, CE
Output Power: 5-25kw
Send Inquiry

Product Description

➲ Basic Information
Model NO.SUN-20K-SG01HP3-EU-AM2
Grid TypeHybrid
Output TypeTriple (Three Phase)
Wave StringSquare Wave Inverter
Input Voltage48V
Output Voltage100-240V / 380-415V
IP RatingIP65
Weight31kg
➲ Product Features
Hybrid Inverter Overview
✔
100% unbalanced output, each phase
✔
AC couple to retrofit existing solar system
✔
Max. 10 pcs parallel for on-grid and off-grid operation
✔
Max. charging/discharging current of 50A
✔
High voltage battery for higher efficiency
✔
Support storing energy from diesel generator
➲ Technical Specifications
Model SUN-5K SUN-8K SUN-12K SUN-15K SUN-20K SUN-25K
Battery Input Data
Battery TypeLithium-ion
Voltage Range (V)160-700
Max. Charge/Discharge (A)303737373750
PV String Input Data
Max. PV Input Power (W)100001600024000300004000050000
Max. DC Input Voltage (V)1000
MPPT Voltage Range (V)150-850
AC Output Data
Rated Output Power (W)5000800012000150002000025000
Max. Output Power (VA)5500880013200165002200027500
Grid Connection3L+N+PE (Three Phase)
➲ Product Presentation

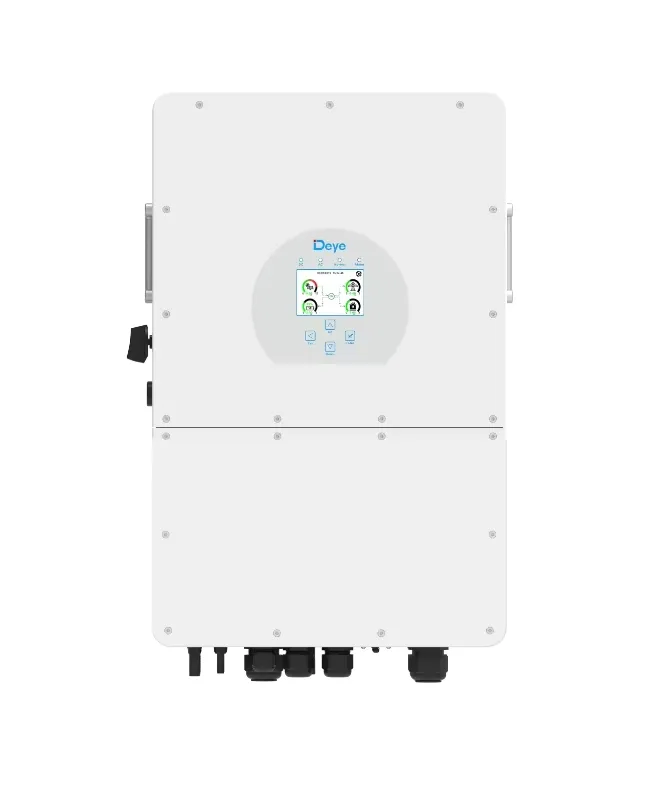

Inverter Detail 1

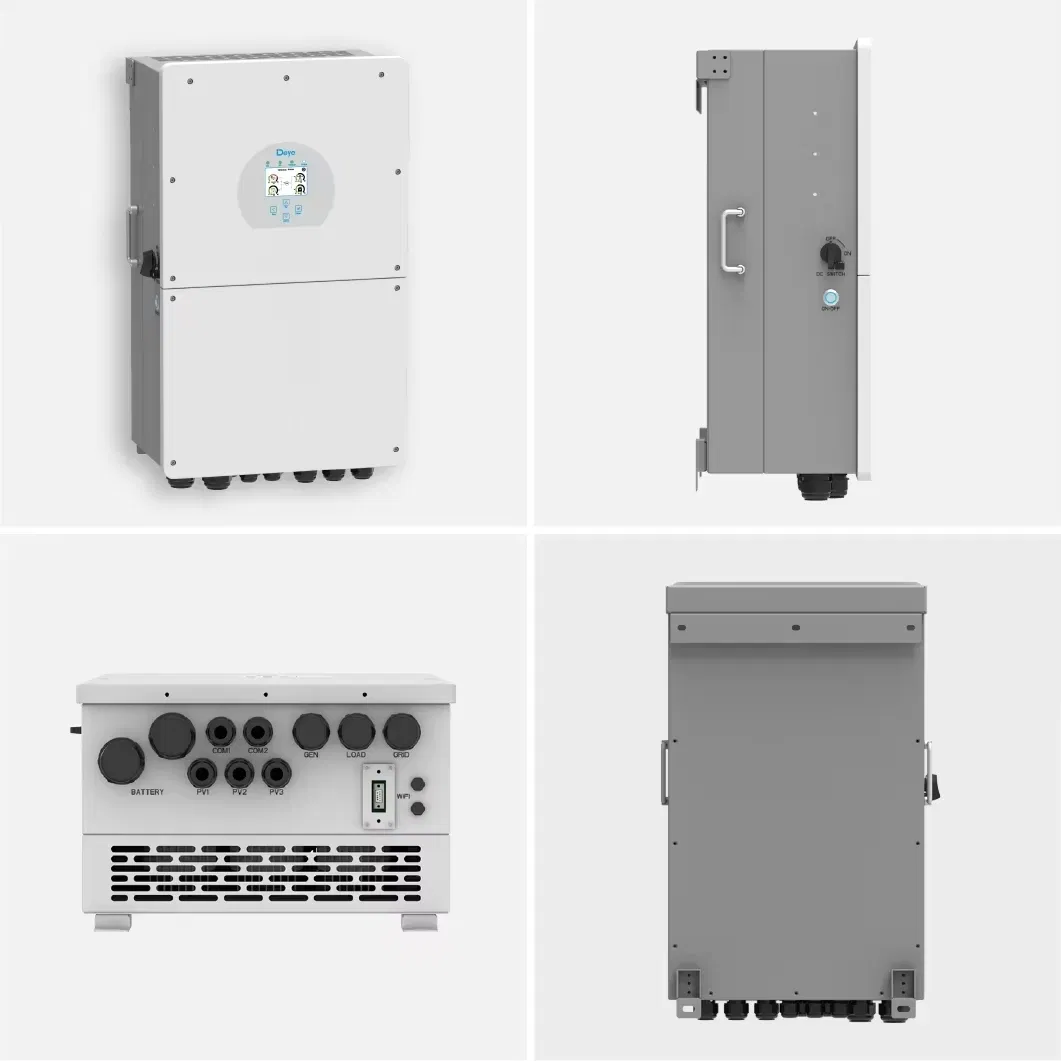

Inverter Detail 2

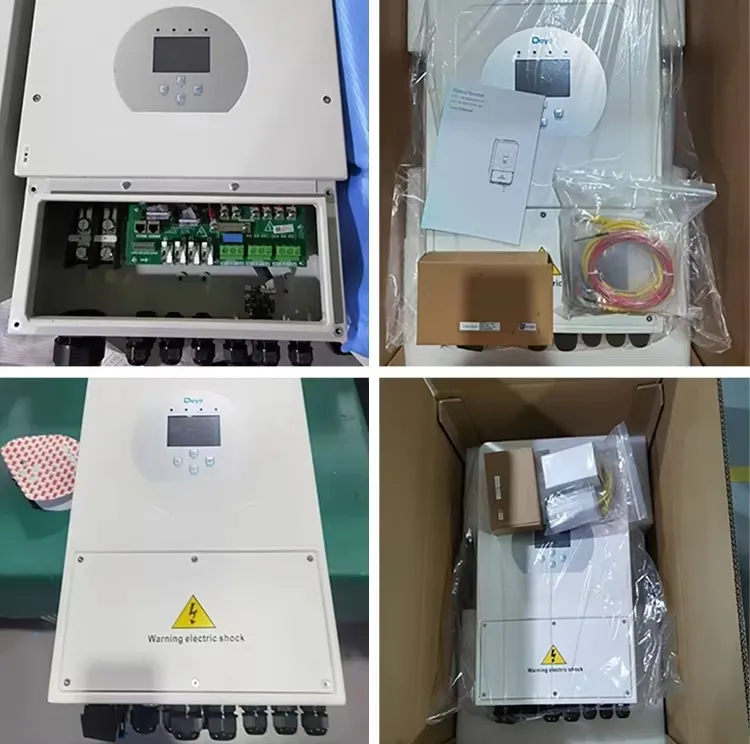

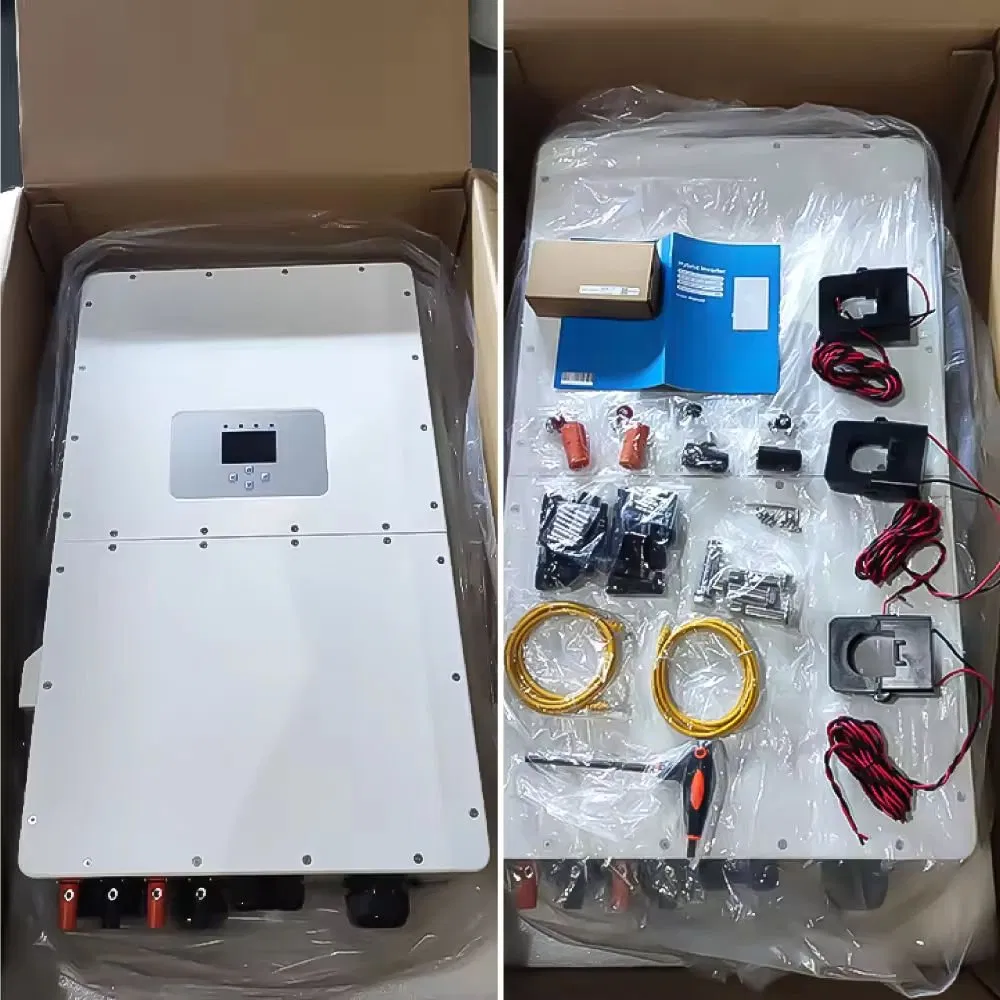

Packaging

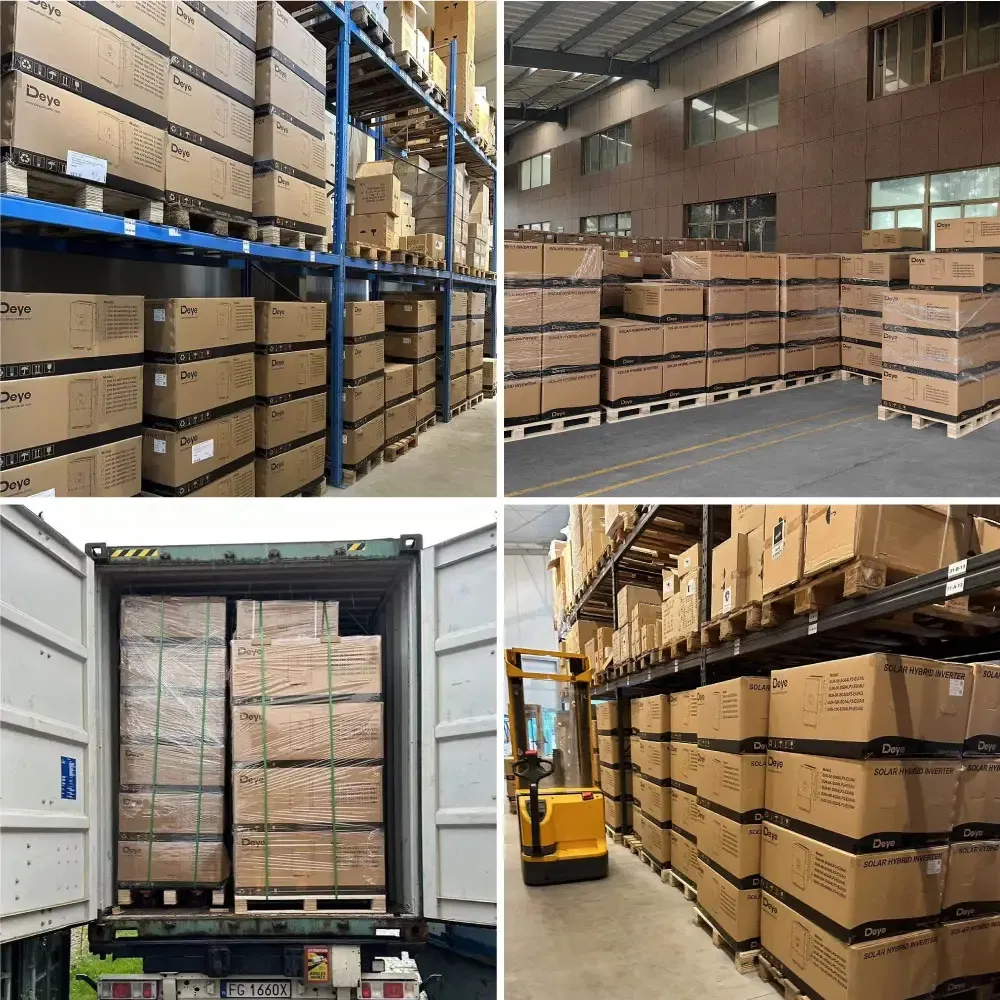

Installation

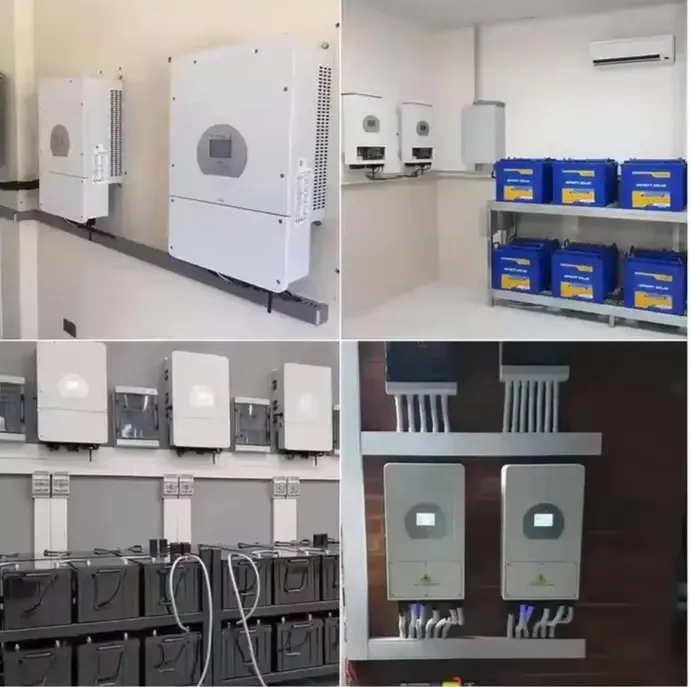

Warehouse
➲ Frequently Asked Questions
What type of batteries are compatible with this hybrid inverter?
The system is specifically designed for high-voltage Lithium-ion batteries with a voltage range of 160V to 700V, ensuring high efficiency and self-adaptation to BMS.
Can this inverter be used in parallel for larger systems?
Yes, it supports up to 10 units in parallel for both on-grid and off-grid operations, making it highly scalable for various power requirements.
What is the maximum PV input power supported?
Depending on the model, the maximum PV access power ranges from 10,000W for the 5kW model up to 50,000W for the 25kW model.
Does the inverter support backup from a diesel generator?
Yes, it fully supports storing energy from a diesel generator, providing an extra layer of reliability for off-grid or unstable grid environments.
What are the protection ratings and environmental limits?
The inverter features an IP65 ingress protection rating and is designed to operate in temperatures from -40 to +60°C (with derating above 45°C).
Does it support unbalanced phase output?
Yes, it supports 100% unbalanced output on each phase, allowing for more flexible load management in three-phase systems.
