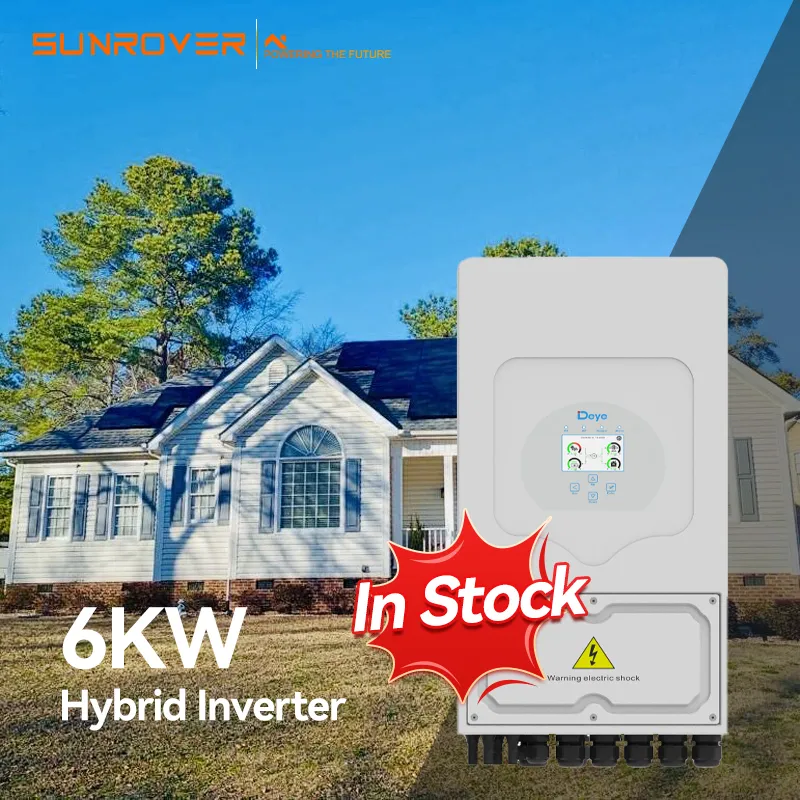

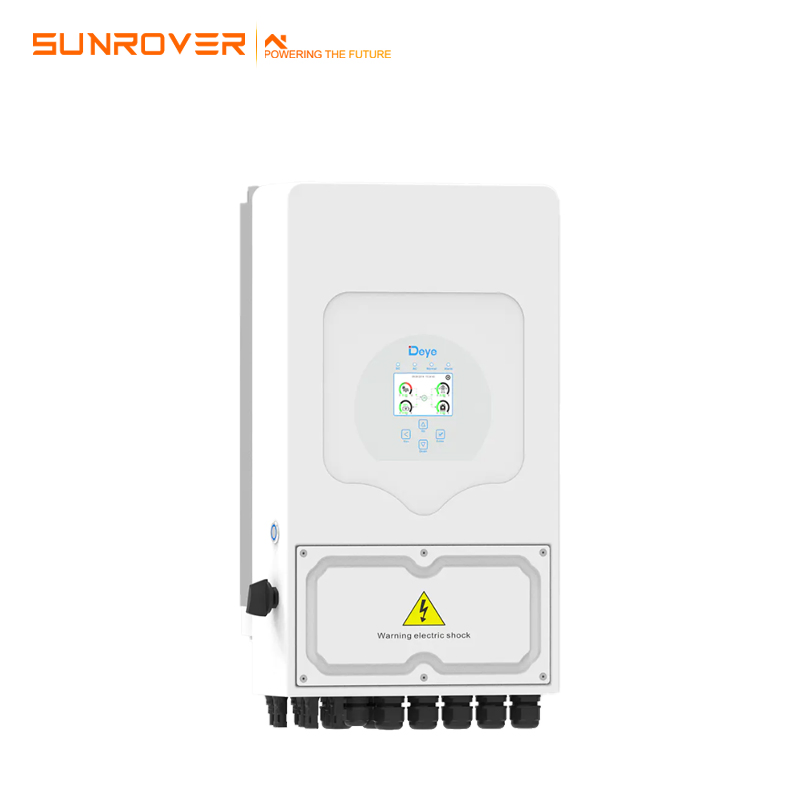

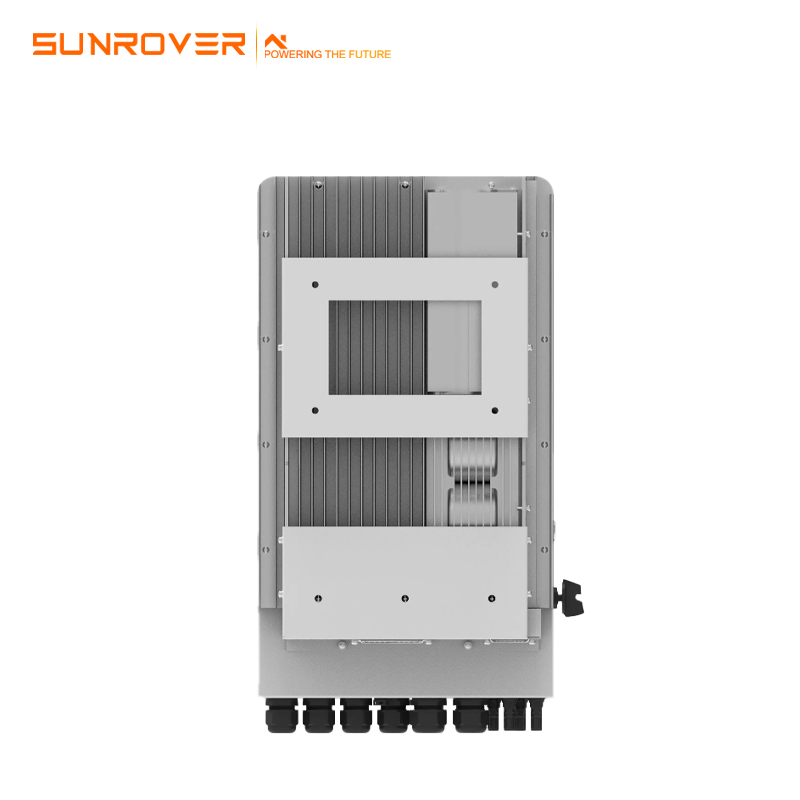

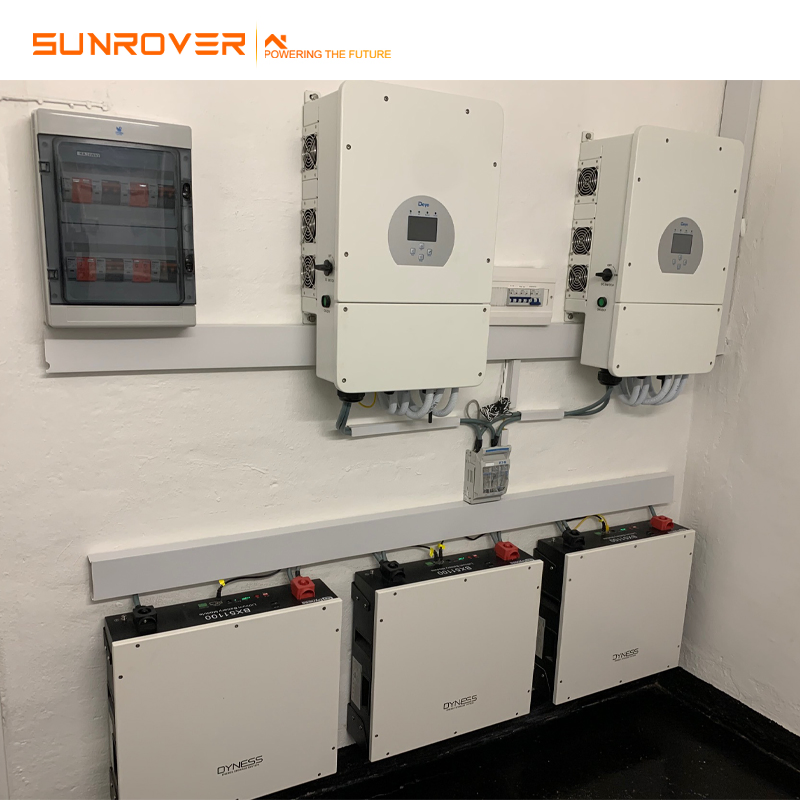

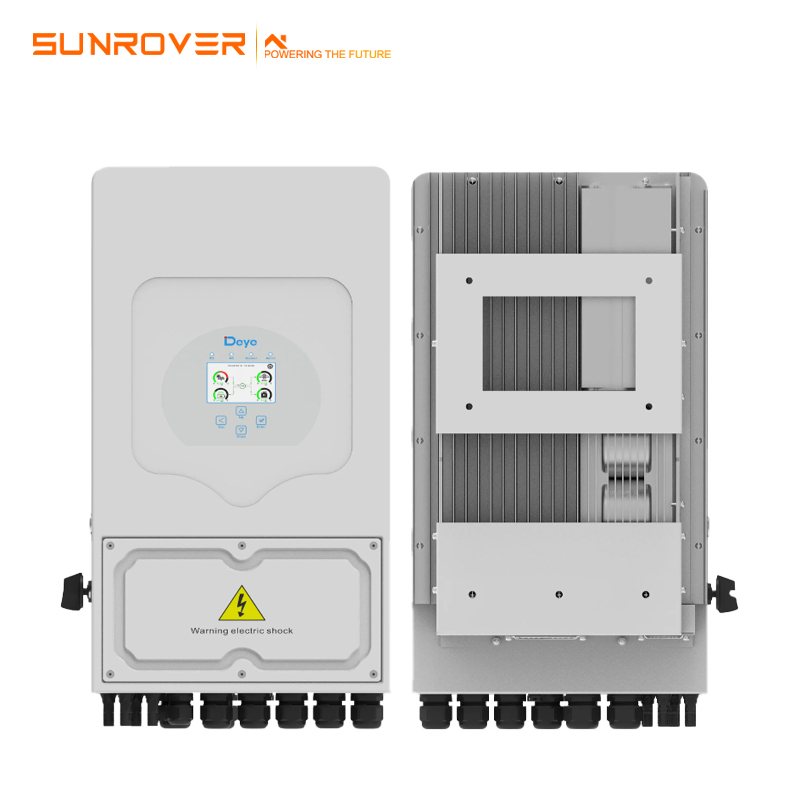

Deye Hybrid Single Phase Solar Inverter 5kw 6kw 8kw Sun-6K-Sg05lp1-EU DC/AC Inverter for Home Use
Deye Hybrid Single Phase Solar Inverter 5kw 6kw 8kw Sun-6K-Sg05lp1-EU DC/AC Inverter for Home Use
Deye Hybrid Single Phase Solar Inverter 5kw 6kw 8kw Sun-6K-Sg05lp1-EU DC/AC Inverter for Home Use
Deye Hybrid Single Phase Solar Inverter 5kw 6kw 8kw Sun-6K-Sg05lp1-EU DC/AC Inverter for Home Use
Deye Hybrid Single Phase Solar Inverter 5kw 6kw 8kw Sun-6K-Sg05lp1-EU DC/AC Inverter for Home Use
1 / 5
Deye Hybrid Single Phase Solar Inverter 5kw 6kw 8kw Sun-6K-Sg05lp1-EU DC/AC Inverter for Home Use
Deye Hybrid Single Phase Solar Inverter 5kw 6kw 8kw Sun-6K-Sg05lp1-EU DC/AC Inverter for Home Use
Deye Hybrid Single Phase Solar Inverter 5kw 6kw 8kw Sun-6K-Sg05lp1-EU DC/AC Inverter for Home Use
Deye Hybrid Single Phase Solar Inverter 5kw 6kw 8kw Sun-6K-Sg05lp1-EU DC/AC Inverter for Home Use
Deye Hybrid Single Phase Solar Inverter 5kw 6kw 8kw Sun-6K-Sg05lp1-EU DC/AC Inverter for Home Use

Deye Hybrid Single Phase Solar Inverter 5kw 6kw 8kw Sun-6K-Sg05lp1-EU DC/AC Inverter for Home Use

Customization: Available
After-sales Service: Yes
Warranty: 10 Years
Send Inquiry

Product Description

Basic Info
Model NO.
SUN-6K-SG05LP1-EU
Nature of Source Flow
Active Inverter
Phase
Single
Certification
SAA, CE, ROHS, ISO9001, CCC
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
MPPT Voltage Range
125-425V
Output Active Power
6500W
Battery Type
Lead-Acid or Lithium-Ion
Ingress Protection
IP 65
Product Description
Hybrid Solar Inverter
Model Specification SUN-5K-SG03LP1-EU SUN-6K-SG05LP1-EU
Battery Input Data
Battery TypeLead-acid or Lithium-ion
Battery Voltage Range (V)40~60
Max. Charging Current (A)90120
Max. Discharging Current (A)90120
PV String Input Data
Max. DC Input Power (W)46806500
PV Input Voltage (V)370 (100~500)
MPPT Range (V)125~425
PV Input Current (A)13+13
AC Output Data
Rated AC Output (W)50006000
Max. AC Output Power (W)55006600
Peak Power (off grid)2 times of rated power, 10 S
Output Frequency/Voltage50/60Hz; 220/230/240Vac
Efficiency & Protection
Max. Efficiency97.60%
MPPT Efficiency99.90%
Surge ProtectionDC Type II / AC Type II
Warranty5 years
Visual Display

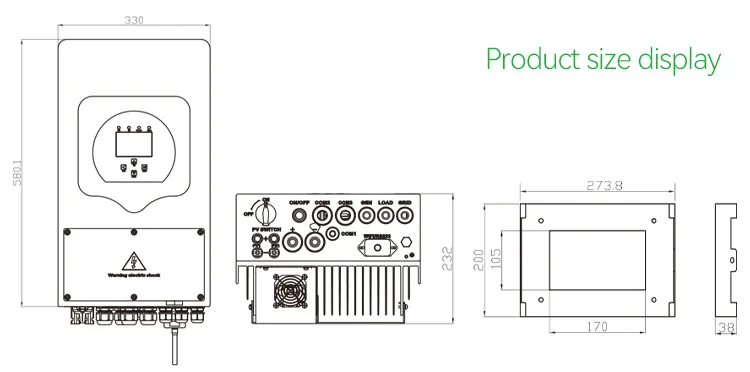

Product Size Display
Size Display

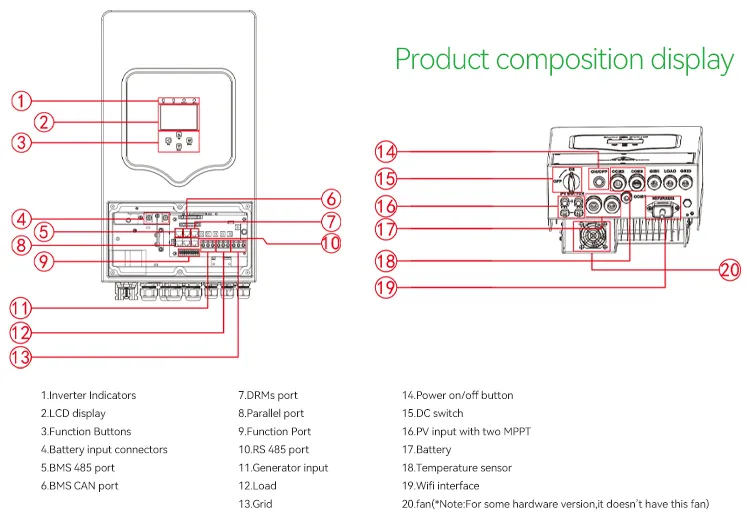

Product Composition
Composition

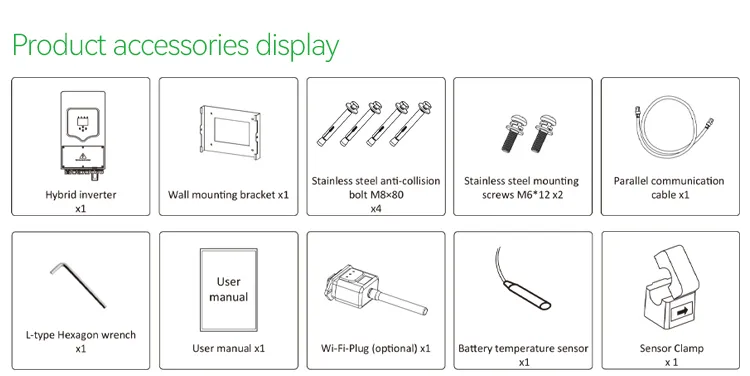

Product Accessories
Accessories
Packaging Details

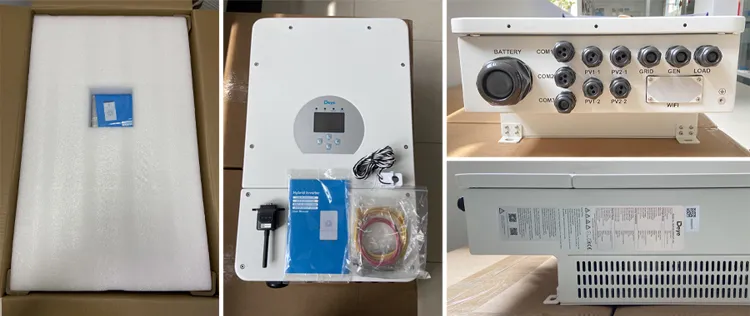

Packaging 1
Standard Packing

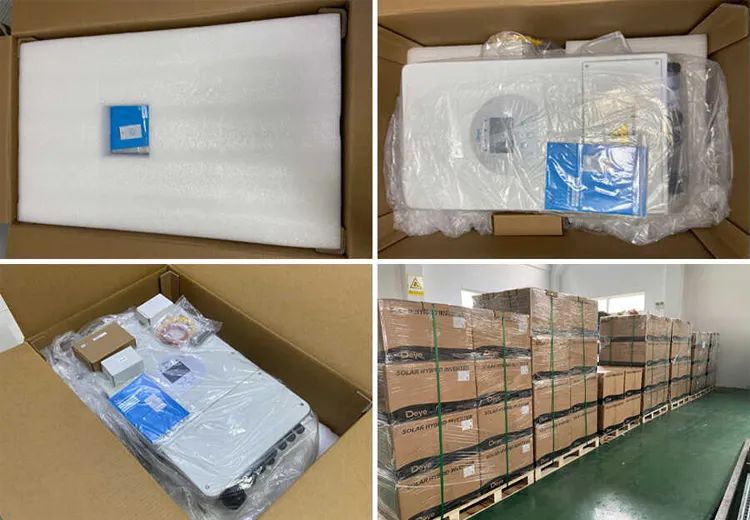

Packaging 2

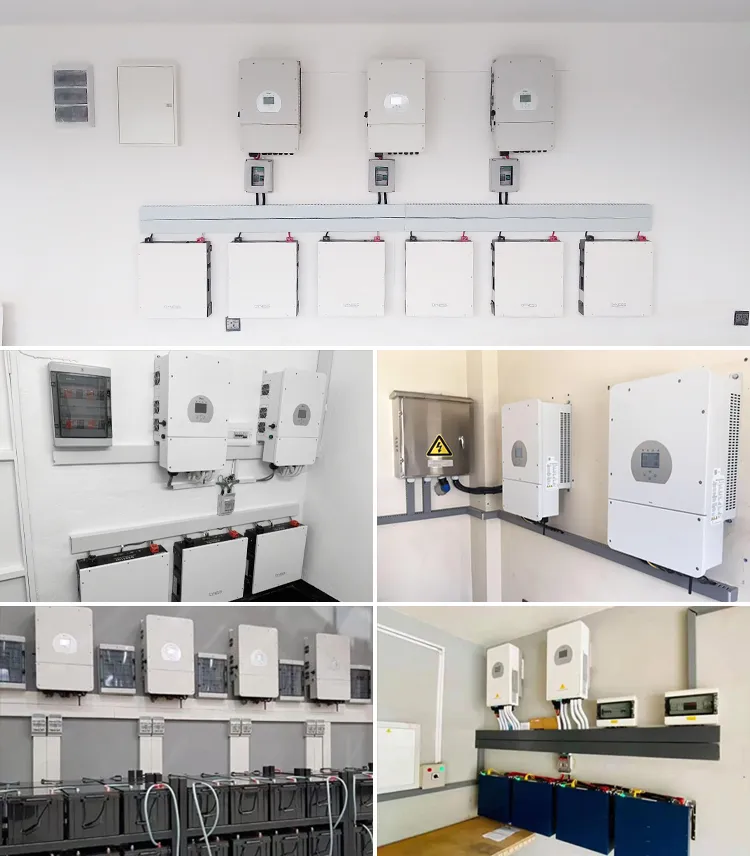

Our Projects
Projects

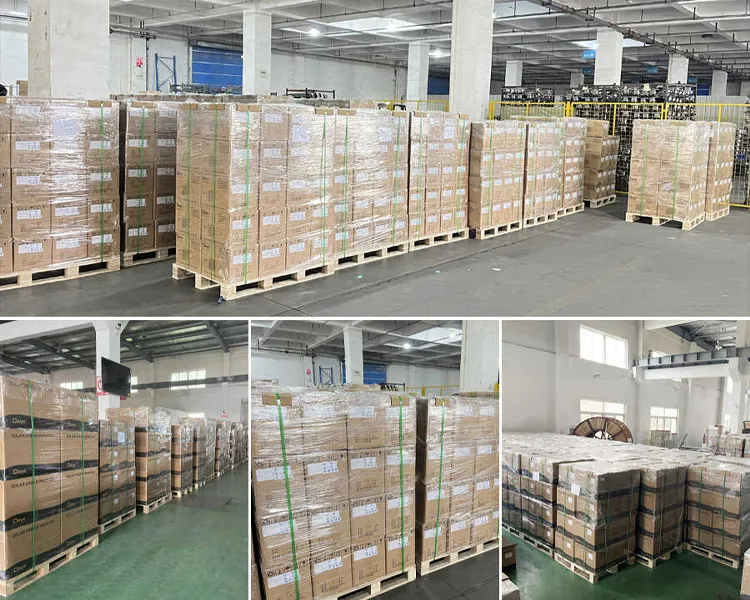

Inventory
Inventory
Factory Facility
Facility
Frequently Asked Questions
Q1: What types of batteries are compatible with this hybrid inverter? The inverter supports both Lead-acid and Lithium-ion batteries with a voltage range of 40V to 60V, including self-adaption to BMS for Lithium batteries.
Q2: Can this inverter handle outdoor installations? Yes, it features an Ingress Protection (IP) rating of IP65, making it suitable for both indoor and protected outdoor environments.
Q3: What is the peak power capacity for off-grid use? The inverter is designed to handle 2 times its rated power for up to 10 seconds to accommodate high startup loads in off-grid situations.
Q4: Does the system include surge and lightning protection? Yes, it integrates PV Input Lightning Protection and features DC Type II / AC Type II surge protection as standard.
Q5: How many MPPT trackers does the SUN-6K model have? It is equipped with 2 MPPT trackers, with 1+1 strings per tracker, ensuring optimal power harvest from solar panels.
Q6: What communication methods are available for BMS monitoring? The inverter supports RS485 and CAN communication protocols for seamless integration and monitoring of the Battery Management System.
