📊 Basic Information
Nominal Capacity
5kwh-60kwh
Specification
602*532*215mm
Package Size
60.00cm * 53.00cm * 22.00cm
🔍 Product Description

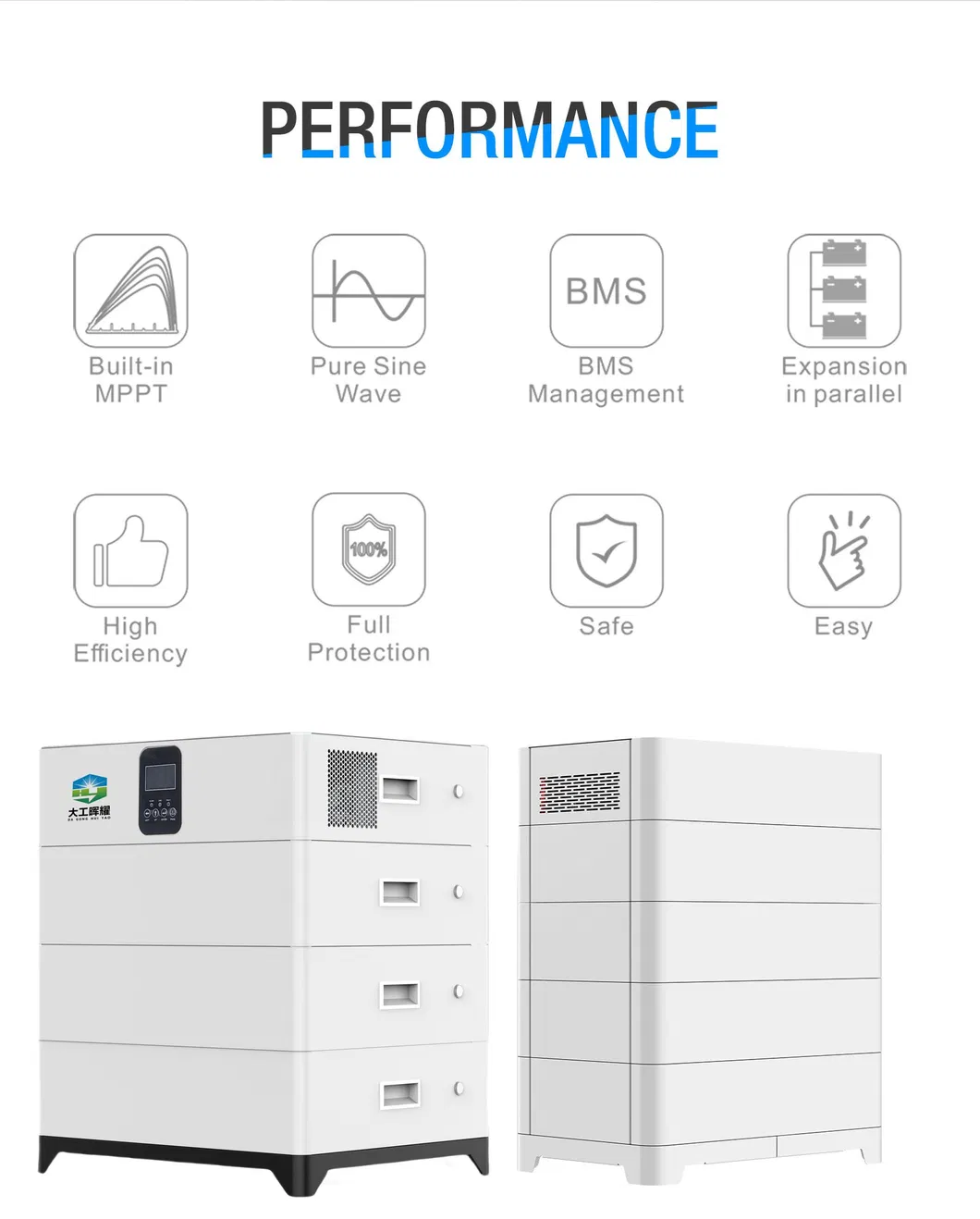

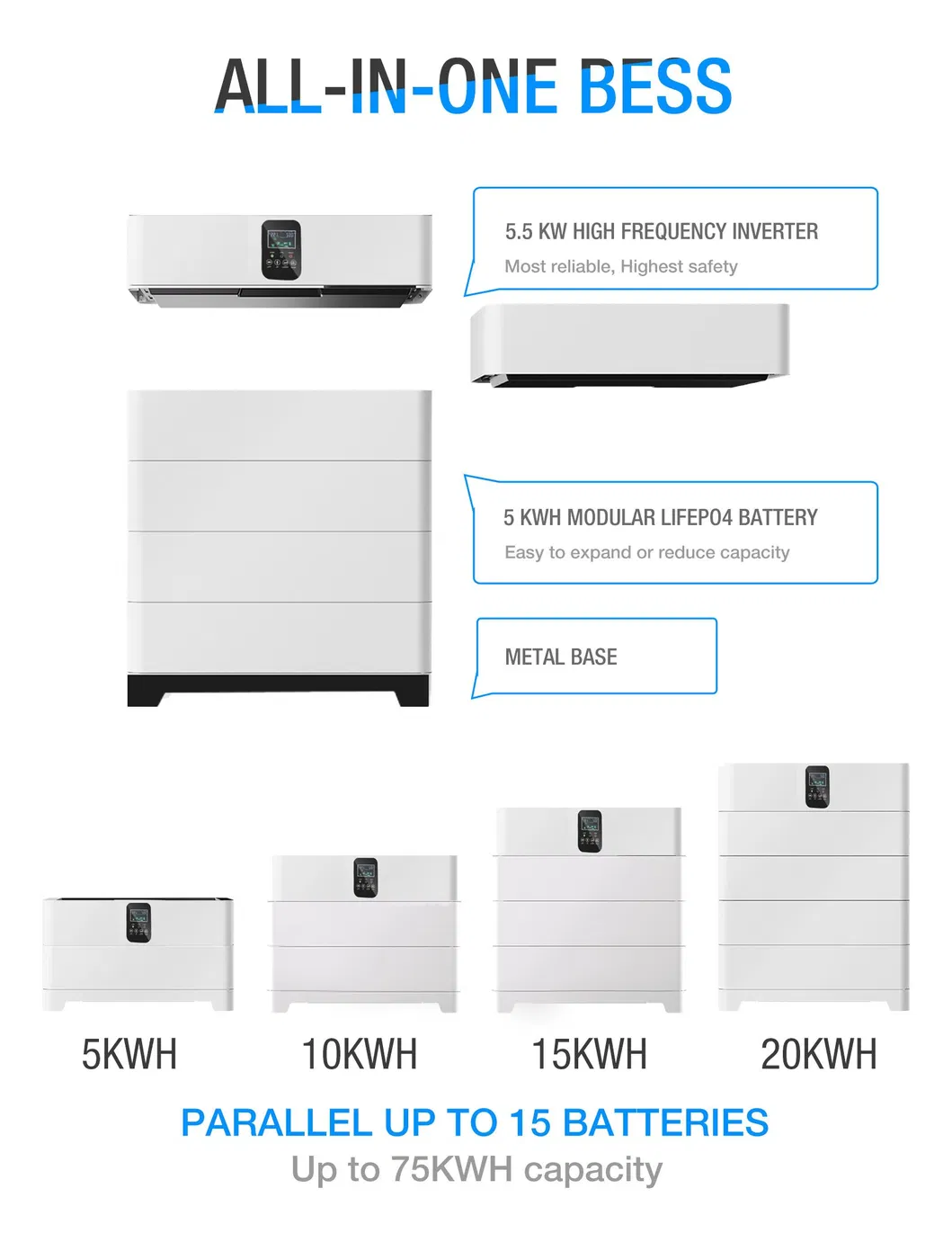

⚡ Battery Module Stacking Design
A smart Battery Management System (BMS) is integrated to monitor voltage, temperature, and current in real-time, ensuring safe operation. The modular design allows for flexible adjustments of battery capacity based on specific energy needs.
🔌 All-in-One Integration
Optimized integration of inverter, battery, and BMS improves space utilization and aesthetics. Efficient cooling solutions ensure stable operation under high loads, while the streamlined exterior hides wiring for a clean home installation.

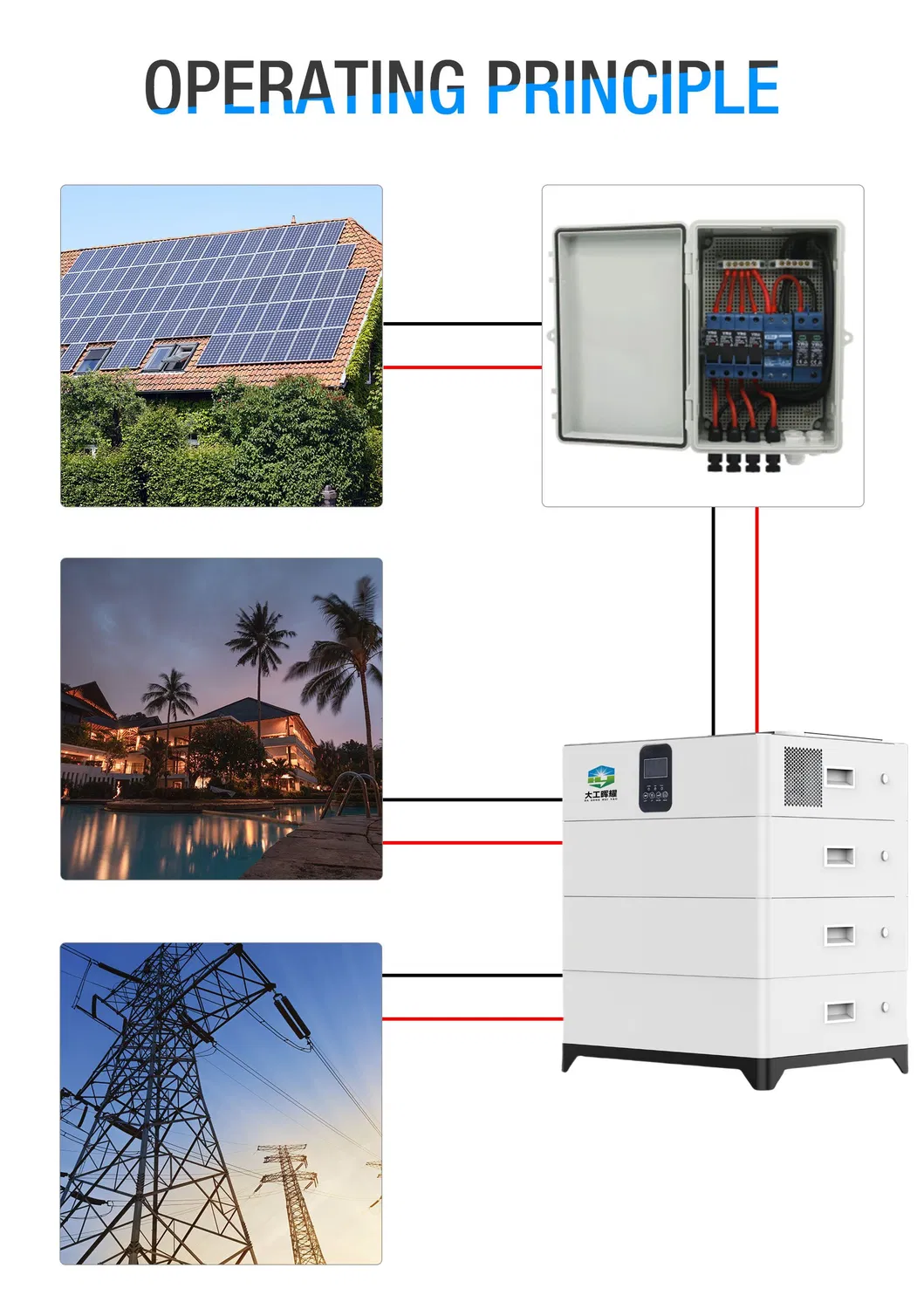

🌐 Advanced Communication Interface
Utilizing CAN bus or RS485 for superior anti-interference capabilities in complex environments. Supports multiple communication protocols and easy software upgrades.
📋 Product Parameters
| Battery Model |
Voltage |
Energy |
Capacity |
Size |
Current |
Material |
| DHDJ-5000*1 |
51.2V |
100Ah |
5.12kWh |
602*532*215mm |
100A |
LiFePO4 |
| DHDJ-5000*2 |
51.2V |
200Ah |
10.24kWh |
602*532*430mm |
100A |
LiFePO4 |
| DHDJ-5000*3 |
51.2V |
300Ah |
15.36kWh |
602*532*645mm |
100A |
LiFePO4 |
📜 Certifications & Logistics

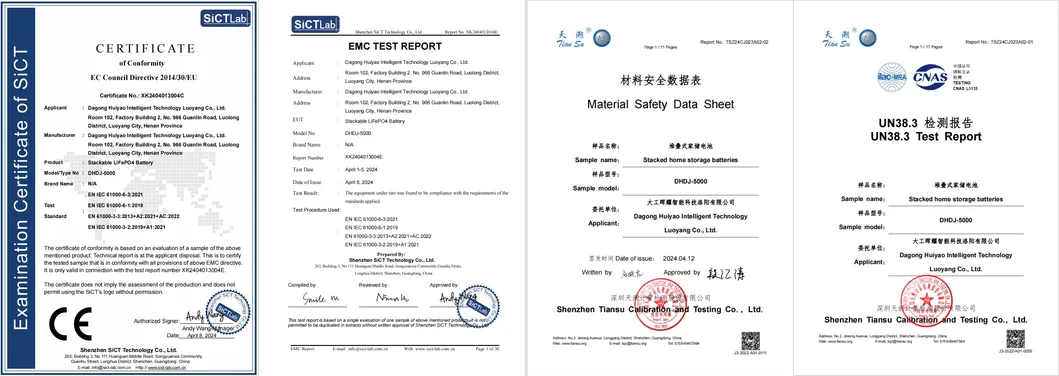

Compliance Standards: ISO 9001, CE, UN38.3, MSDS.
Safe Transport: We use specialized, customs-approved hazardous packaging for international shipping. Our products meet the UN "Manual of Tests and Criteria" Part III, Section 38.3, ensuring safety for land and sea transport.
🛠️ Installation Guide
User-friendly process designed for everyone. No professional background required.
1
Unboxing: Carefully remove the battery units from the protective packaging.
2
Stacking: Stack the battery units following the provided structural guidance.
3
Parallel Connection: Connect units in parallel to ensure stable power output.
4
Communication Setup: Connect cables to the BMS for real-time monitoring.
5
Power Integration: Link to the PV system, mains, and output supply.

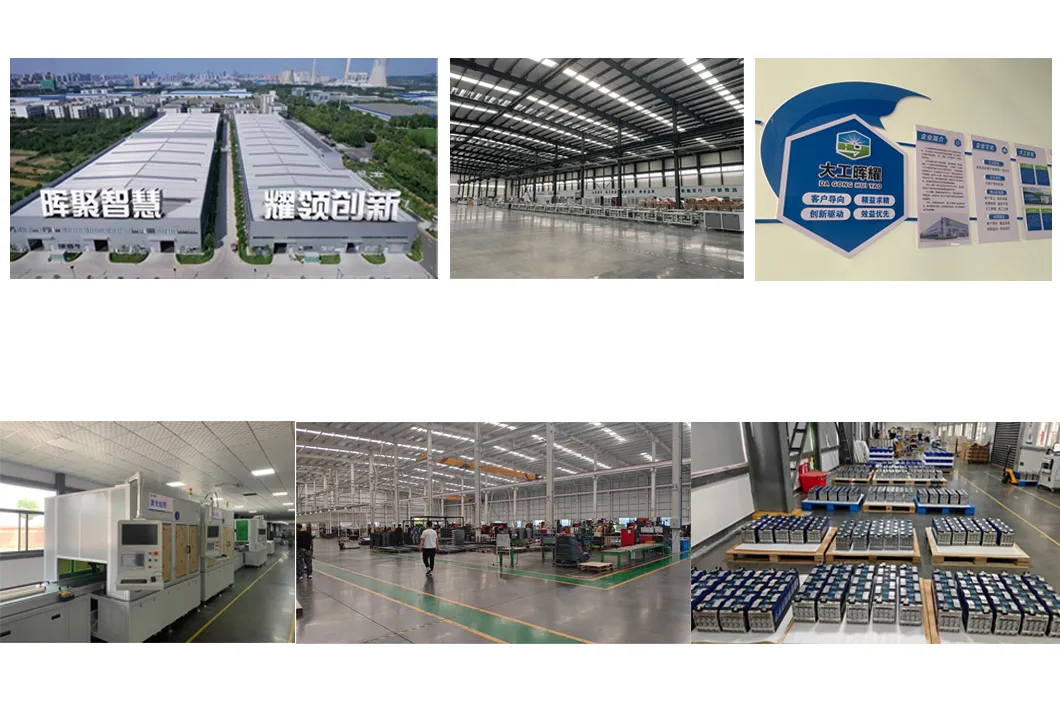

🏢 About Us
As a professional battery energy storage system (BESS) provider, we integrate expertise in electrochemistry and power electronics to deliver reliable global solutions. Founded in 2017, we have expanded to include a 10,000+ square meter factory and a joint research lab. We are dedicated to enabling sustainable, green development through high-quality new energy products.
❓ Frequently Asked Questions
Is any manual adjustment needed during the first startup?
No, the system parameters are preset at the factory. It will automatically adapt during initial operation.
What maintenance is required during operation?
No manual component changes or parameter adjustments are needed. You can monitor status via the LCD screen or the optional WIFI mobile app.
How can I calculate my solar system needs?
Divide your annual consumption by 365. For example, 4000kWh/year is approx 10.9kWh/day. This helps determine the number of panels and batteries required.
What is the core business of the company?
We specialize in solar energy systems and components, specifically high-efficiency inverters and Lithium (LiFePO4) batteries.
What is the after-sales policy?
Within the warranty period, product defects are replaced free of charge. Outside this period, replacement parts are provided at a 20% discount.
How long is the quoted price guaranteed?
Quotes are generally valid for a period of 15 days.
