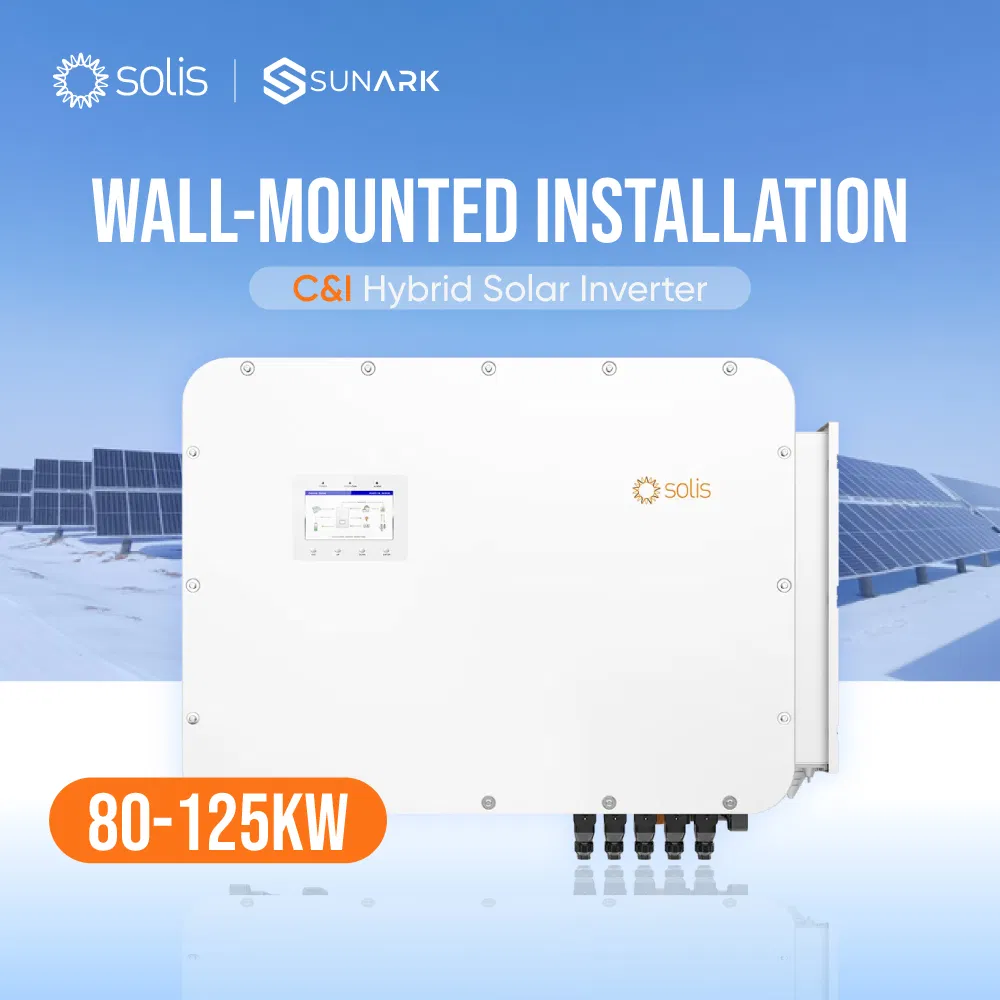

Solis Solar VFD Energy Storage Inverter 100kw 125kw Hybrid Inverter 3 Phase Uninterrupted Power Supply

Still deciding? Get samples of $ !
Request Sample

Product Description

Overview - Basic Info
Model NO.Solis 80-125KW Hybrid
Nature of Source FlowPassive inverter
PhaseThree
Output Power>1000W
CertificationSAA, CE, ROHS, ISO9001
BrandSolis
Power SourceSolar Power
Circuit TopologiesFull-Bridge Type
Nature of Wave StringSine Wave Inverter
Recommended Max. PV Array Size160kw/ 200kw/ 240kw
MPPT Number/ Max. Input Strings Number10/20
Battery TypeLi-ion/ LiFePO4/ Lithium Iron Phosphate/ LFP
Battery Voltage Range300-950 V
Number of Battery Ports2
Ingress Protection (IP)IP66
Operating Ambient Temperature Range-25-+60°C
Safety/ EMC StandardIEC/En 62109-1/-2, IEC/En 61000-6-2/-4, En 55011
CertificatesG99,VDE,Cei021,IEC62116,IEC61727,IEC60068,IEC 1683
Product Description

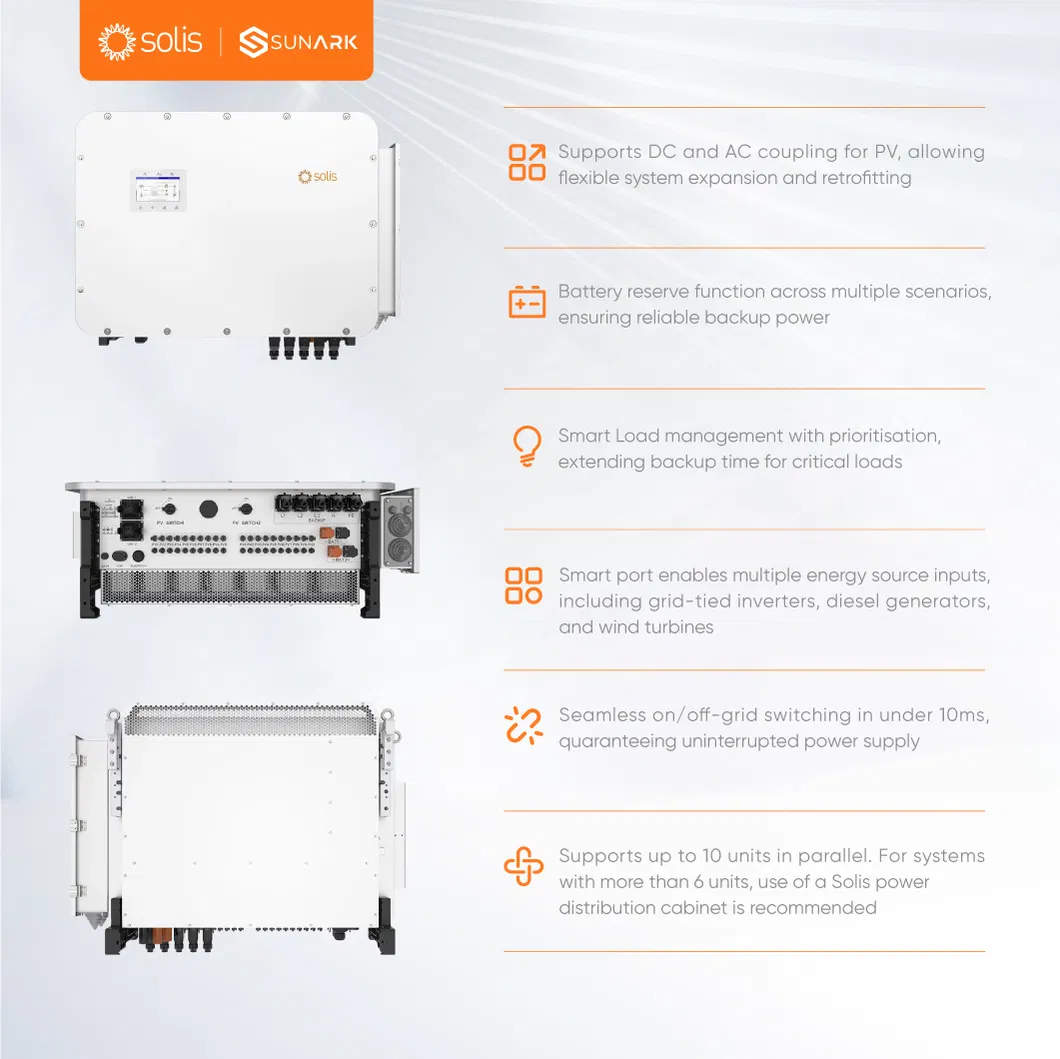

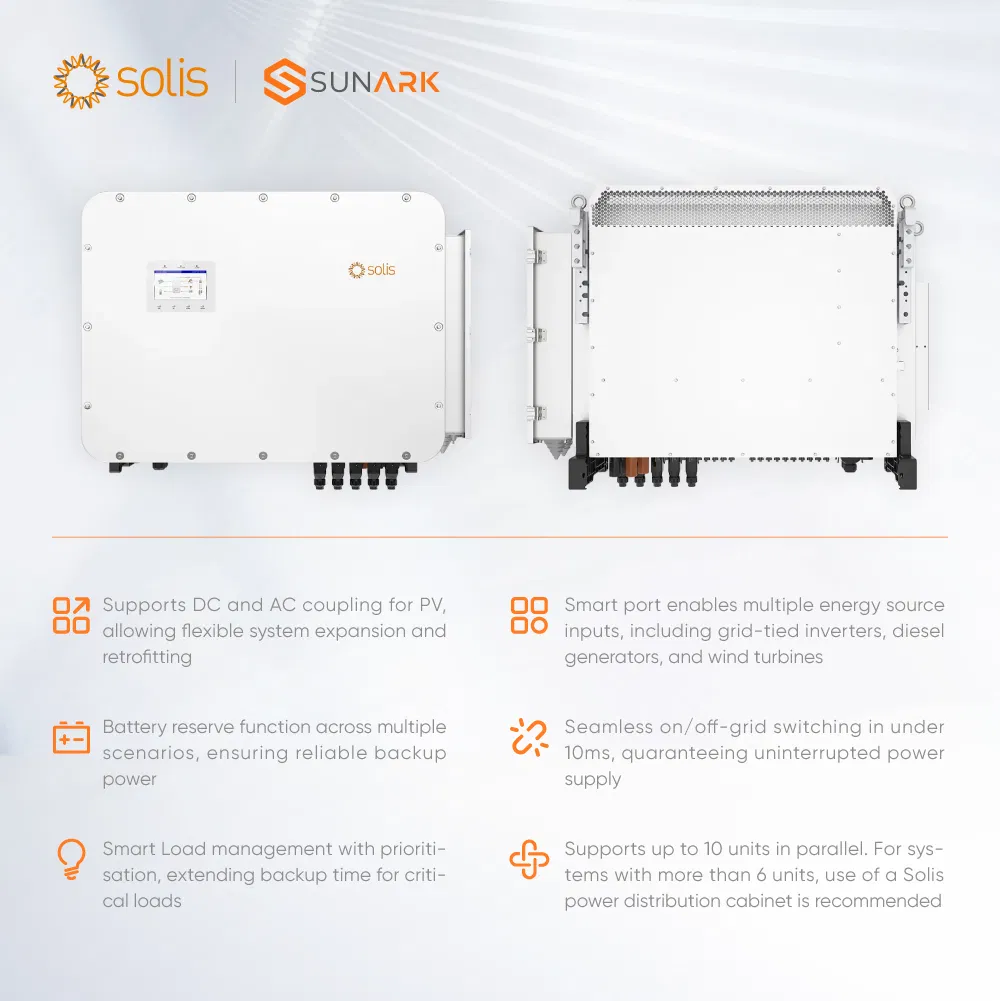

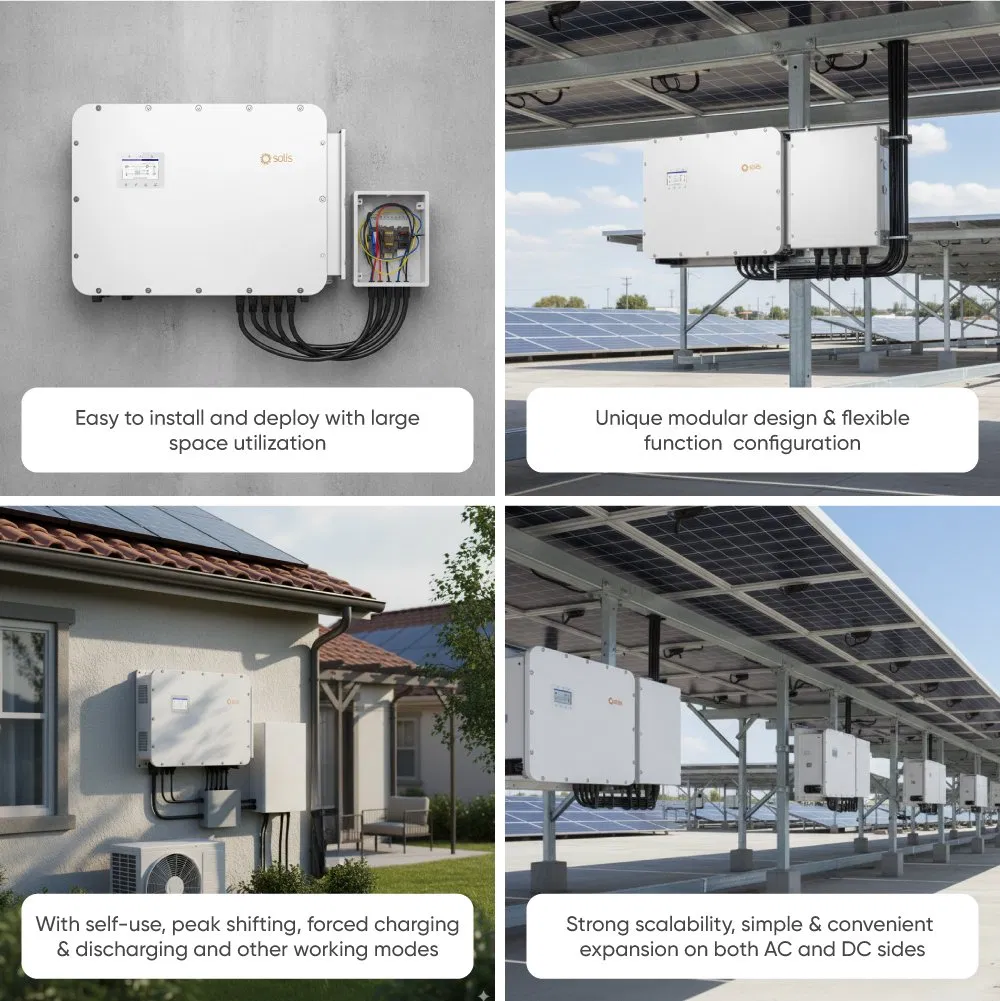

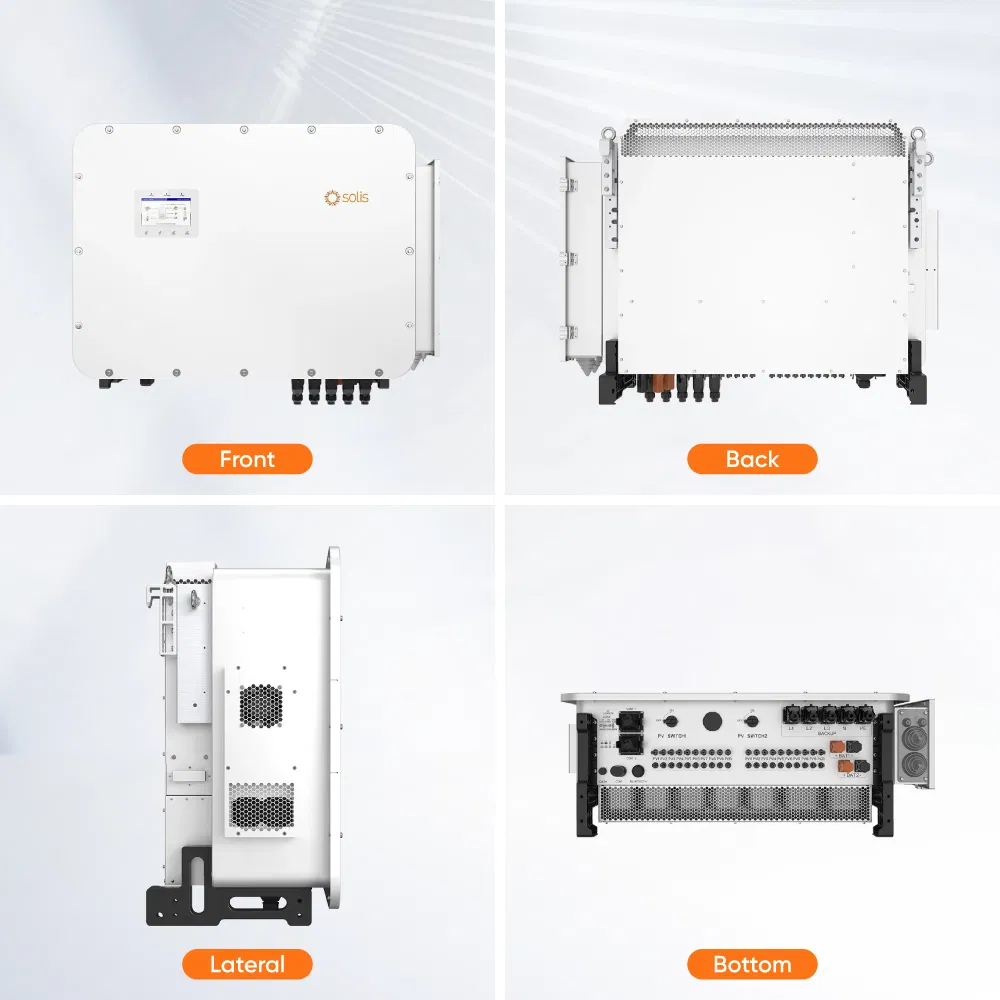

Solis 125kw Hybrid Inverter Hybrid Inverter Technical Display
Technical Specifications Table
Models 80K 100K 125K
Recommended max. PV array size 160 kW 200 kW 240 kW
Max. input voltage 1000 V
MPPT voltage range 150 - 950 V
Battery type Li-ion
Max.charge / discharge current 200 A / 100 A + 100 A
Rated output power 80 kW 100 kW 125 kW
Efficiency 97.6%
Dimensions (W × H × D) 1174 × 814 × 400 mm
Application Scenarios

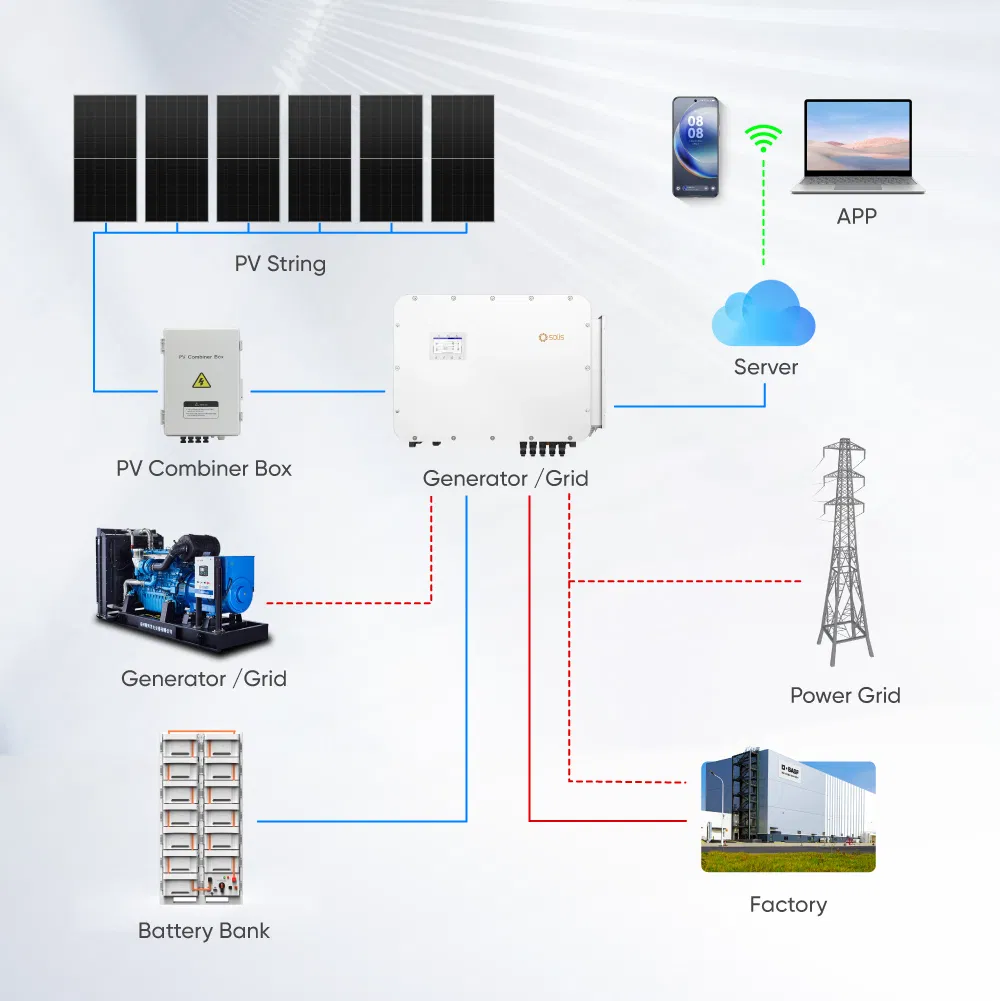

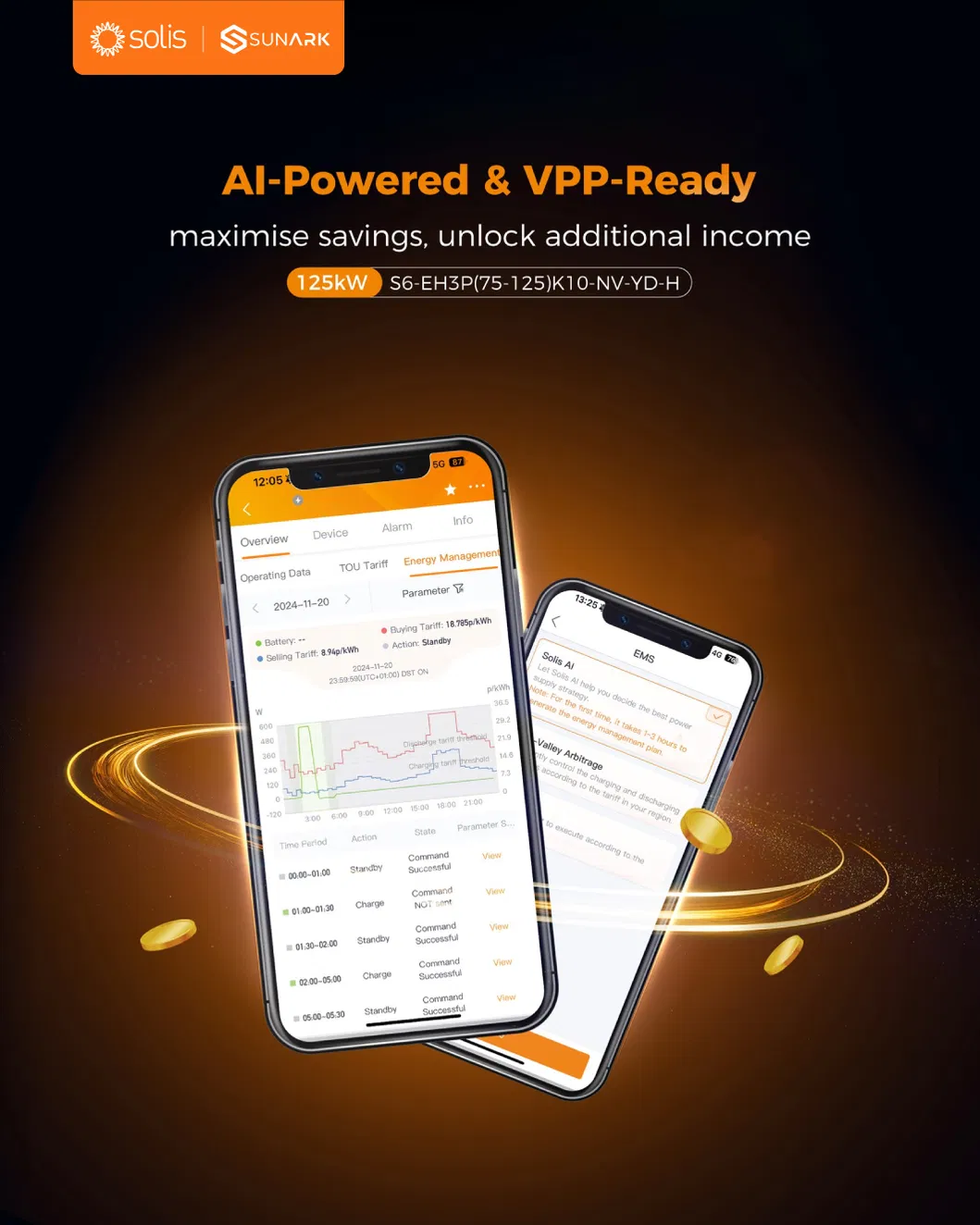

System Application

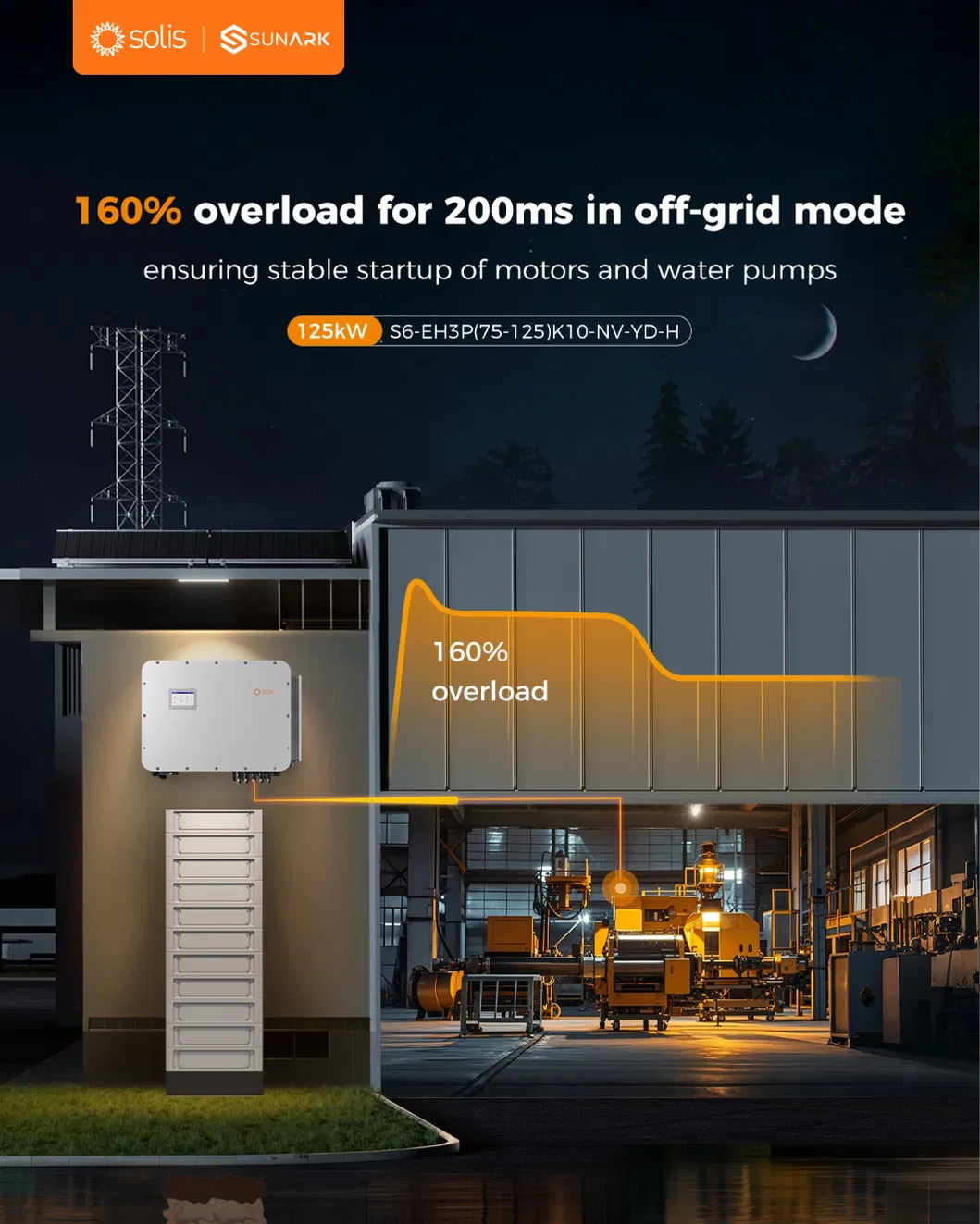

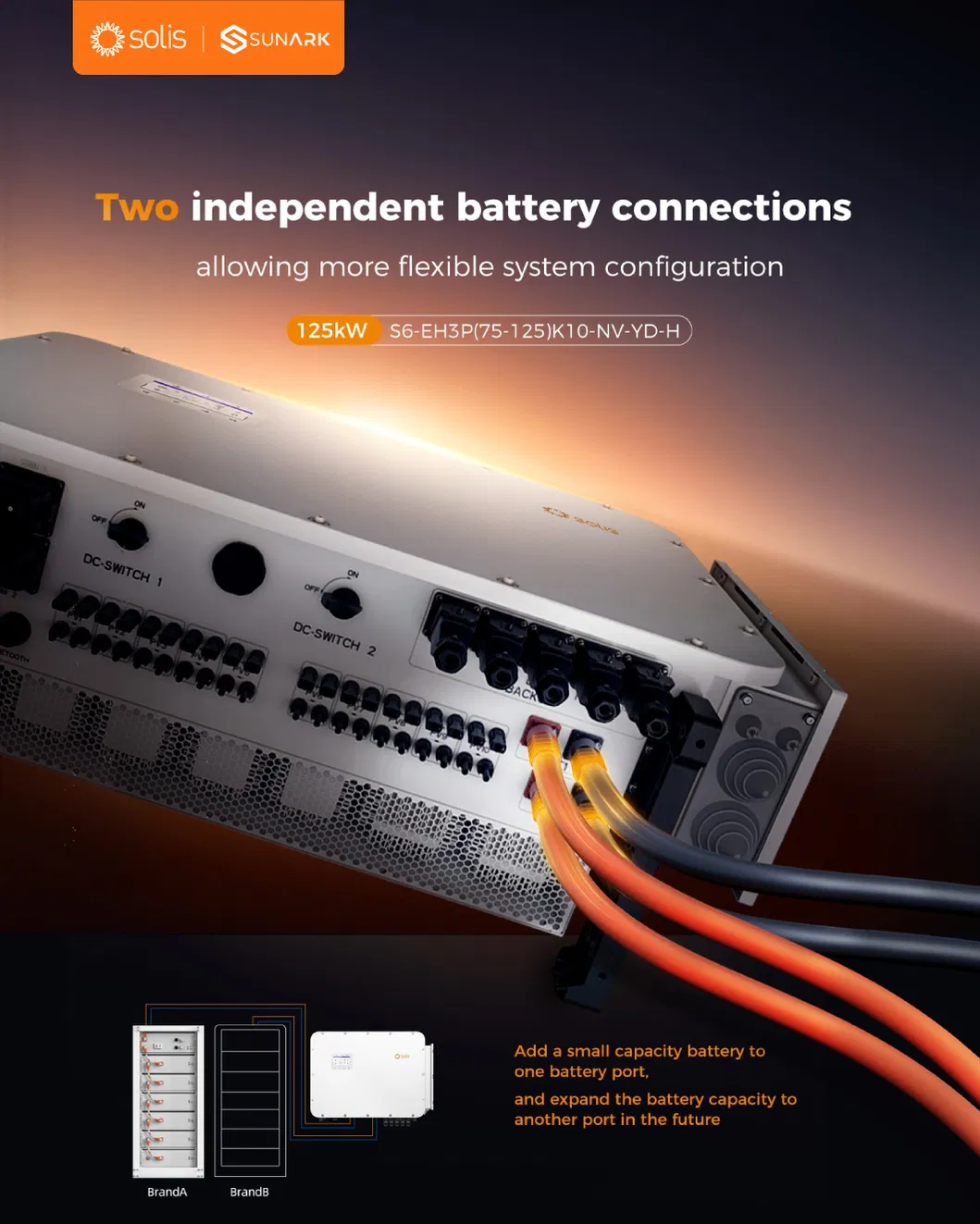

Installation 1 Installation 2

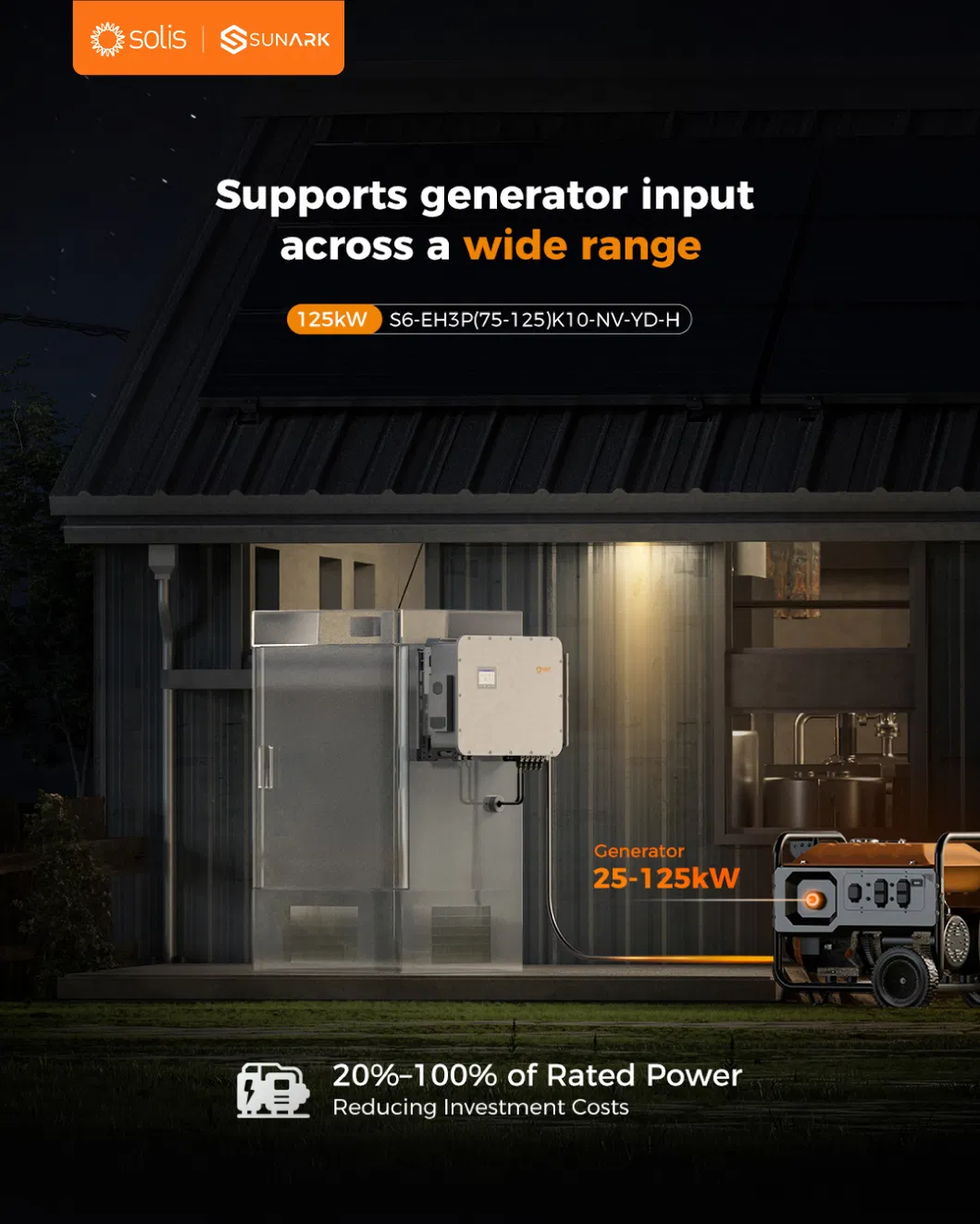

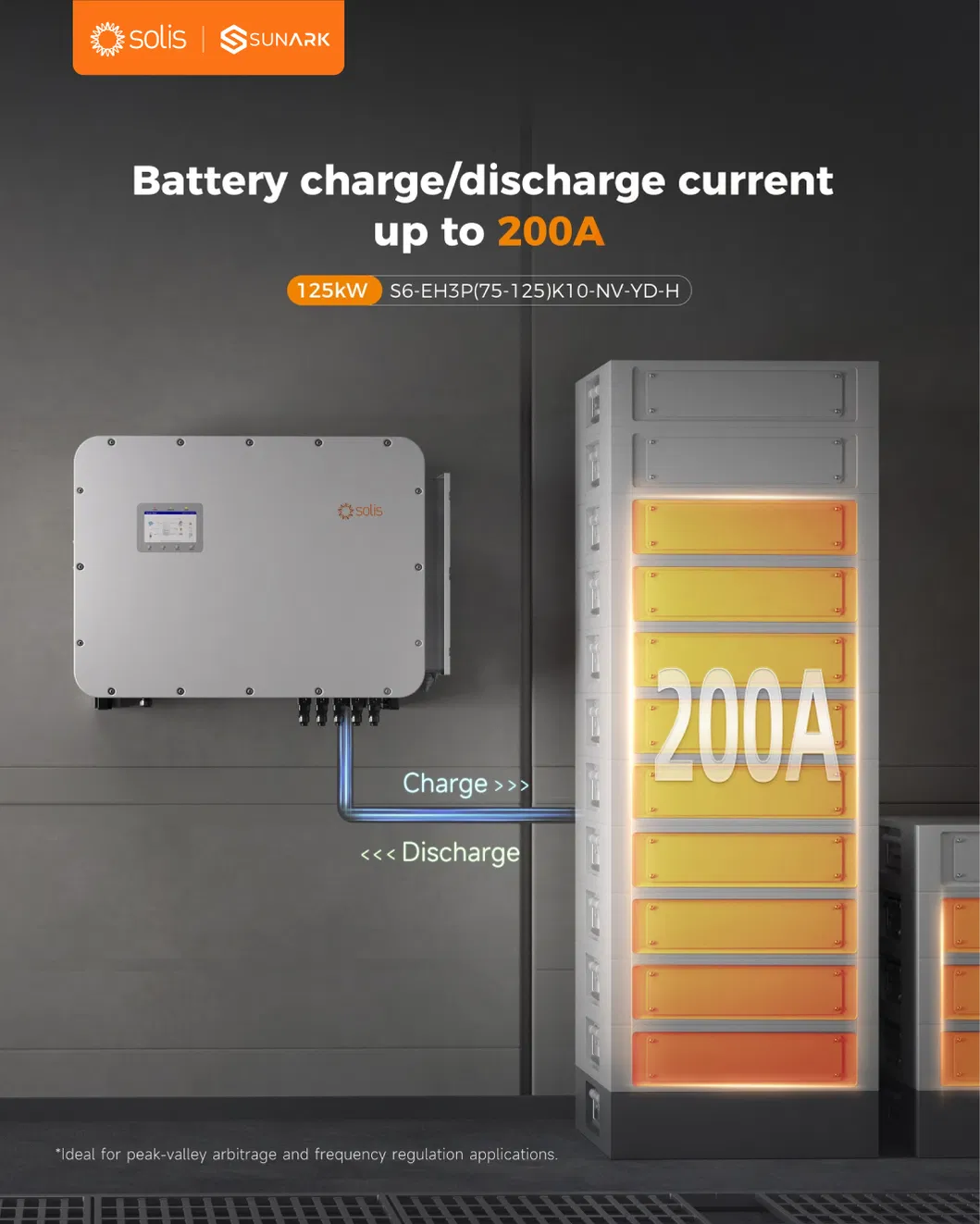

Installation 3 Installation 4

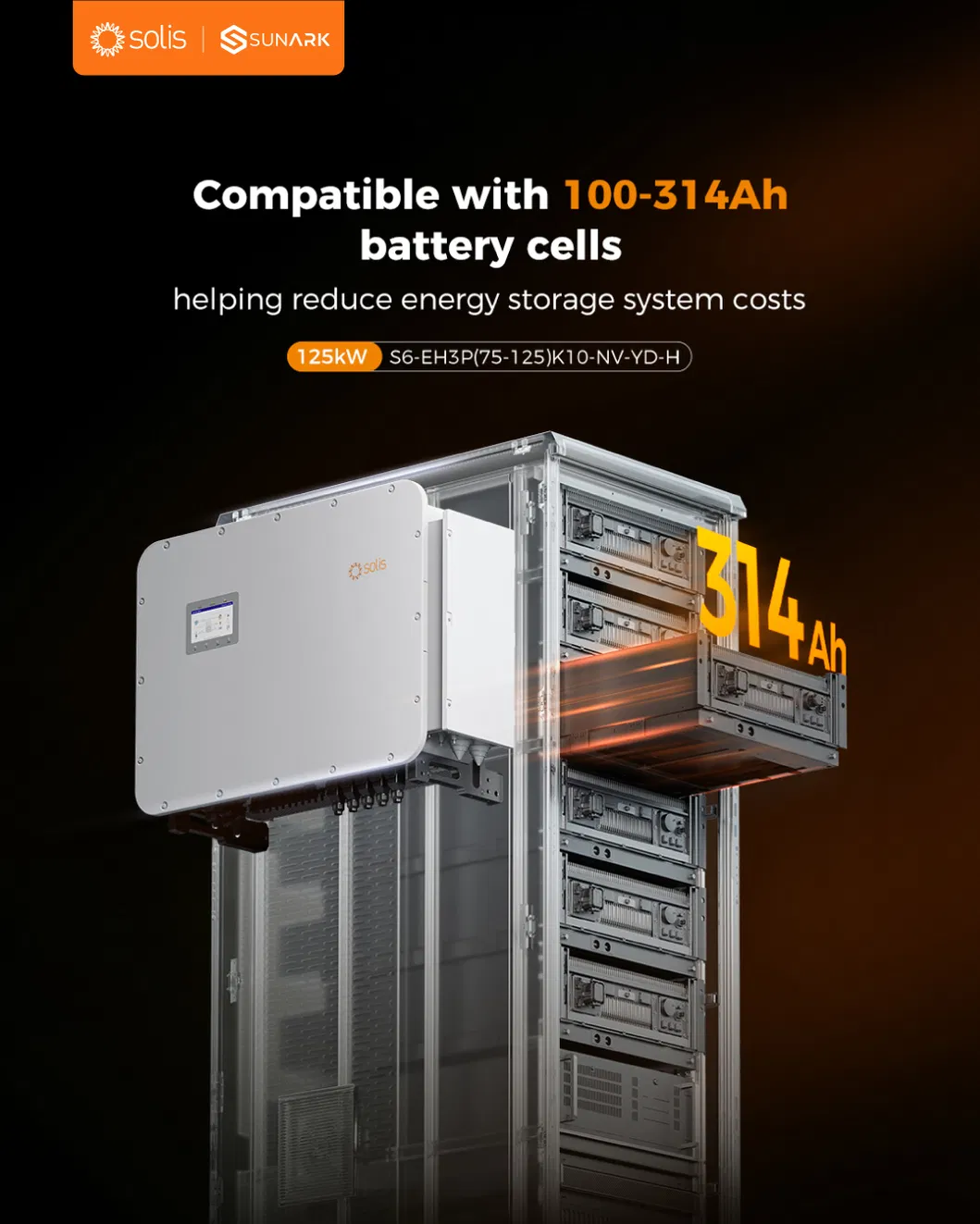

Installation 5 Installation 6
Project Case Study

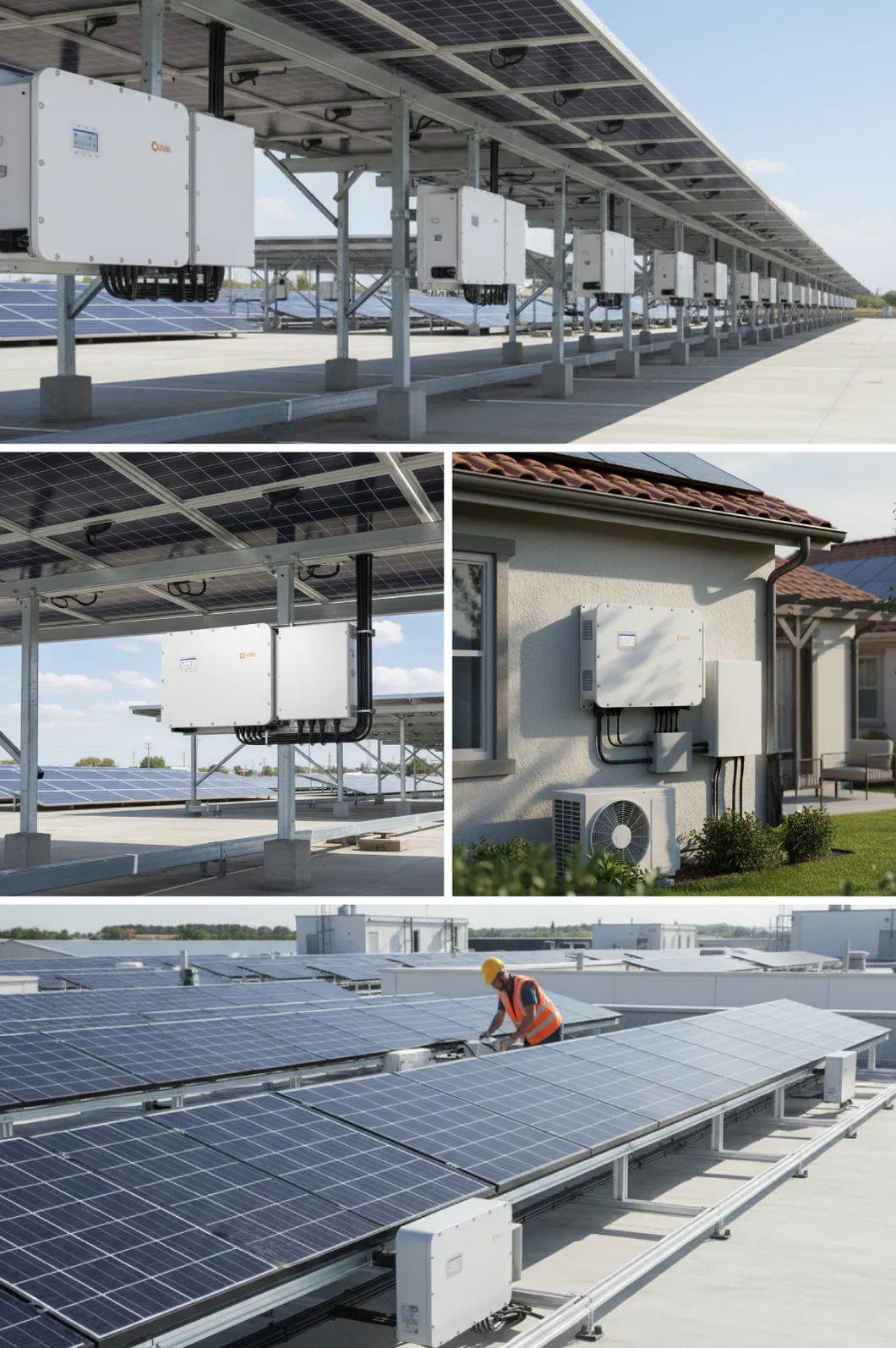

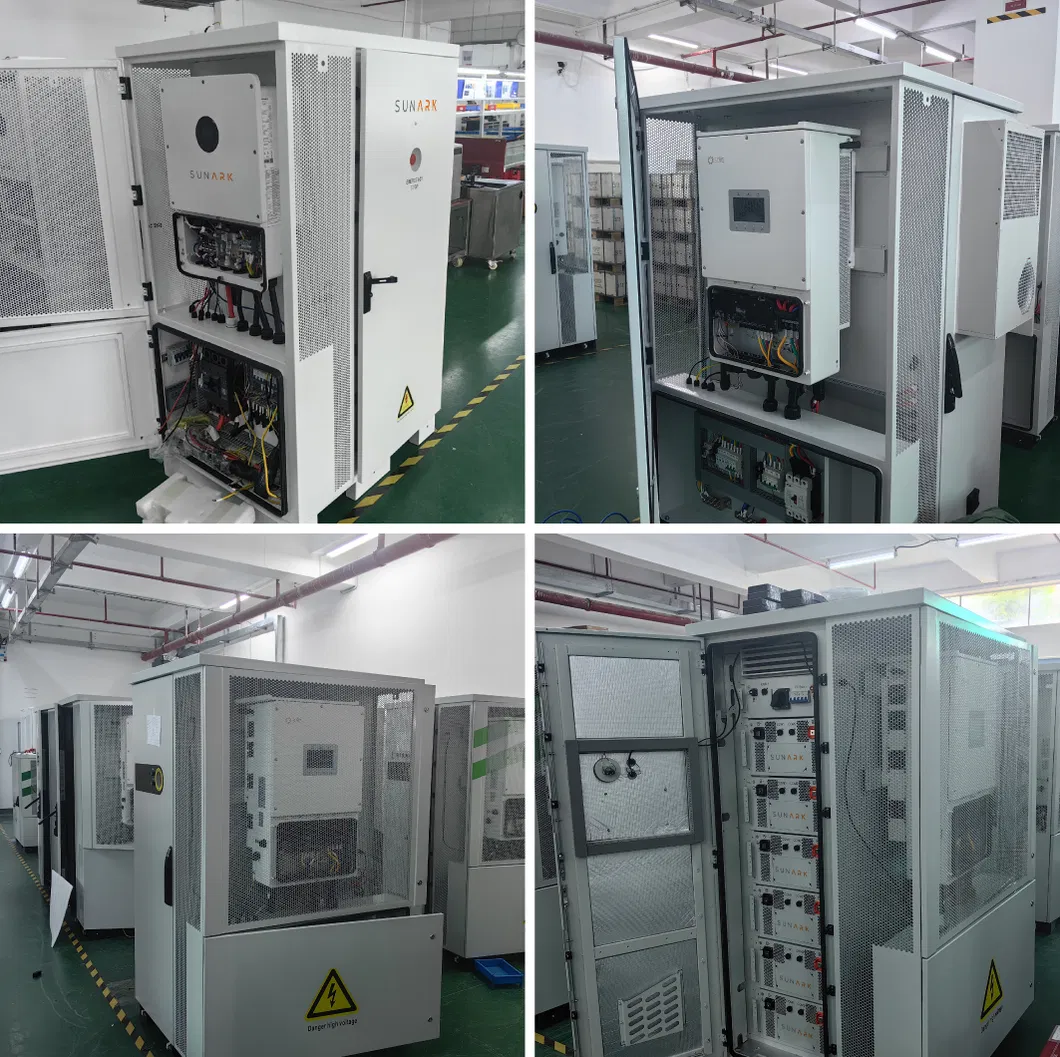

Project Case 1 Project Case 2

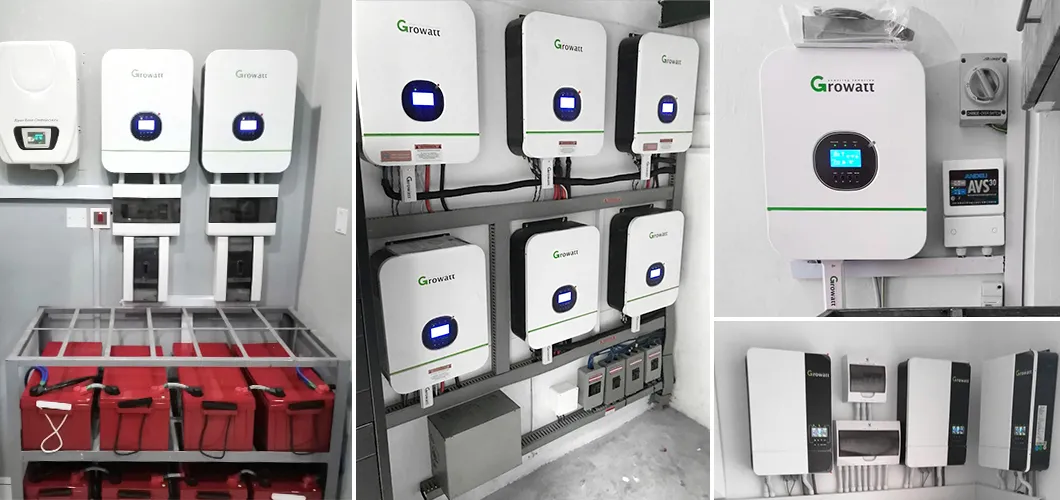

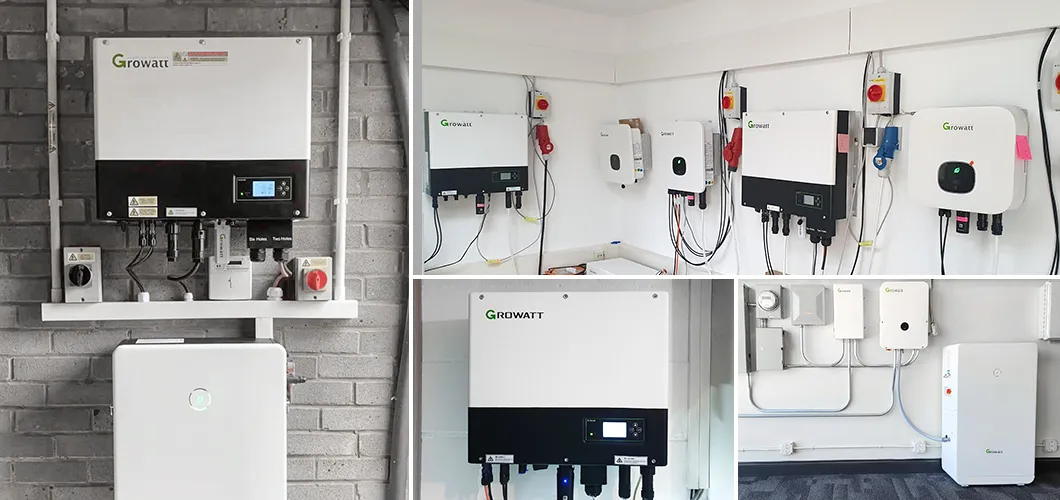

Solar Project 1 Solar Project 2
Exhibition
Global Exhibition
Frequently Asked Questions
What makes the Solis 125kW inverter suitable for commercial applications?
Its 160% overload capacity (200ms) handles industrial motor startup currents, while dual battery ports and AI energy management optimize ROI for large-scale solar-plus-storage systems.
How does the monitoring system work?
The platform enables real-time tracking via mobile/app, automatic tariff optimization, and VPP participation for revenue generation, supporting 4G/5G/Wi-Fi/Ethernet connectivity.
Does it support off-grid operation?
Yes, with robust grid-forming capability and generator compatibility, it ensures stable off-grid power for critical industrial loads.
Can it integrate with generators?
Yes, it seamlessly integrates with generators (25-125kW range), enabling hybrid operation for backup power and reducing initial investment costs.
What is the warranty for this inverter?
It comes with a 5-year standard warranty and options for a 10-year extended warranty to ensure long-term reliability.
What is the ingress protection rating?
The inverter is rated IP66, making it suitable for harsh outdoor environments and providing high resistance to dust and water.
