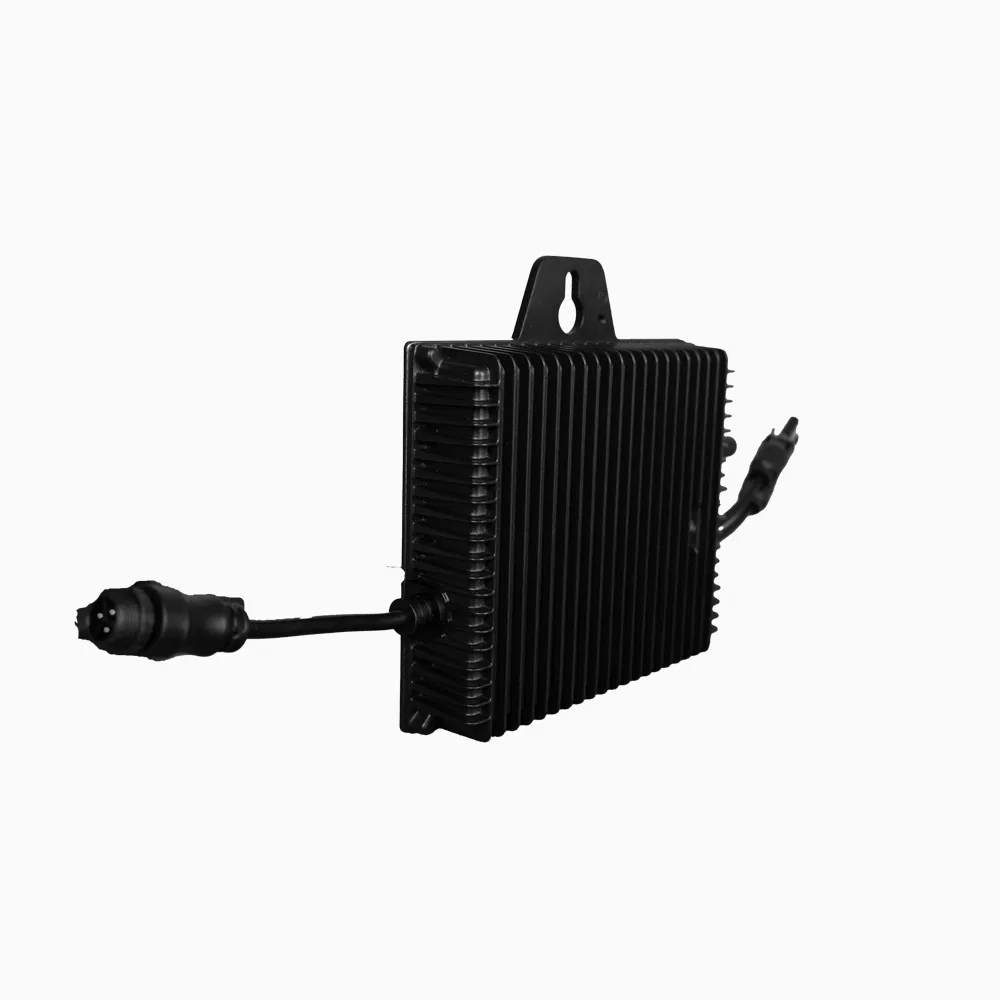

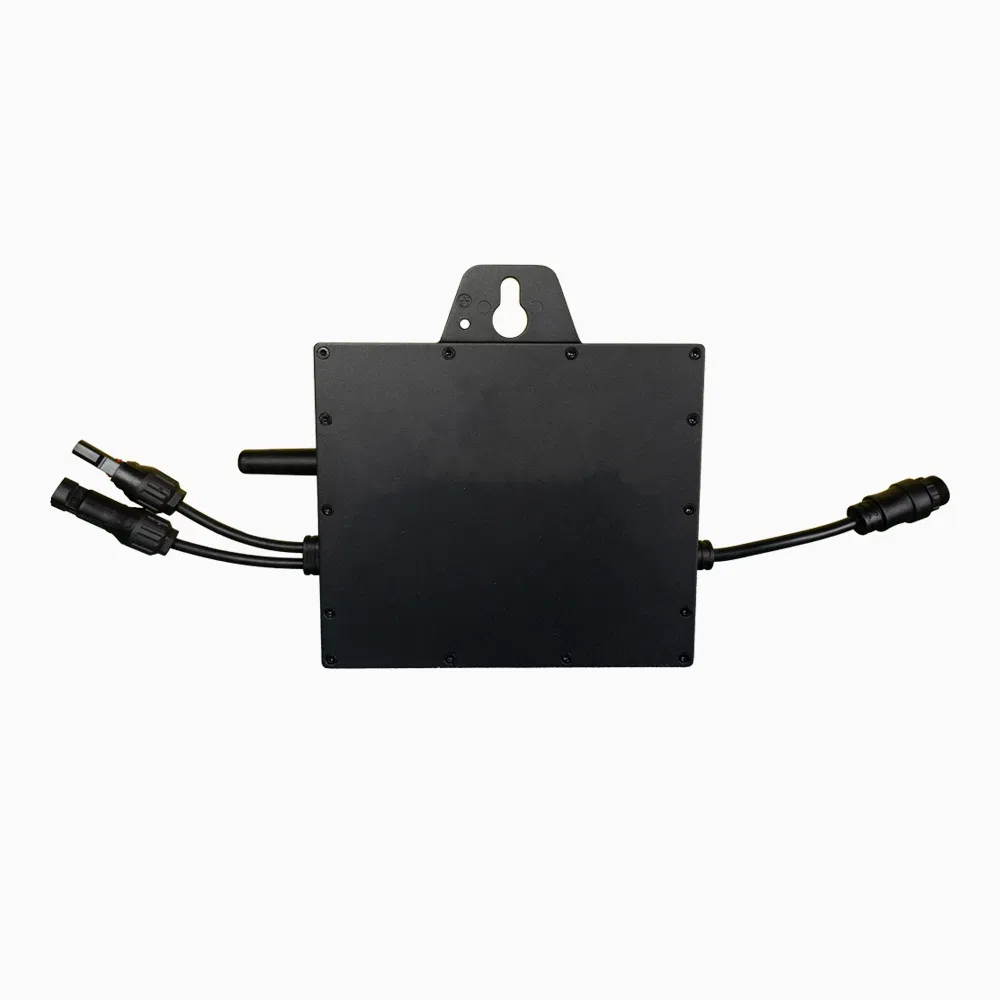

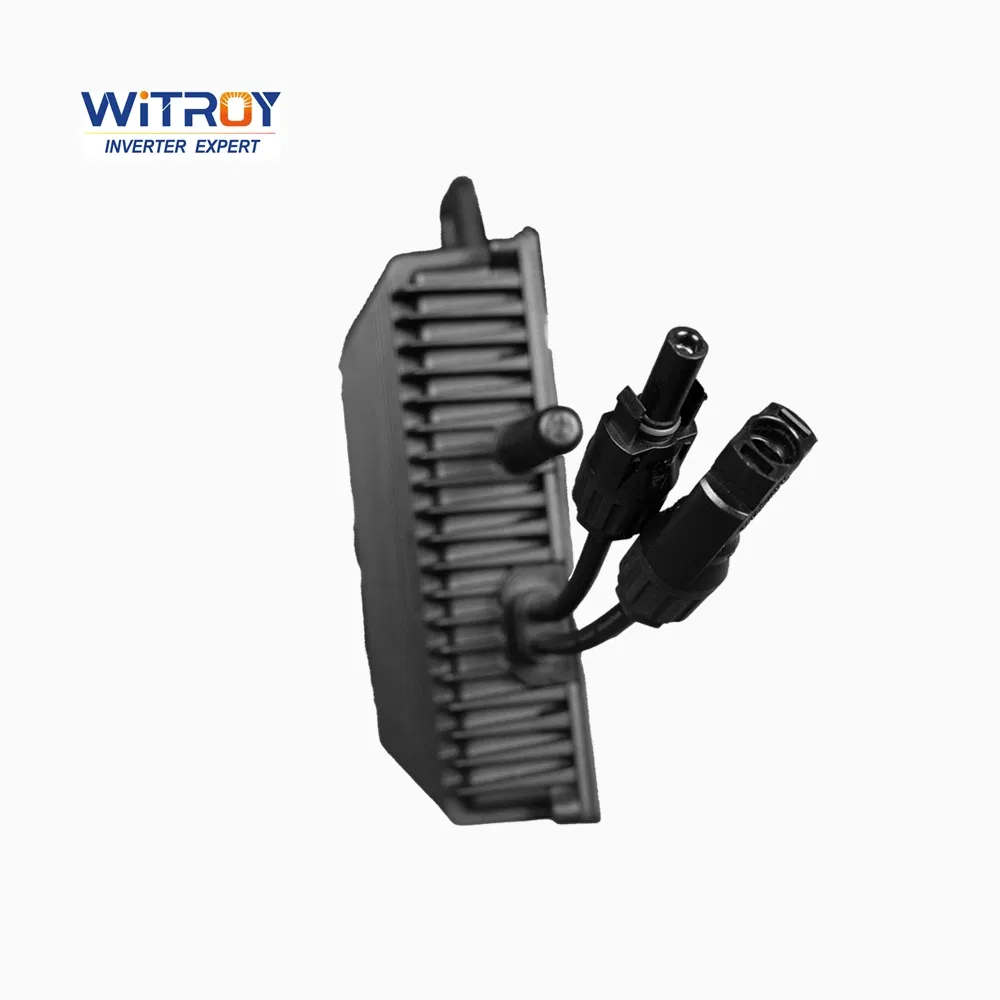

Boost your solar gains with the series EU micro inverters (400-2000VA)! Flex 1/2 MPPTs for uneven light, lock in 96.5% peak efficiency (more power = more profit), and rely on IP67 waterproofing + natural cooling for zero-fuss outdoor durability. Wi-Fi/Bluetooth lets you monitor remotely—CE/VDE-certified, ideal for grid-tied PV setups.

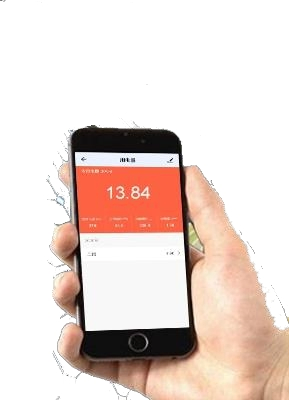

Step 1: Download APP

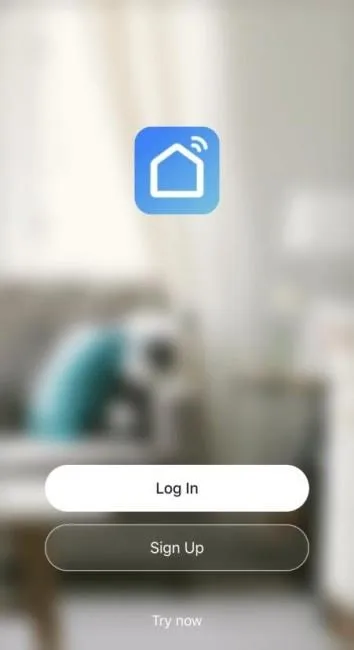

Step 2: Register & Log In

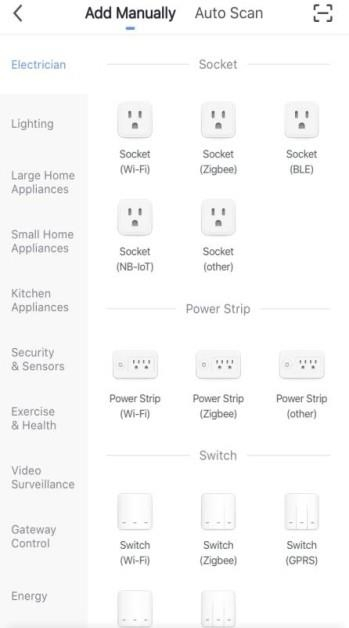

Step 3: Select WiFi Button
| Input Data (DC) | |
|---|---|
| Commonly used module power (W) | 275~530W*1 |
| Maximum input voltage (V) | 60 |
| MPPT voltage range (V) | 22-55 |
| Maximum input current (A) | 14A*1 |
| Number of MPPTs | 1 |
| Output Data (AC) | |
| Rated output power (VA) | 400 |
| Rated output current (A) | 1.74 |
| Nominal output voltage (V) | 230 |
| Nominal frequency (Hz) | 50/60 |
| Mechanical Data | |

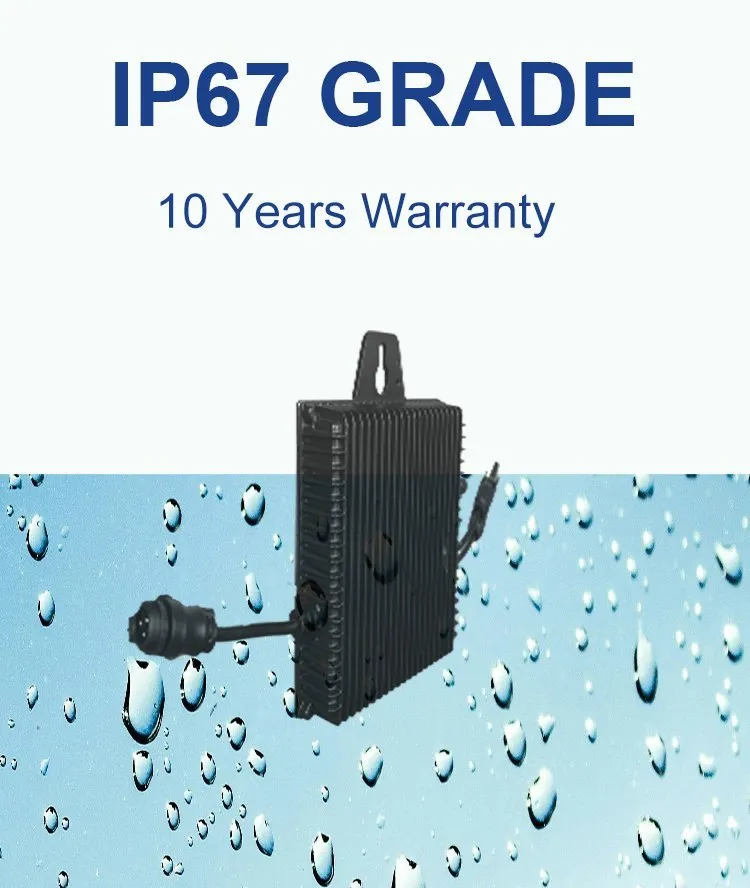

| IP Grade | IP67 |
| Ambient temperature range | -40℃ to +65℃ |
| Dimensions (W*H*D) | 181*193*38.5mm |
| Cooling | Natural cooling |
