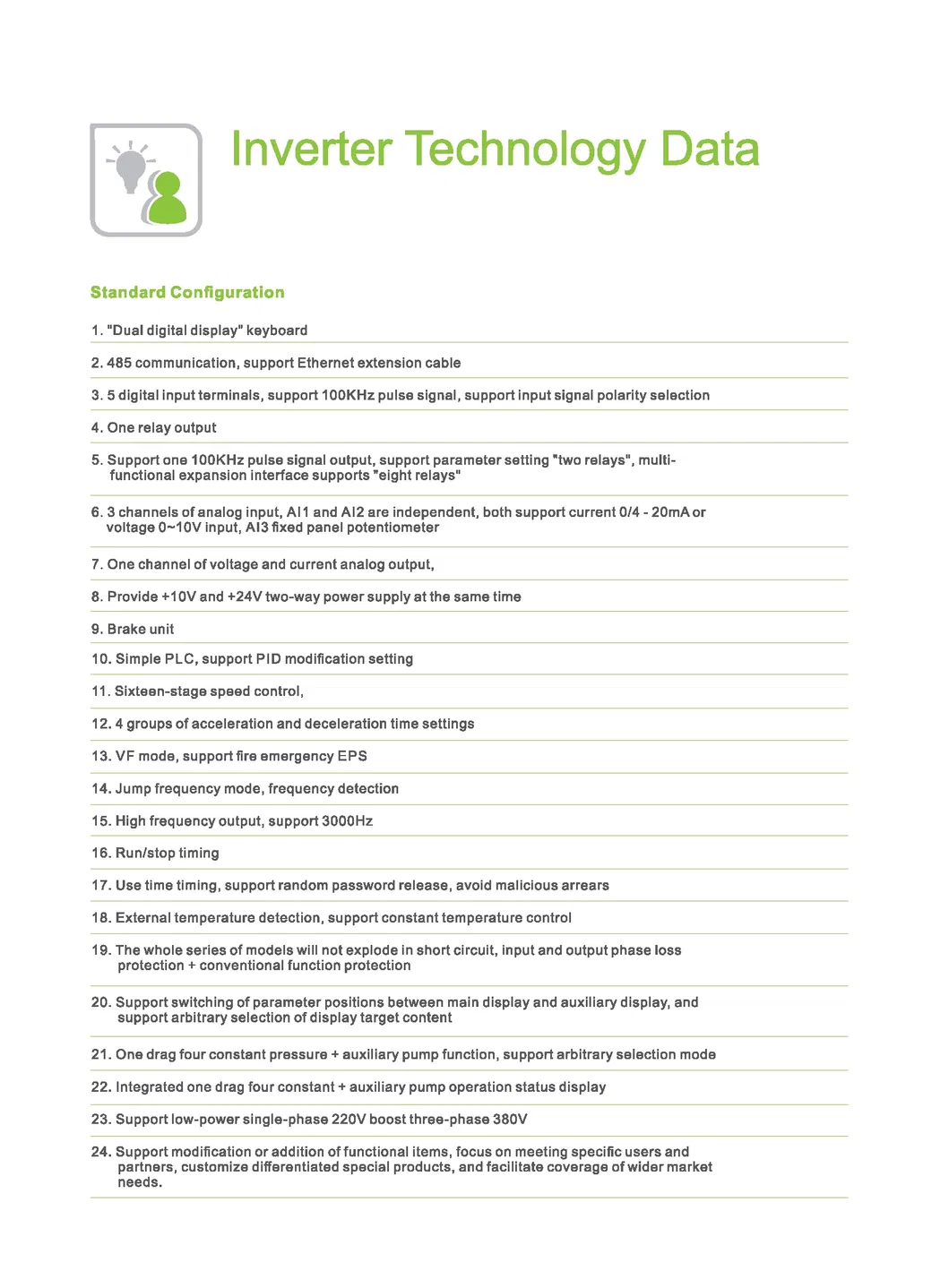

Standard Configuration Highlights
1. Keyboard & Display: Equipped with a "dual digital display" keyboard for intuitive monitoring.
2. Communication Interface: RS485 communication, supports Ethernet extension cable for remote connectivity.

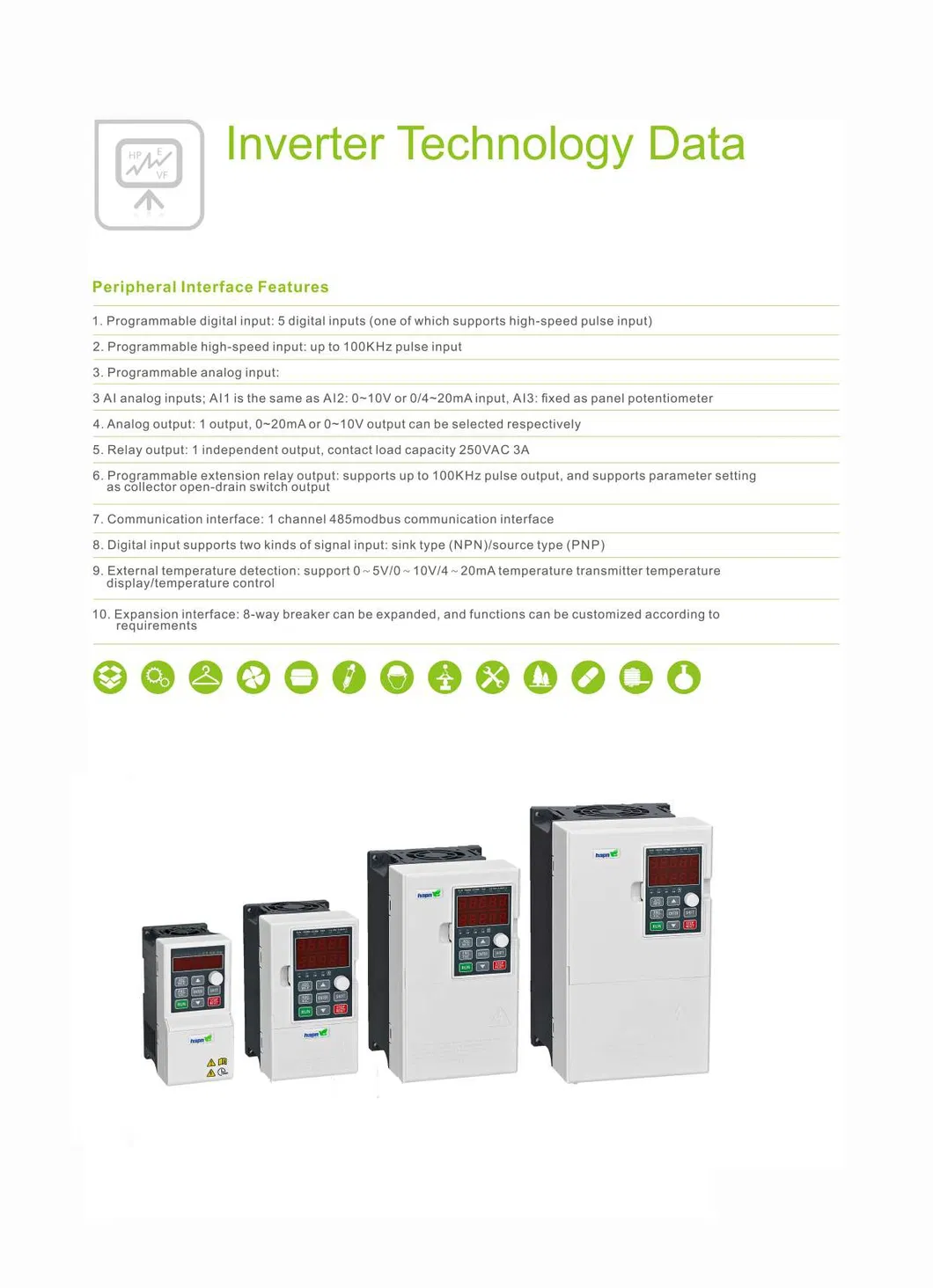

3. Digital Input: 5 digital input terminals, supporting 100KHz pulse signal input and polarity selection.
1

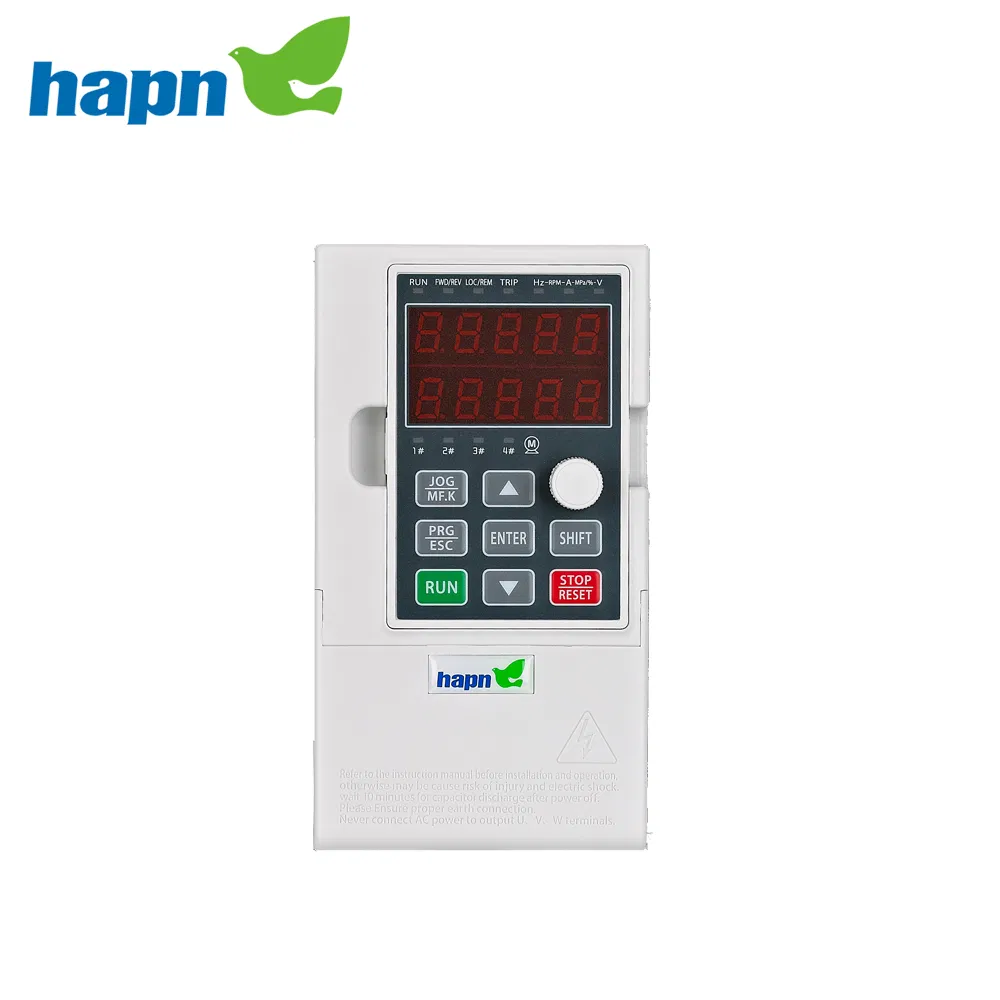

"Dual digital display" keyboard
2
485 communication, support Ethernet extension cable
3
5 digital input terminals (100KHz pulse support)
5
100KHz pulse output & multi-functional expansion
6
3 channels analog input (AI1, AI2 support 0/4-20mA or 0-10V)
7
Voltage and current analog output
8
Simultaneous +10V and +24V power supply
10
Simple PLC & PID modification setting
11
Sixteen-stage speed control
12
4 groups of acceleration/deceleration time settings
13
VF mode & fire emergency EPS support
14
Jump frequency mode & frequency detection
15
High frequency output up to 3000Hz
16
Run/stop timing function
17
Usage timing with random password release
18
External temperature detection & constant control
19
Full series short circuit & phase loss protection
20
Flexible parameter display switching
21
One drag four constant pressure + auxiliary pump
22
Integrated operation status display
23
Supports 220V boost to 380V for low power
24
Customizable functional items for specific partners
❓ Frequently Asked Questions

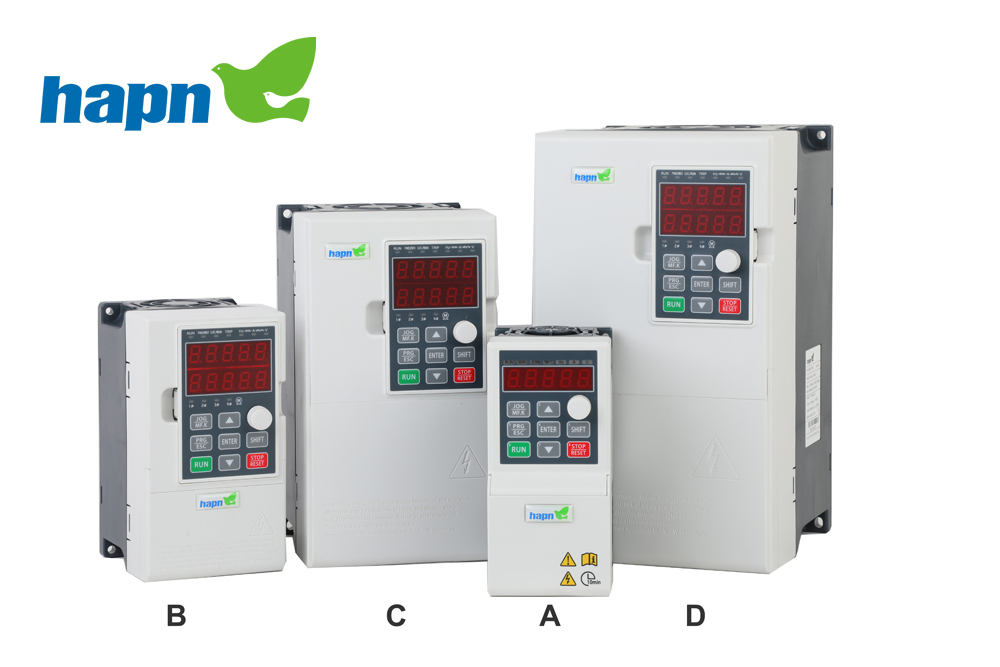

Q1: What is the power range of the HPVFM series?
The series supports a wide range of working power from 0.75kw up to 55kw, catering to various motor control needs.
Q2: Can this VFD drive high-speed spindles?
Yes, it supports high-frequency output up to 3000Hz, making it suitable for high-speed application requirements.
Q3: Does it support remote monitoring?
Absolutely. It features built-in RS485 communication and supports Ethernet extension cables for easy integration into industrial networks.
Q4: What safety protections are included?
The entire series includes short circuit protection, input/output phase loss protection, and standard functional safety features to prevent unit failure.
Q5: Can it be used for water supply systems?
Yes, it features a specialized "one drag four" constant pressure control mode with auxiliary pump functions, ideal for water management systems.
Q6: Does it work with single-phase power?
The series supports low-power single-phase 220V input with the ability to boost to three-phase 380V output.
