All-in-One Compact 7kw Home EV Charger with Hybrid Solar Inverter Ess

1 / 5

All-in-One Compact 7kw Home EV Charger with Hybrid Solar Inverter Ess

Customization:	Available
Weight:	25kg
Warranty:	5/10/15/20 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.	ESSC
Cycle Life	5000-8000 cycles
Nominal Capacity	5kWh
Max. PV Power	7000Wp
MPP Trackers	2
Nominal Voltage	220 / 230 / 240 V
Efficiency	98%
Protection Level	IP54

Product Introduction

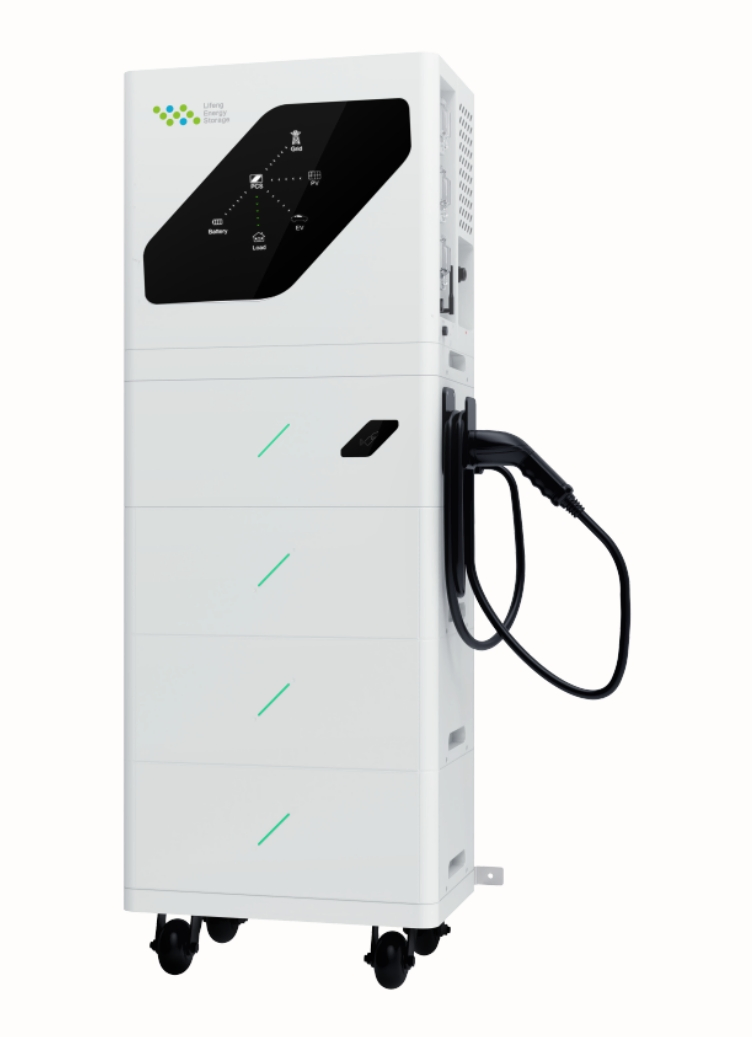

This All-in-One Compact 7kW Home EV Charging ESS with hybrid solar inverter is a highly integrated solution featuring an EV charger, stackable batteries, and power distribution (on/off grid). Its module and wheel-rolling design provides excellent portability and ease of use.

🔌

Intelligent EV Charger

Features an integrated control board for power supply, management, and communication in a compact layout.

🔋

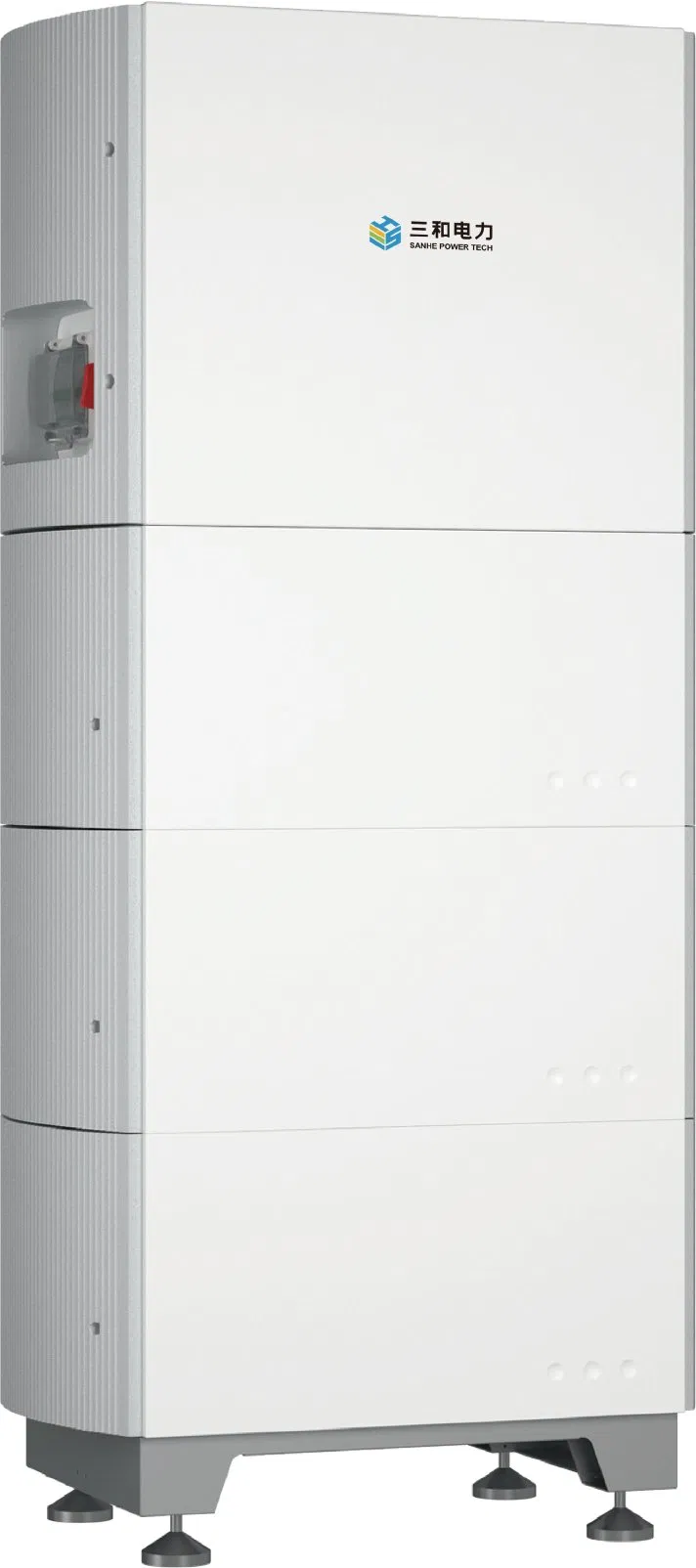

Energy Storage

Modular stackable LiFePO4 batteries (5.12 kWh each). Expandable up to 30.72 kWh with 6 parallel modules.

🔄

Hybrid Inverter

Advanced DSP-controlled SPWM technology managing power between grid, PV, EV, and battery storage.

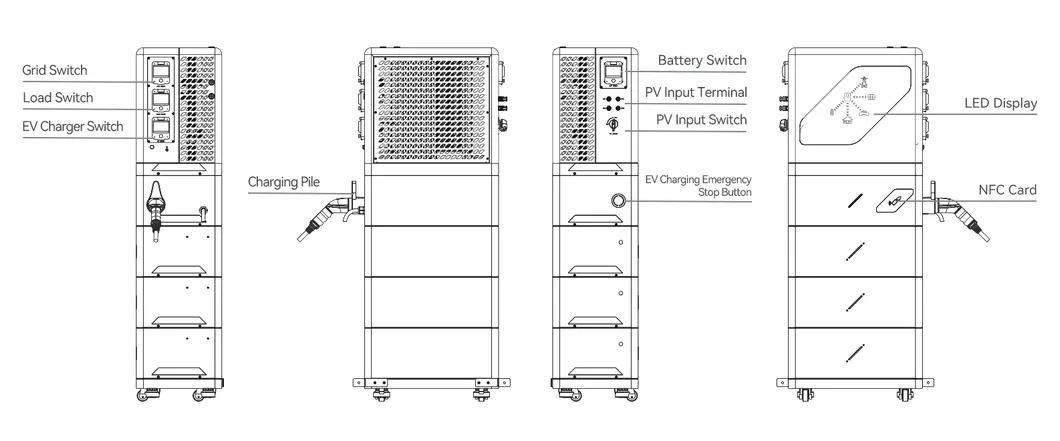

Detailed Dimensions

Inverter: 645 x 557 x 370 mm
EV Charger: 650 x 270 x 370 mm
Single Battery: 585 x 270 x 370 mm
Base: 680 x 110 x 378 mm
Communication: RS485 / CAN / WiFi

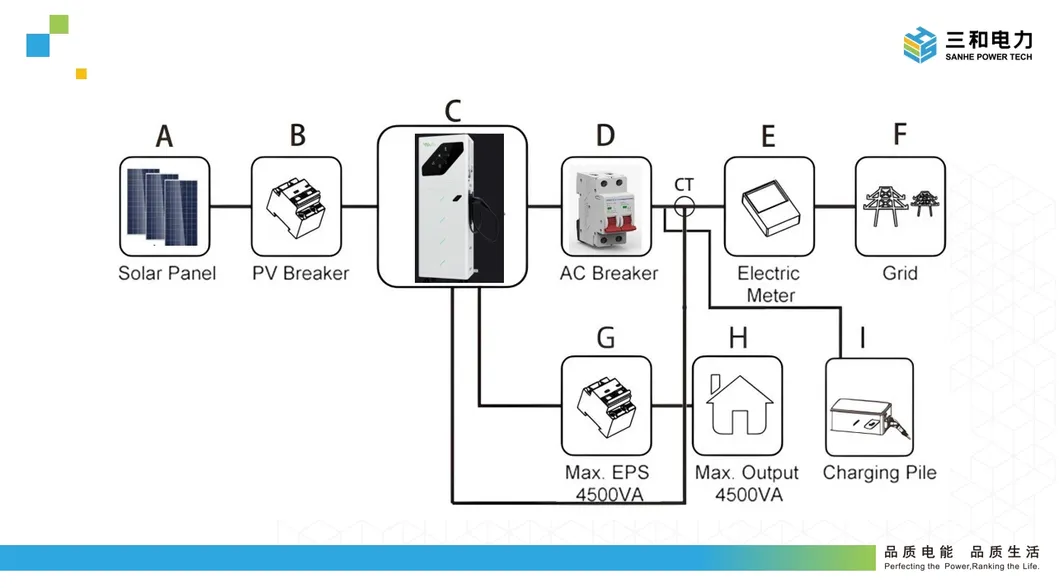

System Mechanism & Visuals

Our Technical Advantages

Grid Reactive Load Flow Simulation
L-C Circuit Characteristic Analysis
IGBT Driving & Protection
Thermal Simulation & Heat Exchange
PWM Technology Integration
3D & Data Simulation
Instrumented IOT Communication
Digital Twins of Micro-Grid

Frequently Asked Questions

What is the lead time for these products? Lead times vary by product. Standard components usually take one week, while customized new energy systems typically require 25 to 45 days.

How can I select the right product model for my needs? Please provide your project details such as single-line drawings, panel schemes, or power quality test reports. We can provide a technical guide based on your specific requirements.

What standards do your products conform to? Our products conform to international IEC standards, including IEC61921, IEC61000, IEC60529, and IEC60831, ensuring global compatibility and safety.

What are the expected benefits after installation? Users typically see harmonic filtering meet standards, power factors exceeding 0.95, significant electricity bill savings, and prolonged lifespan of electrical equipment.

What technical services are provided during the project? We offer project-site power quality testing, improvement solutions, budget planning, product commissioning, and full renewable energy construction reports.

What is the standard guarantee period? The standard guarantee time is one year, though extended warranties of up to 5 years are available upon request.
