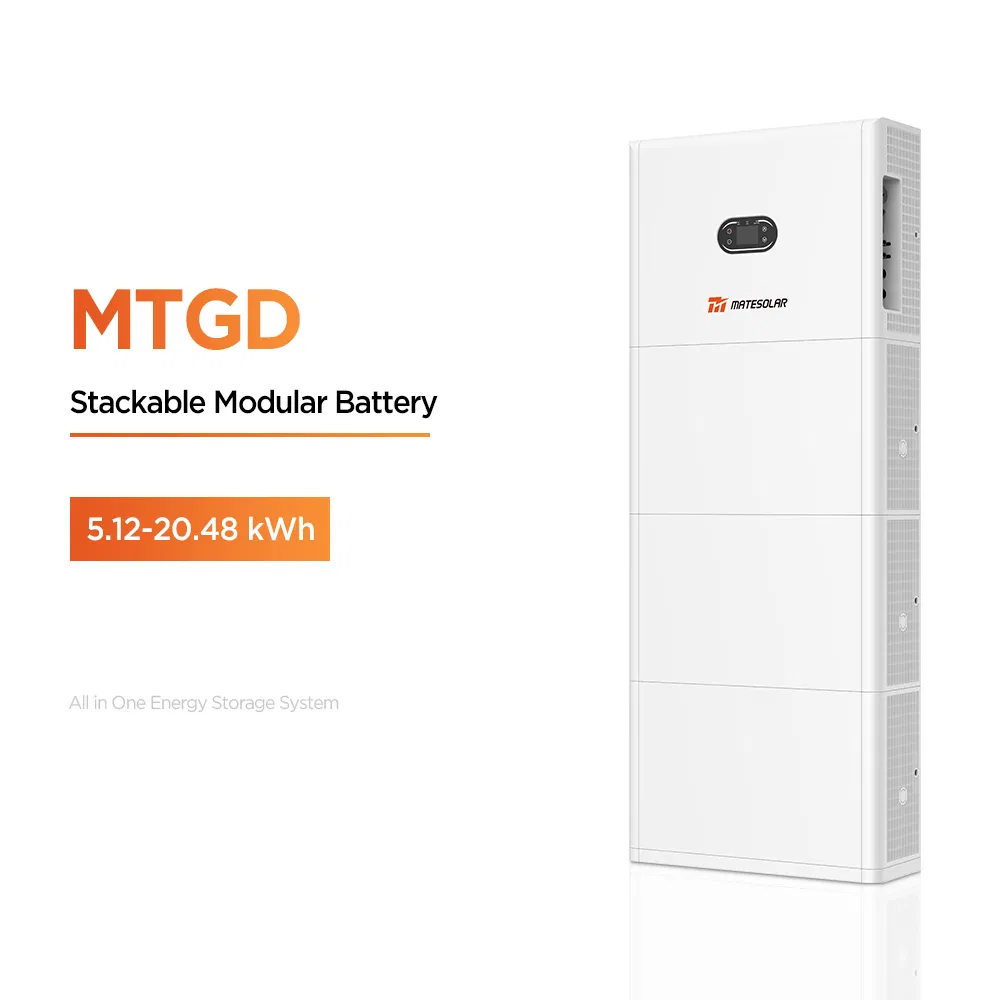

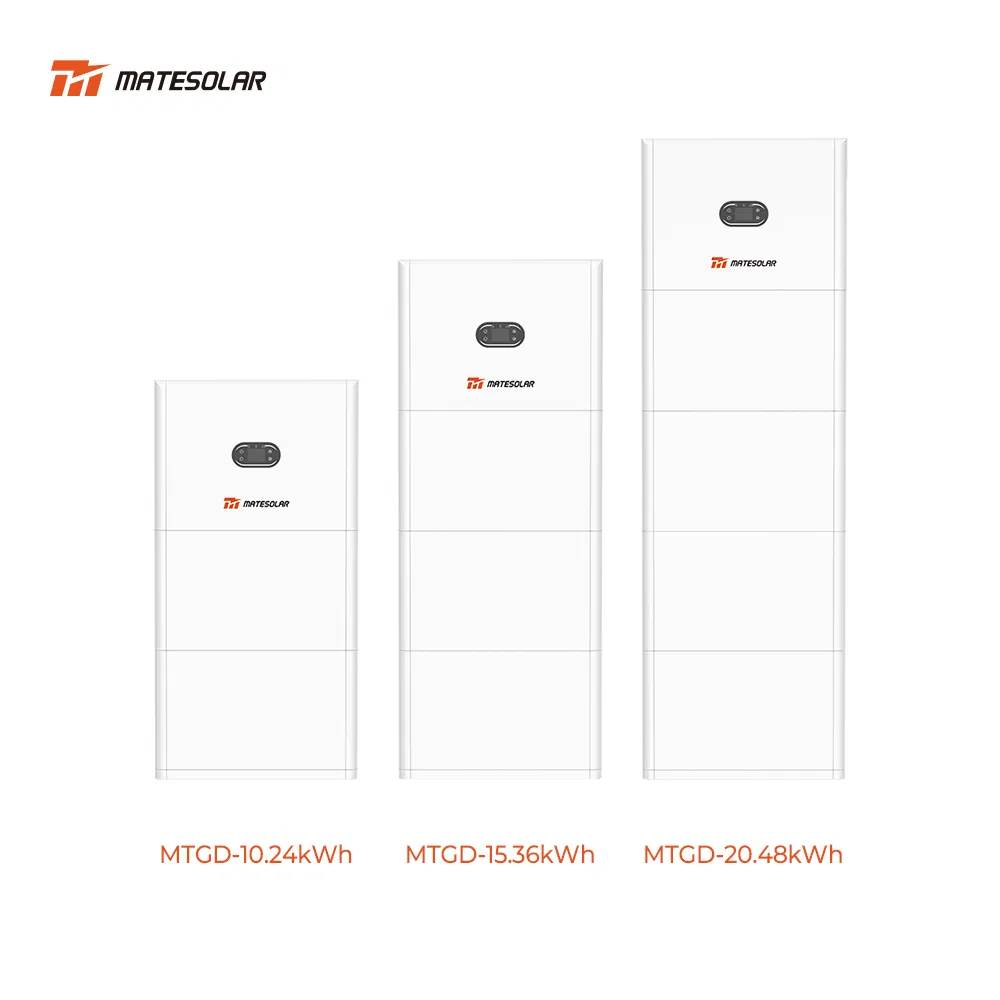

| Battery Parameters | MTGD Series | |||
|---|---|---|---|---|
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) | |||
| Cycle Life | ≥6000 (@25°C, 0.5C/0.5C) | |||

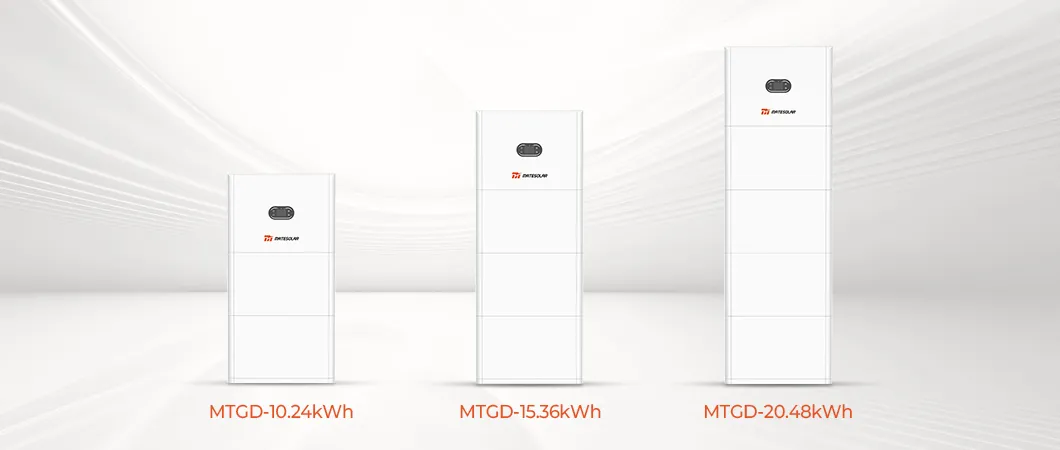

| Battery Energy | 5.12kWh | 10.24kWh | 15.36kWh | 20.48kWh |
| Dimension (WxHxD) | 640x875x210mm | 640x1250x210mm | 640x1625x210mm | 640x2000x210mm |
| Input (PV) Parameters | XD3KTL | XD3K6TL | XD4KTL | XD4K6TL | XD5KTL | XD6KTL |
|---|---|---|---|---|---|---|
| Max. PV Input Power | 4.5kW | 5.4kW | 6kW | 6.9kW | 7.5kW | 9kW |
| Max. PV Input Voltage | 600V | |||||
| MPPT Voltage Range | 100V~550V | |||||
Comprehensive Protection: DC Reverse Polarity Protection, Insulation Resistance Monitoring, Ground Fault Monitoring, Over Current / Over Voltage Protection, Battery Soft Start Protection.
Advanced Connectivity: RS485 / CAN / WIFI / 4G / LAN / Bluetooth.

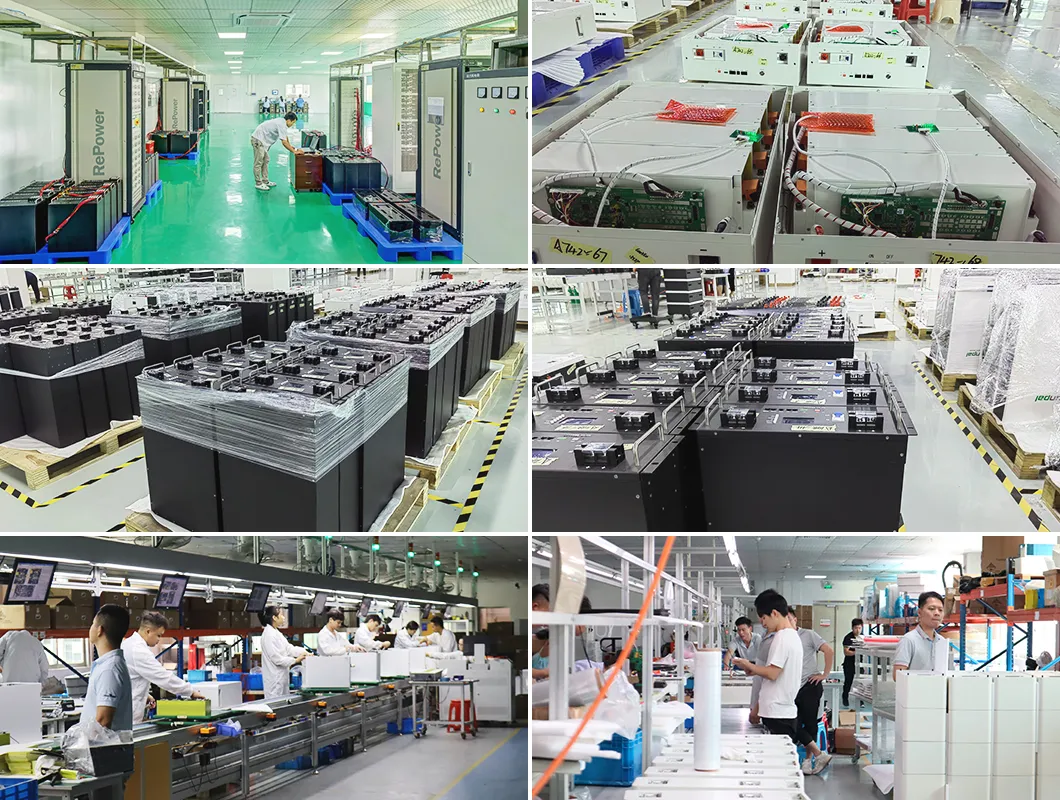

The pioneer in the battery manufacturing industry has been serving since 2002 with expertise in environmentally friendly Sealed Lead Acid (SLA) and Lithium batteries. Leveraging state-of-the-art production equipment and rigorous testing protocols, the company guarantees exceptional product longevity and superior energy density. With expansive manufacturing hubs and a dedicated workforce of over 2,000 talents, the independently developed batteries meet and surpass international standards.
