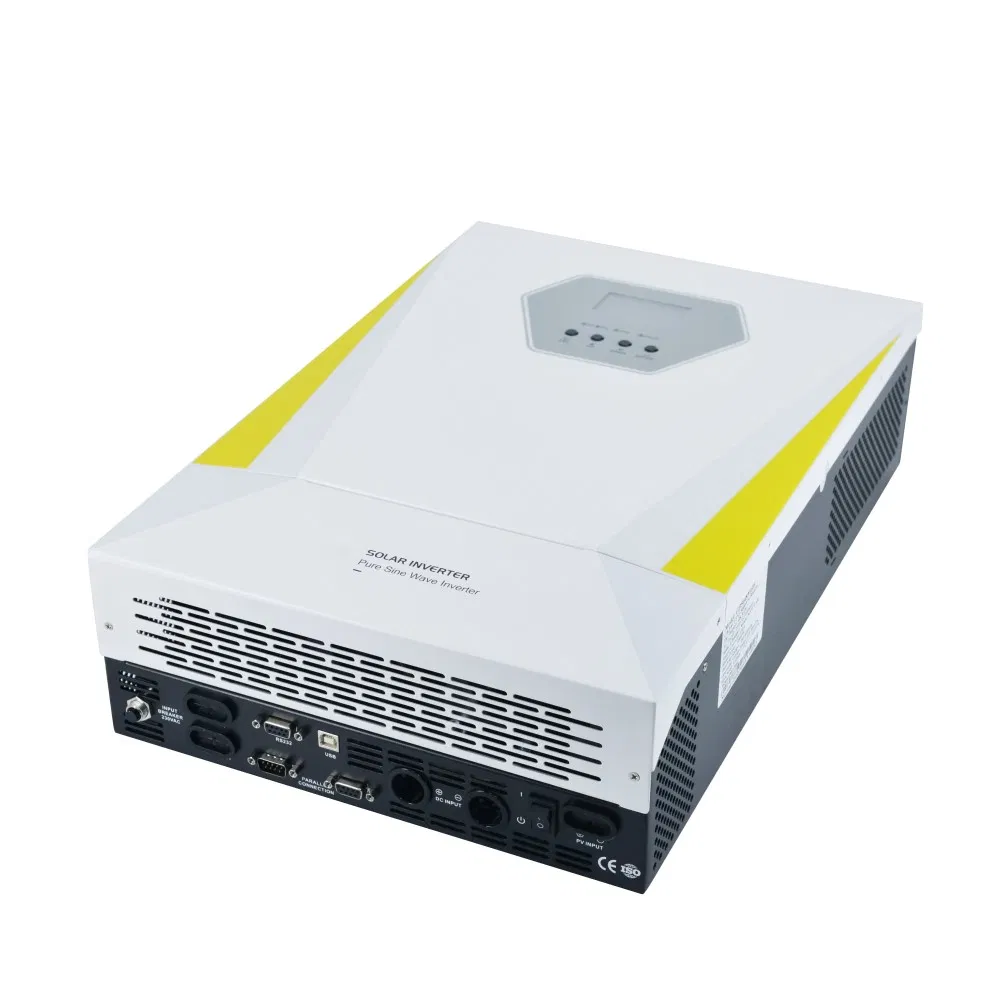

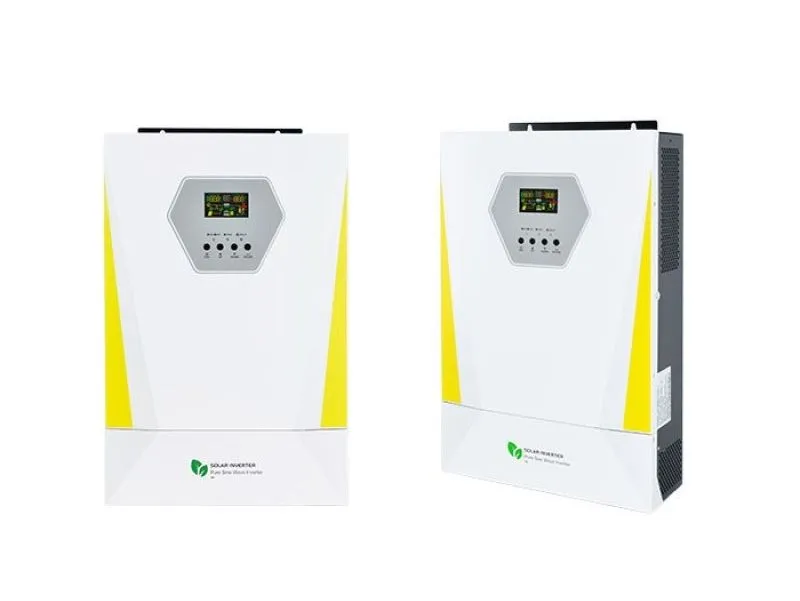

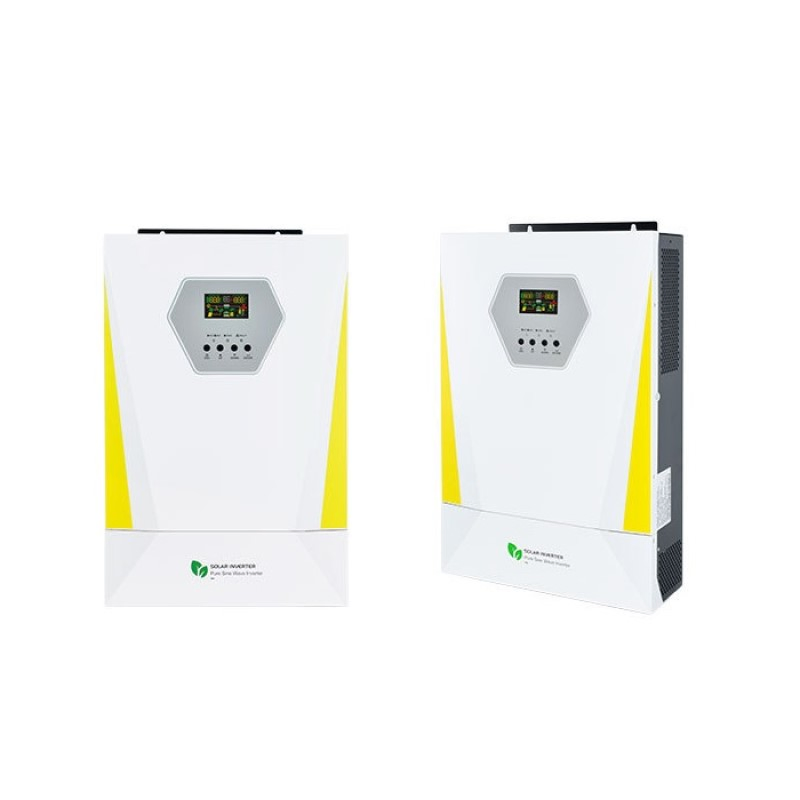

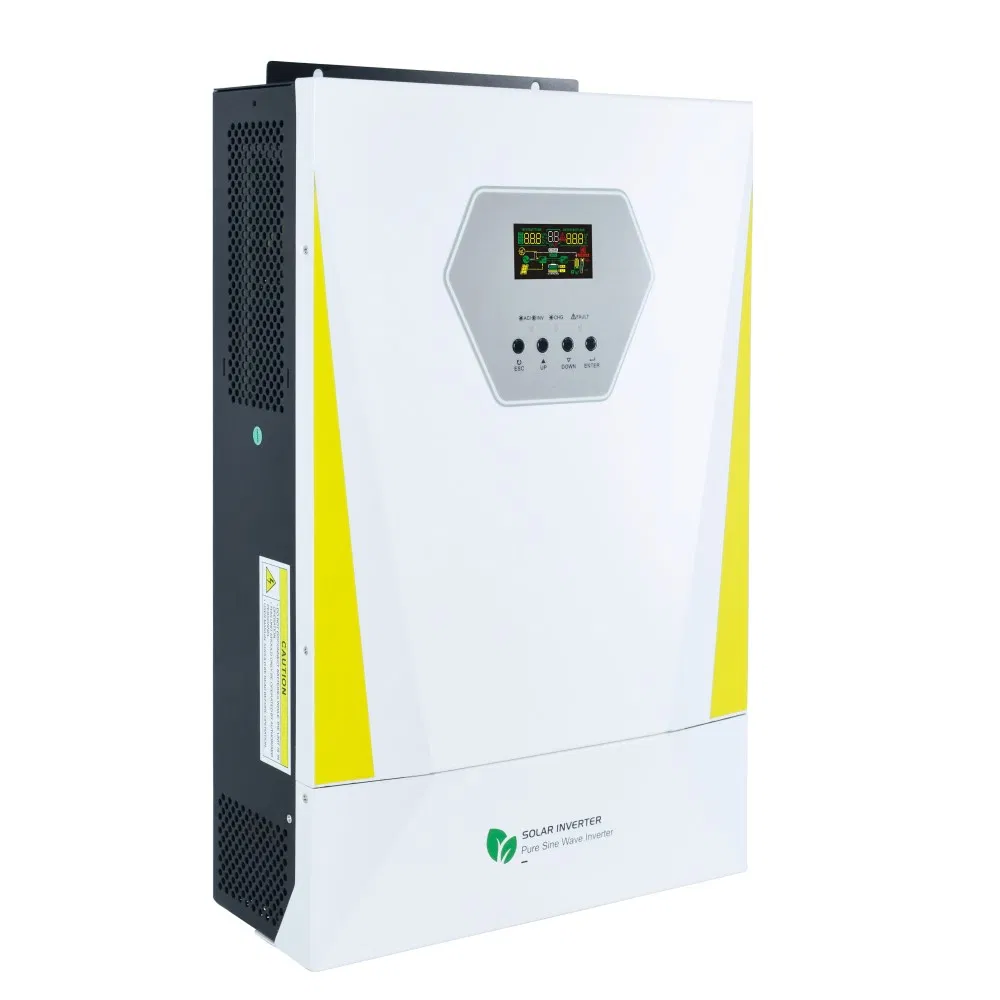

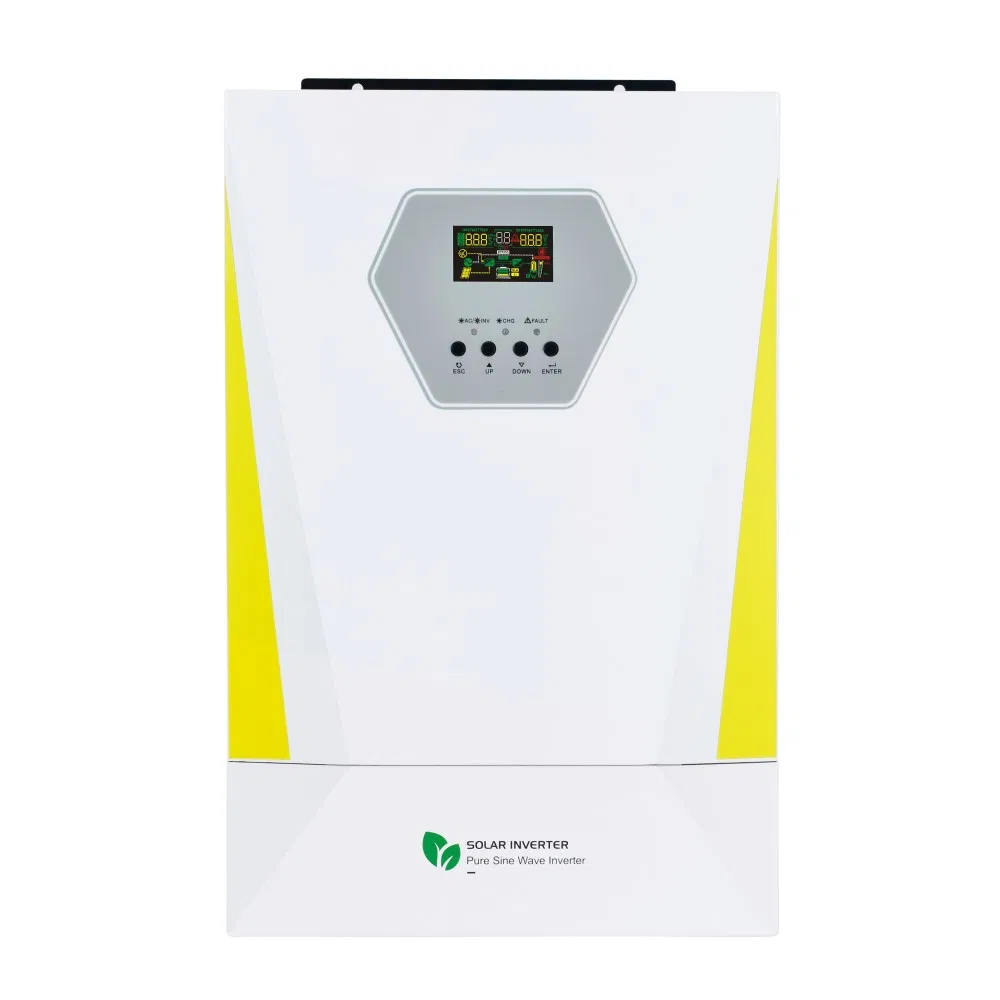

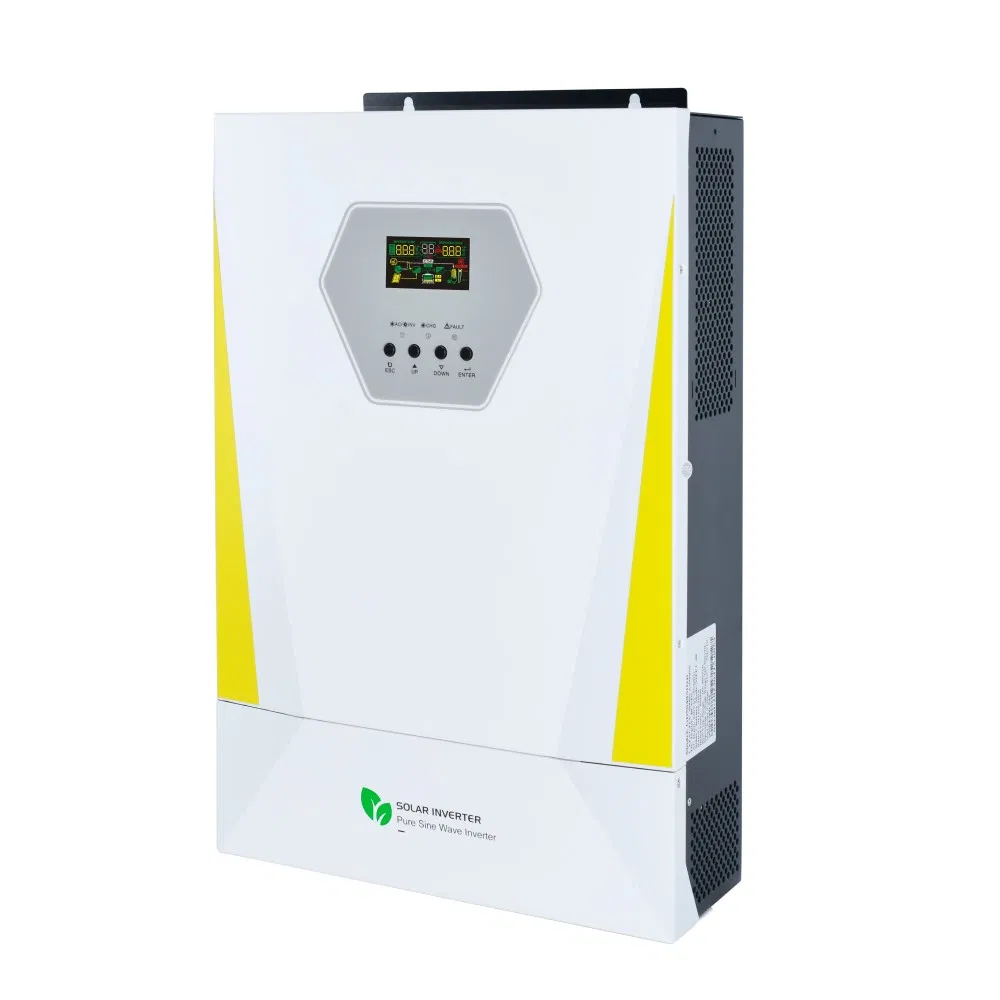

| Solar Inverter GD Series E (1200-2400W) | |||
|---|---|---|---|
| Model | GD2012EMH | GD2024EMH | |
| AC Input | Voltage | 220VAC (Standard) / 110VAC (Customized) | |
| Range | 90-280VAC (Normal) / 170-280VAC (UPS) | ||
| Frequency | 50-60Hz ±5% | ||
| Output | Rated Power | 1600W | 3000W |
| Output Voltage (Inv) | 220VAC±10% / 110VAC±10% | ||
| Output Frequency (Inv) | 50-60Hz ±1% | ||
| Waveform | Pure Sine Wave | ||
| Battery | Rated Voltage | 12VDC | 24VDC |
| Charge Voltage | 14.1VDC | 28.2VDC | |
| MPPT Charger | Max PV Power | 2000W | 3000W |
| PV Voltage Range | 40V-500VDC | ||
| Max PV Charge Current | 100A | ||
| Transfer Time | <10ms (UPS mode) / <20ms (INV mode) | ||
Founded in 2017, after more than 6 years of development, we have become a comprehensive integration of industry and trade, engaged in the design, development, and production of various pipeline systems and connectors professionally. We provide high-quality matched products and excellent services for various industries such as electricity, communications, machinery, construction, petroleum, chemical, aviation, transportation, and automobile manufacturing.
Our company maintains "Excellent quality, Exceeding customer needs" as our business purpose. We have established a quality system according to international standards, applied in the whole process control of product design, manufacturing, and service. Our supply chains have obtained TUV Certification and ISO9001 quality system certifications. Products have passed EU CE Certification, conform to ROHS standards, and SGS Environmental Protection Certification.
