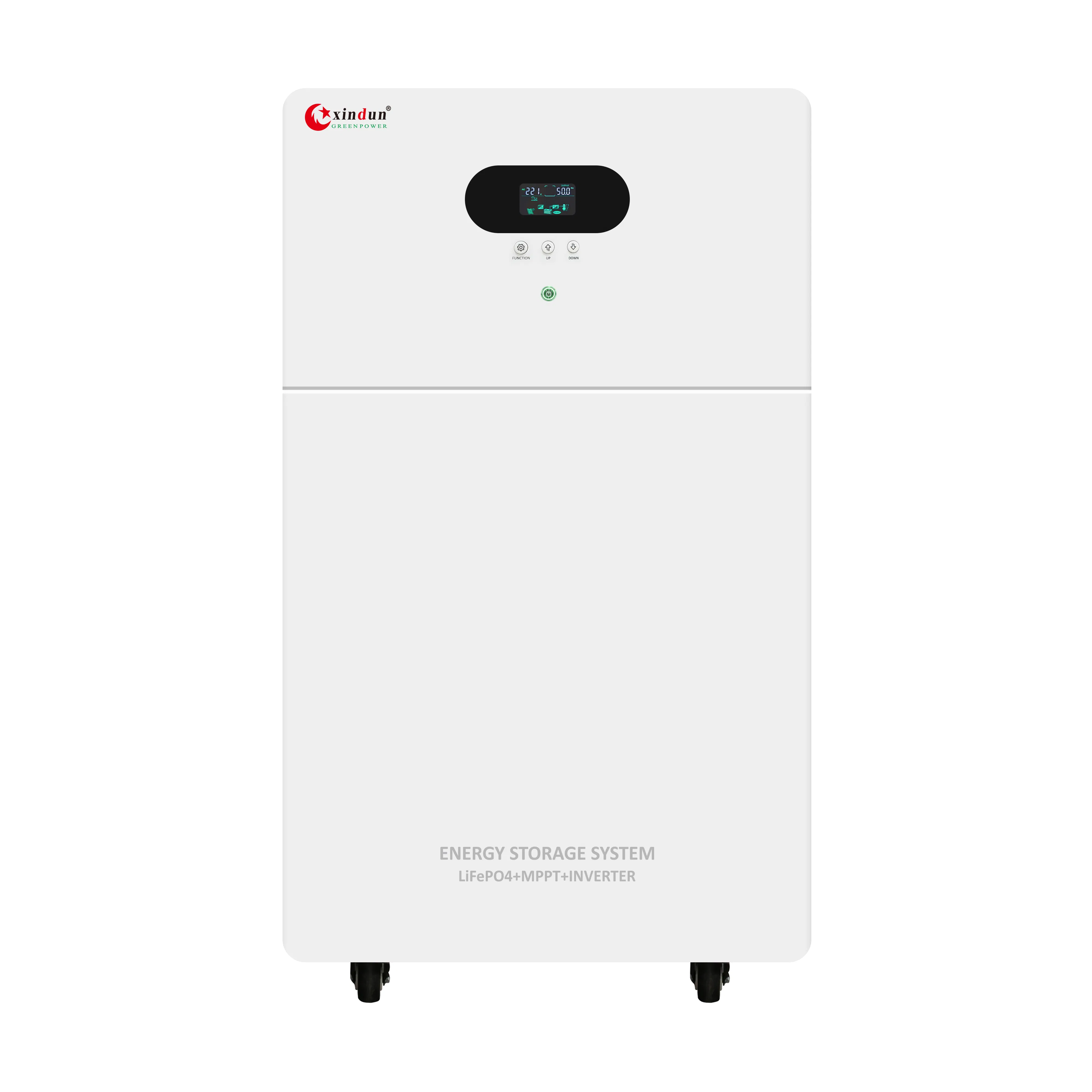

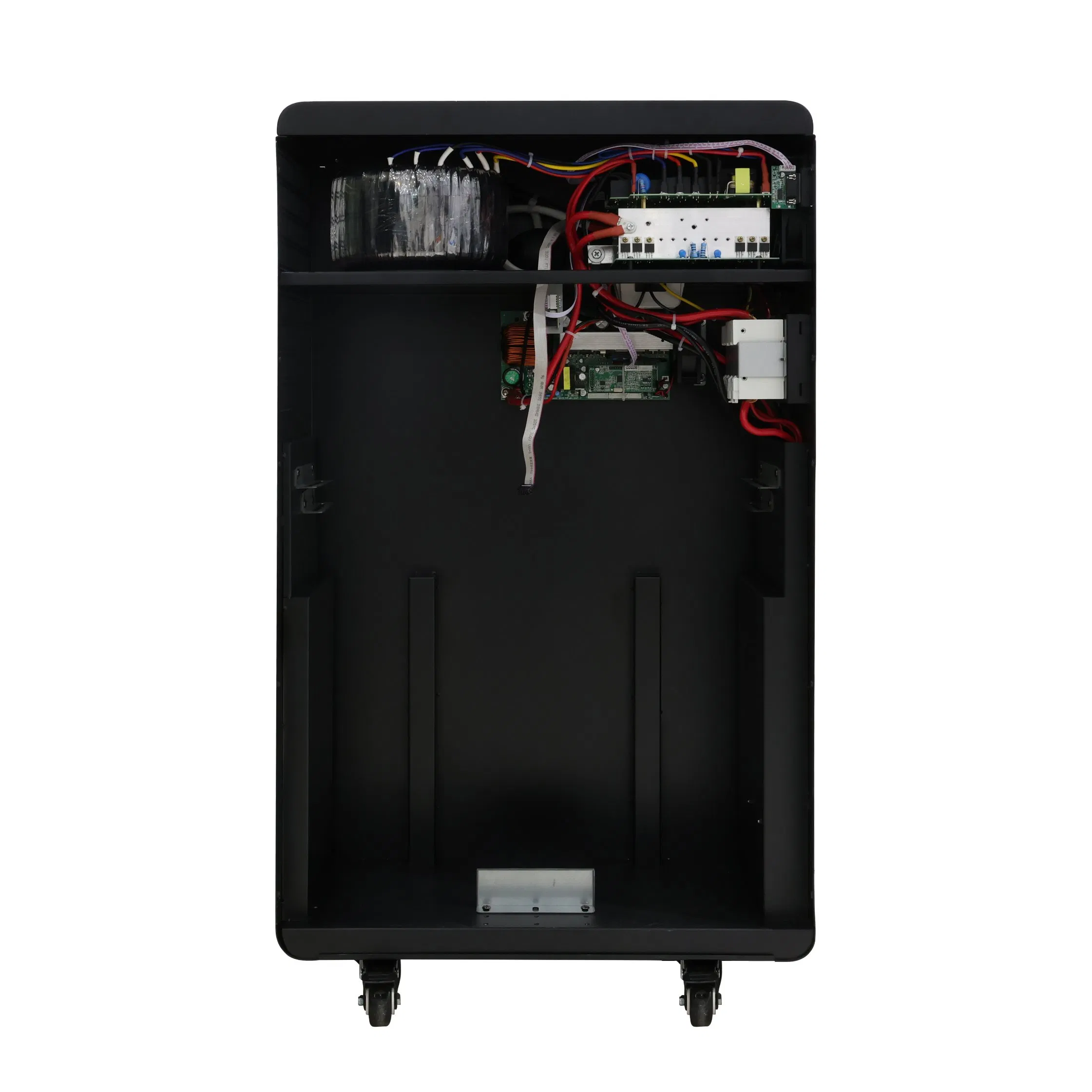

3000 Watt 24 V 12V DC to 220V AC All in One Inverter Charger

1 / 5

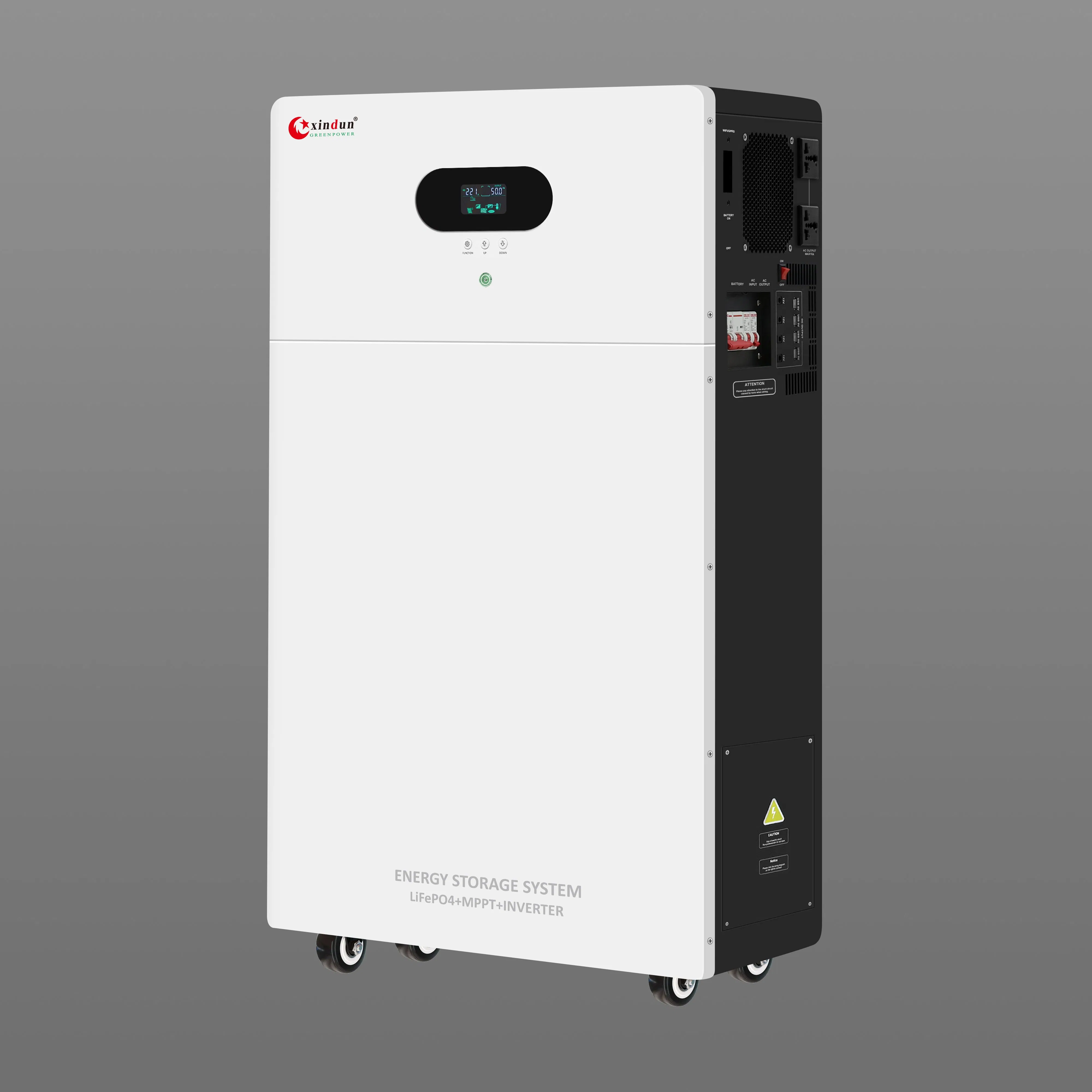

3000 Watt 24 V 12V DC to 220V AC All in One Inverter Charger

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

📊 Basic Information

Model NO.

XD-ESS Li

Output Type

DC to AC Solar Generator

System

Off-Grid system

Certification

CE, ISO

Power

300W-7000W

Battery Type

Lithium Battery

Output Efficiency

>85%

Charging Mode

MPPT

Display

LCD+LED

Communication

RS485/APP (WiFi/GPRS)

Working Modes

AC First, Battery First, PV First

Trademark

OEM/ODM

⚡ Inverter Features

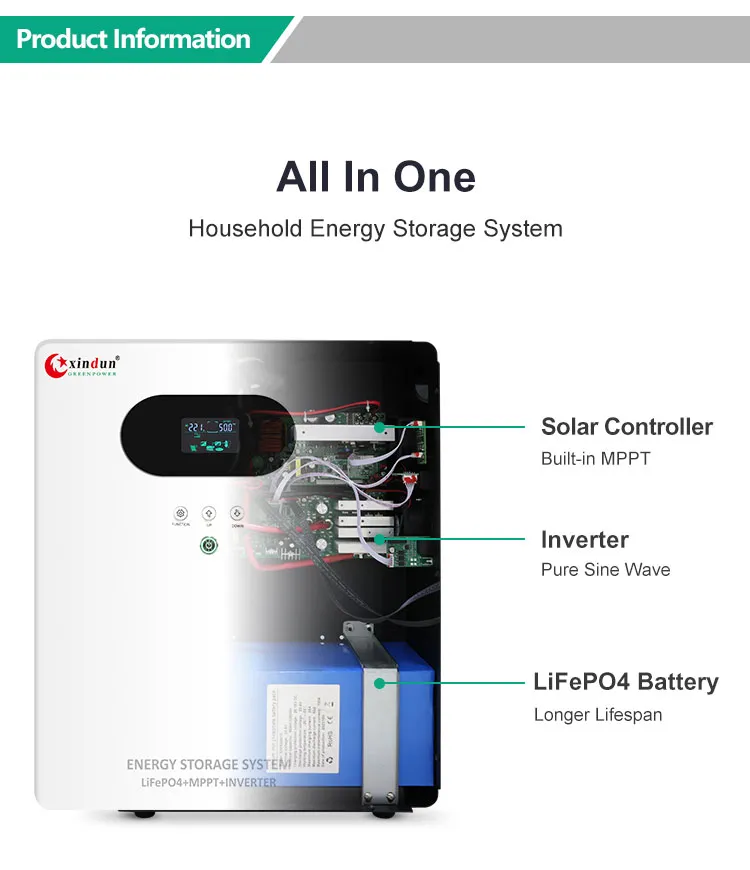

Convenient installation, integrating solar controller, inverter and battery all in one machine.

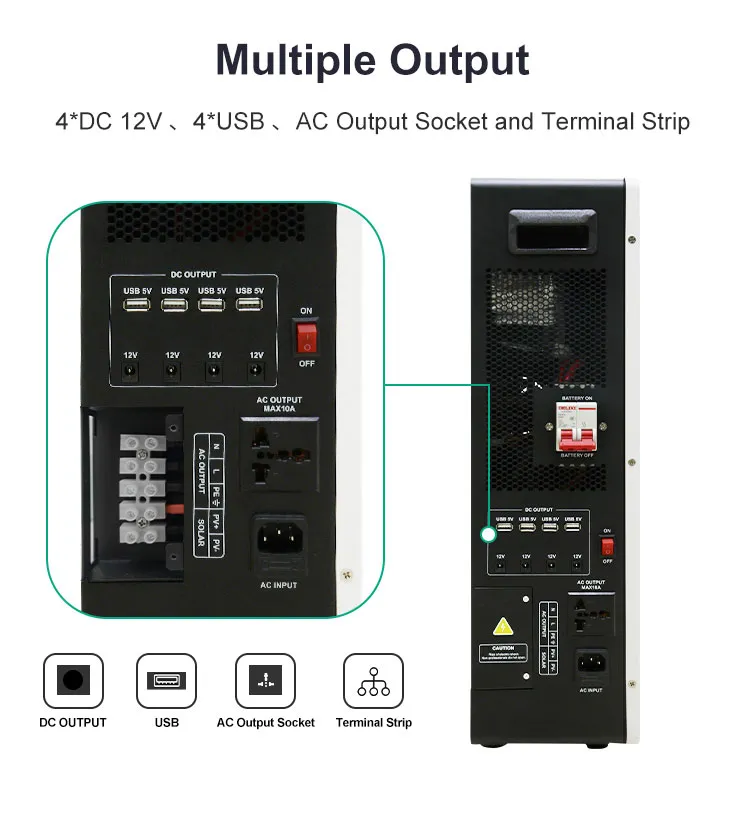

Compact and elegant design, unique art design and convenient output connection port.

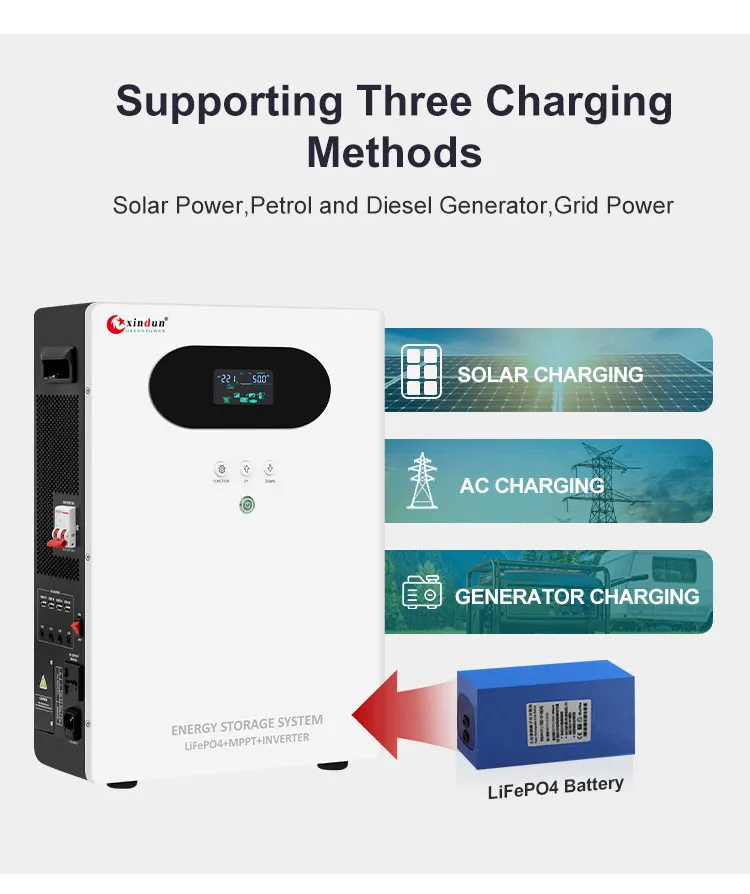

Flexible energy storage capacity, supporting three charging methods: solar power, petrol/diesel generator, and grid power.

Support WiFi or APP monitoring for real-time status updates.

Comprehensive protection: overvoltage, overtemperature, overload, and battery BMS report.

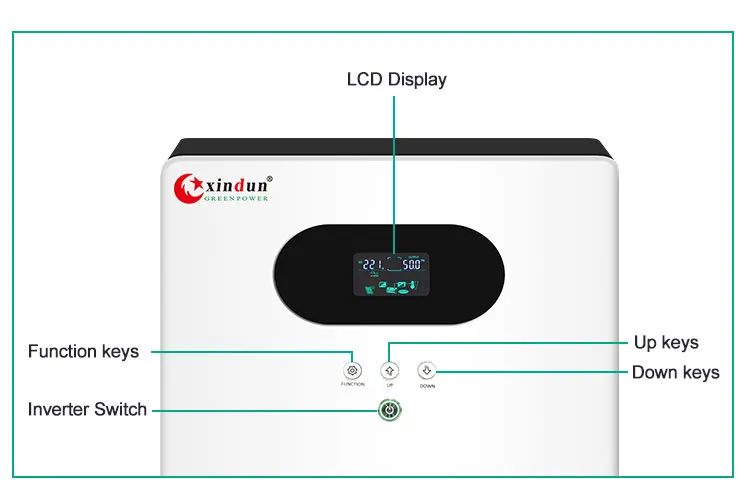

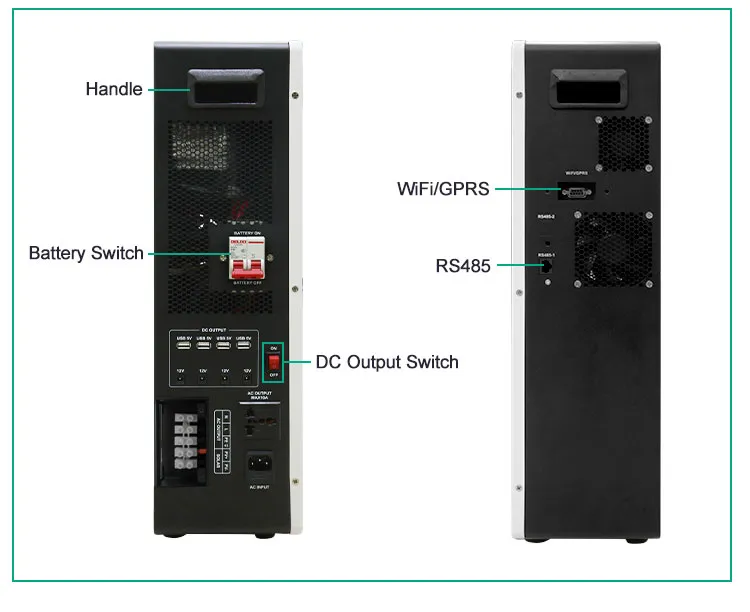

🔍 Product Details

📋 Technical Specification

Model ESS-Li Specifications
Rated Power	300W	600W	1200W	2200W	3000W	5000W	5000W	5000W	6000W	7000W
Battery Voltage	12.8VDC		25.6VDC		51.2VDC
Battery Type	LiFePO4 Battery
Max Charge Current	25A	30A	30A	60A	55A	90A	90A	90A	110A	110A
AC Input Voltage	110VAC/120VAC/220VAC/230VAC/240VAC
Output Wave	Pure Sine Wave
Max PV Input	120VDC		120VDC	120VDC	180VDC	180VDC	180VDC	180VDC	180VDC	180VDC
Efficiency	>85%

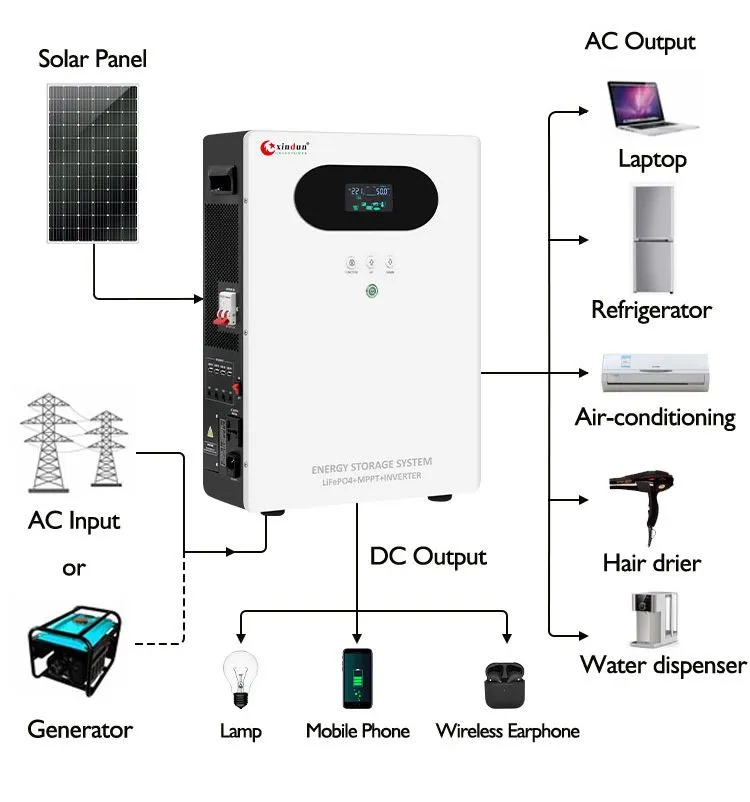

🔌 Wiring Diagram

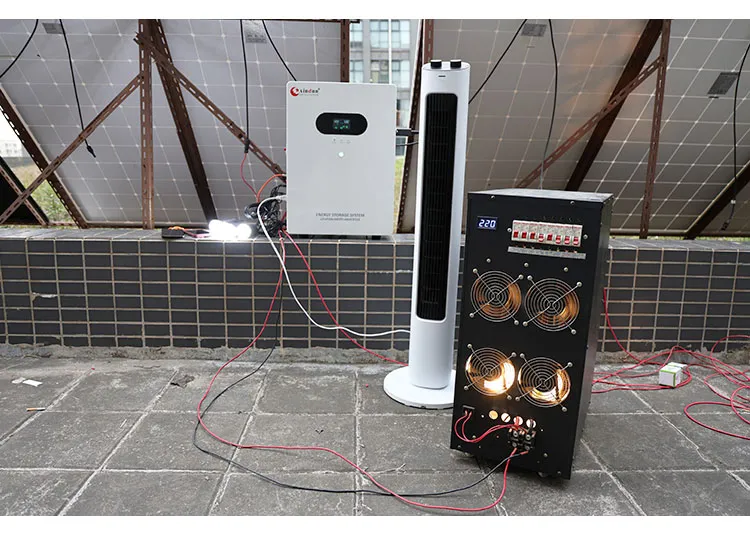

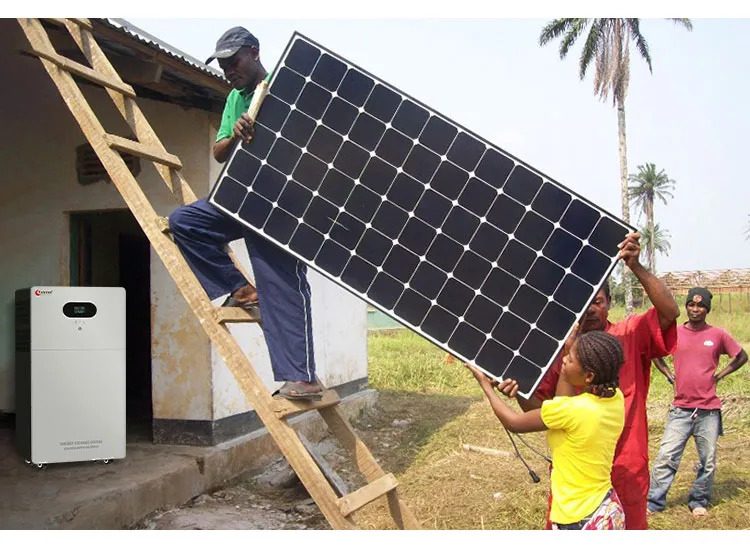

🏠 Application Case

📦 Packing & Delivery

Package

Standard Carton Box for safe packaging; Wooden Box is recommended for samples to provide maximum protection during transportation.

Shipping Options

1. Express: FedEx/DHL/TNT/UPS for samples (Door-to-Door).
2. Bulk: By Air or Sea for batch goods.
3. Flexibility: Customer-specified freight forwarders accepted.

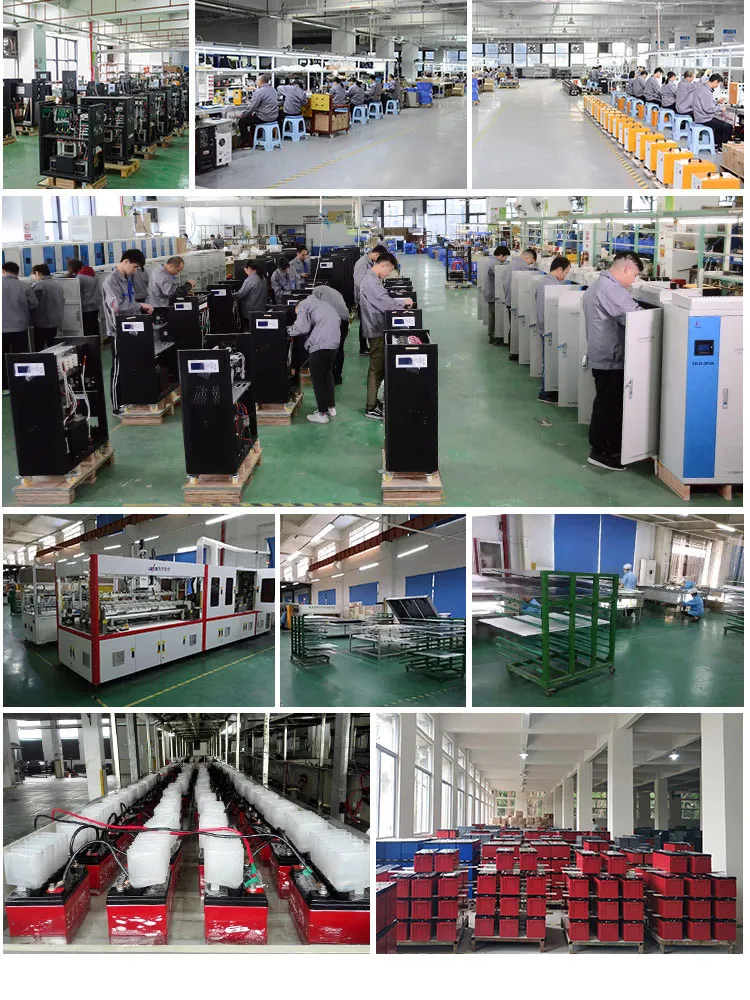

🏭 Workshop & Production

❓ Frequently Asked Questions

1. What is the main advantage of an "All-in-One" system?

It integrates the solar controller, inverter, and lithium battery into a single unit, which significantly simplifies installation, saves space, and ensures better compatibility between components.

2. Can I monitor the system remotely?

Yes, the system supports RS485 communication and can be equipped with WiFi or GPRS modules for real-time monitoring via a mobile APP.

3. What charging sources are supported?

The XD-ESS Li supports three charging methods: Solar (PV) power, utility grid power, and petrol or diesel generators.

4. Is the output a pure sine wave?

Yes, it provides a pure sine wave output, which is safe for sensitive electronics and home appliances like refrigerators, computers, and medical equipment.

5. What is the typical delivery time?

Generally, samples take about 7 days, while batch orders range from 10 to 25 days depending on the quantity and specifications.

6. What protections does the system include?

The unit features full protection against overvoltage, overtemperature, overload, and short circuits, along with a dedicated Battery Management System (BMS).
