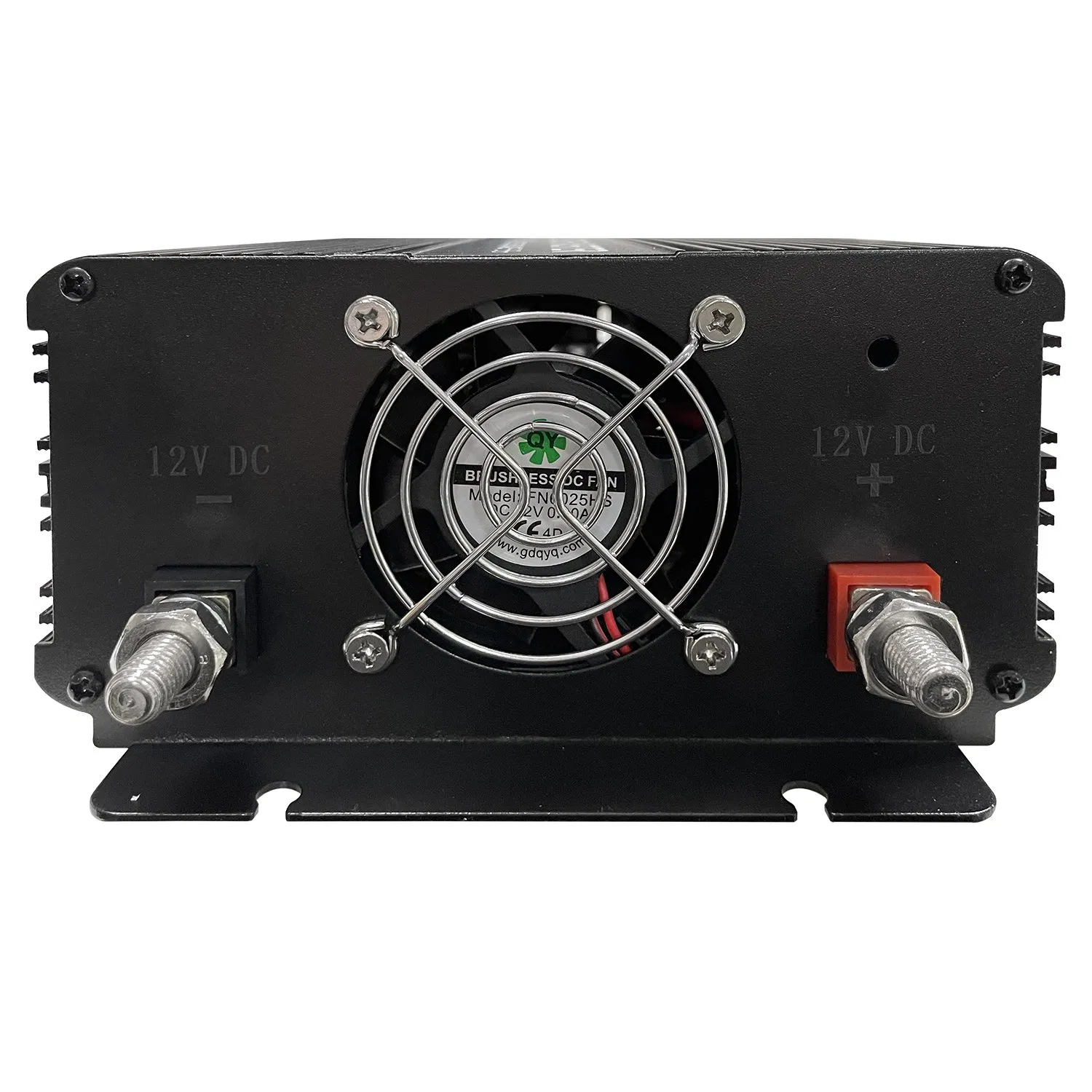

2000W Modified Sine Wave Inverter DC 12/24V to 110V/220V AC Converters for off-Grid Power System or Car Use
2000W Modified Sine Wave Inverter DC 12/24V to 110V/220V AC Converters for off-Grid Power System or Car Use
2000W Modified Sine Wave Inverter DC 12/24V to 110V/220V AC Converters for off-Grid Power System or Car Use
2000W Modified Sine Wave Inverter DC 12/24V to 110V/220V AC Converters for off-Grid Power System or Car Use
2000W Modified Sine Wave Inverter DC 12/24V to 110V/220V AC Converters for off-Grid Power System or Car Use
1 / 5
2000W Modified Sine Wave Inverter DC 12/24V to 110V/220V AC Converters for off-Grid Power System or Car Use
2000W Modified Sine Wave Inverter DC 12/24V to 110V/220V AC Converters for off-Grid Power System or Car Use
2000W Modified Sine Wave Inverter DC 12/24V to 110V/220V AC Converters for off-Grid Power System or Car Use
2000W Modified Sine Wave Inverter DC 12/24V to 110V/220V AC Converters for off-Grid Power System or Car Use
2000W Modified Sine Wave Inverter DC 12/24V to 110V/220V AC Converters for off-Grid Power System or Car Use

2000W Modified Sine Wave Inverter DC 12/24V to 110V/220V AC Converters for off-Grid Power System or Car Use

Customization: Available
Nature of Source Flow: Active Inverter
Certification: CCC, ISO9001, CE, SAA
Send Inquiry

Product Description

Product Overview

Model NO. CT Series Output Power >1000W
Grid Type Off-Grid Inverter Output Type Single
Circuit Topologies Half-Bridge Type Wave Form Modified Sine Wave
Type DC/AC Inverters Origin China

High Frequency Modified Sine Wave Inverter

CT 300-3000W Series

Modified Sine Wave Inverter

KEY FEATURES

  • ✓ High frequency DC/AC Power Inverter CT300-3000W
  • ✓ Single phase Modified sine wave with USB Charger
  • ✓ Output 220V/230V or 110V/120V 50/60HZ
  • ✓ Full range protection for output and battery
  • ✓ Two times surge capacity for all modes
  • ✓ Multi-use: Car, Home, or Solar Inverter
  • ✓ Selectable Sockets (S03/S05/S11/S12/S13/S14)
  • ✓ Included Battery Cable

Product Display

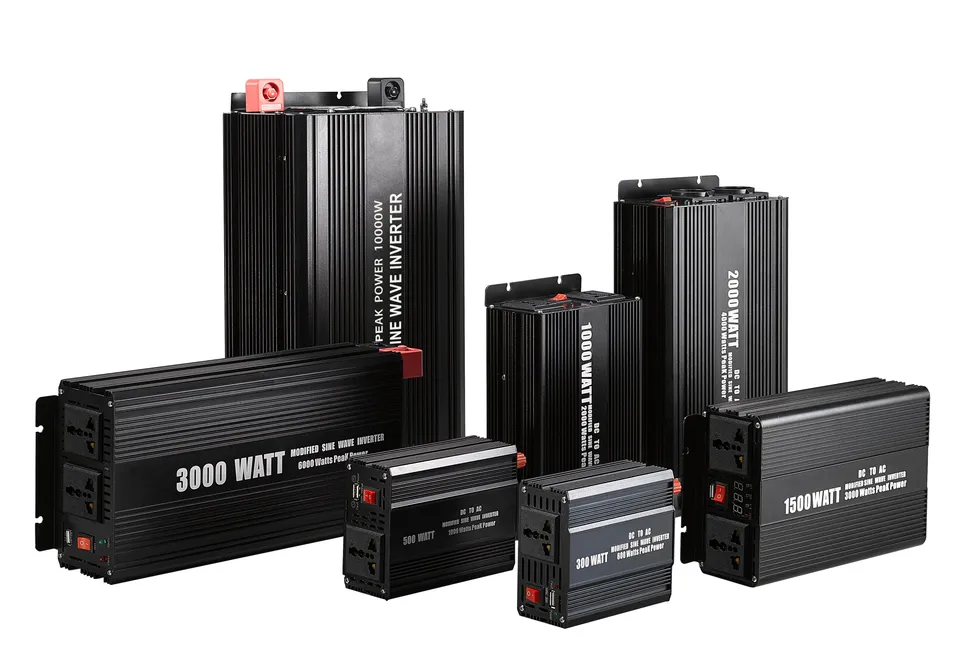

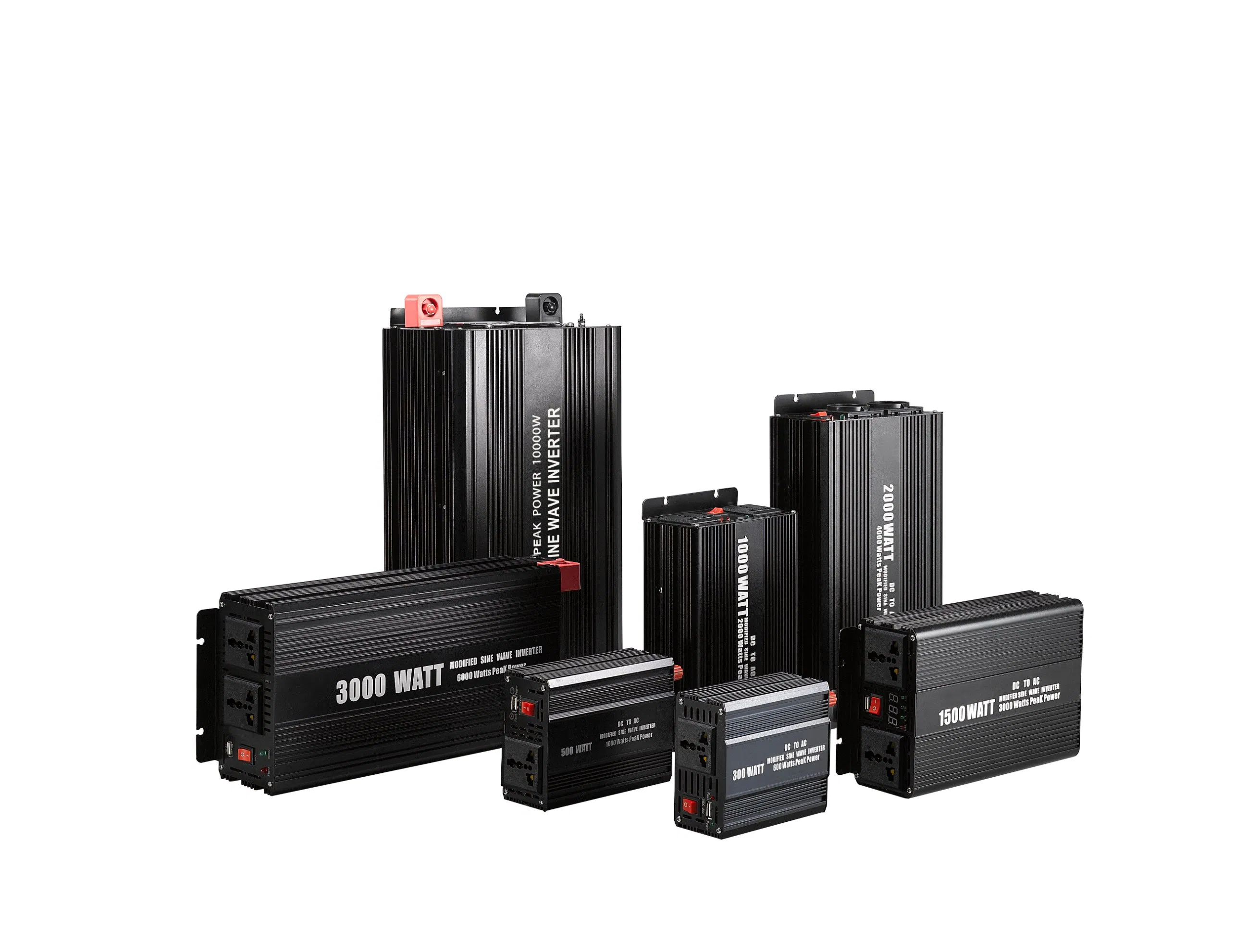

Different capacities available in standard form factors

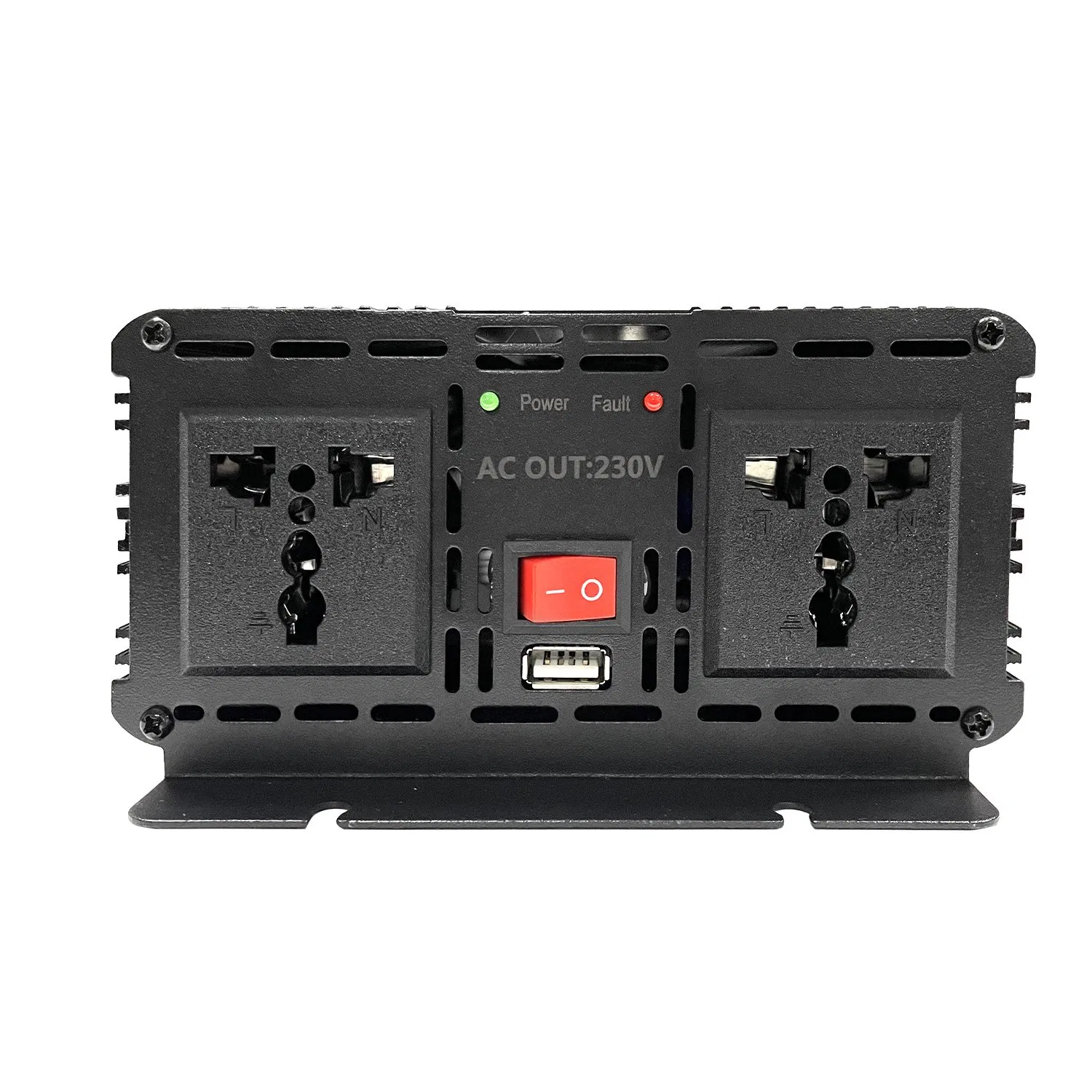

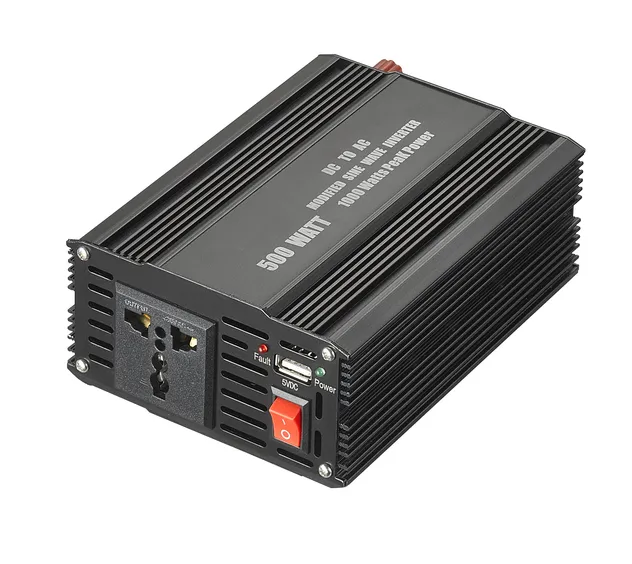

CT500 AC Side

CT500 AC Side

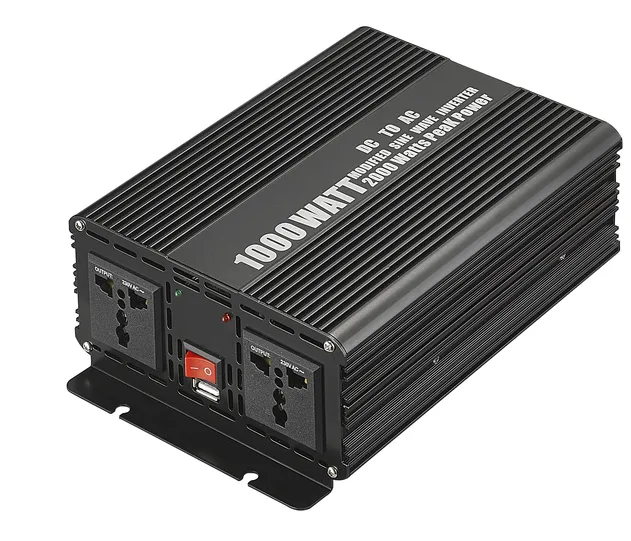

CT1000 AC Side

CT1000 AC Side

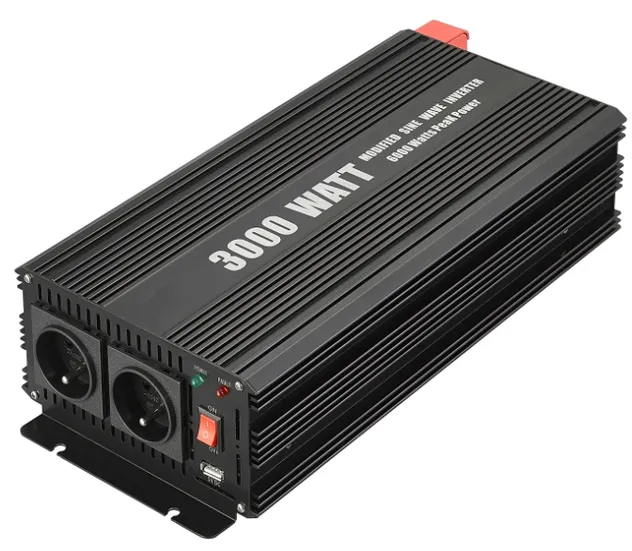

CT3000 AC Side

CT3000 AC Side

Technical Specifications

Model CT300 CT500 CT1000 CT1500 CT2000 CT3000
Rated Power 300W 500W 1000W 1500W 2000W 3000W
Surge Power Two Times of the Rated Power
Input Voltage 12V / 24V / 48V DC
Output Voltage 110VAC or 220VAC ±5%
Output Waveform Modified Sine Wave
Output Efficiency 88% MAX
Cooling Way Intelligent Cooling Fan
Dimensions (mm) 155*112*58 180*112*58 245*150*77 285*150*77 320*167*92 410*167*92
Feature 1 Feature 2 Feature 3 Feature 4

Frequently Asked Questions

Q1: What devices can I power with this modified sine wave inverter?
It is ideal for resistive loads such as lights, fans, laptops, phone chargers, and small power tools. For sensitive medical equipment or high-end audio, a pure sine wave is usually recommended.
Q2: Does the inverter support both 110V and 220V output?
The inverter is manufactured to specific voltage requirements. You can choose either 110VAC or 220VAC output at the time of order.
Q3: How does the cooling fan operate?
The unit features an intelligent cooling fan that activates based on internal temperature and load to ensure efficiency and quiet operation.
Q4: What safety protections are included?
The CT series includes a full range of protections: battery low voltage alarm/shutdown, over voltage protection, over load protection, and over temperature protection.
Q5: What is "Surge Power" and why is it important?
Surge power is the maximum power the inverter can provide for a short period (few seconds). Our inverters provide 2x the rated power to handle the initial startup current of motorized appliances.
Q6: Can I use this for a 24V solar system?
Yes, we provide versions compatible with 12V, 24V, and 48V DC inputs. Please select the input voltage that matches your battery bank.
